Contemporary Ranch Home Plan with Office and RV Garage - 2483 Sq Ft

Heated S.F.
2,483
Beds
3
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 580054DFT

Main Level
Main Level

Plan 580054DFT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

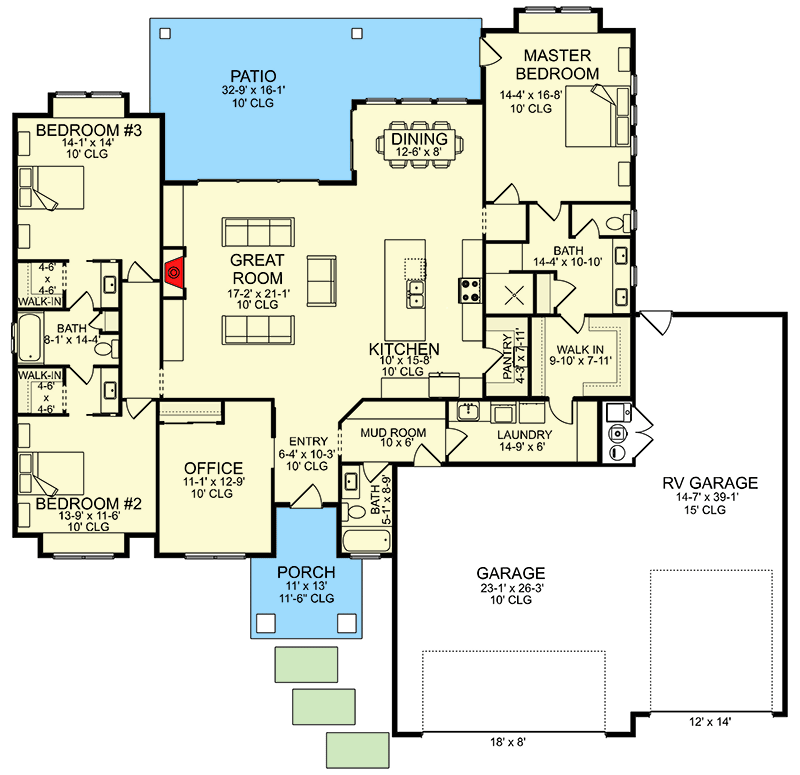

Plan 580054DFT: Contemporary Ranch Home Plan with Office and RV Garage - 2483 Sq Ft - Floor Plan - Main Level - Contemporary, Ranch, Transitional

Plan Details

  • The central, open living space in this Contemporary Ranch home plan separates the master bedroom from the secondary bedrooms for additional privacy.
  • Large windows line the rear wall of the great room and dining area offering views onto the rear patio and beyond. The island kitchen provides an easy flow, along with plenty of workspace and a walk-in pantry.
  • The master bedroom delivers a boxed-bay window as a sitting nook, access to the back patio, and a pass-thru closet that connects to the laundry room.
  • Bedrooms 2 and 3 share a Jack-and-Jill bath along the left side of the home, and a home office near the entry includes a closet.
  • The 3-car garage includes an oversized bay for your RV or larger vehicles and a mudroom just inside creates the perfect drop zone after a long day.

What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details
  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,483 sq. ft.

1st Floor

2,483 sq. ft.

Covered Patio

460 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 6"

Depth

72' 0"

Garage

Type

Attached, RV Garage

Area

1258 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Ranch

Transitional

Special Features

Bedrooms - Split

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Exclusive

Home Office

Square Footage Breakdown

Total Heated Area

2,483 sq. ft.

1st Floor

2,483 sq. ft.

Covered Patio

460 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 6"

Depth

72' 0"

Garage

Type

Attached, RV Garage

Area

1258 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Ranch

Transitional

Special Features

Bedrooms - Split

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Exclusive

Home Office
