Contemporary Ranch Home with Split-bedroom Layout - 3092 Sq Ft

Name: Plan 70809MK: Contemporary Ranch Home with Split-bedroom Layout - 3092 Sq Ft
Brand: Architectural Designs
SKU: 70809MK
Price: 1550.0 USD
Availability: InStock

Heated S.F.

3,092

Beds

Baths

3.5

Stories

Cars

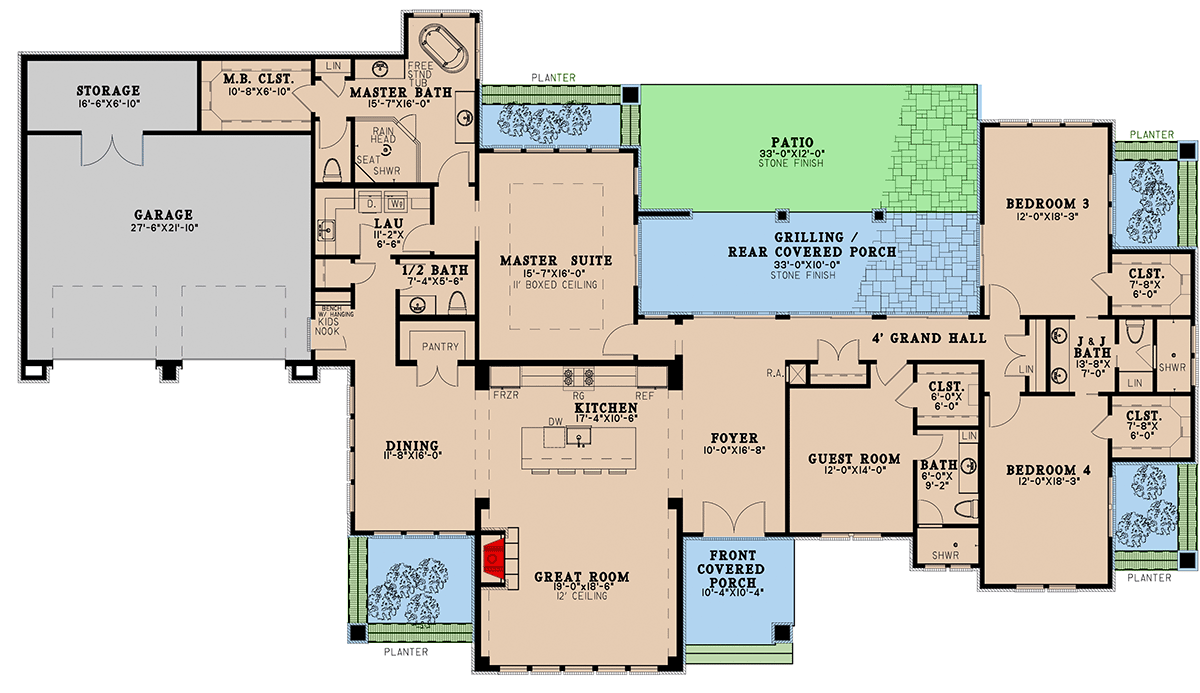

Floor Plan

Main Level

Plan Details

Touched by modern inspirations, this Contemporary Ranch home plan holds four bedrooms, three and one-half full baths, and a two-car garage; a total of 3,092 sq ft of living space.
Tall picturesque windows provide the perfect amount of natural light in the great room, complete with 12' ceilings, a brick fireplace, and a seamless flow into the kitchen.
From the heart of the home, you have easy access to the garage, laundry room, and pantry storage, making this design ideal for the growing family with active lives.
The master suite is located behind the kitchen, framed perfectly with a box ceiling and bathed in natural lighting due to large picture windows and walkout sliding doors. The ensuite features a freestanding tub, walk-in closet, and access to the laundry room.
To the right of the foyer, three sets of sliding doors in the grand hall lead to a generous covered porch that extends onto a patio. Three bedroom suites surround the rear porch, including a guest suite and two bedrooms that share a Jack-and-Jill bath.
Related Plan: Get a smaller version in reverse orientation with house plan 70889MK (2,954 sq. ft.).

What's Included

Foundation Plan (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)
Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
Roof Overview Plan (1/4"=1")
An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
