Plan 430057LY Contemporary Ranch Plan with 4-Car Garage

Contemporary Ranch Plan with 4-Car Garage

Plan 430057LY

  • 4,125

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • This contemporary, ranch plan presents a grand front entrance with an open gable roof exposing the timber frame. The stone trim and accent walls complete the design.
  • Inside, the hub of everyday living is located in the center of the home, separating the master bedroom from the secondary bedrooms for the utmost privacy. Large sliding doors create an indoor outdoor living space, which increases entertainment options, while keeping the budget in mind.
  • Homeowner's will enjoy the open flow between the common living spaces, while a quiet study and media room offers a more secluded space to escape to when needed.
  • The master suite is tucked behind the 4-car garage, and features a 5-fixture bath with a 2-person shower situated behind the central, freestanding tub. The three additional bedrooms each include their own full bath.
  • The mudroom, just inside from the garage, lends a space to organize outdoor gear and shoes when coming and going, and the nearby pantry helps when unloading groceries.

This designer's plans consist of the following:
  • Cover sheet
  • Roof plan
  • Floor plan

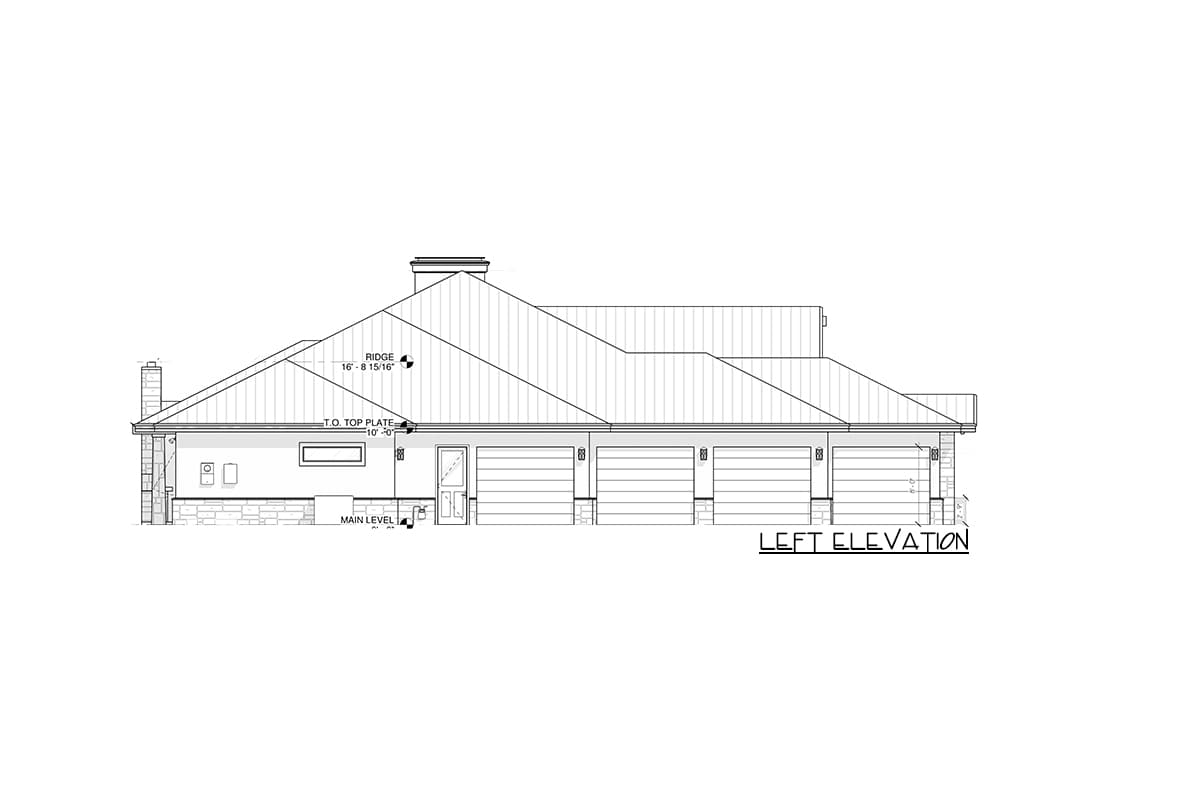

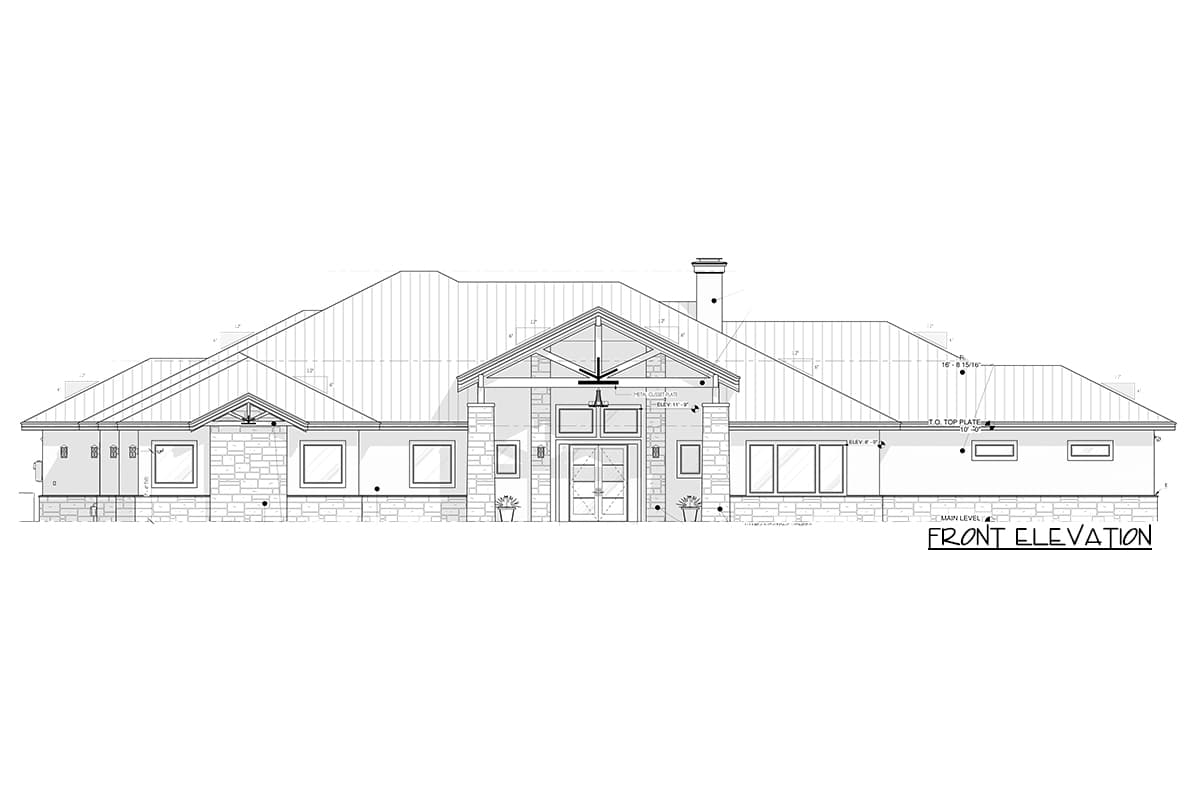

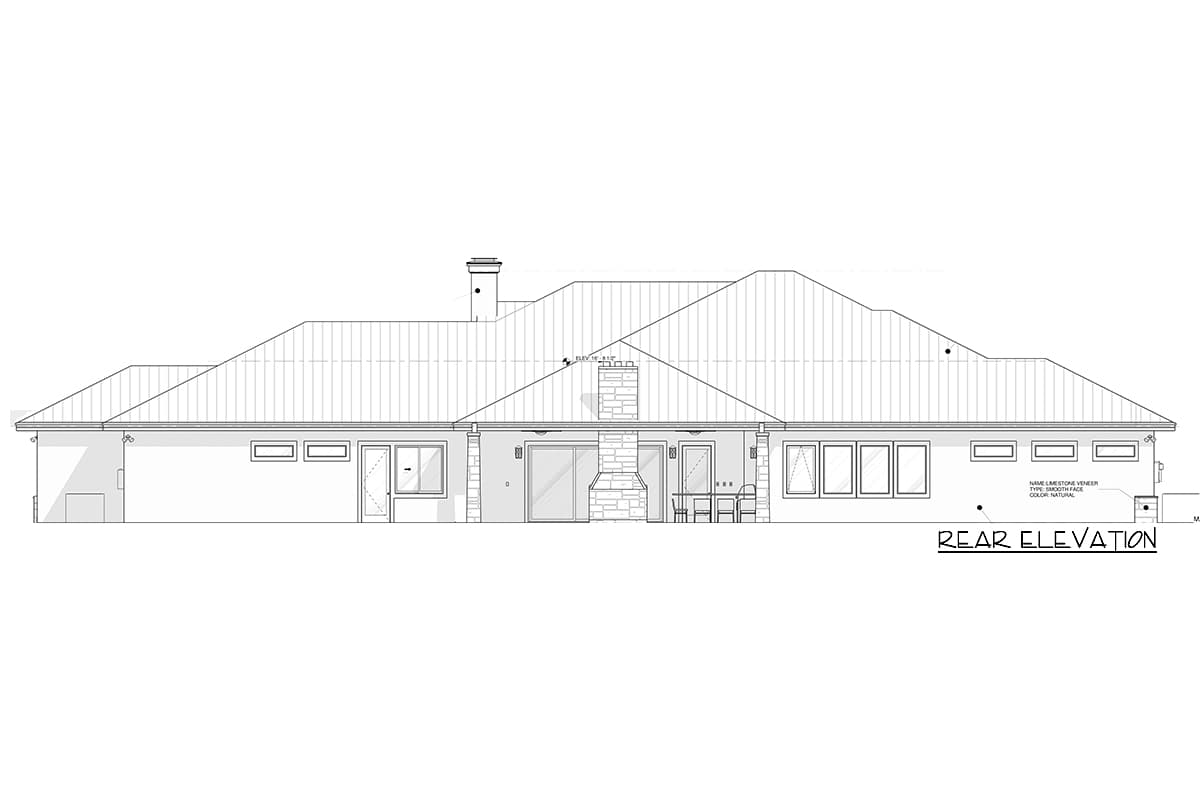

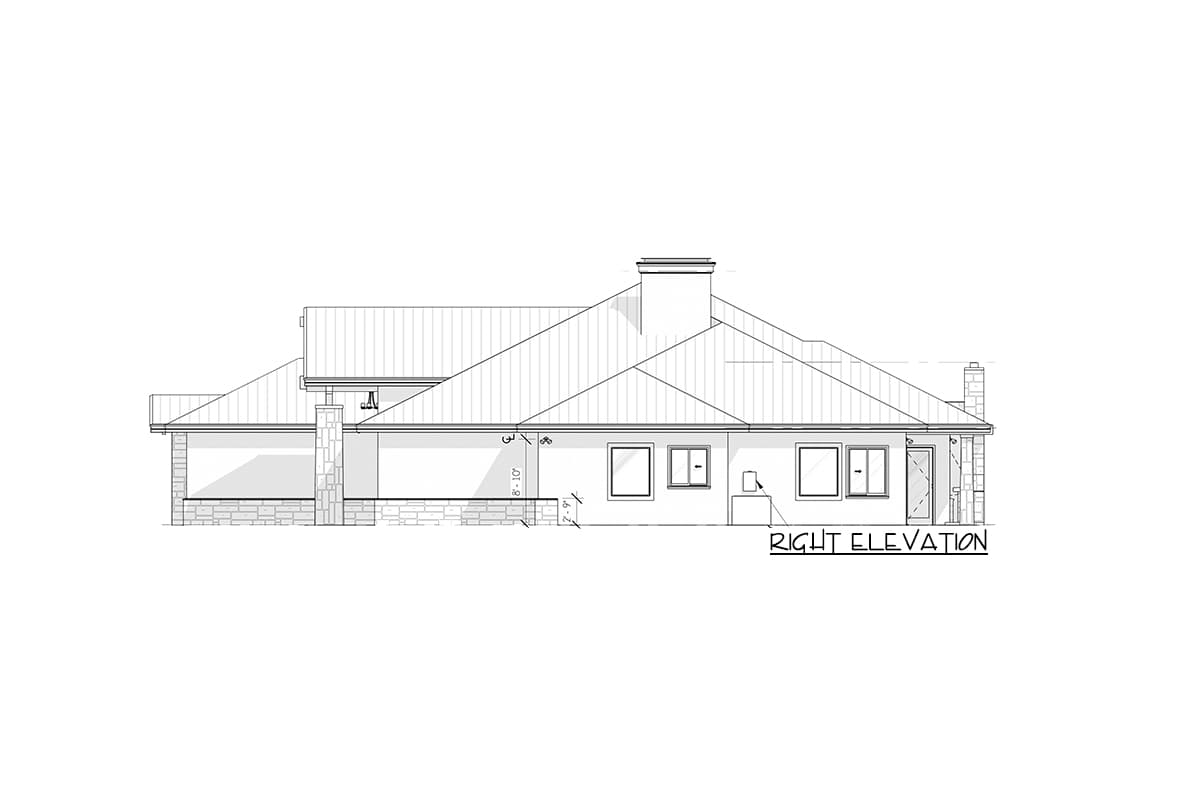

  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

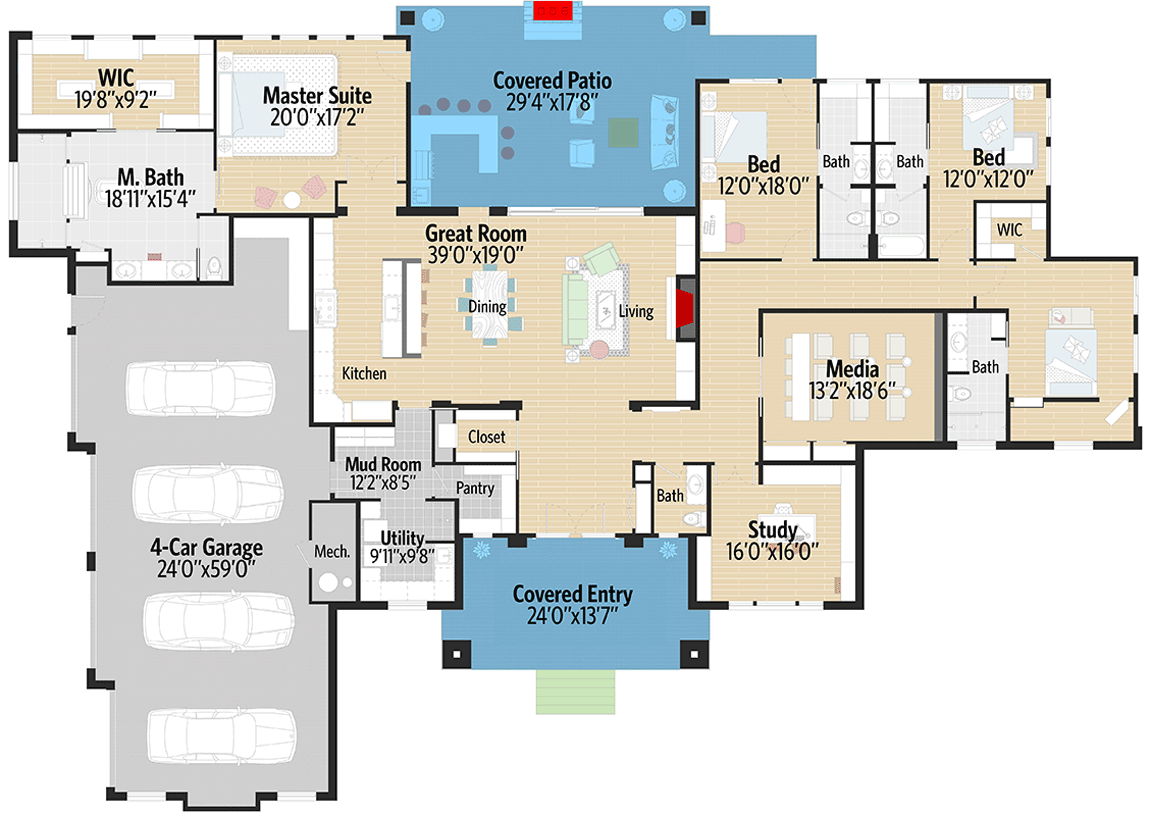

Contemporary Ranch Plan with 4-Car Garage - 430057LY floor plan - Main Level

Plan details



Contemporary Ranch Plan with 4-Car Garage

  • 4,125

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • Study Set – Digital $1,595
  • 5 Sets $1,795
  • PDF - Single-Build $1,995
  • CAD - Single-Build $2,395
  • View all purchase option online

About This Plan

  • This contemporary, ranch plan presents a grand front entrance with an open gable roof exposing the timber frame. The stone trim and accent walls complete the design.
  • Inside, the hub of everyday living is located in the center of the home, separating the master bedroom from the secondary bedrooms for the utmost privacy. Large sliding doors create an indoor outdoor living space, which increases entertainment options, while keeping the budget in mind.
  • Homeowner's will enjoy the open flow between the common living spaces, while a quiet study and media room offers a more secluded space to escape to when needed.
  • The master suite is tucked behind the 4-car garage, and features a 5-fixture bath with a 2-person shower situated behind the central, freestanding tub. The three additional bedrooms each include their own full bath.
  • The mudroom, just inside from the garage, lends a space to organize outdoor gear and shoes when coming and going, and the nearby pantry helps when unloading groceries.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,125 sq. ft.
  • 1st Floor: 4,125 sq. ft.
  • Covered Patio: 640 sq. ft.
  • Porch, Front: 326 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 116' 0"
  • Depth: 80' 0"

Garage

  • Type: Attached
  • Area: 1400 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side
