Contemporary Ranch with Options

Plan 21972DR

  • 962

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • This contemporary ranch house plan uses strong lines and repetitive geometric patterns to make a dramatic statement.
  • Beyond the front door, you'll find an open and flowing interior with abundant windows.
  • The bedroom wing is separated from the activities area creating a sensible layout.
  • This house plan includes an unfinished basement to be developed as desired.
  • Related Plan: Get more room with house plan 21971DR (1,146 sq. ft.).

Each plan includes the following:

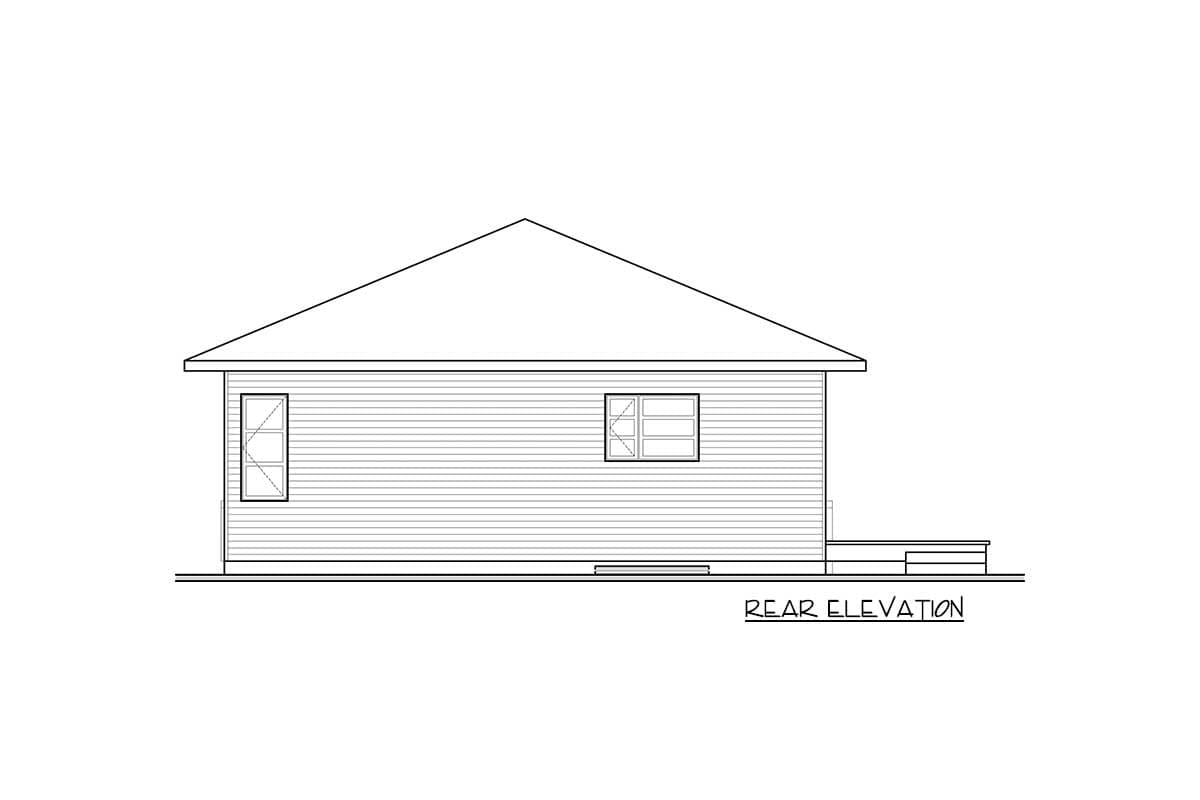

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

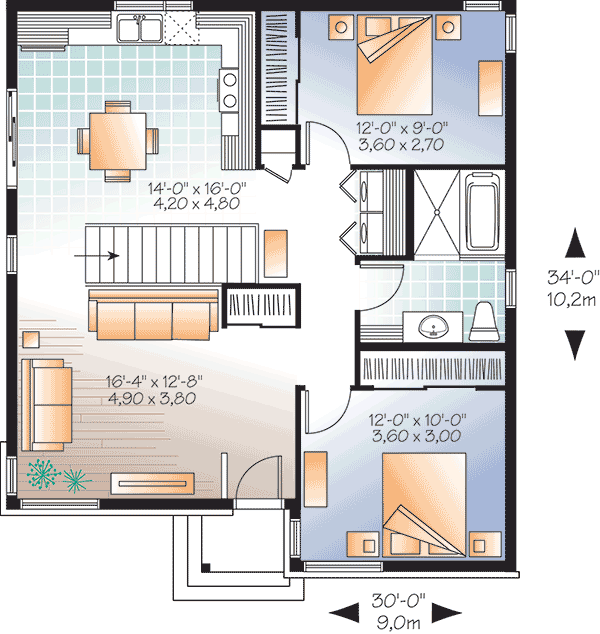

Contemporary Ranch with Options - 21972DR floor plan - Main Level

Plan details

Architectural Style

Special features

Plan Collections

Contemporary Ranch with Options

  • 962

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $870
  • Reproducible Set $870
  • 5 Sets + PDF $995
  • CAD - Single-Build $1,470
  • View all purchase option online

About This Plan

  • This contemporary ranch house plan uses strong lines and repetitive geometric patterns to make a dramatic statement.
  • Beyond the front door, you'll find an open and flowing interior with abundant windows.
  • The bedroom wing is separated from the activities area creating a sensible layout.
  • This house plan includes an unfinished basement to be developed as desired.
  • Related Plan: Get more room with house plan 21971DR (1,146 sq. ft.).

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 962 sq. ft.
  • 1st Floor: 962 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Daylight, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 34' 0"
  • Max ridge height: 17' 1"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Framing Type: Truss
