Eastern and Modern Influences

Plan 21971DR

  • 1,146

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

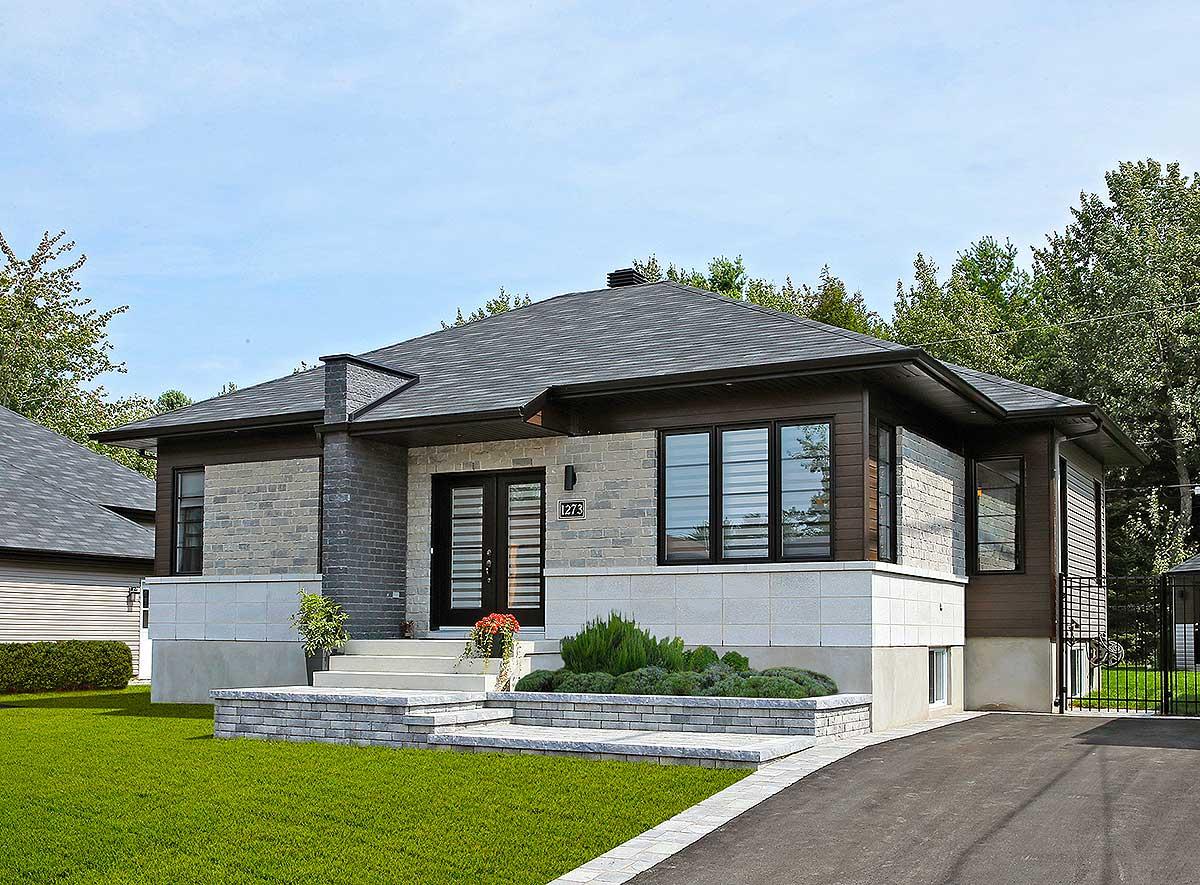

  • This Eastern and modern inspired house plan uses strong lines and repetitive geometric patterns to make a dramatic statement.
  • Beyond the shoji-style doors, you'll find an open and flowing interior. Abundant windows allow the interior to borrow from the landscape views to naturally extend the living space.
  • The bedroom wing is separated from the activities area creating a serene layout. The master bedroom is adorned with subtle windows and his and hers closets. A generous bathroom includes a separate 5' x 3' shower and laundry area.
  • This house plan includes an unfinished basement to be developed as desired.
  • Related Plan: For a smaller version, see house plan 21972DR (962 sq. ft.).

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

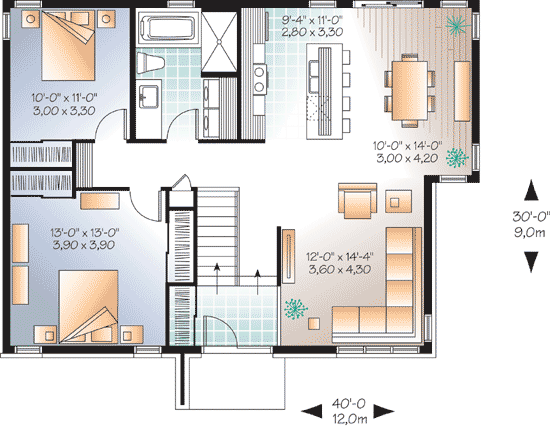

Eastern and Modern Influences - 21971DR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,146 sq. ft.
  • 1st Floor: 1,146 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 30' 0"
  • Max ridge height: 18' 4"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Eastern and Modern Influences

  • 1,146

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,250
  • 3 Sets + PDF $1,375
  • CAD + PDF - Single-Build $1,850
  • View all purchase option online

About This Plan

  • This Eastern and modern inspired house plan uses strong lines and repetitive geometric patterns to make a dramatic statement.
  • Beyond the shoji-style doors, you'll find an open and flowing interior. Abundant windows allow the interior to borrow from the landscape views to naturally extend the living space.
  • The bedroom wing is separated from the activities area creating a serene layout. The master bedroom is adorned with subtle windows and his and hers closets. A generous bathroom includes a separate 5' x 3' shower and laundry area.
  • This house plan includes an unfinished basement to be developed as desired.
  • Related Plan: For a smaller version, see house plan 21972DR (962 sq. ft.).
