Contemporary Ranch with Two Separate Garages

Plan 623072DJ

  • 2,515

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

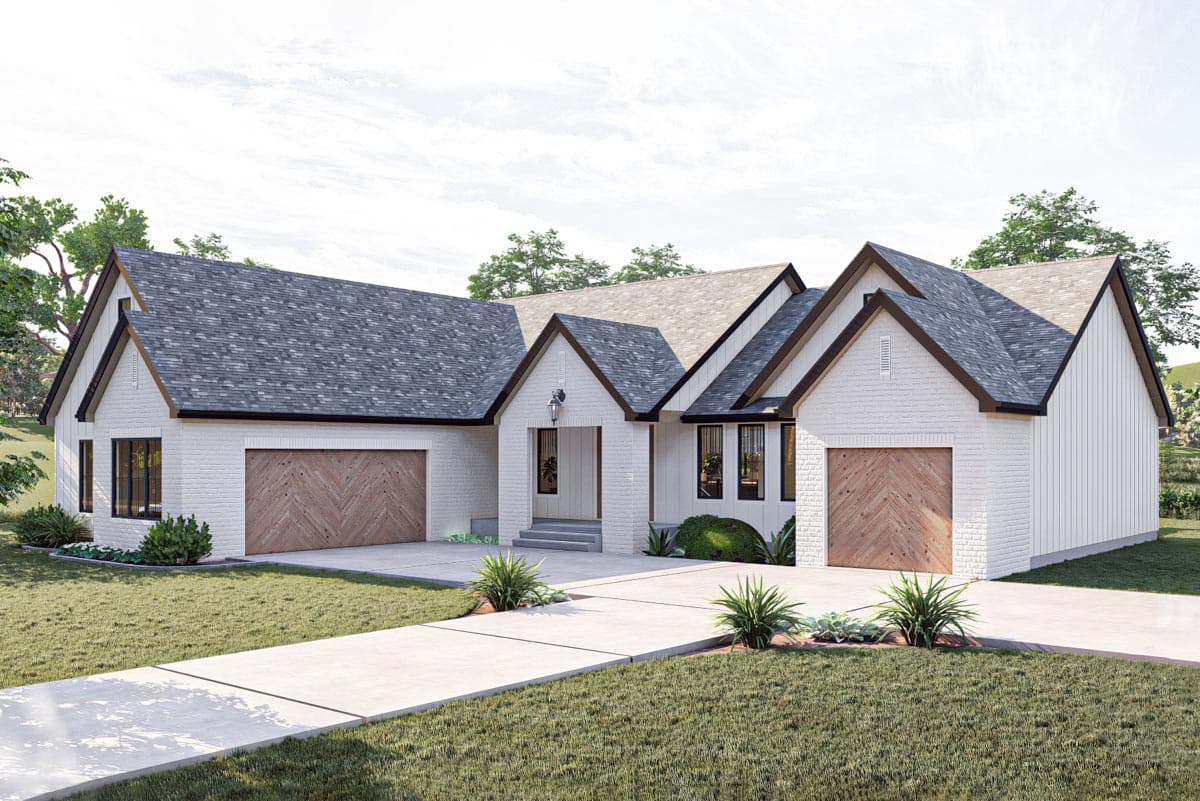

  • This contemporary ranch home plan has a beautiful exterior with a blend of board and batten siding, white painted brick, and wood accents. A front covered porch greets guests into the home.

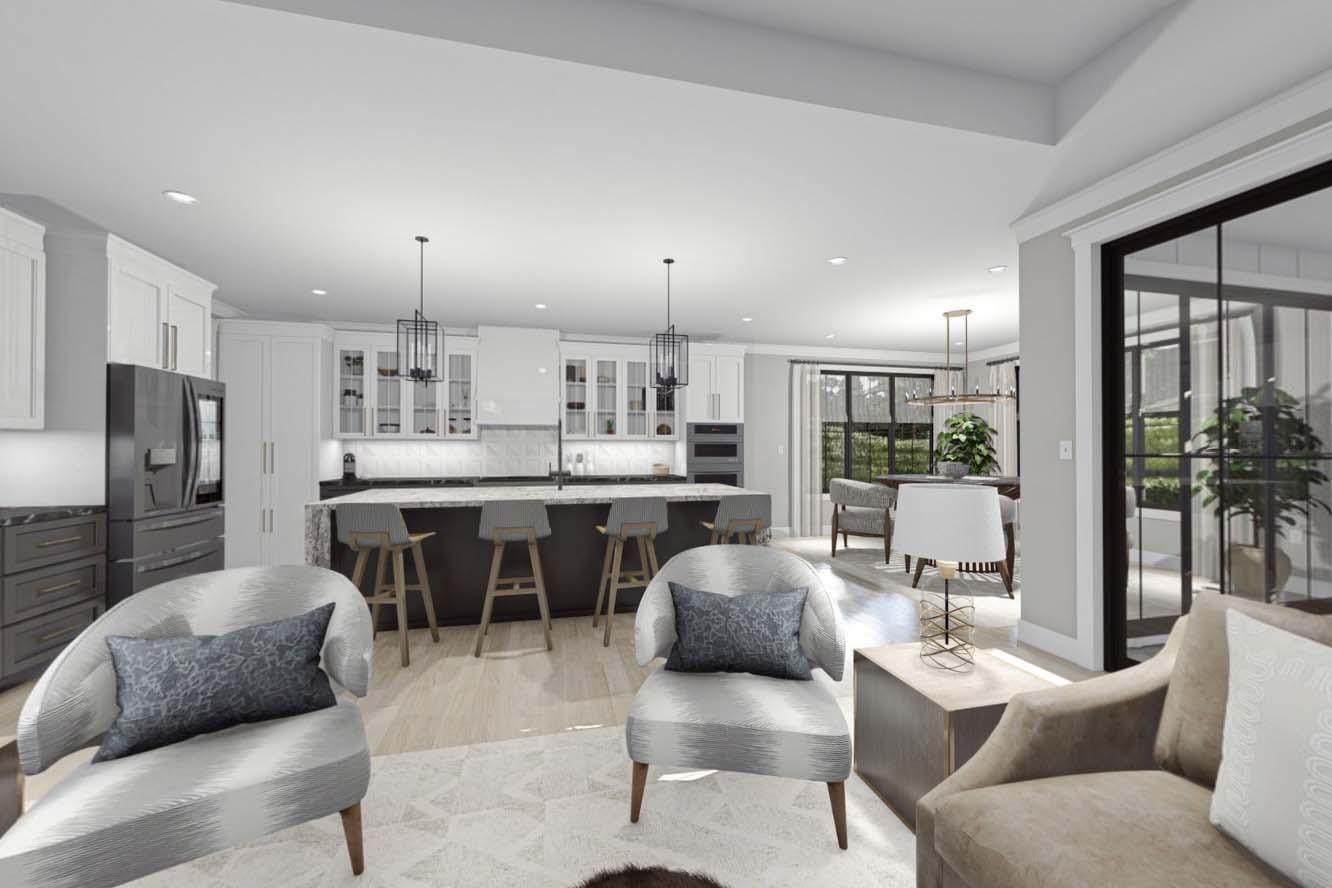

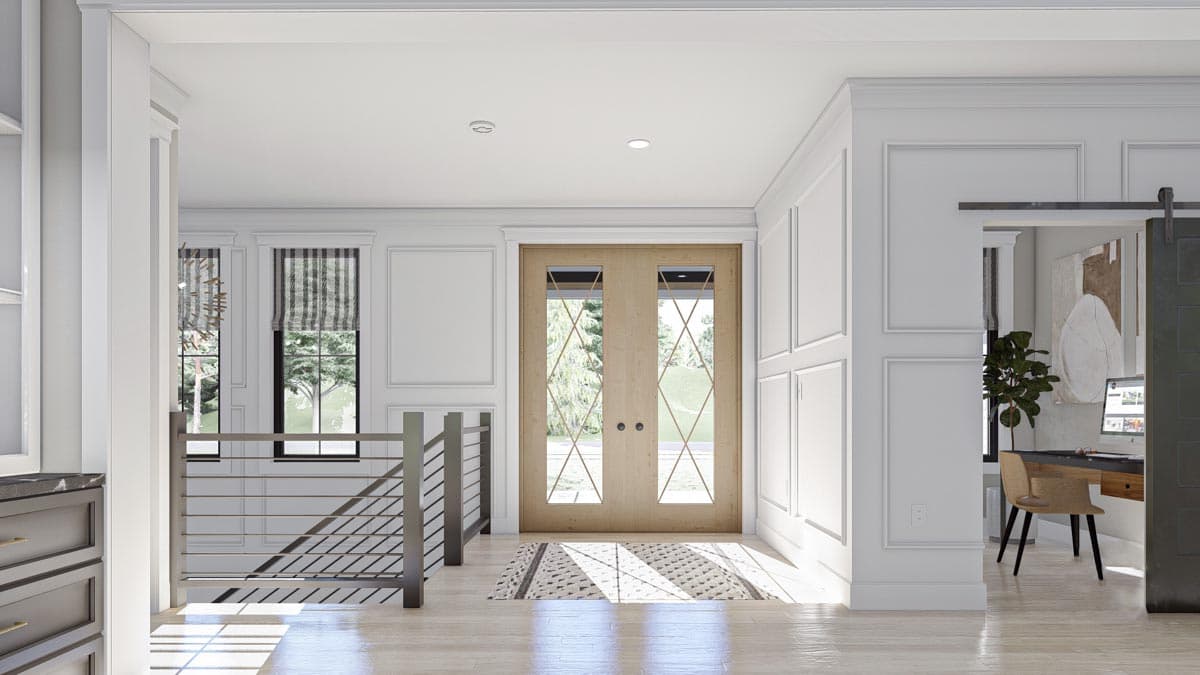

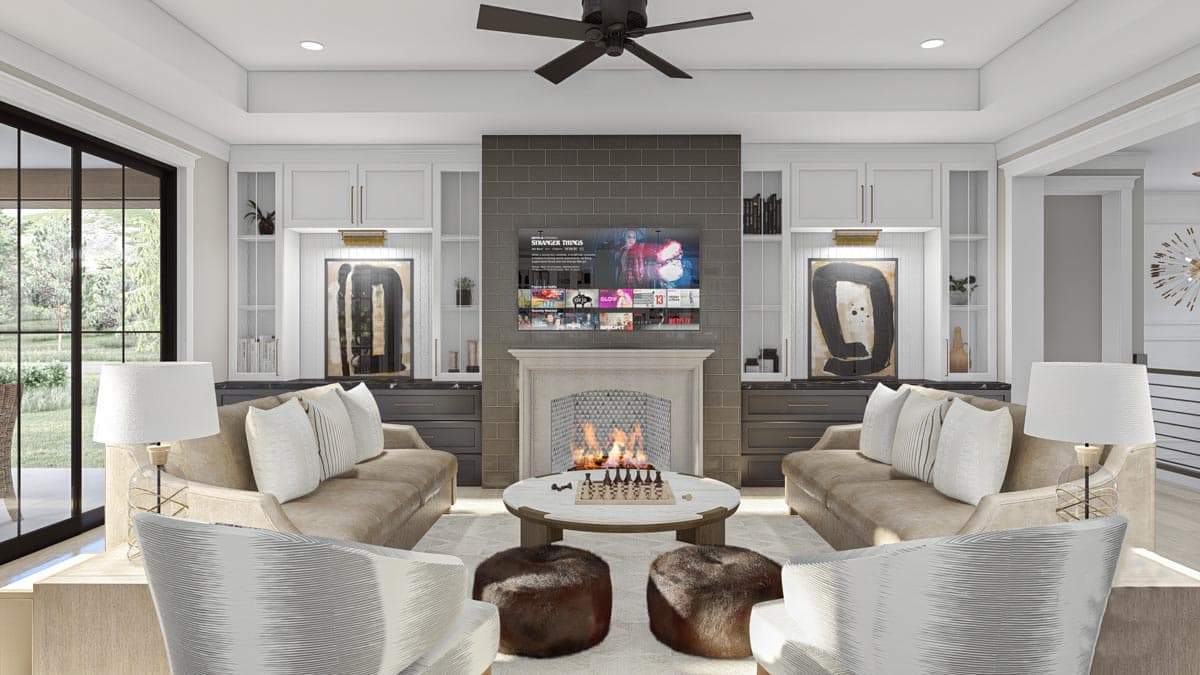

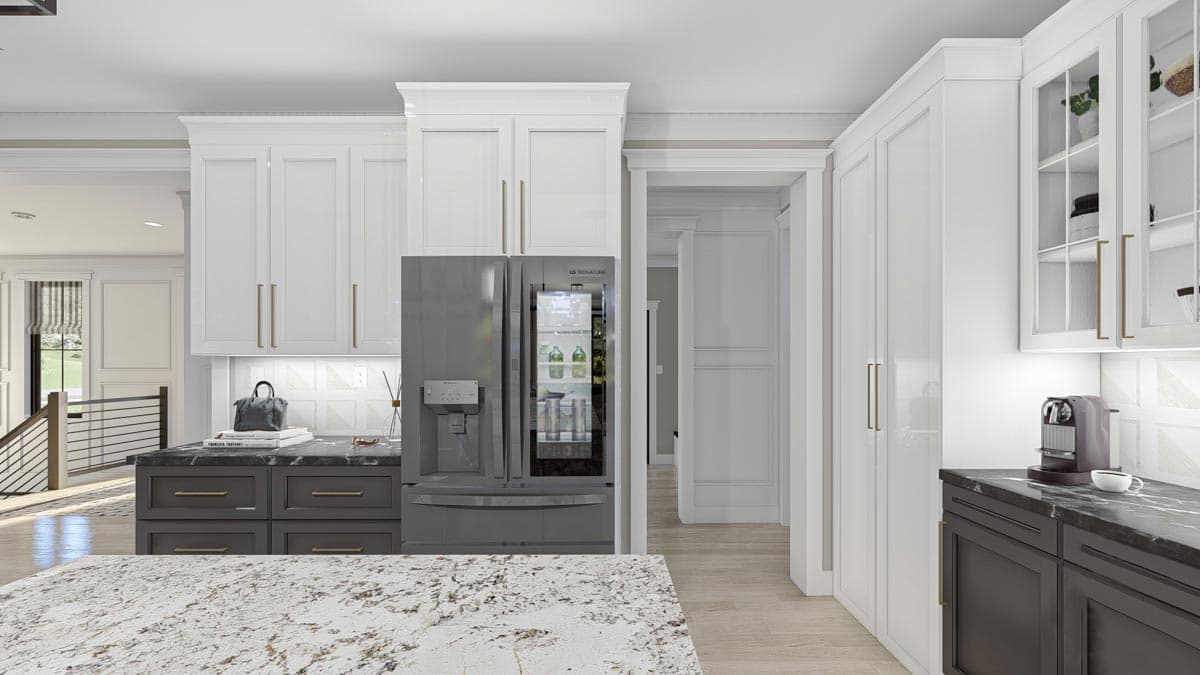

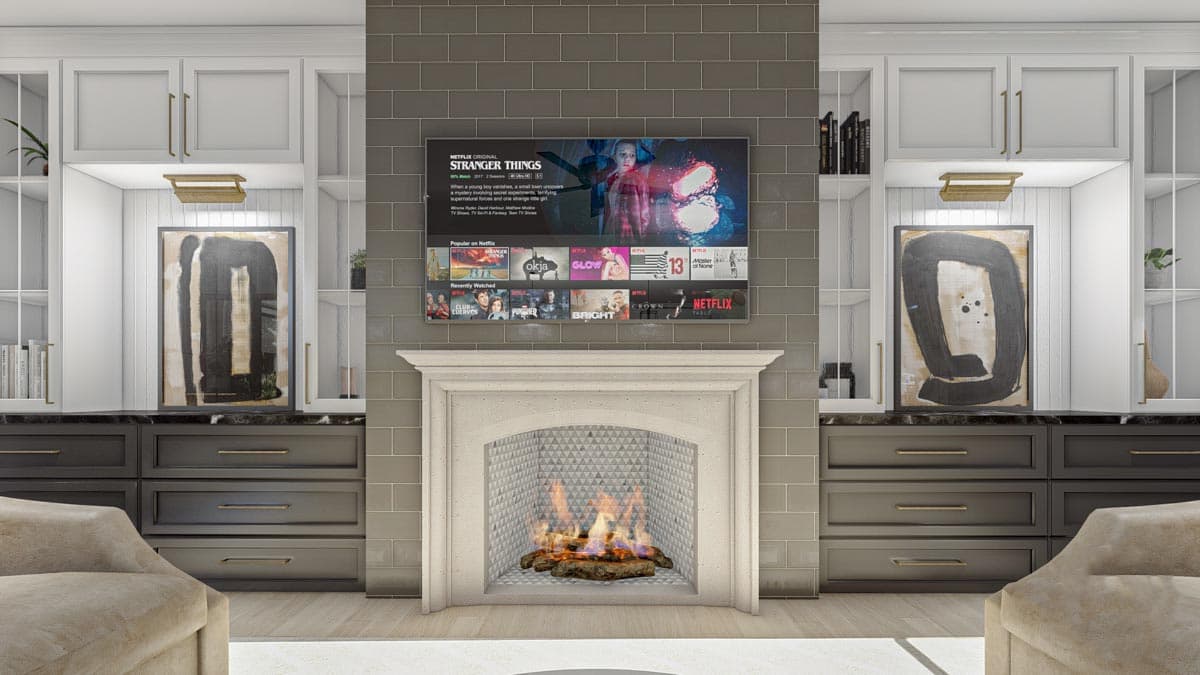

  • Just inside the entry, you'll notice the wide-open floor plan. The great room is warmed by a fireplace that is flanked by built-in bookshelves. A large sliding glass door leads from the great room to the rear covered porch. The kitchen includes a large island with a snack bar and a walk-in pantry.

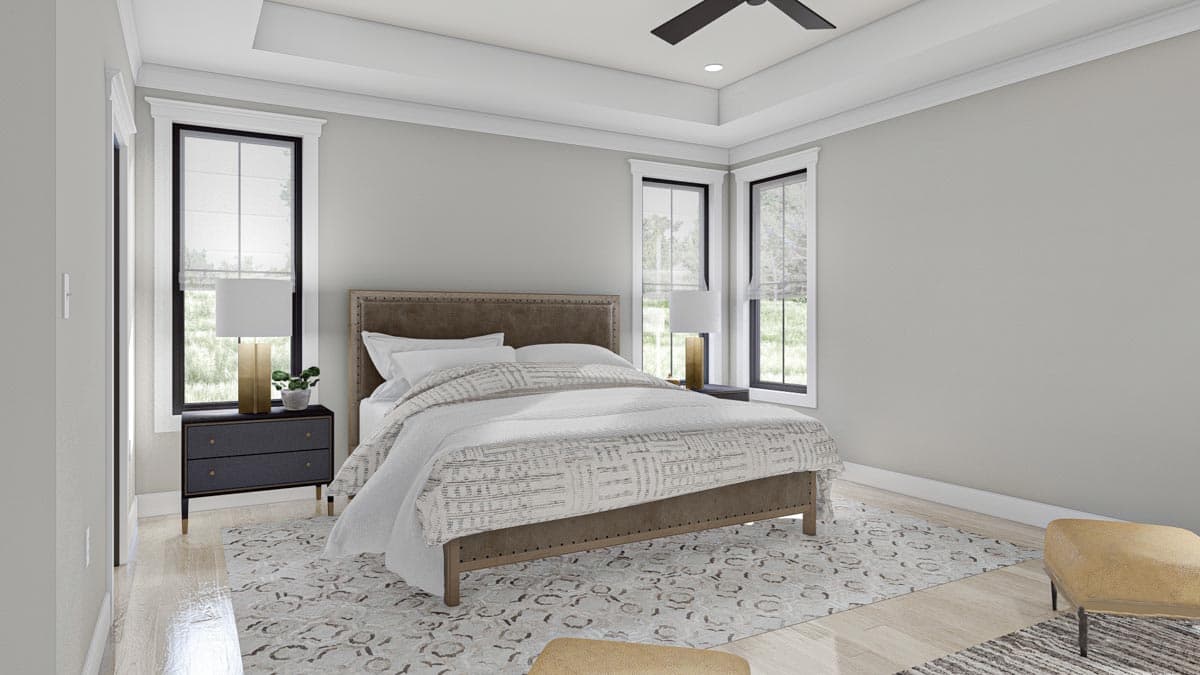

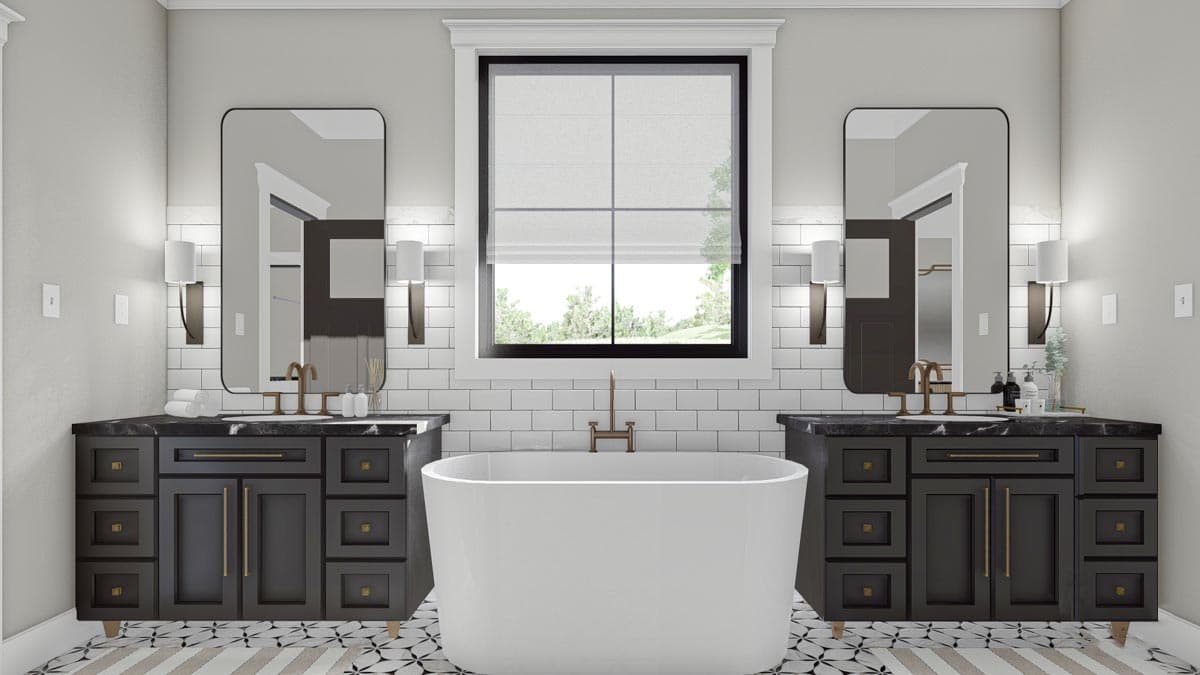

  • The master suite can be found on the left side of the home. The master bathroom includes dual vanities and a wonderful soaking tub. The large walk-in closet has access to the home's large laundry room that includes a folding counter.

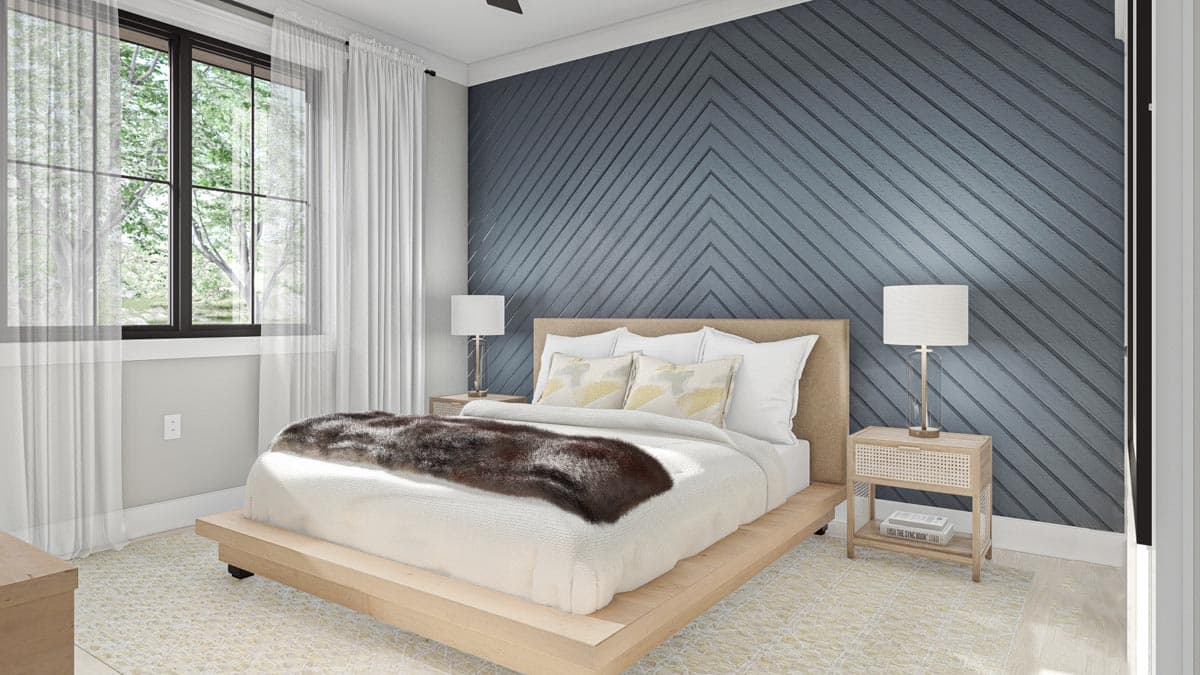

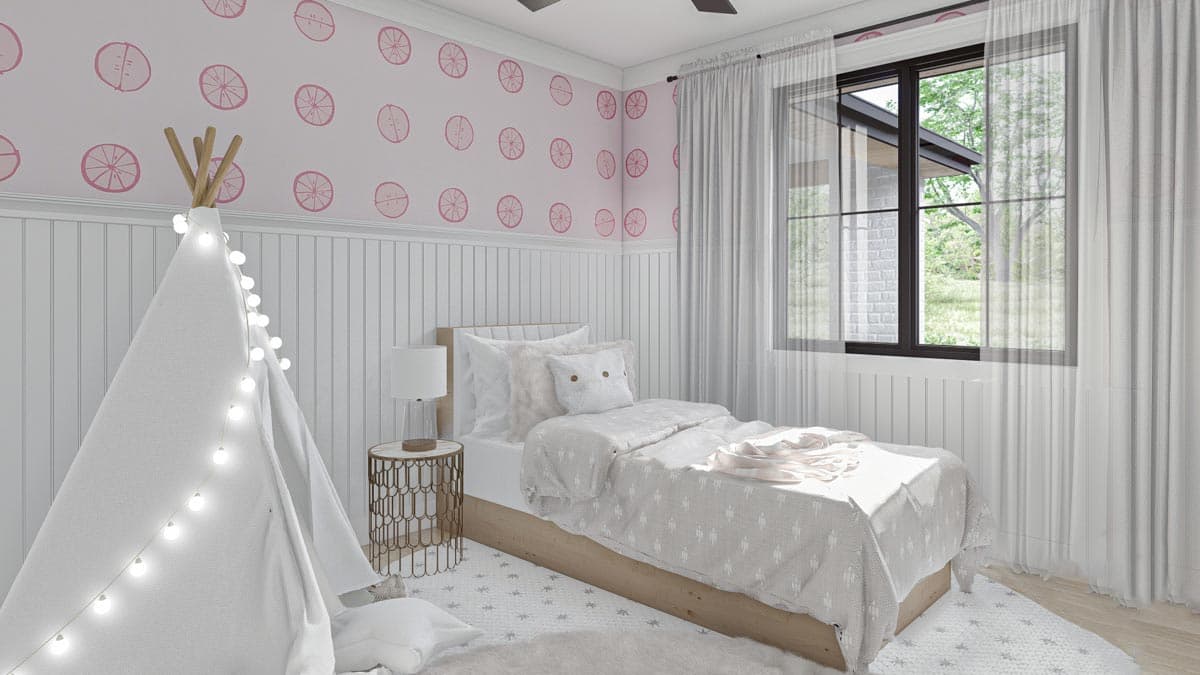

  • Additional bedrooms can be found on the right side of the home. Bedrooms 2 and 3 share a centrally located hall bathroom. Each bedroom has its own walk-in closet.
  • The home features 2 garages, a 2-car courtyard load on the front of the home and a 1-car garage on the right side of the home.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

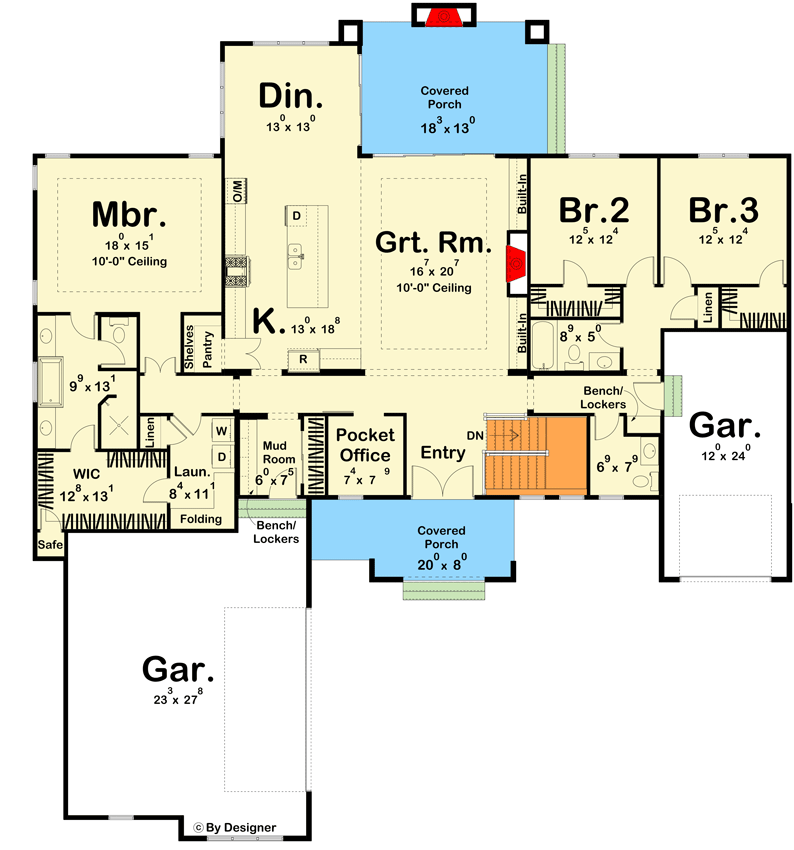

Contemporary Ranch with Two Separate Garages - 623072DJ floor plan - Main Level

Finished Lower Level Layout Option (+$250)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

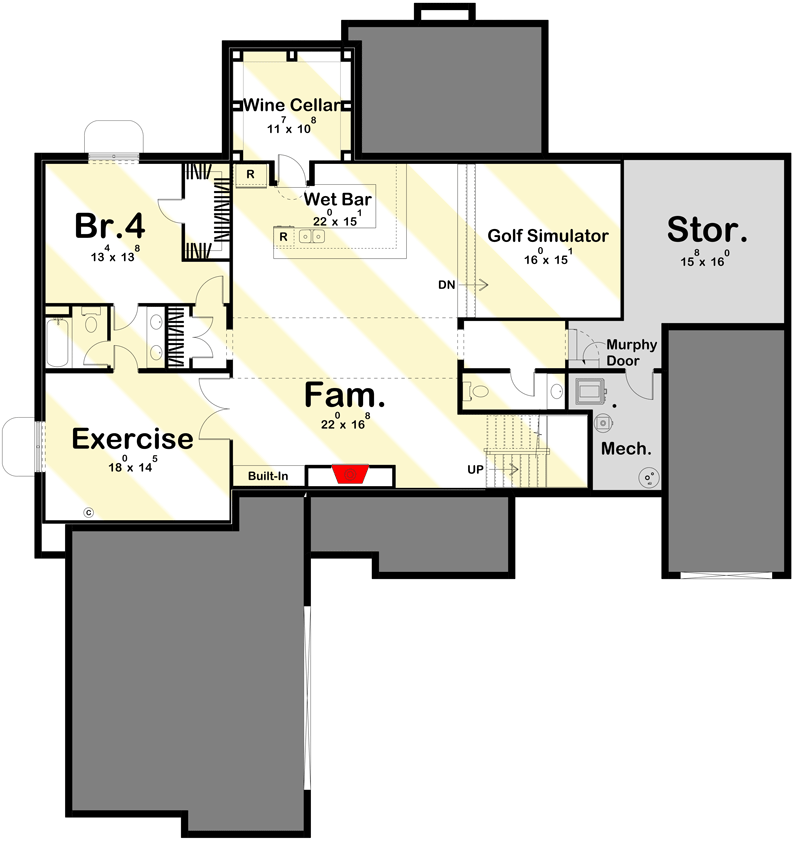

Contemporary Ranch with Two Separate Garages - 623072DJ floor plan - Finished Lower Level Layout Option (+$250)

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,515 sq. ft.
  • 1st Floor: 2,515 sq. ft.
  • Porch, Combined: 385 sq. ft.
  • Porch, Rear: 237 sq. ft.
  • Porch, Front: 148 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 0"
  • Depth: 81' 8"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 1021 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room Tray 16' 7" 20' 7" 9' 0" to 10' 0"
Master Bedroom Tray 18' 0" 15' 1" 9' 0" to 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary Ranch with Two Separate Garages

  • 2,515

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,500
  • 5 Sets + PDF $1,750
  • PDF - Unlimited Build $2,000
  • CAD + PDF - Single-Build $2,000
  • CAD - Unlimited Build $2,500
  • View all purchase option online

About This Plan

  • This contemporary ranch home plan has a beautiful exterior with a blend of board and batten siding, white painted brick, and wood accents. A front covered porch greets guests into the home.
  • Just inside the entry, you'll notice the wide-open floor plan. The great room is warmed by a fireplace that is flanked by built-in bookshelves. A large sliding glass door leads from the great room to the rear covered porch. The kitchen includes a large island with a snack bar and a walk-in pantry.
  • The master suite can be found on the left side of the home. The master bathroom includes dual vanities and a wonderful soaking tub. The large walk-in closet has access to the home's large laundry room that includes a folding counter.
  • Additional bedrooms can be found on the right side of the home. Bedrooms 2 and 3 share a centrally located hall bathroom. Each bedroom has its own walk-in closet.
  • The home features 2 garages, a 2-car courtyard load on the front of the home and a 1-car garage on the right side of the home.

Floor Plans

  • Main Level

  • Finished Lower Level Layout Option (+$250)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,515 sq. ft.
  • 1st Floor: 2,515 sq. ft.
  • Porch, Combined: 385 sq. ft.
  • Porch, Rear: 237 sq. ft.
  • Porch, Front: 148 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 0"
  • Depth: 81' 8"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 1021 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
