Plan 680006VR
Contemporary RV Garage with Upstairs Loft - 1824 Sq Ft PLUS 912 Sq FT Loft
Heated S.F.
912
Stories
2
Cars
2
Plan Details
  • A 2:12 shed roof creates a vaulted ceiling in the large RV bay of this contemporary RV garage plan with 1,824 square feet of vehicle storage and 912 square feet of loft space.
  • The RV bay is accessed through an enormous 14' by 14' door. The high garage door and vaulted ceilings in the bay give you plenty of room for your taller vehicle.
  • A 12' by 10' garage door gives you access to the tandem bay. 11' ceilings give you great clearance there as well.
  • Climb the stairs to reach an enormous loft studio with the ceiling going from 8' to 11'3" right to left.
  • Related Plans: Get a 40' by 50' version with RV garage plan 68675VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

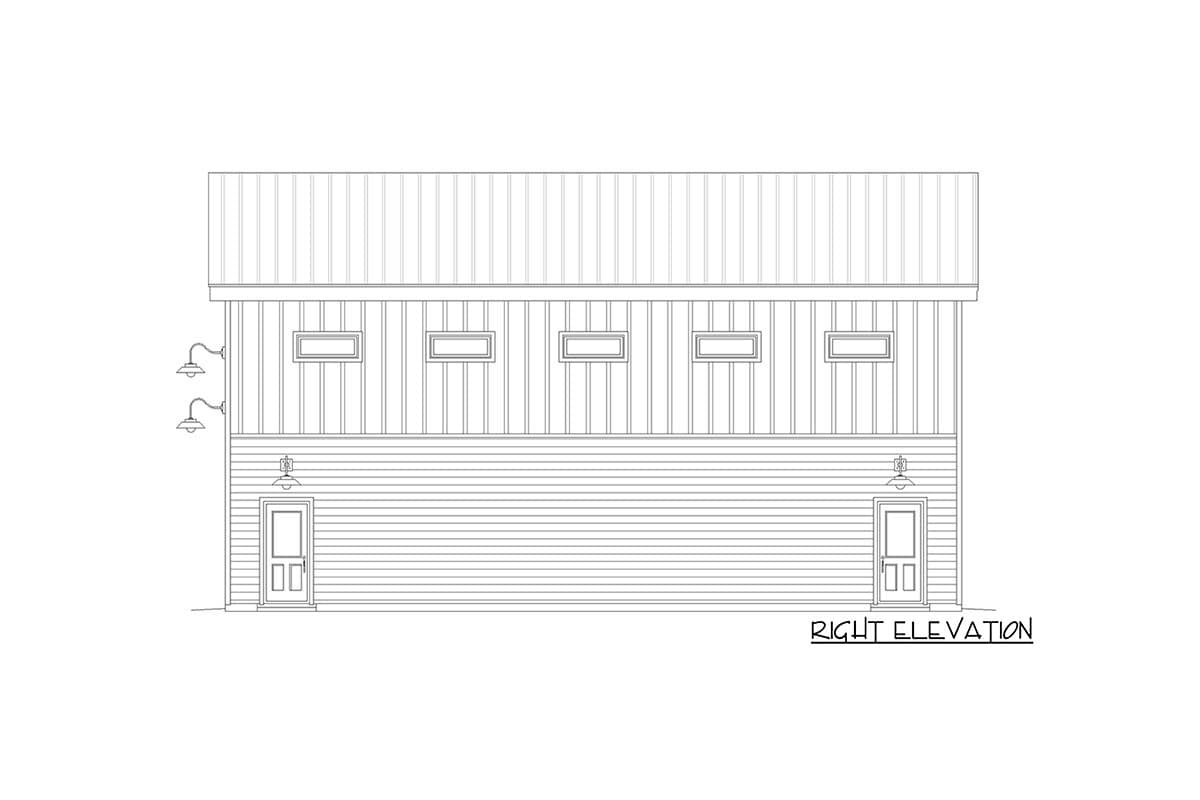

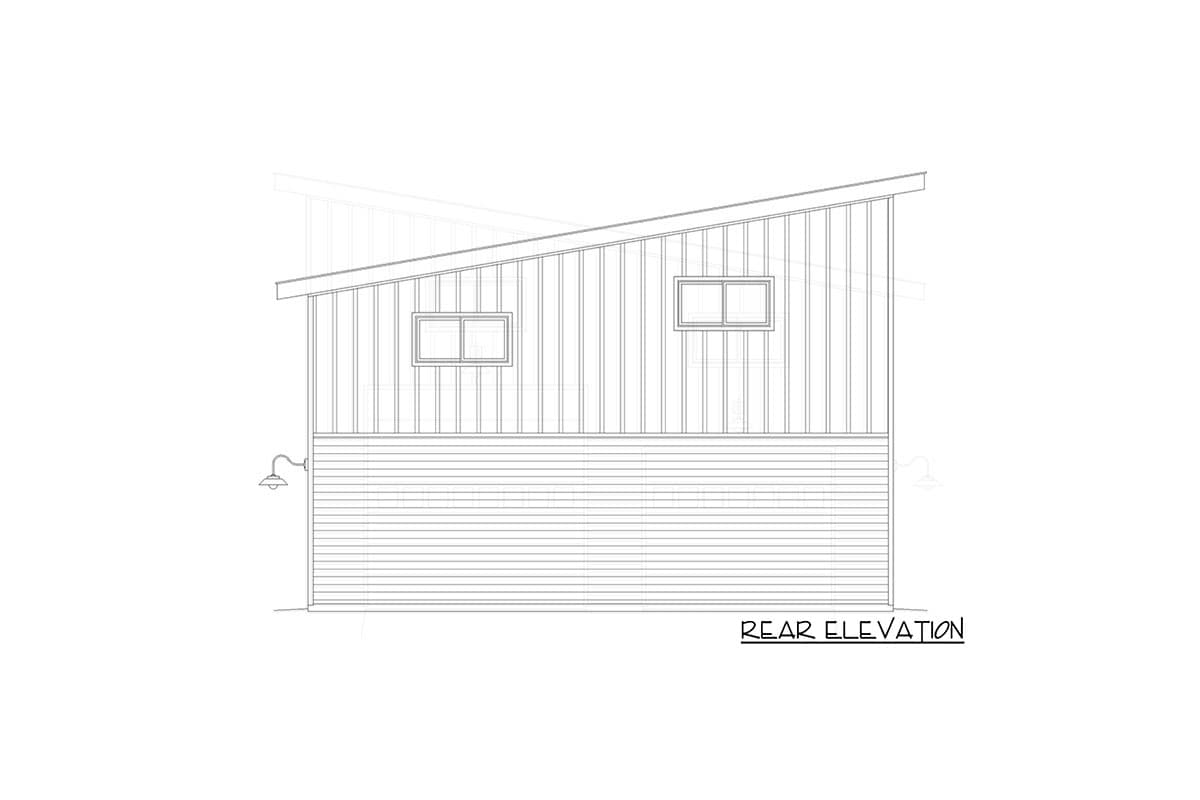

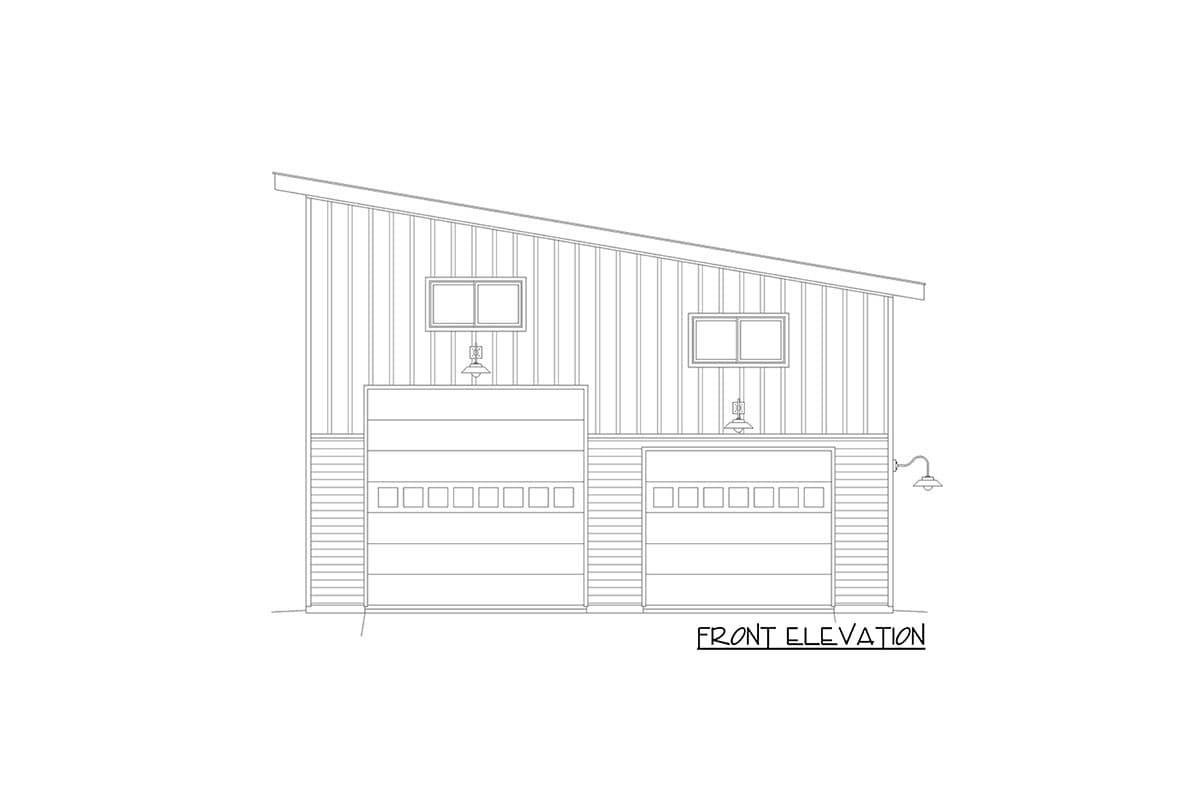

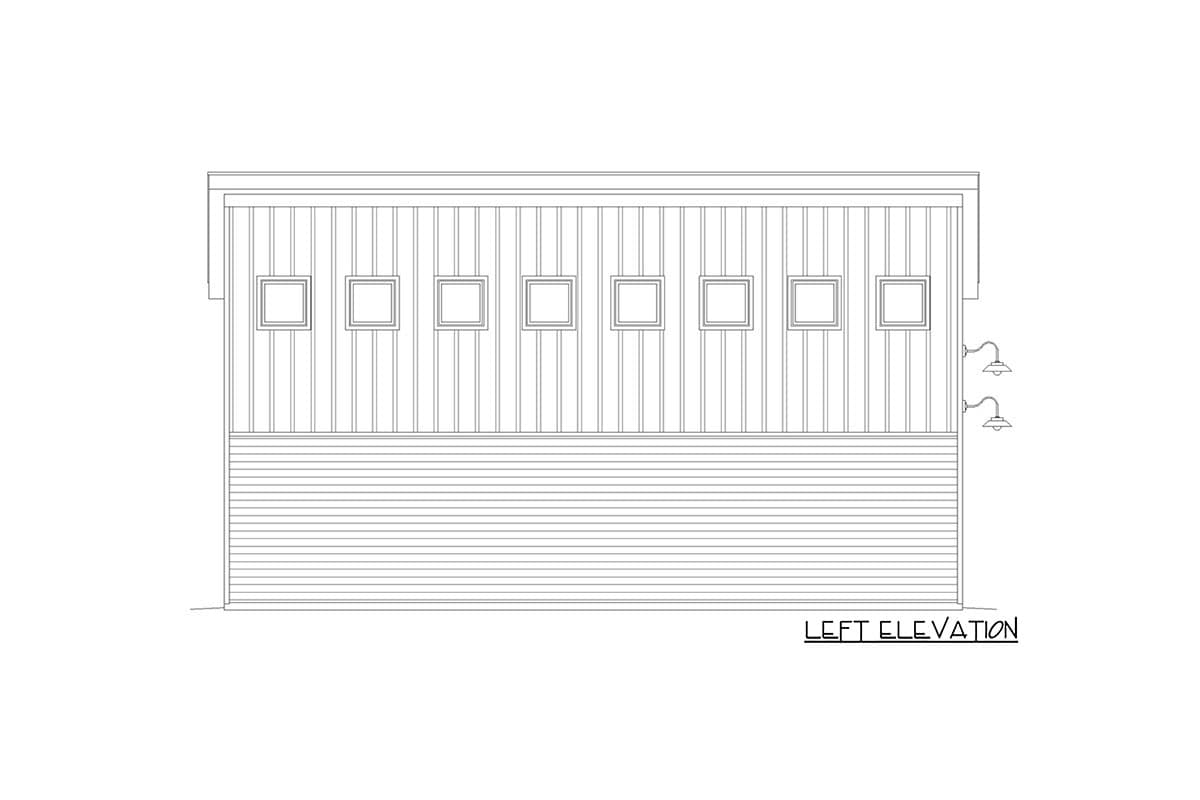

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary RV Garage with Upstairs Loft - 1824 Sq Ft PLUS 912 Sq FT Loft

  • 912

    Heated s.f.

  • Beds

  • 0

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

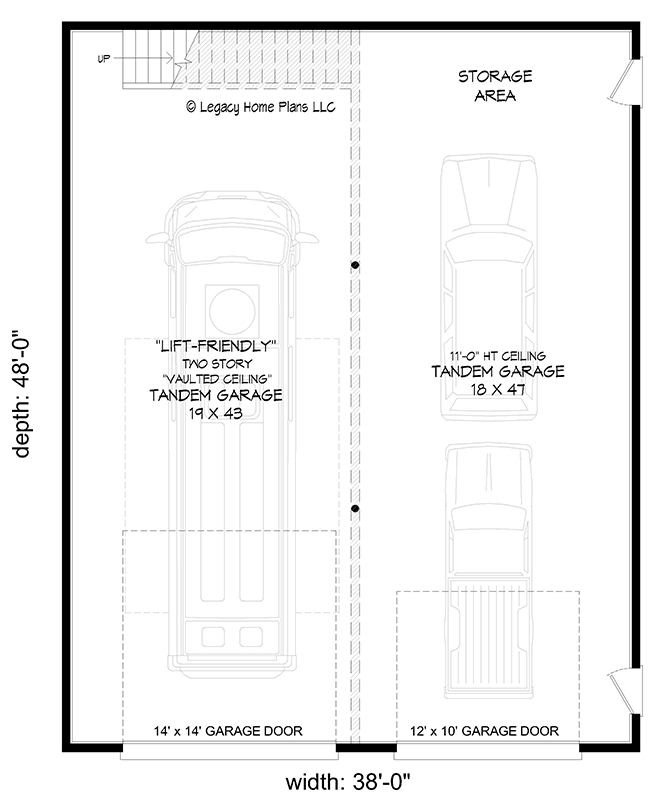

  • Main Level

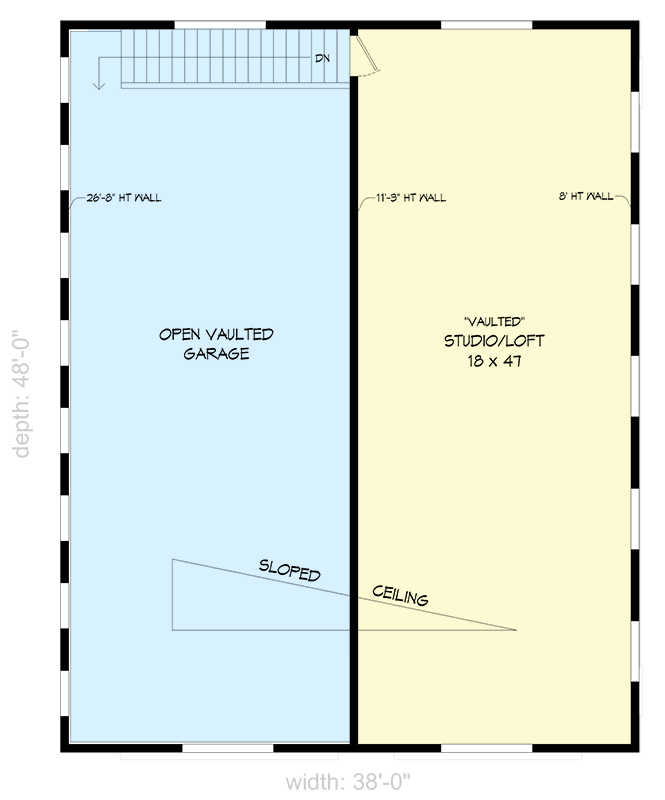

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 912 sq. ft.
  • 2nd Floor: 912 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 48' 0"
  • Max ridge height: 28' 1"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Garage

  • Type: RV Garage, Detached
  • Area: 1824 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 11' 3"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
