Plan 65784BS

Contemporary Transitional Florida-Style House Plan with 4 Bedrooms and 3-Car Garage

Name: Plan 65784BS: Contemporary Transitional Florida-Style House Plan with 4 Bedrooms and 3-Car Garage
Brand: Architectural Designs
SKU: 65784BS
Price: 4004.0 USD
Availability: InStock

Heated S.F.

4,004

Beds

Baths

4.5

Stories

Cars

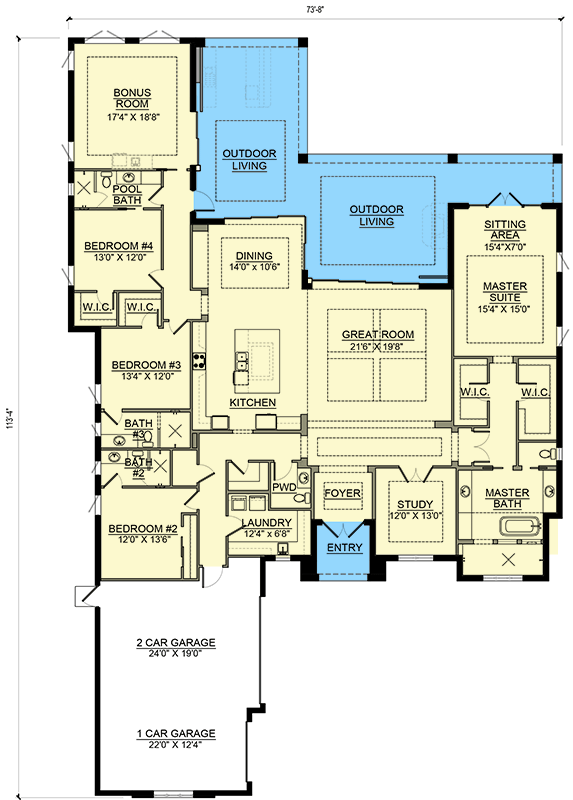

Floor Plan

Plan Details

This sophisticated 4,004 square foot contemporary Florida-style residence offers 4 bedrooms, 4 full bathrooms, one half-bath, and an attached 3-car garage spanning 818 square feet.
The home greets you with a striking courtyard entry that leads into a thoughtfully curated floor plan designed for seamless transitions between indoor and outdoor living.
The expansive main living area features a fluid open-concept layout that centers around a high-end kitchen equipped with a large walk-in pantry, providing a perfect backdrop for daily meals or hosting guests.
A private master suite serves as a tranquil retreat, complete with a dedicated sitting area, while the remaining three bedrooms are split across the home to ensure maximum privacy for family and visitors.
Beyond the primary living spaces, a dedicated library or study offers a quiet environment for remote work, complemented by a convenient main-level laundry room and mudroom.
The exterior is defined by a massive 980 square foot covered patio, which includes an outdoor kitchen ideal for al fresco dining in the temperate climate.
A versatile finished bonus room provides additional square footage that can be adapted as a media center, home gym, or hobby space to suit any lifestyle need.

What's Included

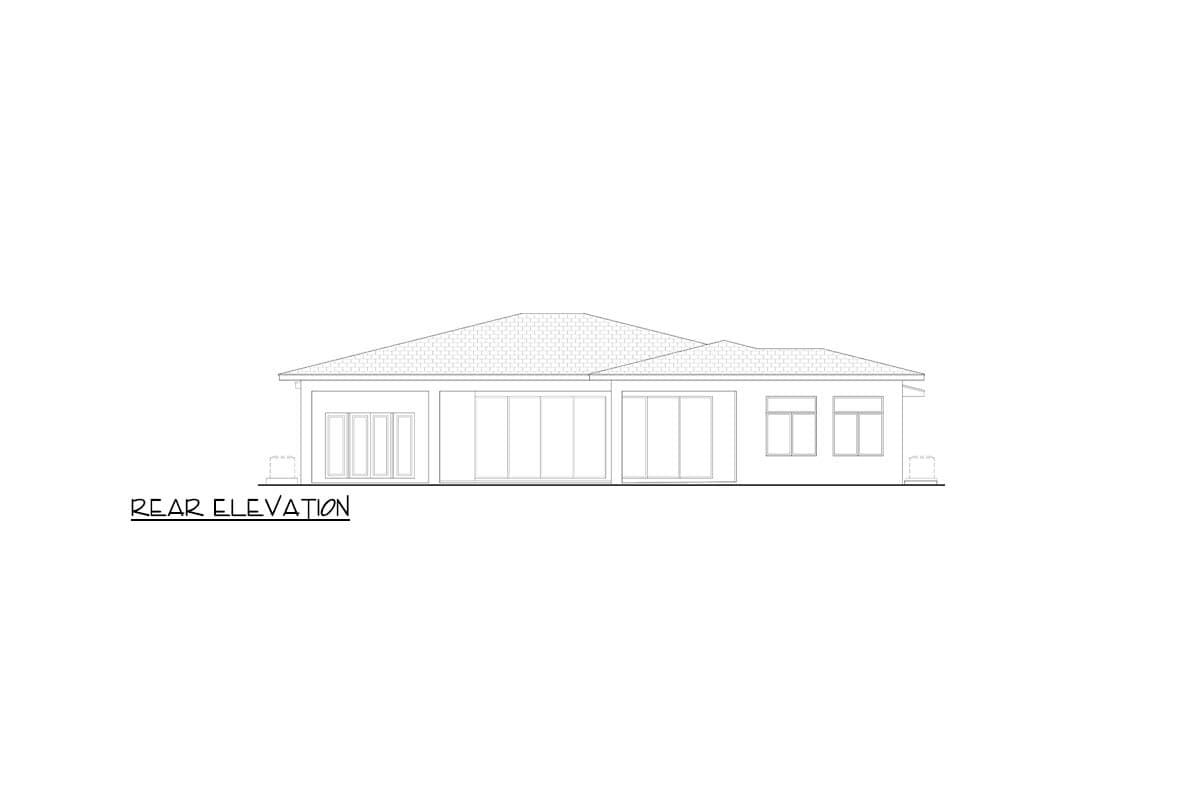

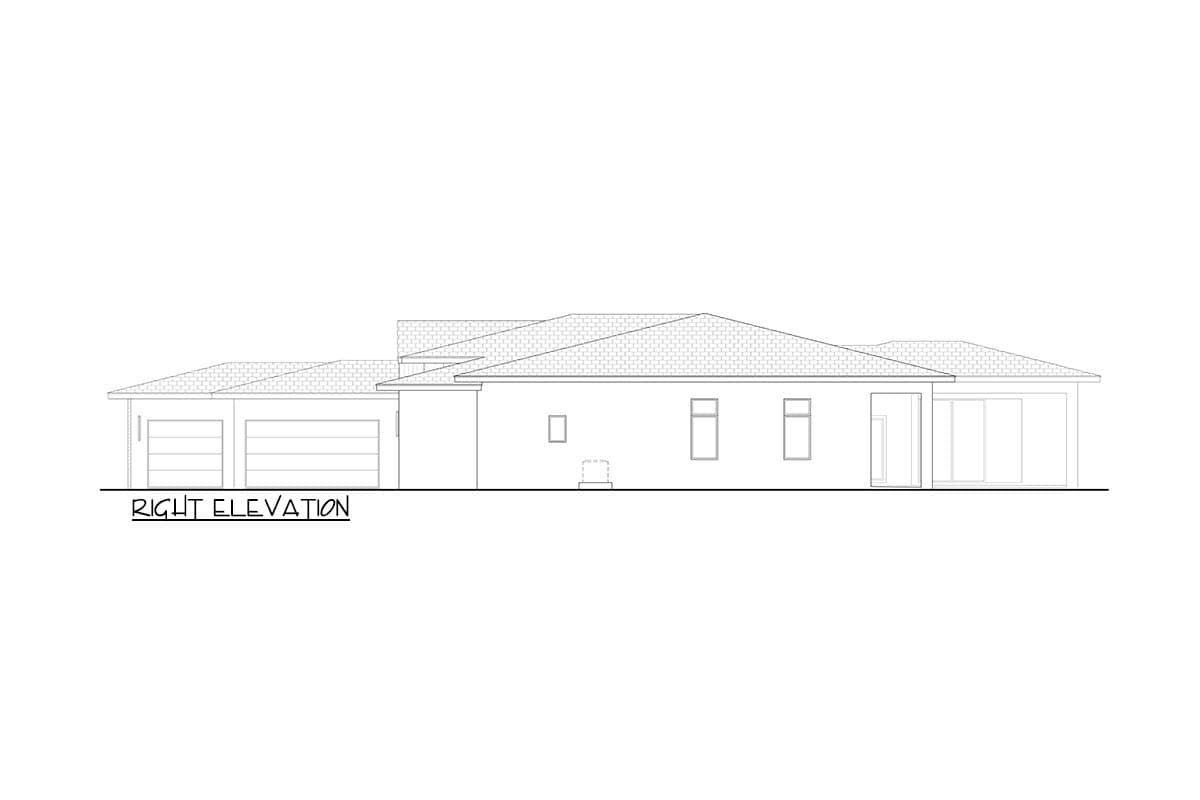

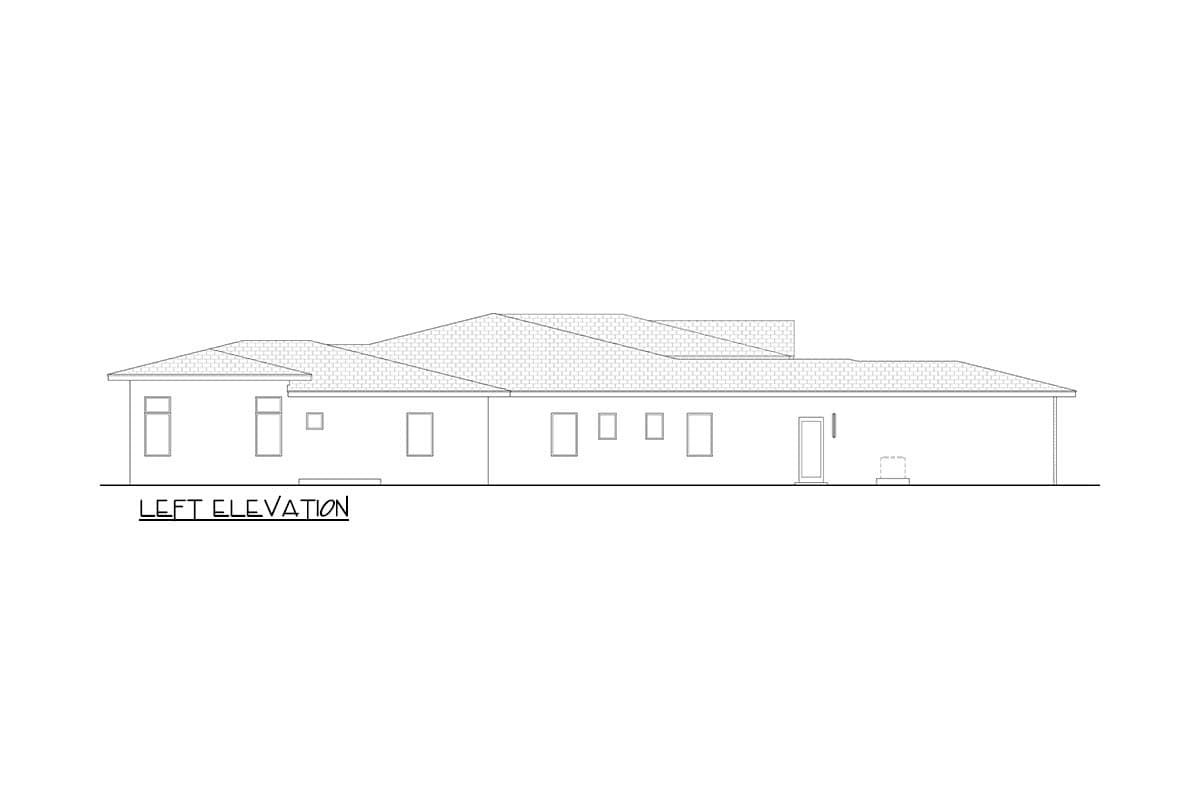

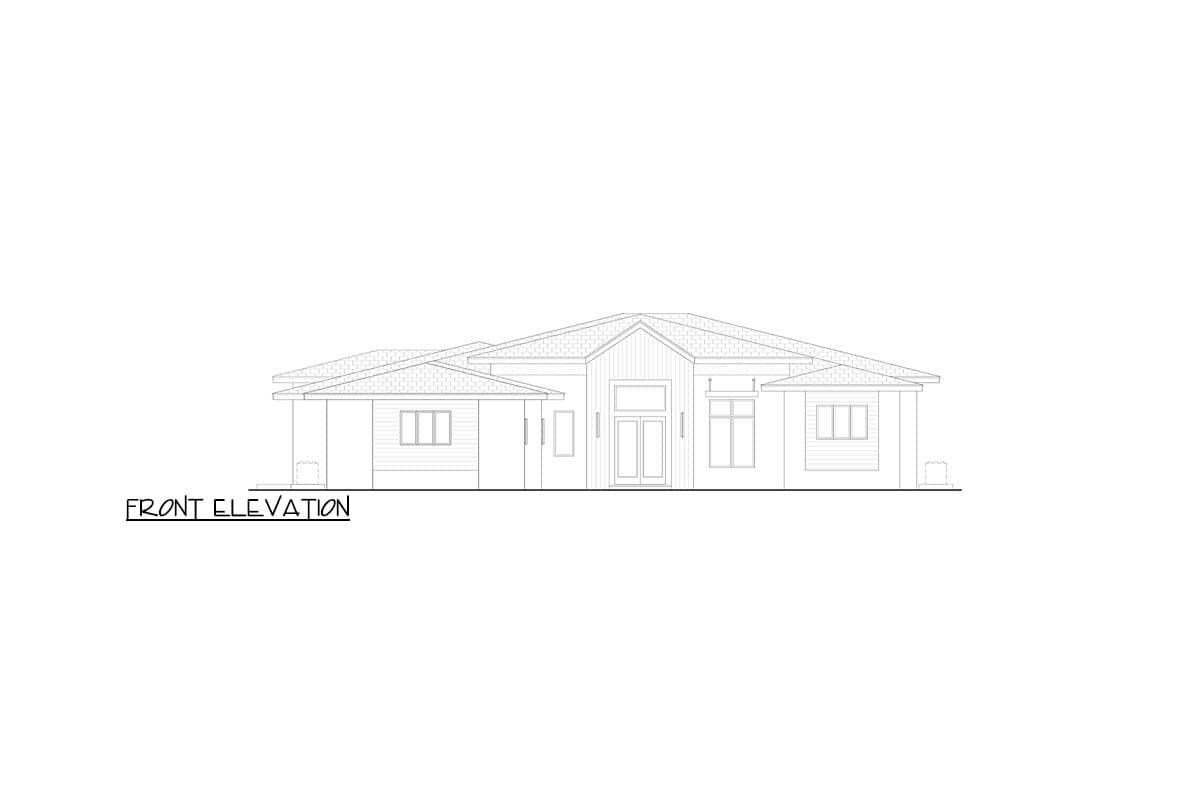

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
