Plan 65810BS

Contemporary Transitional House Plan with 4 Bedrooms and Courtyard Entry

Name: Plan 65810BS: Contemporary Transitional House Plan with 4 Bedrooms and Courtyard Entry
Brand: Architectural Designs
SKU: 65810BS
Price: 3054.0 USD
Availability: InStock

Heated S.F.

3,054

Beds

3 - 4

Baths

4.5

Stories

Cars

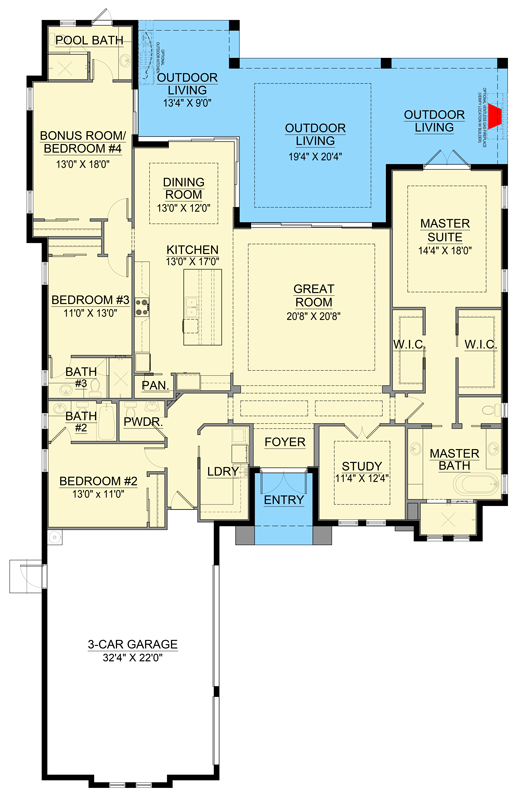

Floor Plan

Plan Details

This expansive 3,054 square foot contemporary transitional home features four bedrooms, four-and-a-half baths, and a spacious three-car garage.
The home welcomes you through a sophisticated courtyard entry that leads into a thoughtfully designed, light-filled floor plan.
A central living area creates a seamless flow between the gourmet kitchen, which includes a convenient walk-in pantry, and the adjacent dining space.
The primary suite is positioned for privacy in a split-bedroom layout, offering a tranquil retreat away from the secondary bedrooms.
A dedicated library provides a quiet space for work or study, while a versatile finished bonus room offers flexibility for a home theater or hobby space.
The rear of the home features a massive 856 square foot lanai equipped with an outdoor kitchen and fireplace, perfect for year-round alfresco living.

What's Included

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
