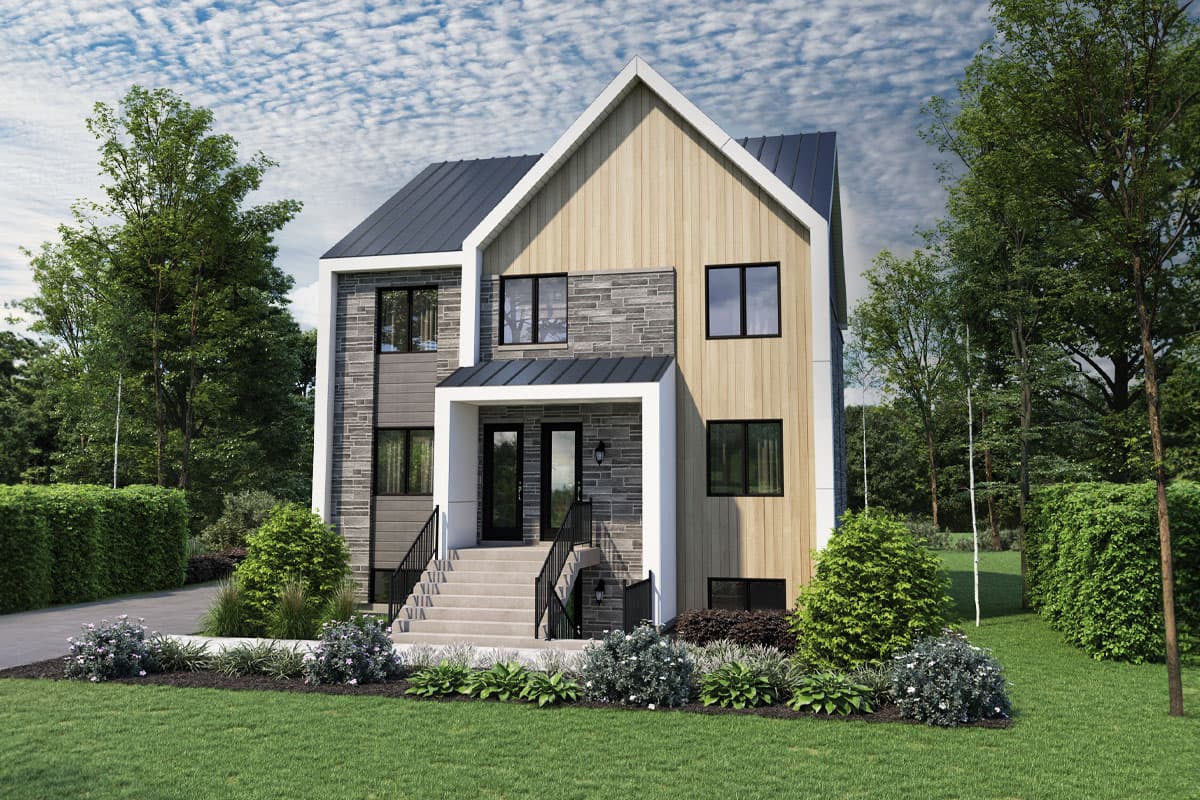

Contemporary Triplex with 3 Bedroom Units - 1384 Sq Ft Each

Heated S.F.
4,152
Units
3
Width
Depth

Floor Plan

Plan 801172PM

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 801172PM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 801172PM: Contemporary Triplex with 3 Bedroom Units - 1384 Sq Ft Each - Floor Plan - Main Level - Contemporary, Modern, Northwest

2nd Floor

Plan 801172PM: Contemporary Triplex with 3 Bedroom Units - 1384 Sq Ft Each - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

Lower Level

Plan 801172PM: Contemporary Triplex with 3 Bedroom Units - 1384 Sq Ft Each - Floor Plan - Lower Level - Contemporary, Modern, Northwest

Plan Details

  • This contemporary triplex house plan gives you 3 bedroom units, each with 1,384 square feet of heated living.
  • Each unit has its own private entrance and the layout of all three is identical.
  • Each has a living room, a dining room, an open-concept kitchen, a bathroom, a laundry corner as well as the three bedrooms. The master bedroom has a walk-in closet.
  • A large balcony is in the back of each unit.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • NOTE: Please allow 15 to 20 business days for plan delivery.
Unit Main Level
Heated Area
1,384Sq. Ft.
1384 Sq. Ft. 1st
Beds
3Beds
Baths
1Full Bath
Dimensions
36'width
40'depth
39' 1"height
Unit Second Level
Heated Area
1,384Sq. Ft.
1384 Sq. Ft. 1st
Beds
3Beds
Baths
1Full Bath
Dimensions
36'width
40'depth
39' 1"height
Unit Lower Level
Heated Area
1,384Sq. Ft.
1384 Sq. Ft. 1st
Beds
3Beds
Baths
1Full Bath
Dimensions
36'width
40'depth
39' 1"height

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,152 sq. ft.

Lower Level

1,384 sq. ft.

1st Floor

1,384 sq. ft.

2nd Floor

1,384 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

40' 0"

Max Ridge Height

39' 1"

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Contemporary

Modern

Northwest

Special Features

Home Office

Master Suite - 1st Floor

Master Suite - Lower Level

Master Suite - Upstairs

Mudroom

Plan Collections

Canadian House Plans

Home Office

Square Footage Breakdown

Total Heated Area

4,152 sq. ft.

Lower Level

1,384 sq. ft.

1st Floor

1,384 sq. ft.

2nd Floor

1,384 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

40' 0"

Max Ridge Height

39' 1"

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Contemporary

Modern

Northwest

Special Features

Home Office

Master Suite - 1st Floor

Master Suite - Lower Level

Master Suite - Upstairs

Mudroom

Plan Collections

Canadian House Plans

Home Office
