Plan 69724AM

Contemporary Two-Story House Plan with Bonus Room

Pageloader

Contemporary Two-Story House Plan with Bonus Room

Plan 69724AM

  • 2,548

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A hip roof sits atop horizontal siding, with stone accents, on this two-story charmer.
  • The main level primarily consists of the shared living spaces. A den, or guest bedroom, sits to the right of the foyer with access to a full bathroom.
  • An open-concept floor plan combines the great room, dining room, and kitchen, allowing the fireplace and surrounding built-ins to be enjoyed throughout the main level. A pocket door leads to the laundry facilities and a large pantry, which is located just inside from the double garage.
  • At the top of the stairs, a library with built-in shelves adds character and sits across the master bedroom, which features a tray ceiling and luxurious ensuite with a separate tub and shower, two sinks, a toilet room, and a large walk-in closet.
  • Two additional bedrooms share a 4-fixture bathroom, and a fourth room upstairs serves as a bonus space, or bedroom, for maximum flexibility.
  • Related Plan: Get more living area with house plan 69723AM (3,185 sq. ft.).

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Contemporary Two-Story House Plan with Bonus Room

  • 2,548

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $1,248
  • PDF - single-use $1,248
  • 5 Sets $1,398
  • 5 Sets PLUS $1,448
  • CAD - multi-use $2,496
  • View all purchase option online

About This Plan

  • A hip roof sits atop horizontal siding, with stone accents, on this two-story charmer.
  • The main level primarily consists of the shared living spaces. A den, or guest bedroom, sits to the right of the foyer with access to a full bathroom.
  • An open-concept floor plan combines the great room, dining room, and kitchen, allowing the fireplace and surrounding built-ins to be enjoyed throughout the main level. A pocket door leads to the laundry facilities and a large pantry, which is located just inside from the double garage.
  • At the top of the stairs, a library with built-in shelves adds character and sits across the master bedroom, which features a tray ceiling and luxurious ensuite with a separate tub and shower, two sinks, a toilet room, and a large walk-in closet.
  • Two additional bedrooms share a 4-fixture bathroom, and a fourth room upstairs serves as a bonus space, or bedroom, for maximum flexibility.
  • Related Plan: Get more living area with house plan 69723AM (3,185 sq. ft.).

Floor Plans

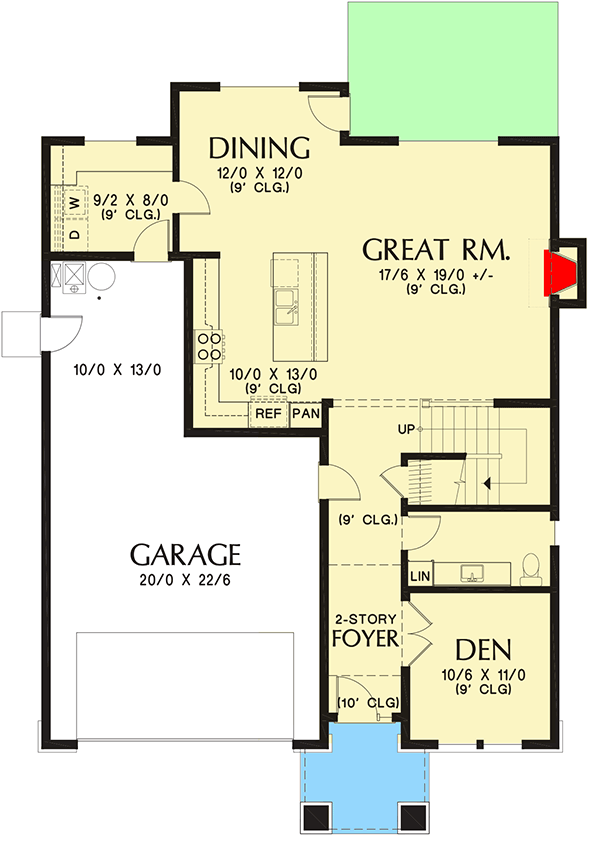

  • Main Level

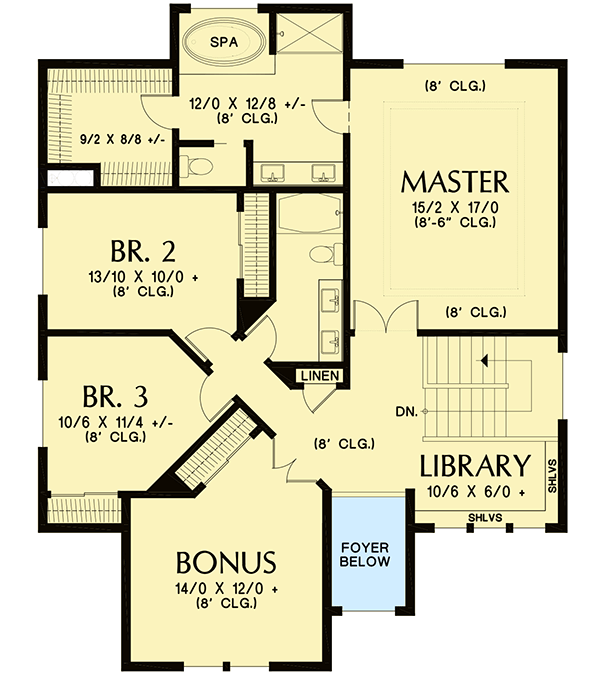

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,548 sq. ft.
  • 1st Floor: 1,406 sq. ft.
  • 2nd Floor: 1,142 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Post/Beam
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 55' 0"
  • Max ridge height: 24' 2"

Garage

  • Type: Attached
  • Area: 609 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
