Plan 80823PM Contemporary with Family Room Plus Living Room

1,972 3 1.5 2 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary with Family Room Plus Living Room

Plan 80823PM

  • 1,972

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • This Modern house plan offers both a living room and a family room for your family to spread out in.
  • The open layout gives you beautiful sightlines in all directions.
  • Sliding glass doors in the dining room and kitchen open to a covered patio.
  • From the kitchen sink you can see what's going on in the cozy family room.
  • A two-way fireplace warms both the living room and the dining room.
  • All three bedrooms on the second floor share the large five piece washroom.

Plan sets include the following:

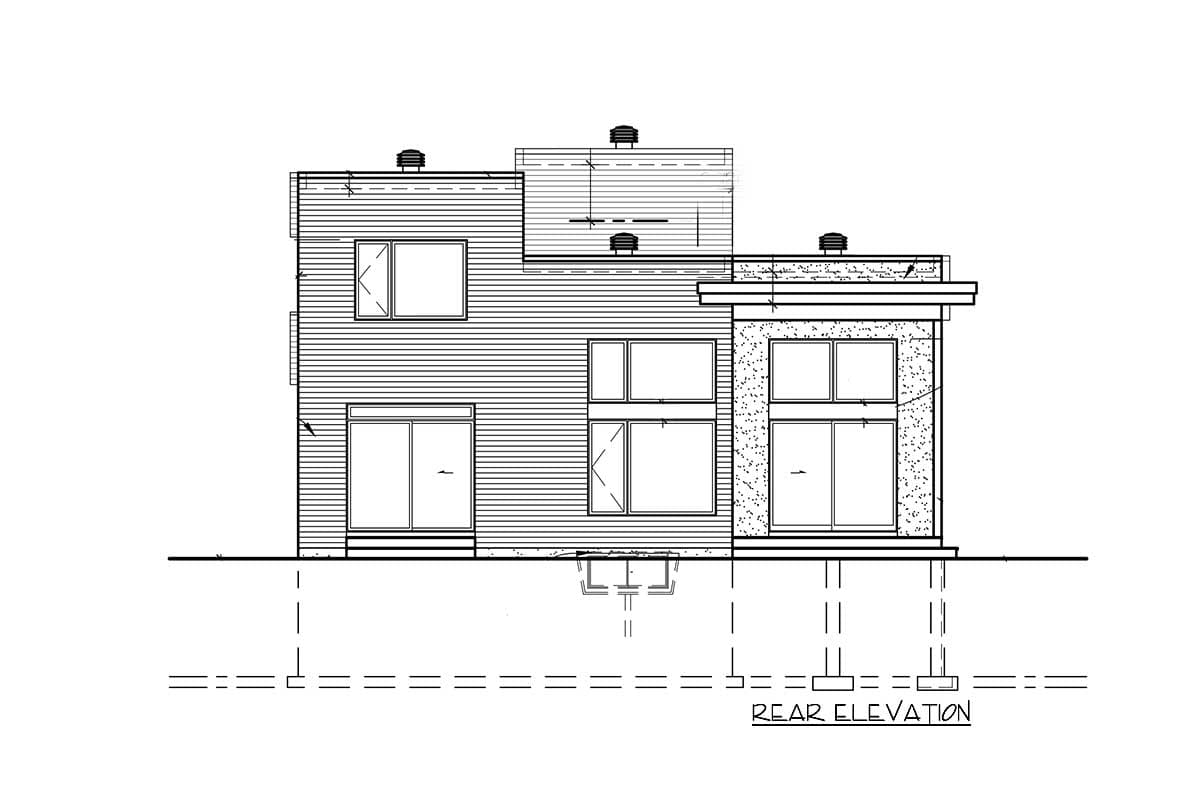

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

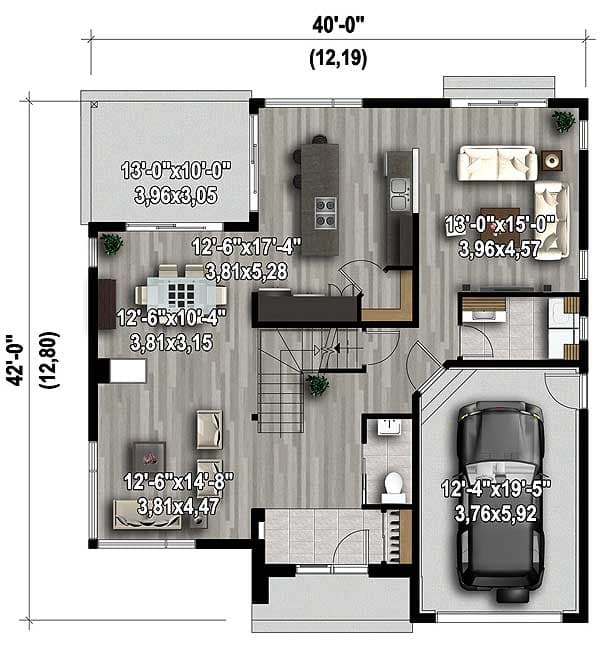

Contemporary with Family Room Plus Living Room - 80823PM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

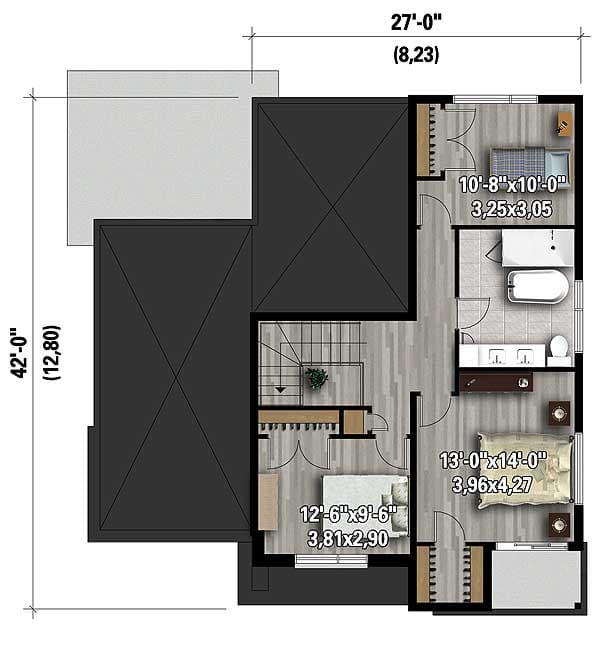

Contemporary with Family Room Plus Living Room - 80823PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,972 sq. ft.
  • 1st Floor: 1,152 sq. ft.
  • 2nd Floor: 820 sq. ft.
  • Porch, Rear: 130 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 42' 0"
  • Max ridge height: 25' 6"

Garage

  • Type: Attached
  • Area: 276 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary with Family Room Plus Living Room

  • 1,972

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $912
  • 8 Sets $959
  • PDF - Single-Build $1,193
  • CAD - Single-Build $1,813
  • View all purchase option online

About This Plan

  • This Modern house plan offers both a living room and a family room for your family to spread out in.
  • The open layout gives you beautiful sightlines in all directions.
  • Sliding glass doors in the dining room and kitchen open to a covered patio.
  • From the kitchen sink you can see what's going on in the cozy family room.
  • A two-way fireplace warms both the living room and the dining room.
  • All three bedrooms on the second floor share the large five piece washroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,972 sq. ft.
  • 1st Floor: 1,152 sq. ft.
  • 2nd Floor: 820 sq. ft.
  • Porch, Rear: 130 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 42' 0"
  • Max ridge height: 25' 6"

Garage

  • Type: Attached
  • Area: 276 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Roof

  • Framing Type: Truss
