Plan 80858PM
Contemporary With In-Law Apartment
Heated S.F.
2,713
Beds
4-5
Baths
3 - 4
Stories
2
Cars
2
What's Included
Plan Details
  • Use the left side of this Contemporary house plan as an in-law apartment or for rental income.
  • You get a one bedroom unit with an open layout, all on one floor with a shared garage.
  • The right side unit is two story and also has an open layout.
  • On the upper floor, three bedrooms make this a nice family-size home.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary With In-Law Apartment

  • 2,713

    Heated s.f.

  • 4-5

    Beds

  • 3 - 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

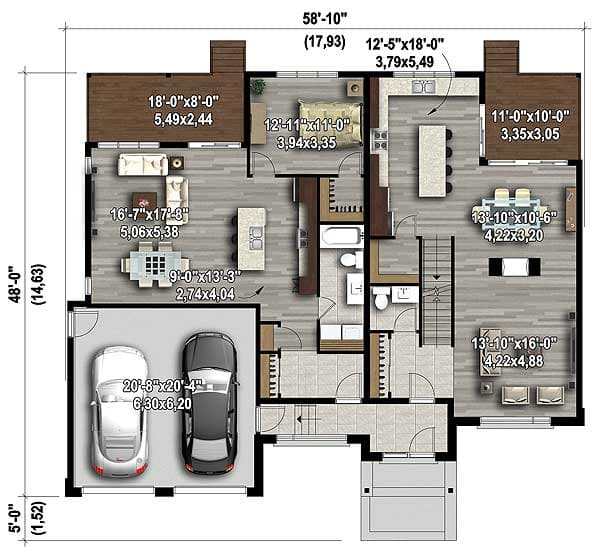

  • Main Level

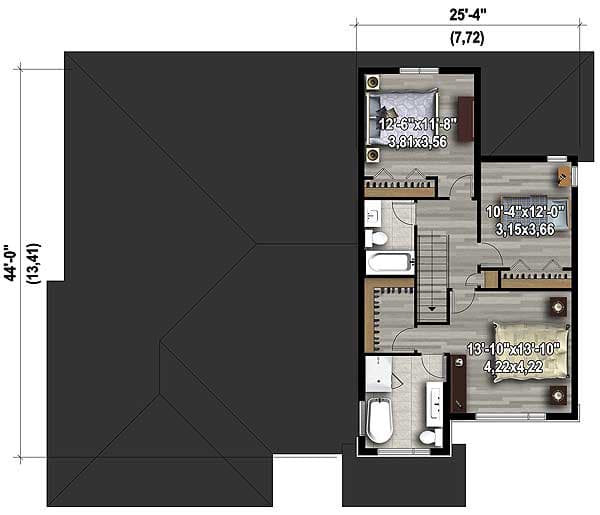

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,713 sq. ft.
  • 1st Floor: 1,799 sq. ft.
  • 2nd Floor: 914 sq. ft.

Dimensions

  • Width: 58' 0"
  • Depth: 48' 0"
  • Max ridge height: 30' 2"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 0 or 1

Garage

  • Type: Attached
  • Area: 459 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Contemporary With In-Law Apartment

  • 2,713

    Heated s.f.

  • 4-5

    Beds

  • 3 - 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Contemporary With In-Law Apartment

  • 2,713

    Heated s.f.

  • 4-5

    Beds

  • 3 - 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,713 sq. ft.
  • 1st Floor: 1,799 sq. ft.
  • 2nd Floor: 914 sq. ft.

Dimensions

  • Width: 58' 0"
  • Depth: 48' 0"
  • Max ridge height: 30' 2"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 0 or 1

Garage

  • Type: Attached
  • Area: 459 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

    Main Level

    2nd Floor
