Plan 80910PM

Contemporary with Two-Story Living Room

Heated S.F.
1,980
Beds
4
Baths
2.5
Stories
2
Cars
1

Floor Plan

Plan 80910PM

First Floor
First Floor
Second Floor
Second Floor

Plan 80910PM

M-F 9am-5pm EST |

1-203-761-8500

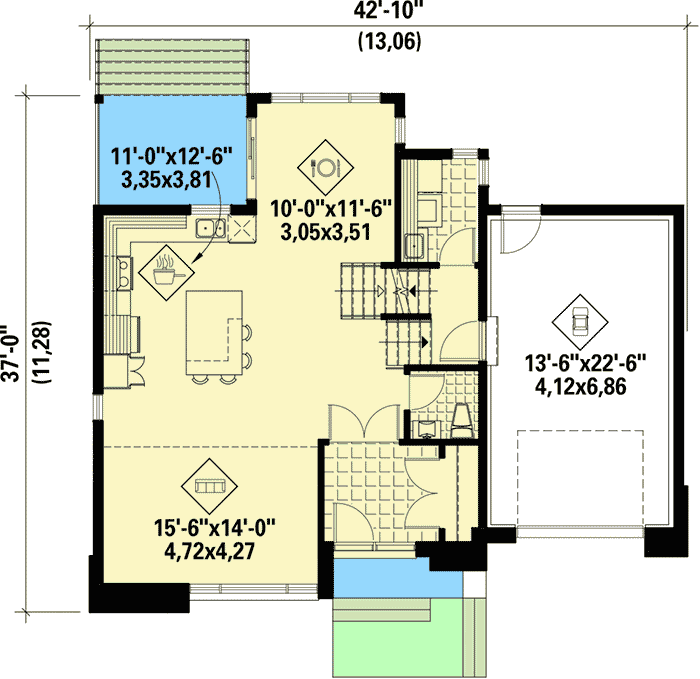

First Floor

Plan 80910PM: Contemporary with Two-Story Living Room - Floor Plan - First Floor - Contemporary, Northwest, Prairie

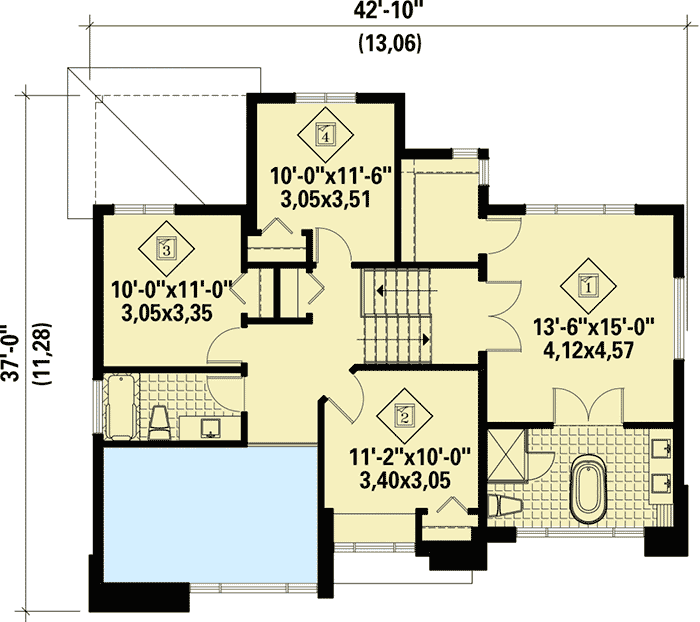

Second Floor

Plan 80910PM: Contemporary with Two-Story Living Room - Floor Plan - Second Floor - Contemporary, Northwest, Prairie

Plan Details

  • Combining Contemporary and Prairie styles, this house plan comes out a winner.
  • With lots of transoms and big glass windows the home is a bright and airy place to live in.
  • A large air lock entry foyer has extra doors to keep the cold air out in the winter.
  • There's a big island in the kitchen and a window above the sink so you can watch the kids play on the rear covered porch.
  • A two-story ceiling rises up in the living room section.
  • Upstairs, there are four bedrooms and the master suite is on a level of its own.

What's Included

Please note this plan is designed to the National Building Code of Canada.

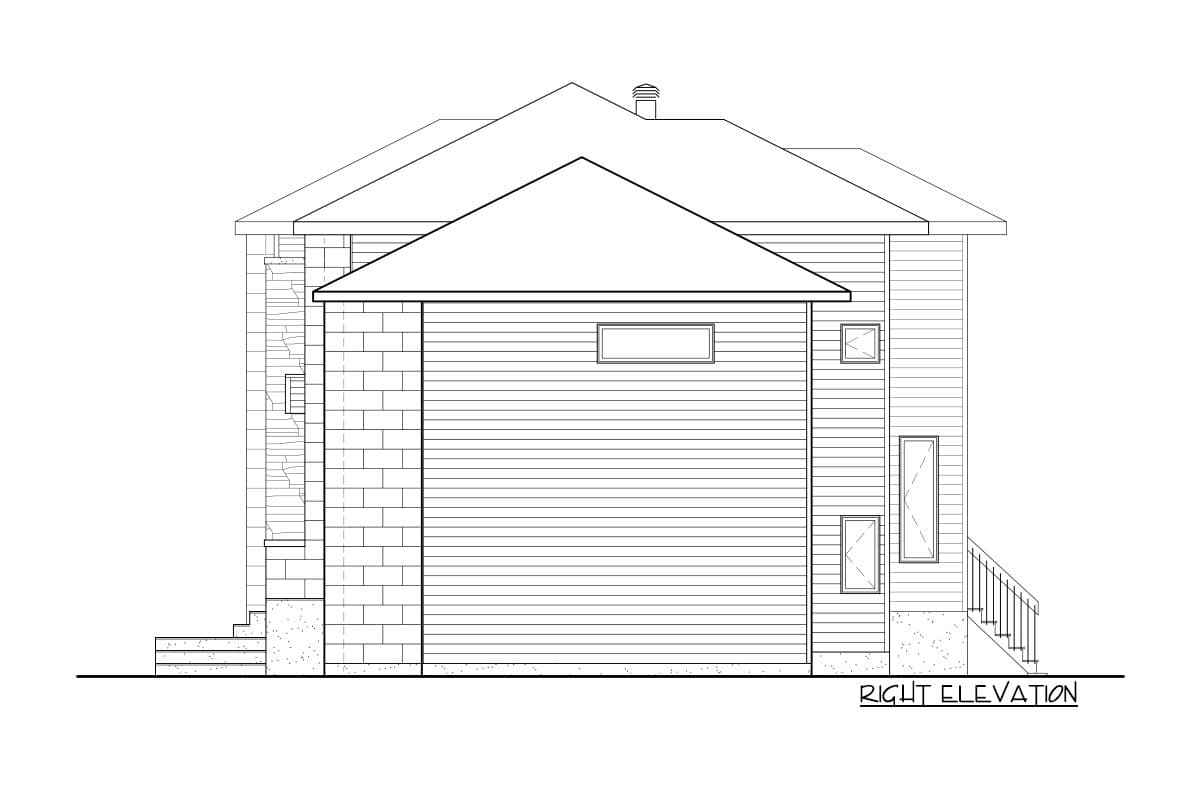

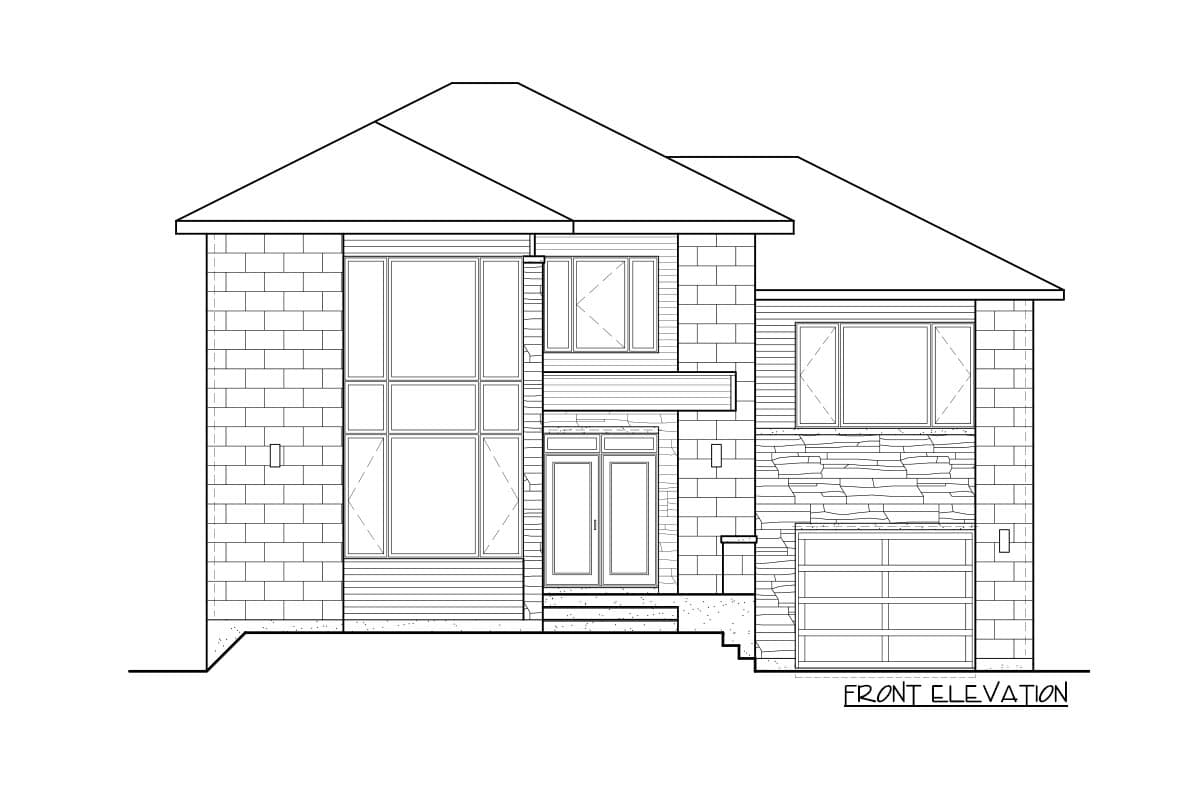

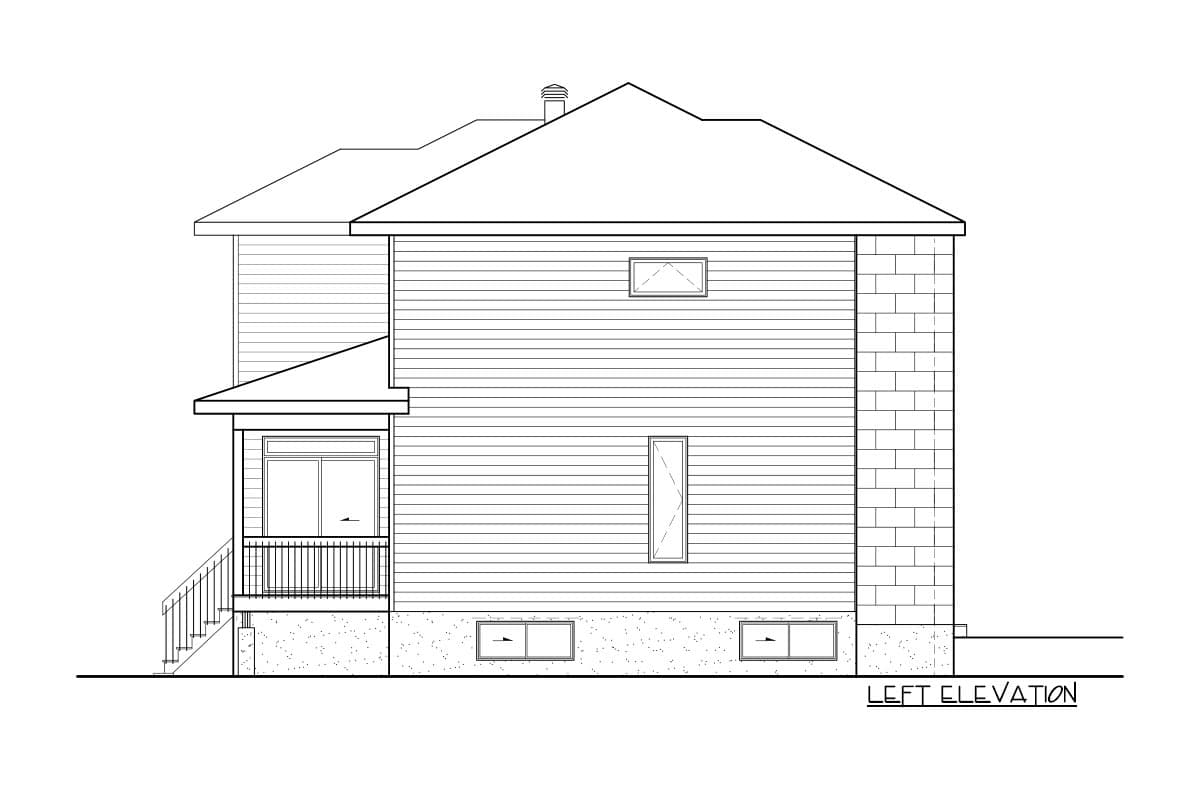

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,980 sq. ft.

1st Floor

865 sq. ft.

2nd Floor

1,025 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

37' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

338 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Prairie

Special Features

Master Suite - Upstairs

Two Story Great Room

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,980 sq. ft.

1st Floor

865 sq. ft.

2nd Floor

1,025 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

37' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

338 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Prairie

Special Features

Master Suite - Upstairs

Two Story Great Room

Plan Collections

Canadian House Plans
