Plan 12275JL

Cool Mountain Cottage with Angled Garage and Bonus Expansion - 2430 Sq Ft

Heated S.F.

2,430

Beds

3-4

Baths

2.5 - 3.5

Stories

1

Cars

2

Floor Plan

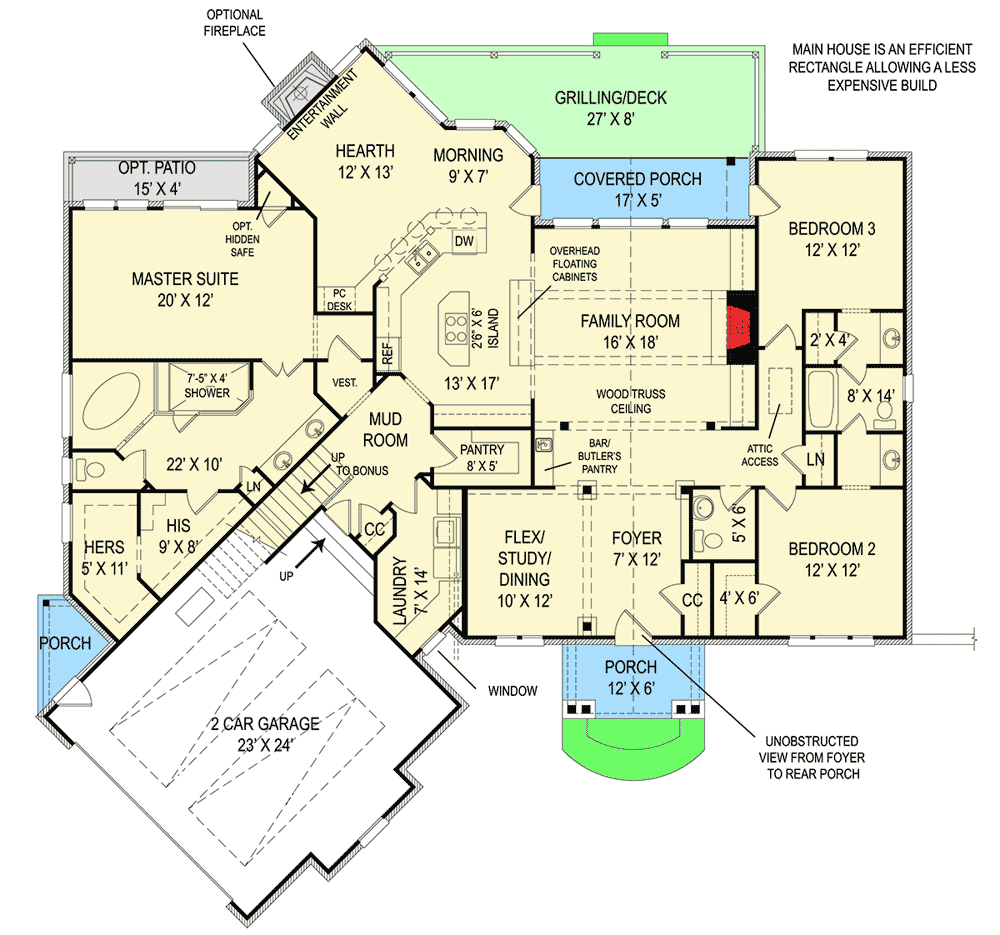

Main Level

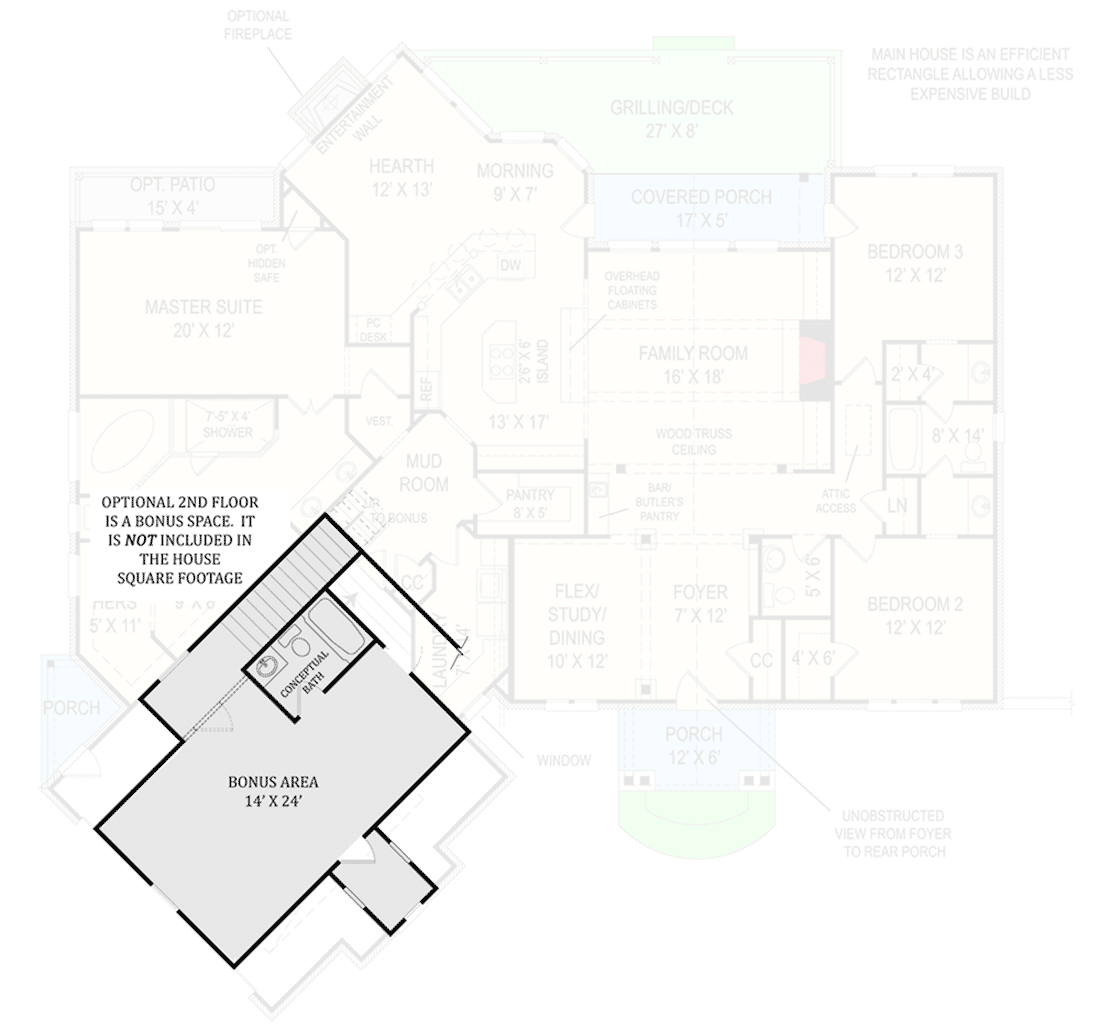

Bonus

Plan Details

This mountain cottage house plan features almost 2,400 square feet on one floor and gives you expansion space above the garage. The thoughtfully designed floor plan will allow you to capture the best panoramic views of your beautiful surroundings.

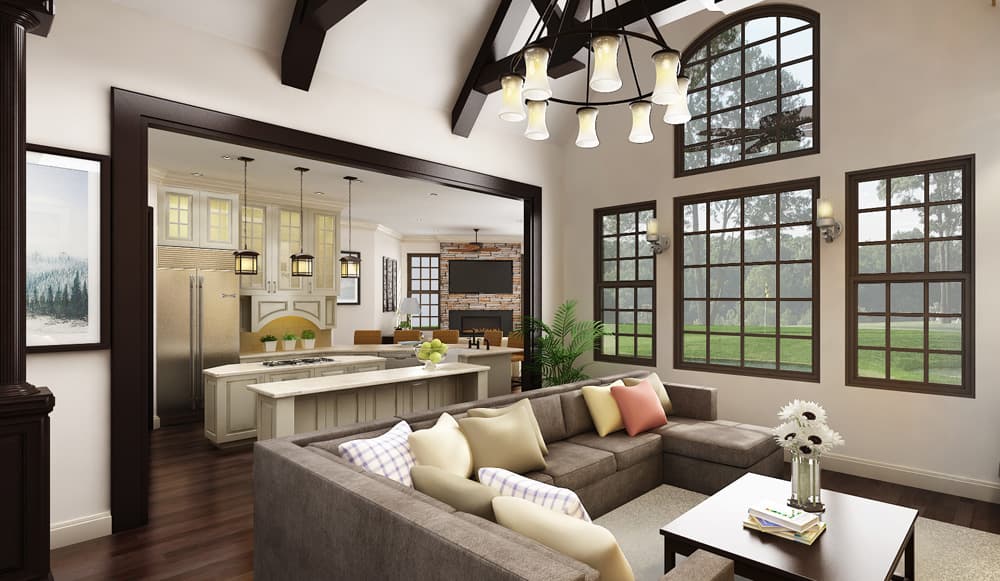

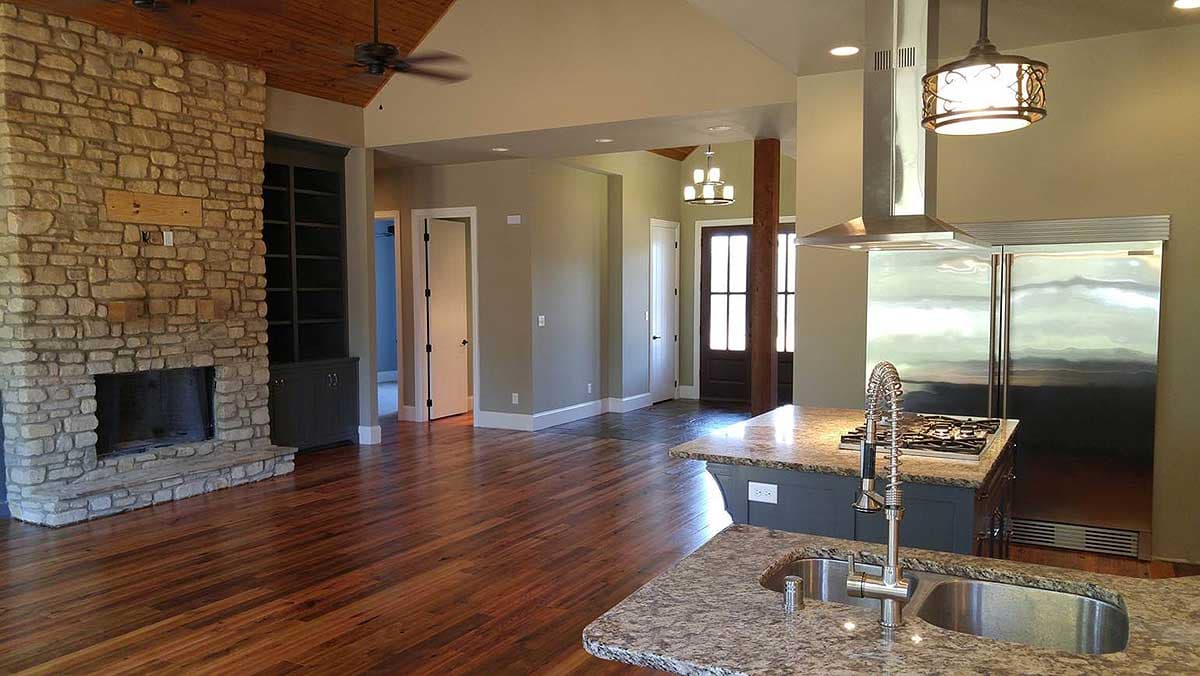

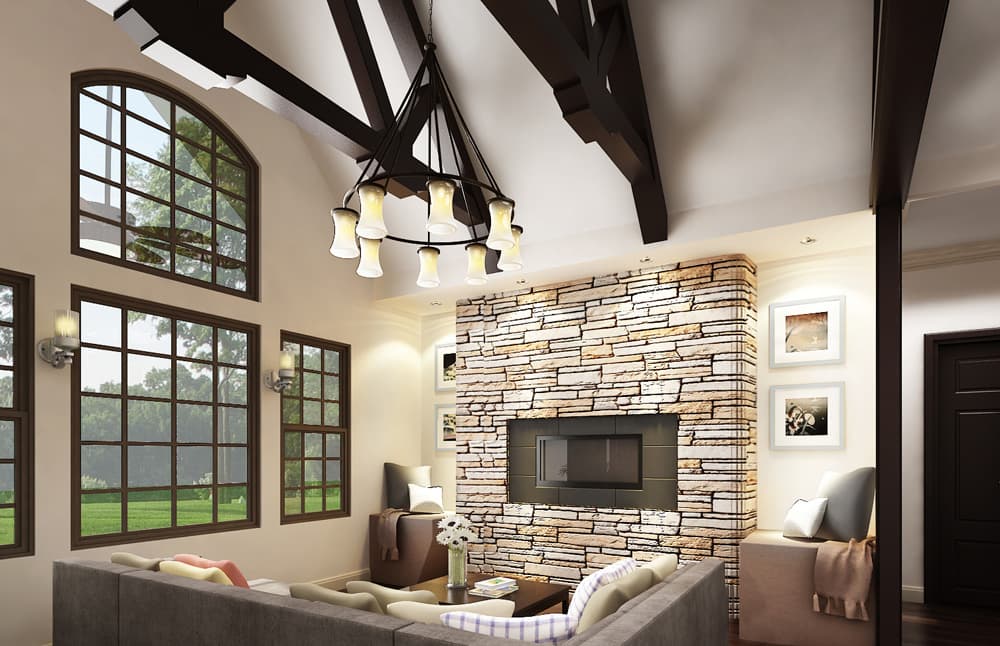

The 18' vaulted family room takes center stage and is the hub of the home. Windows look out across the covered porch and deck beyond and a fireplace is flanked by built-ins. The ceiling has beautiful decorative wood trusses. Foyer has a 16' vault.
The luxurious master suite has a private patio option and his and her closets. A spa tub and a large glass shower await as well. Across the home two more beds share a bath.

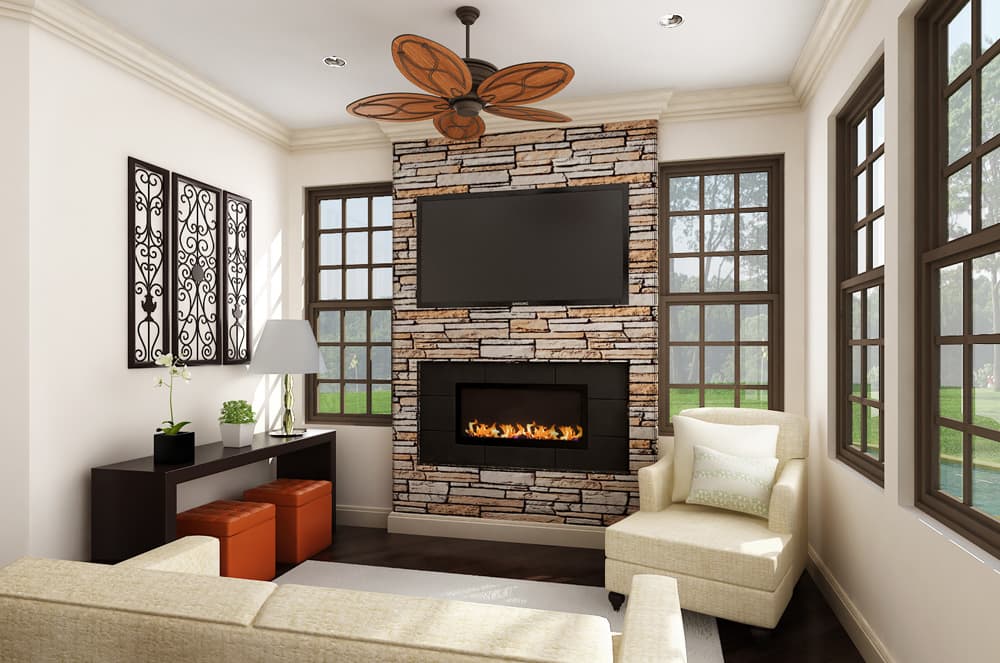

The hearth room has an optional fireplace and some of the best views in the house.
The garage entry acts as the family foyer and allows direct access to the pantry, daylight laundry room (with plenty of folding space), kitchen, and master suite.
For future expansion, an optional bonus room over the garage can be put to many uses.
Related Plans: Get an alternate master suite with house plan 12262JL, a smaller version with house plan 12263JL (2,305 sq. ft.) and an alternate exterior with house plan 12283JL (2,619 sq. ft.).

What's Included

Cover Sheet -The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
Foundation - These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
First Floor Plan - This page is drawn to 1/4”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. Conventional framing.
Second Floor Plan - The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor.
Lighting and Electrical - On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
Second Floor Lighting - The same details as provided for the first floor.

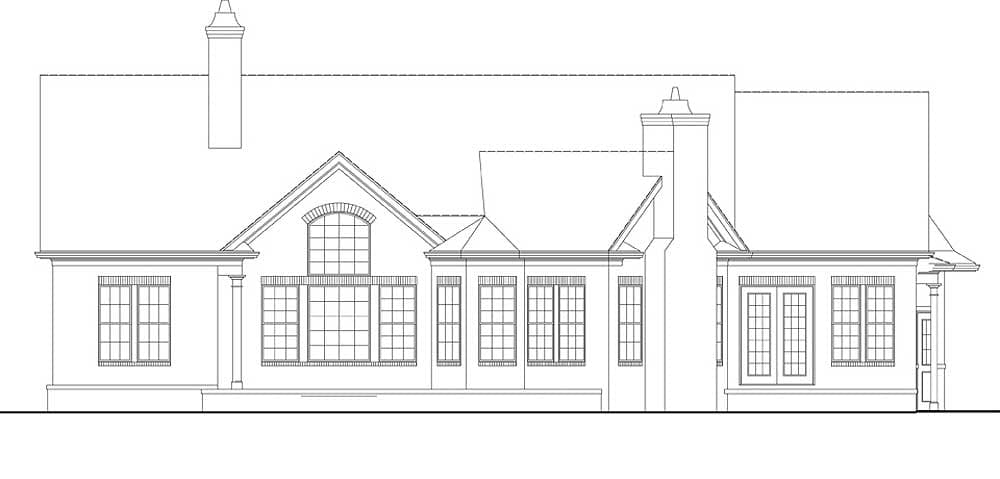

Front and Rear Elevations - The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.

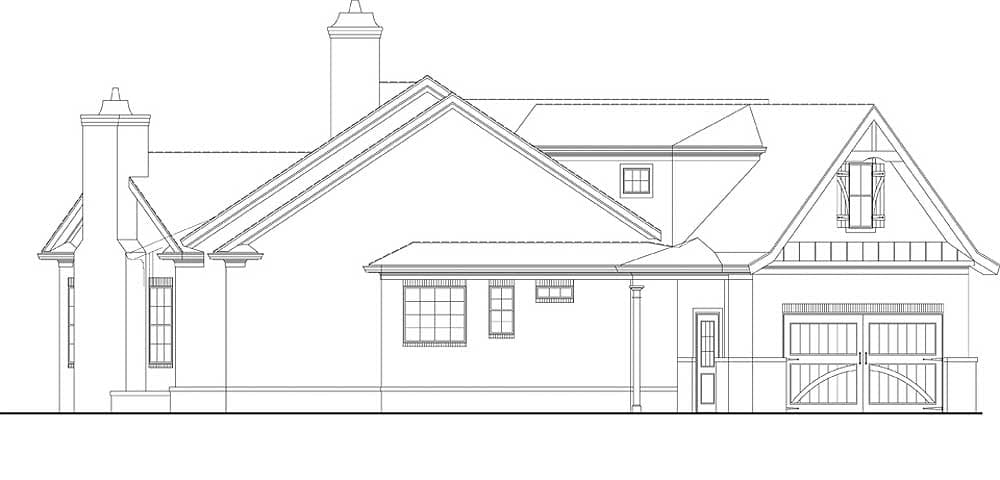

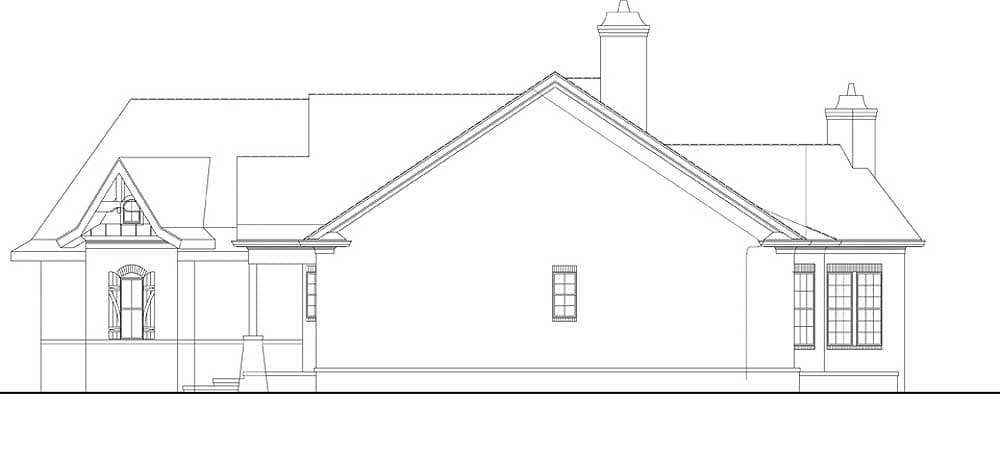

Right and Left Elevations - The right and left elevations provide the same details as the front and rear elevations.
Roof Plan - This drawing, usually at 1/4”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.
Cross-Sections - Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
Cabinet Elevations - Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: Most house plans will contain interior/cabinet elevations, however not all plans will. Please inquire prior to purchase.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

PRINT DETAILS

Square Footage Breakdown

Total Heated Area:

2,430 sq. ft.

1st Floor:

2,430 sq. ft.

Porch, Rear:

98 sq. ft.

Porch, Front:

73 sq. ft.

Bonus:

474 sq. ft.

Beds/Baths

Bedrooms:

3 or 4

Full bathrooms:

2 or 3

Half bathrooms:

1

Foundation Type

Standard Foundations:

Slab

Optional Foundations:

Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

70' 0"

Depth:

71' 0"

Max Ridge Height:

27' 0"

Garage

Type:

Attached

Area:

1222 sq. ft.

Count:

2 Cars

Entry Location:

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Room	Ceiling Type	Width	Depth	Height
Foyer	Flat			16' 0"

Roof Details

Primary Pitch:

8 on 12

Secondary Pitch:

14 on 12

Framing Type:

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Square Footage Breakdown

Total Heated Area:

2,430 sq. ft.

1st Floor:

2,430 sq. ft.

Porch, Rear:

98 sq. ft.

Porch, Front:

73 sq. ft.

Bonus:

474 sq. ft.

Beds/Baths

Bedrooms:

3 or 4

Full bathrooms:

2 or 3

Half bathrooms:

1

Foundation Type

Standard Foundations:

Slab

Optional Foundations:

Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

70' 0"

Depth:

71' 0"

Max Ridge Height:

27' 0"

Garage

Type:

Attached

Area:

1222 sq. ft.

Count:

2 Cars

Entry Location:

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Room	Ceiling Type	Width	Depth	Height
Foyer	Flat			16' 0"

Roof Details

Primary Pitch:

8 on 12

Secondary Pitch:

14 on 12

Framing Type:

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Two Story Great Room

Plan Collections

Photo Gallery
