Plan 21968DR Cottage with Finished Lower Level

2,226 4 2 1
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Cottage with Finished Lower Level

Plan 21968DR

  • 2,226

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Stories

  • We took our cottage 21716DR and added 1'8" to the width and put it on a raised basement - plus added a back deck - and achieved a home plan with 4 bedrooms on a tiny footprint.

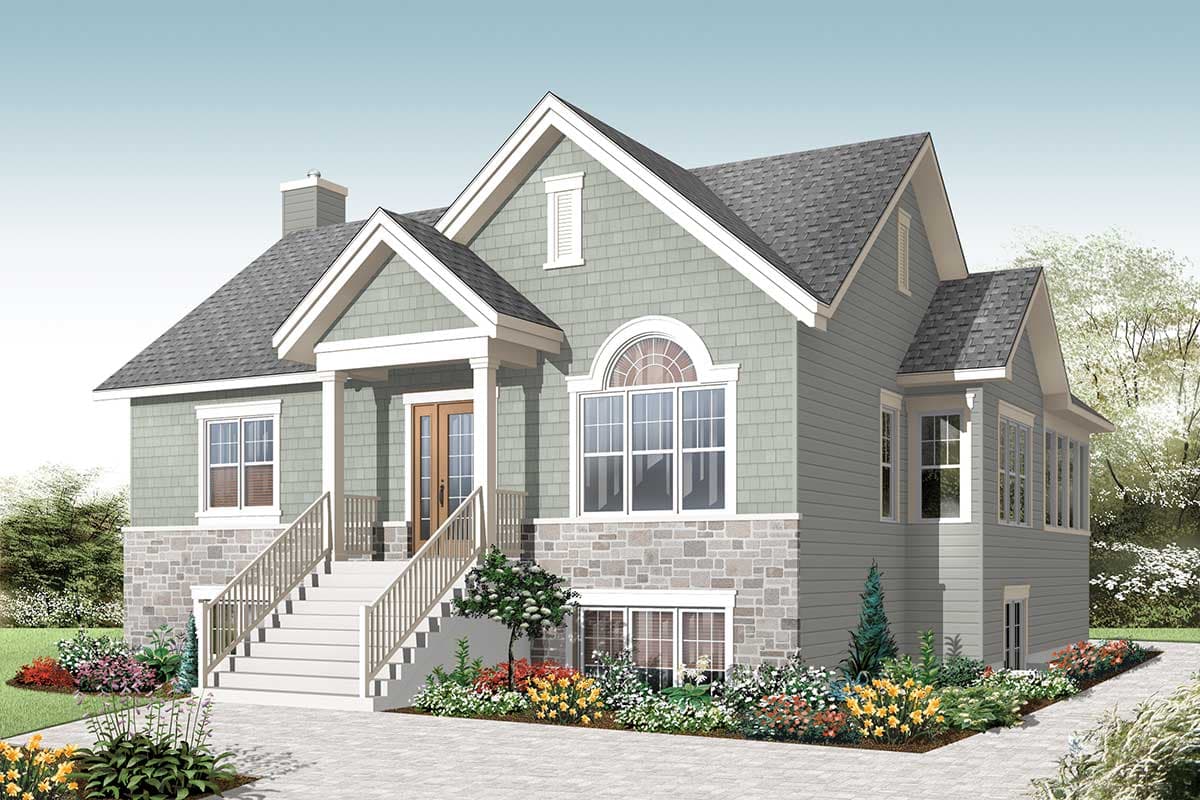

  • The covered entry, stone and shingles combine to create an attractive welcome to this flexible house plan in multiple versions.
  • A partial cathedral ceiling in the living room frames the dramatic half-moon window.
  • The kitchen with island is within easy reach of the dining area which is surrounded by windows on three sides and with direct access to a screened porch.
  • The bedroom area is separate from the main living area and features two comfortable bedrooms and a bathroom with a corner shower and independent bath.
  • A raised basement doubles your living area. The chimney accommodates a wood stove for cozy winter days.
  • Related Plans: Get a bachelor apartment on the lower level with house plan 21969DR. And see the original version, house plan 21716DR.
  • Also see these plans with unfinished lower levels - 21283DR (brick, 2 bedroom) and house plan 21043DR (brick, 3 bedroom).

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

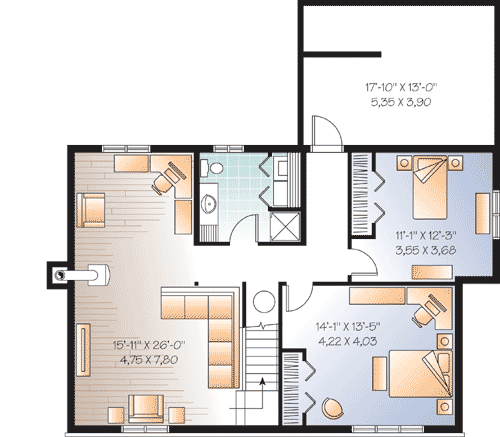

Cottage with Finished Lower Level - 21968DR floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

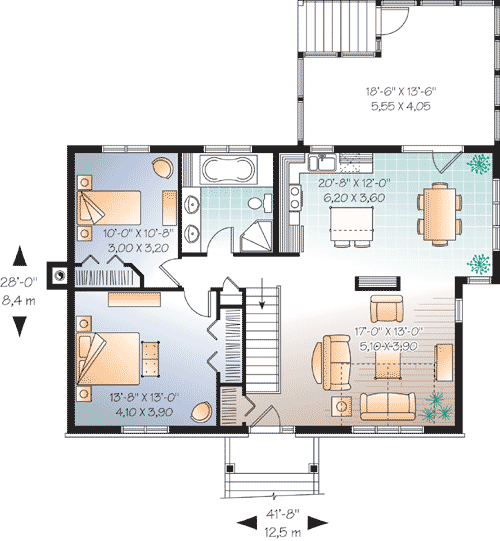

Cottage with Finished Lower Level - 21968DR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,226 sq. ft.
  • Lower Level: 1,113 sq. ft.
  • 1st Floor: 1,113 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 41' 8"
  • Depth: 28' 0"
  • Max ridge height: 25' 4"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 4" First Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Cottage with Finished Lower Level

  • 2,226

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Floors

Floor Plan

  • Basement

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,226 sq. ft.
  • Lower Level: 1,113 sq. ft.
  • 1st Floor: 1,113 sq. ft.

Dimensions

  • Width: 41' 8"
  • Depth: 28' 0"
  • Max ridge height: 25' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 4" First Floor / 8' 0"
