Plan 25605GE Country Cottage with Dual Master Suite

4,941 4-5 4.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Country Cottage with Dual Master Suite

Plan 25605GE

  • 4,941

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 2

    Cars

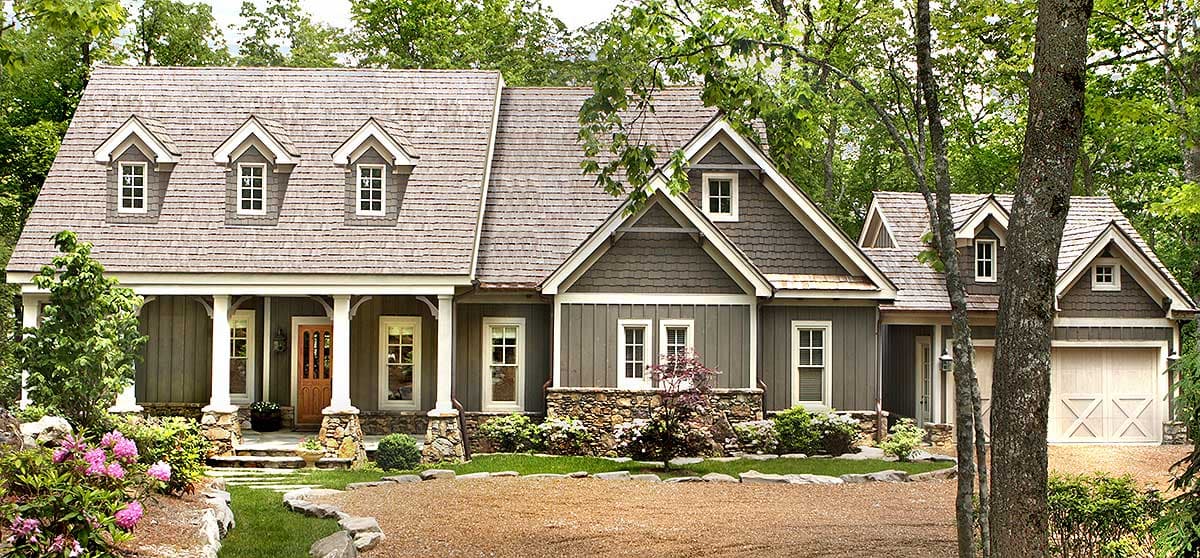

  • This country cottage has a unique dual-Master floor plan with numerous dramatic features. The exterior of this quaint house plan highlights the use of warm wood details with stone and cedar shake.

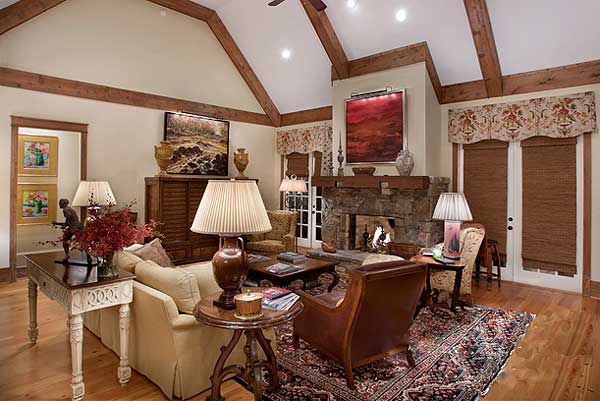

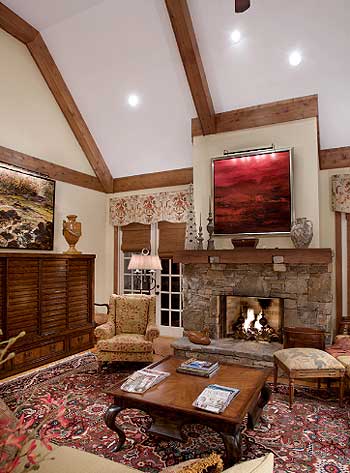

  • The wide covered front porch invites you into this home with an oversized lodge room accented by a stone fireplace with French doors on either side that lead a rear covered porch.

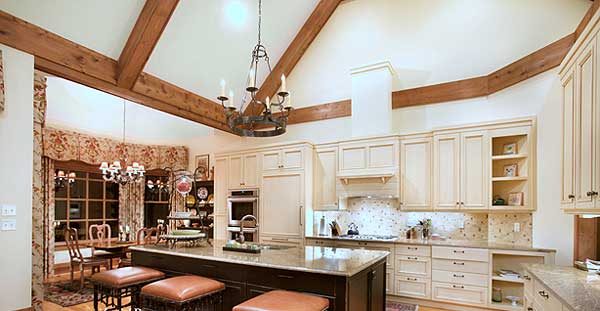

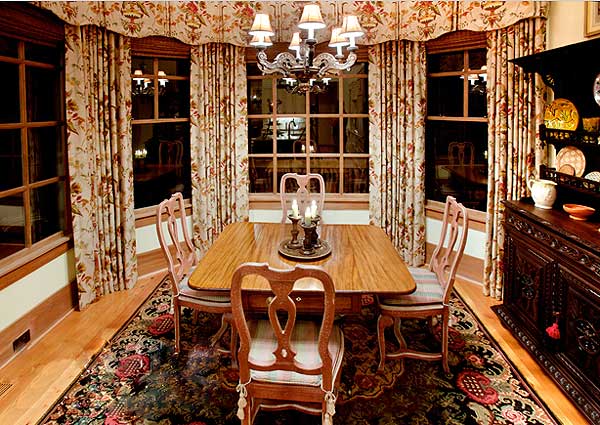

  • The kitchen and casual dining area are wonderful for entertaining friends and family.

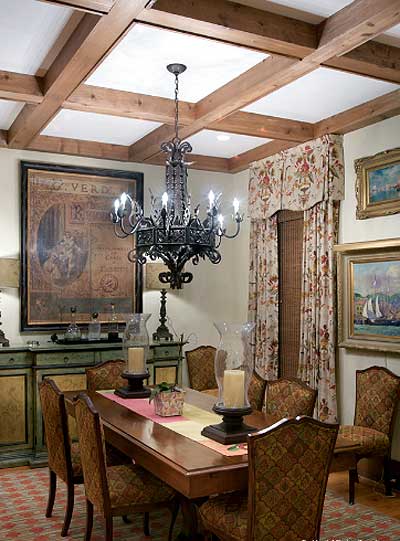

  • The dining room is perfect for a more formal setting or could be used as a study or office.

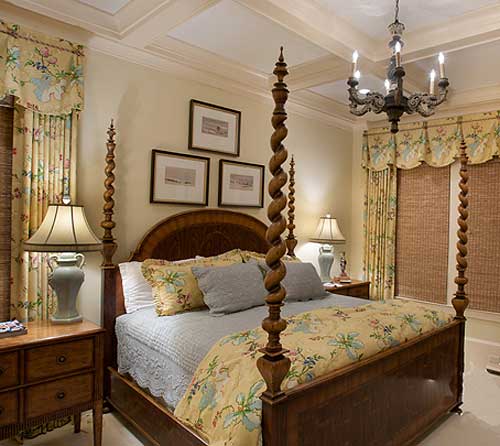

  • Rounding out this spacious first floor is the resort-style master suite and additional bedroom.
  • The terrace level features the second master bedroom and additional bedroom. Also featured on this level is a social room, billiards room, bar and exercise room.
  • The 2-car garage is attached by a breezeway.
  • The roof pitch is 12:12.
  • Related Plans: Get a Craftsman exterior with house plan 15792GE. And get another alternate exterior with house plans 15687GE (2,085 sq. ft. on main) and 15655GE.

The plan set includes the following:

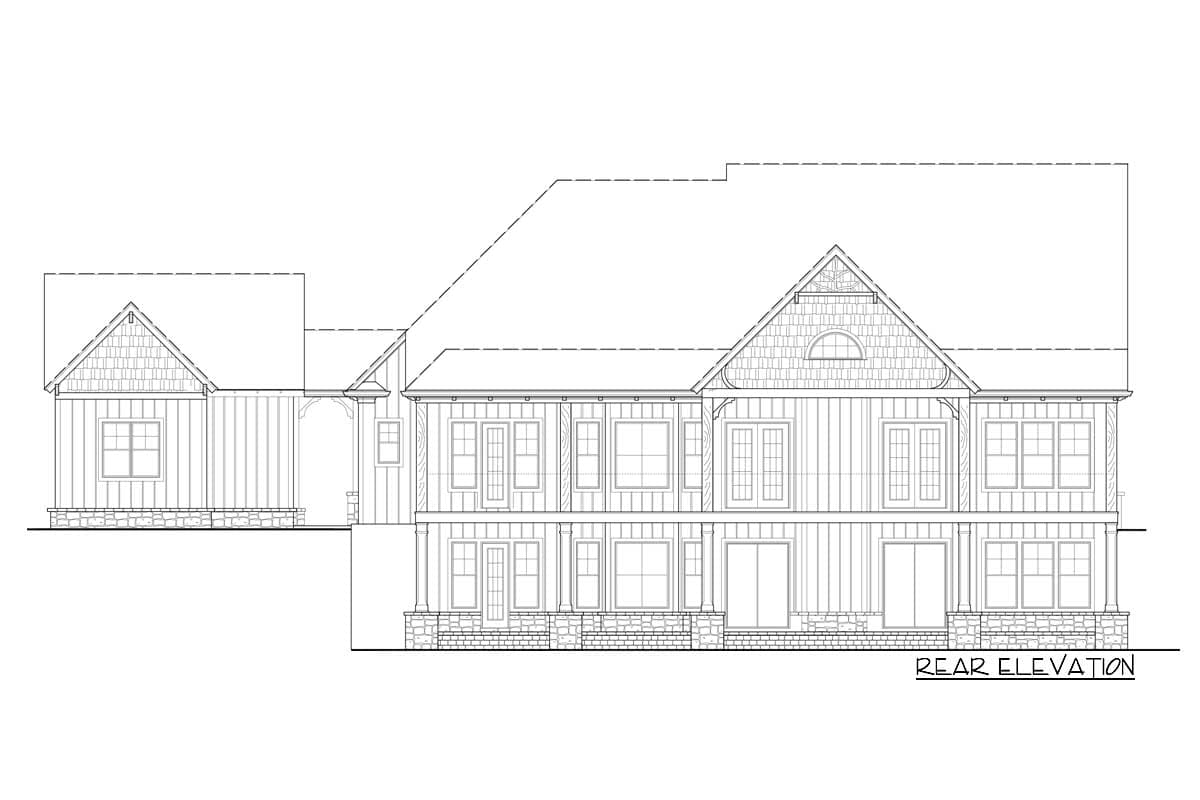

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

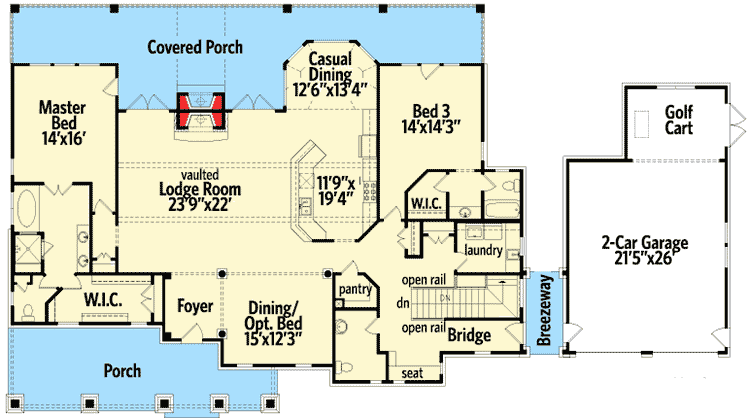

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Cottage with Dual Master Suite - 25605GE floor plan - Main Level

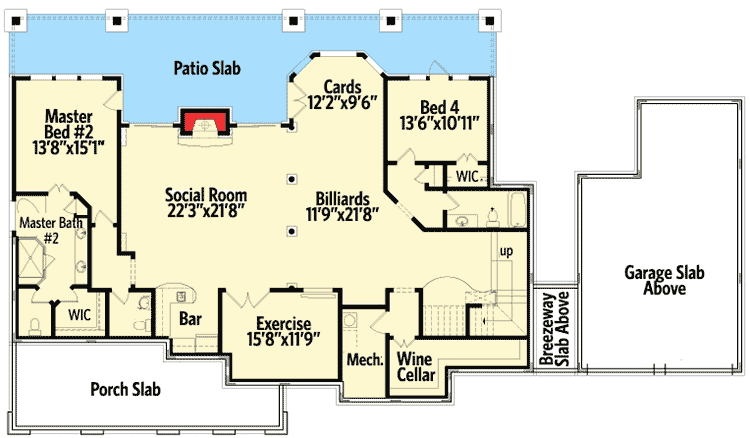

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Cottage with Dual Master Suite - 25605GE floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,941 sq. ft.
  • Lower Level: 2,361 sq. ft.
  • 1st Floor: 2,580 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 70' 6"
  • Depth: 59' 5"
  • Max ridge height: 32' 0"

Garage

  • Type: Detached
  • Area: 725 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 14 on 12

Architectural Style

Special features

Plan Collections

Country Cottage with Dual Master Suite

  • 4,941

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,895
  • CAD - Single-Build $3,145
  • View all purchase option online

About This Plan

  • This country cottage has a unique dual-Master floor plan with numerous dramatic features. The exterior of this quaint house plan highlights the use of warm wood details with stone and cedar shake.
  • The wide covered front porch invites you into this home with an oversized lodge room accented by a stone fireplace with French doors on either side that lead a rear covered porch.
  • The kitchen and casual dining area are wonderful for entertaining friends and family.
  • The dining room is perfect for a more formal setting or could be used as a study or office.
  • Rounding out this spacious first floor is the resort-style master suite and additional bedroom.
  • The terrace level features the second master bedroom and additional bedroom. Also featured on this level is a social room, billiards room, bar and exercise room.
  • The 2-car garage is attached by a breezeway.
  • The roof pitch is 12:12.
  • Related Plans: Get a Craftsman exterior with house plan 15792GE. And get another alternate exterior with house plans 15687GE (2,085 sq. ft. on main) and 15655GE.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,941 sq. ft.
  • Lower Level: 2,361 sq. ft.
  • 1st Floor: 2,580 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 70' 6"
  • Depth: 59' 5"
  • Max ridge height: 32' 0"

Garage

  • Type: Detached
  • Area: 725 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 14 on 12
Plan 25605GE
View this and more for this plan by visiting www.architechtecturaldesigns.com/25605GE
|
