Plan 68696VR Country Ranch House Plan for Sloped Lot

3,786 4 3 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Country Ranch House Plan for Sloped Lot

Plan 68696VR

  • 3,786

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • A magnificent wrap-around porch completely encircles this Country ranch house plan.
  • Designed for a lot that slopes to the side, the garage is a drive-under with triple bays.
  • The main living area is one huge open space that combines the cooking, eating, and living areas.
  • There are doors front and back to get out to that beautiful covered porch.
  • Homeowners get a private master suite off by itself, thanks to the split bedroom configuration.
  • Related Plans: Finish the basement later with house plans 68533VR and 68772VR .

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

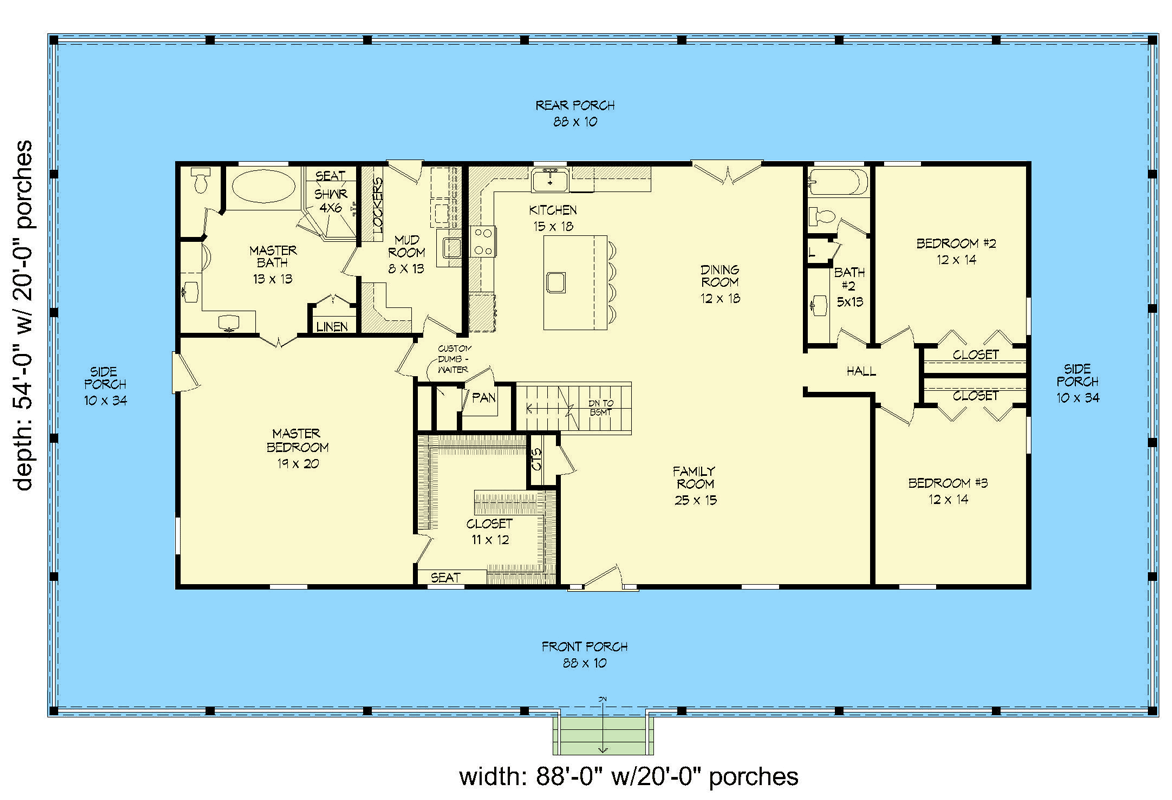

Country Ranch House Plan for Sloped Lot - 68696VR floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

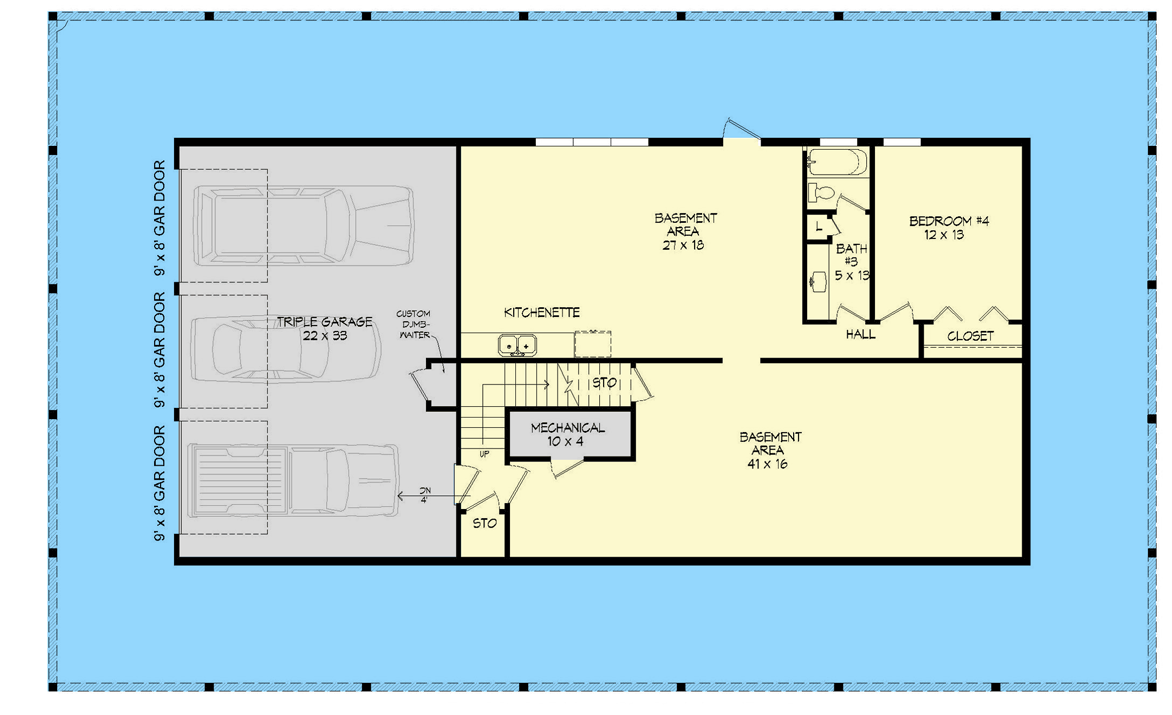

Country Ranch House Plan for Sloped Lot - 68696VR floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,786 sq. ft.
  • Lower Level: 1,474 sq. ft.
  • 1st Floor: 2,312 sq. ft.
  • Porch, Combined: 2,440 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 88' 0"
  • Depth: 54' 0"
  • Max ridge height: 23' 3"

Garage

  • Type: Drive Under
  • Area: 838 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Country Ranch House Plan for Sloped Lot

  • 3,786

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,275
  • 5 Sets $2,445
  • 5 Sets + PDF $2,620
  • CAD + PDF - Single-Build $2,825
  • View all purchase option online

About This Plan

  • A magnificent wrap-around porch completely encircles this Country ranch house plan.
  • Designed for a lot that slopes to the side, the garage is a drive-under with triple bays.
  • The main living area is one huge open space that combines the cooking, eating, and living areas.
  • There are doors front and back to get out to that beautiful covered porch.
  • Homeowners get a private master suite off by itself, thanks to the split bedroom configuration.
  • Related Plans: Finish the basement later with house plans 68533VR and 68772VR .

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,786 sq. ft.
  • Lower Level: 1,474 sq. ft.
  • 1st Floor: 2,312 sq. ft.
  • Porch, Combined: 2,440 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 88' 0"
  • Depth: 54' 0"
  • Max ridge height: 23' 3"

Garage

  • Type: Drive Under
  • Area: 838 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
Plan 68696VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68696VR
|
