Courtyards and Terraces

Plan 16810WG

  • 3,343

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This Spanish-influenced house plan features a courtyard in front and back giving you outdoor spaces for entertaining and relaxing.
  • A unique loggia connects the front to to entry and grand hall. Three sets of doors lead to the living room with fireplace. Note the small courtyard on the side.
  • The master suite has exposed beams in the ceiling and courtyard access.
  • This home is great for the narrow lot and has a 2-car alley garage.
  • Upstairs, a sunporch is accessed off bedroom #3. Master #2 has its own private terrace.

Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.

Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.

Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,

Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.

Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.

Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.


These items are NOT included:

Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

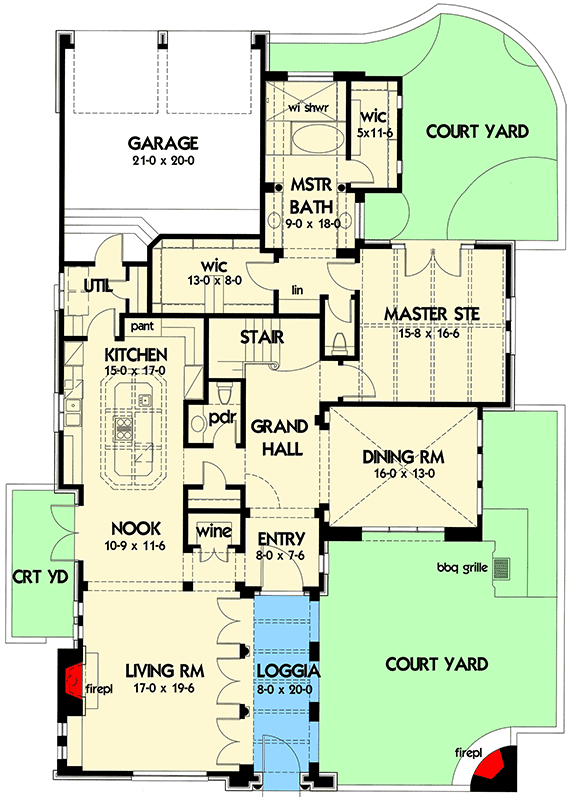

Courtyards and Terraces - 16810WG floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Courtyards and Terraces - 16810WG floor plan - 2nd Floor

Courtyards and Terraces

  • 3,343

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,343 sq. ft.
  • 1st Floor: 2,249 sq. ft.
  • 2nd Floor: 1,094 sq. ft.

Dimensions

  • Width: 49' 5"
  • Depth: 82' 0"
  • Max ridge height: 31' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 494 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 12' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Stick
