Plan 51146MM

Craftsman Bungalow With Basement And Bonus

Heated S.F.
2,233
Beds
4
Baths
2.5 - 3.5
Stories
1
Cars
2

Floor Plan

Plan 51146MM

Main Level
Main Level
Bonus Above
Bonus Above

Plan 51146MM

M-F 9am-5pm EST |

1-203-761-8500

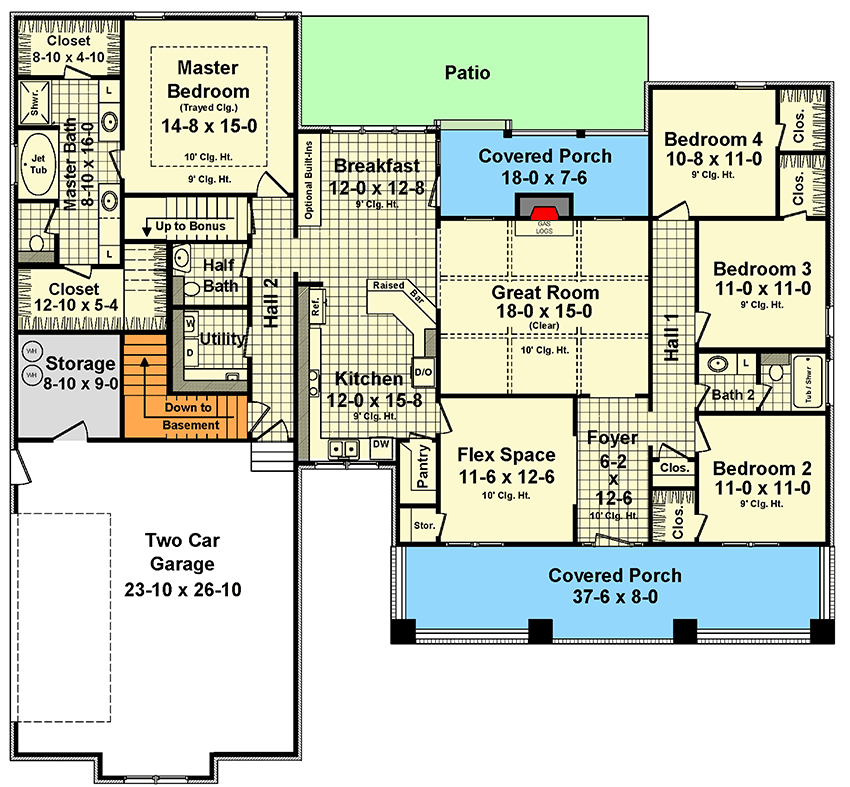

Main Level

Plan 51146MM: Craftsman Bungalow With Basement And Bonus - Floor Plan - Main Level - Cottage, Country, Craftsman, Northwest

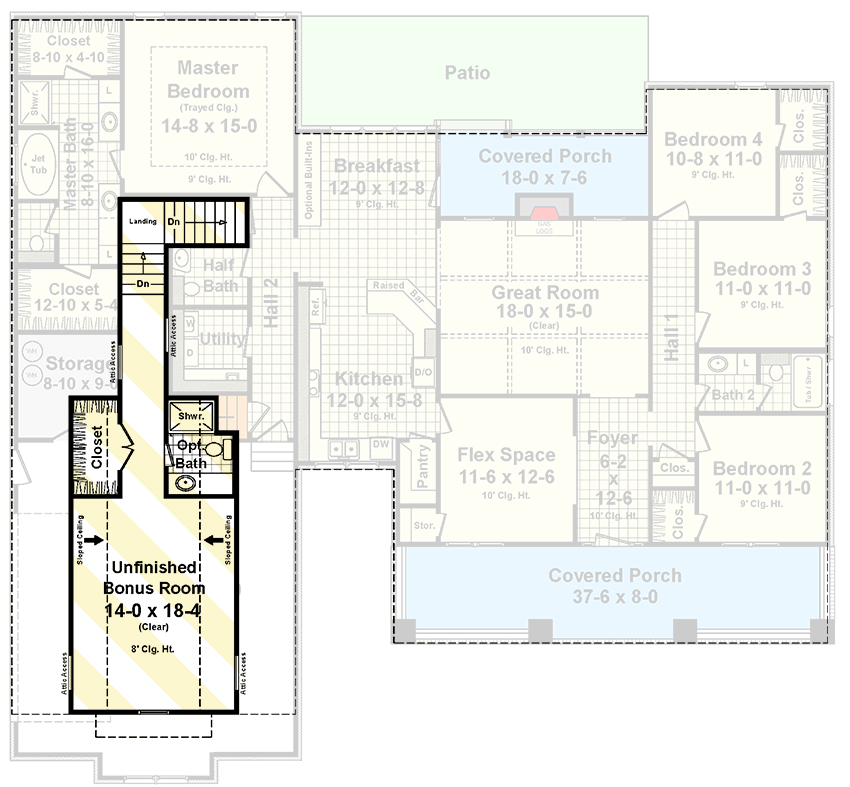

Bonus Above

Plan 51146MM: Craftsman Bungalow With Basement And Bonus - Floor Plan - Bonus Above - Cottage, Country, Craftsman, Northwest

Plan Details

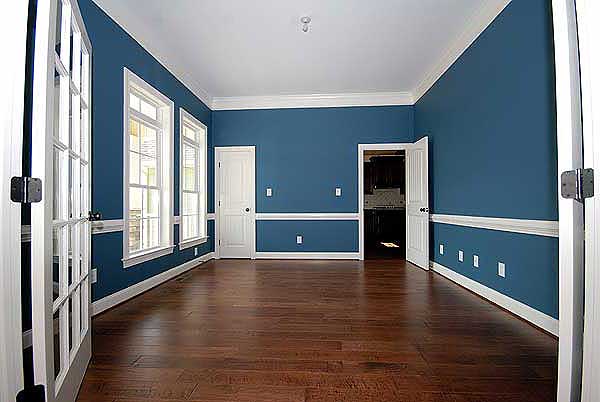

  • This beautiful Craftsman house plan features 4 over-sized bedrooms with walk-in closets. Flex space provides a perfect spot for that home office, playroom, or dining room.

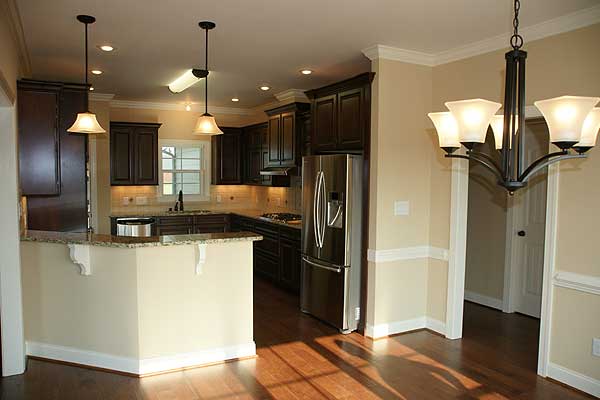

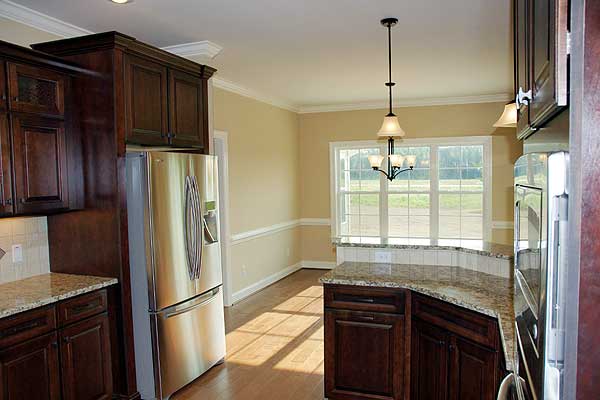

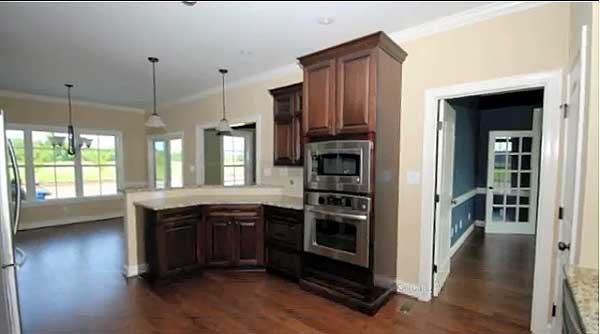

  • A breakfast area and raised bar provide spaces for family meals with close access to the fully-equipped kitchen.

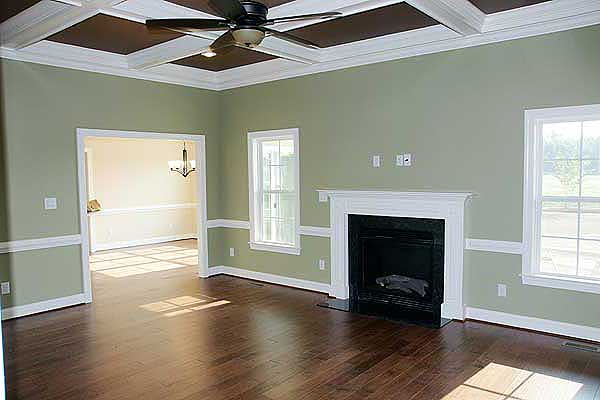

  • The great room includes gas logs, a coffered ceiling, and beautiful views to the covered rear porch beyond.

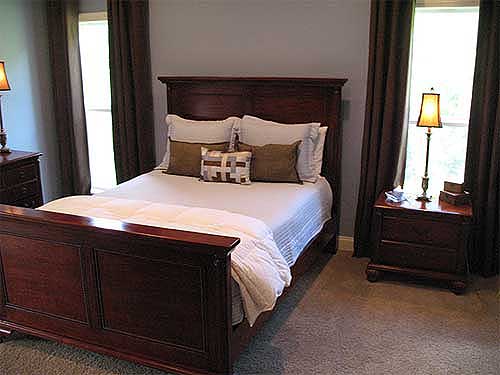

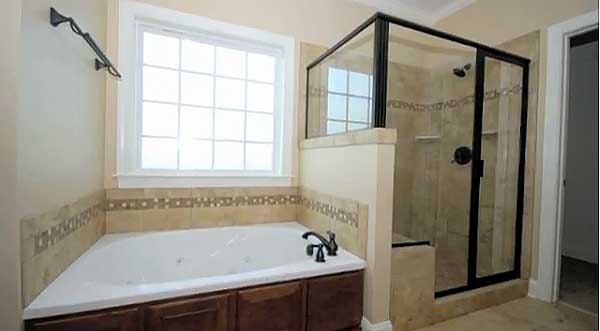

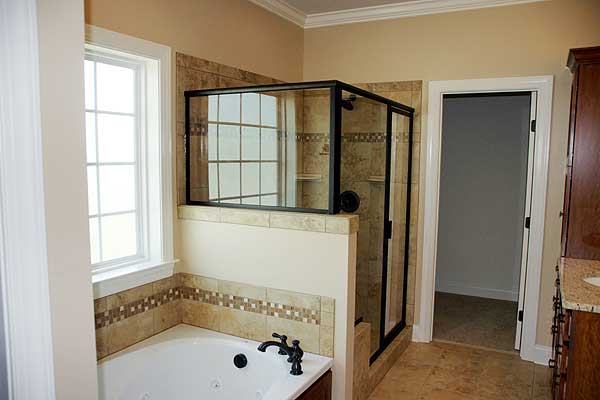

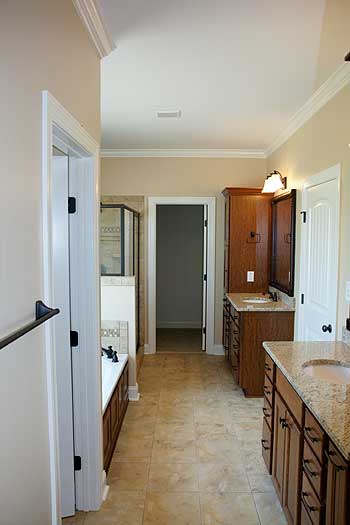

  • The master bedroom also features trayed ceilings and the master bathroom is full featured.
  • The expansive garage provides plenty of room for oversized trucks and SUV's and also includes a large storage area.
  • The bonus room provides space for future expansion or for additional storage.
  • Related Plans: See an alternate basement version with house plan 51144MM (1,940 sq. ft.). And build on a slab or crawl with house plan 51116MM (2,199 sq. ft.).
  • And see these 3 bedroom version: house plan 51064MM (1,924 s.f.), 51065MM (2,108 s.f.), 51041MM (1,800 s.f.) and 51040MM (1,509 s.f.).
  • For a more traditional exterior, see these related house plans: 5188MM (1,800 s.f., side-entry garage), 5191MM (2,250 s.f., side-entry garage) and 5192MM (2,500 s.f., front-entry garage).

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

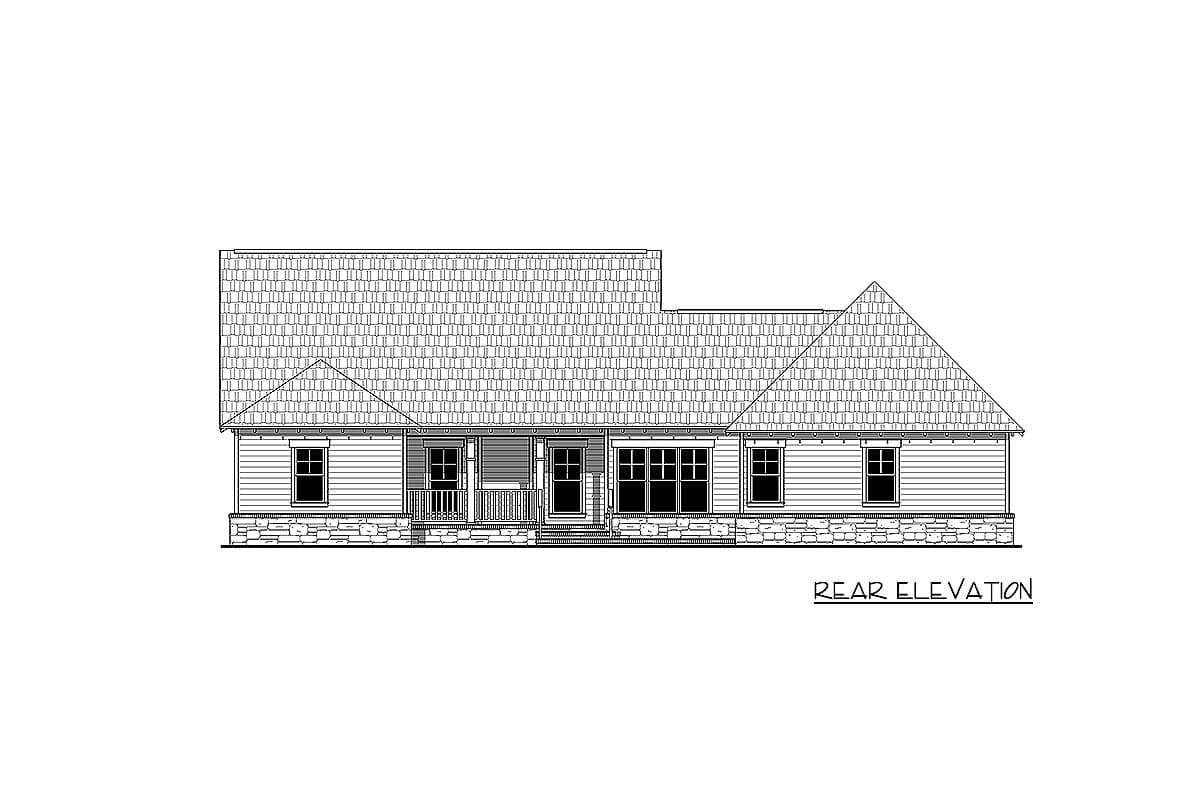

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,233 sq. ft.

1st Floor

2,233 sq. ft.

Bonus

495 sq. ft.

Storage

85 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 6"

Depth

66' 0"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

686 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Northwest

Special Features

Bedrooms - Split

Home Office

Master Suite - 1st Floor

Optionally Finished Bonus Room

Playroom

Plan Collections

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

2,233 sq. ft.

1st Floor

2,233 sq. ft.

Bonus

495 sq. ft.

Storage

85 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 6"

Depth

66' 0"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

686 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Northwest

Special Features

Bedrooms - Split

Home Office

Master Suite - 1st Floor

Optionally Finished Bonus Room

Playroom

Plan Collections

Photo Gallery

USDA Approved
