Craftsman Cottage with Street Appeal

1,982 3 2 1 2
Pageloader

Craftsman Cottage with Street Appeal

Plan 59743ND

  • 1,982

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This Craftsman cottage home plan offers fantastic street appeal for the neighborhood with the arched roof over the front porch. Sunny mornings can be enjoyed on the covered front porch with hot coffee and a book while enjoying after-dinner conversation on the rear screen-porch.
  • The grand entry foyer has box columns making a lavish entry into the great room with fireplace and a vaulted ceiling.
  • Many dining options are available in both formal dining room and breakfast rooms, which are separated by the open kitchen complete with center work-island with seating.
  • This split bedroom design offers privacy to the master suite placed at the rear of the home plan featuring French doors into the private bathroom and corner whirlpool tub.
  • Related Plans: For an alternate exterior, see house plan 59150ND and 59148ND if building in reverse.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

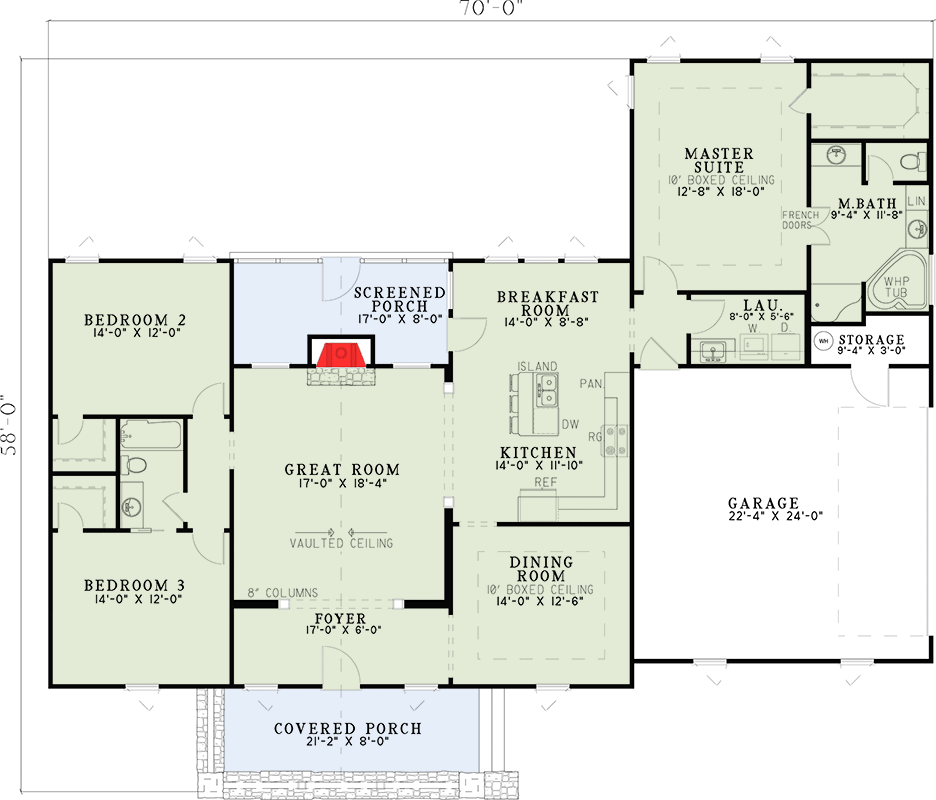

Floor Plan

Plan details

Architectural Style



Craftsman Cottage with Street Appeal

  • 1,982

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $580
  • 5 Sets $630
  • 8 Sets $720
  • Reproducible Set $1,105
  • PDF - single-use $1,105
  • CAD $1,700
  • View all purchase option online

About This Plan

  • This Craftsman cottage home plan offers fantastic street appeal for the neighborhood with the arched roof over the front porch. Sunny mornings can be enjoyed on the covered front porch with hot coffee and a book while enjoying after-dinner conversation on the rear screen-porch.
  • The grand entry foyer has box columns making a lavish entry into the great room with fireplace and a vaulted ceiling.
  • Many dining options are available in both formal dining room and breakfast rooms, which are separated by the open kitchen complete with center work-island with seating.
  • This split bedroom design offers privacy to the master suite placed at the rear of the home plan featuring French doors into the private bathroom and corner whirlpool tub.
  • Related Plans: For an alternate exterior, see house plan 59150ND and 59148ND if building in reverse.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,982 sq. ft.
  • 1st Floor: 1,982 sq. ft.
  • Porch, Combined: 318 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 58' 0"
  • Max ridge height: 24' 6"

Garage

  • Type: Attached
  • Area: 588 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

  • Craftsman

Special features

  • 1st Floor Master Suite
  • CAD Available
  • PDF
  • Split Bedrooms
