Plan 64540SC
EXCLUSIVE
Craftsman Farmhouse with Fun-Filled Lower Level
Heated S.F.
3,188
Beds
2-4
Baths
2.5 - 4.5
Stories
1
Cars
3
What's Included
Floor Plan
PRINT PLANS

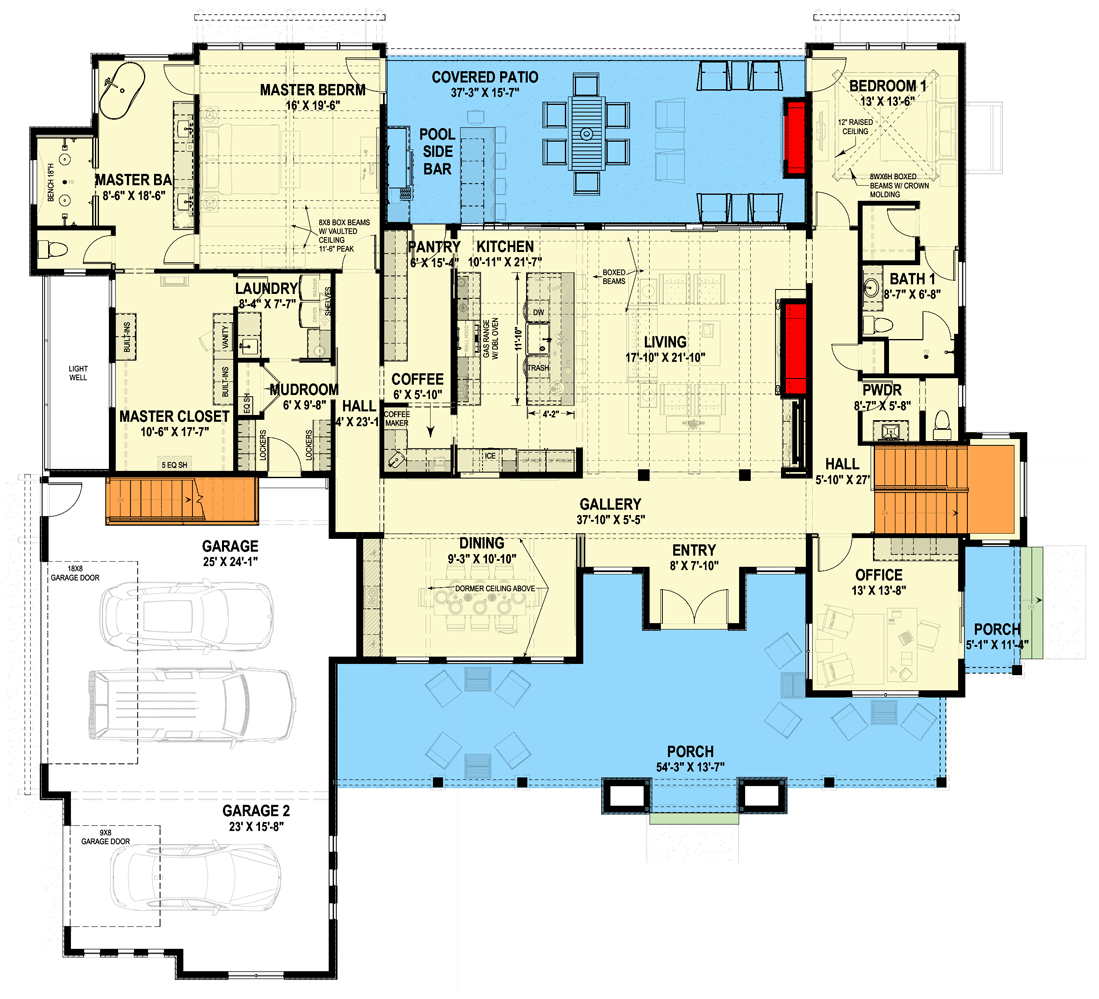

Main Level
Reverse Floor Plan
Craftsman Farmhouse with Fun-Filled Lower Level - 64540SC floor plan - Main Level

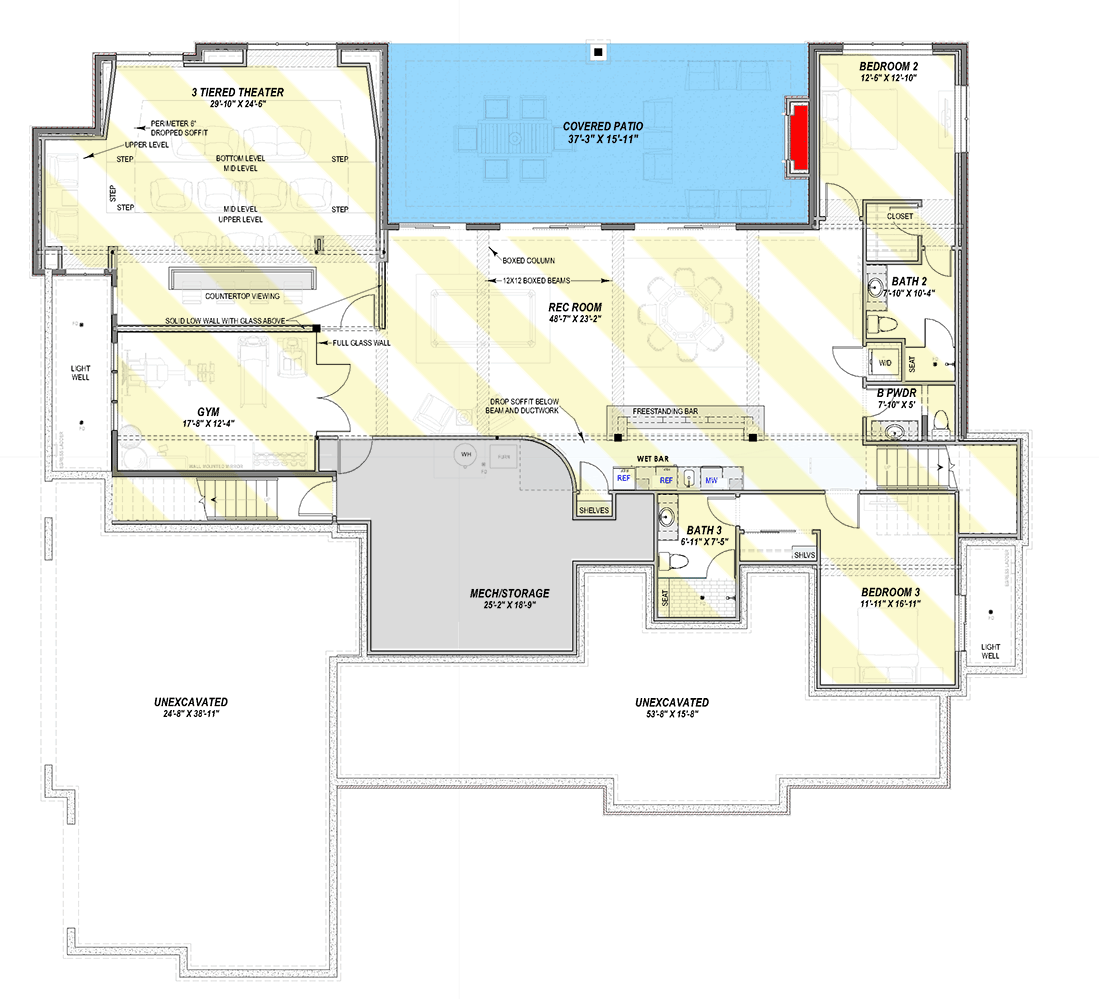

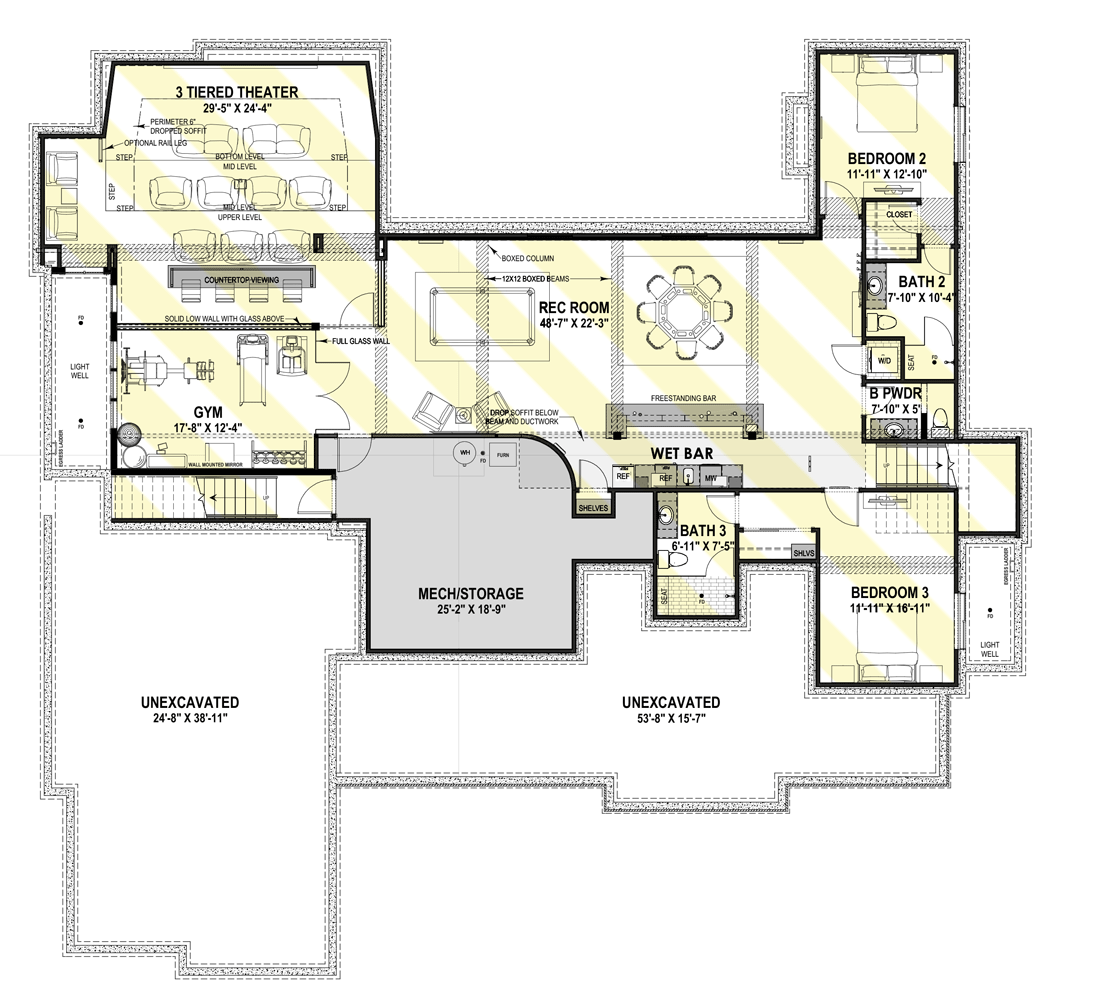

Optionally Finished Basement
Reverse Floor Plan
Craftsman Farmhouse with Fun-Filled Lower Level - 64540SC floor plan - Optionally Finished Basement
Plan Details

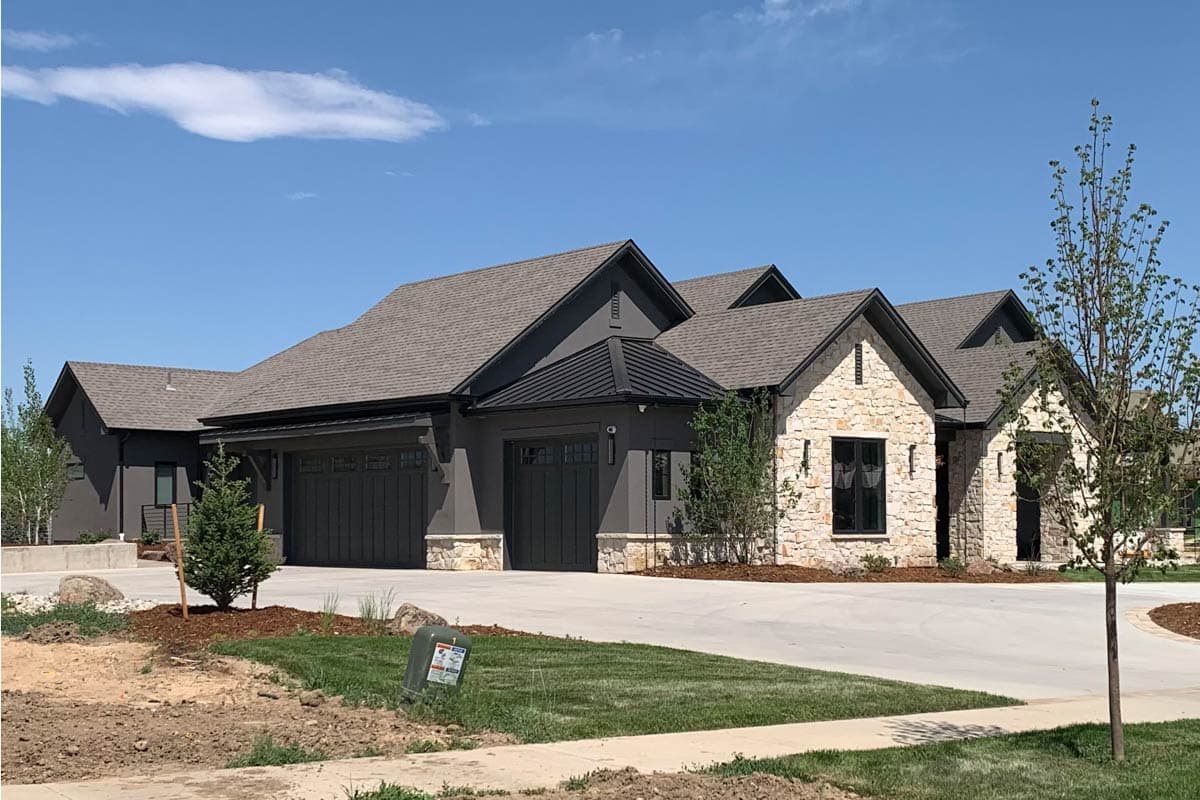

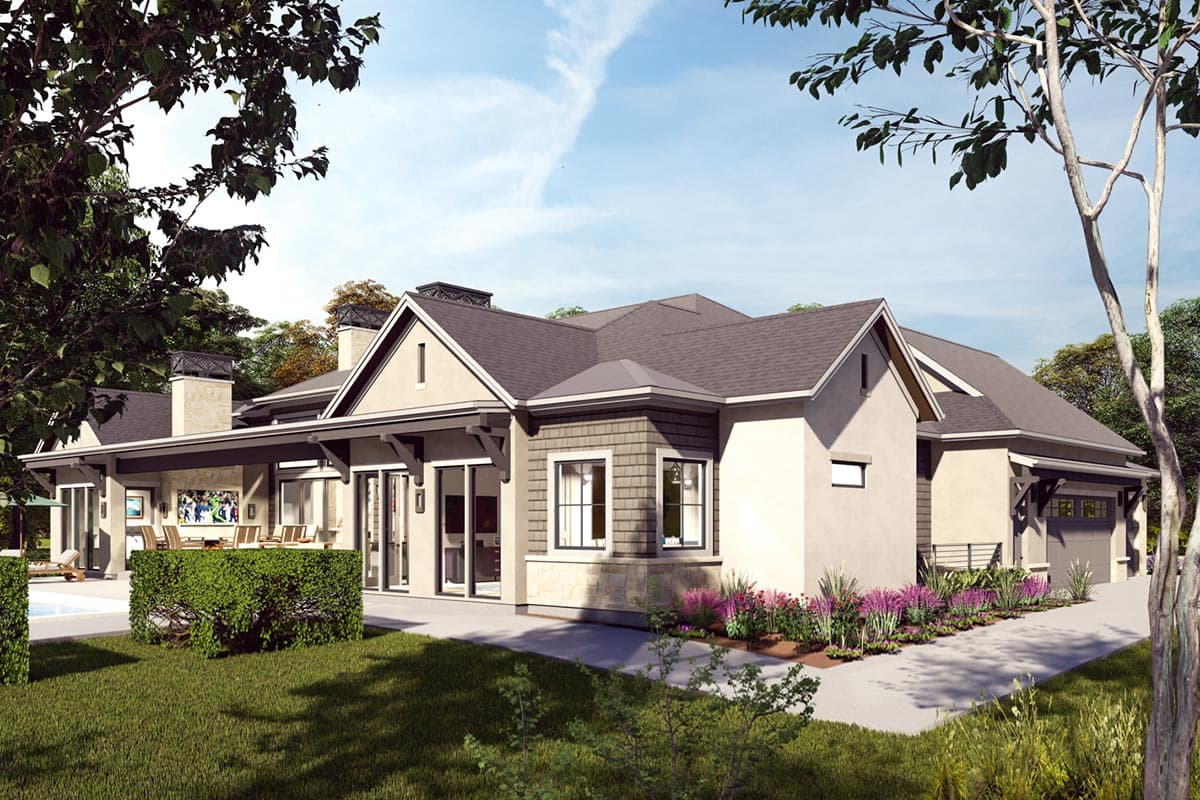

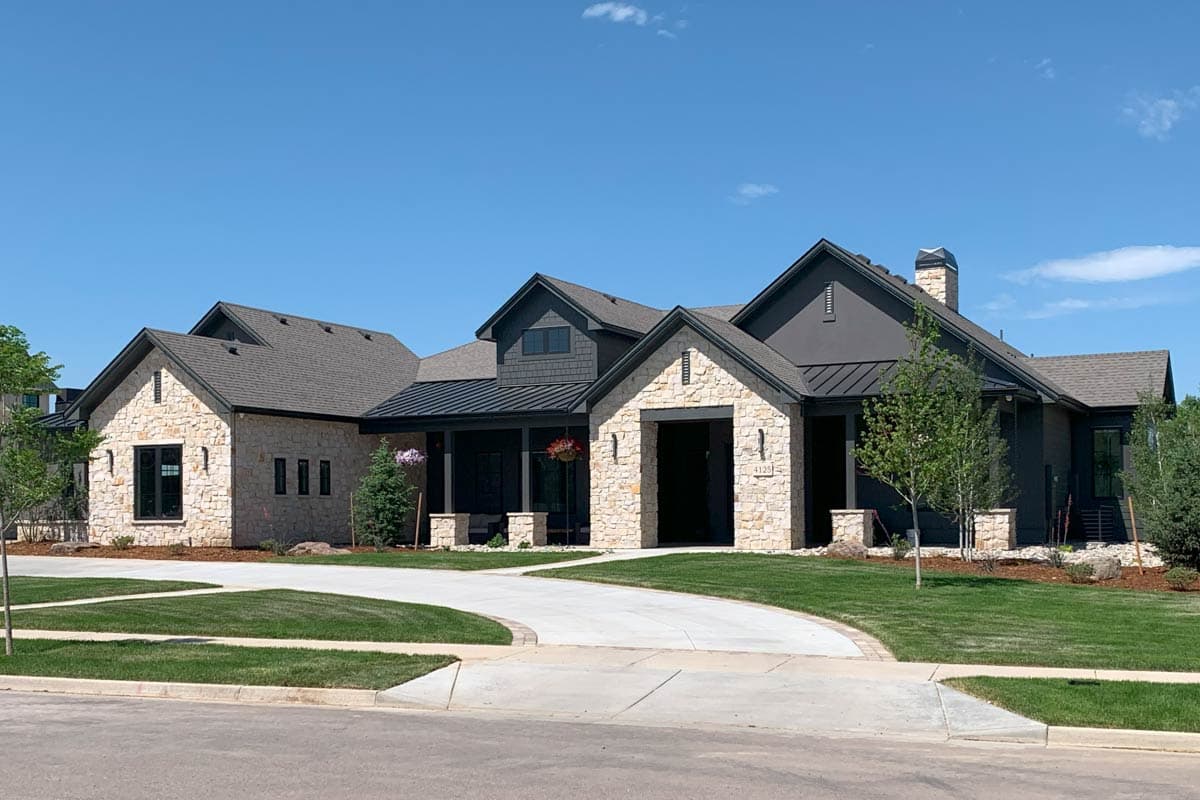

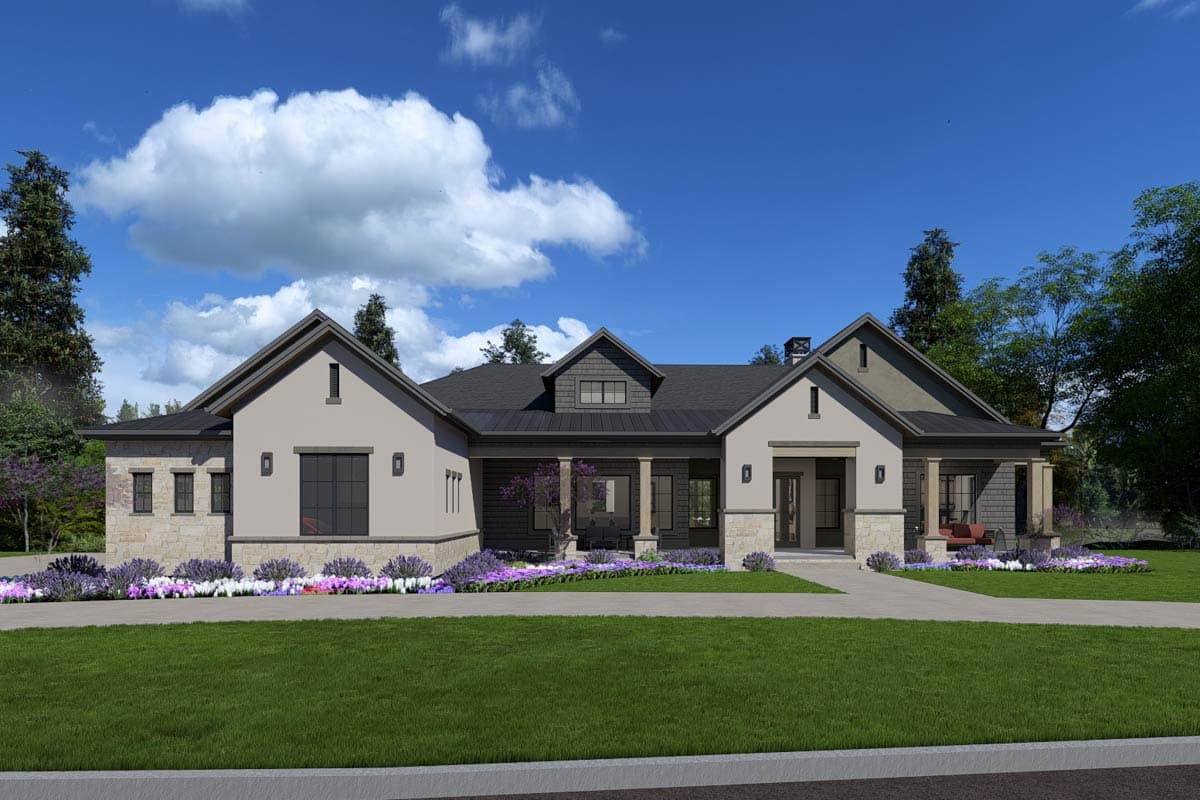

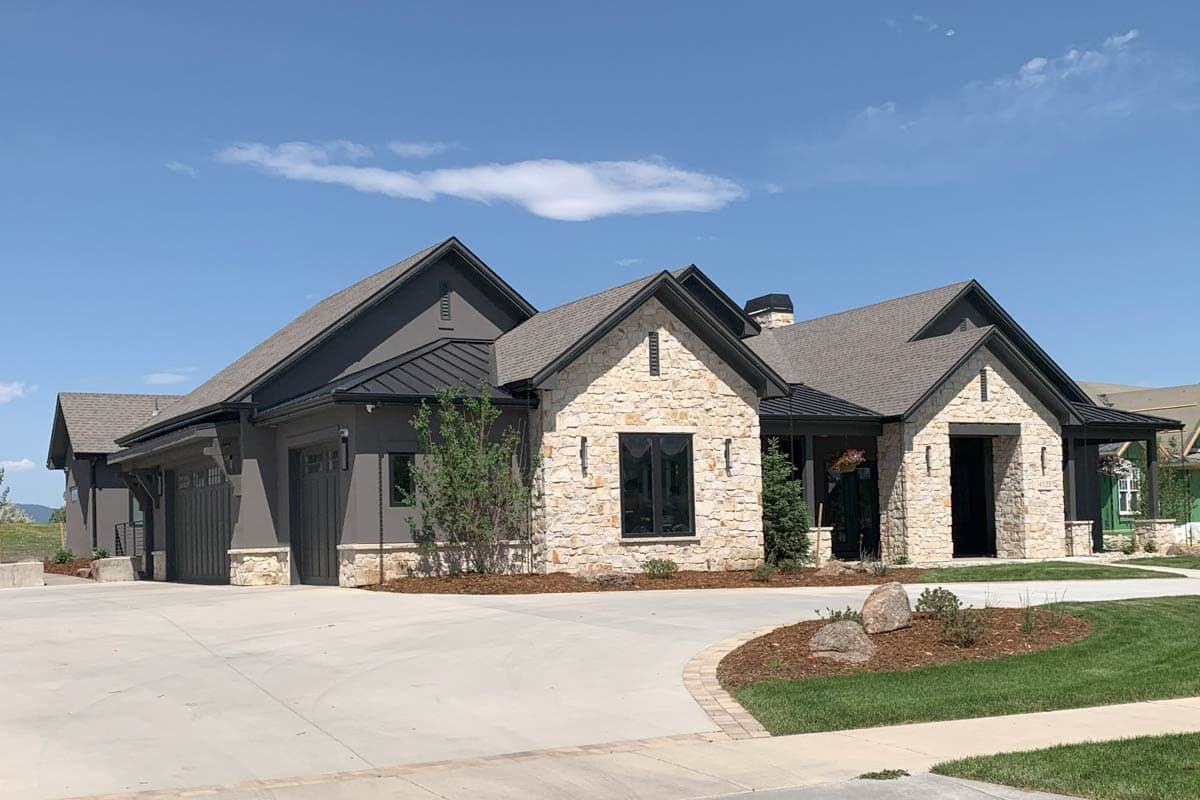

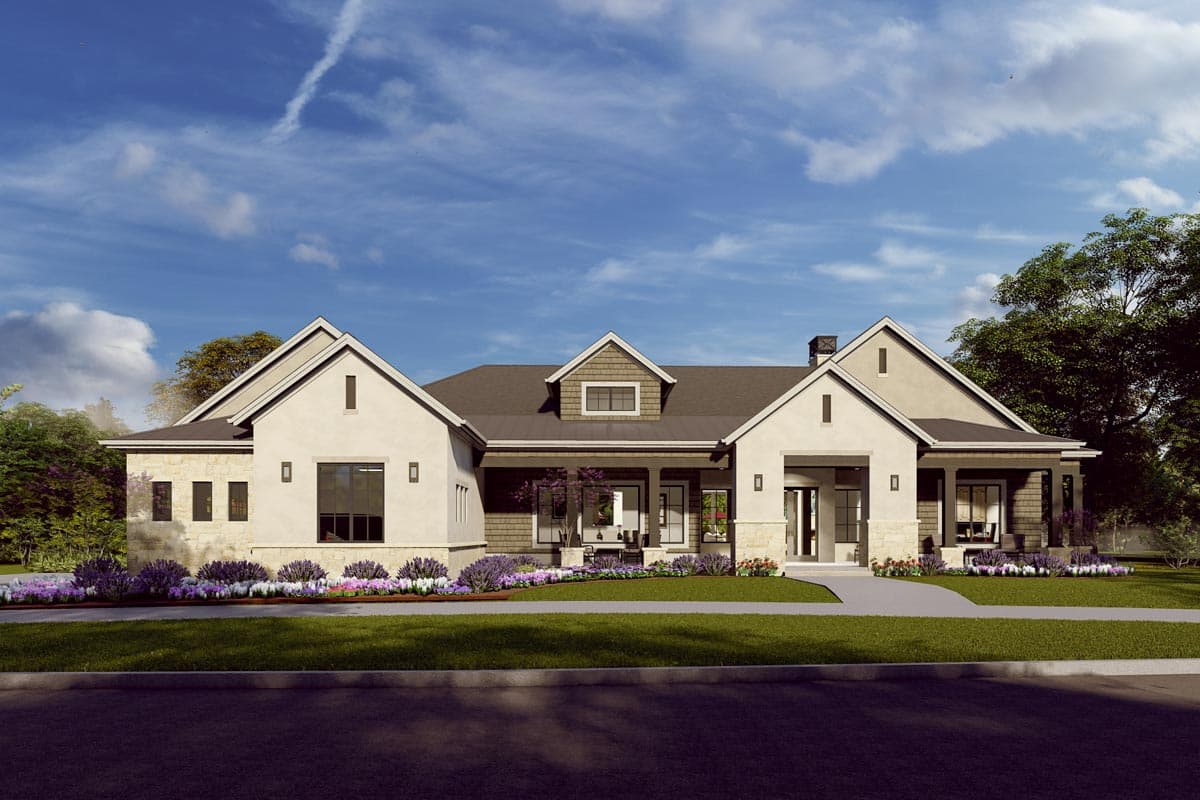

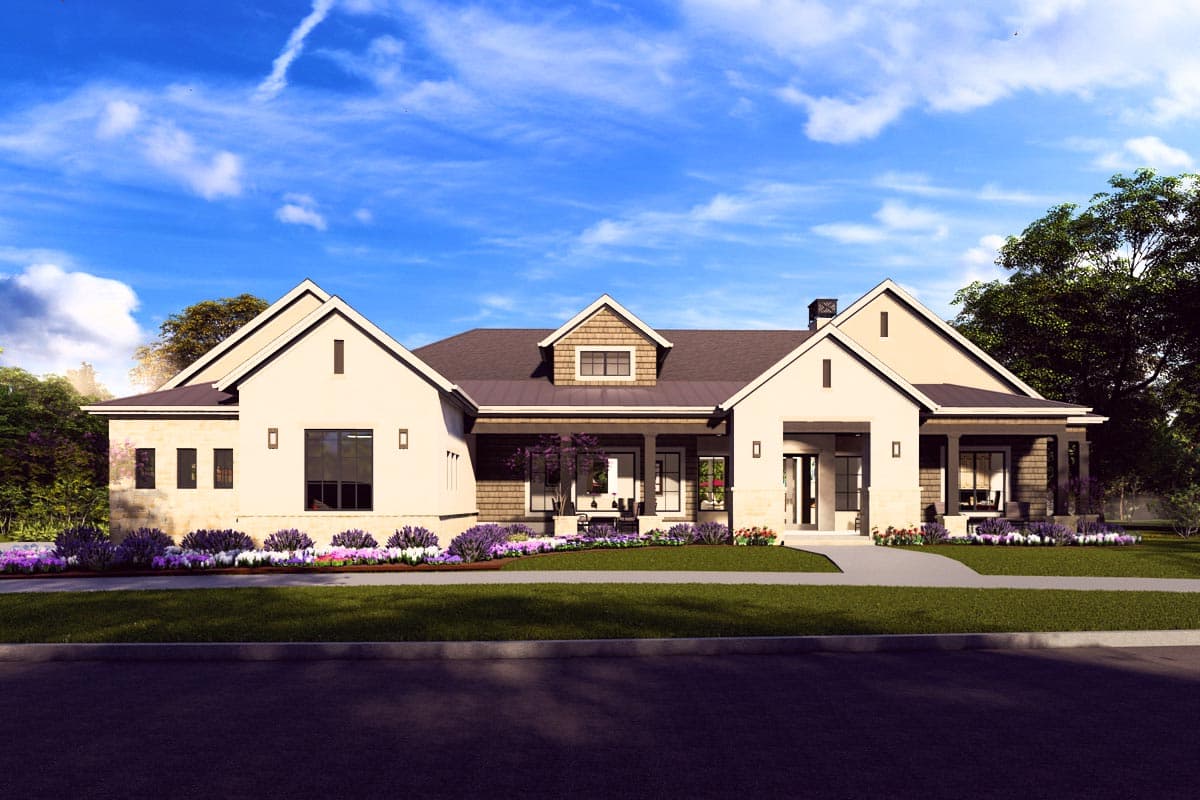

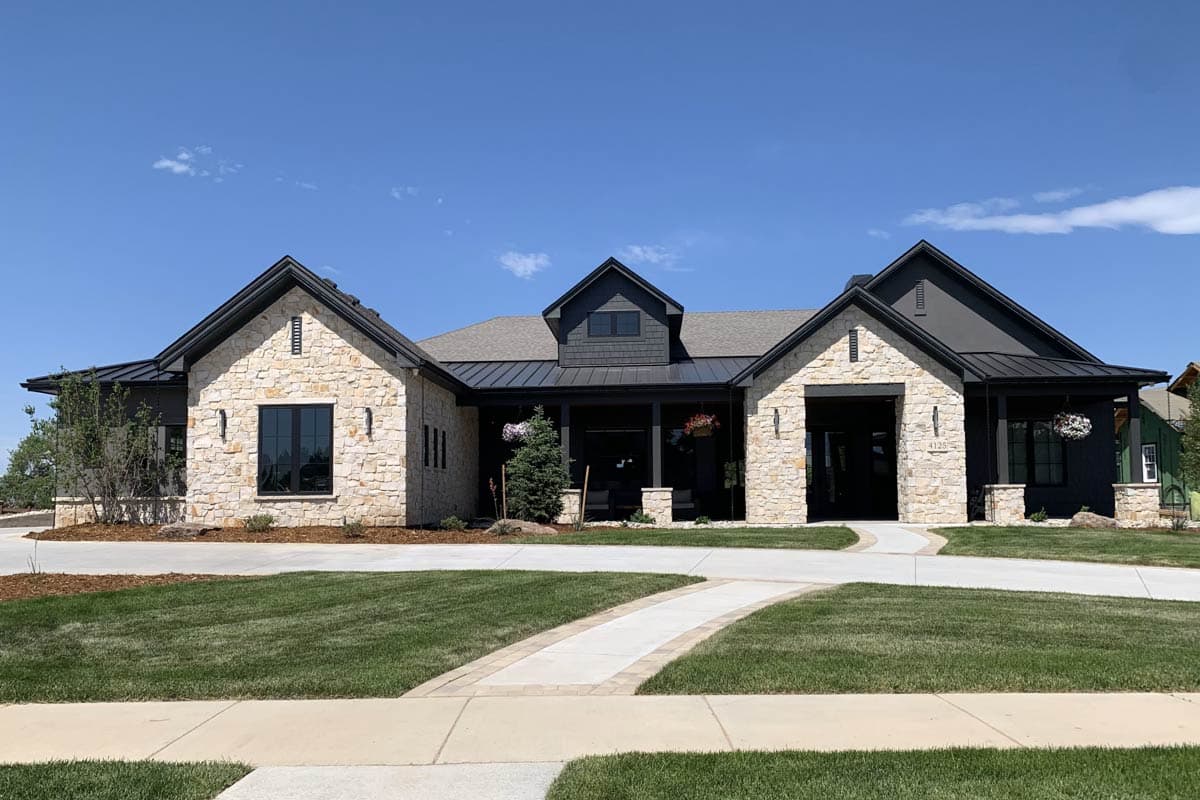

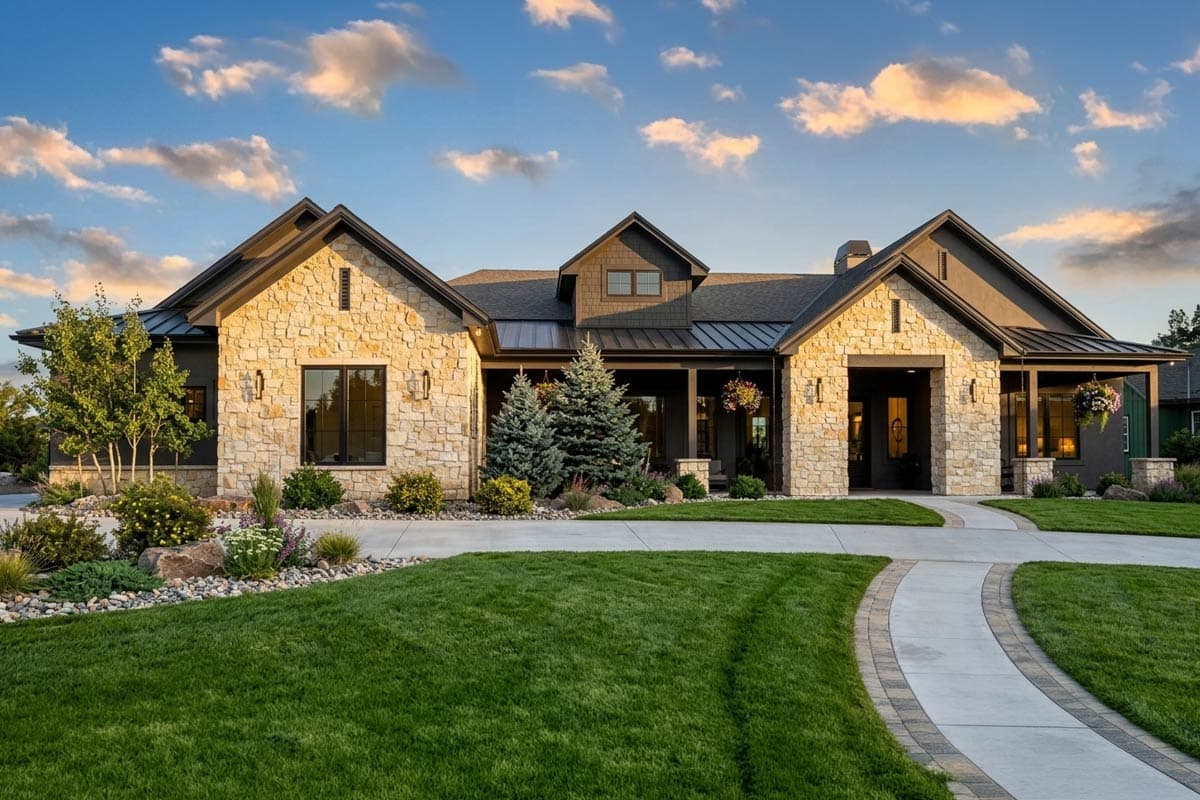

  • This modern farmhouse has a mixed material exterior and gives you two bedrooms on the main floor with more in the lower level. The home plan gives you 6,060 square feet of heated living spread across the main and lower levels.

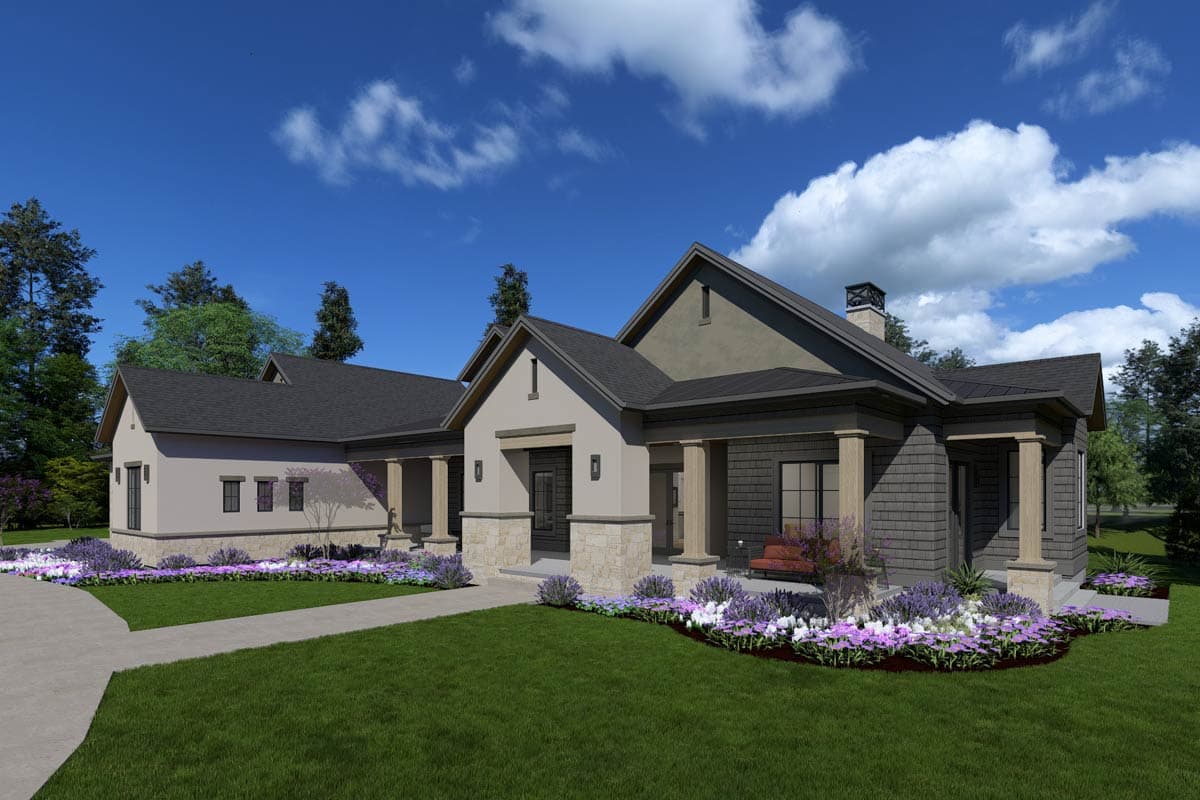

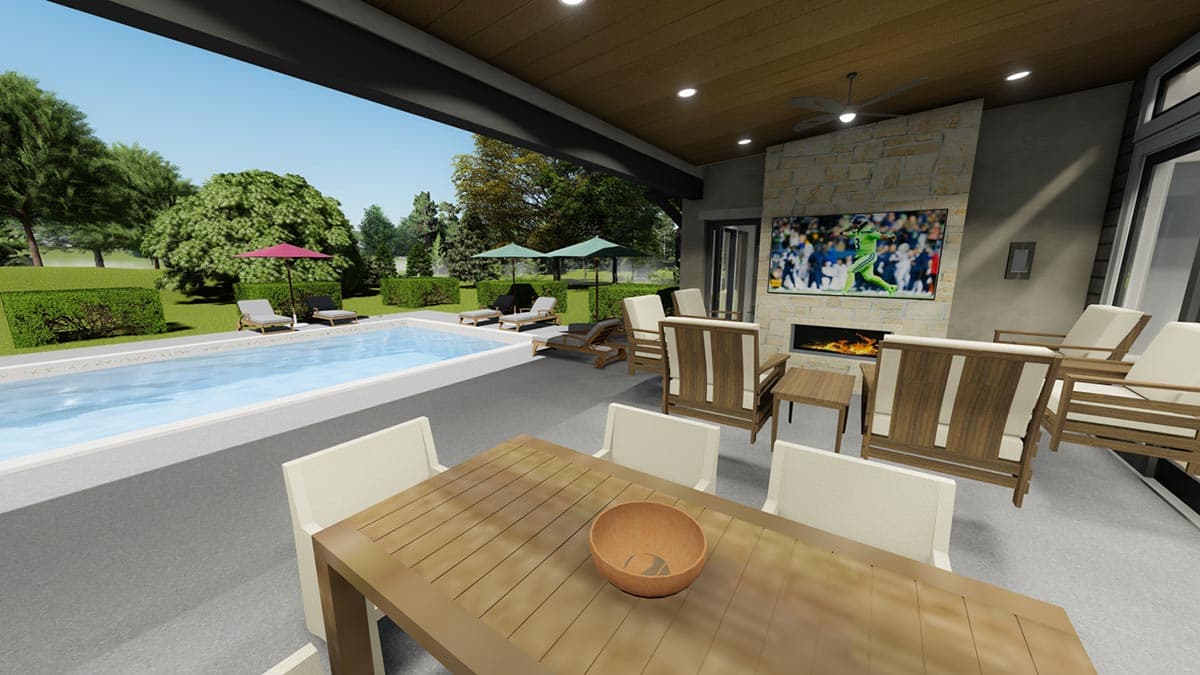

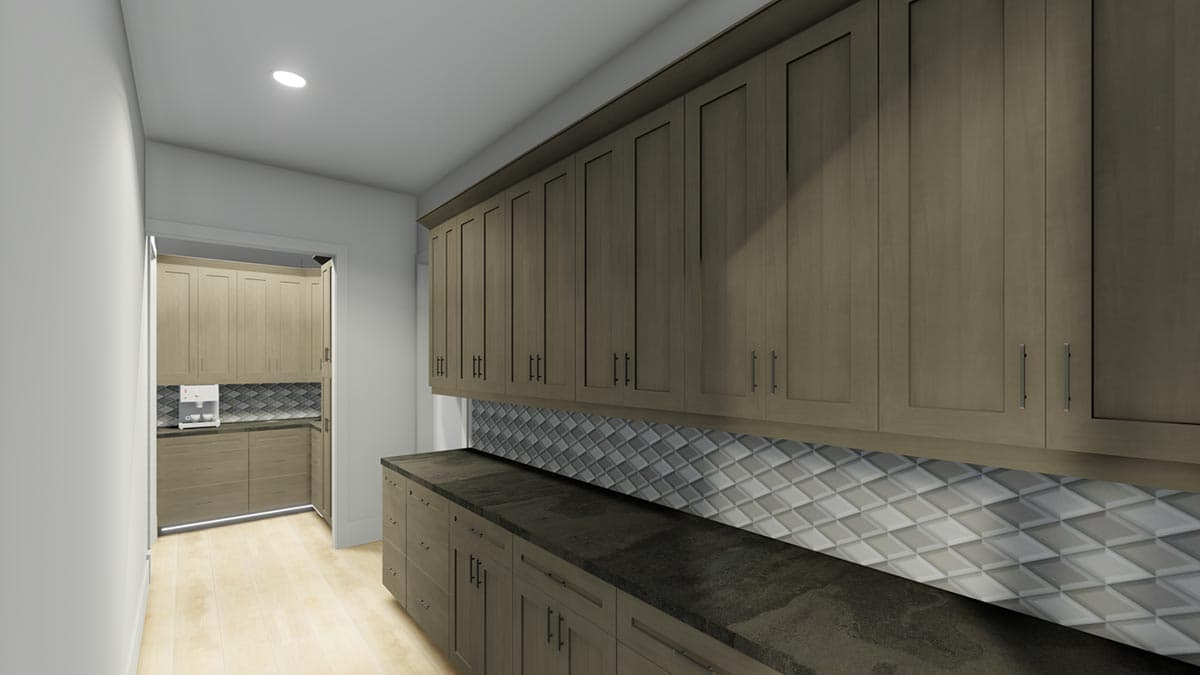

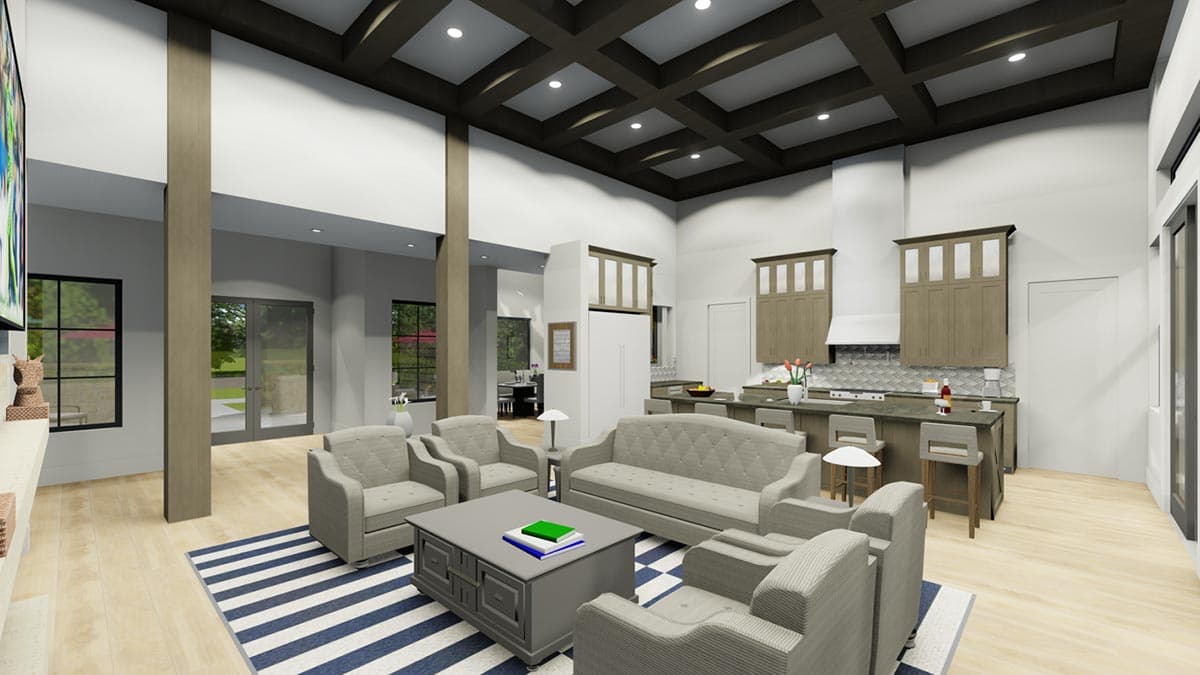

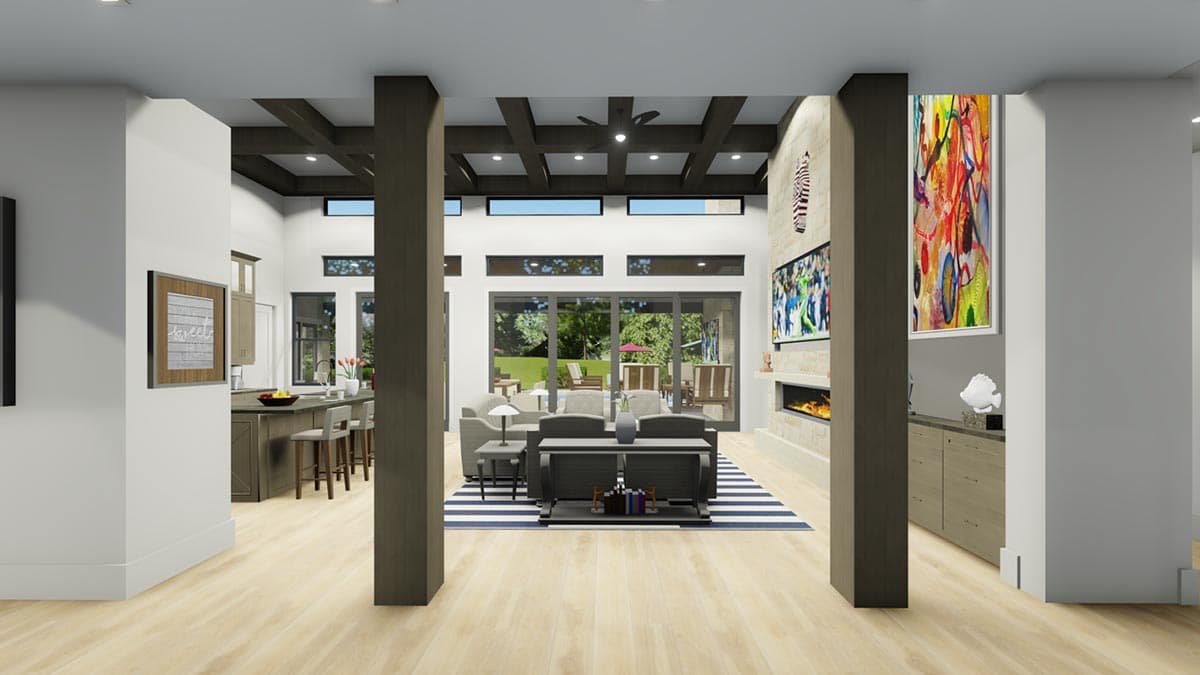

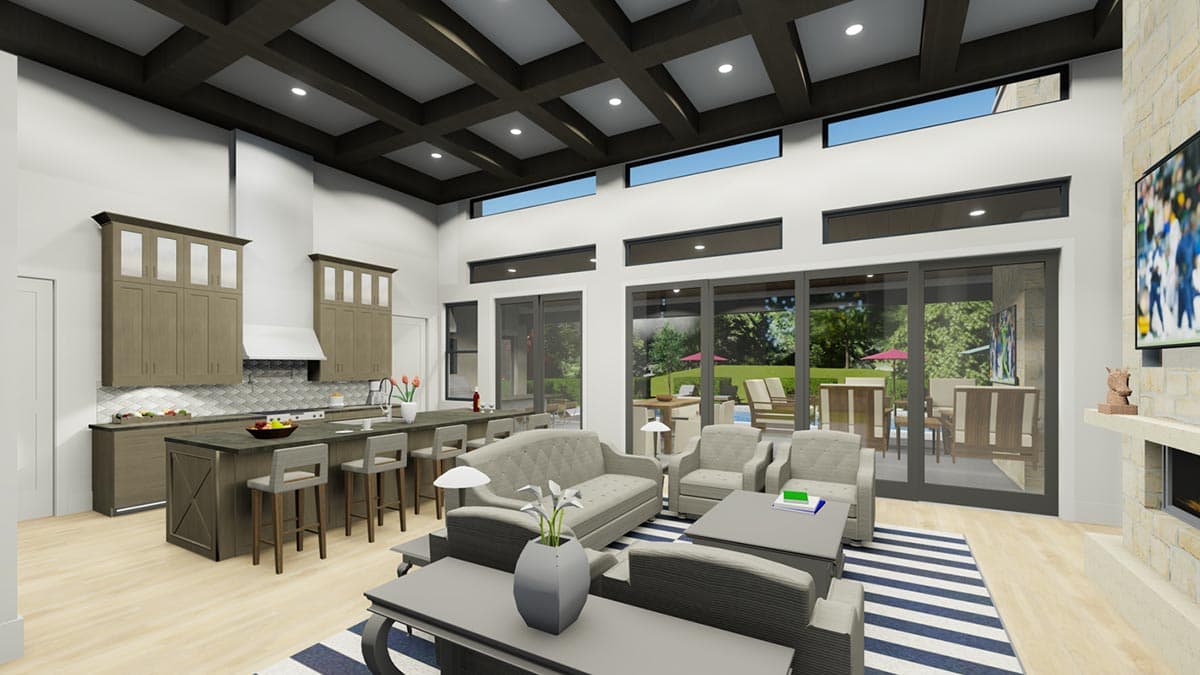

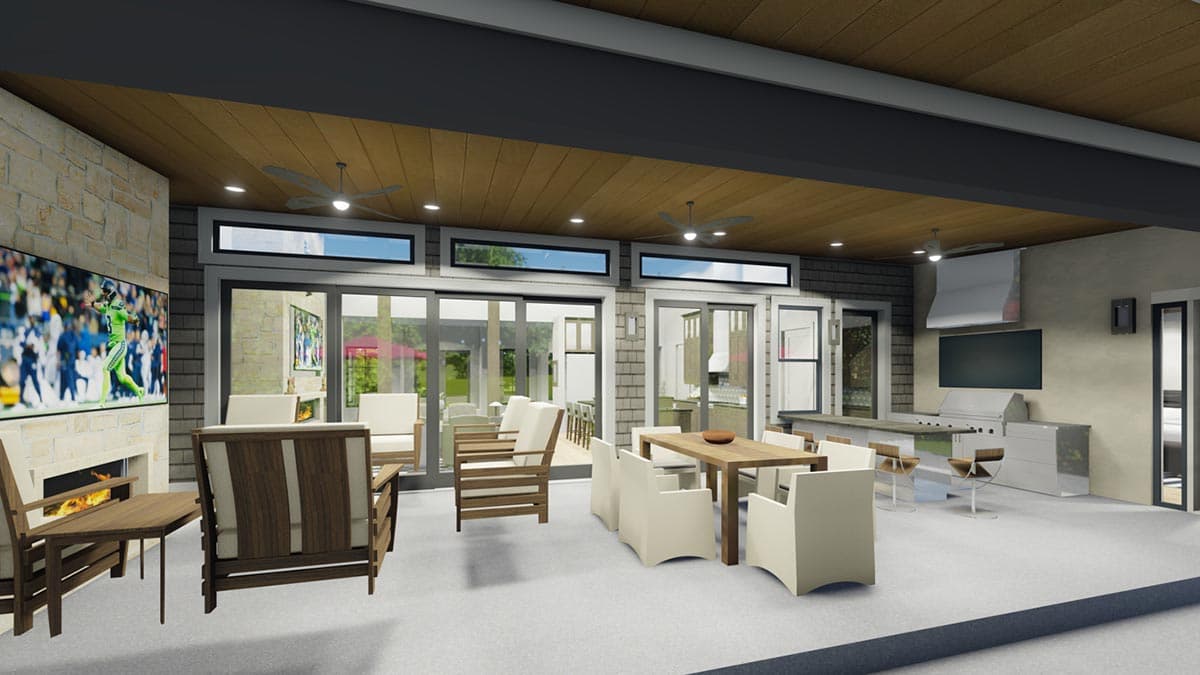

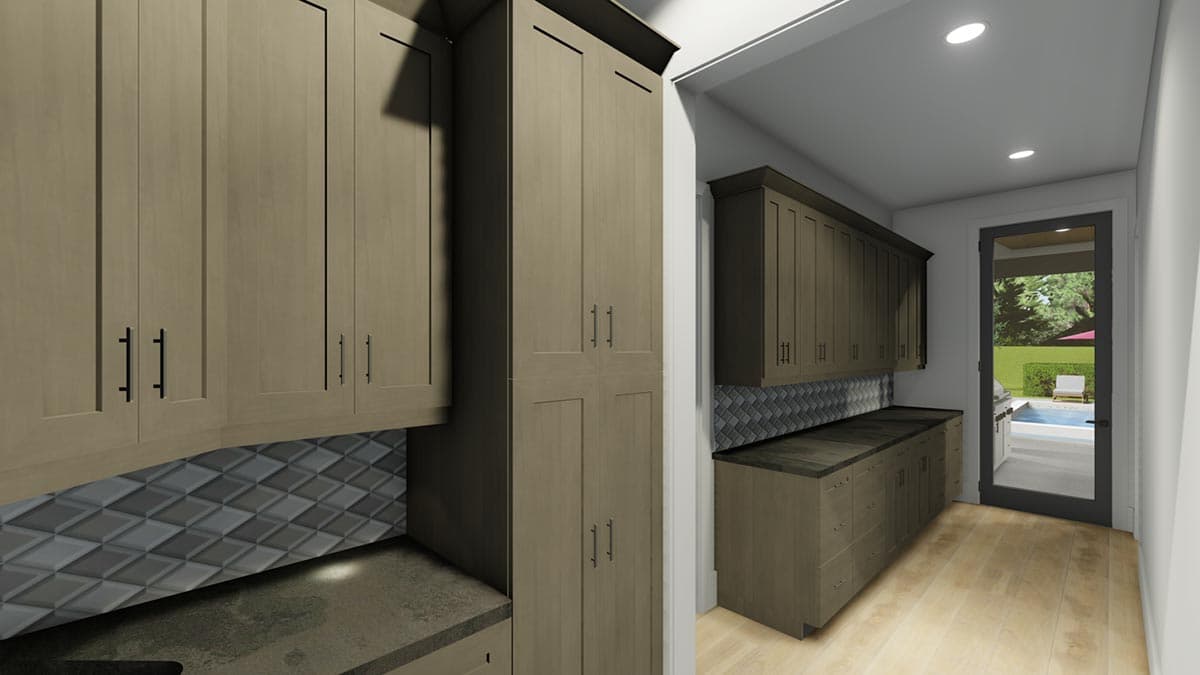

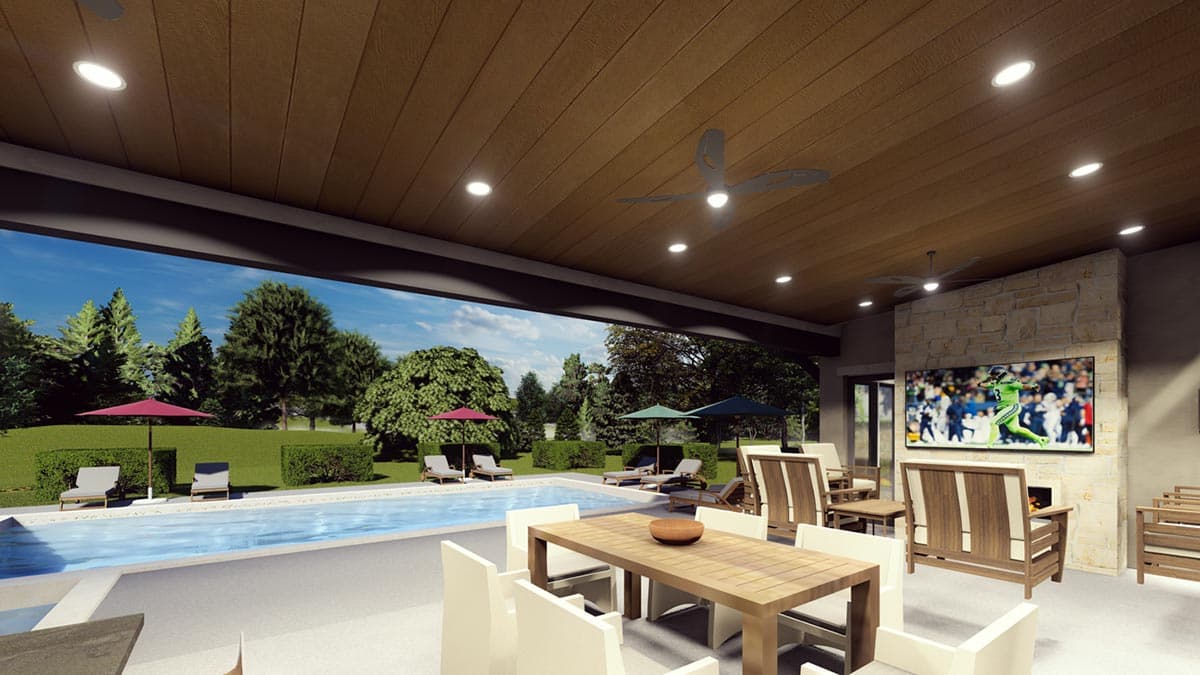

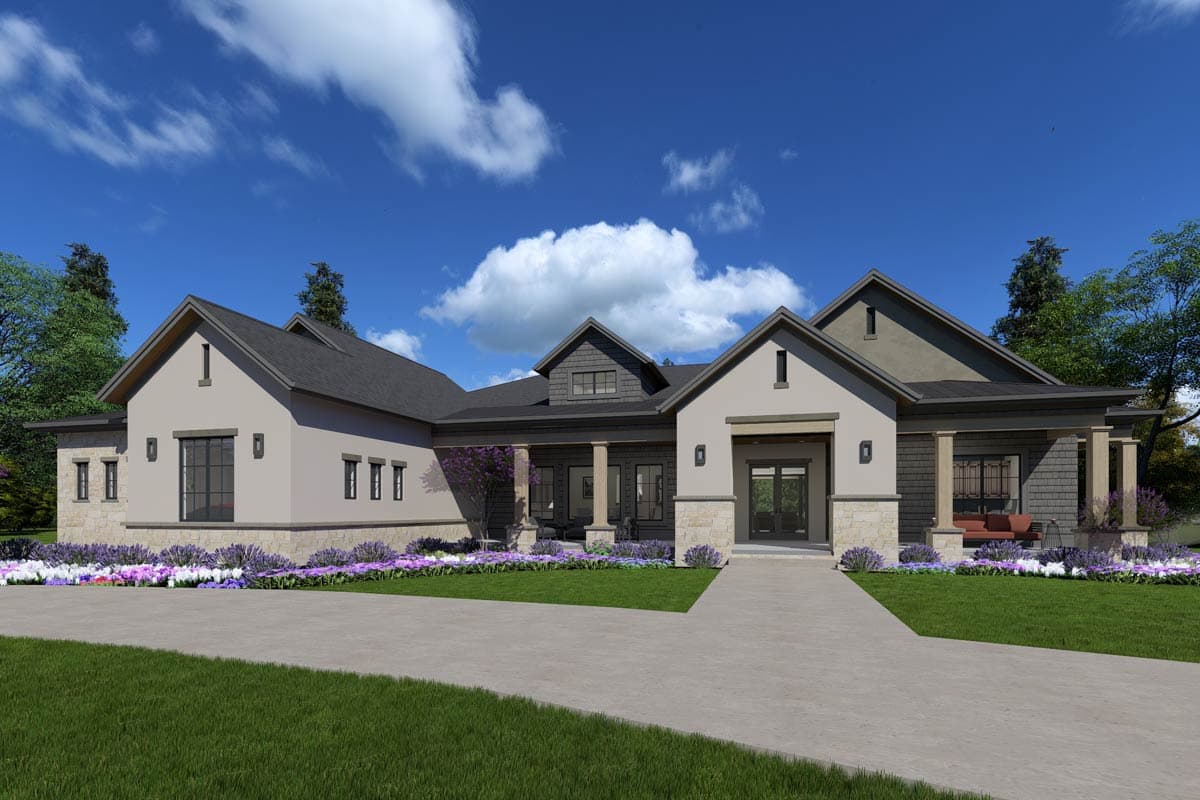

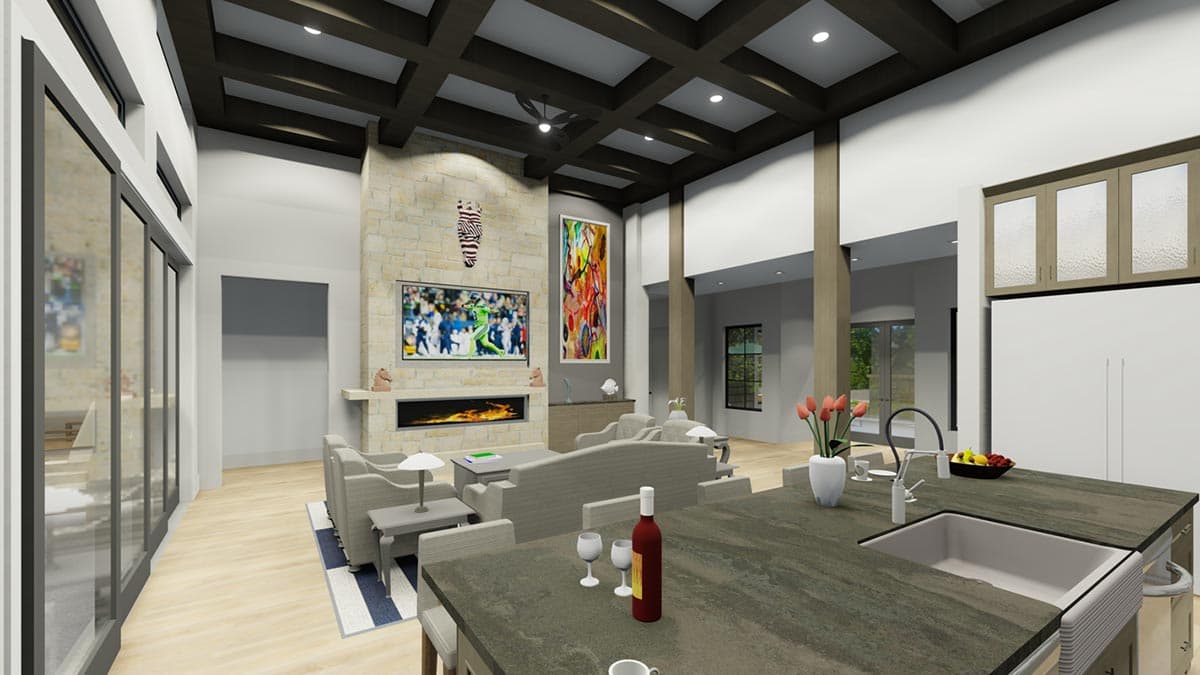

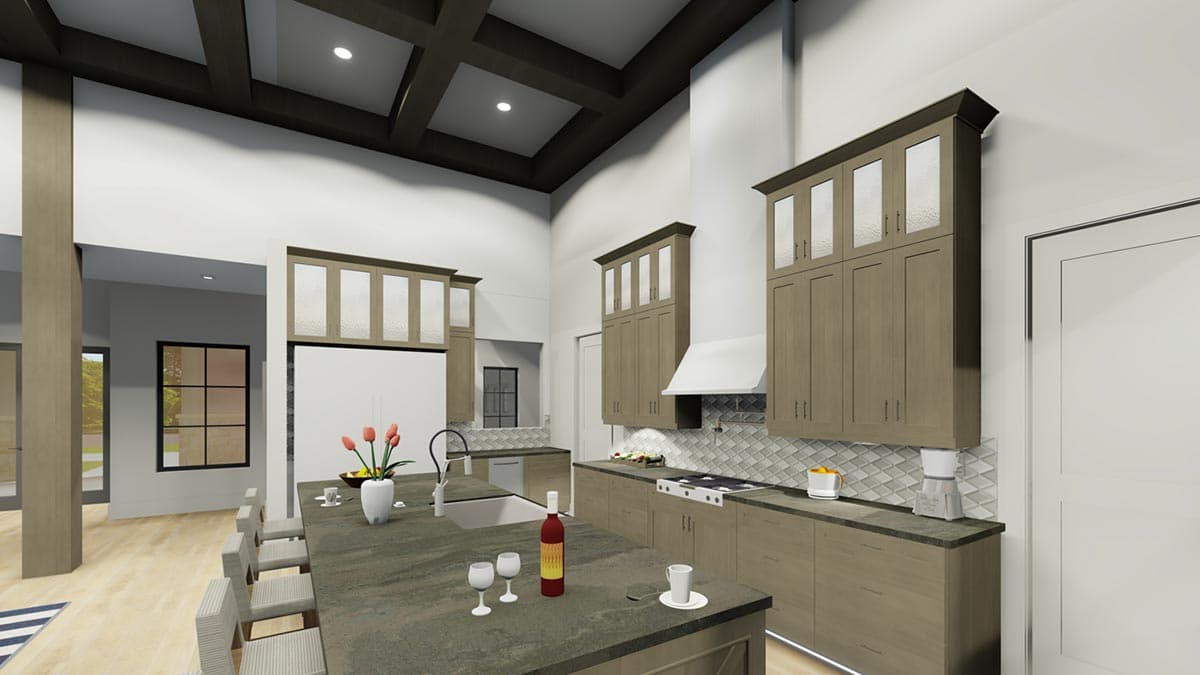

  • A pair of French doors gives you entry from the 54'3"-wide front porch and places you in the entry with views across the living room with boxed beam ceiling. he space has views and access to the rear covered patio in back and is open to the kitchen with large island with seating for up to five, a coffee corner and a pantry with access to the outdoor bar.

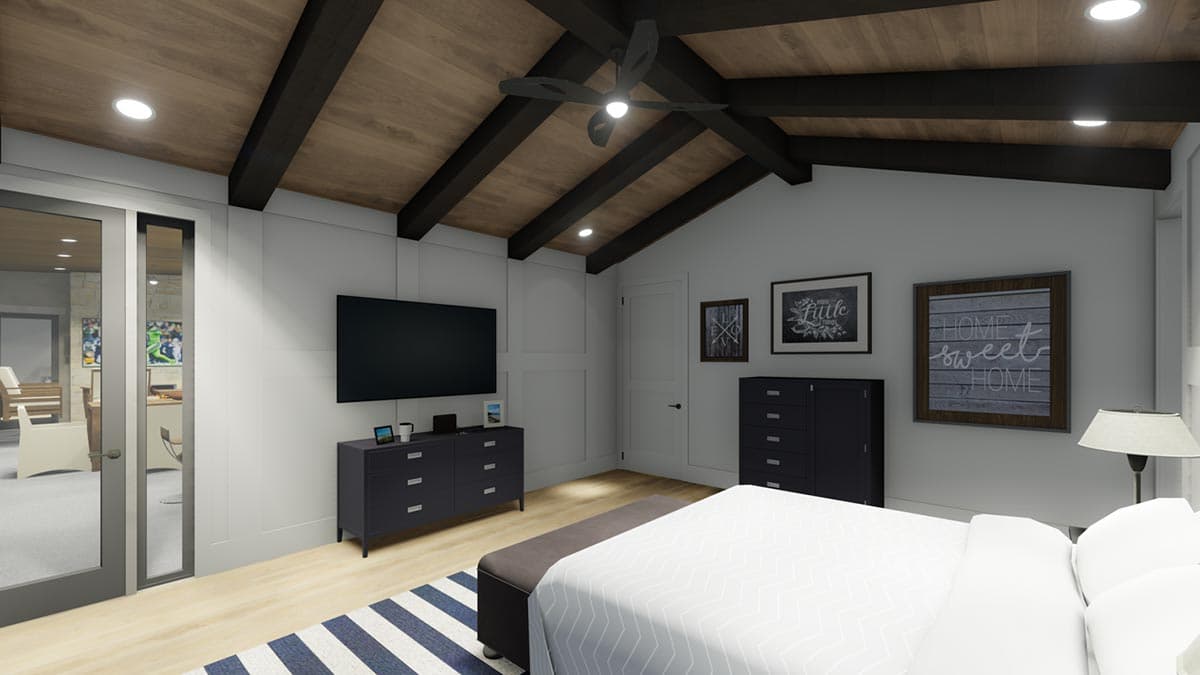

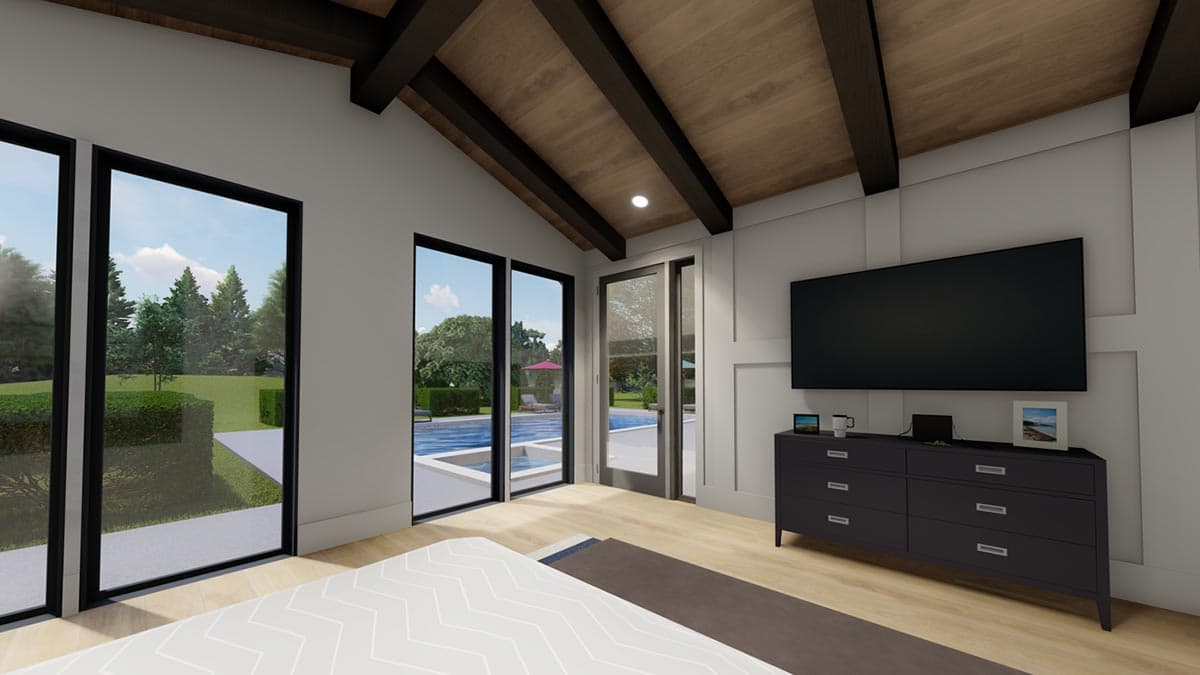

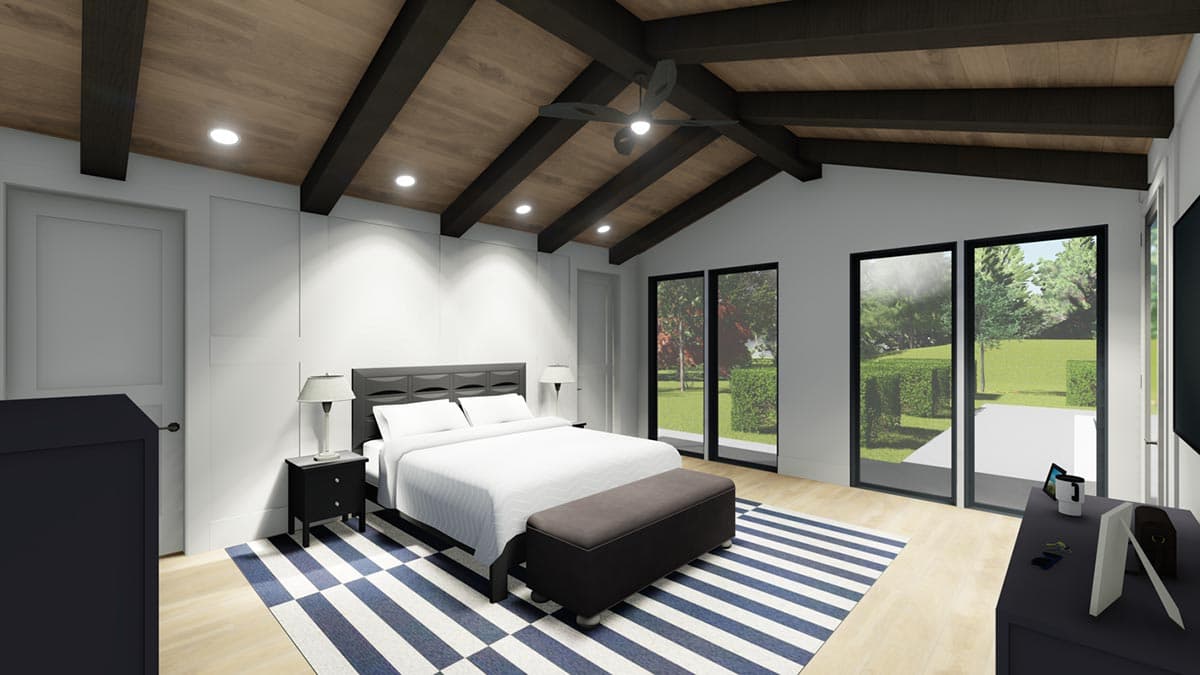

  • The bedrooms are split with the master suite occupying the entire left side of the home. The master bedroom has a vaulted ceiling (11'6" with boxed beams) and a huge walk-in closet with access to the laundry room. Across the home, Bed 1 has a walk-in closet and its own bathroom.

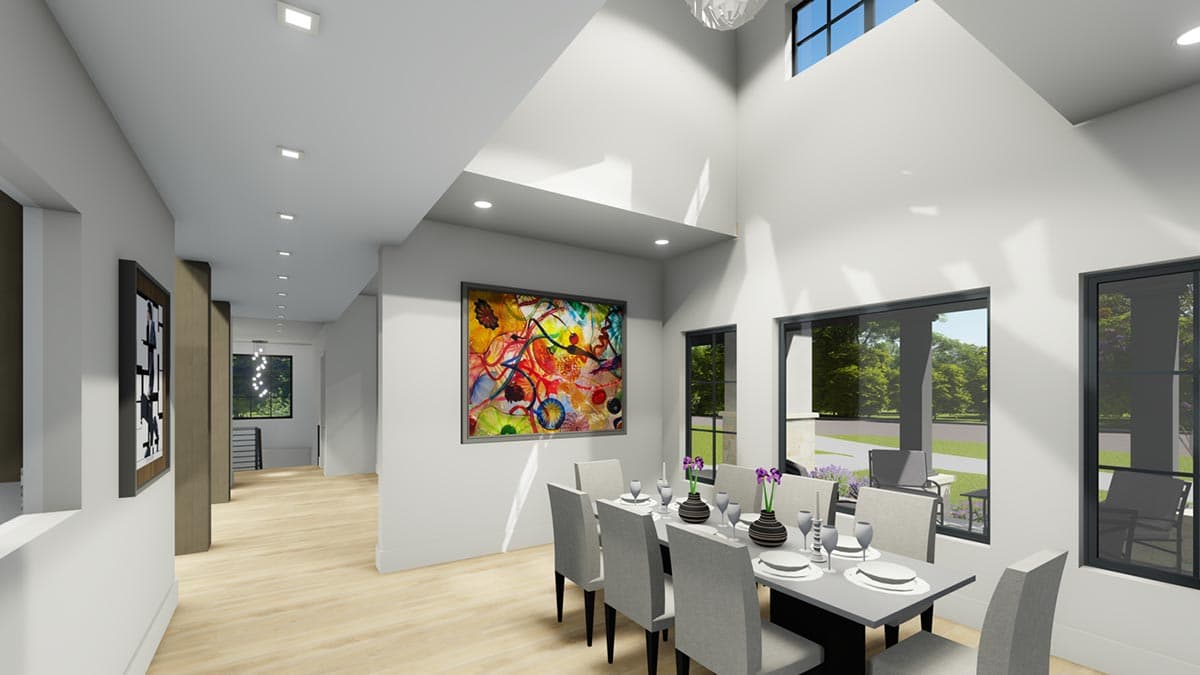

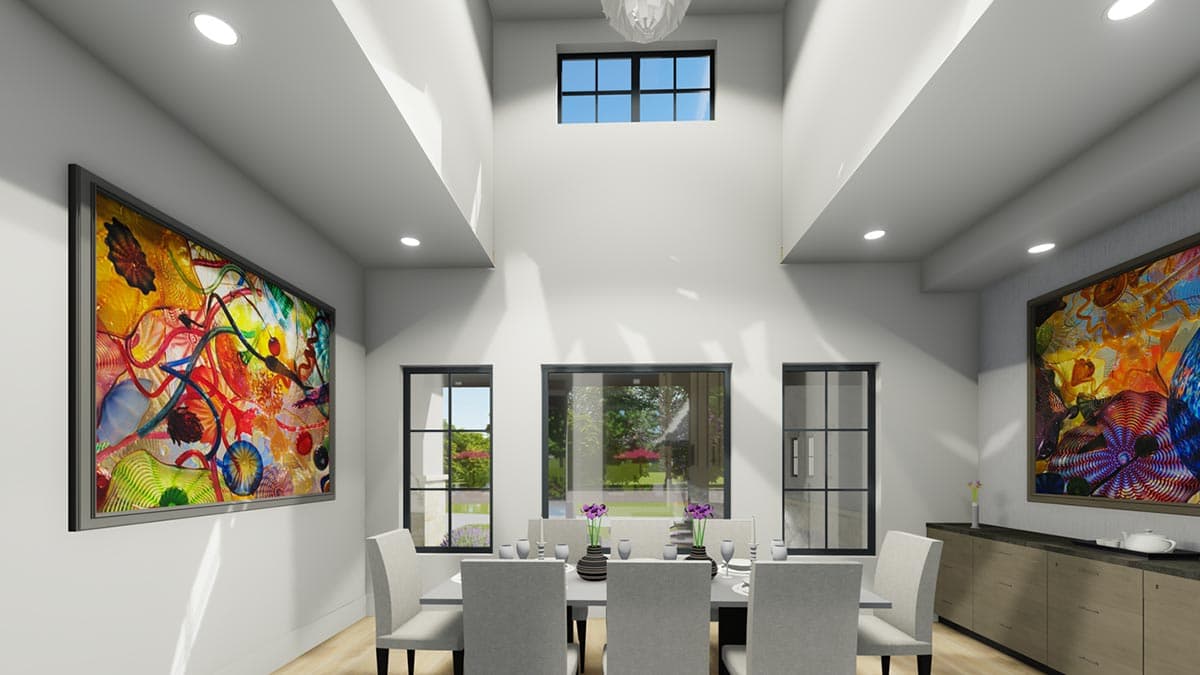

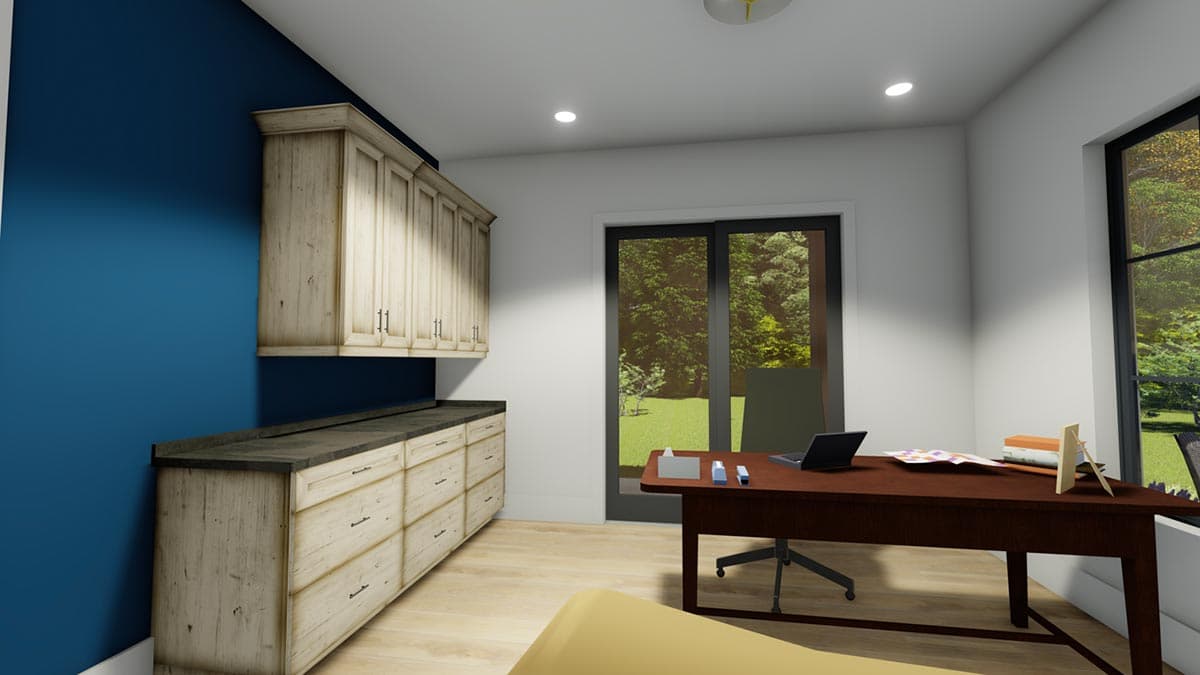

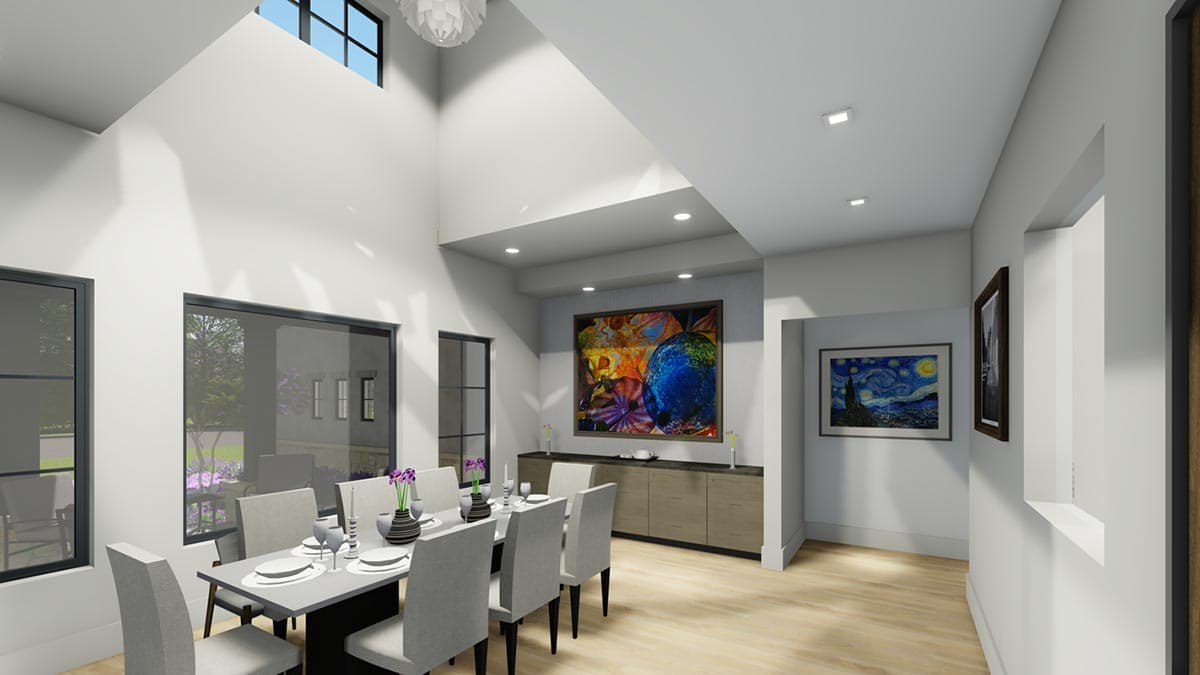

  • In the front of the home, a home office has access to the side porch and the dining room has a raised ceiling thanks to the dormer above.

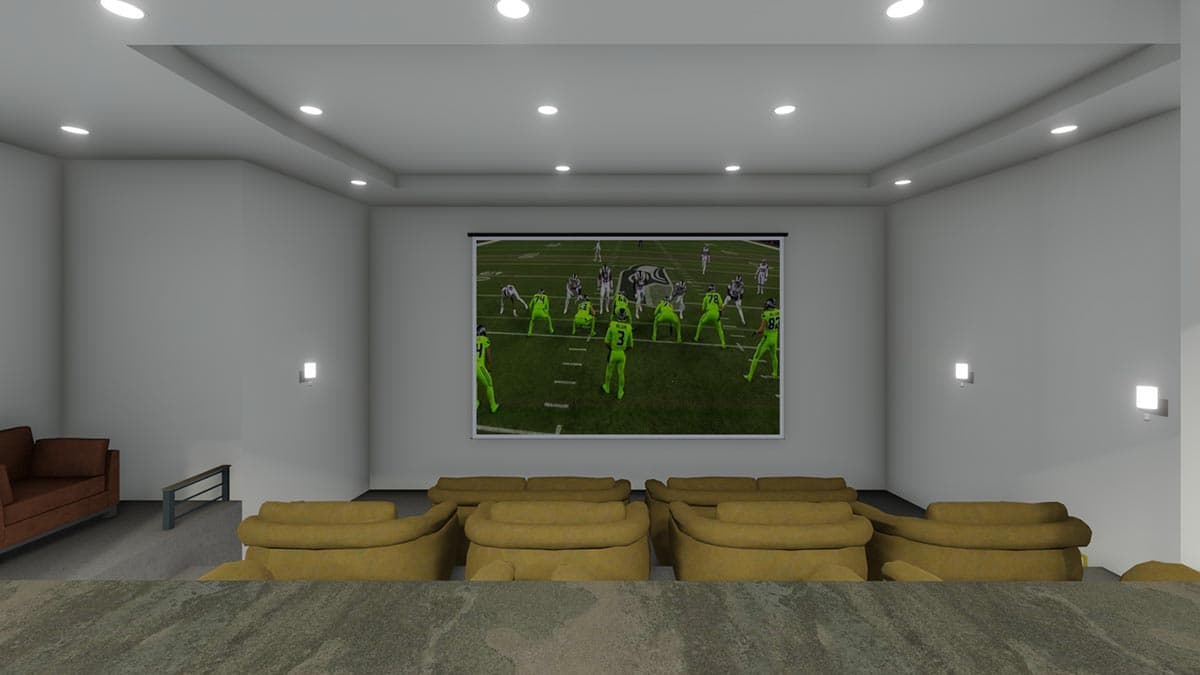

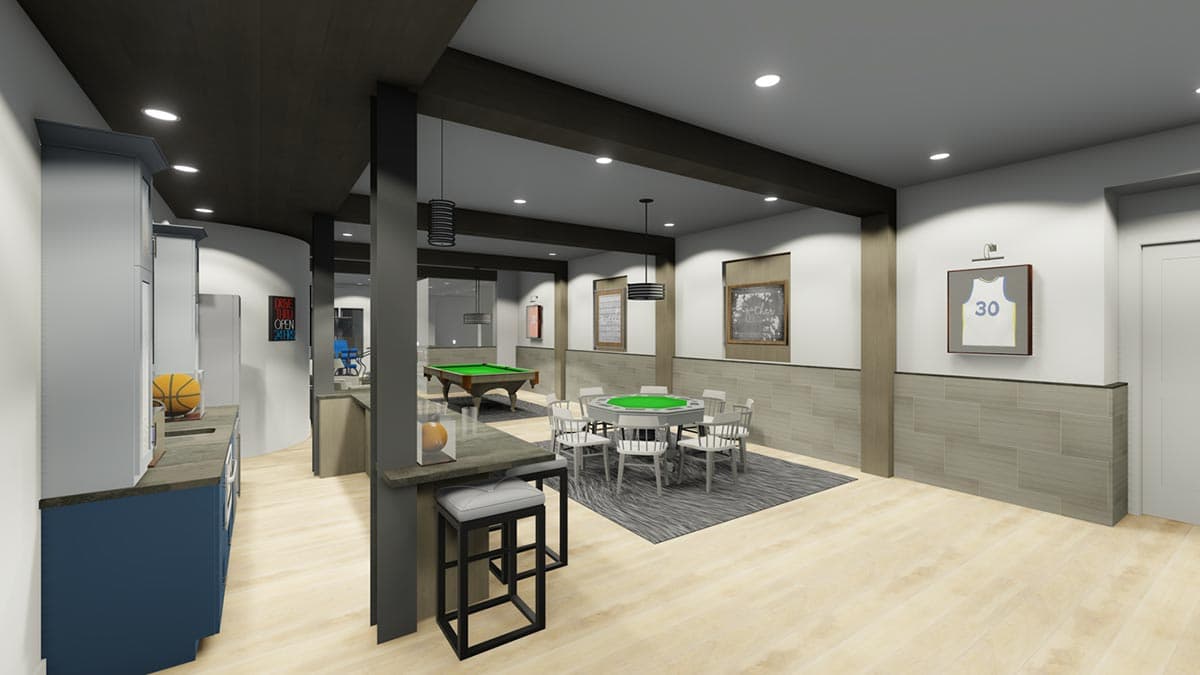

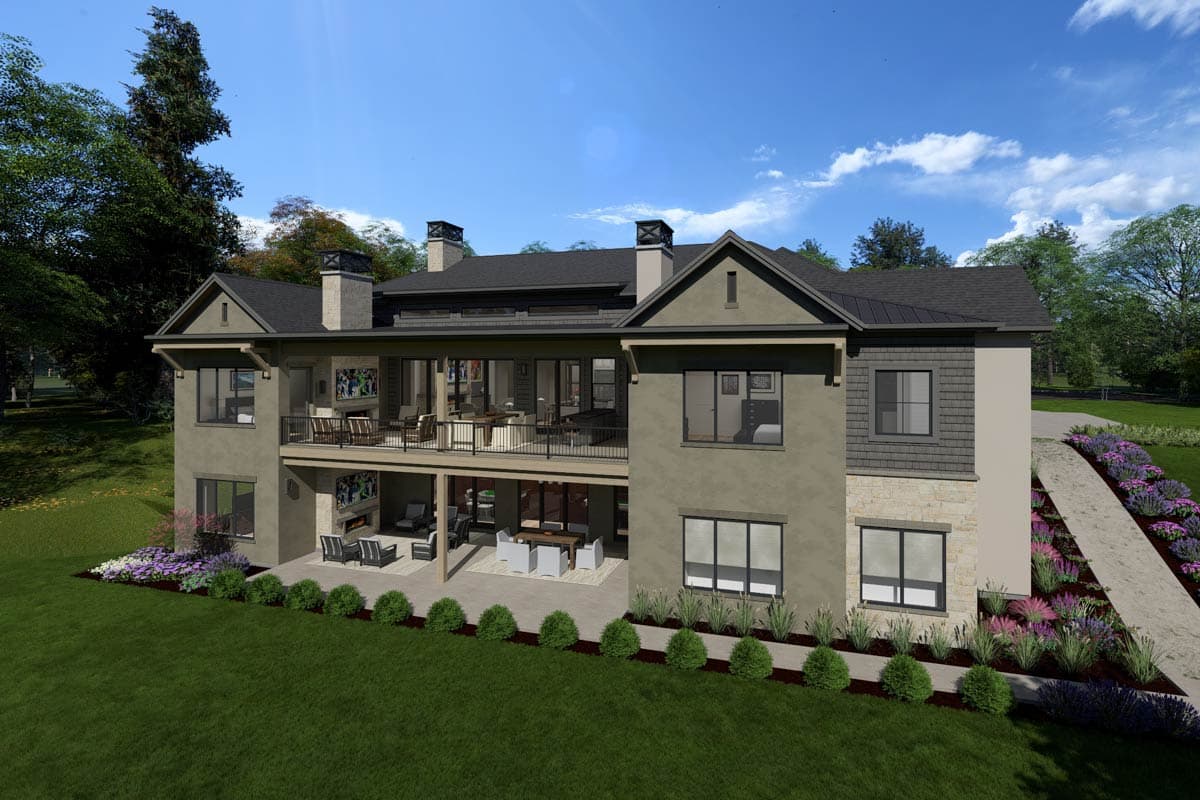

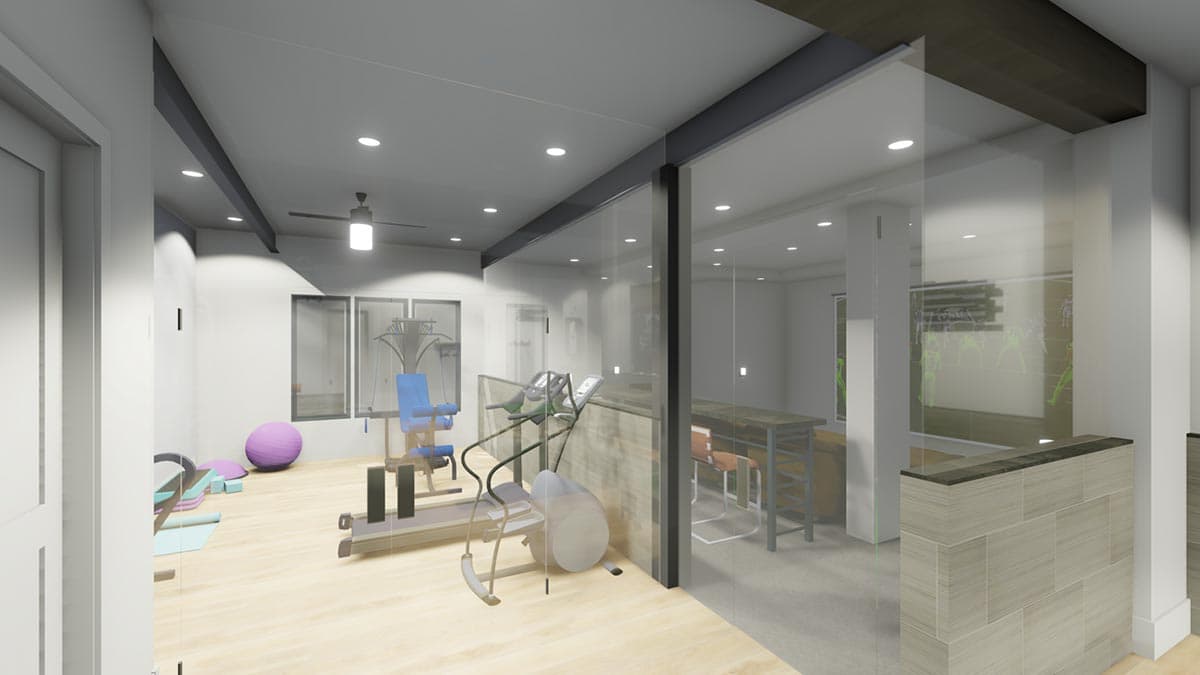

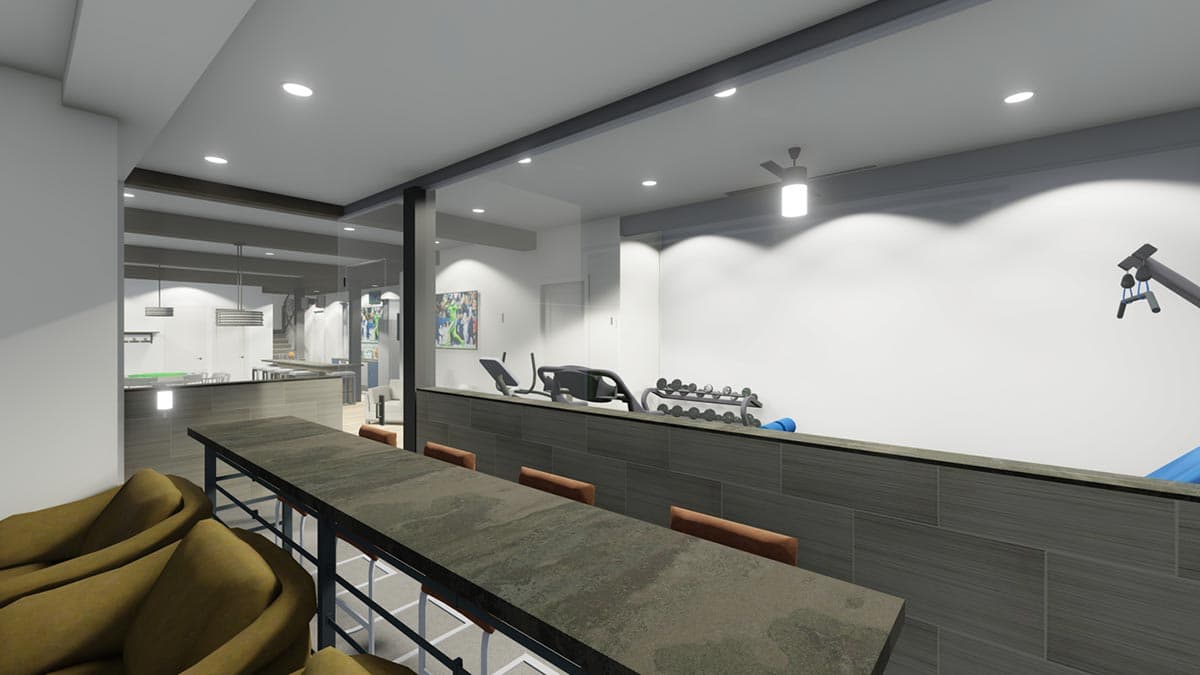

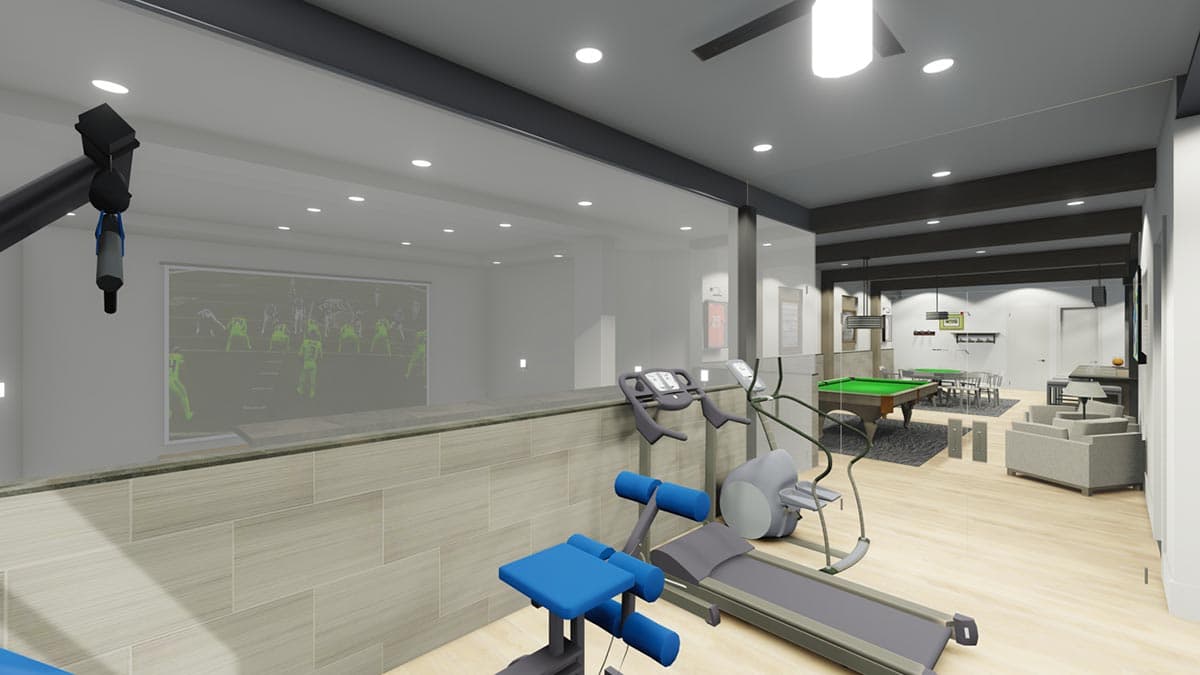

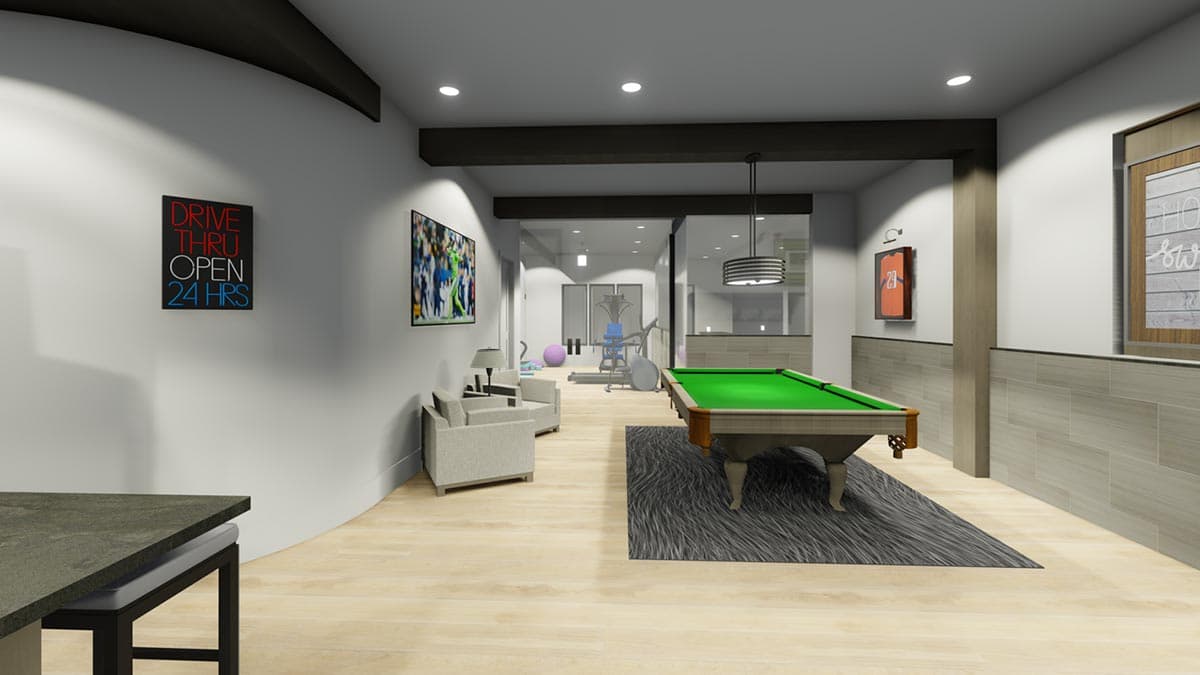

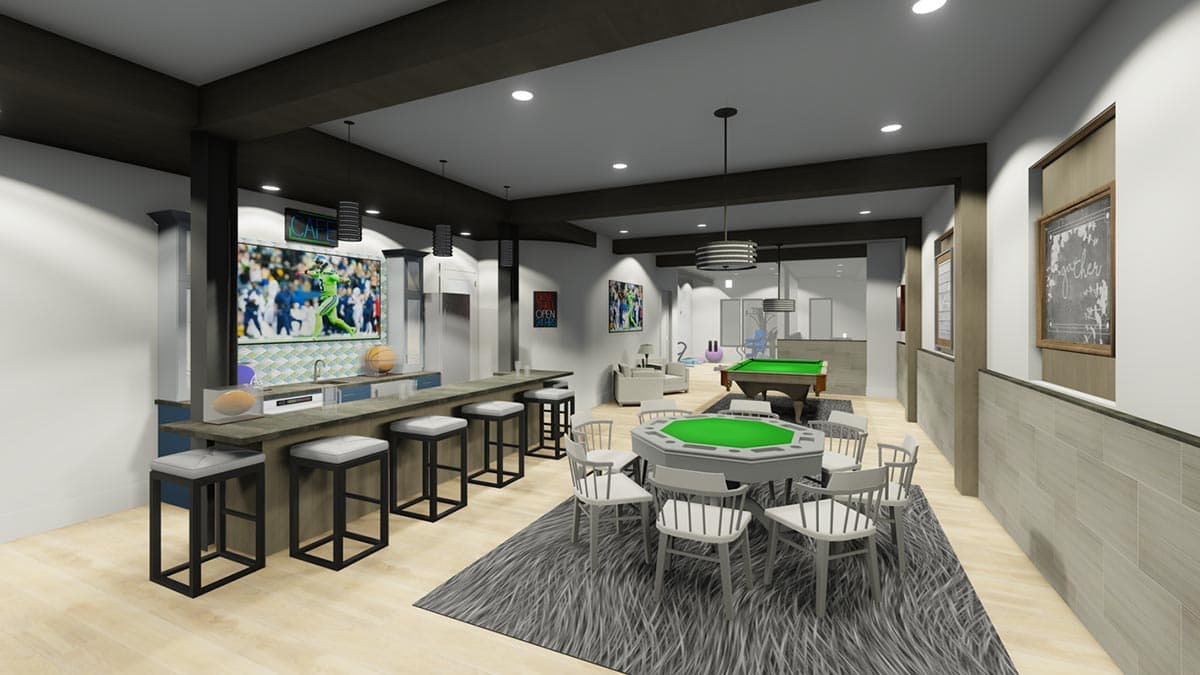

  • The lower level is a fun-filled space complete with a 3-tiered home theater, a gym, a rec room with bar and two bedrooms and two baths.
What's Included
  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

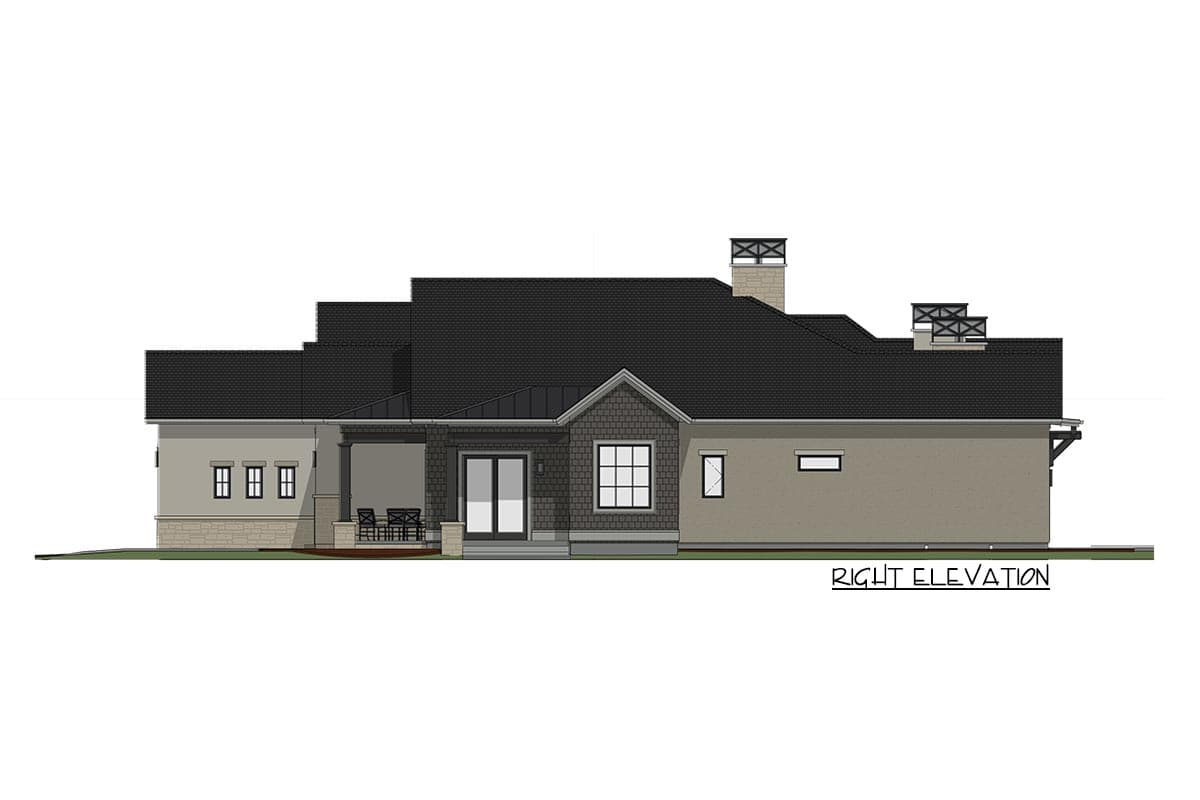

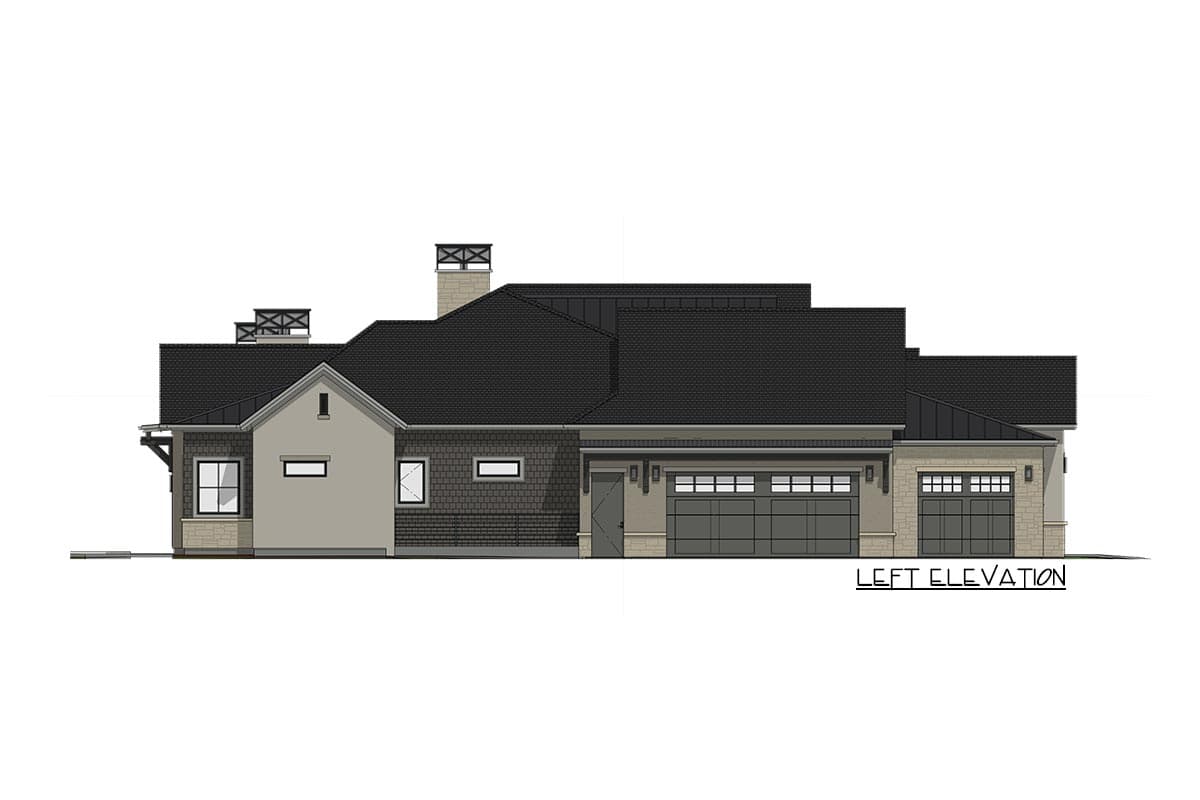

  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

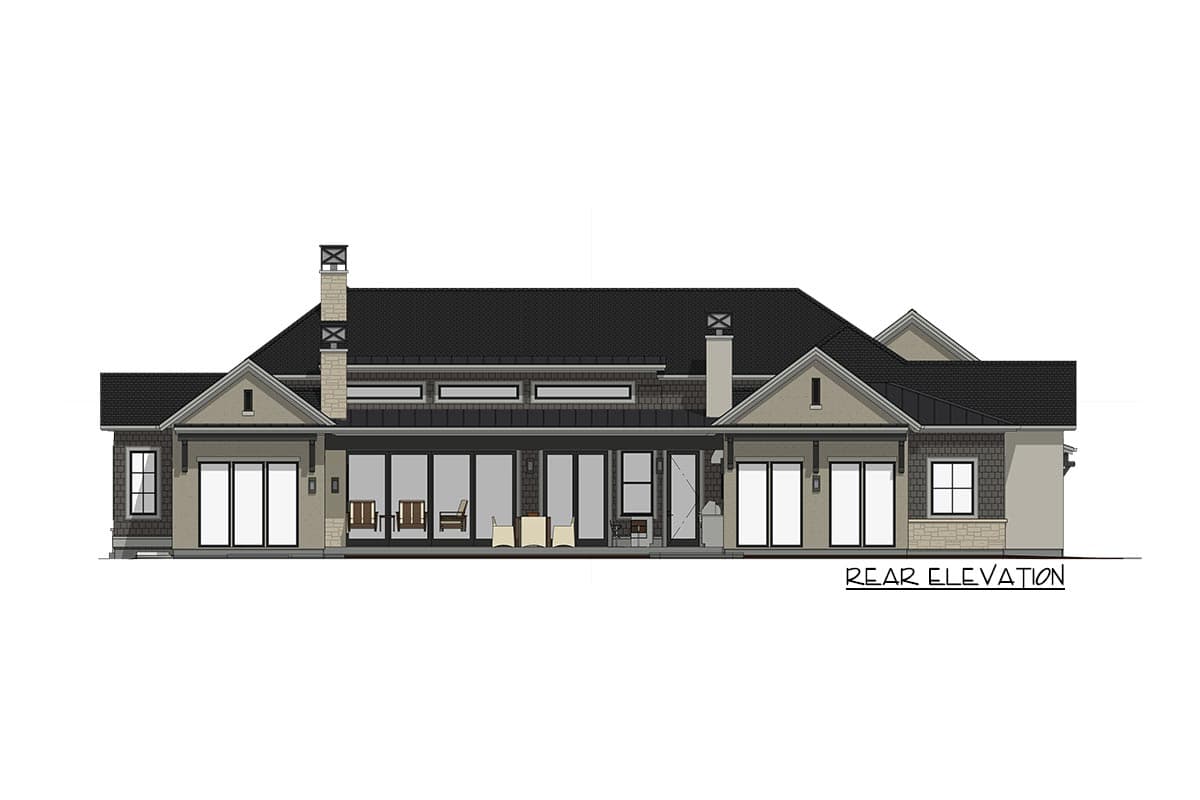

  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Farmhouse with Fun-Filled Lower Level

  • 3,188

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optionally Finished Basement

Plan Details

Square Footage Breakdown

  • Total: 3,188 sq. ft.
  • 1st Floor: 3,188 sq. ft.

Dimensions

  • Width: 88' 4"
  • Depth: 83' 0"

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 1122 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 11' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Craftsman Farmhouse with Fun-Filled Lower Level

  • 3,188

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Craftsman Farmhouse with Fun-Filled Lower Level

  • 3,188

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,188 sq. ft.
  • 1st Floor: 3,188 sq. ft.

Dimensions

  • Width: 88' 4"
  • Depth: 83' 0"

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 1122 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 11' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
