Plan 72816DA Craftsman Garage with Living Area and Shop

1,284 1 1 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman Garage with Living Area and Shop

Plan 72816DA

  • 1,284

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • Board and battan and shakes give a rustic look to this Craftsman garage apartment.
  • Both garage doors are 10' wide and 8' tall.
  • The first floor hobby room has a handy sink.
  • You can reach the second floor by either inside or outside stairs.
  • A huge open space greets you when you get to the upper floor and there's a bathroom and kitchenette plus a quiet office that could double as a bedroom if needed.
  • Step out onto the delightful balcony for a breath of fresh air.
  • Related Plans: Get alternate versions with plans 72667DA and 720040DA

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

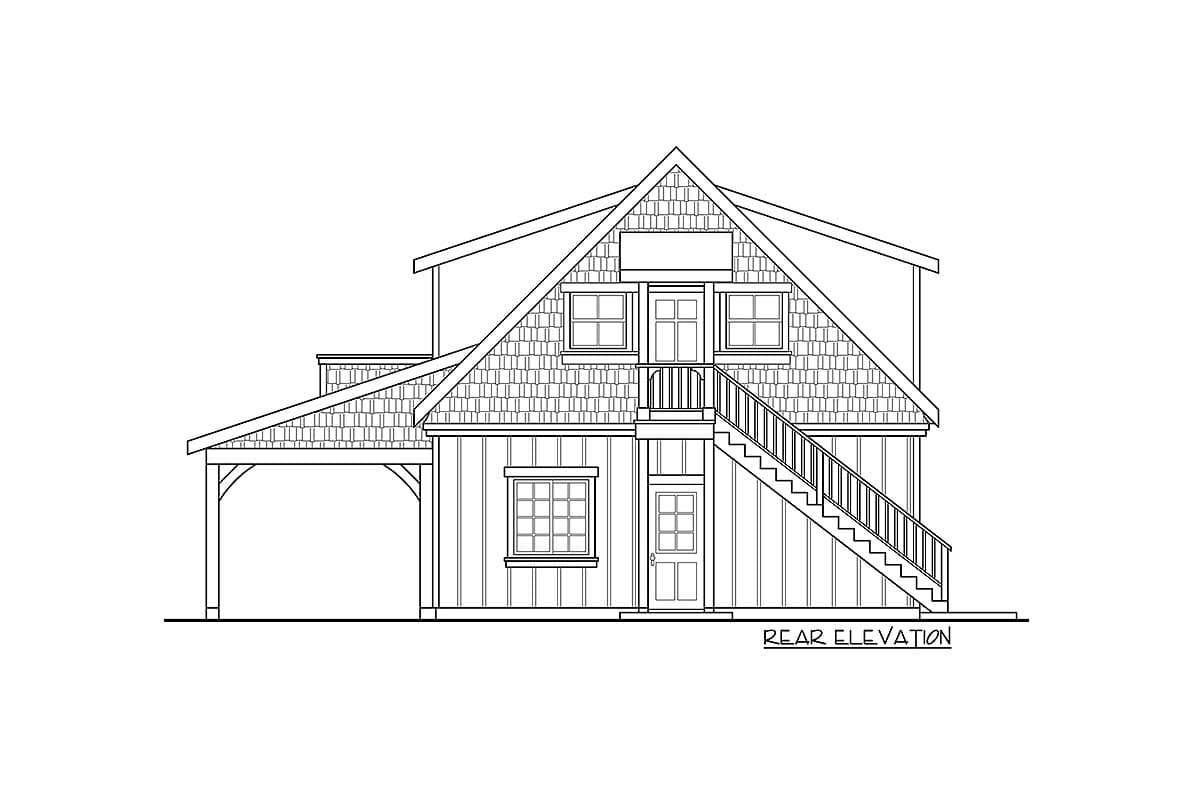

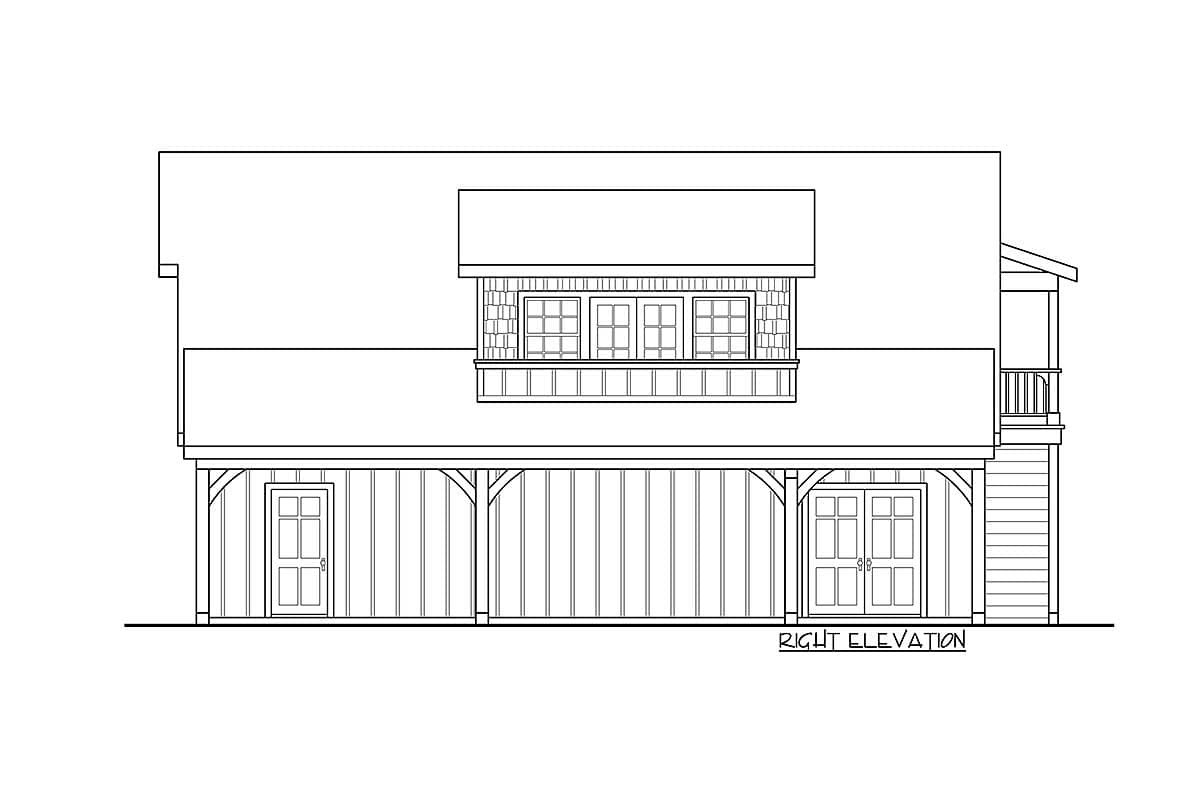

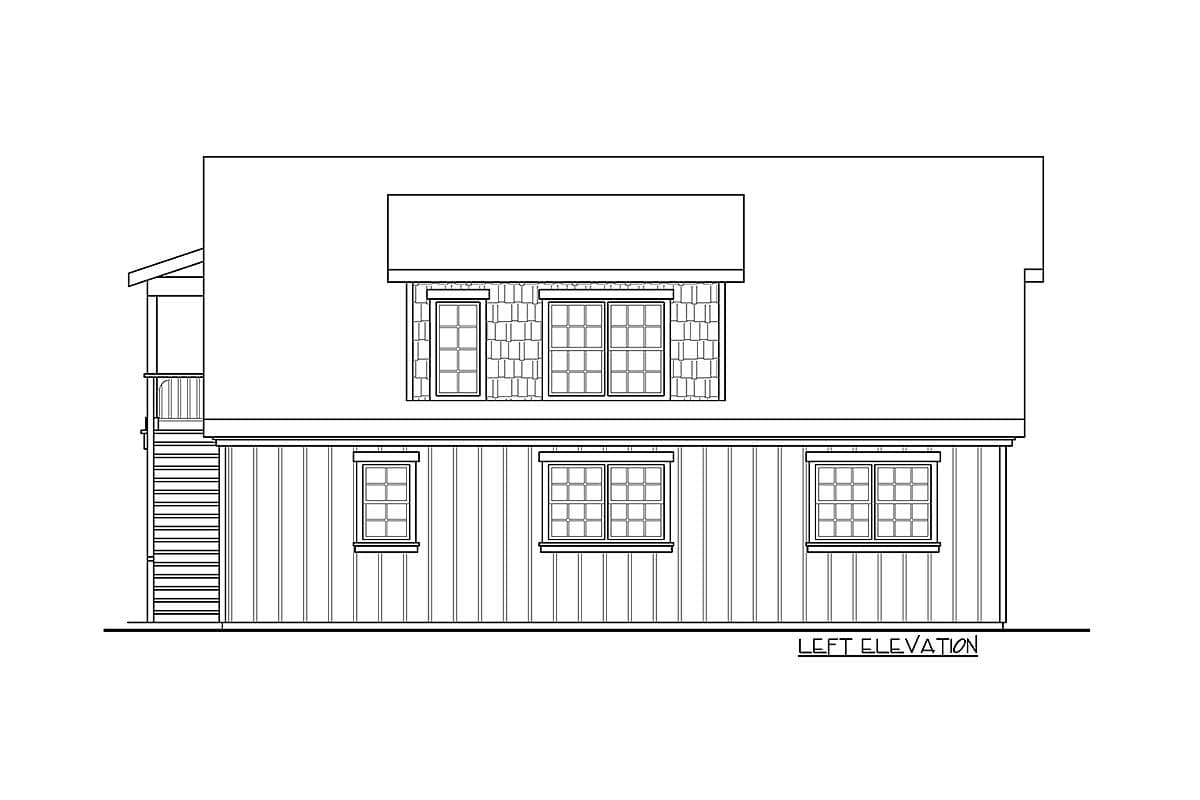

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

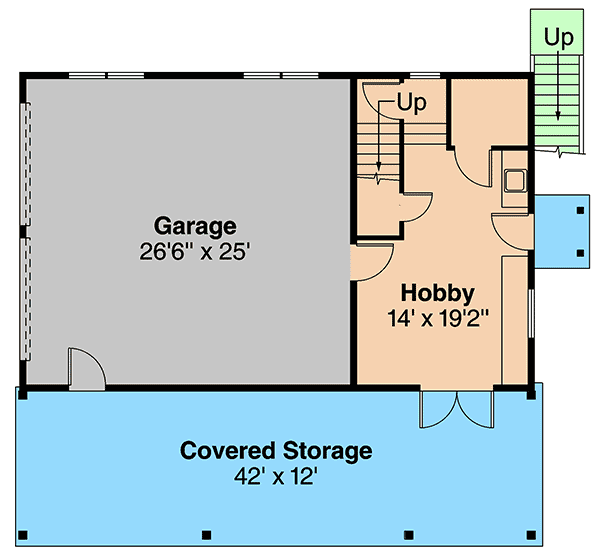

Craftsman Garage with Living Area and Shop - 72816DA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

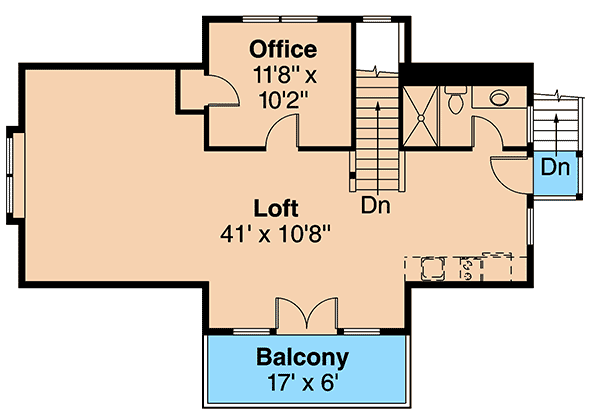

Craftsman Garage with Living Area and Shop - 72816DA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,284 sq. ft.
  • 1st Floor: 429 sq. ft.
  • 2nd Floor: 855 sq. ft.
  • Loft: 855 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 46' 0"
  • Max ridge height: 25' 3"

Garage

  • Type: Carport, Detached
  • Area: 663 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

Craftsman Garage with Living Area and Shop

  • 1,284

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $670
  • PDF Light $930
  • 5 Sets + PDF Light $1,140
  • PDF - Single-Build $1,825
  • CAD - Single-Build $2,030
  • CAD - Unlimited Build $2,230
  • View all purchase option online

About This Plan

  • Board and battan and shakes give a rustic look to this Craftsman garage apartment.
  • Both garage doors are 10' wide and 8' tall.
  • The first floor hobby room has a handy sink.
  • You can reach the second floor by either inside or outside stairs.
  • A huge open space greets you when you get to the upper floor and there's a bathroom and kitchenette plus a quiet office that could double as a bedroom if needed.
  • Step out onto the delightful balcony for a breath of fresh air.
  • Related Plans: Get alternate versions with plans 72667DA and 720040DA

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,284 sq. ft.
  • 1st Floor: 429 sq. ft.
  • 2nd Floor: 855 sq. ft.
  • Loft: 855 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 46' 0"
  • Max ridge height: 25' 3"

Garage

  • Type: Carport, Detached
  • Area: 663 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
Plan 72816DA
View this and more for this plan by visiting www.architechtecturaldesigns.com/72816DA
|
