Plan 270000AF
Craftsman Home Plan with Flex Room
Heated S.F.
2,602
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan
Main Level - Optional Basement
Reverse Floor Plan

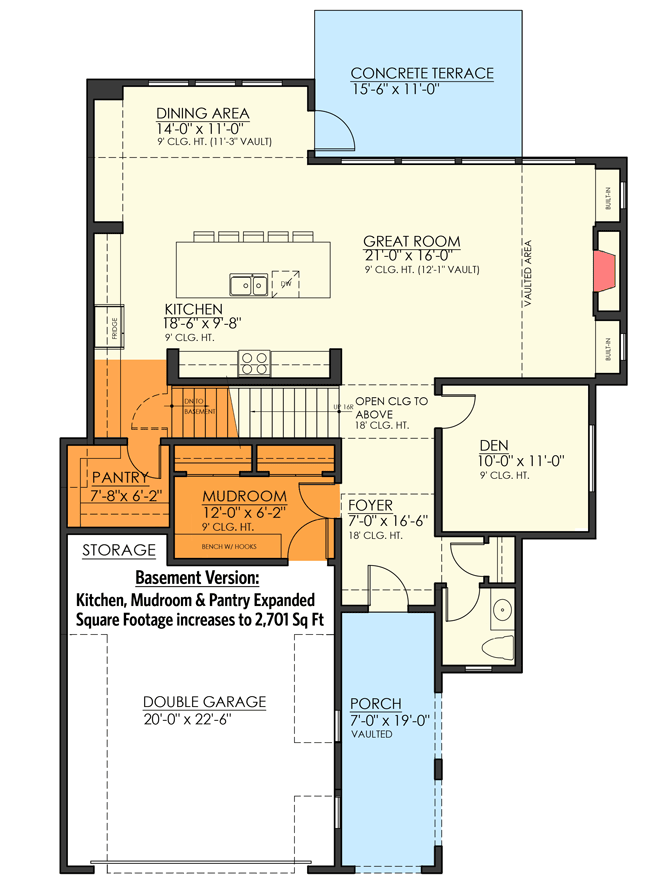

Craftsman Home Plan with Flex Room  - 270000AF floor plan - Main Level - Optional Basement
Plan Details

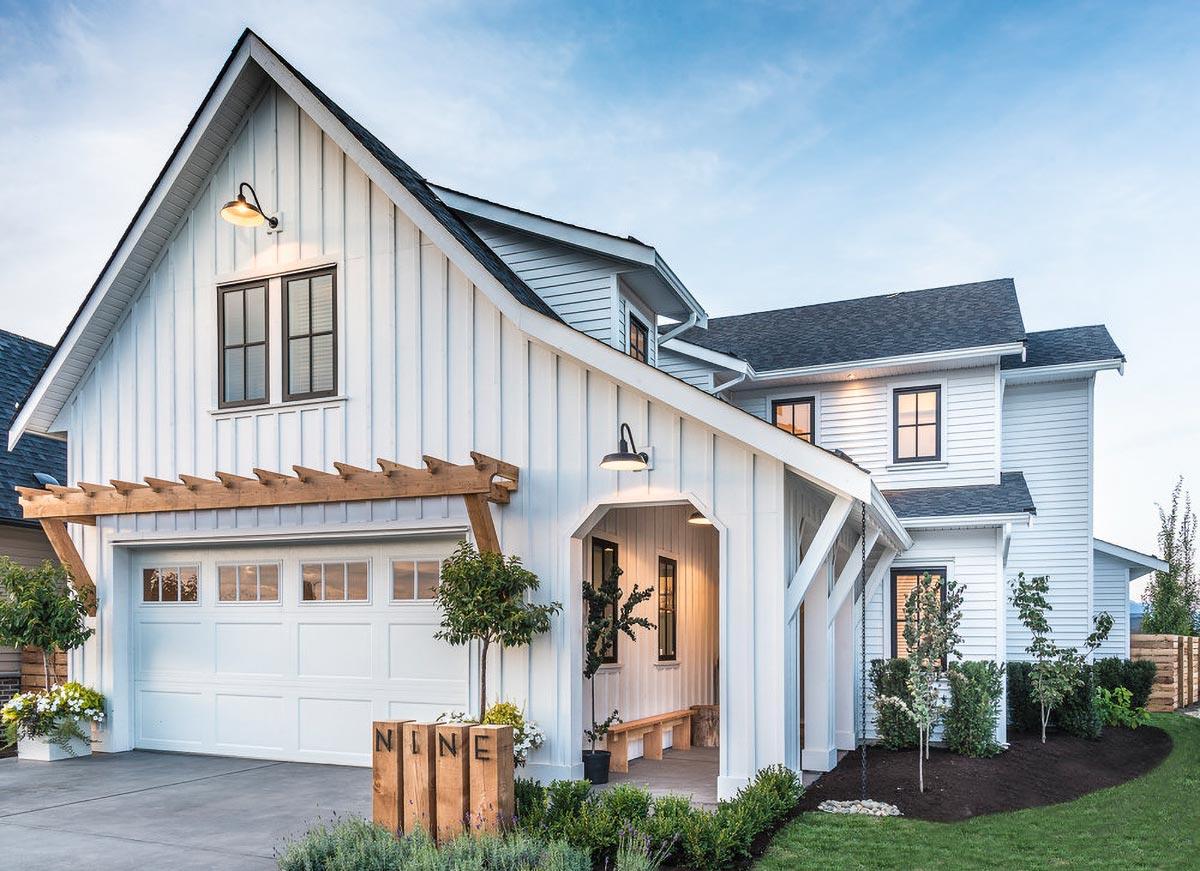

  • This 3 to 4-bedroom craftsman house plan features a striking clapboard and board-and-batten exterior, inviting covered front porch, and a 2-car garage with extra storage.

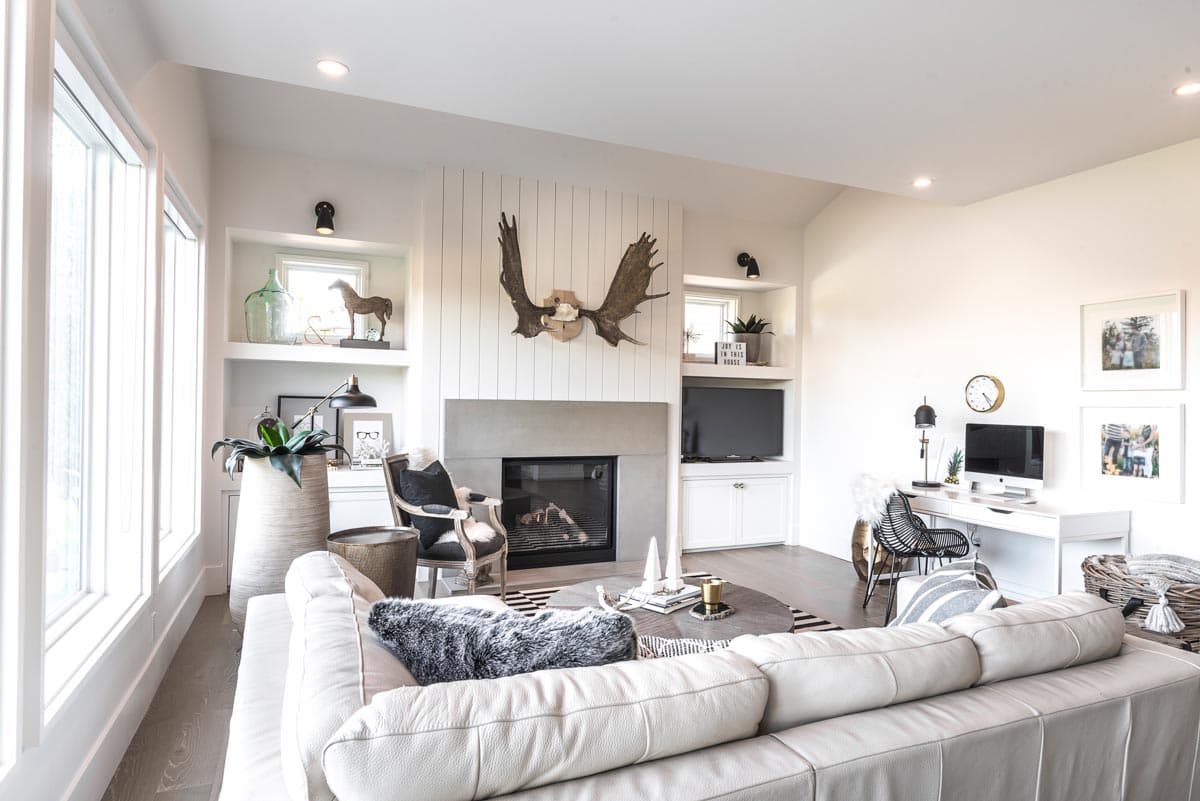

  • Just inside, off the airy foyer, you'll find a quiet den. At the heart of the home, an open-concept vaulted great room with a fireplace gives you maximum versatility.
  • The thoughtfully designed kitchen boasts an oversized island with ample seating, a generously sized walk-in pantry, and a bright vaulted dining room with a backyard view. Enjoy warm weather on a large back patio.

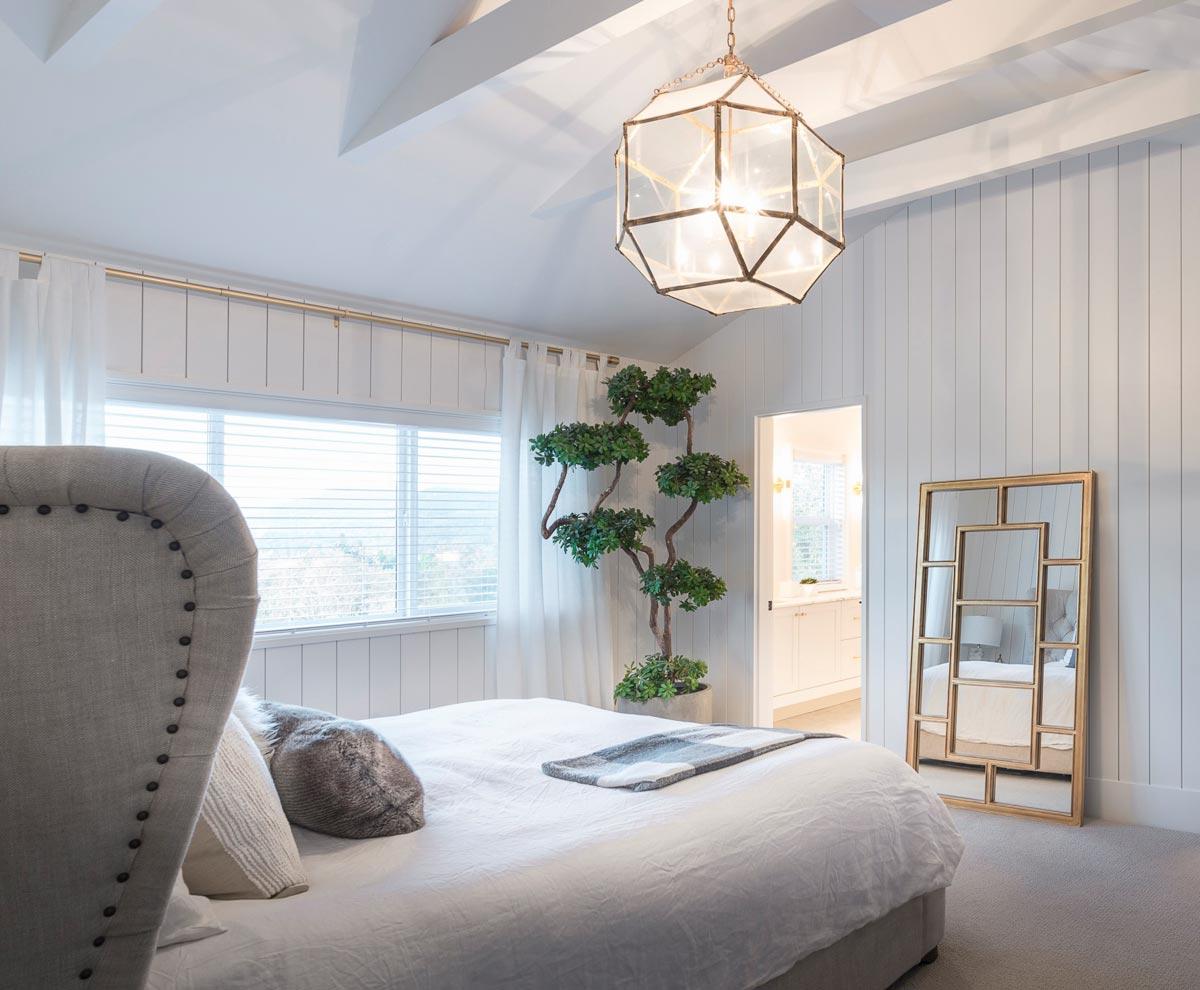

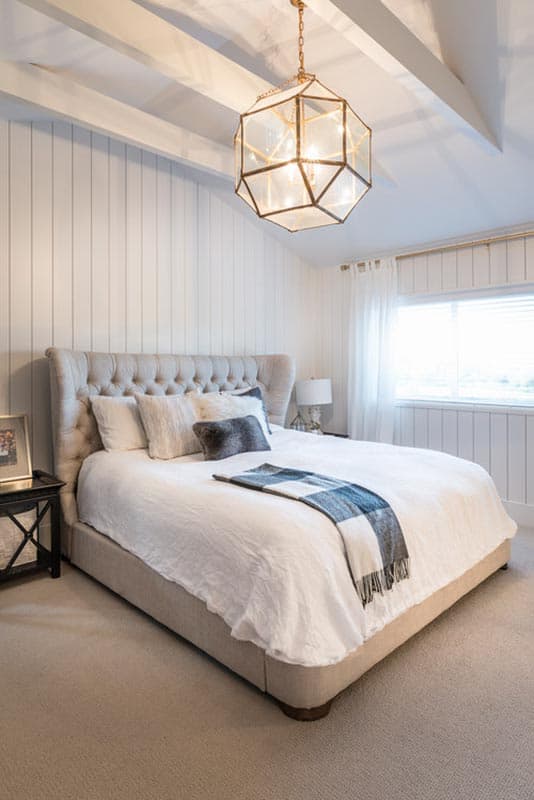

  • Ascend the centrally located staircase to discover your inviting vaulted master suite, which includes a spacious walk-in closet and a 4-piece bath with an oversized shower.
  • On the opposite side of the upper level, you'll find two additional bedrooms, a full bath, and a vaulted bonus room.
What's Included
This plan set has the following components:
  • General notes
  • Foundation plan
  • Main floor plan
  • Second floor plan
  • Roof plan

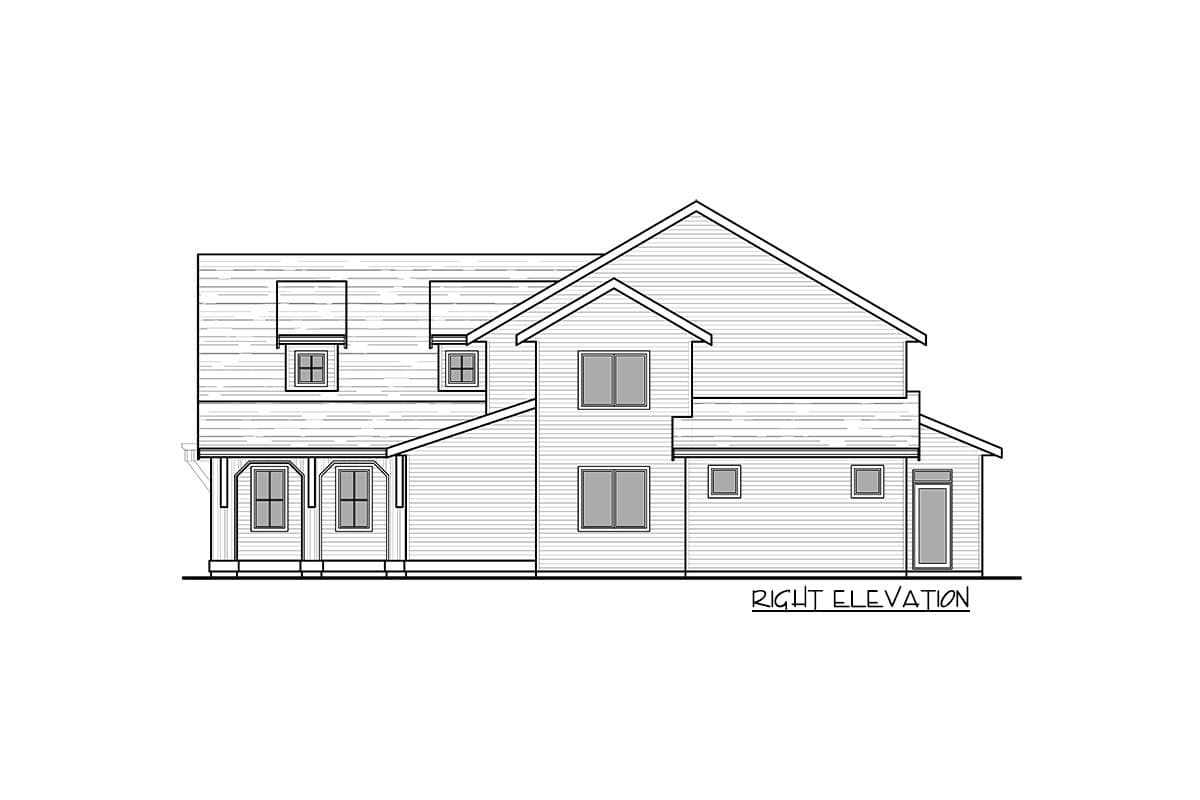

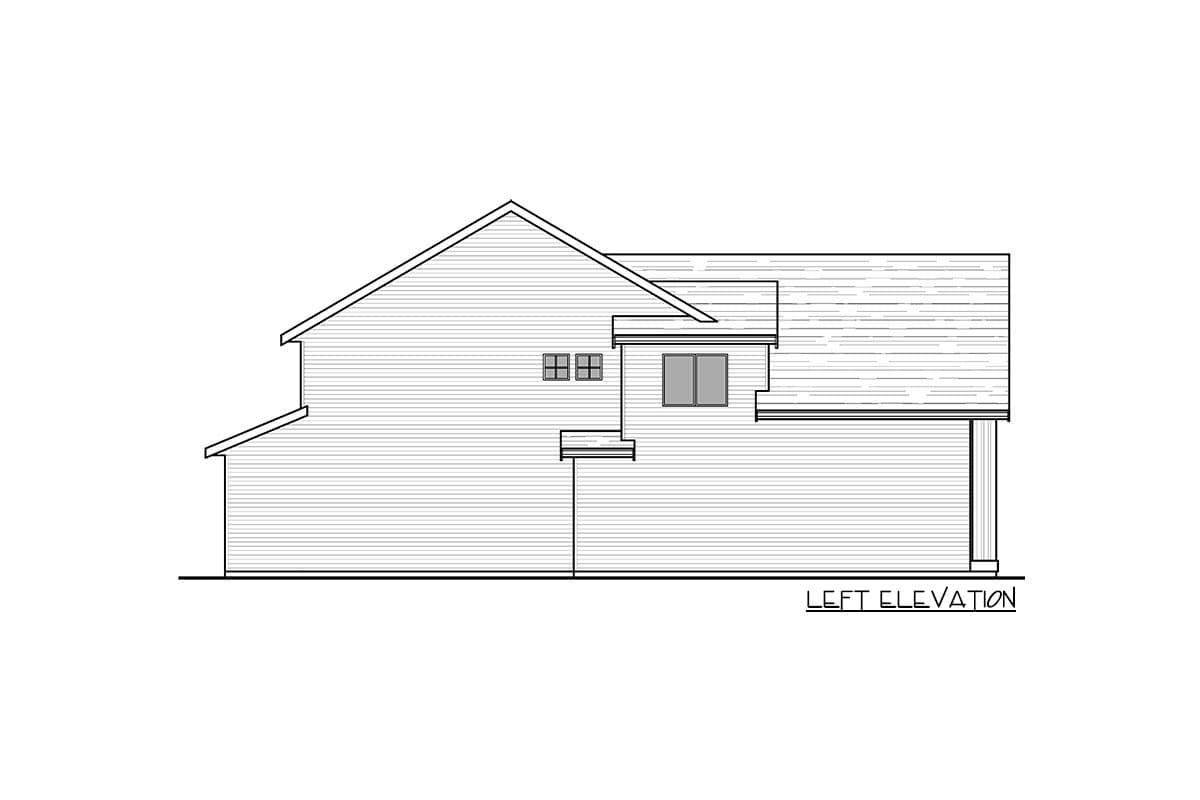

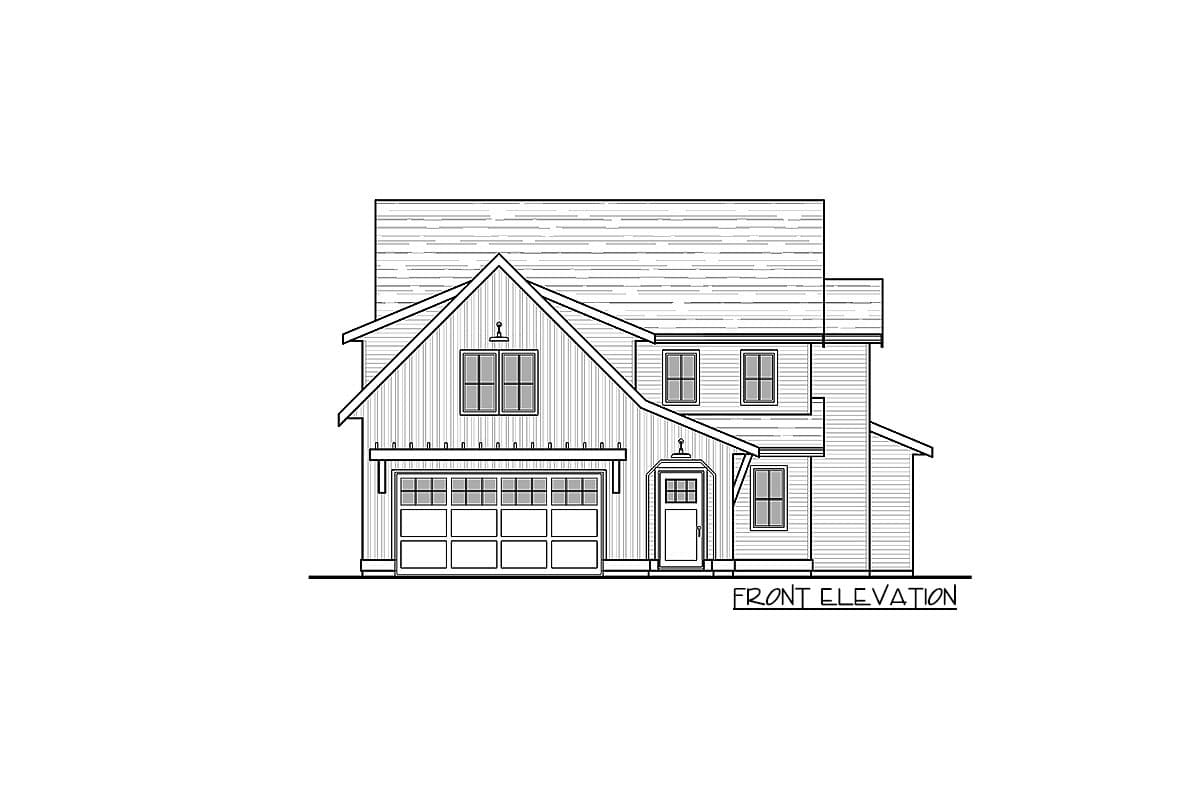

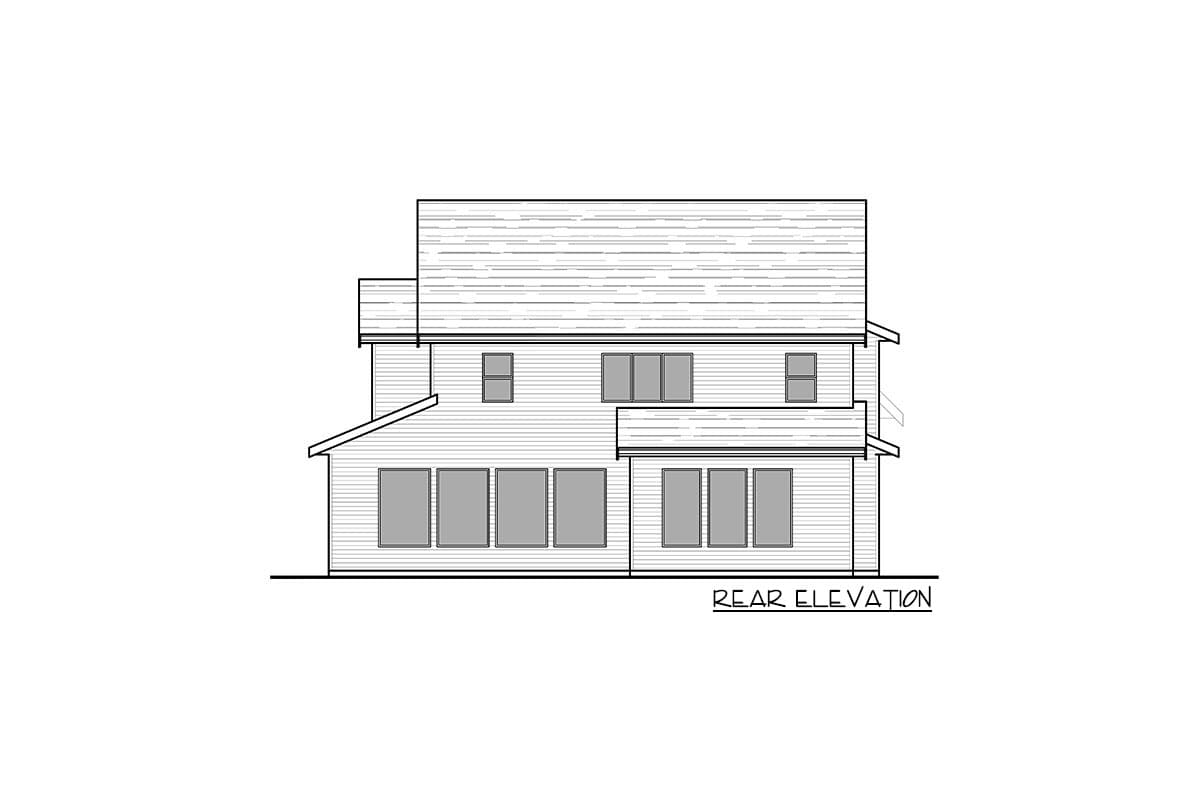

  • Elevations
  • Sections
  • Details (entry stoop, ceiling, garage slab, typical garage wall, rim joist, typical exterior wall)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Home Plan with Flex Room

  • 2,602

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

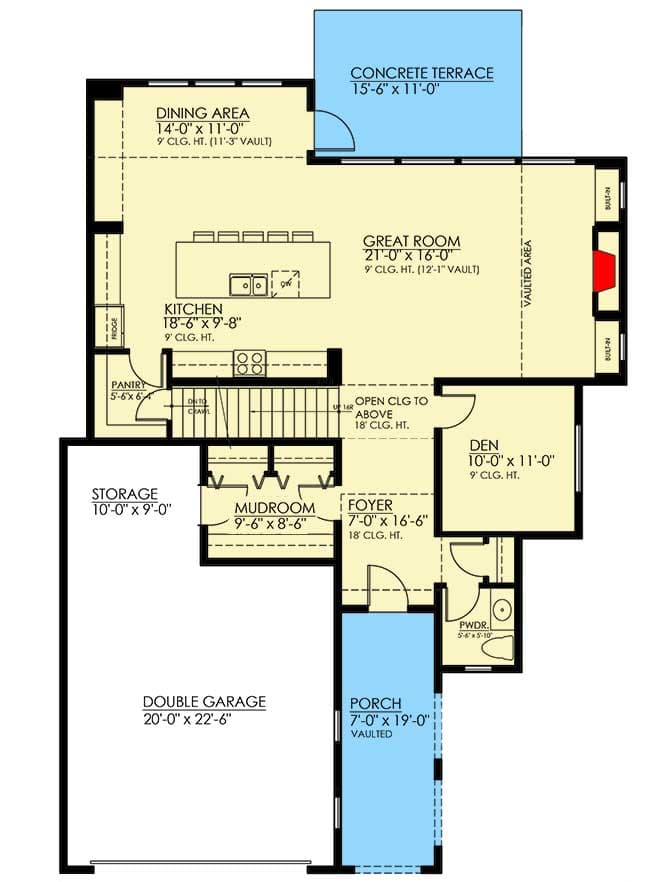

  • Main Level

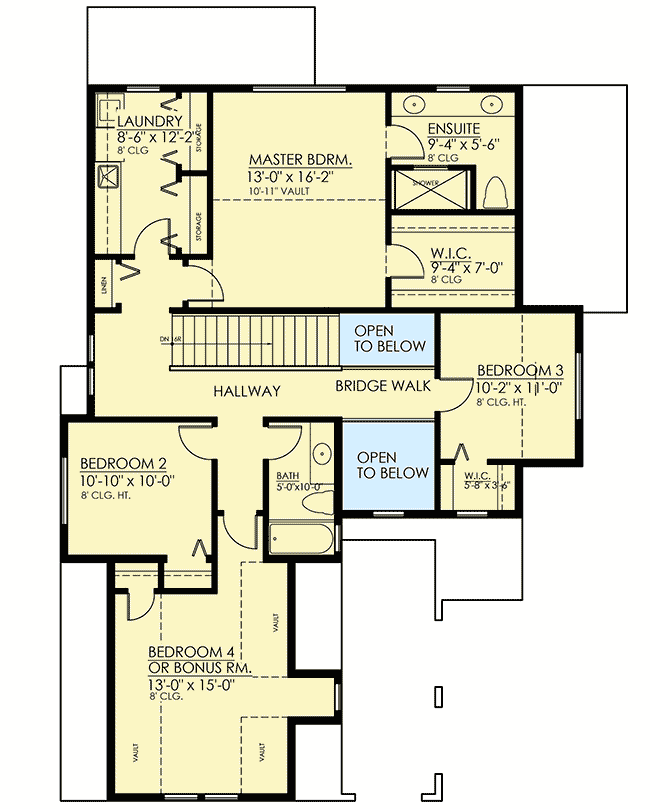

  • 2nd Floor

  • Main Level - Optional Basement

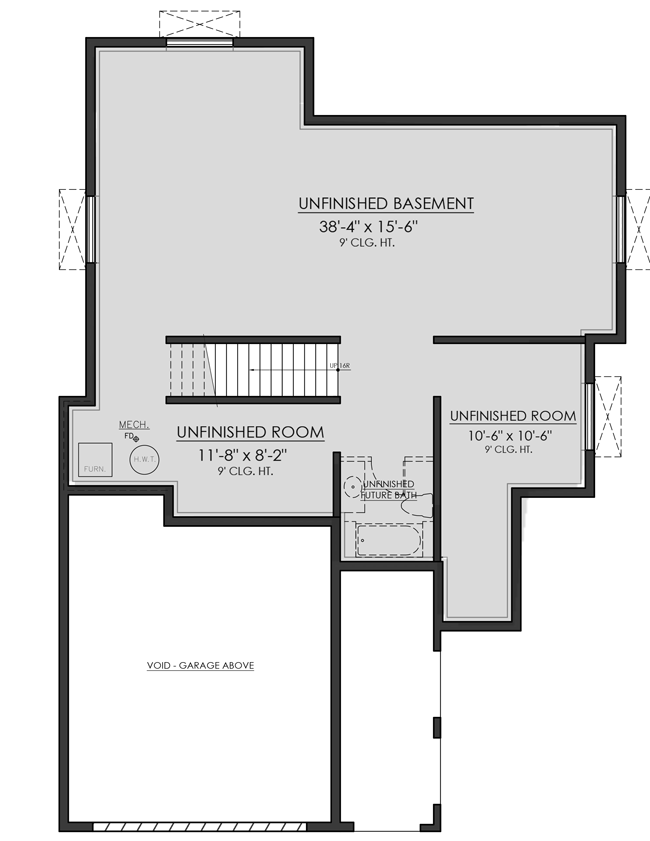

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,602 sq. ft.
  • 1st Floor: 1,278 sq. ft.
  • 2nd Floor: 1,324 sq. ft.

Dimensions

  • Width: 42' 4"
  • Depth: 59' 4"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick And Truss
