Plan 140017RK

Craftsman House Plan with 5 Beds, First-Floor Primary Suite and Bonus Room

Heated S.F.
2,623
Beds
5
Baths
4.5
Stories
2
Cars
2- 3

Floor Plan

Plan 140017RK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 140017RK

M-F 9am-5pm EST |

1-203-761-8500

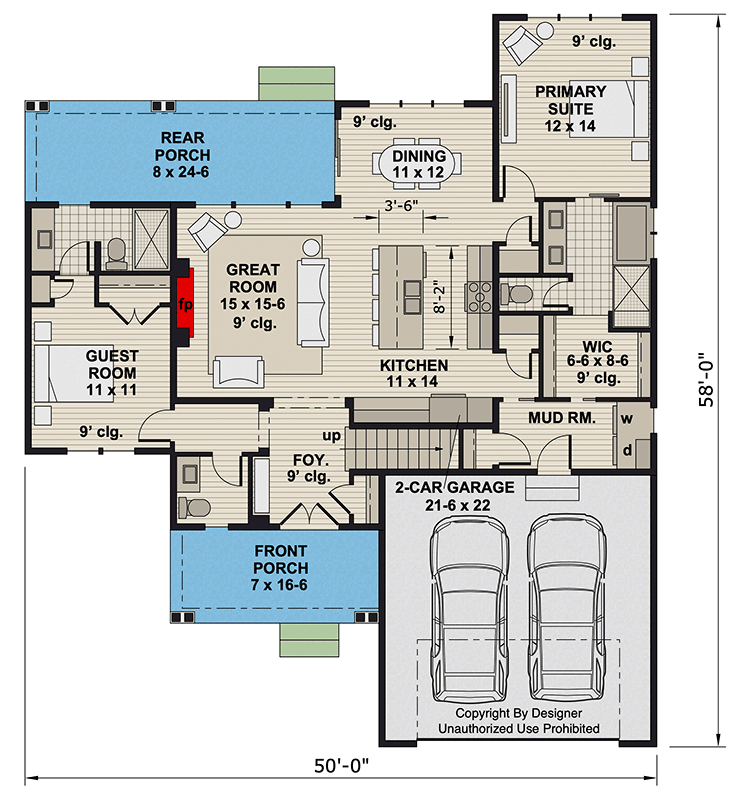

Main Level

Plan 140017RK: Craftsman House Plan with 5 Beds, First-Floor Primary Suite and Bonus Room - Floor Plan - Main Level - Craftsman, Traditional

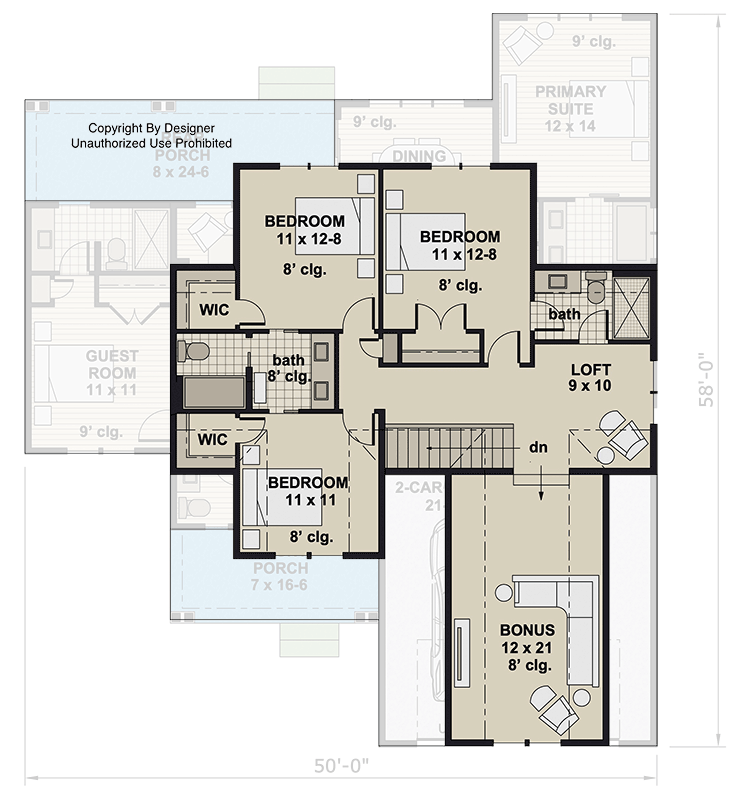

2nd Floor

Plan 140017RK: Craftsman House Plan with 5 Beds, First-Floor Primary Suite and Bonus Room - Floor Plan - 2nd Floor - Craftsman, Traditional

Plan Details

  • This expansive 2,623 sq. ft. Craftsman-style house plan boasts 5 bedrooms, 4.5 bathrooms, and an attached 473 sq. ft. 2-car garage, presenting a timeless aesthetic with modern functionality.

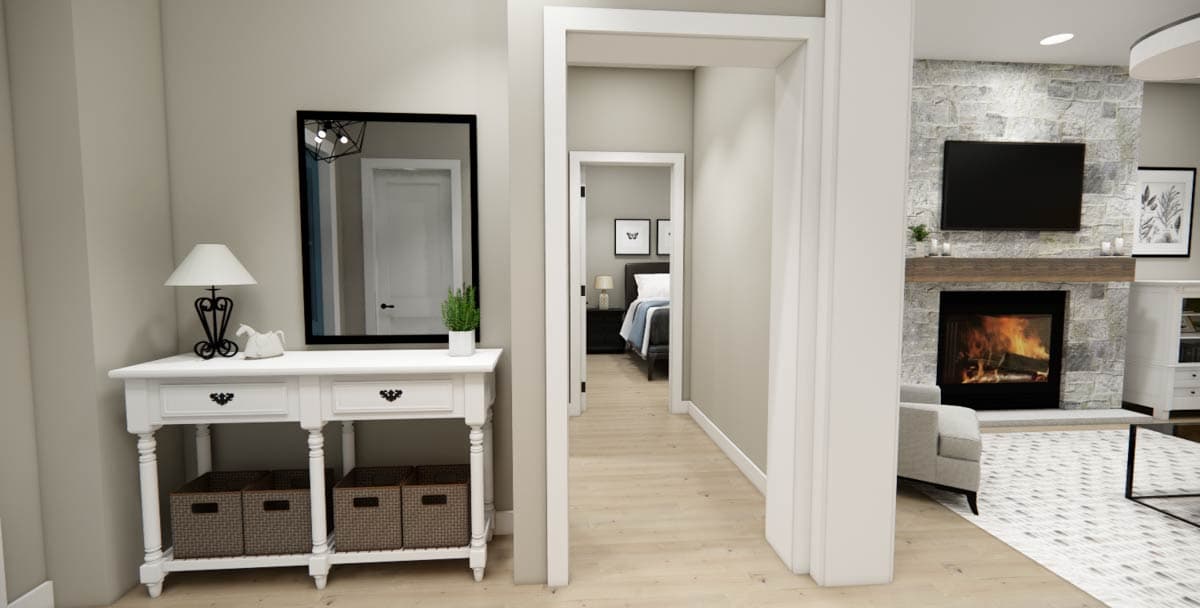

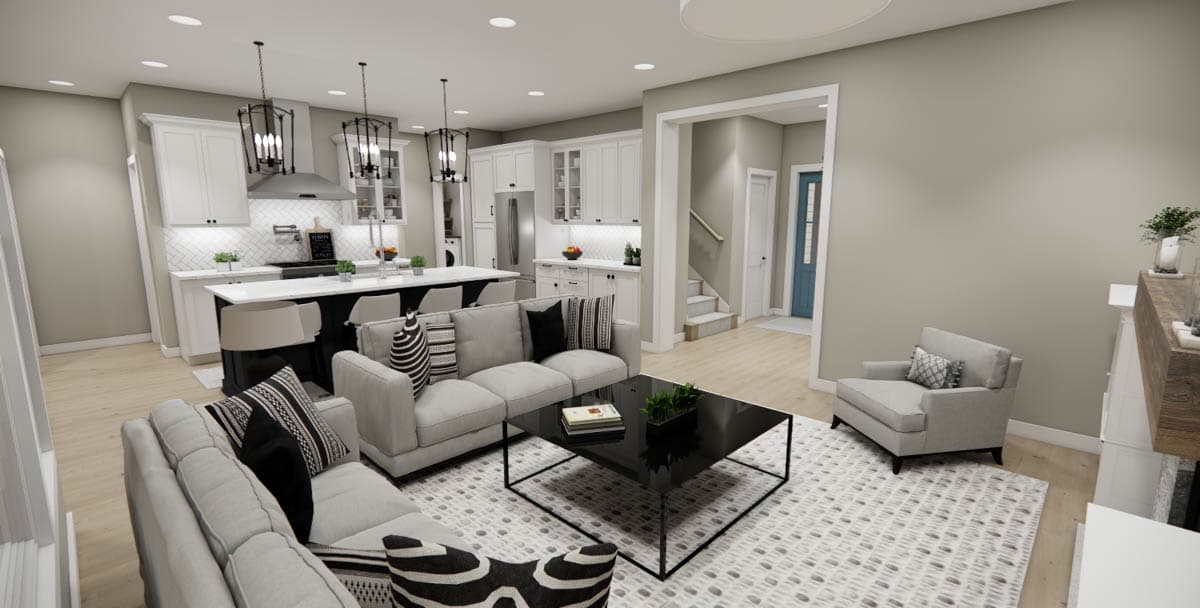

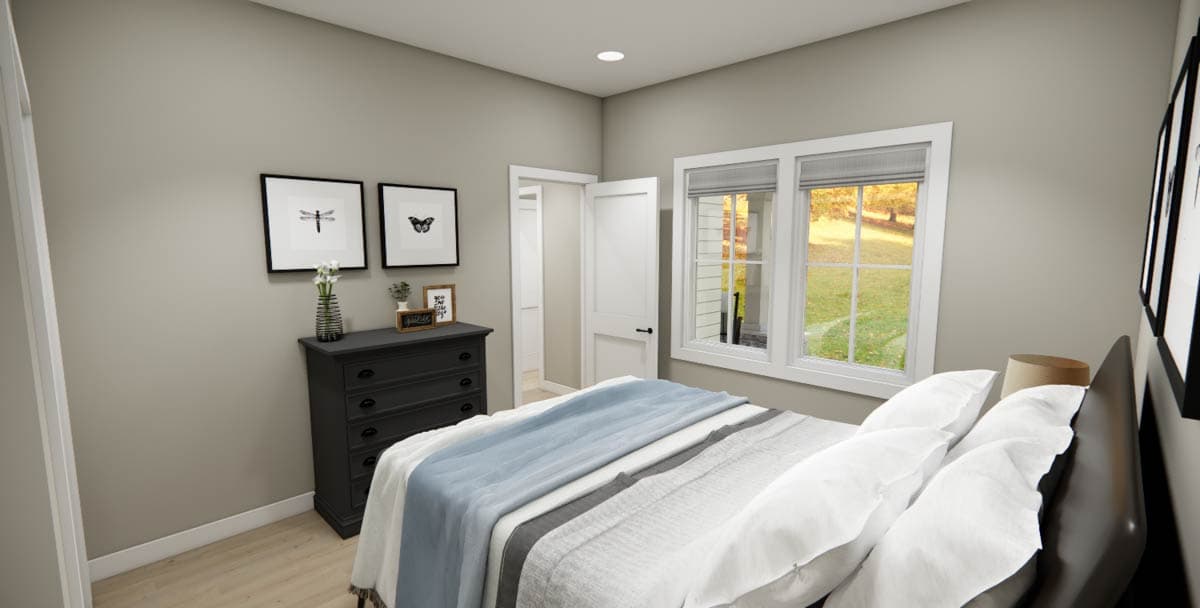

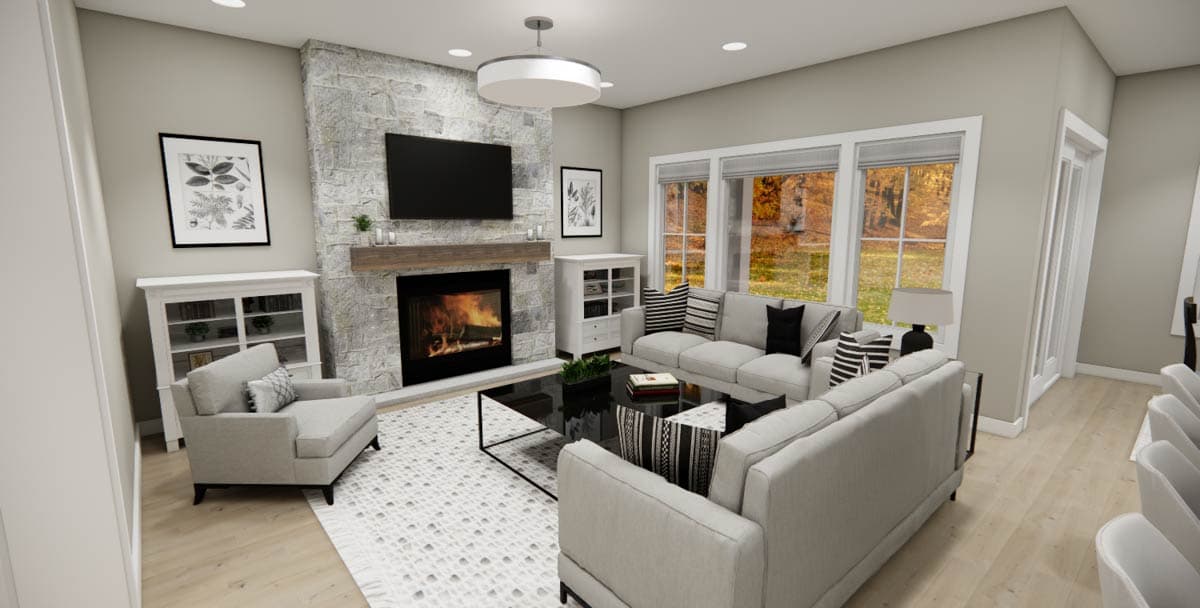

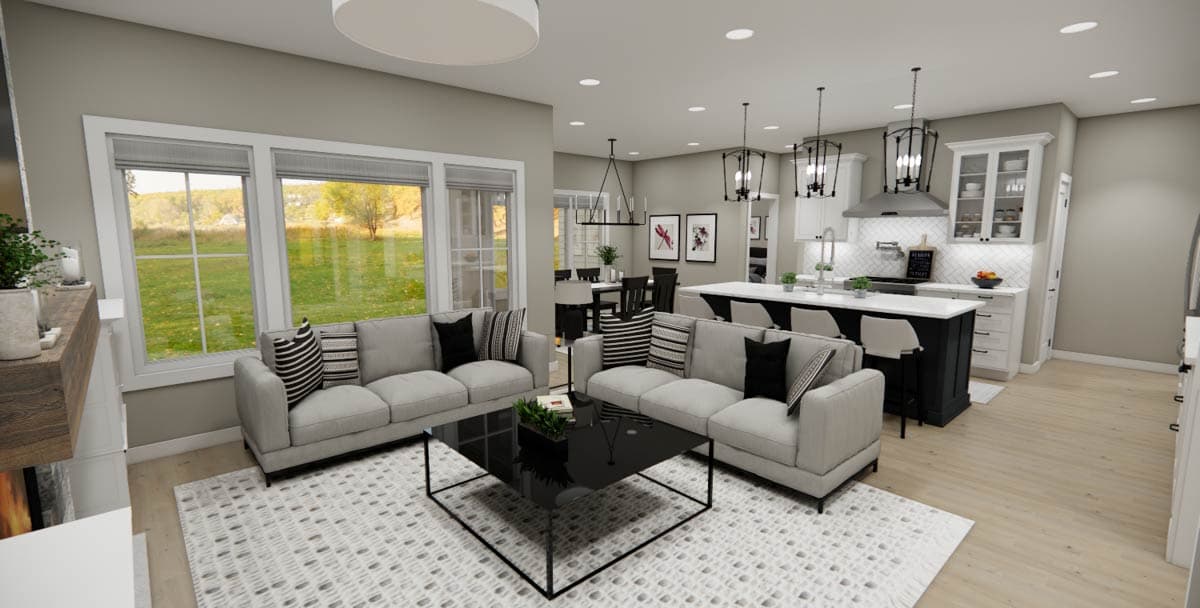

  • Upon entry, a welcoming foyer opens into the heart of the home, revealing an open-concept Great Room, Kitchen, and Dining area designed for seamless daily living and elegant gatherings. A private guest room with its own bath is thoughtfully placed near the entrance.

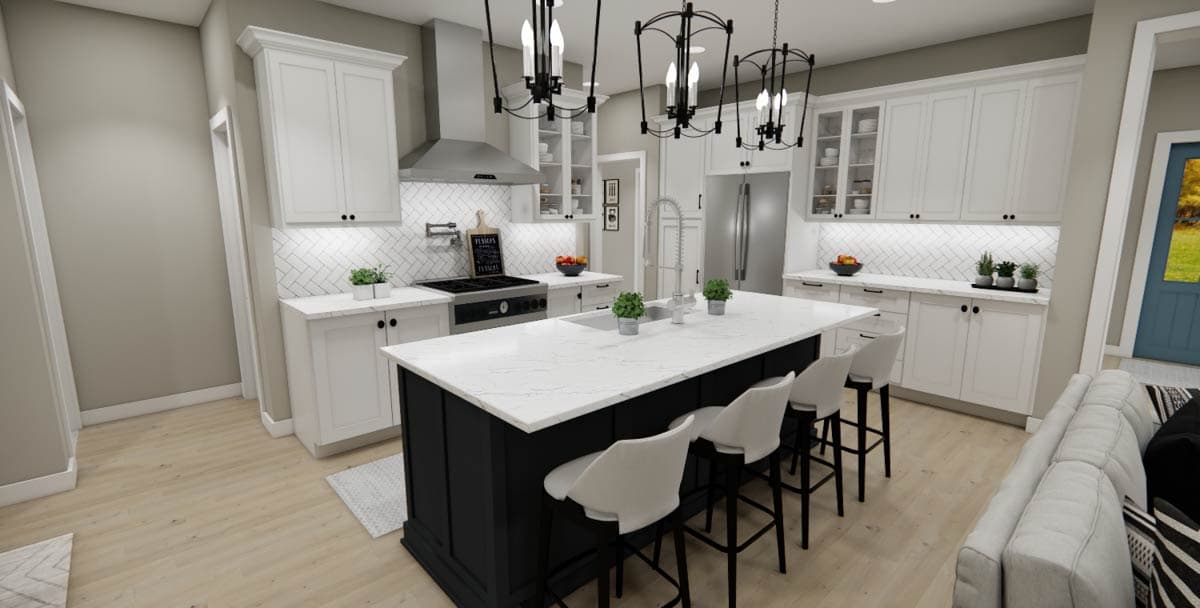

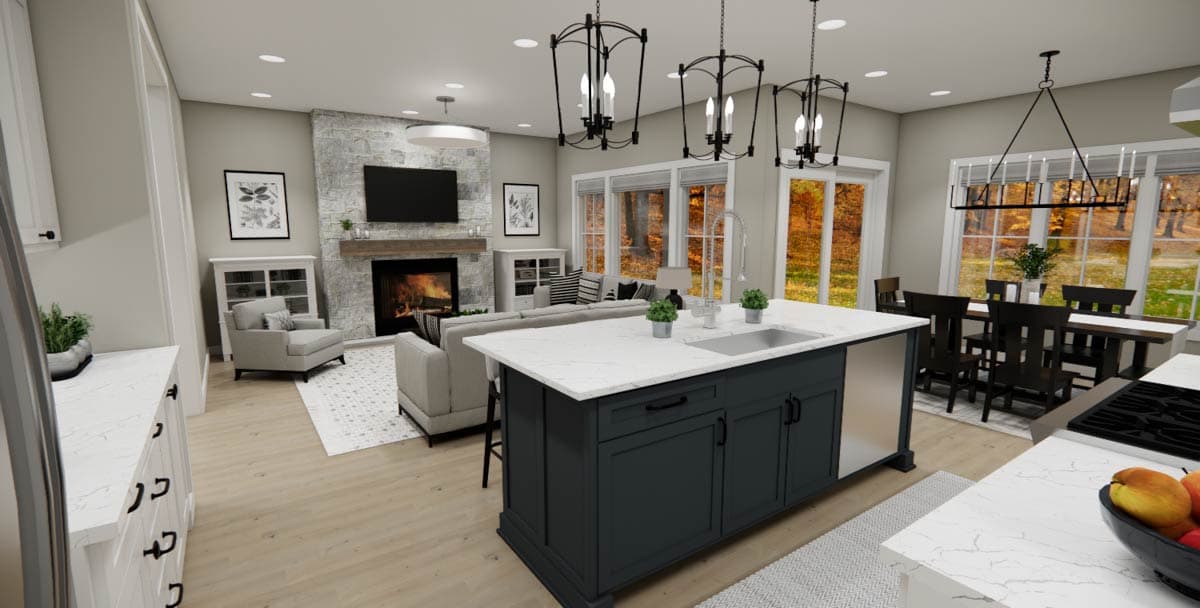

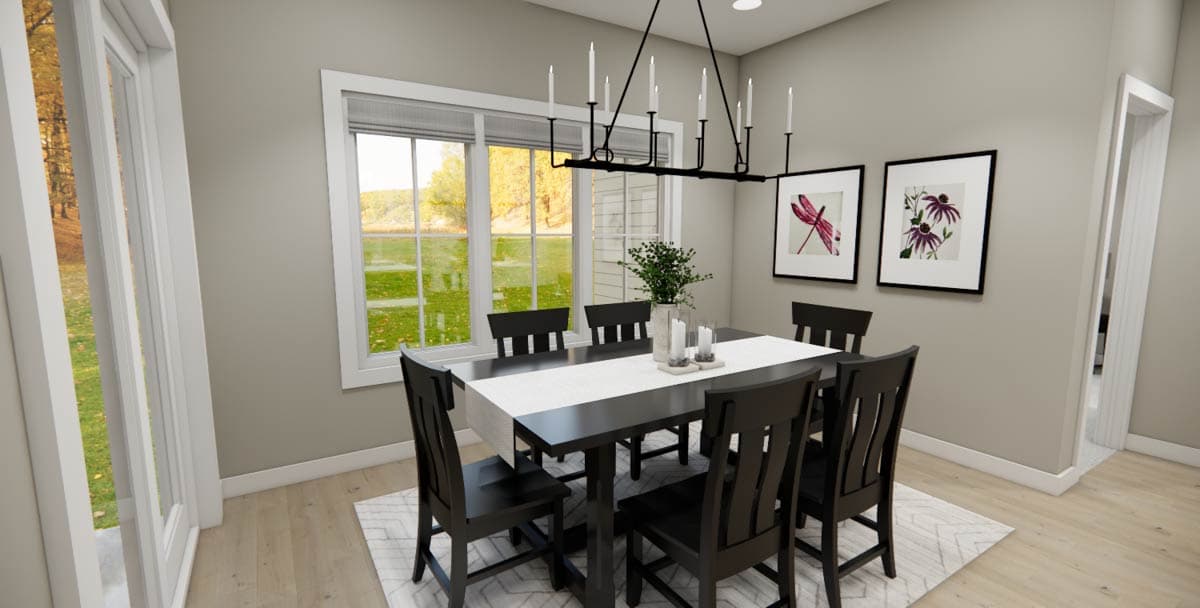

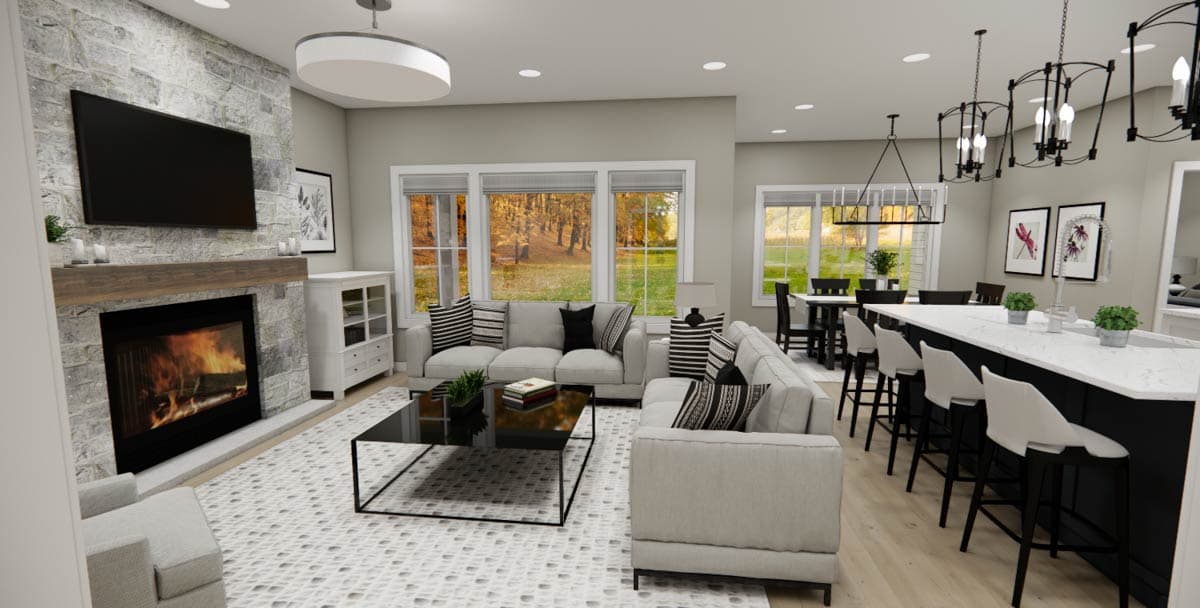

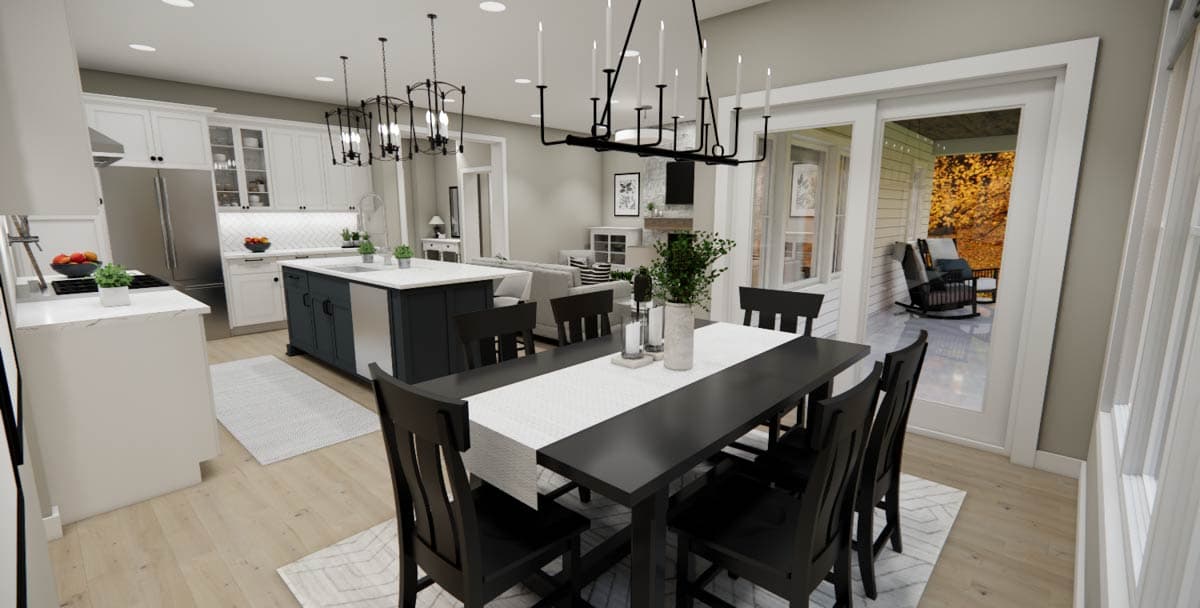

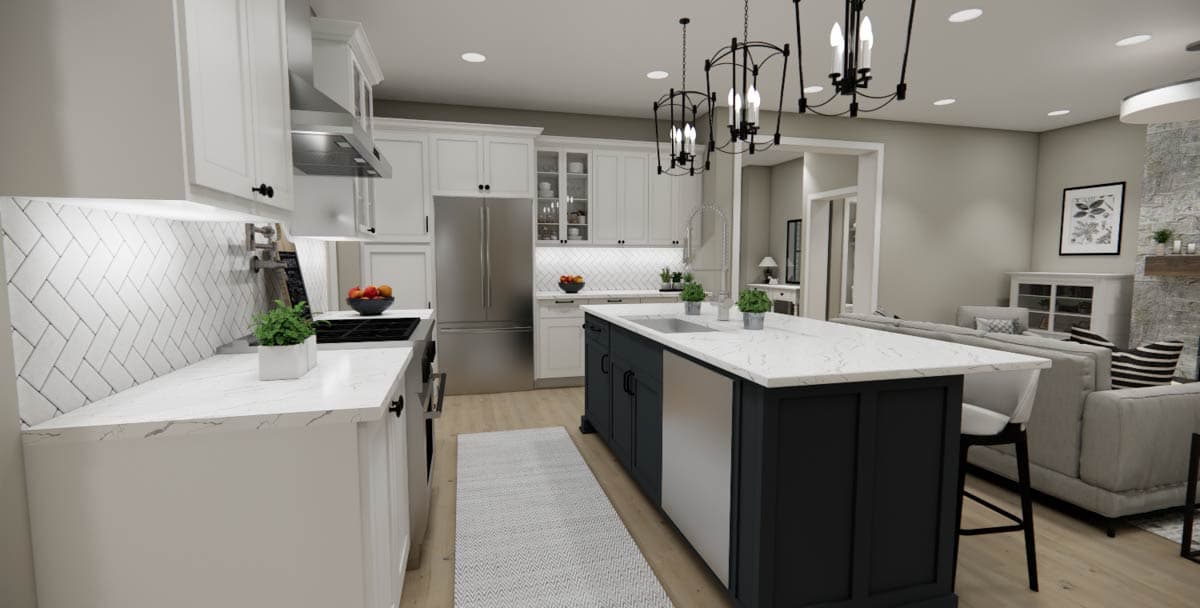

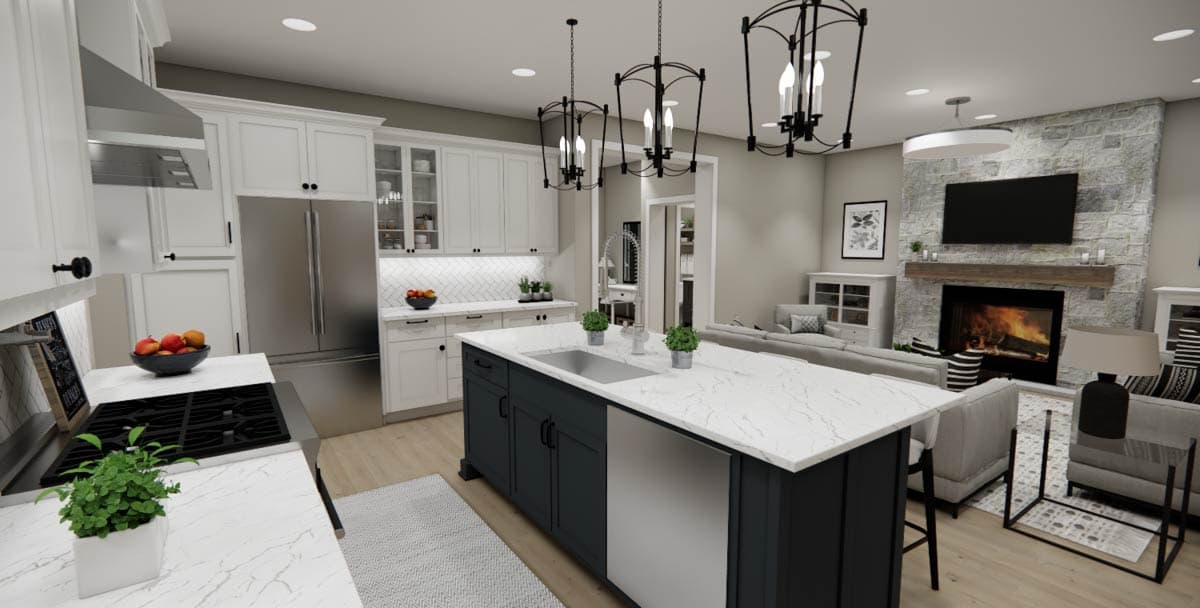

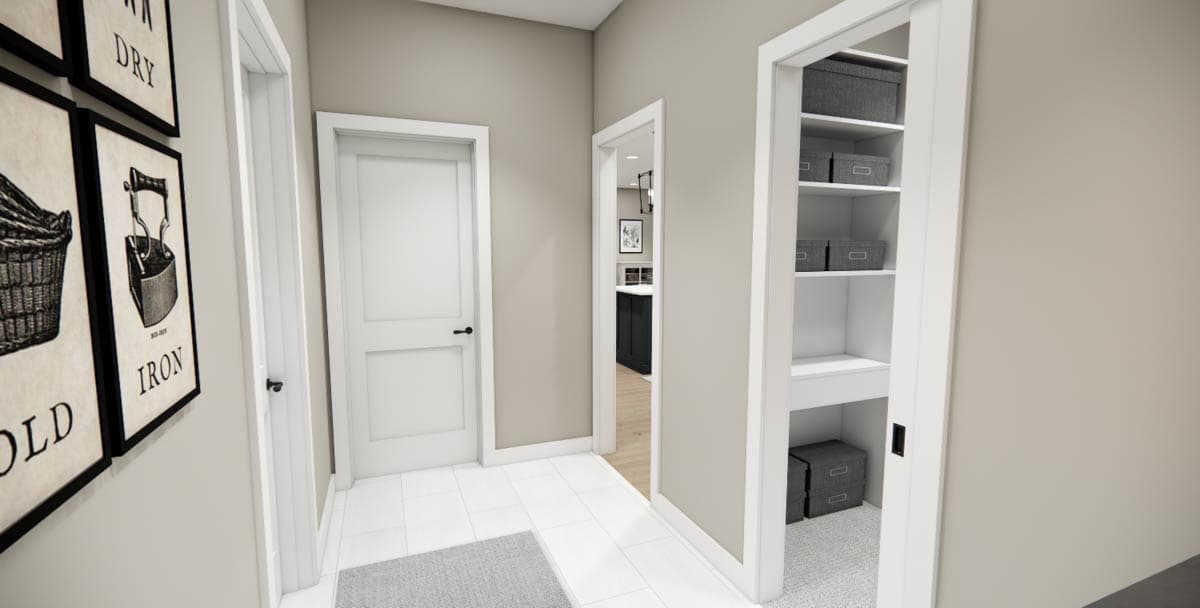

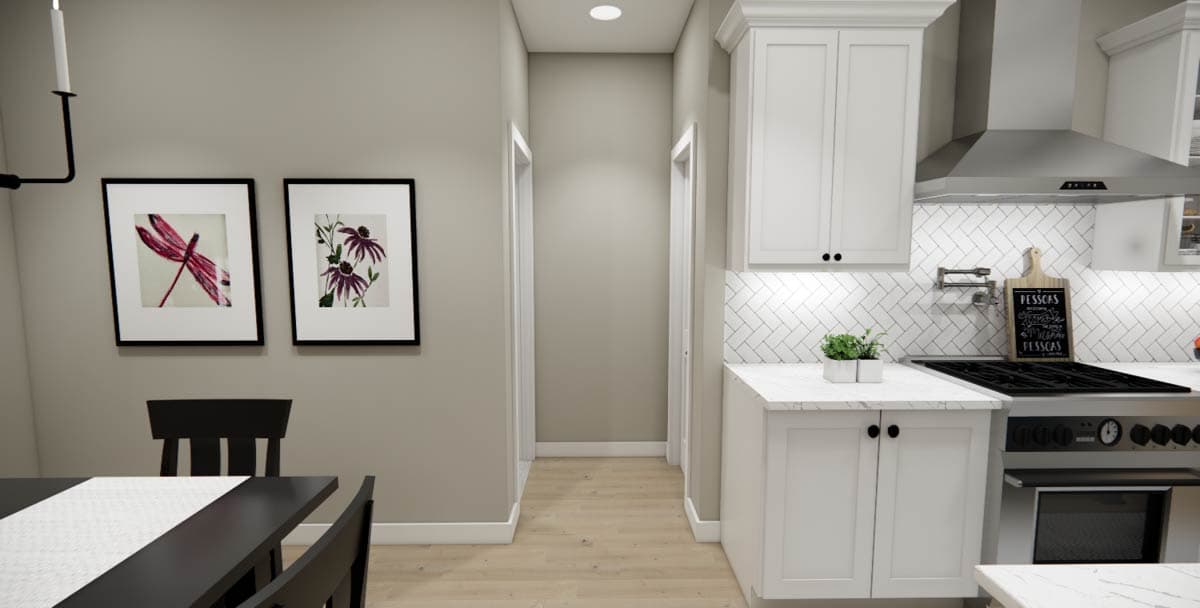

  • The gourmet kitchen, centered around a spacious island, flows effortlessly into the dining area and the light-filled great room, creating an ideal setting for both casual meals and sophisticated entertaining. A practical mudroom, complete with laundry facilities, connects directly to the garage for everyday convenience.

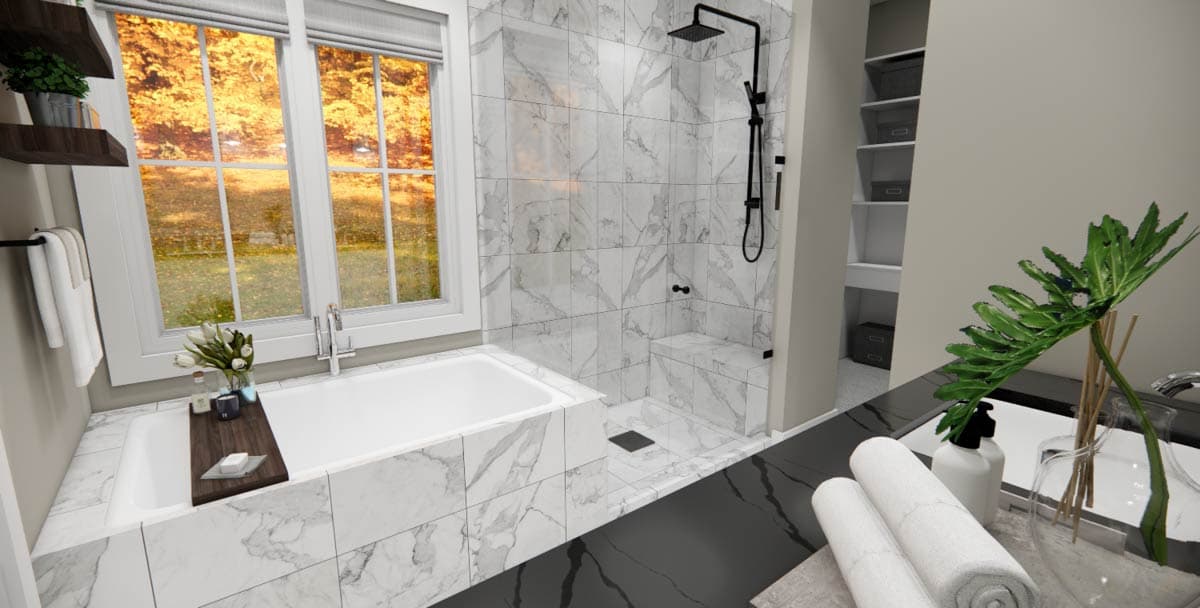

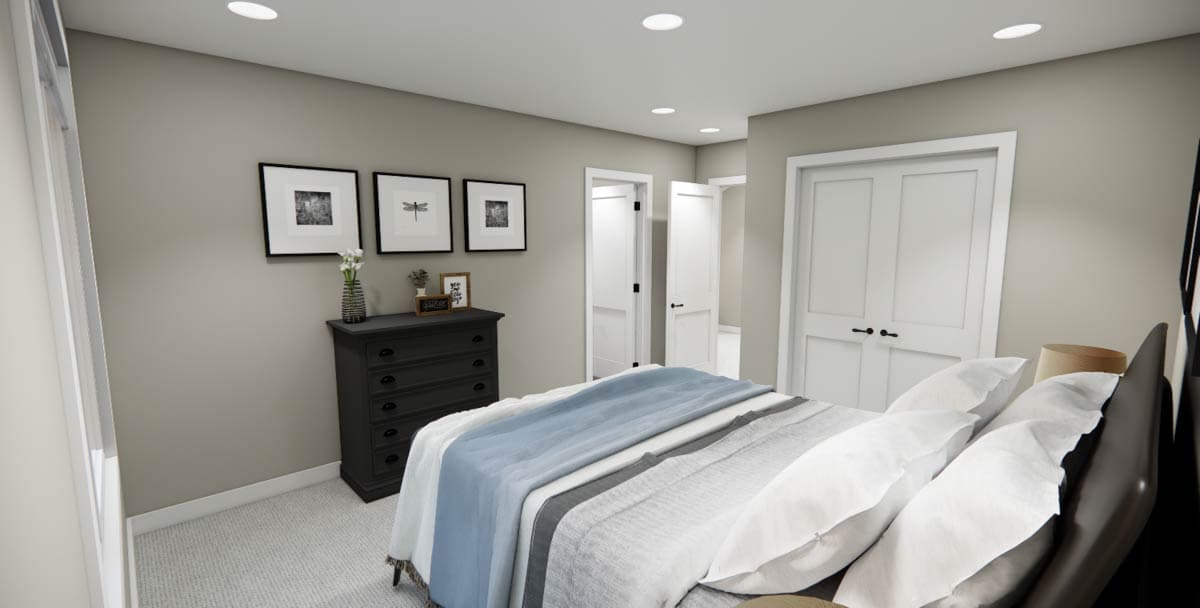

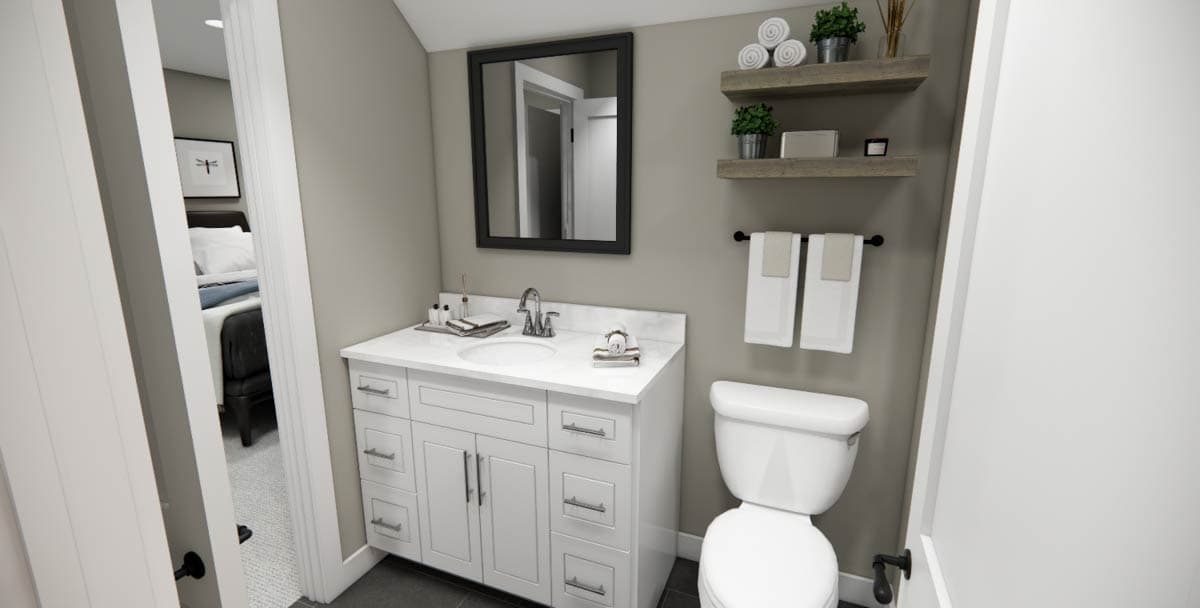

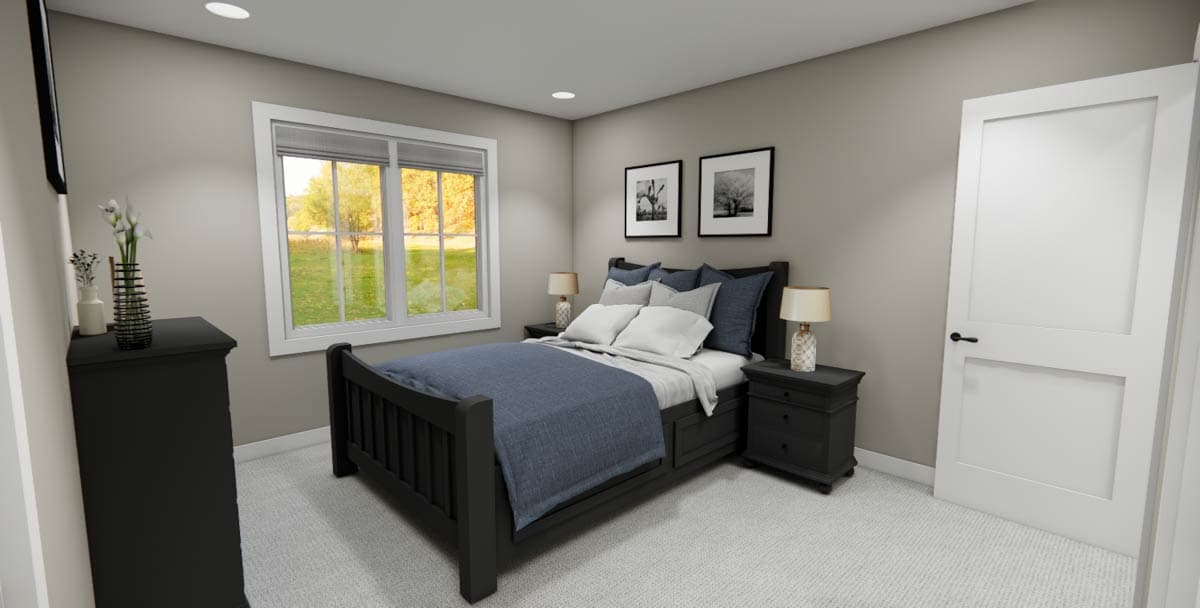

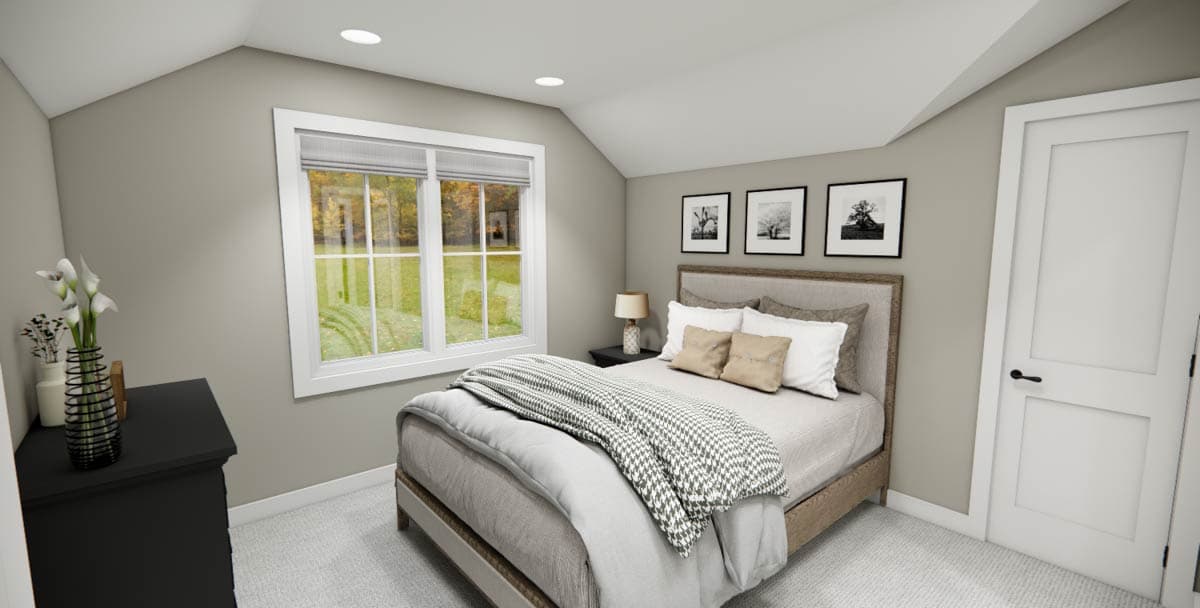

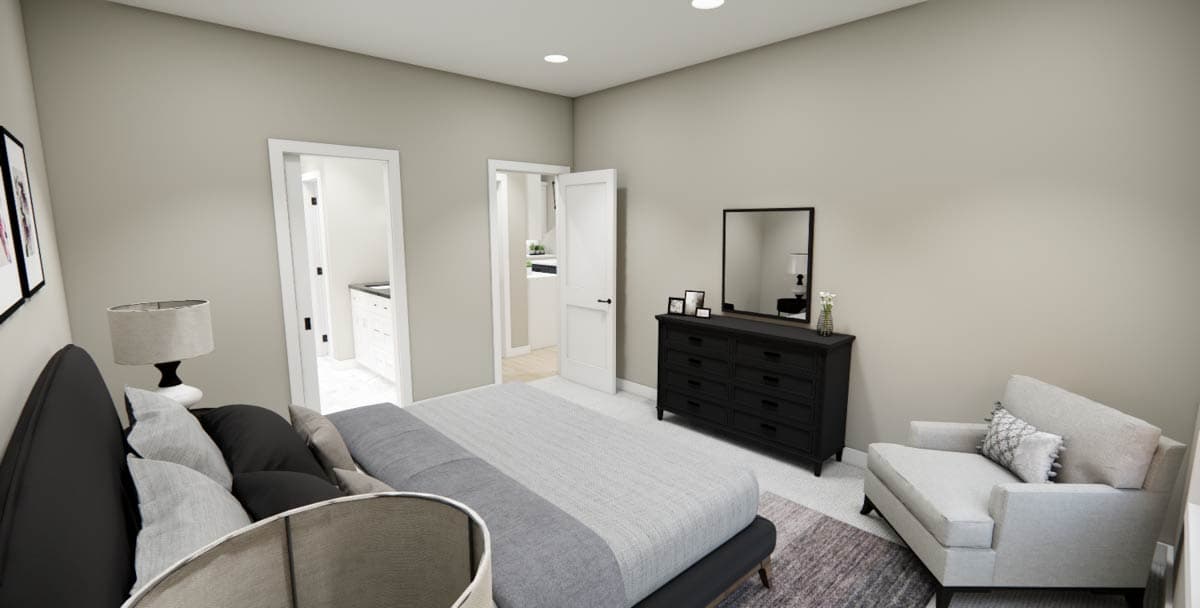

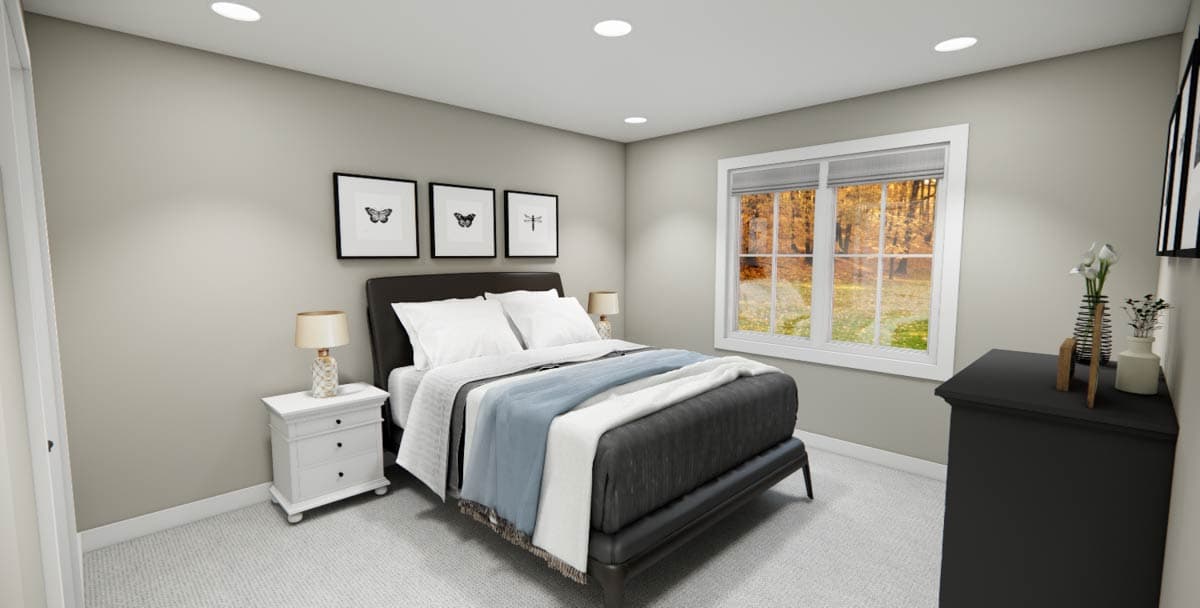

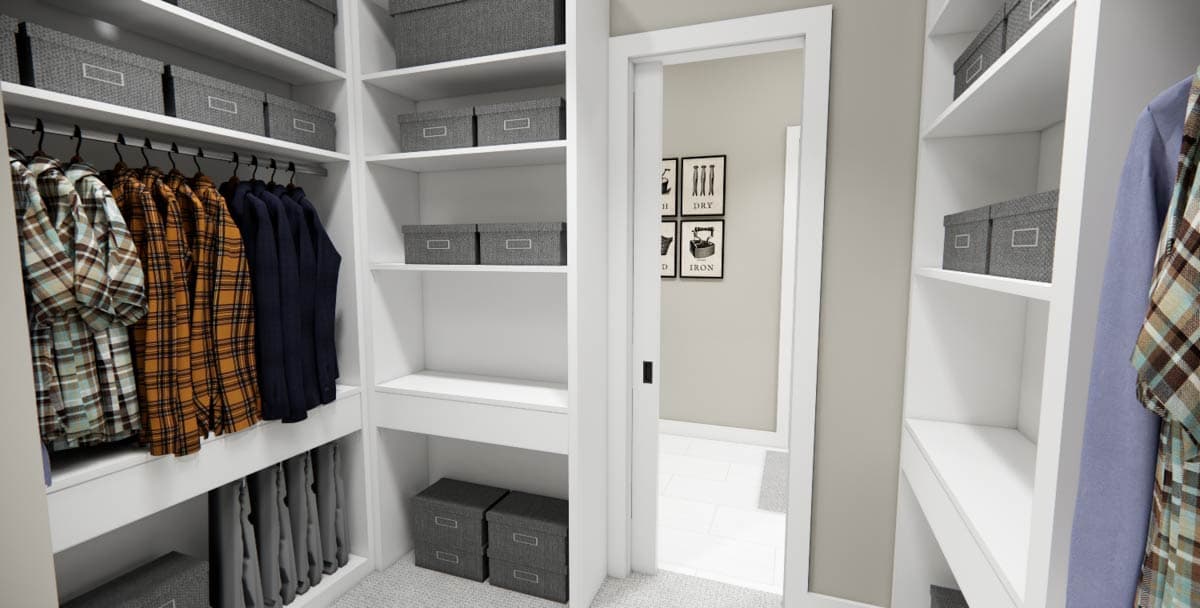

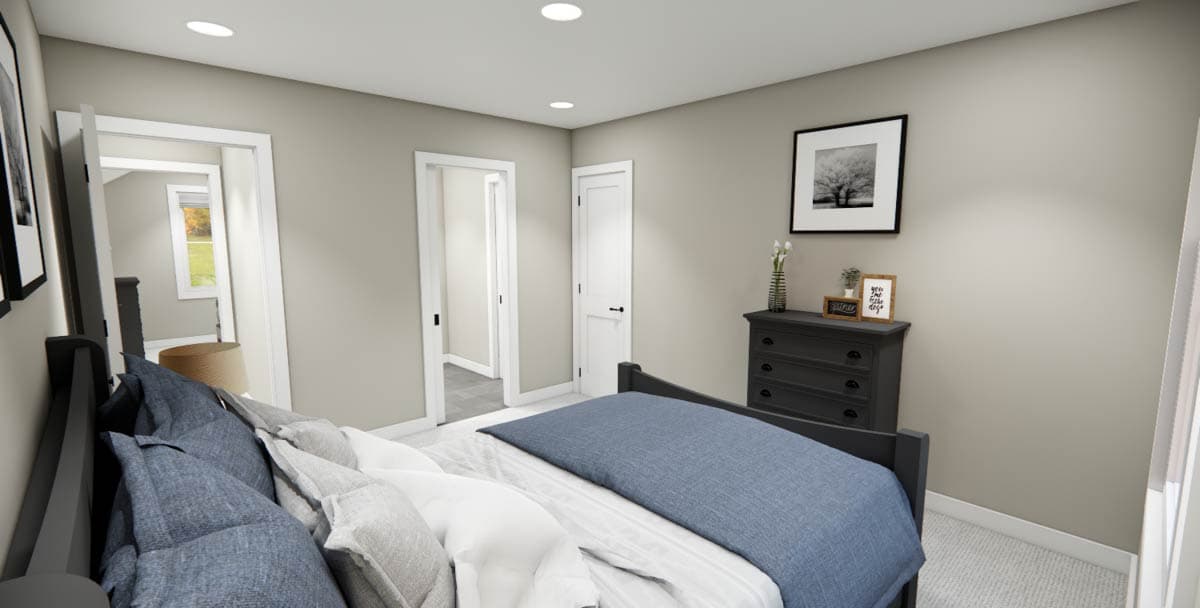

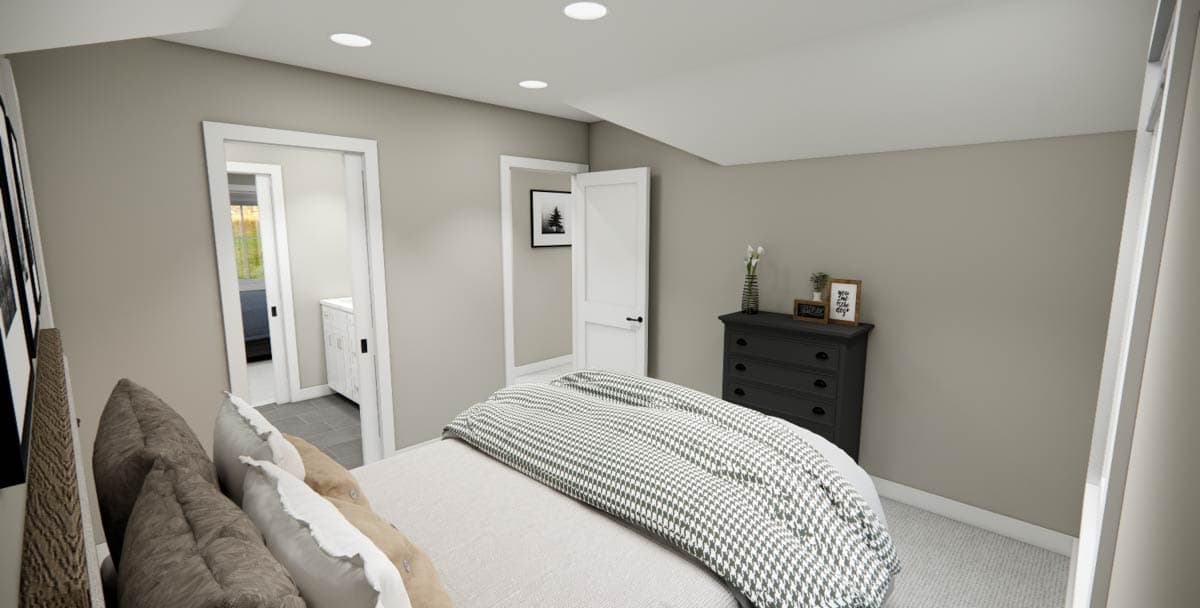

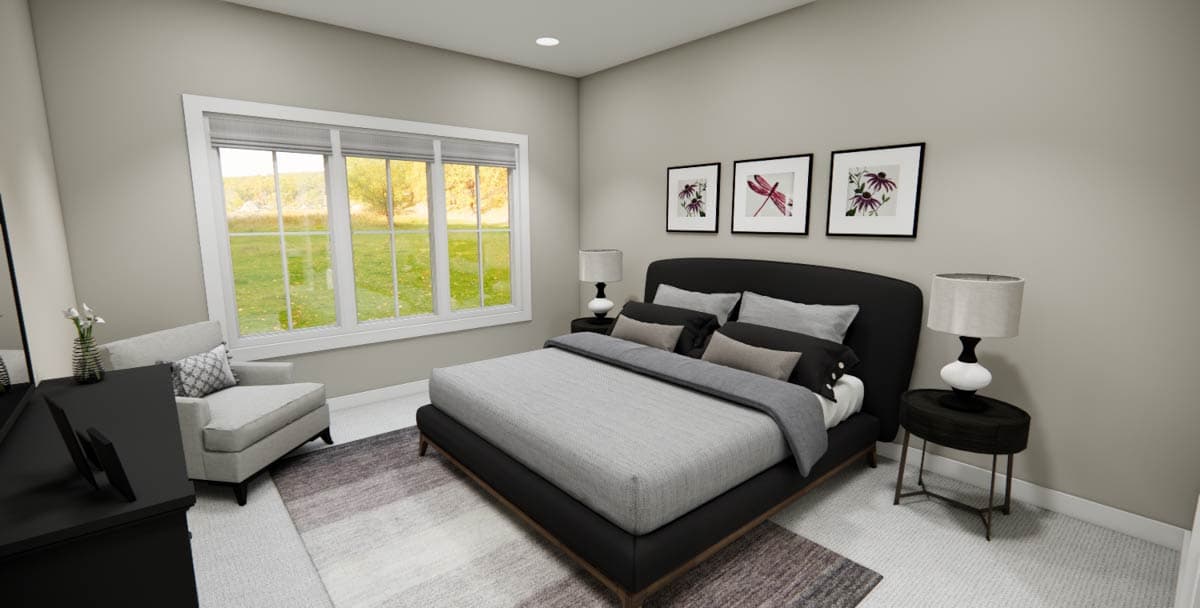

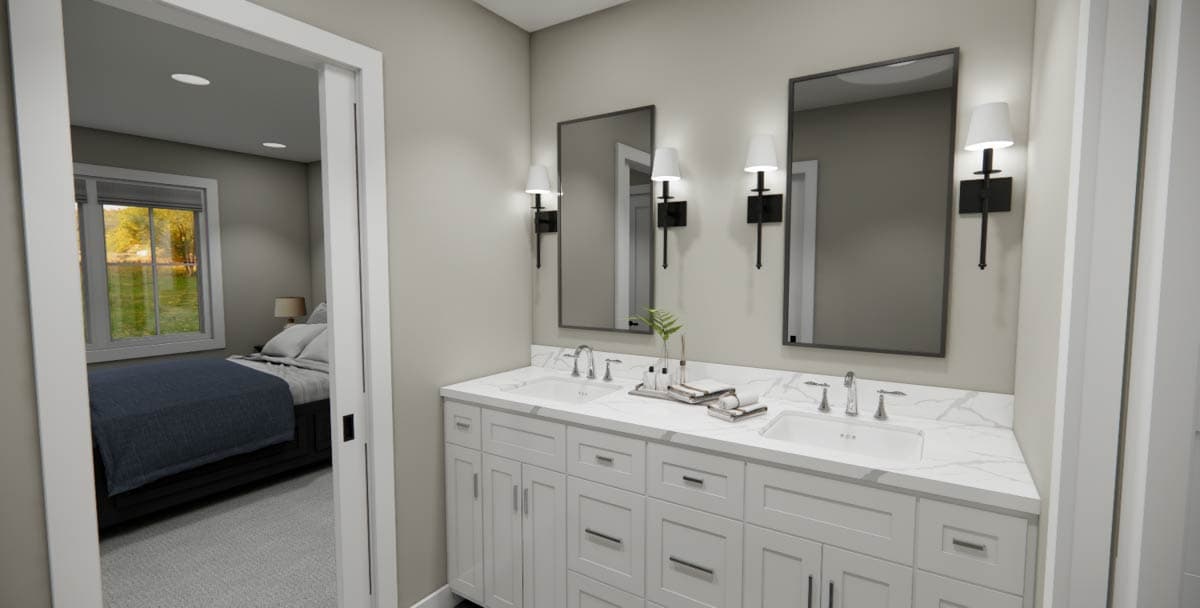

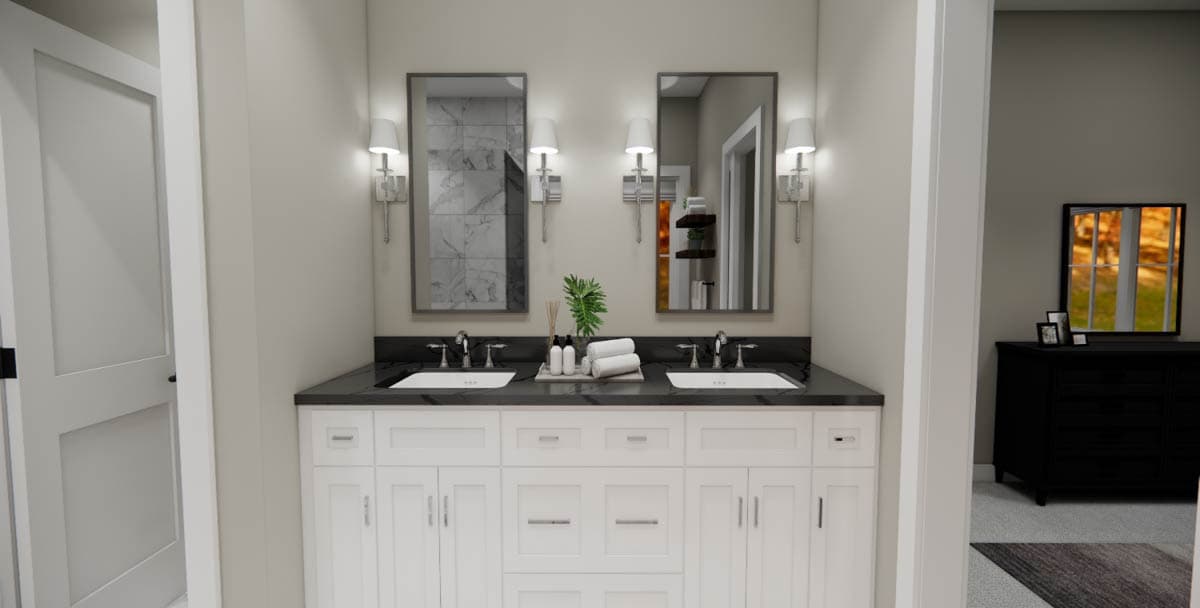

  • The luxurious primary suite is conveniently located on the first floor, featuring a serene bedroom, a spa-like private bathroom, and a generous walk-in closet, ensuring a private sanctuary. Upstairs, three additional spacious bedrooms, each with ample closet space, share well-appointed bathrooms, offering comfort and privacy for family and guests.

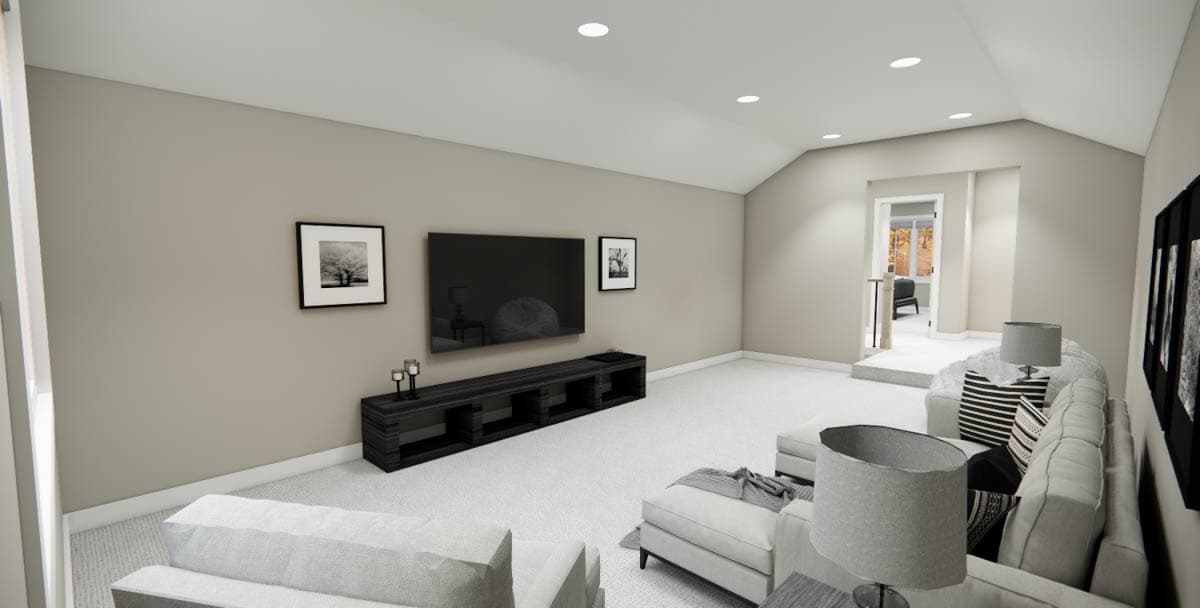

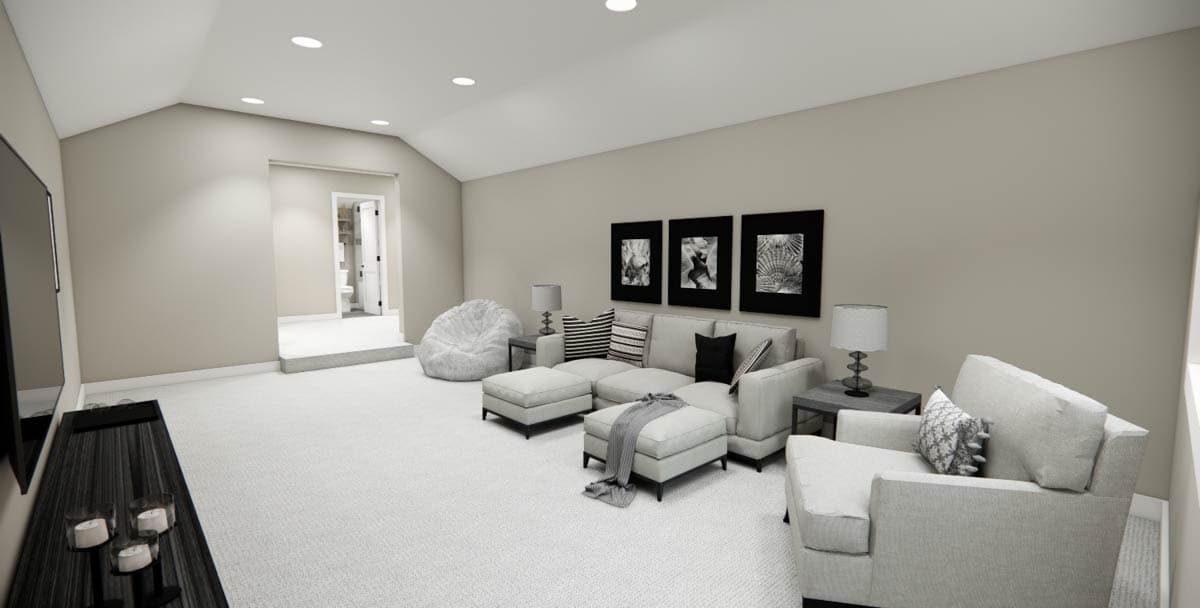

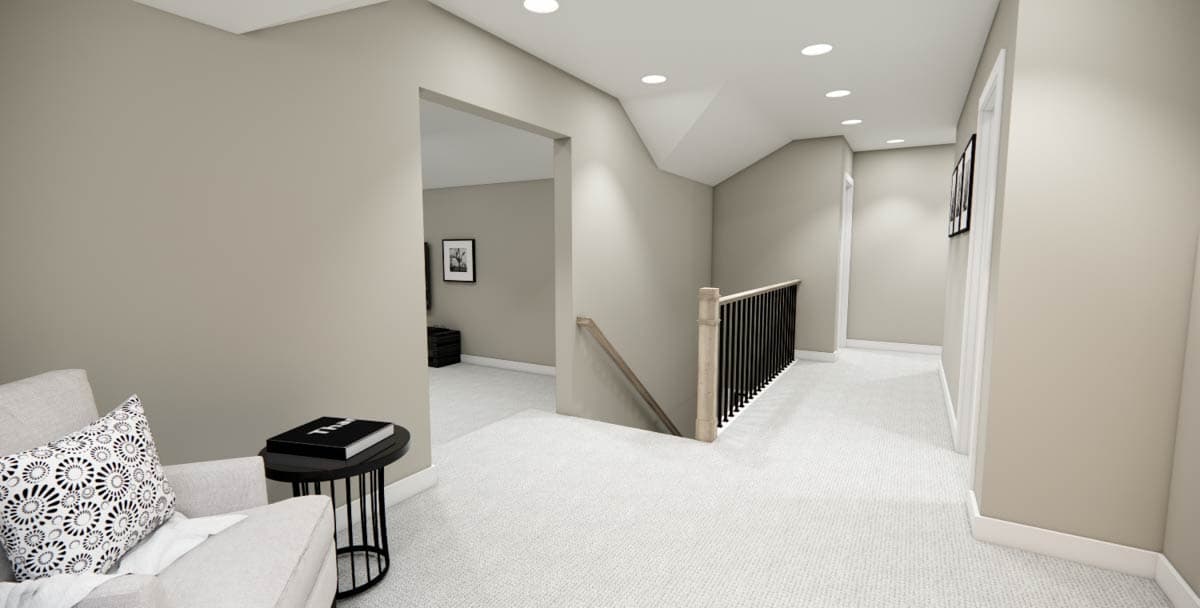

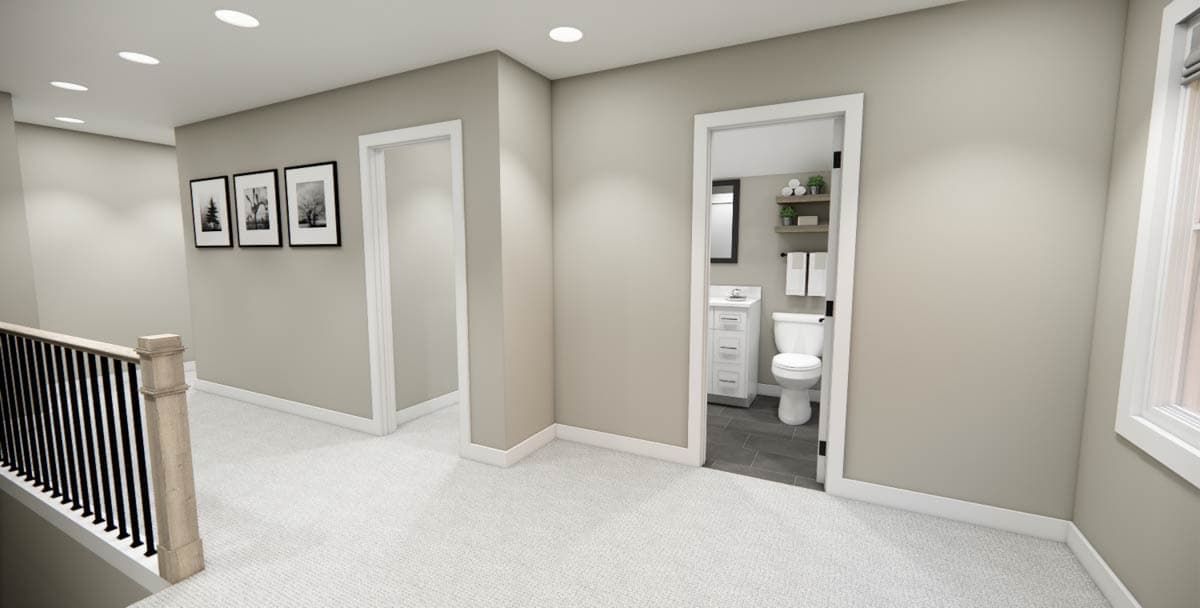

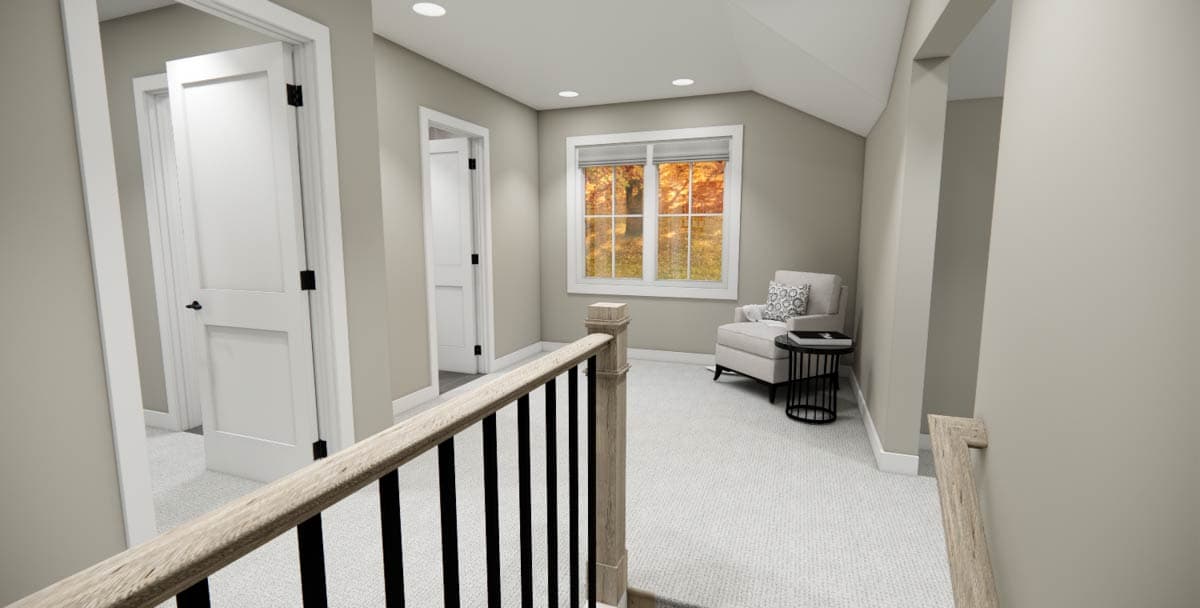

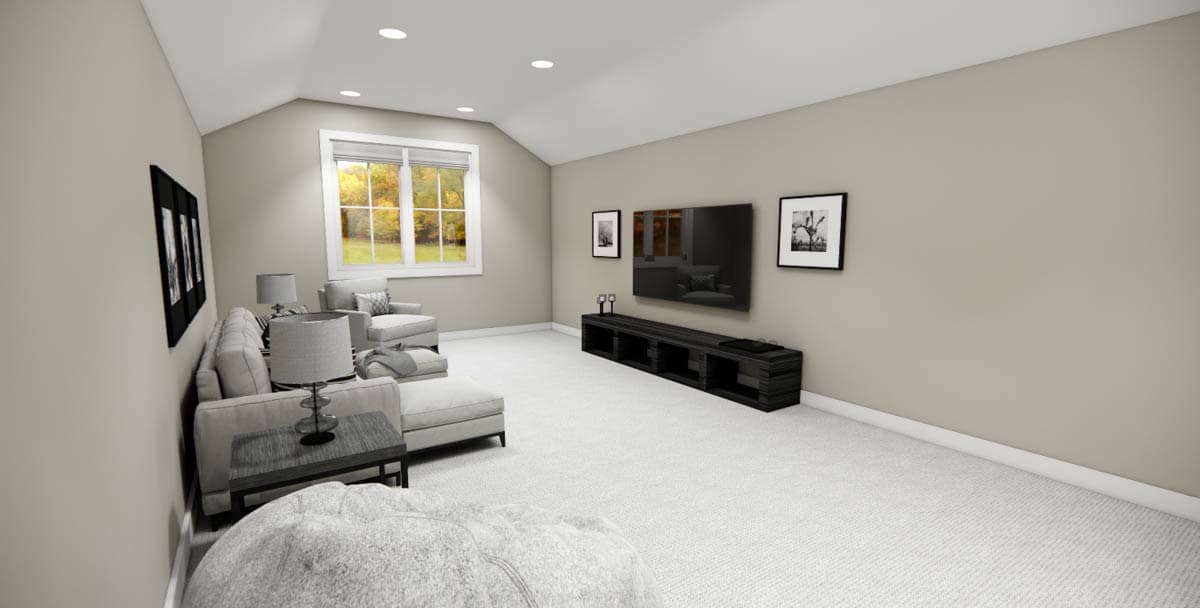

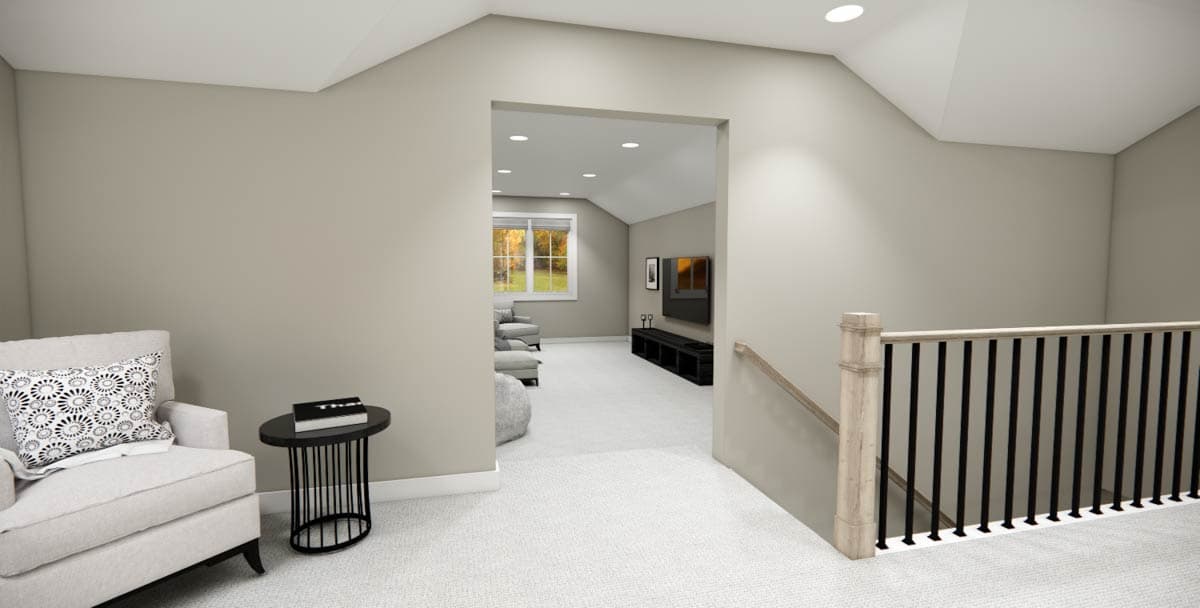

  • Ascend to the second floor to discover a versatile loft area, perfect for a cozy reading nook or study space, alongside a substantial finished bonus room that offers endless possibilities for a home office, media room, or play area.

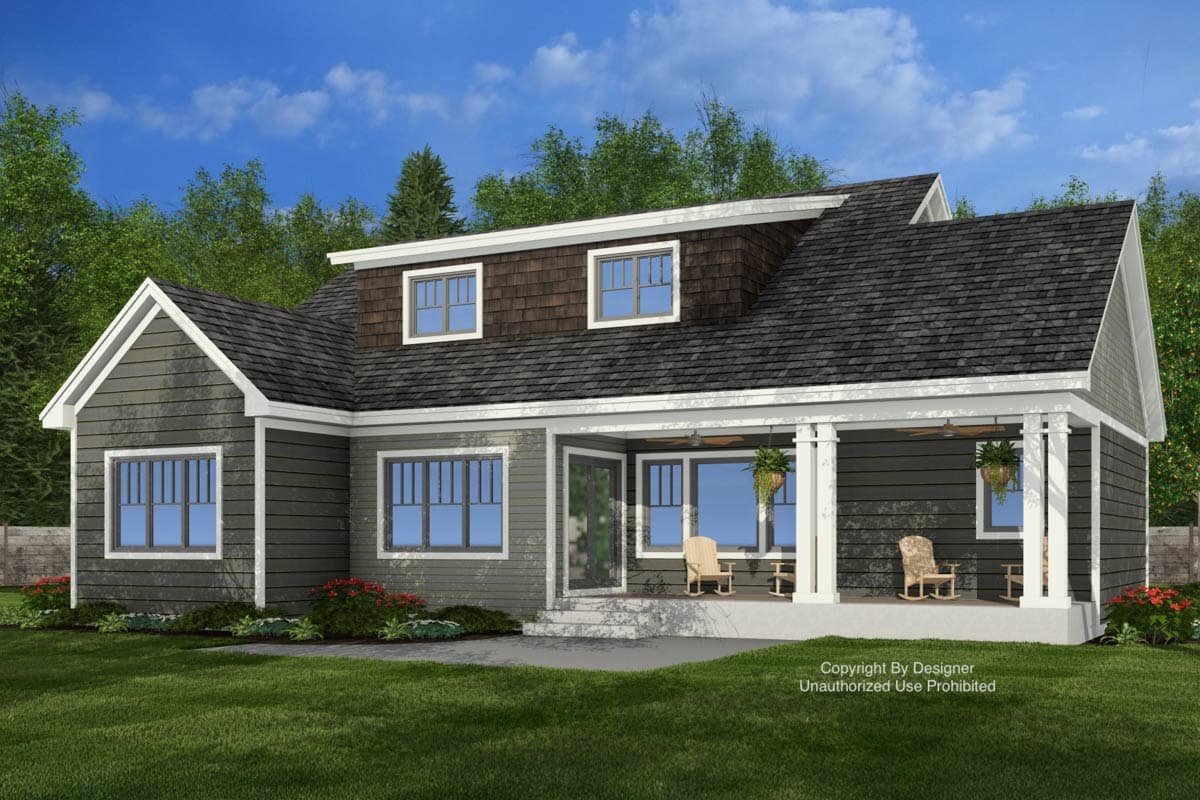

  • Enjoy the tranquility of outdoor living with both a charming front porch, ideal for morning coffee, and an expansive rear porch, perfect for alfresco dining or relaxing evenings.
  • NOTE: Please allow 7 to 10 business days for delivery.

What's Included

  • Foundation Plan: Complete with dimensions, referenced details, general notes and schedules.
  • Elevations: Four completed elevations with dimensions and notes.
  • Floor Plan(s): Complete with dimensions and notes.
  • Roof Plan: Complete with roof pitches overhangs and notes.
  • Building Sections
  • General Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy Calculations - handled locally when required
IMPORTANT NOTE:  Not all plans come with a lighting layout.  Please contact us to check for availability.

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,623 sq. ft.

1st Floor

1,430 sq. ft.

2nd Floor

1,193 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

58' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

473 sq. ft.

Count

2 or 3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Finished Bonus Room

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,623 sq. ft.

1st Floor

1,430 sq. ft.

2nd Floor

1,193 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

58' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

473 sq. ft.

Count

2 or 3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Finished Bonus Room

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom
