Plan 23290JD
Craftsman Masterpiece with Studio
Heated S.F.
8,515
Beds
5-6
Baths
5.5
Stories
2-3
Cars
6
Plan Details
  • This 5 or 6 bedroom Craftsman masterpiece is a jewel to behold. With a separate in-law or servant apartment over the two car garage extension (complete with own kitchen and vaulted living room) it is like getting two homes for the price of one.
  • The Studio above the garage gives you a full 985 square feet of living space which is incorporated into the total living area.
  • Don't miss the multi-level home theater - a great place for friends and family.

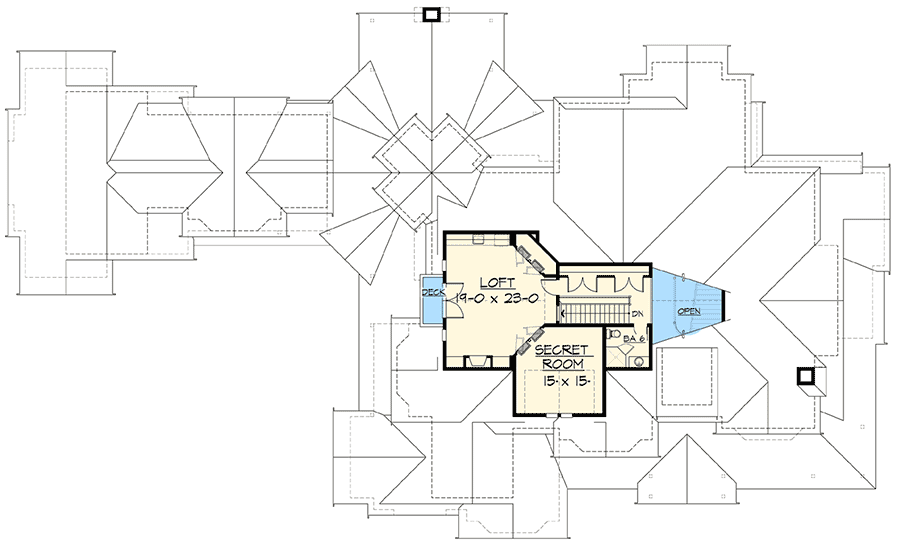

  • The third floor features a loft with its own deck and a secret room plus bath.

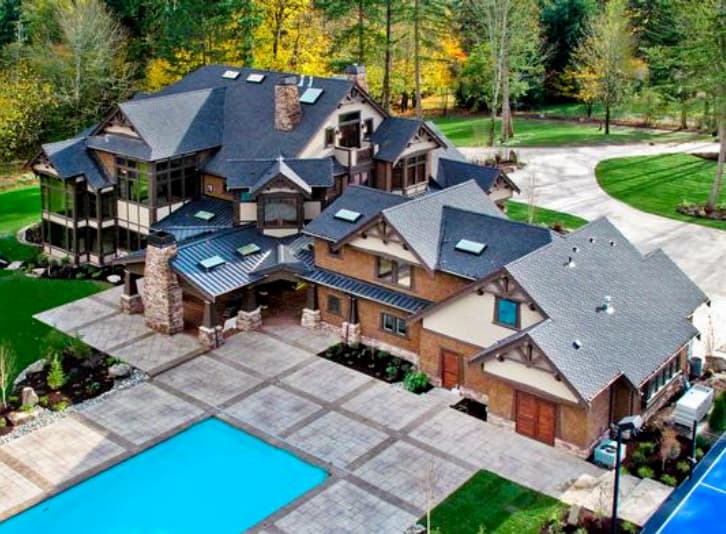

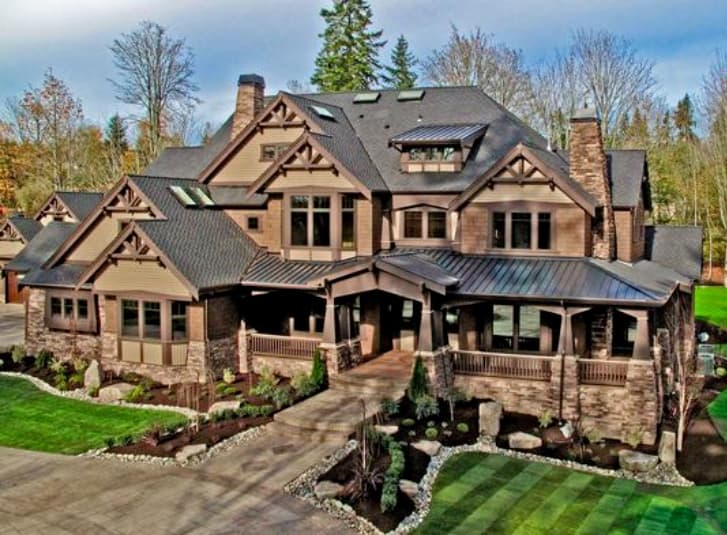

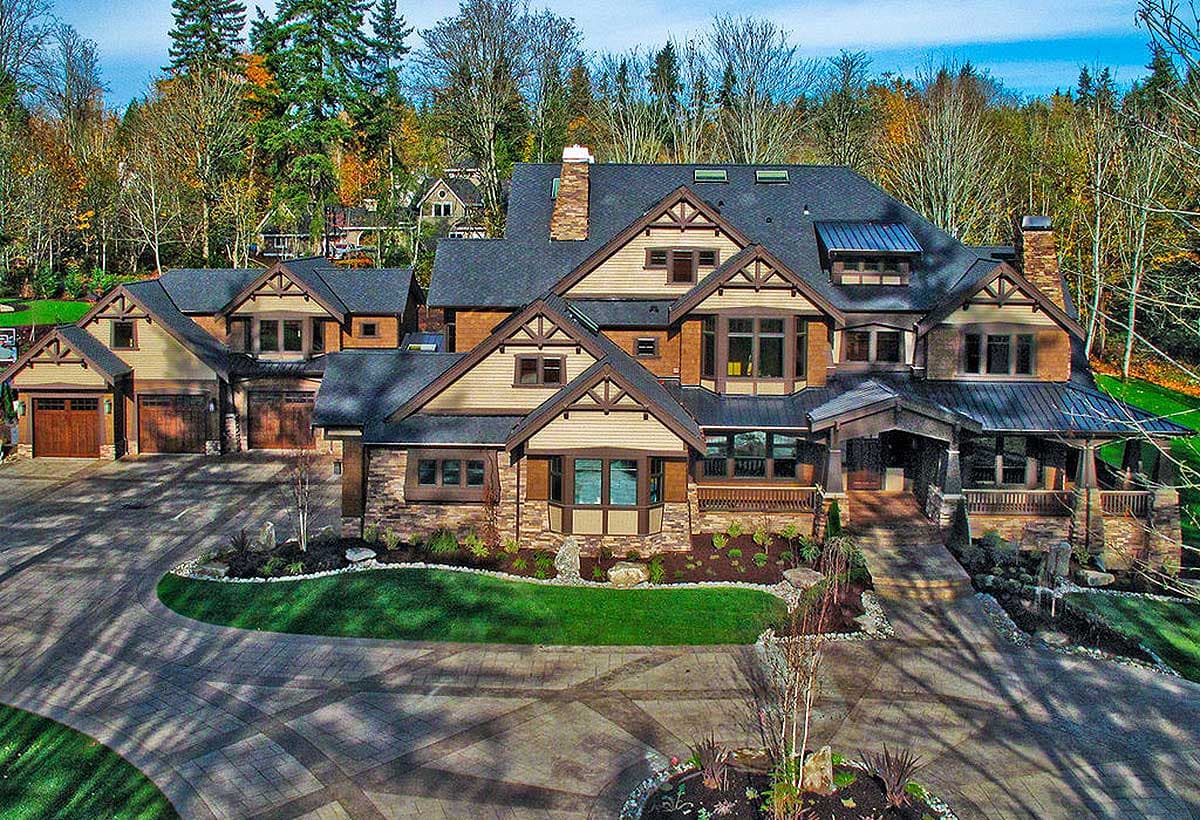

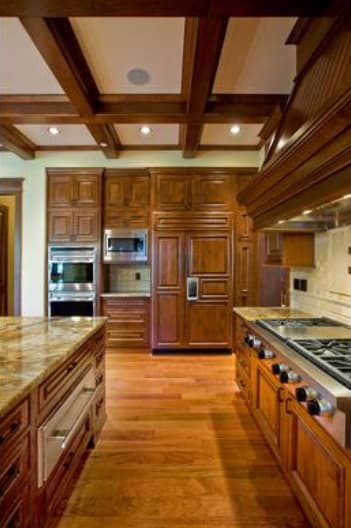

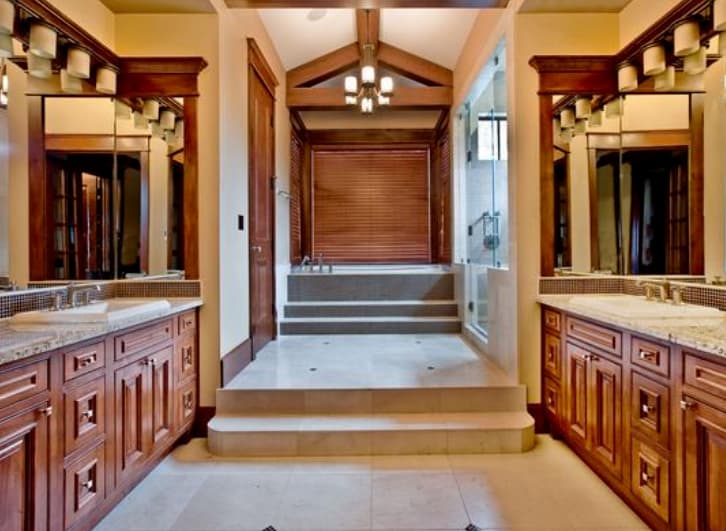

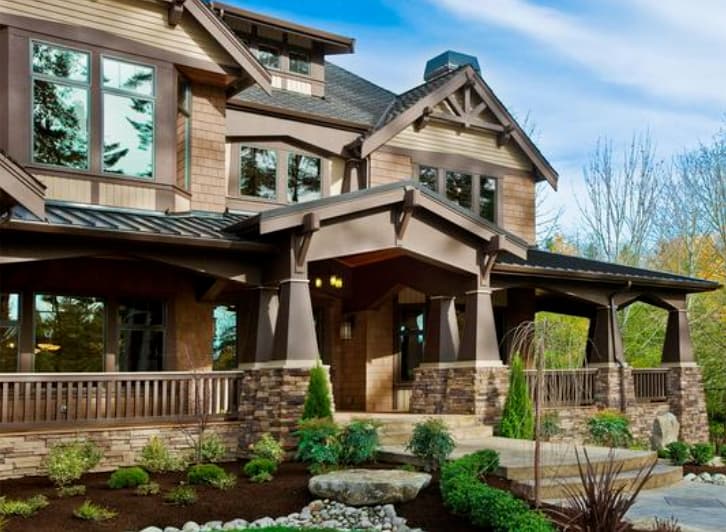

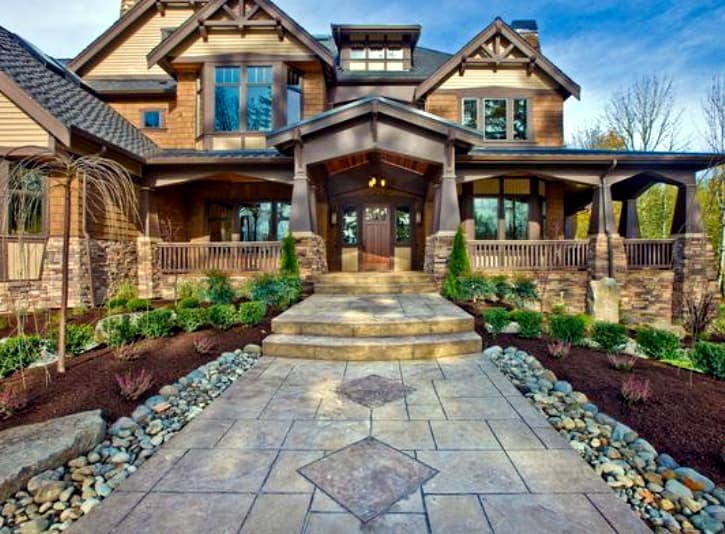

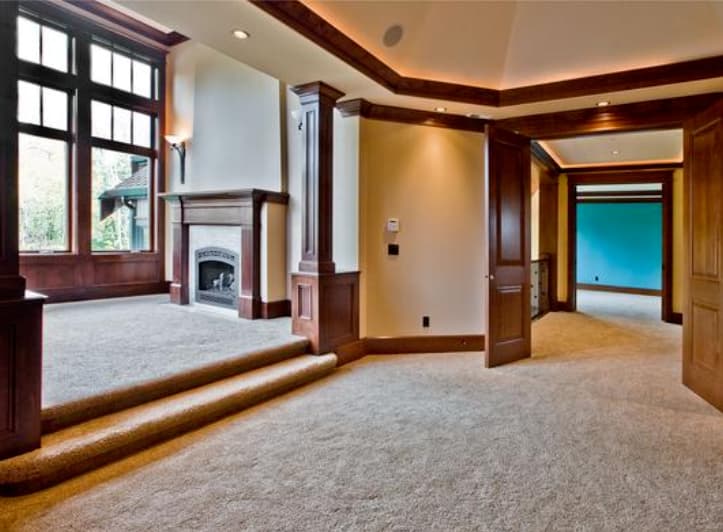

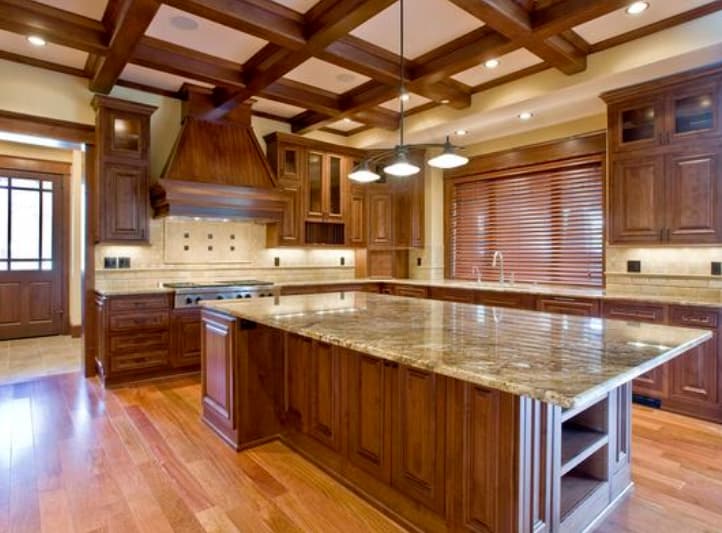

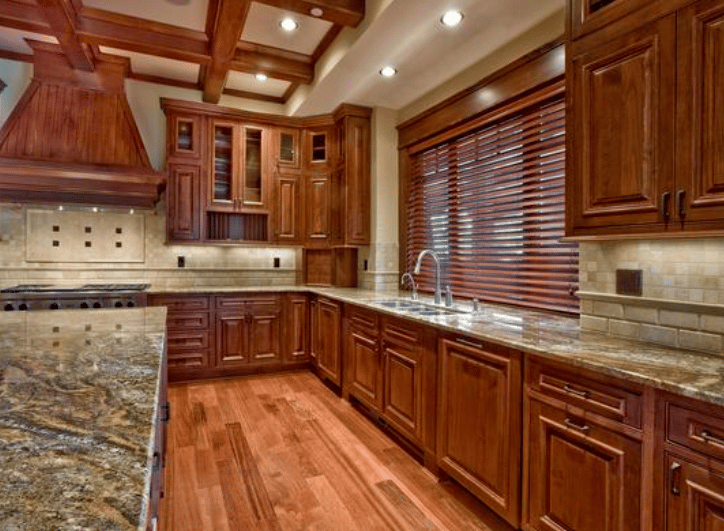

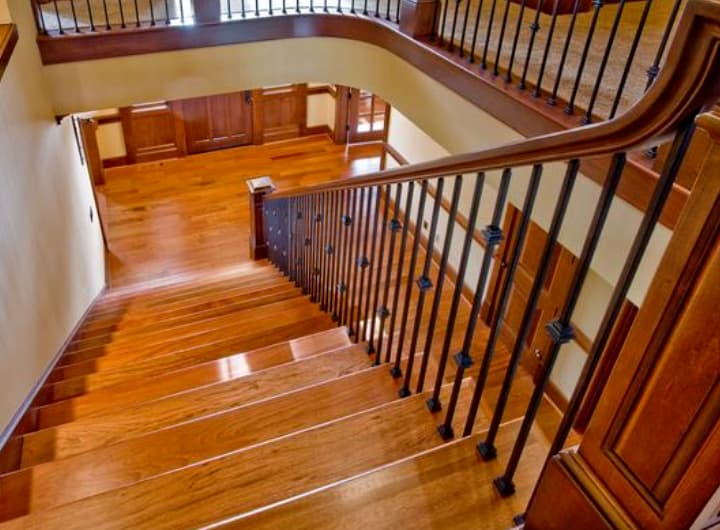

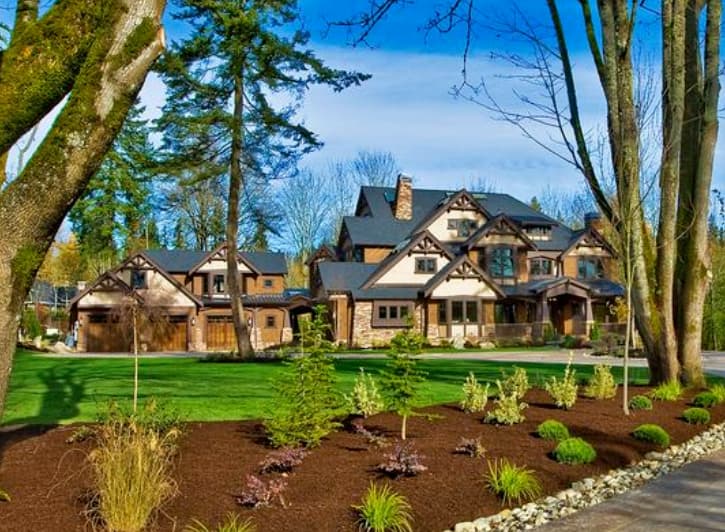

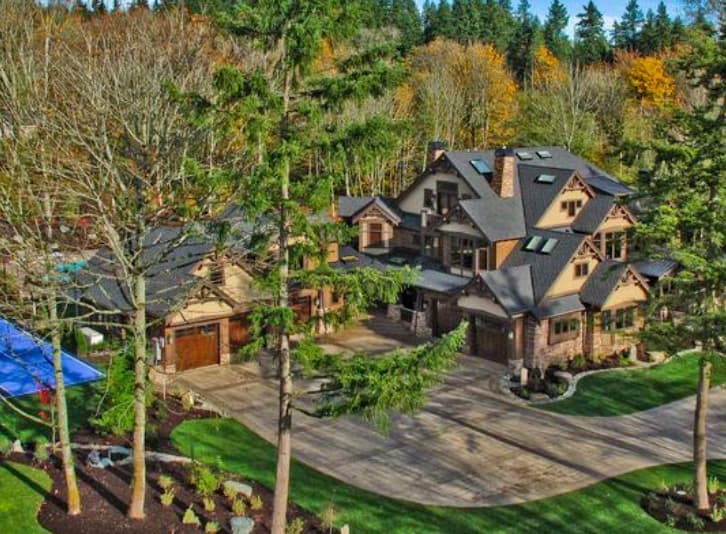

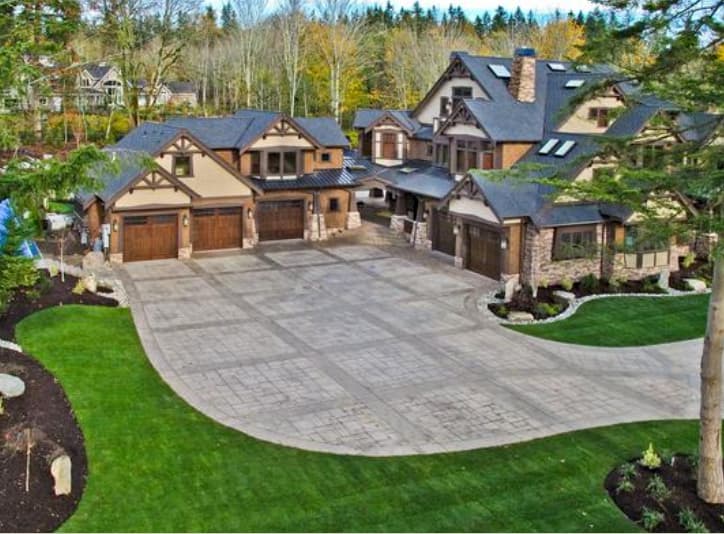

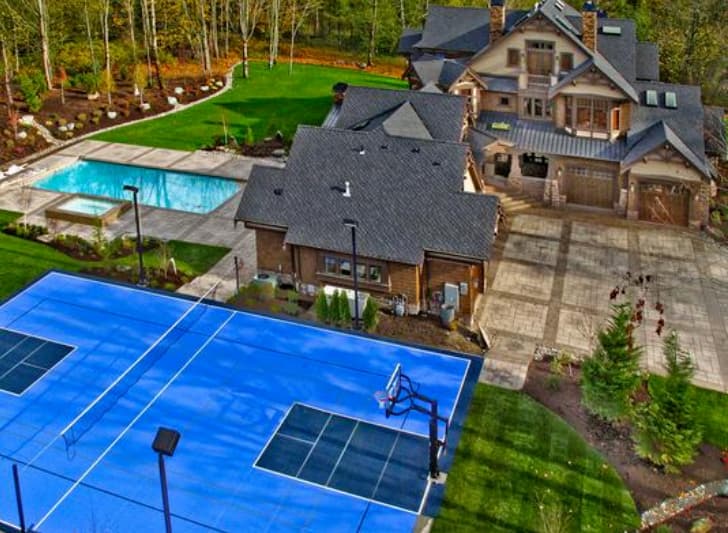

  • The build of this plan shown in the image gallery was completed by Parmenter Homes of Washington.
  • Related Plan: For a smaller version without the third floor, see house plan 23291JD (7,595 sq. ft.).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

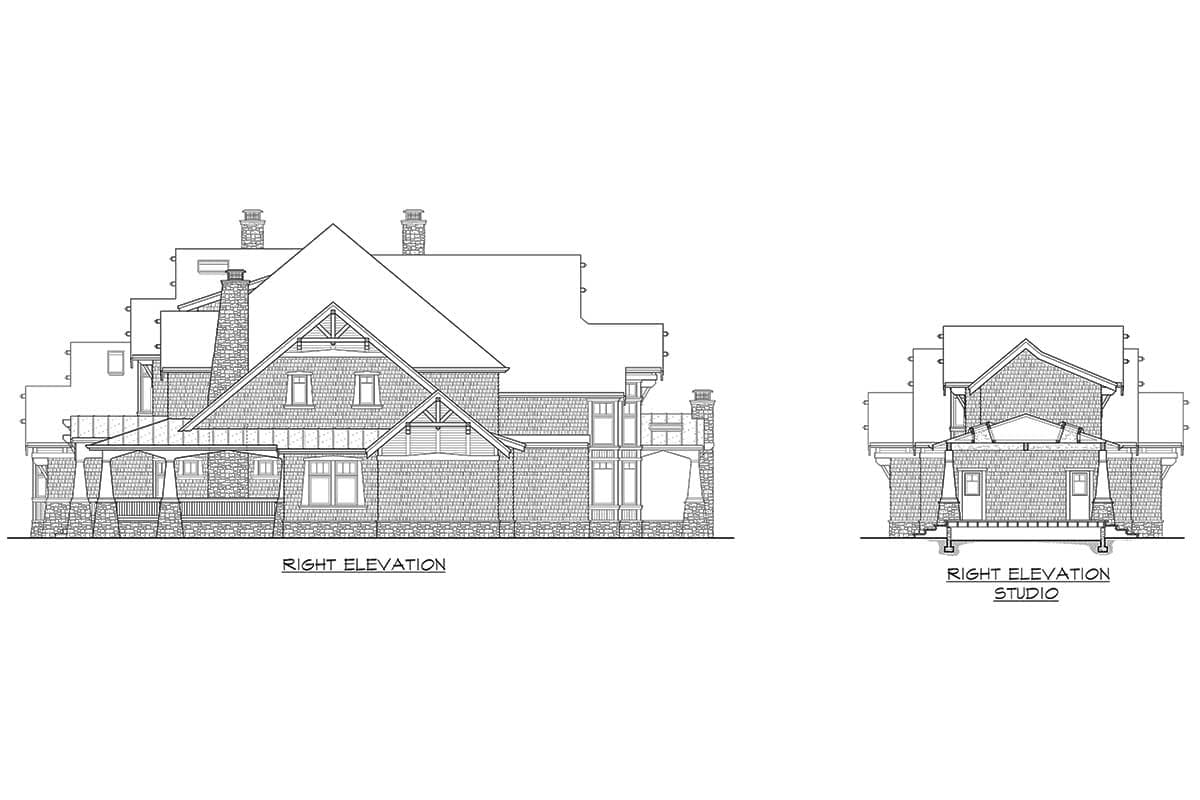

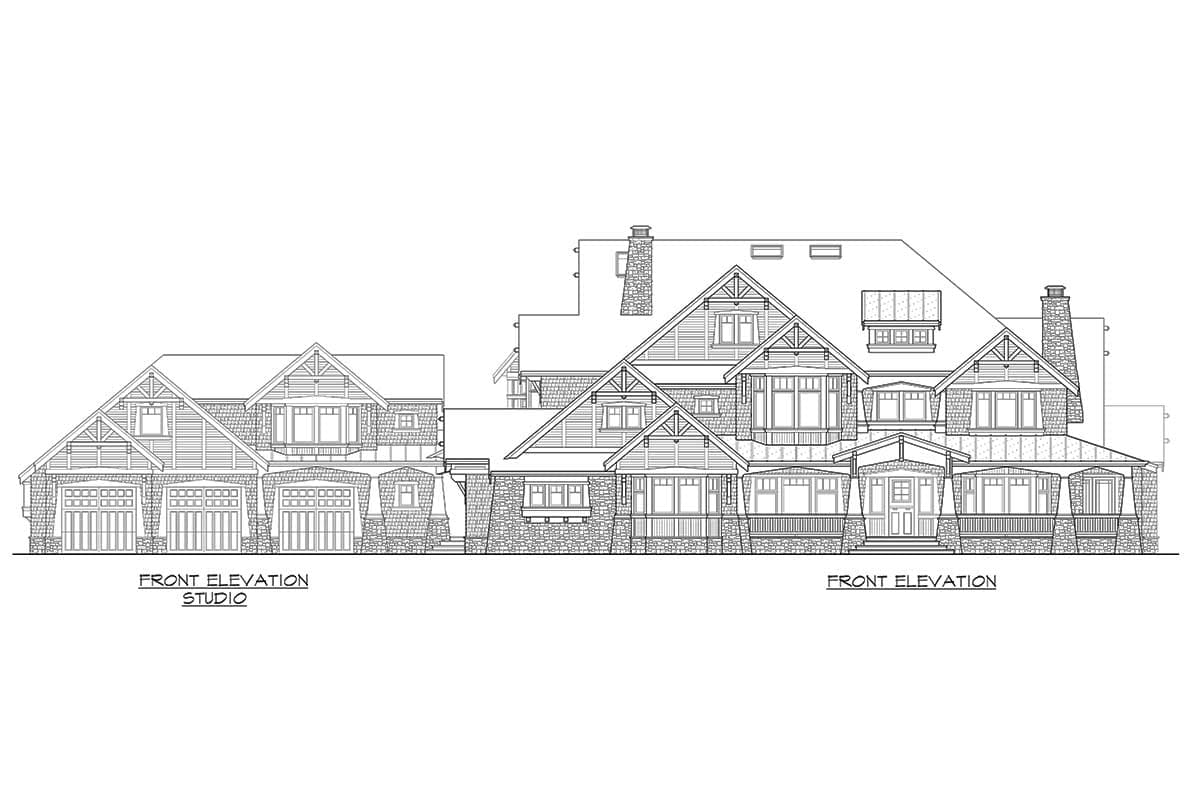

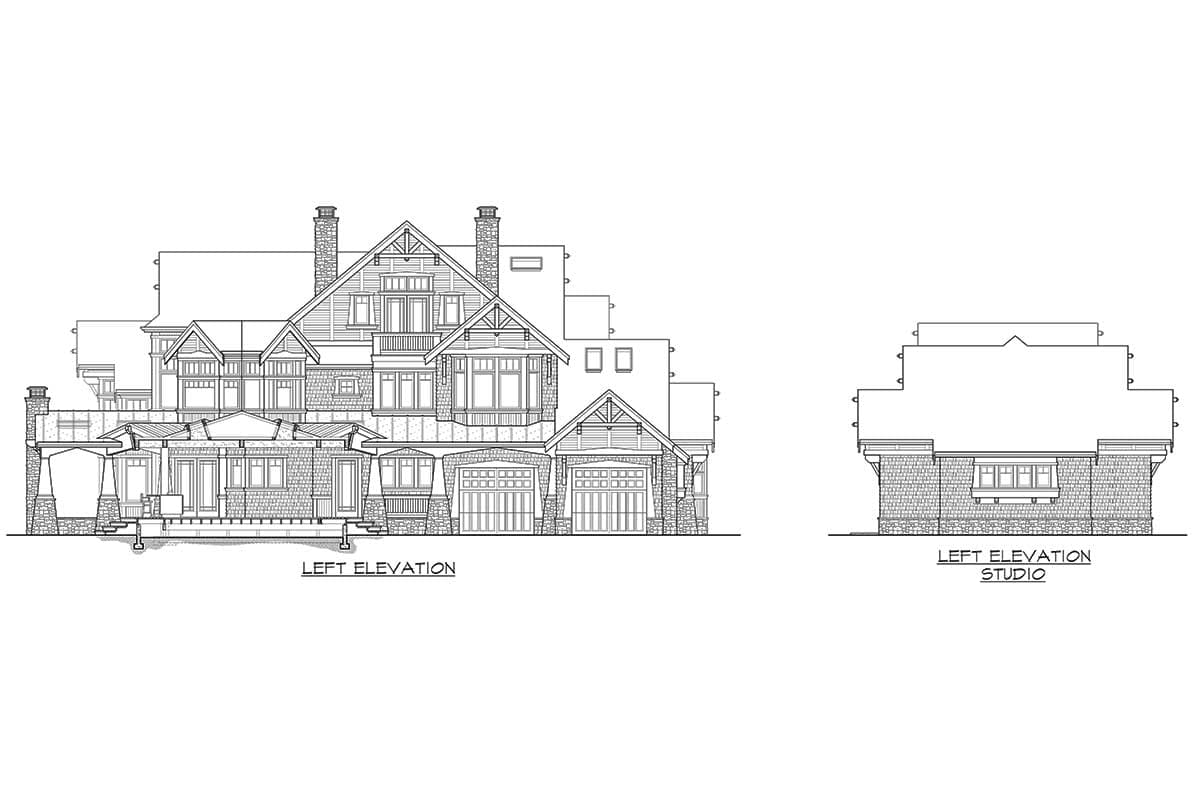

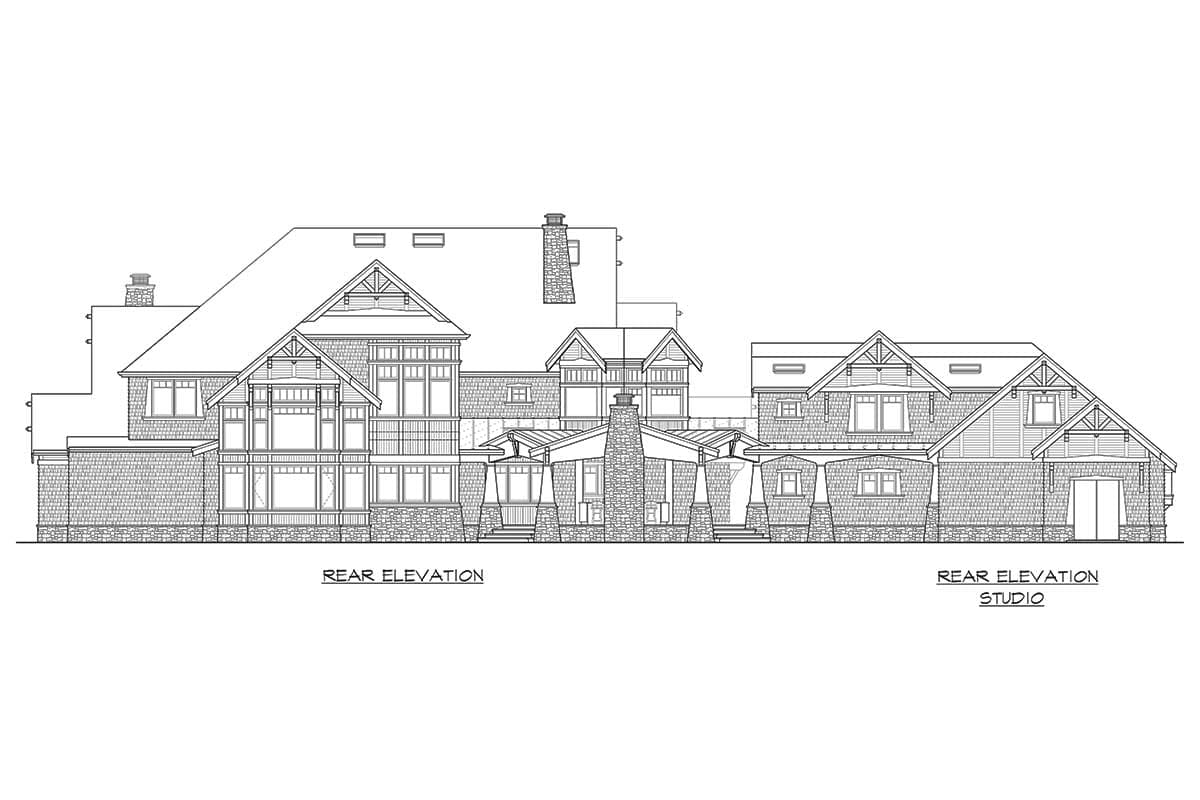

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Masterpiece with Studio

  • 8,515

    Heated s.f.

  • 5-6

    Beds

  • 5.5

    Baths

  • 2-3

    Floors

  • 6

    Car garage

Floor Plan

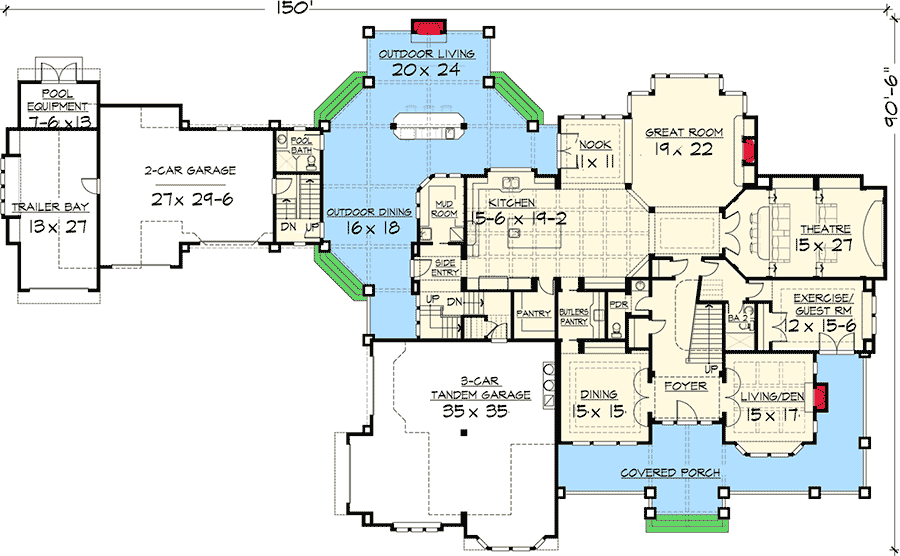

  • Main Level

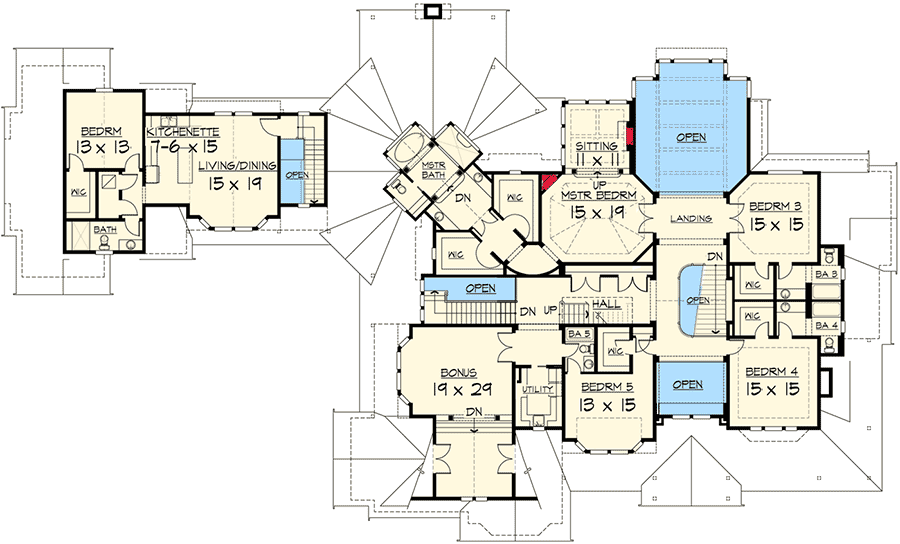

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 8,515 sq. ft.
  • 1st Floor: 3,455 sq. ft.
  • 2nd Floor: 4,235 sq. ft.
  • 3rd Floor: 825 sq. ft.

Dimensions

  • Width: 150' 0"
  • Depth: 91' 0"
  • Max ridge height: 39' 6"

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 2275 sq. ft.
  • Count: 6 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
