Plan 95334RW

Craftsman Ranch House Plan with 5-Car Garage and Main-Level Master

Name: Plan 95334RW: Craftsman Ranch House Plan with 5-Car Garage and Main-Level Master
Brand: Architectural Designs
SKU: 95334RW
Price: 1264.38 USD
Availability: InStock

Heated S.F.

3,143

Beds

3 - 5

Baths

2.5 - 3.5

Stories

Cars

Floor Plan

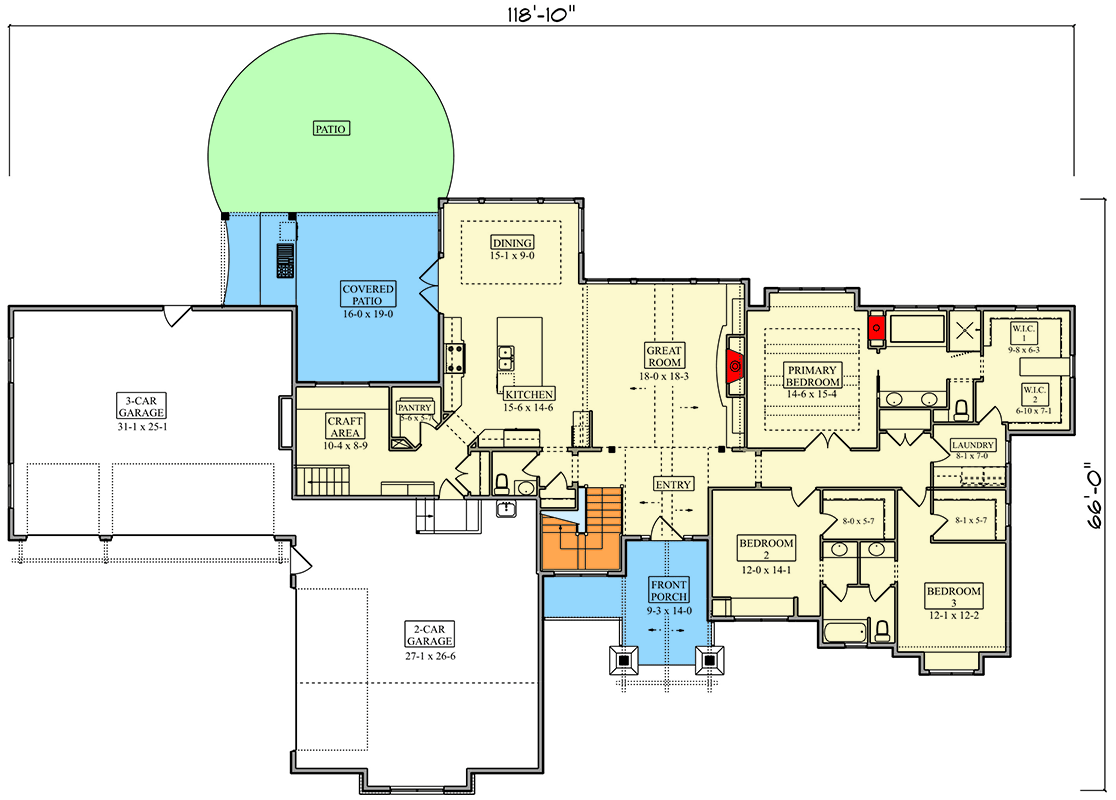

Main Level

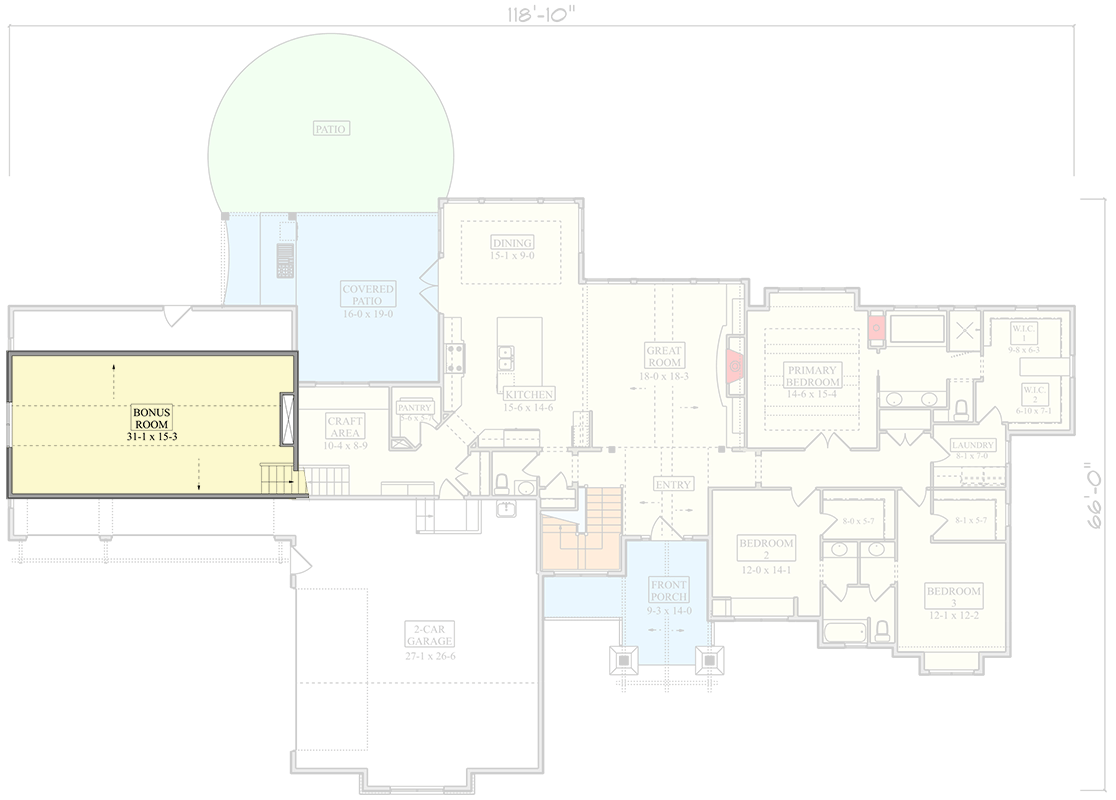

2nd Floor

Optional Lower Level

Plan Details

This grand 3,143 sq. ft. Craftsman Ranch house plan offers flexible living with 3 to 5 bedrooms, 2 to 3 full bathrooms plus a half bath, and an impressive 1,691 sq. ft. 5-car garage, showcasing a blend of New American and Mountain architectural influences.
Step inside to a welcoming foyer that immediately opens into an expansive open-concept living space, designed for effortless flow and abundant natural light, with a conveniently placed mudroom off the garage entry.
The heart of the home features a gourmet kitchen, perfect for culinary adventures, seamlessly connecting to a spacious dining area and a comfortable great room, fostering an inviting atmosphere for everyday living and memorable gatherings. A wet bar adds a touch of sophistication for entertaining.
Retreat to the luxurious first-floor master suite, a private sanctuary complete with direct laundry access for ultimate convenience, while secondary bedrooms are thoughtfully clustered, some offering a Jack & Jill bath, ensuring comfort and privacy for all.
This plan includes exciting amenities like a dedicated game/rec room and a home theater, providing exceptional spaces for leisure and entertainment, perfect for family fun or hosting movie nights.
Embrace outdoor living with an expansive 1,167 sq. ft. of deck and porch space, perfect for morning coffee or evening relaxation, and featuring an outdoor kitchen for al fresco dining and entertaining under the open sky.

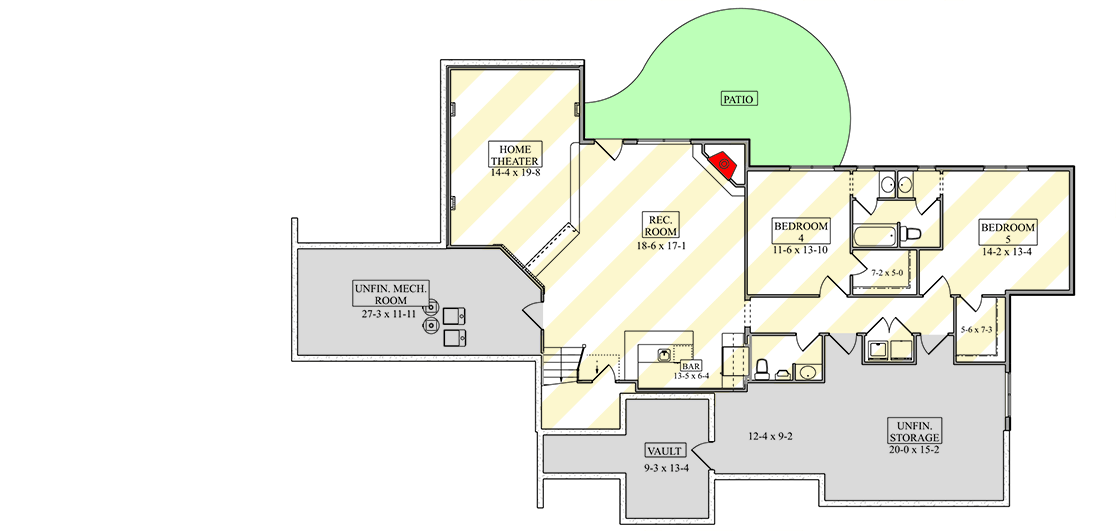

Expand your living possibilities with an optional lower level spanning 1,664 sq. ft., providing ample space to customize with additional bedrooms, a family room, or a personalized recreation zone to suit your lifestyle needs.

What's Included

Cover Page
All Four Exterior Elevations (front, left, rear and right)
Dimensioned Floor Plans
Foundation Plan (with no specifications of structural elements)
Roof Plan (with no specifications of structural elements)
Typical Wall Sections
Electrical plan

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires
