Craftsman with Lots of Expandable Space

Plan 77614FB

  • 1,955

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Step right into the big living room of this Craftsman house plan and take in the built-ins on either side of the fireplace.
  • Lovely, arched openings between the living room and dining room/kitchen add elegance, as does the tray ceiling.
  • Out back, a large deck is easily reached through double doors.
  • There's another side deck too with doors from the mud room and sun room.
  • Use the sunroom as an extra bedroom if desired.
  • The split bedroom layout serves to give privacy to the master suite.
  • Double sinks and a big soaking tub plus two walk-in closets are added pluses.
  • This home comes with the option of a finished lower level that adds 1422 square feet.
  • You also get bonus space with 290 square feet above the garage.

The plan includes:

  • cover page
  • foundation plan
  • main floor plan
  • second floor plan
  • all four elevation views
  • one section view
  • enlarged construction details
  • electrical layout
  • and roof plan if needed

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally whe

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

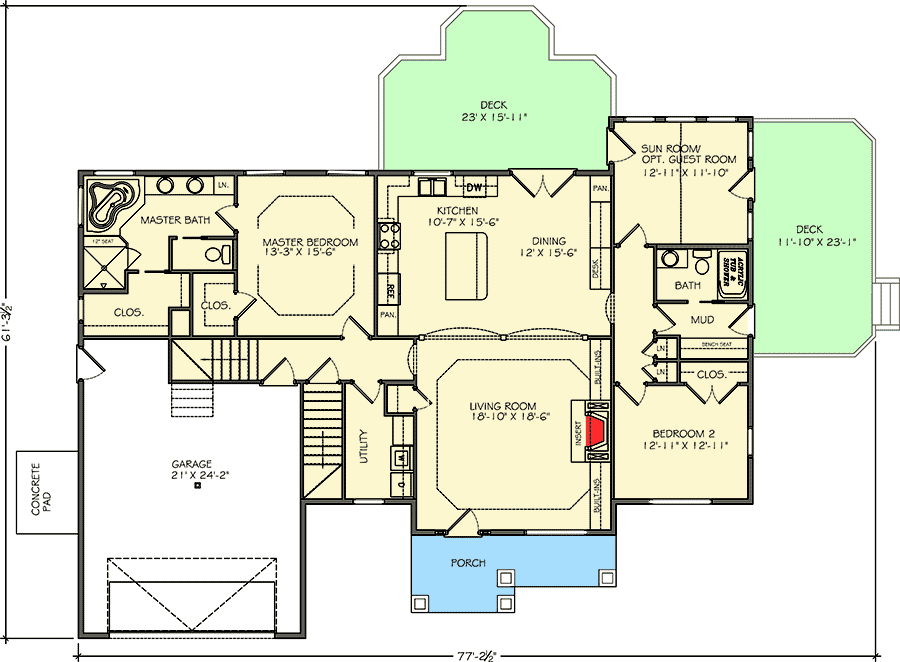

Craftsman with Lots of Expandable Space - 77614FB floor plan - Main Level

Bonus Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman with Lots of Expandable Space - 77614FB floor plan - Bonus Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

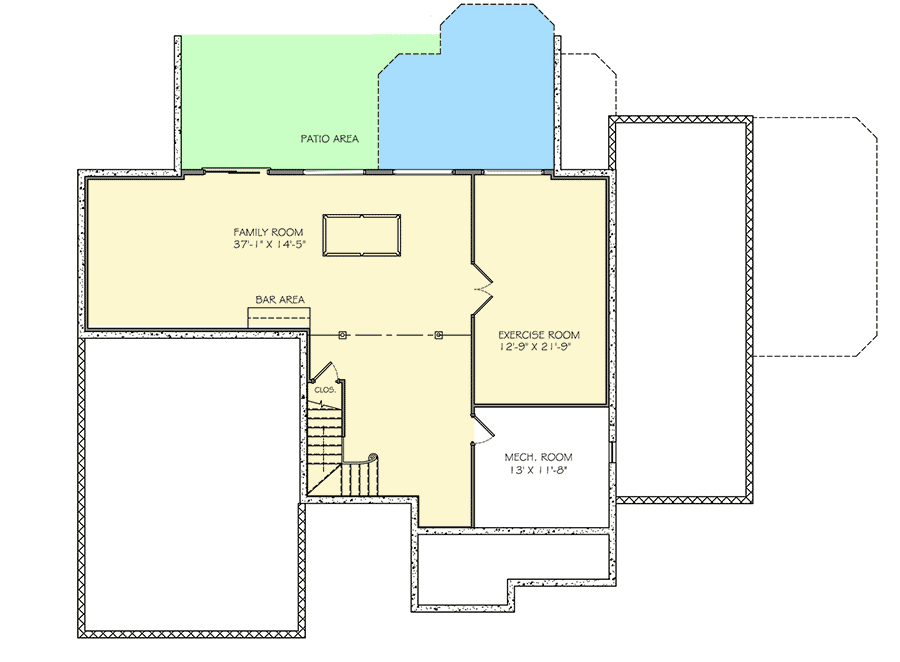

Craftsman with Lots of Expandable Space - 77614FB floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,955 sq. ft.
  • 1st Floor: 1,955 sq. ft.
  • Porch, Combined: 591 sq. ft.
  • Porch, Front: 124 sq. ft.
  • Bonus: 290 sq. ft.
  • Optional Lower Level: 2,136 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 77' 2"
  • Depth: 61' 3"
  • Max ridge height: 26' 8"

Garage

  • Type: Attached
  • Area: 575 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Living Room Tray
Sunroom Vaulted
Master Bedroom Tray

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Craftsman with Lots of Expandable Space

  • 1,955

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,395
  • 5 Sets + PDF $1,695
  • CAD - Single-Build $1,895
  • View all purchase option online

About This Plan

  • Step right into the big living room of this Craftsman house plan and take in the built-ins on either side of the fireplace.
  • Lovely, arched openings between the living room and dining room/kitchen add elegance, as does the tray ceiling.
  • Out back, a large deck is easily reached through double doors.
  • There's another side deck too with doors from the mud room and sun room.
  • Use the sunroom as an extra bedroom if desired.
  • The split bedroom layout serves to give privacy to the master suite.
  • Double sinks and a big soaking tub plus two walk-in closets are added pluses.
  • This home comes with the option of a finished lower level that adds 1422 square feet.
  • You also get bonus space with 290 square feet above the garage.

Floor Plans

  • Main Level

  • Bonus Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,955 sq. ft.
  • 1st Floor: 1,955 sq. ft.
  • Porch, Combined: 591 sq. ft.
  • Porch, Front: 124 sq. ft.
  • Bonus: 290 sq. ft.
  • Optional Lower Level: 2,136 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 77' 2"
  • Depth: 61' 3"
  • Max ridge height: 26' 8"

Garage

  • Type: Attached
  • Area: 575 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick And Truss
Plan 77614FB
View this and more for this plan by visiting www.architechtecturaldesigns.com/77614FB
|
Need Help? 800-854-7852
|
