Plan 51079MM

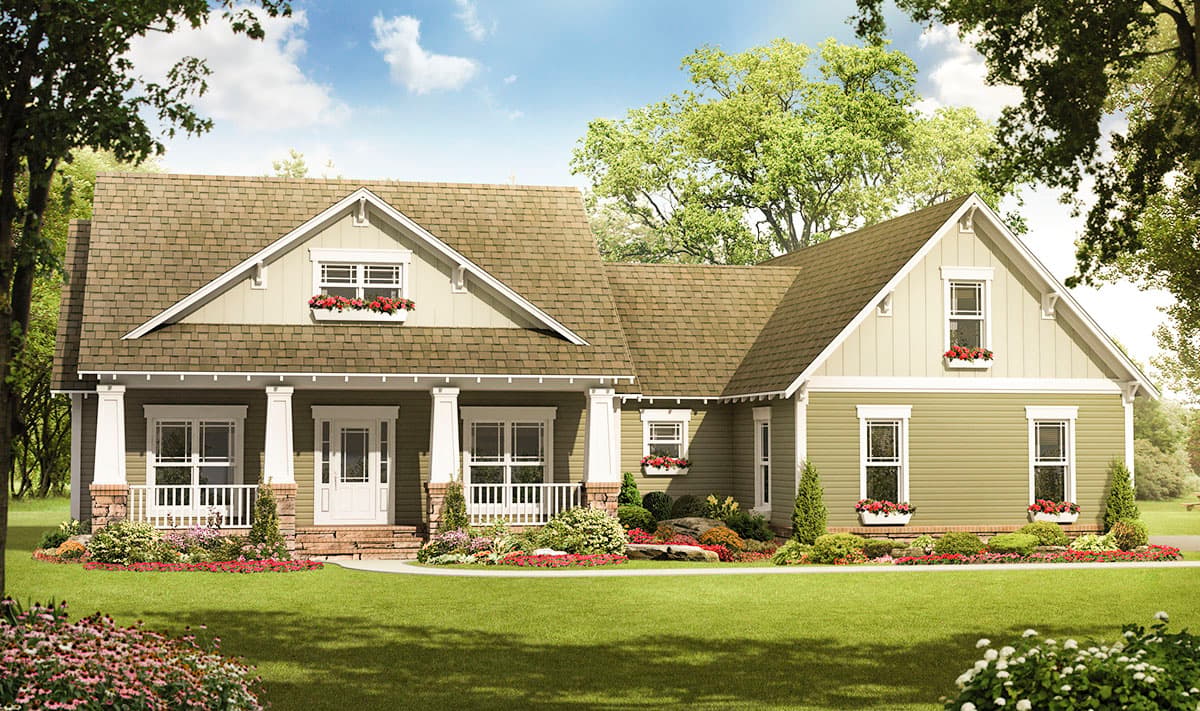

Creative Craftsman with Options

1,900 3 2.5 - 3.5 1-2 2
Print
Compare
...
Pageloader

Creative Craftsman with Options

Plan 51079MM

  • 1,900

    Heated s.f.

  • 3

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

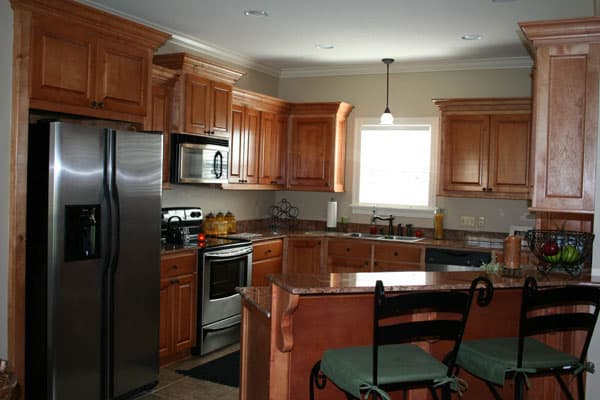

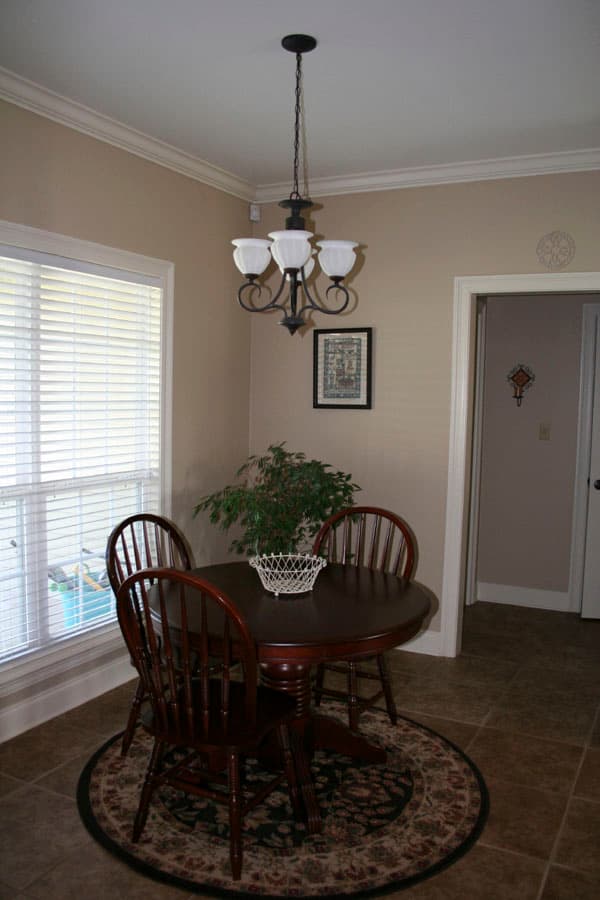

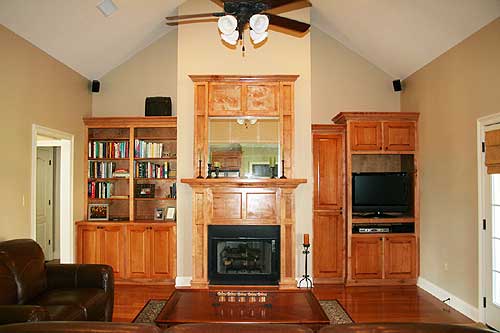

  • A foyer, formal dining room, and half bath are all extras that you would expect to find in a much larger home. The great room includes vaulted ceilings, built-in cabinets and a gas log fireplace. The kitchen is well-equipped and is located within close proximity to the breakfast area, dining room, and garage entrance.

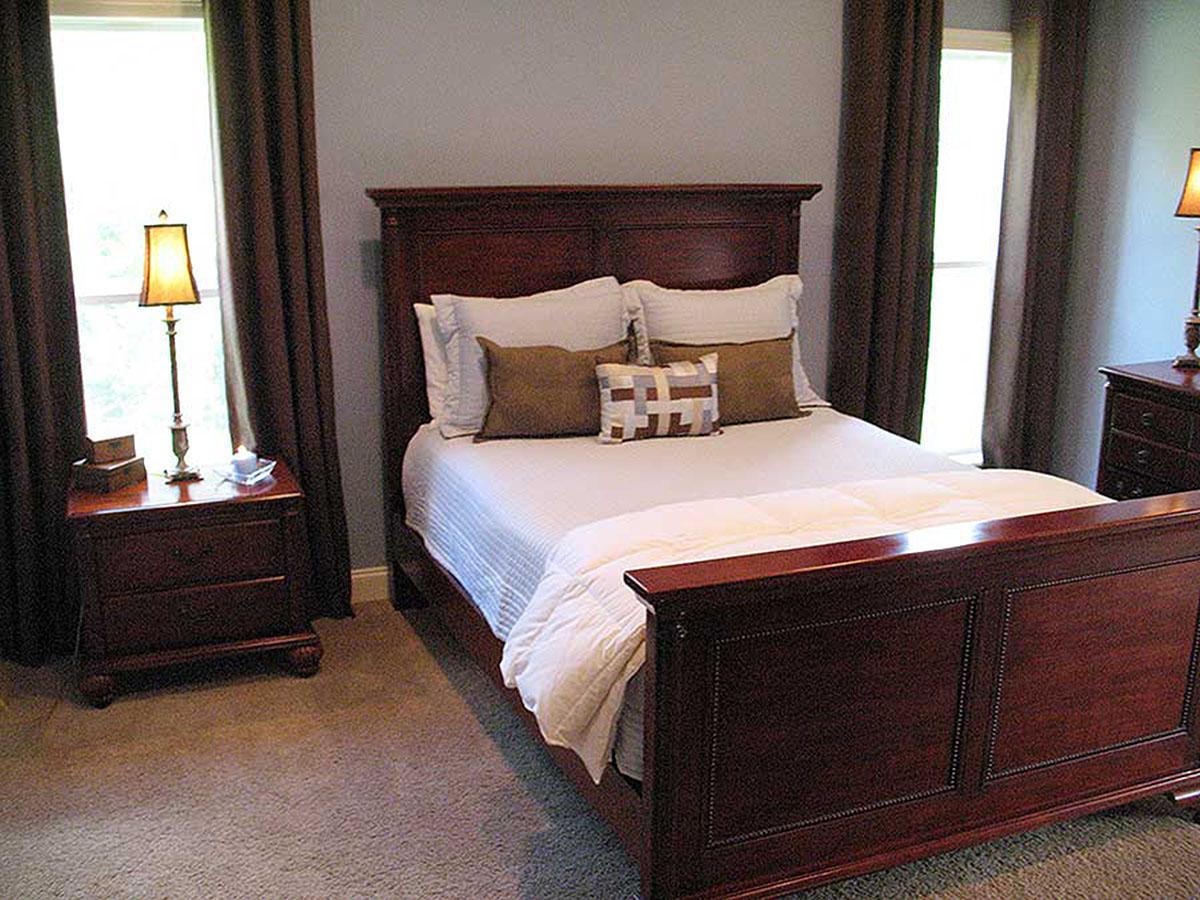

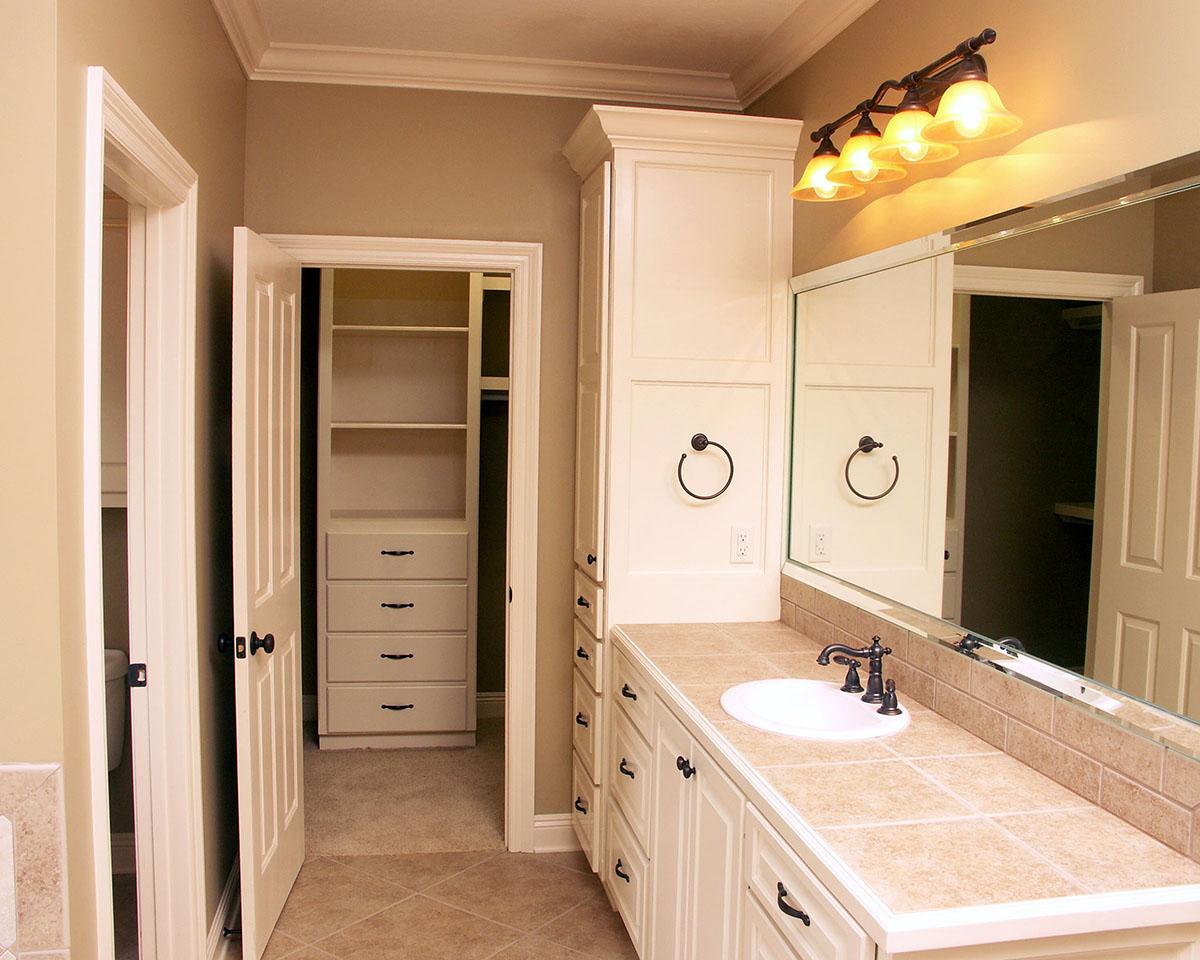

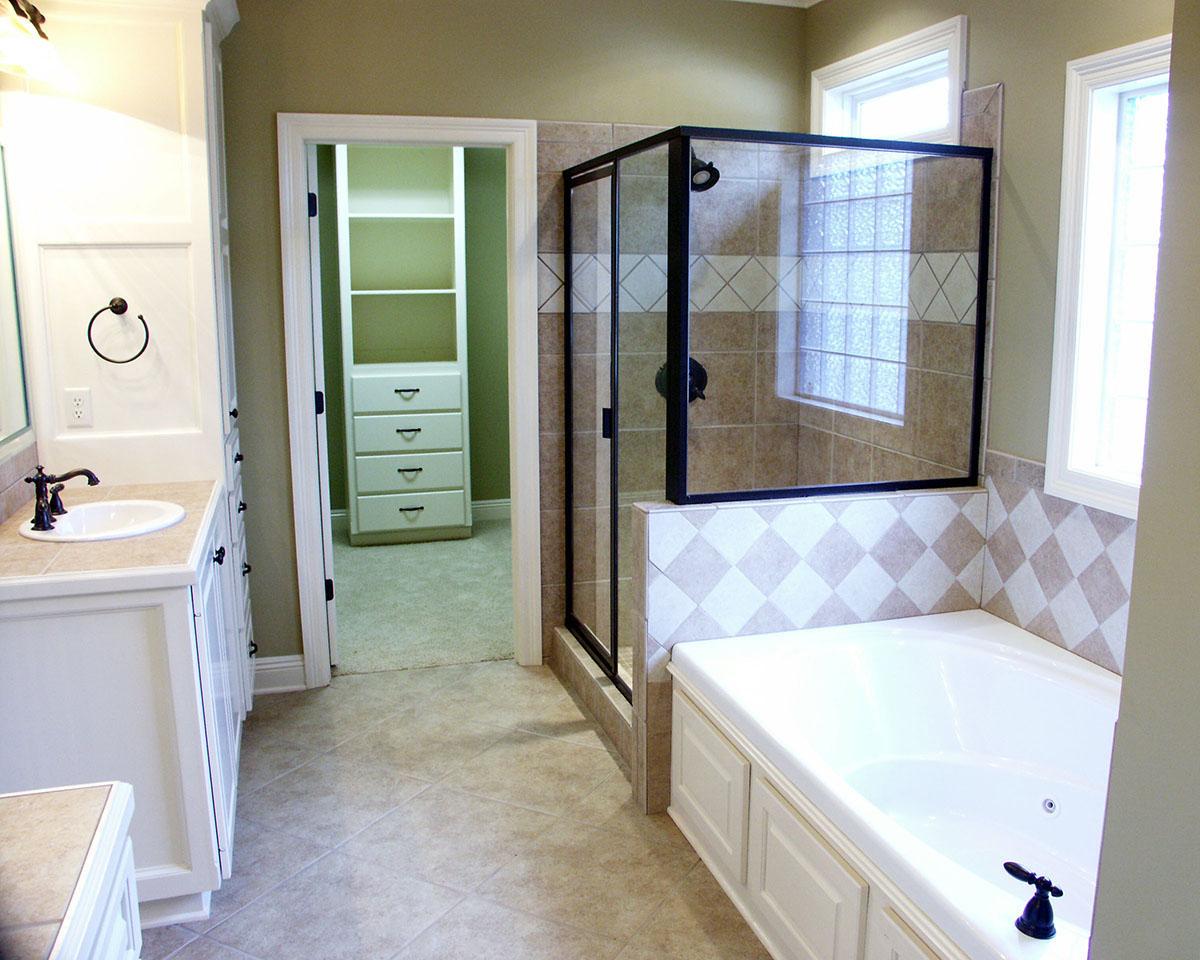

  • The master suite includes a trayed ceiling, dual lavatories, compartmented toilet, whirlpool tub, separate shower, and his and hers closets. Each of the other bedrooms also feature individual walk-in closets and share a bath with separate tub and toilet room.
  • The front and rear porches provide perfect outdoor living space. The bonus room is also a great place for a playroom / gameroom and even has space for a future bath. The many available features and flexibility of this home make it the perfect choice for you and your family.
  • Related Plans: Need a basement? See the stair layout with house plan 51082MM. Gain a fourth bedroom with 51080MM (2,100 sq. ft.) and 51084MM (basement).
  • Gain some more elbow room with 51085MM (2,400 sq. ft.).
  • For a more traditional exterior, see 51060MM.

Cover Sheet: Showing architectural rendering of residence.

Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.

Foundation Plan and Details: In general, each house plan set includes one foundation type.

Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.

Foundation types typically offered: (each type may or may not be available for a given design)

·       Slab: Slab is a type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the "water table" refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.

·       Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.

·       Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.



Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.

Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.

Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.

Specifications Form: In general, each house plan set includes a blank short-form FHA/VA specifications document for your reference.

License to Build: Each set of construction plans include ONE license to build.

Plans include relevant building sections and details.

Plumbing diagrams and HVAC plans are not available for these homes since each county's code will vary and a licensed plumber and/or electrician must follow the codes.

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,900 sq. ft.
  • 1st Floor: 1,900 sq. ft.
  • Porch, Rear: 237 sq. ft.
  • Porch, Front: 192 sq. ft.
  • Bonus: 348 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 69' 0"
  • Depth: 57' 0"
  • Max ridge height: 24' 2"

Garage

  • Type: Attached
  • Area: 670 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections



Creative Craftsman with Options

  • 1,900

    Heated s.f.

  • 3

    Beds

  • 3 +

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $950
  • 5 Sets $1,015
  • PDF - single-use $1,125
  • 8 Sets $1,195
  • Reproducible Set $1,200
  • 5 Sets PLUS $1,210
  • CAD $1,680
  • View all purchase option online

About This Plan

  • A foyer, formal dining room, and half bath are all extras that you would expect to find in a much larger home. The great room includes vaulted ceilings, built-in cabinets and a gas log fireplace. The kitchen is well-equipped and is located within close proximity to the breakfast area, dining room, and garage entrance.
  • The master suite includes a trayed ceiling, dual lavatories, compartmented toilet, whirlpool tub, separate shower, and his and hers closets. Each of the other bedrooms also feature individual walk-in closets and share a bath with separate tub and toilet room.
  • The front and rear porches provide perfect outdoor living space. The bonus room is also a great place for a playroom / gameroom and even has space for a future bath. The many available features and flexibility of this home make it the perfect choice for you and your family.
  • Related Plans: Need a basement? See the stair layout with house plan 51082MM. Gain a fourth bedroom with 51080MM (2,100 sq. ft.) and 51084MM (basement).
  • Gain some more elbow room with 51085MM (2,400 sq. ft.).
  • For a more traditional exterior, see 51060MM.

Floor Plans

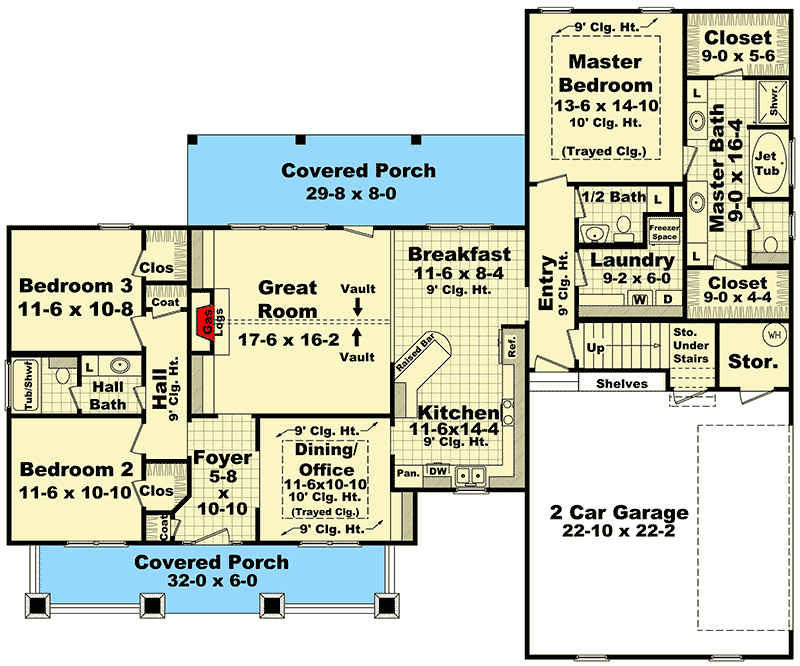

  • Main Level

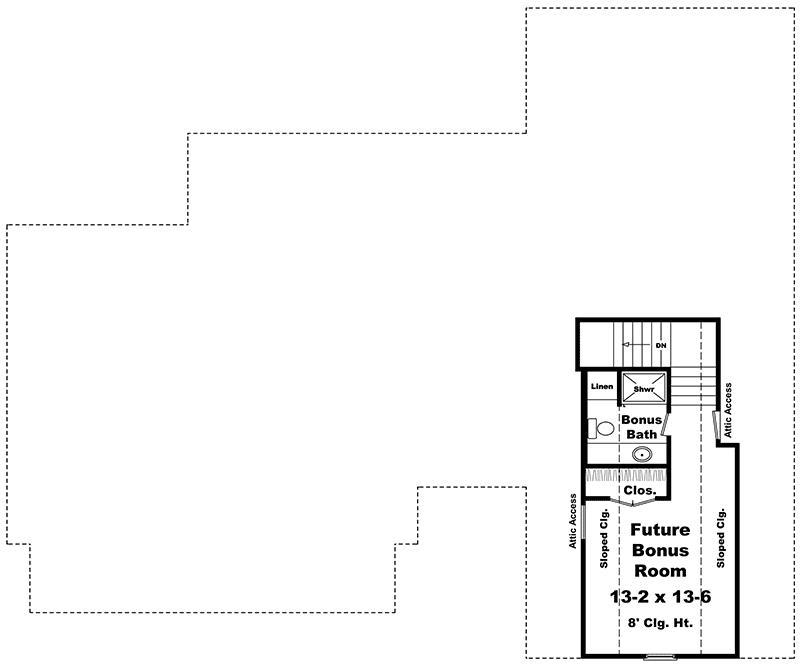

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,900 sq. ft.
  • 1st Floor: 1,900 sq. ft.
  • Porch, Rear: 237 sq. ft.
  • Porch, Front: 192 sq. ft.
  • Bonus: 348 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 69' 0"
  • Depth: 57' 0"
  • Max ridge height: 24' 2"

Garage

  • Type: Attached
  • Area: 670 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Plan 51079MM
View this and more for this plan by visiting www.architechtecturaldesigns.com/51079MM
|
Need Help? 800-854-7852
|
