Plan 31176D

Delightful Stacked Porches

Pageloader

Delightful Stacked Porches

Plan 31176D

  • 2,294

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This lovely Southern home plan has not one, but two porches stacked one above the other.
  • Transom windows bring in extra light and decorative shutters add curb appeal.
  • A big study faces the front of the home with the main living area being in back.
  • In the kitchen, a corner sink has two windows to give you a nice view.
  • Besides the second floor bedrooms, this home comes with a game room and loft that opens to the front porch.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

The plan set includes:
  • Foundation plan
  • Fully dimensioned floor plan

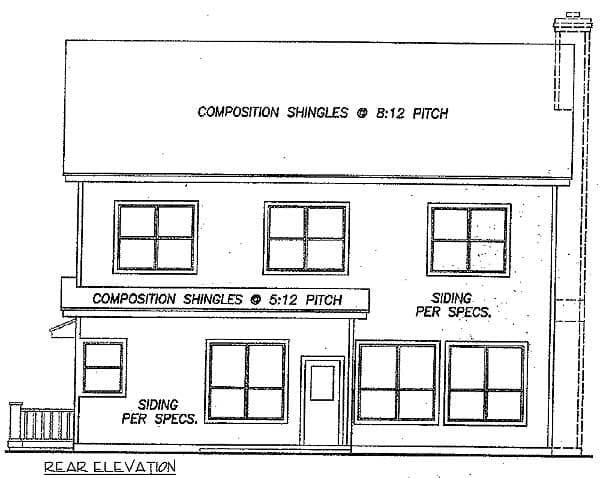

  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

Floor Plan

Plan details



Delightful Stacked Porches

  • 2,294

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,445
  • 5 Sets $1,545
  • 8 Sets $1,645
  • CAD $2,445
  • View all purchase option online

About This Plan

  • This lovely Southern home plan has not one, but two porches stacked one above the other.
  • Transom windows bring in extra light and decorative shutters add curb appeal.
  • A big study faces the front of the home with the main living area being in back.
  • In the kitchen, a corner sink has two windows to give you a nice view.
  • Besides the second floor bedrooms, this home comes with a game room and loft that opens to the front porch.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

Floor Plans

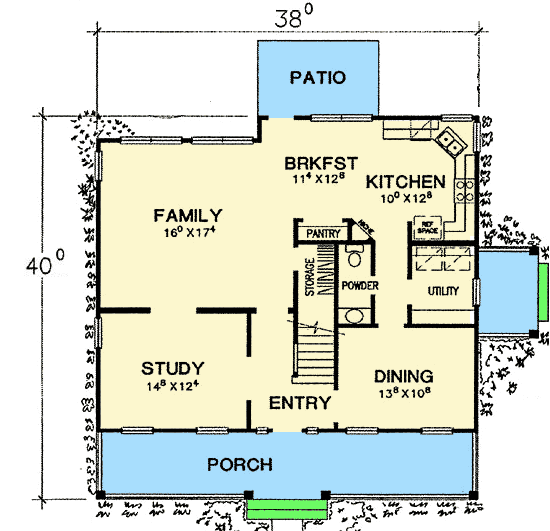

  • Main Level

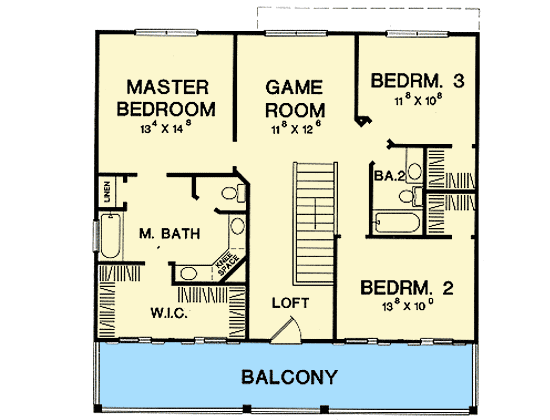

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,294 sq. ft.
  • 1st Floor: 1,217 sq. ft.
  • 2nd Floor: 1,077 sq. ft.
  • Covered Patio: 120 sq. ft.
  • Entry: 440 sq. ft.
  • Porch, Combined: 532 sq. ft.
  • Basement Unfinished: 1,217 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 38' 0"
  • Depth: 40' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Detached
  • Area: 1230 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
