Deluxe Contemporary House Plan with Two-Story Great Room

Plan 23845JD

5,353
Heated s.f.
4
Beds
4
Baths
2
Stories
3
Cars

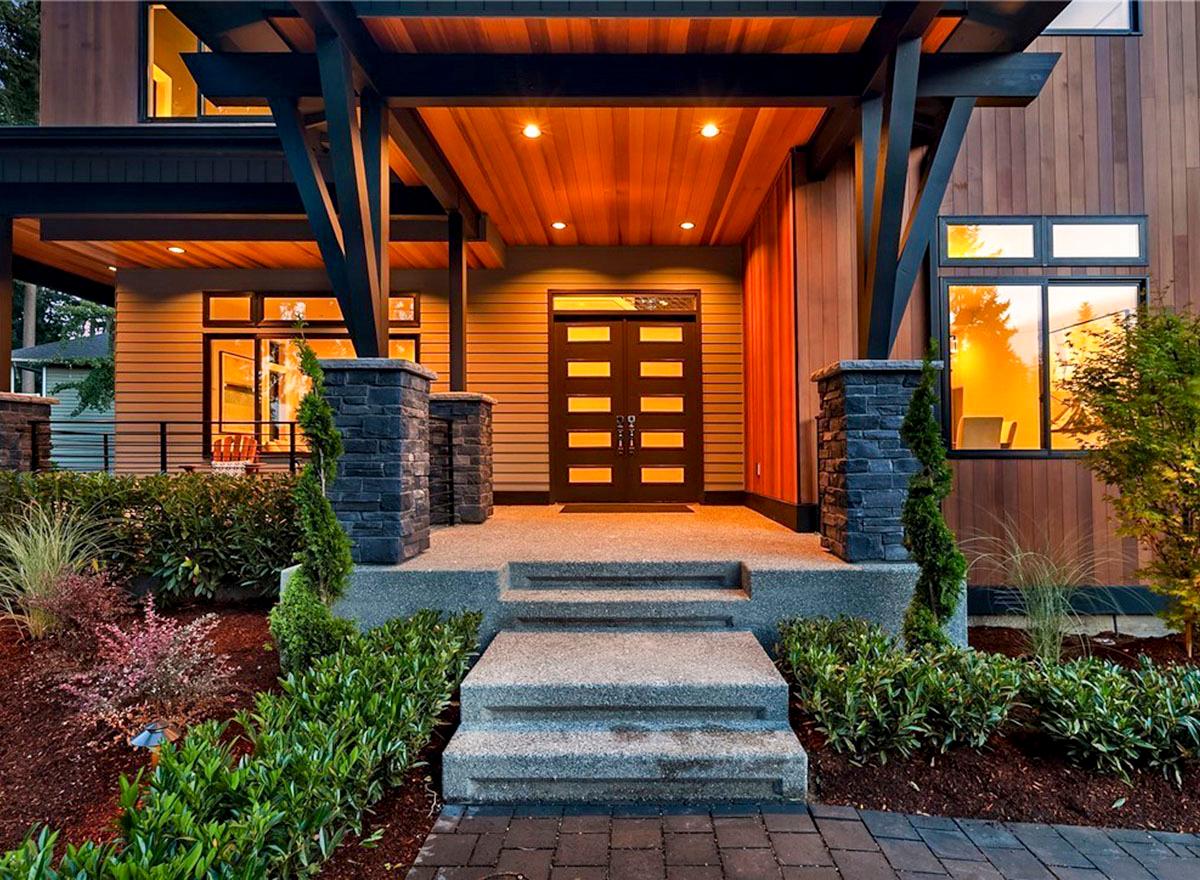

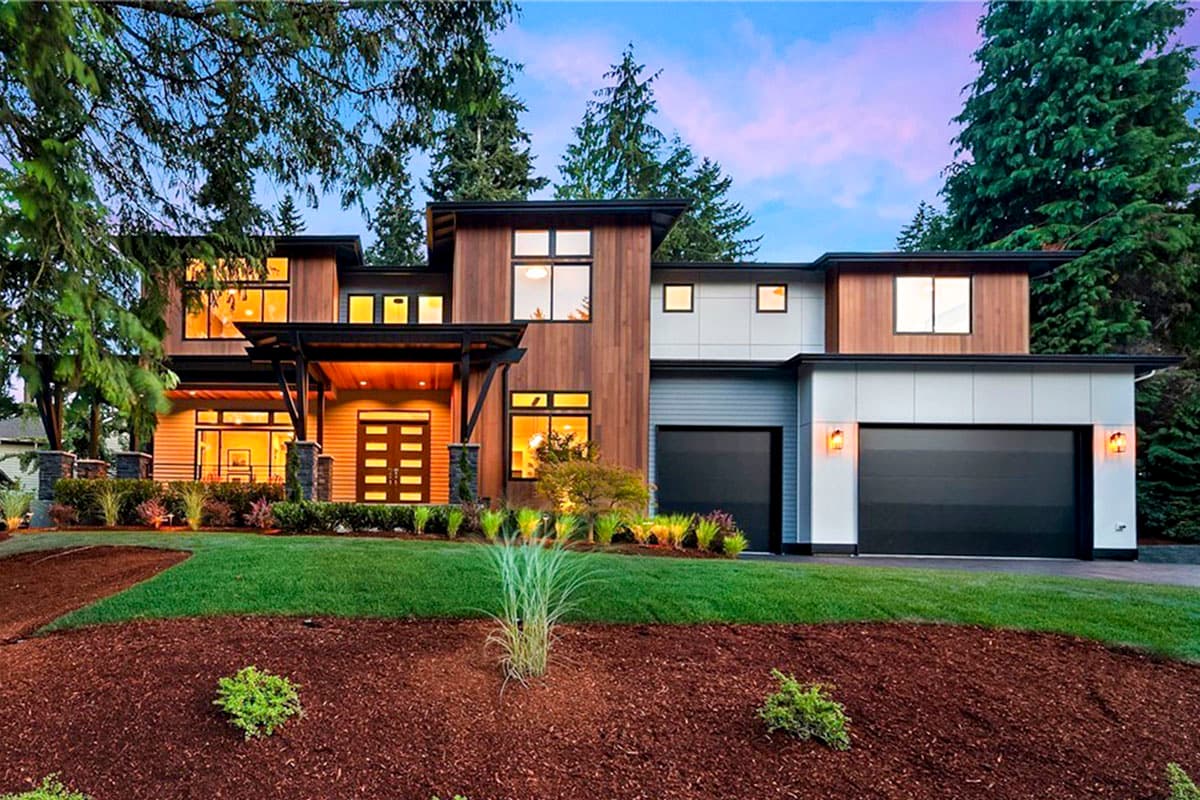

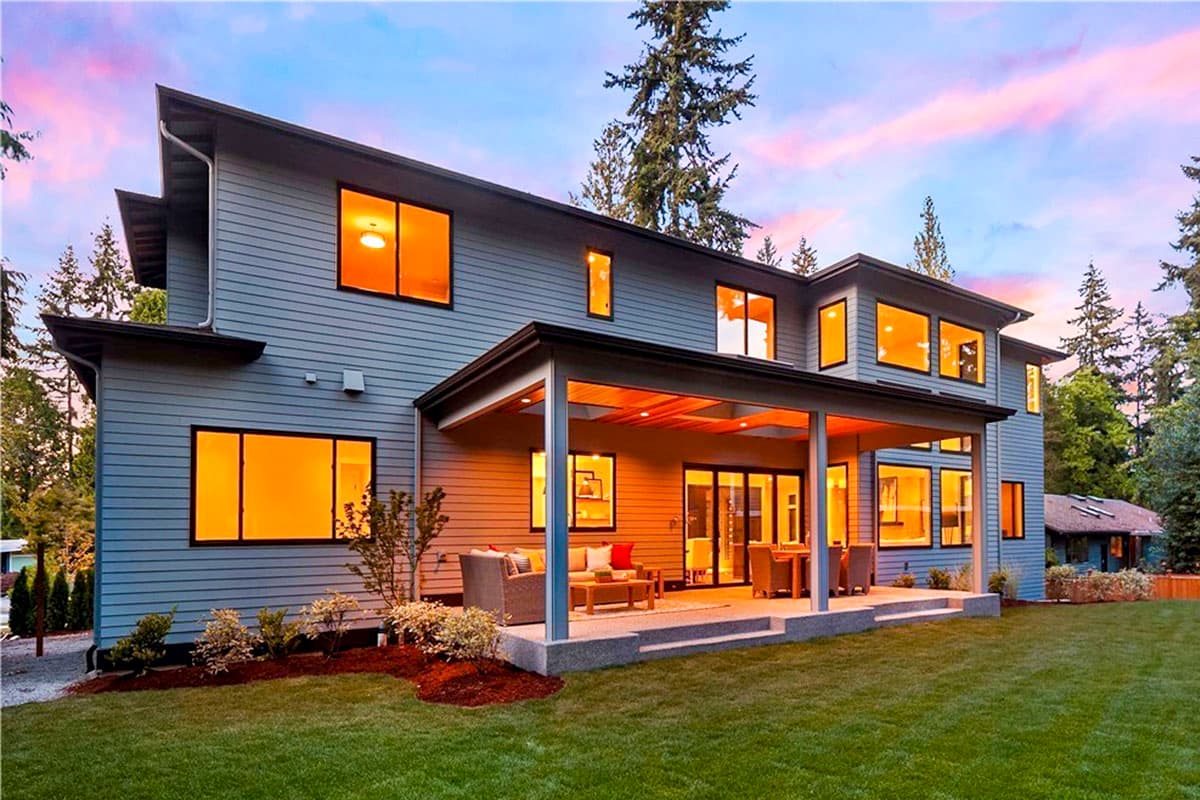

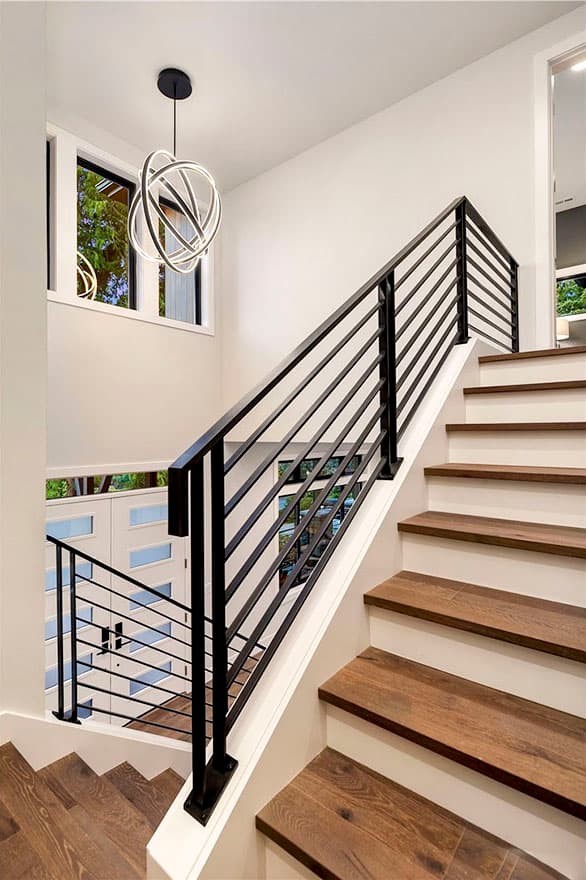

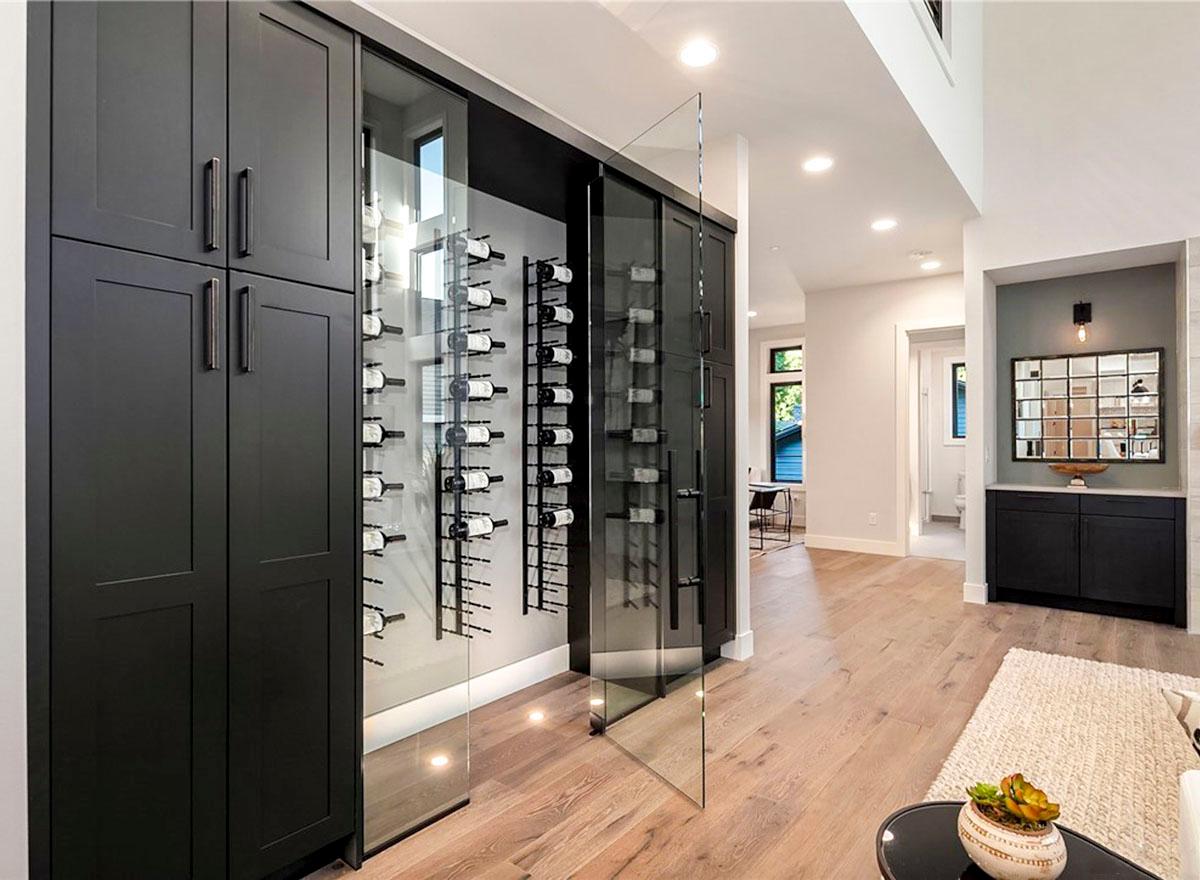

This deluxe, contemporary house plan features oversized windows with minimal muntins throughout the home, thereby maximizing access to natural light. The dark, vertical siding adds a rustic touch to contribute to the massive curb appeal.

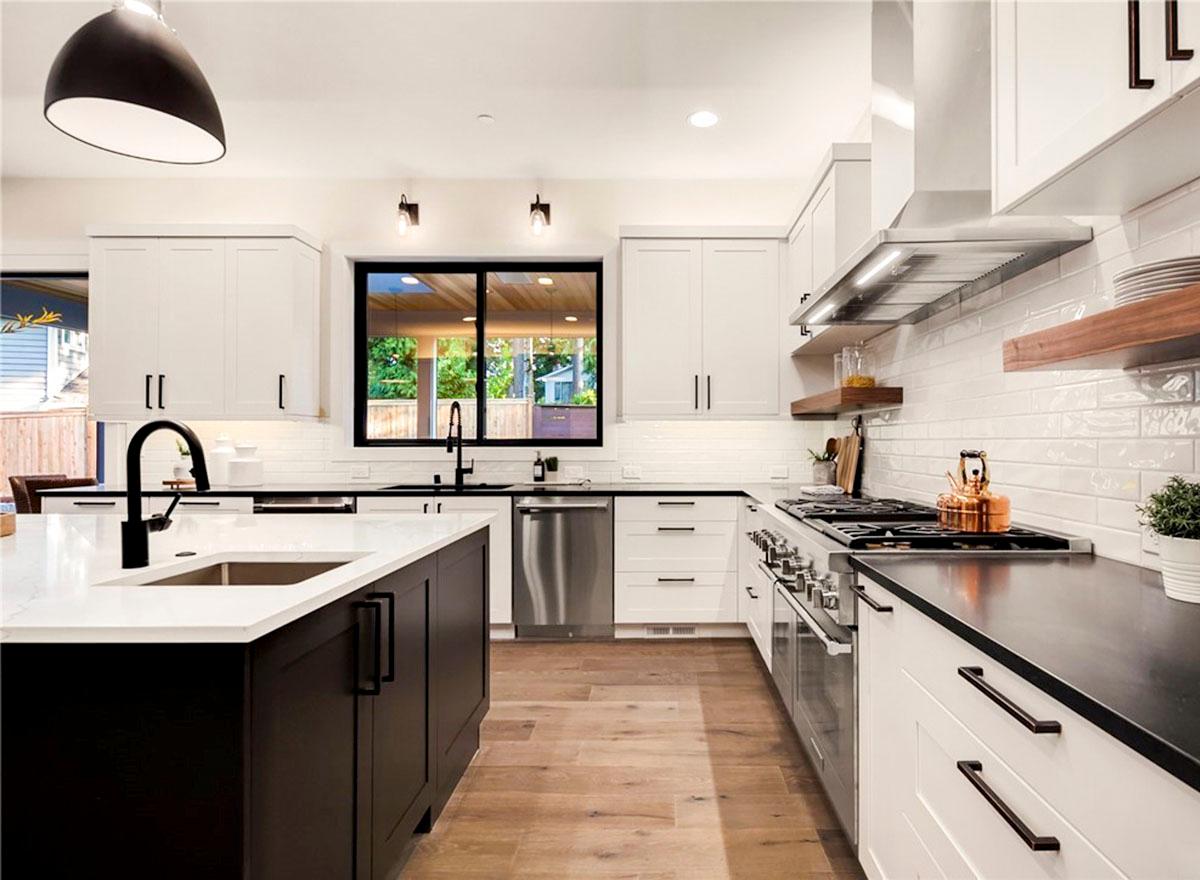

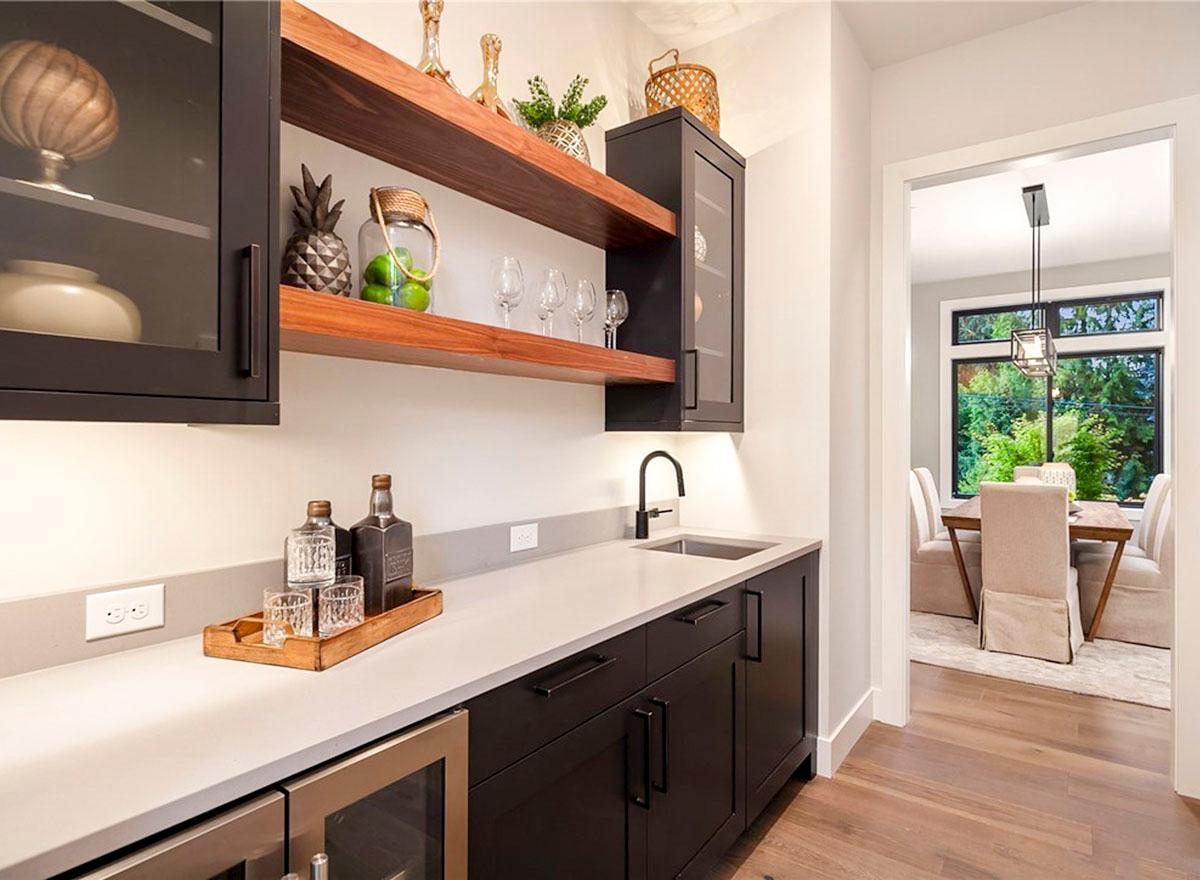

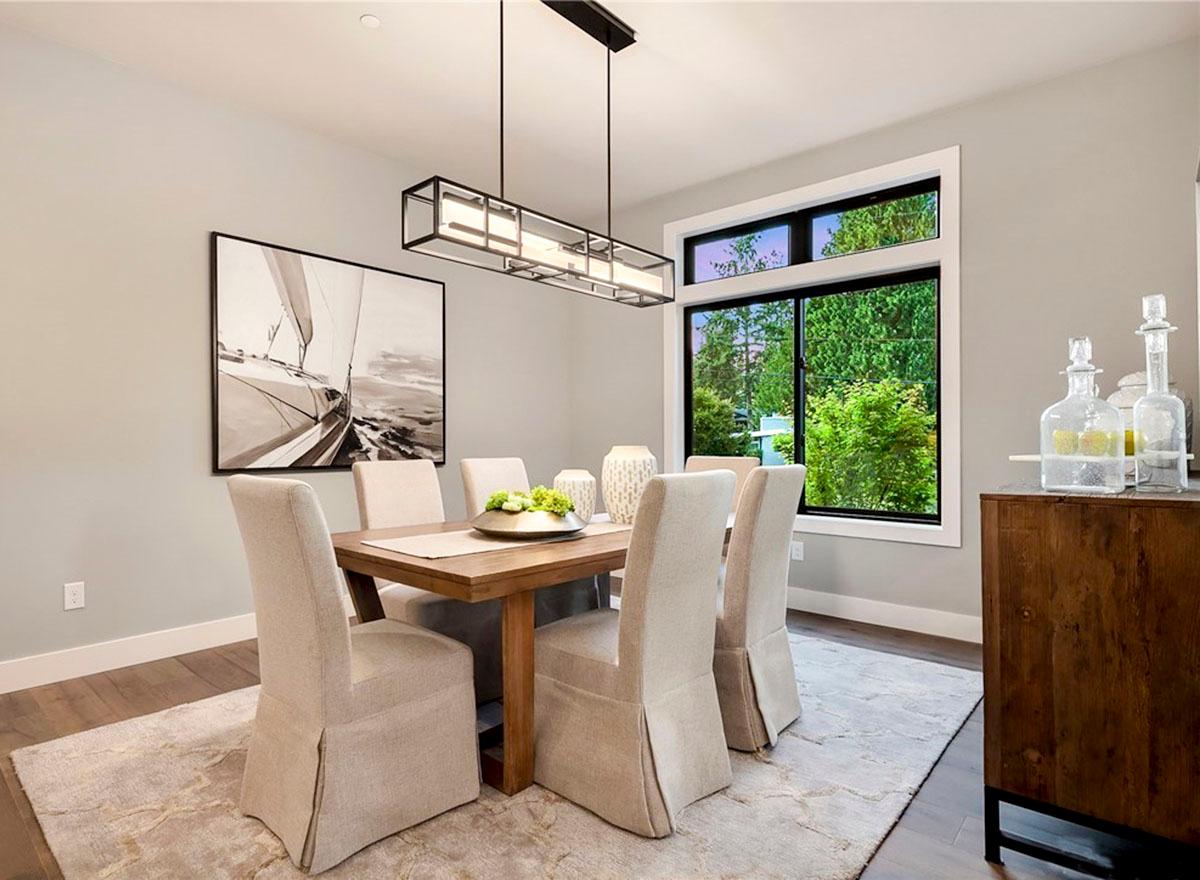

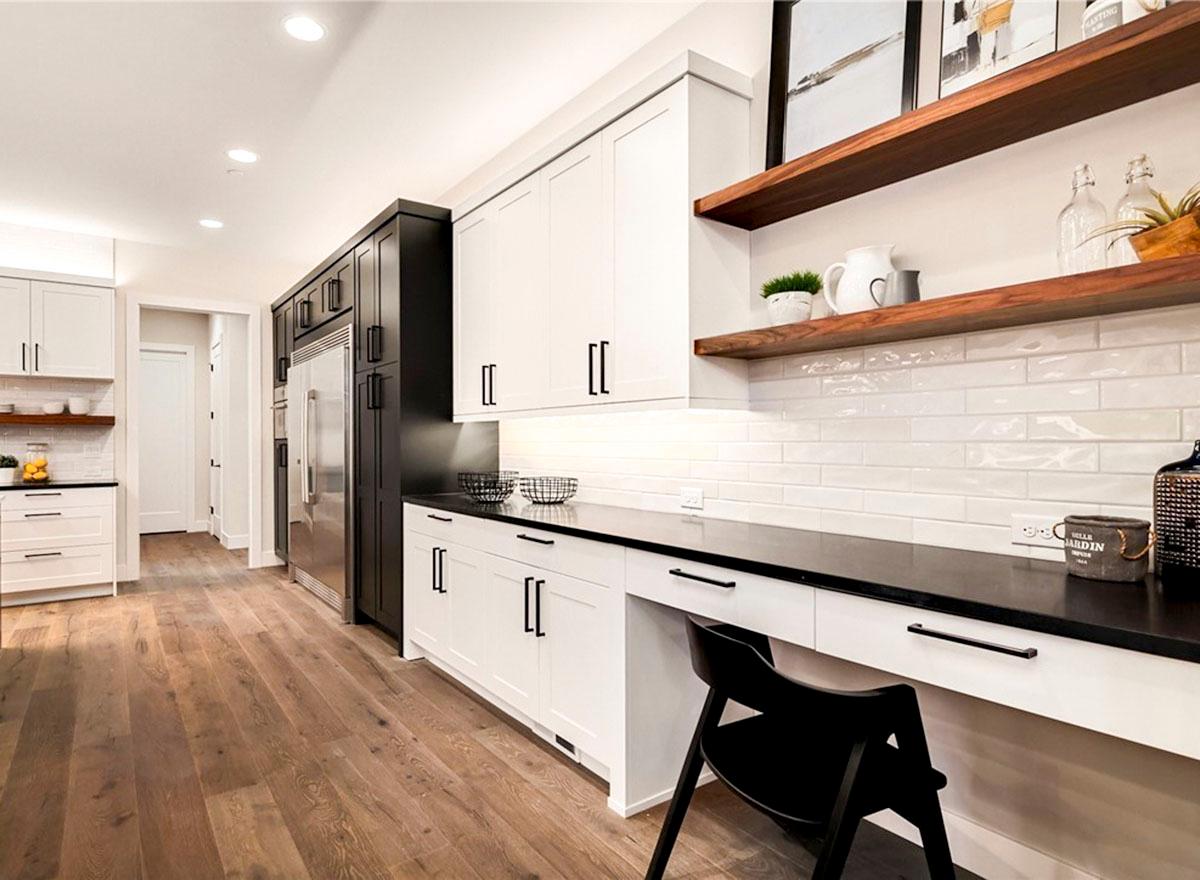

On either side of the foyer, discover a living room and dining room. A butler's pantry links the dining room with the kitchen, which is towards the rear of the home.

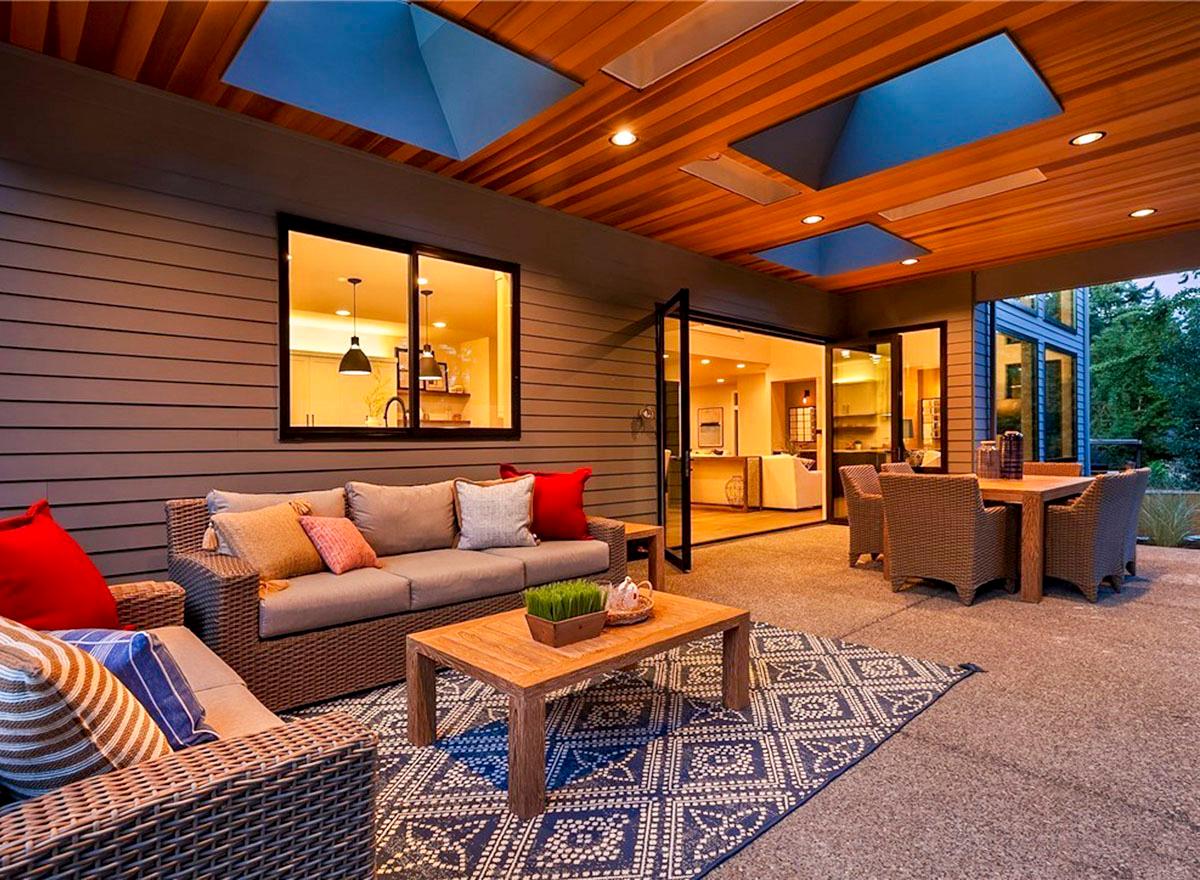

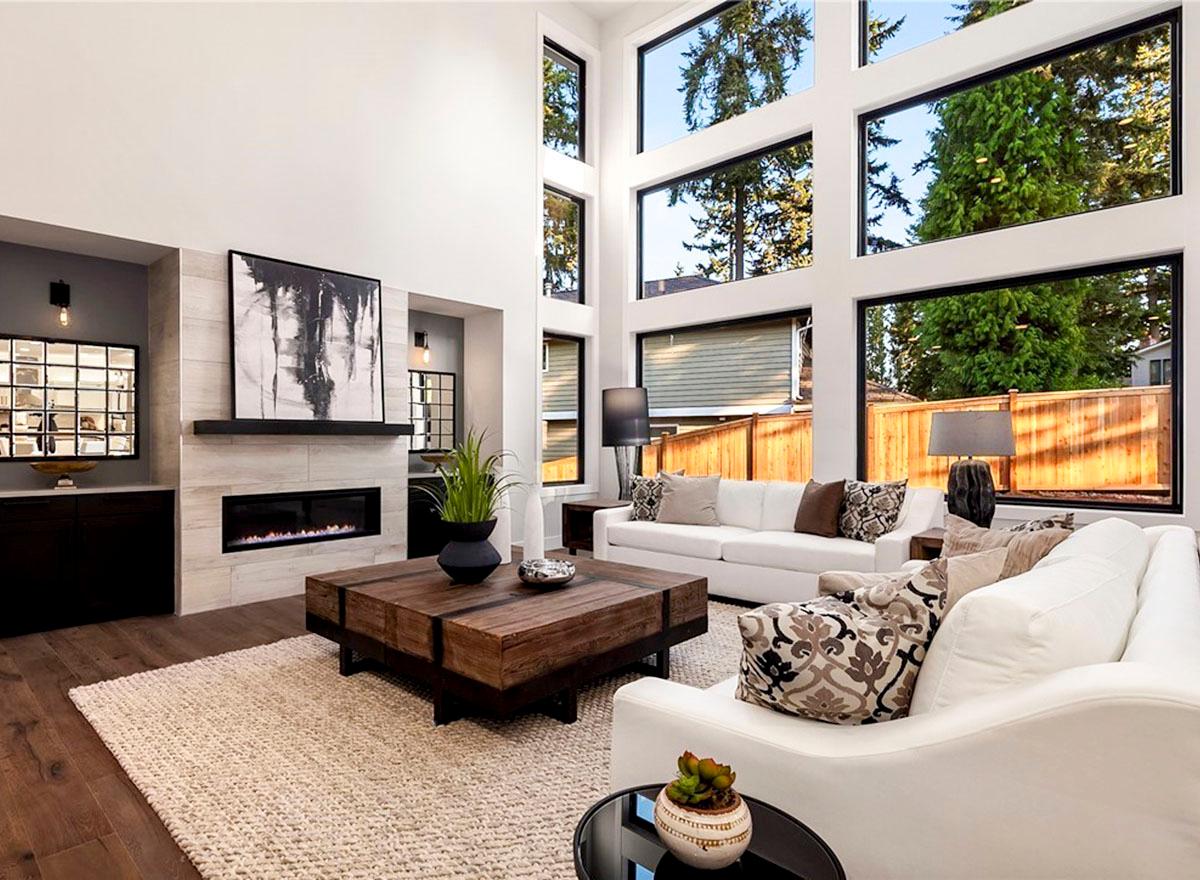

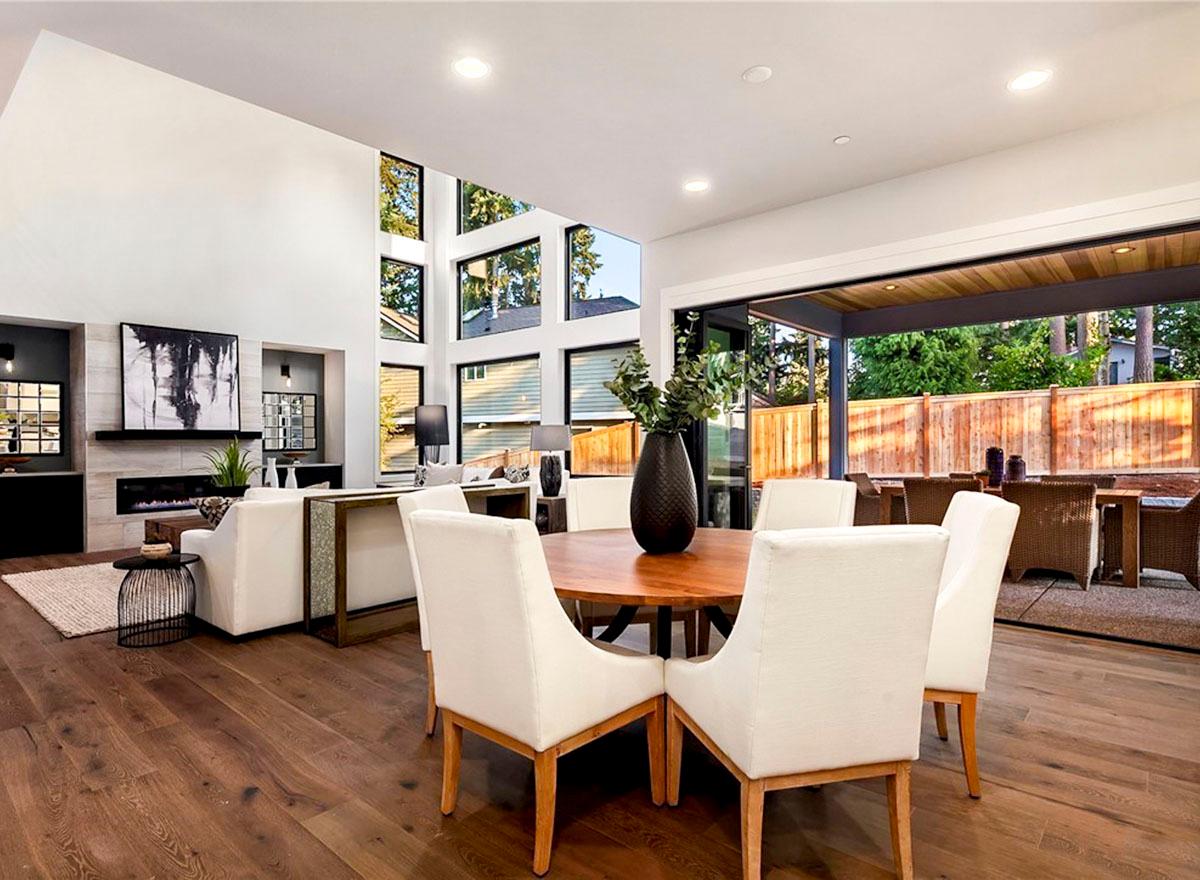

Tall ceilings in the great room provide a feeling of grandeur, and the open floor plan, which extends onto a covered patio, makes the space feel even larger. A den and office on the main level provide quieter spaces to relax.

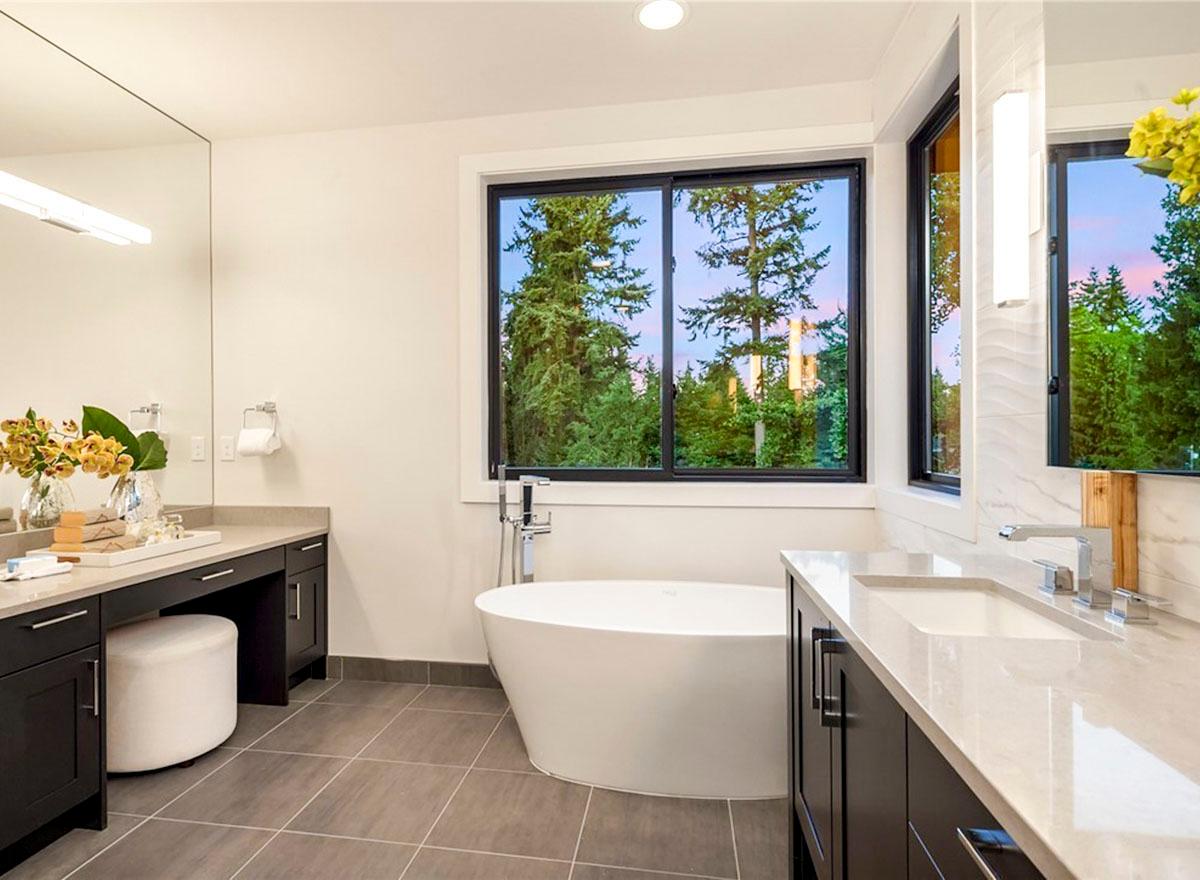

The master suite is privately situated on the left side of the second level, and boasts dual closets and a lavish en suite with a freestanding tub and commode room.

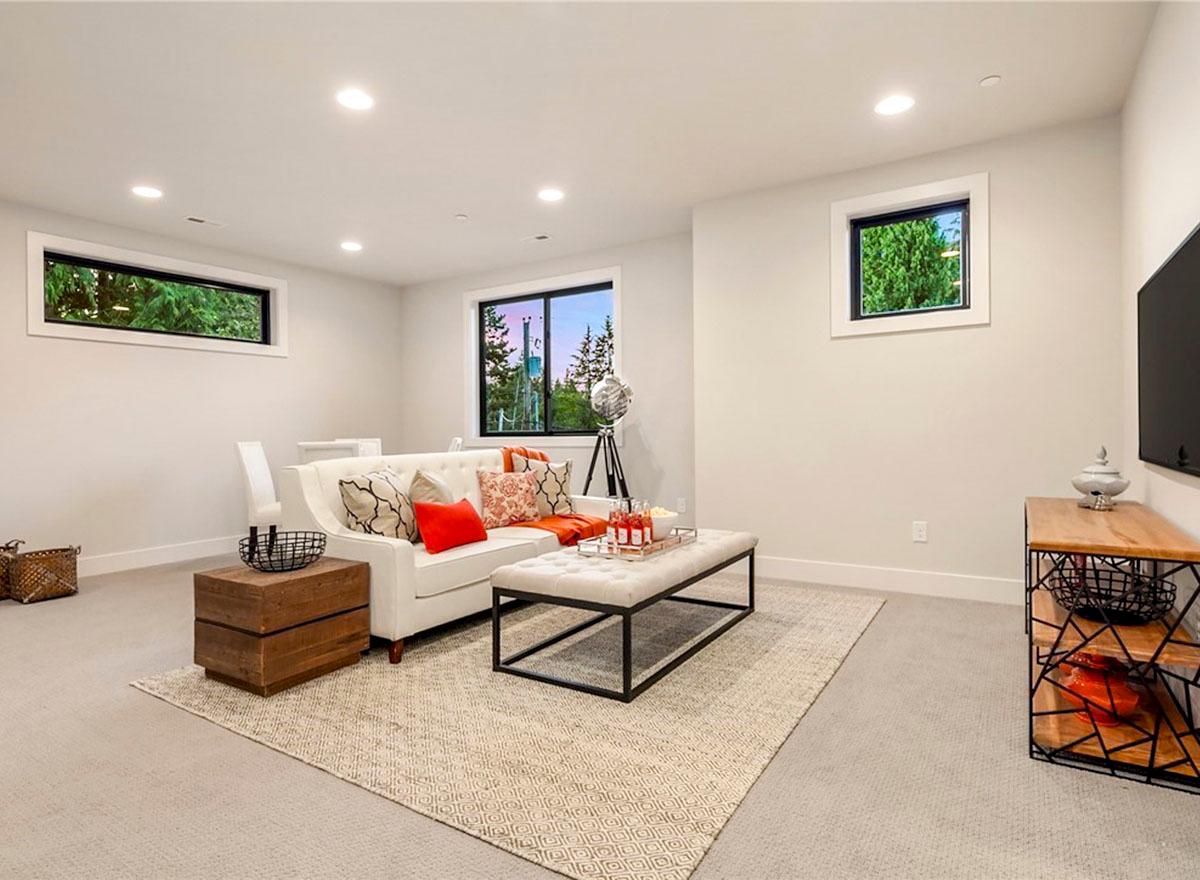

Three additional bedrooms are located down the hall; two share a Jack-and-Jill bath, and one includes a full bath. A spacious recreation / media room creates a fun space for the kids to enjoy, and includes a wet bar.
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.

Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.

Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.

Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.

Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.

Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

Elevation Sheet

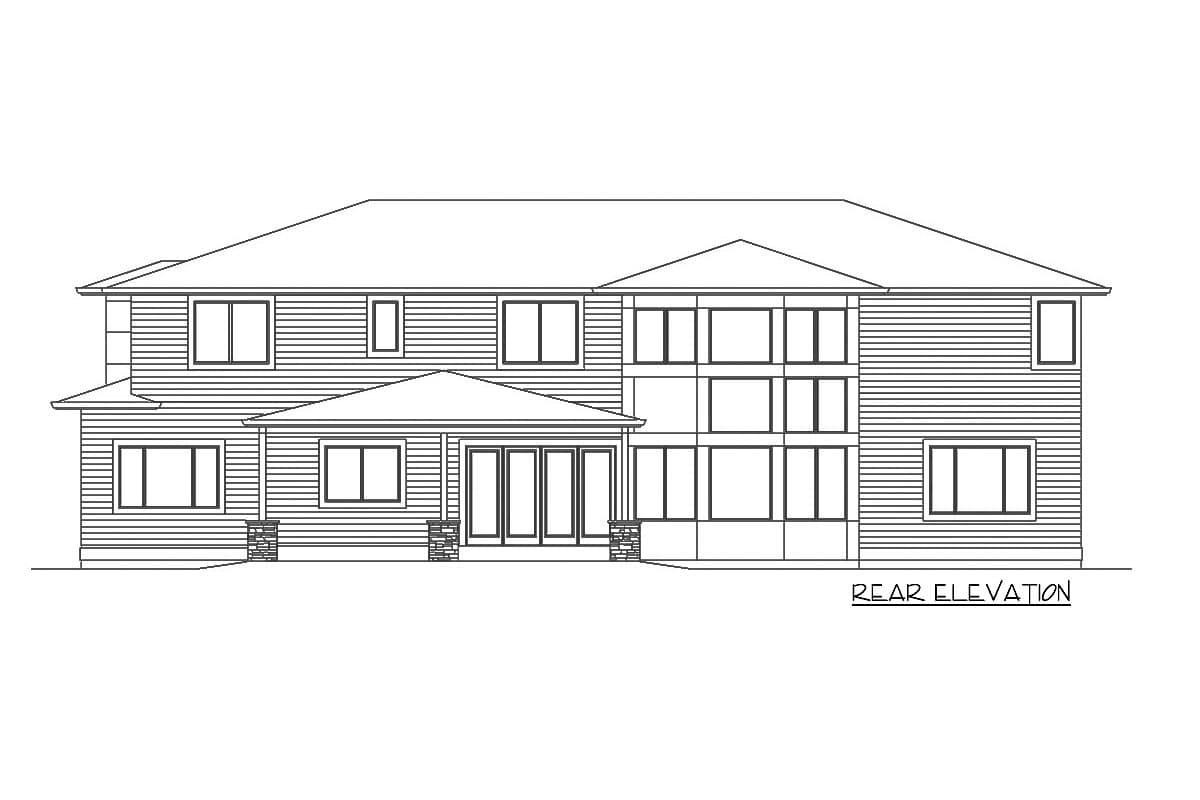

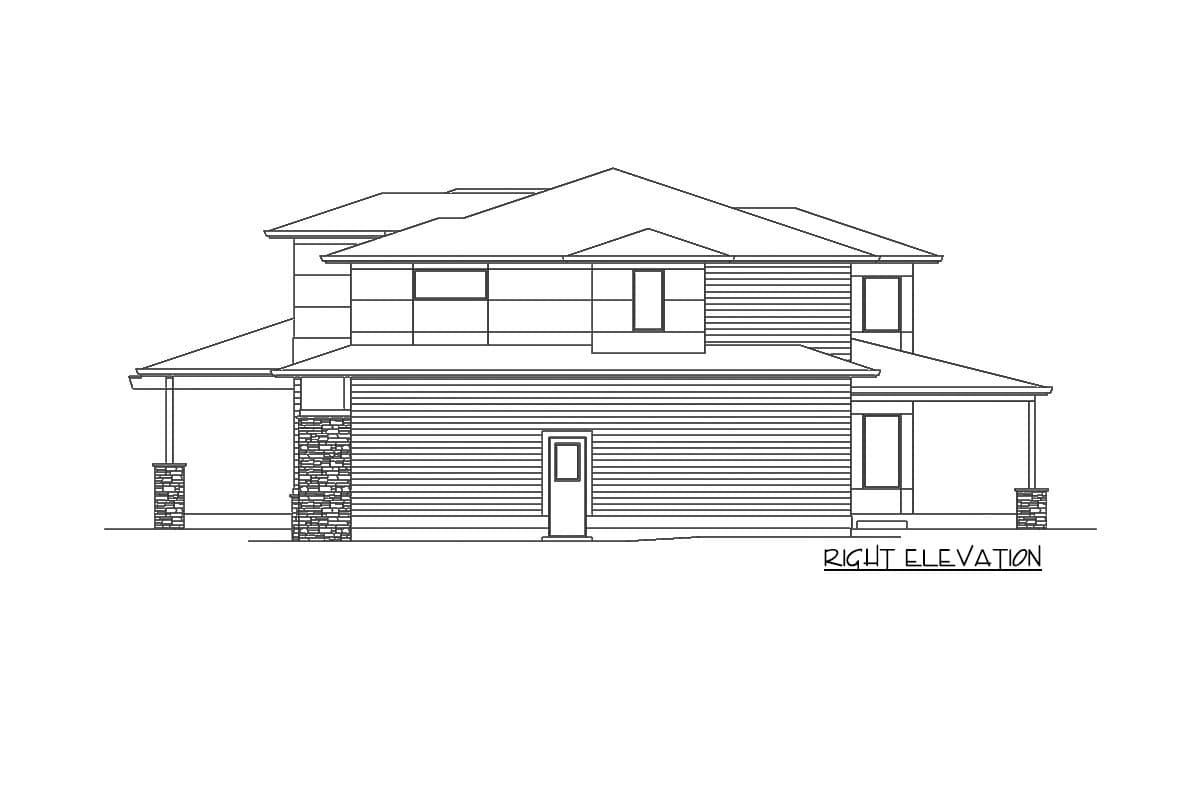

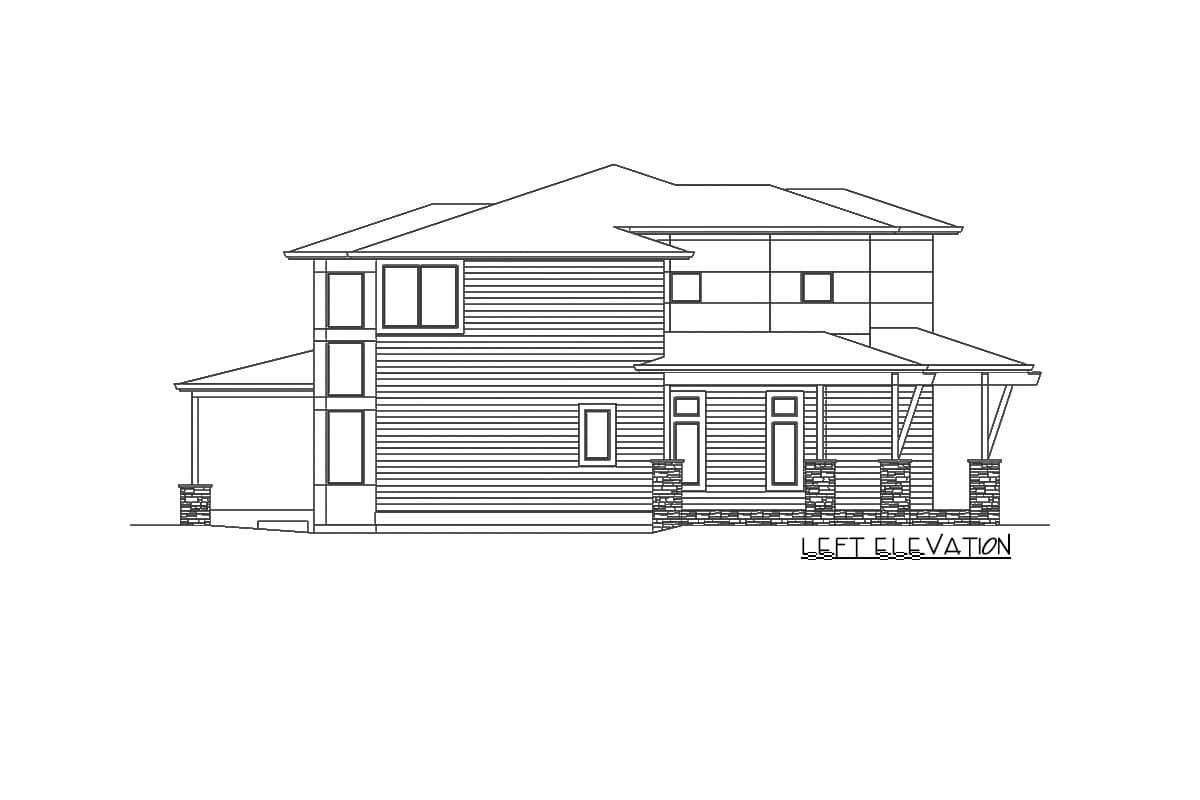

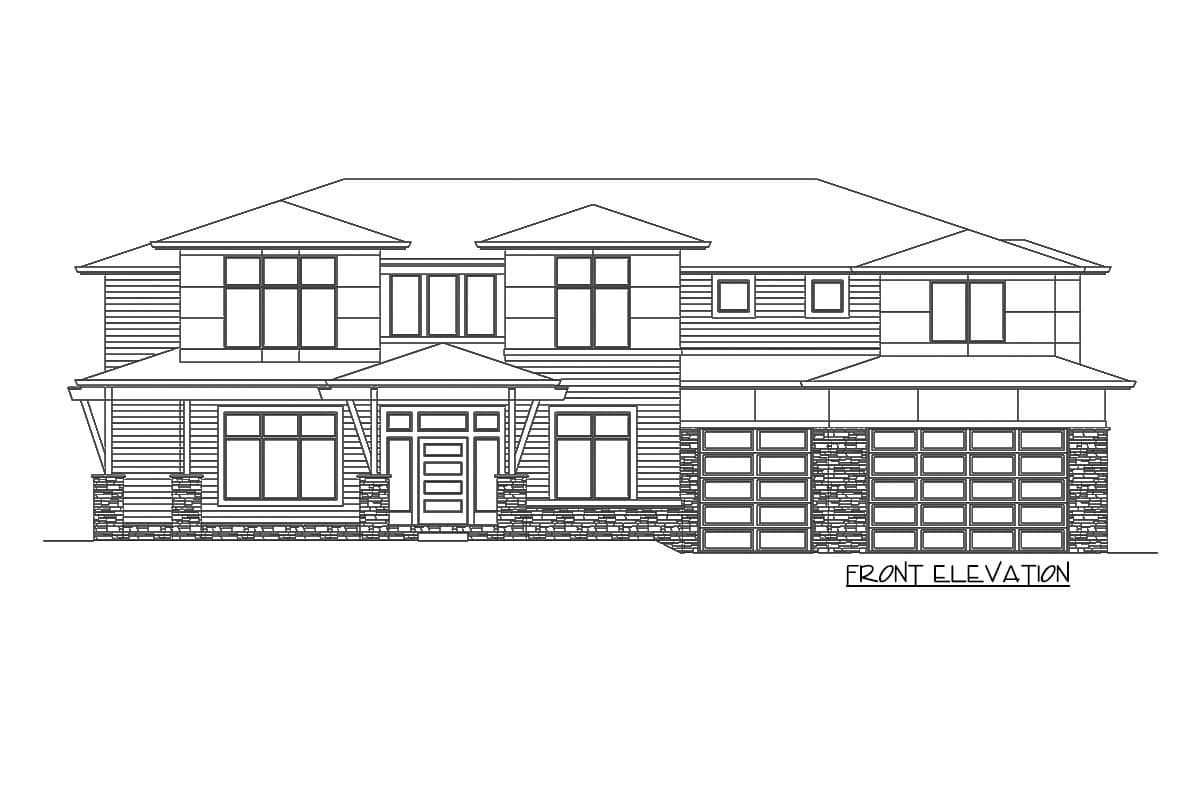

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.

Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

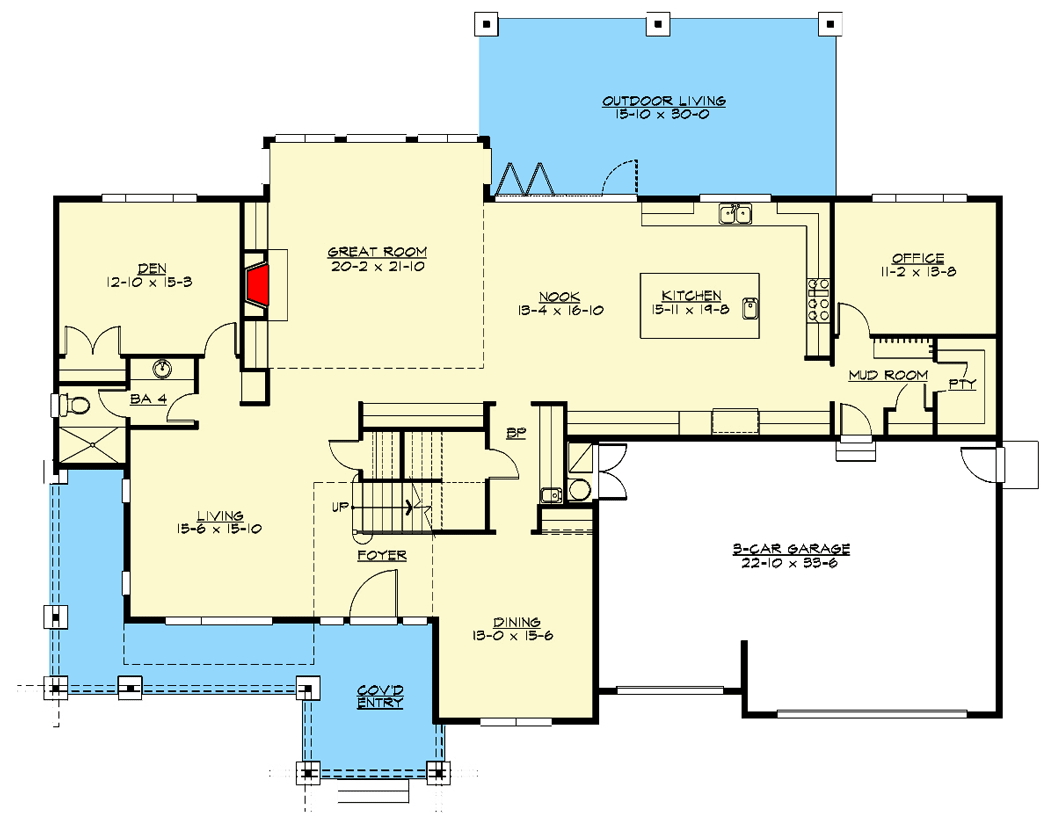

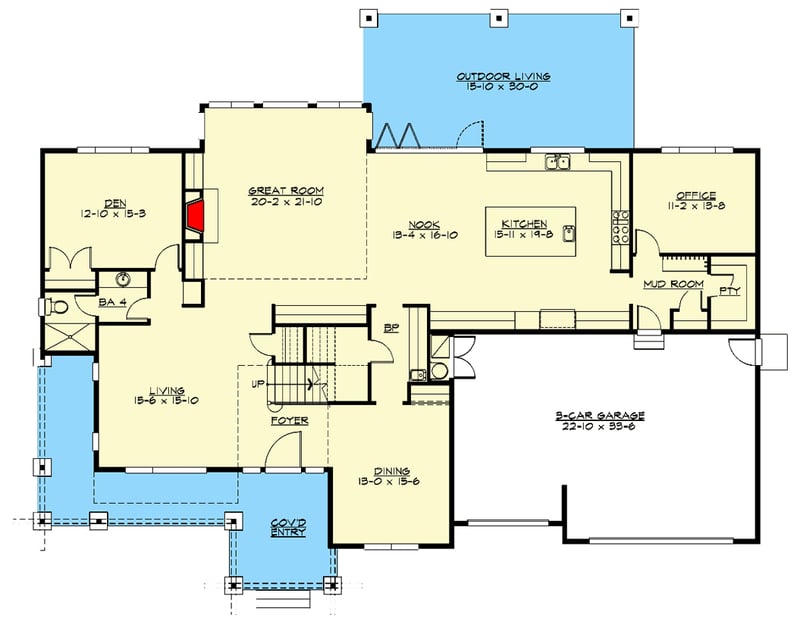

Deluxe Contemporary House Plan with Two-Story Great Room - 23845JD floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

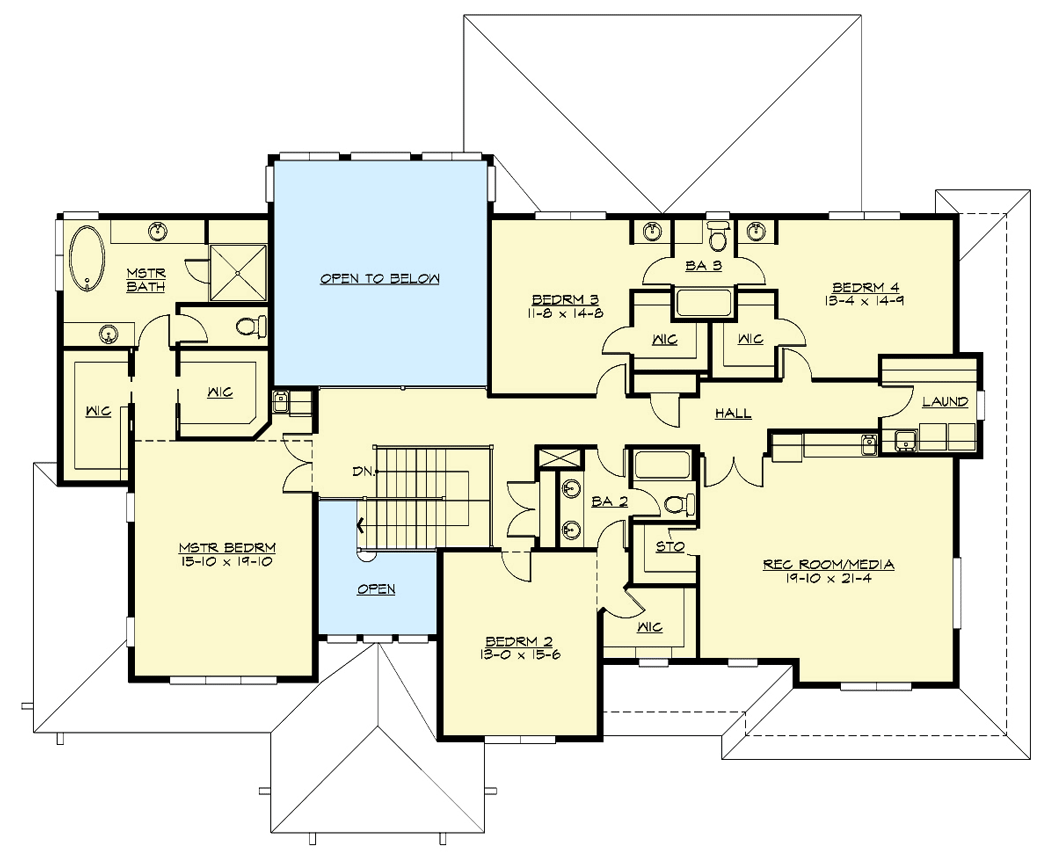

Deluxe Contemporary House Plan with Two-Story Great Room - 23845JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 5,353 sq. ft.
1st Floor: 2,495 sq. ft.
2nd Floor: 2,858 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 4

Foundation Type

Standard Foundations: Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 80' 0"
Depth: 64' 0"
Max ridge height: 27' 8"

Garage

Type: Attached
Area: 769 sq. ft.
Count: 3 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 4 on 12
Secondary Pitch: 3 on 12

Framing Type: Truss

Architectural Style

Special features

Plan Collections

Scroll
