Plan 360043DK

Designer Mountain Craftsman House Plan II with 3-Car Garage

3,337 3-6 4 + 1-2 3
Pageloader

Designer Mountain Craftsman House Plan II with 3-Car Garage

Plan 360043DK

  • 3,337

    Heated s.f.

  • 3-6

    Beds

  • 4 +

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This house plan is a grander version of mountain Craftsman house plan 36030DK and comes without the lower level with house plan 360044DK). Sweeping views start right at the foyer, thanks to the open layout.
  • The dining room has only two walls and uses columns to preserve the views into the family room with its coffered ceiling.
  • The kitchen is chef's dream with a huge island that gives you lots of extra counter space and storage cabinets.
  • Outside, the vaulted covered terrace has an outdoor fireplace.
  • A long hallway takes you to the secluded master retreat with its tray ceiling and sliding glass doors to the covered porch. The spa-like master bathroom has a grand soaking tub and two enormous walk-in closets.
  • Bedrooms two and three lie on the opposite side of the house and each room has its own sink. An office off the foyer can alternatively be used as a bedroom.
  • Finish the optional lower and gain a theater room, gaming area with wet bar and a huge exercise room with two big storage closets, two additional bedrooms and a hobby room.
  • A bonus room over the garage comes with an accompanying full bath (NOTE: the bonus room is not available if you're building out the lower level).
  • Related Plans: Eliminate the lower level with house plan 360044DK and get a 2-car version with house plan 36030DK.

This plan includes the following elements:

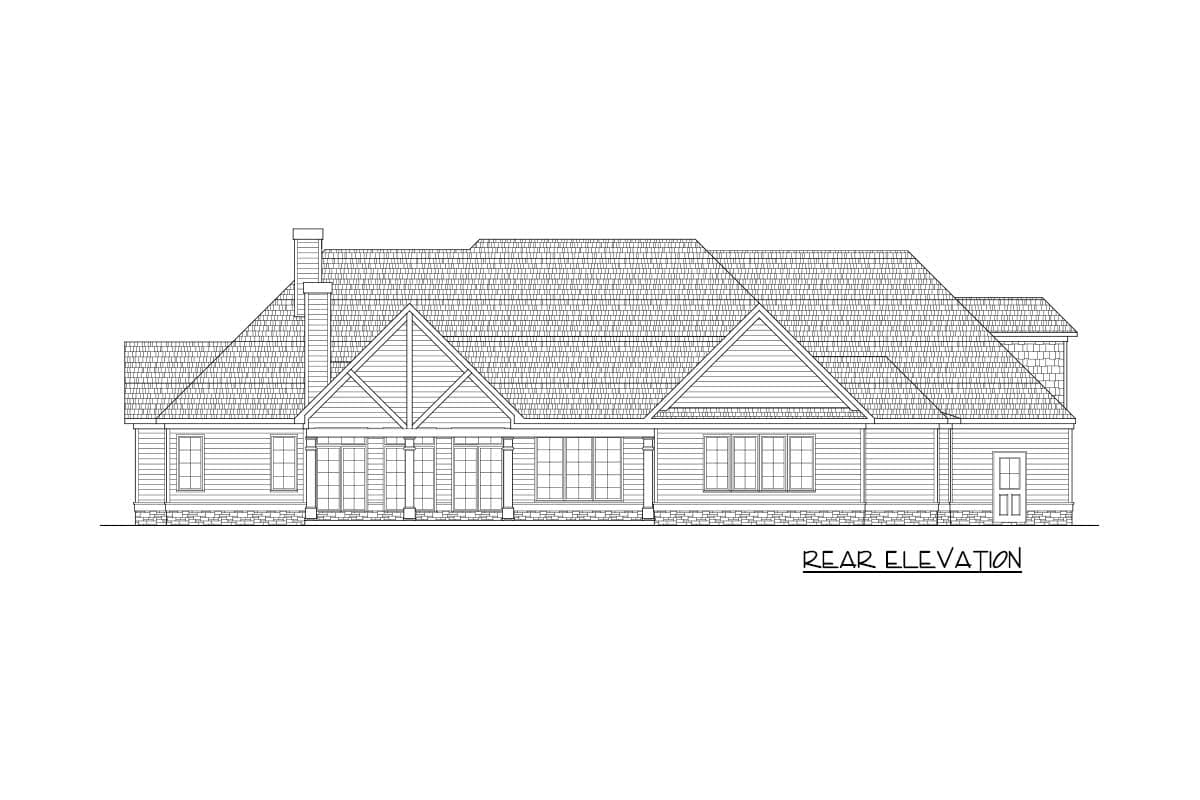

  • Front, Rear, Right Side and Left Side Elevational views with construction specification information
  • Roof Plan Quick View Floor Plans Foundation plan of choice specifying construction information
  • Floor Plan(s) with construction information
  • Electrical Plans
  • Construction Details for walls, Foundation, roof framing.
  • Some plans includes a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

Floor Plan

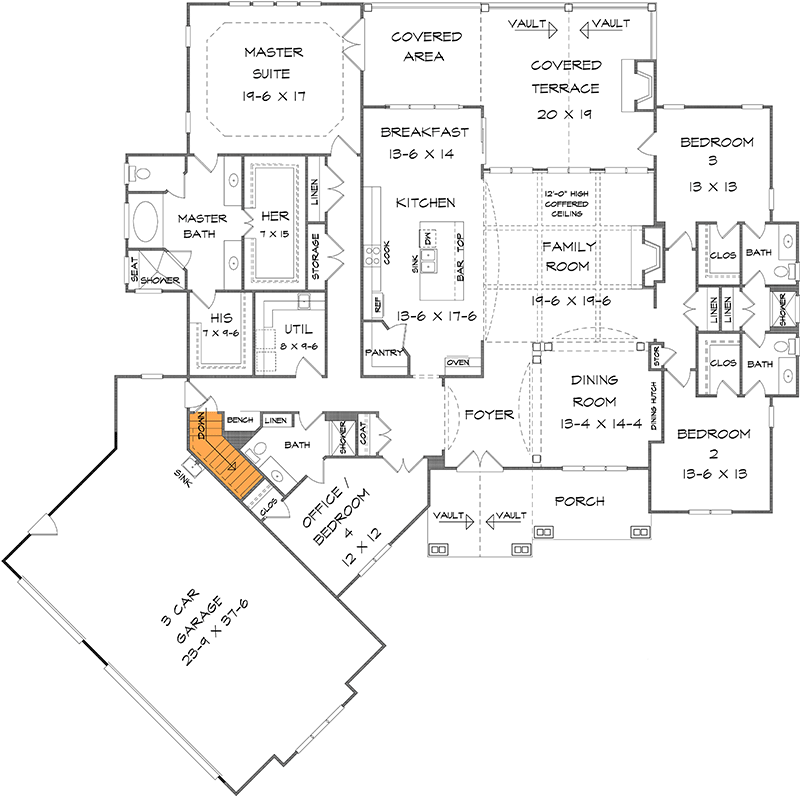

Basement Stairs

Pinit white
Designer Mountain Craftsman House Plan II with 3-Car Garage - 360043DK floor plan - Basement Stairs

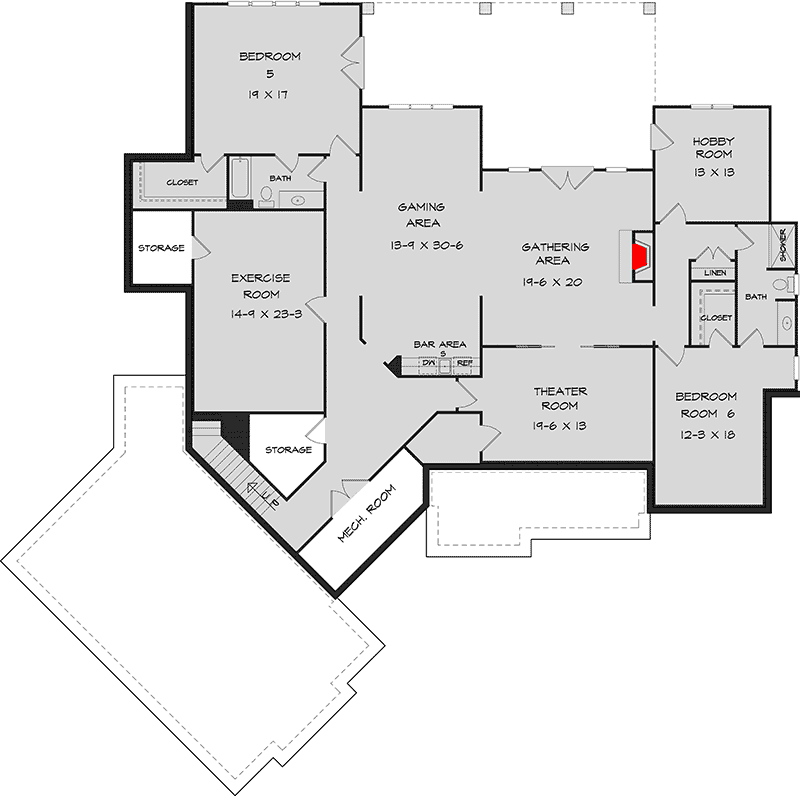

Optional Lower Level

Pinit white
Designer Mountain Craftsman House Plan II with 3-Car Garage - 360043DK floor plan - Optional Lower Level

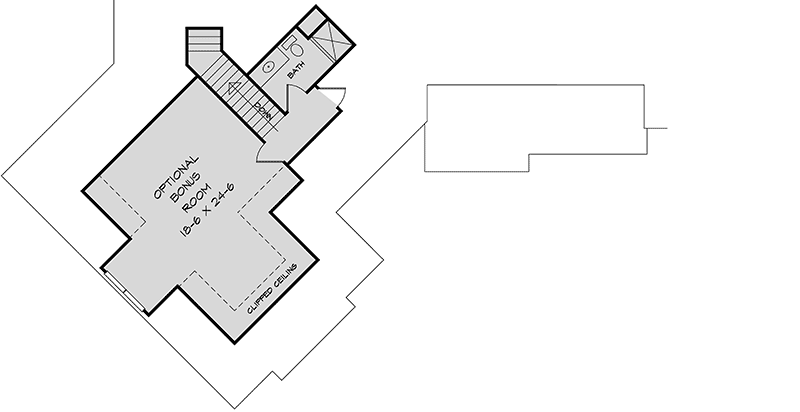

Optional Bonus Level

Pinit white
Designer Mountain Craftsman House Plan II with 3-Car Garage - 360043DK floor plan - Optional Bonus Level

Plan details



Designer Mountain Craftsman House Plan II with 3-Car Garage

  • 3,337

    Heated s.f.

  • 3 - 6

    Beds

  • 4 +

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,100
  • 8 Sets $1,425
  • PDF - single-use $1,925
  • CAD $2,350
  • View all purchase option online

About This Plan

  • This house plan is a grander version of mountain Craftsman house plan 36030DK and comes without the lower level with house plan 360044DK). Sweeping views start right at the foyer, thanks to the open layout.
  • The dining room has only two walls and uses columns to preserve the views into the family room with its coffered ceiling.
  • The kitchen is chef's dream with a huge island that gives you lots of extra counter space and storage cabinets.
  • Outside, the vaulted covered terrace has an outdoor fireplace.
  • A long hallway takes you to the secluded master retreat with its tray ceiling and sliding glass doors to the covered porch. The spa-like master bathroom has a grand soaking tub and two enormous walk-in closets.
  • Bedrooms two and three lie on the opposite side of the house and each room has its own sink. An office off the foyer can alternatively be used as a bedroom.
  • Finish the optional lower and gain a theater room, gaming area with wet bar and a huge exercise room with two big storage closets, two additional bedrooms and a hobby room.
  • A bonus room over the garage comes with an accompanying full bath (NOTE: the bonus room is not available if you're building out the lower level).
  • Related Plans: Eliminate the lower level with house plan 360044DK and get a 2-car version with house plan 36030DK.

Floor Plans

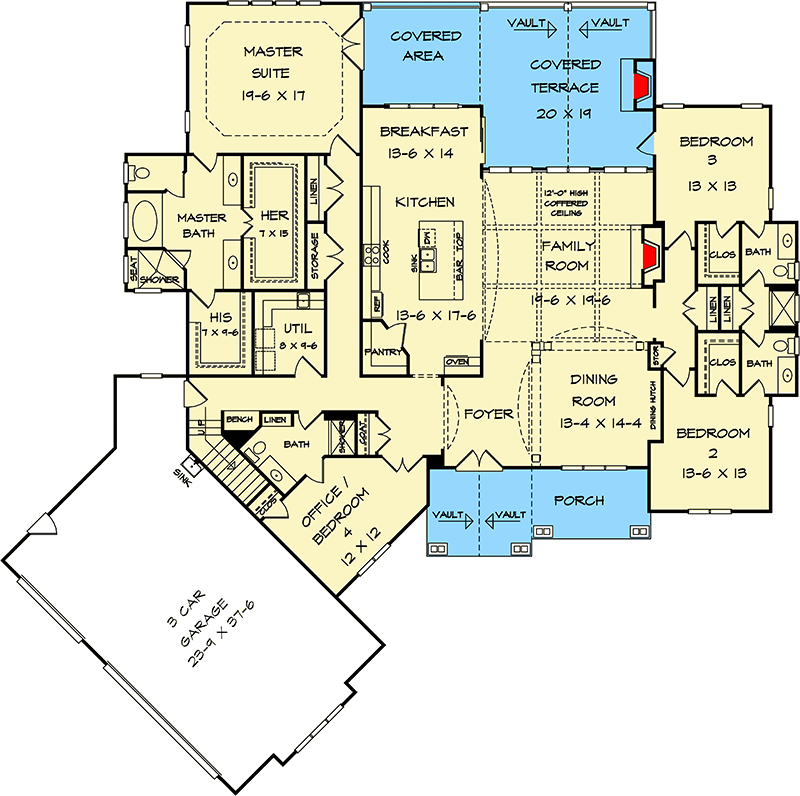

  • Main Level

  • Basement Stairs

  • Optional Lower Level

  • Optional Bonus Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,337 sq. ft.
  • 1st Floor: 3,337 sq. ft.
  • Bonus: 643 sq. ft.
  • Optional Lower Level: 3,233 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, & 6
  • Full bathrooms: 3, 4, 5, & 6
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 91' 3"
  • Depth: 90' 10"
  • Max ridge height: 26' 8"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
