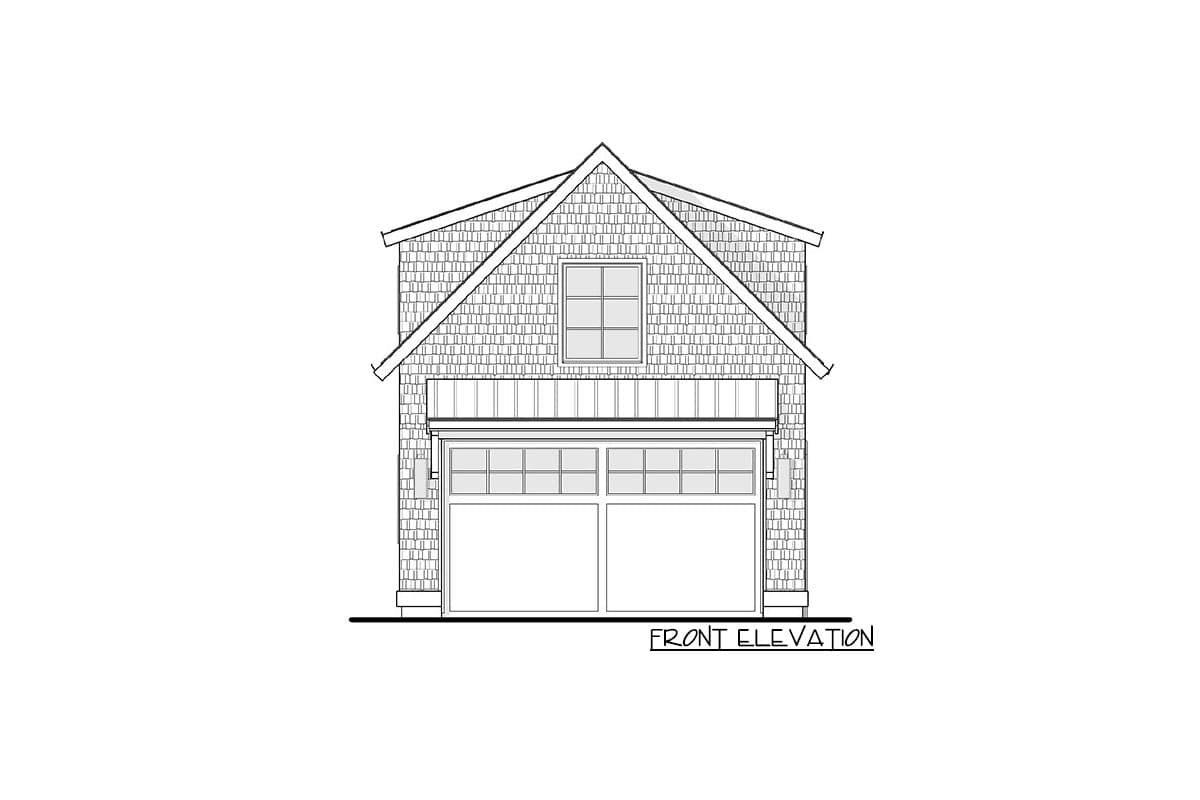

Front elevation of a garage with two overhead doors, a central shed dormer, and shingle siding.

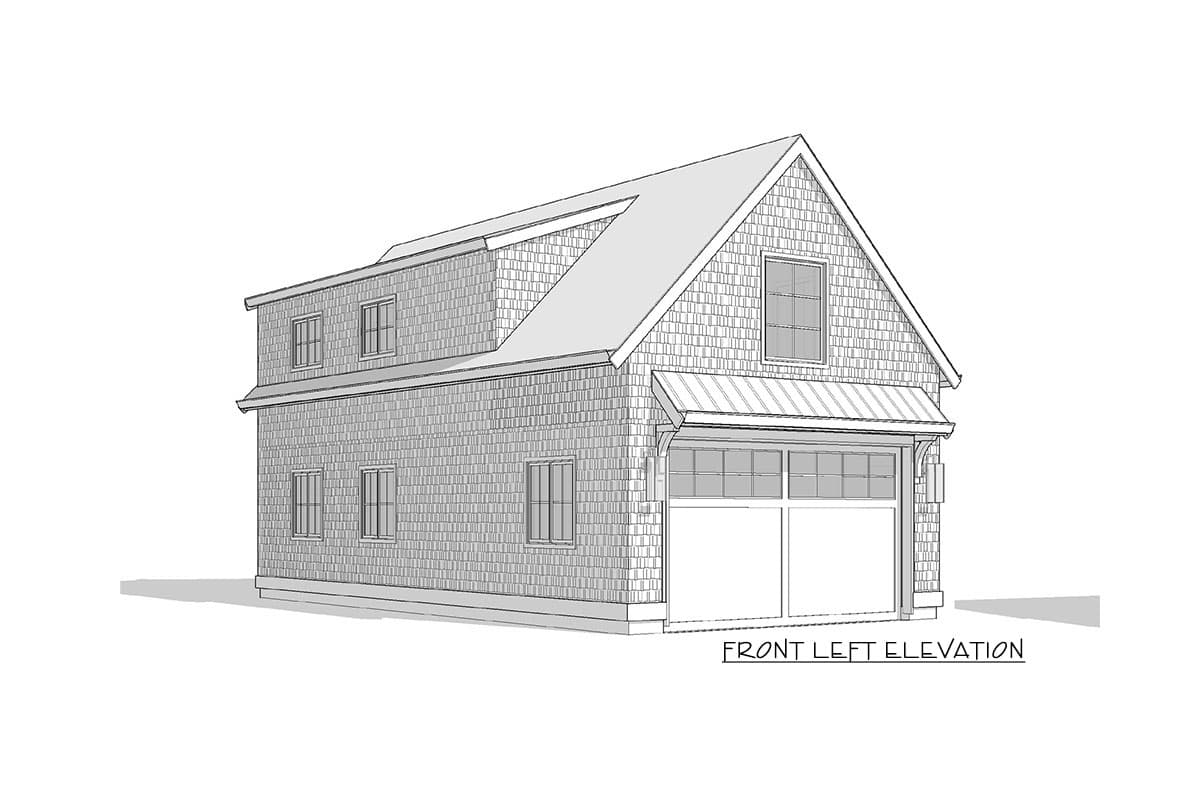

Front left elevation drawing of a two-story house plan with dormer, multiple windows, and a two-car garage.

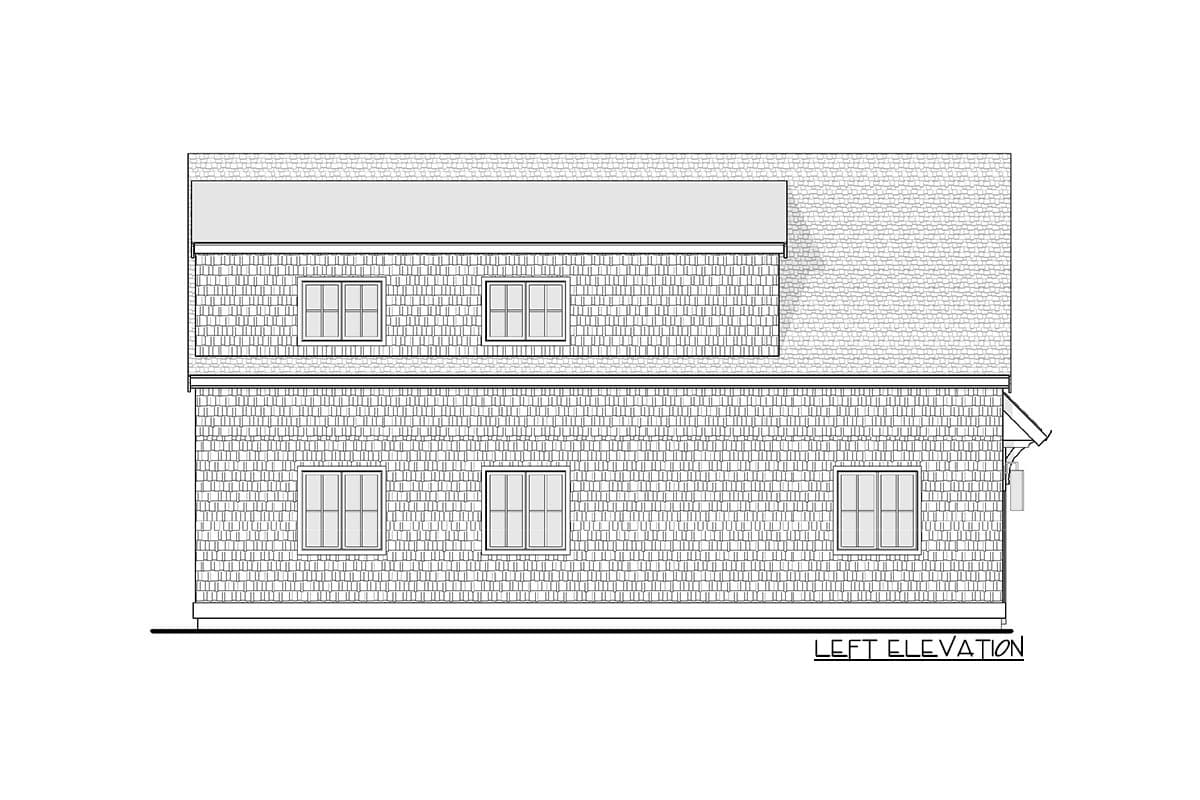

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Image #4 - Cape Cod, Carriage, Country

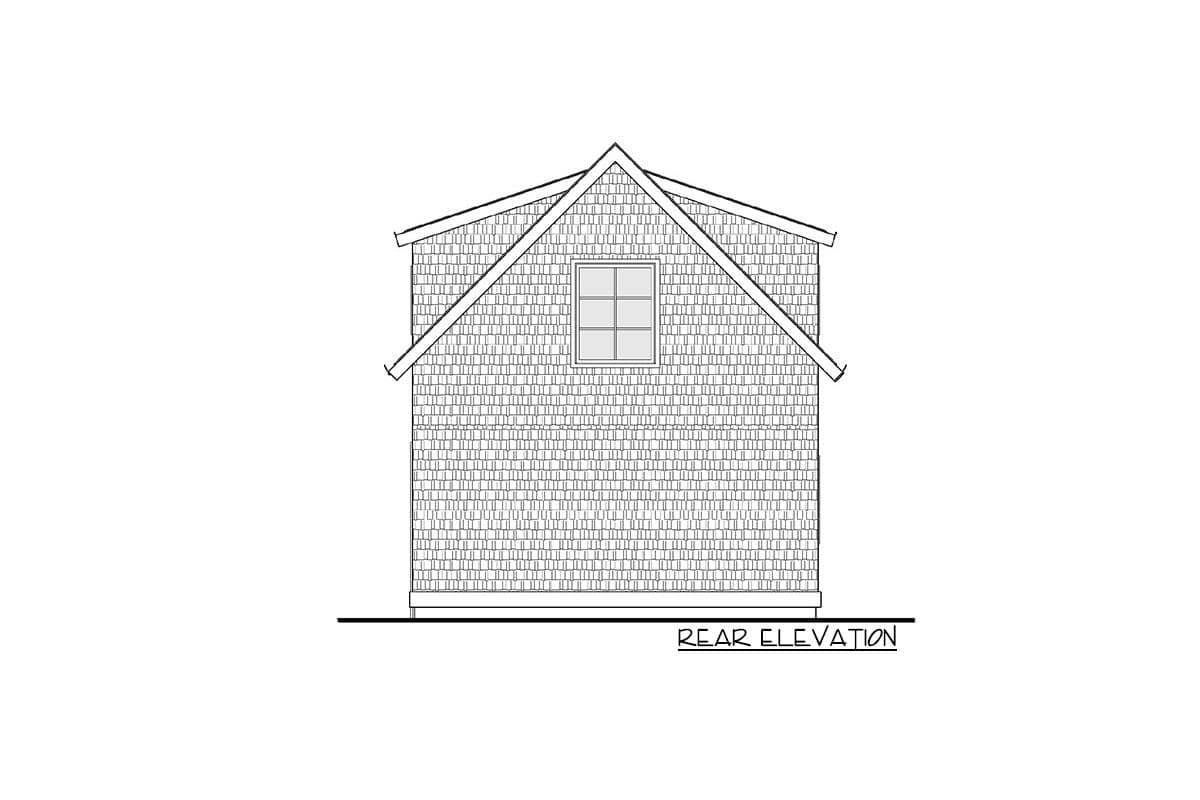

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Image #5 - Cape Cod, Carriage, Country

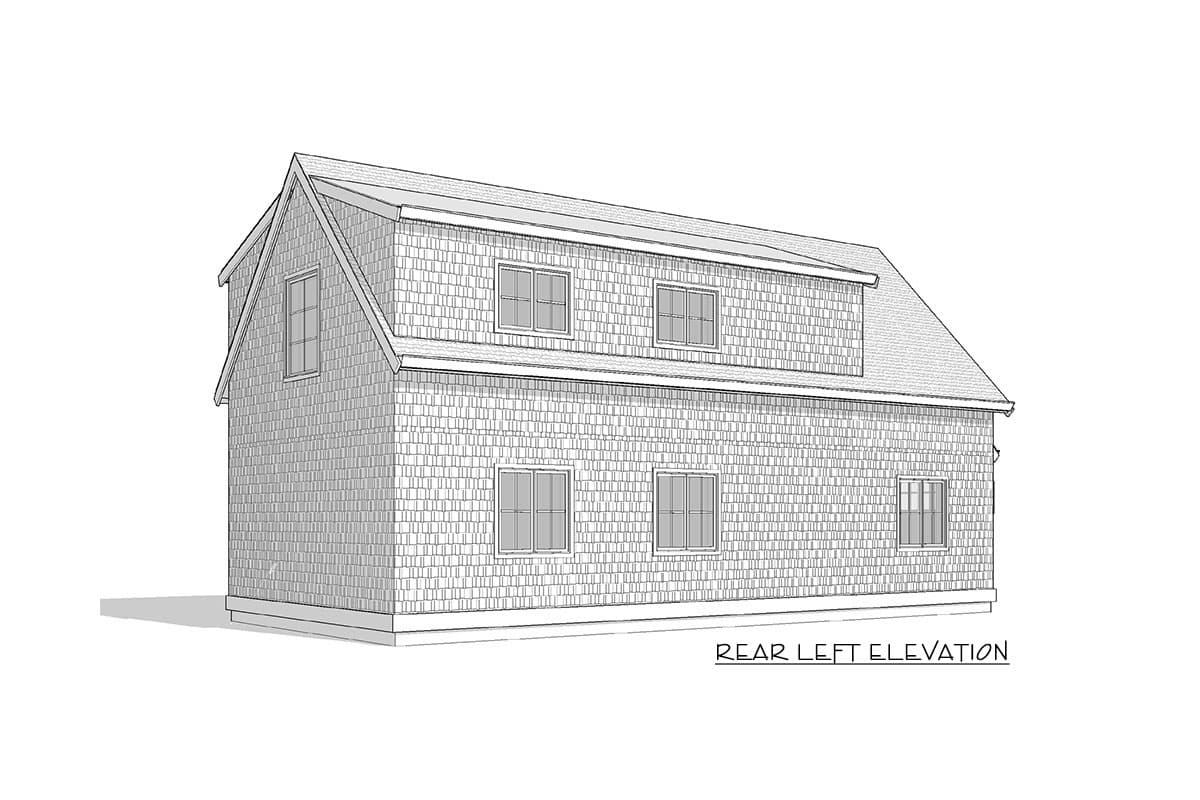

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Image #6 - Cape Cod, Carriage, Country

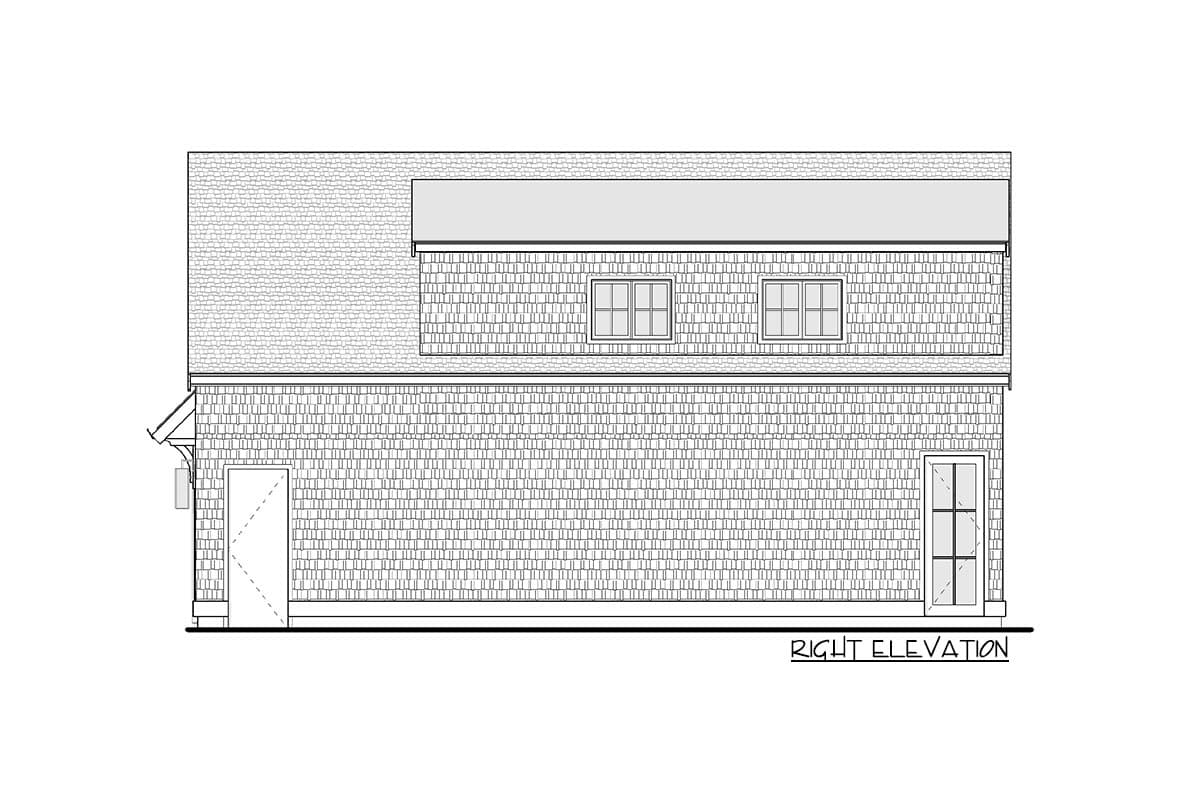

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Image #7 - Cape Cod, Carriage, Country

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Floor Plan - Main Level - Cape Cod, Carriage, Country

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Floor Plan - Second Floor - Cape Cod, Carriage, Country

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Floor Plan - Optional Second Floor (699 Square Feet) - Cape Cod, Carriage, Country

House plan exterior with two stories, shingle siding, a gable roof, and a two-car garage. Features include dormers and a metal awning.

Front elevation of a garage with two overhead doors, a central shed dormer, and shingle siding.

Front left elevation drawing of a two-story house plan with dormer, multiple windows, and a two-car garage.

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Image #4 - Cape Cod, Carriage, Country

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Image #5 - Cape Cod, Carriage, Country

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Image #6 - Cape Cod, Carriage, Country

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Image #7 - Cape Cod, Carriage, Country

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Floor Plan - Main Level - Cape Cod, Carriage, Country

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Floor Plan - Second Floor - Cape Cod, Carriage, Country

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Floor Plan - Optional Second Floor (699 Square Feet) - Cape Cod, Carriage, Country

Plan 270033AF

Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage

Heated S.F.

699

Beds

1

Baths

1

Stories

2

Cars

2

Floor Plan

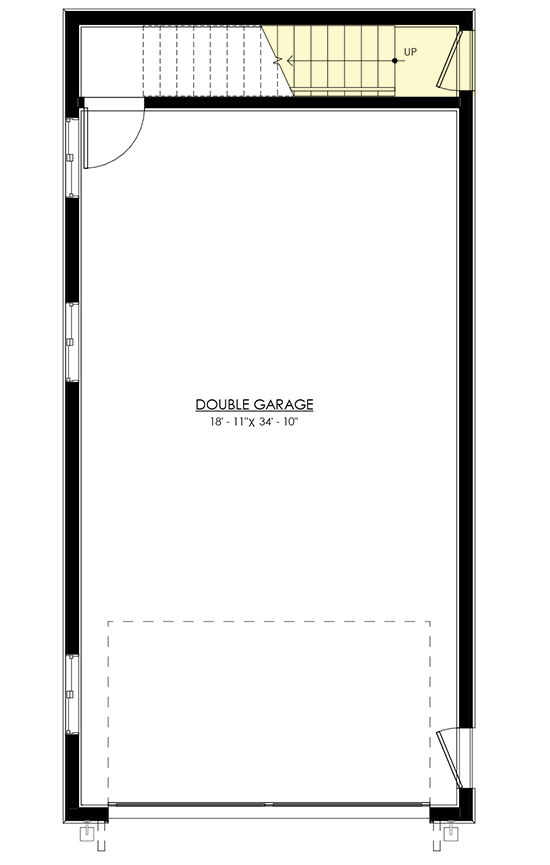

Main Level

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Floor Plan - Main Level - Cape Cod, Carriage, Country

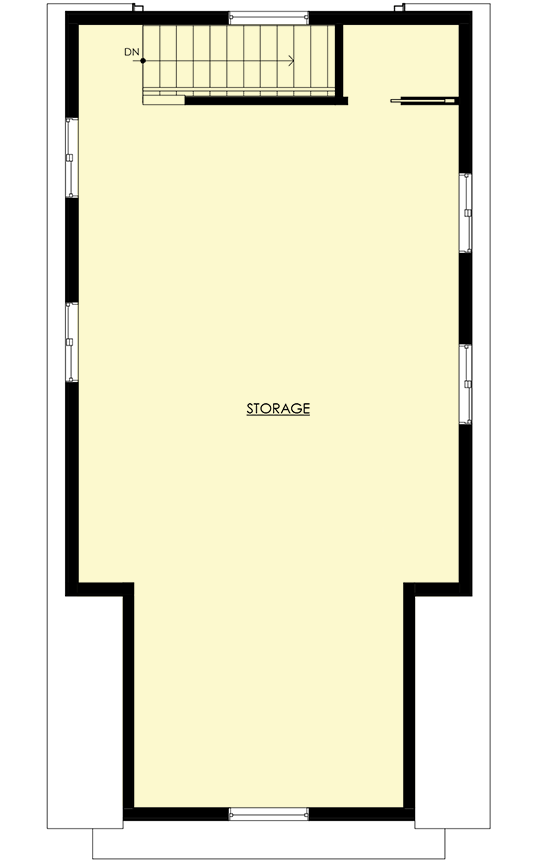

Second Floor

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Floor Plan - Second Floor - Cape Cod, Carriage, Country

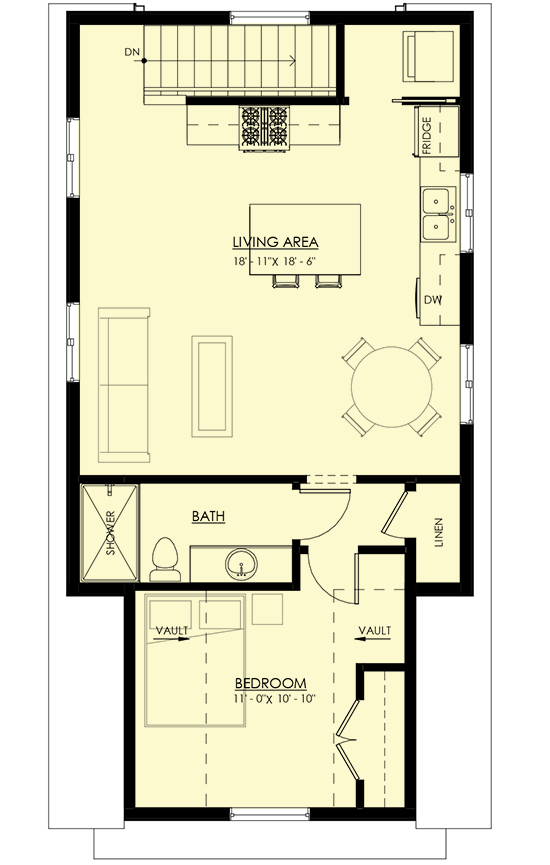

Optional Second Floor (699 Square Feet)

Plan 270033AF: Detached Garage with ADU Potential or Storage - 800 Sq Ft Garage and 699 Sq Ft Storage - Floor Plan - Optional Second Floor (699 Square Feet) - Cape Cod, Carriage, Country

Plan Details

This detached garage is the perfect addition to any home or lot, and features a gable roof, metal roof accents, and shake siding.
The ground level consists of a double garage with a storage room tucked beneath the stairway towards the rear.
Two layout options are included for Utilize the upstairs for storage, or convert the space into a 1-bedroom apartment.
The 1-bedroom ADU layout design includes an open living, dining, and kitchen area, along with a nearby laundry closet. The bedroom faces forward, and neighbors the full bath.

What's Included

Foundation Plan
Floor Plan(s) with Door and Window Opening Sizes
Roof Plan showing pitches, valleys, ridges
Exterior Elevations
Building Section
Typical Construction Details/Sections

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Framing - layouts with beam sizes and locations
Electrical plan
Plumbing Details
Mechanical Drawings (location of heating and air equipment and duct work)
Energy calculations - handled locally when required
Renderings, photography, or marketing imagery

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

699 sq. ft.

2nd Floor

699 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

40' 0"

Max Ridge Height

23' 9"

Garage

Type

Detached

Area

800 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

699 sq. ft.

2nd Floor

699 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

40' 0"

Max Ridge Height

23' 9"

Garage

Type

Detached

Area

800 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Canadian House Plans
