Dramatic Windows for the Sloping Lot
Heated S.F.
2,344
Beds
3
Baths
2.5
Stories
1
Cars
1
Plan Details
  • Designed to capture the views on your sloping lot, two story windows lie on each side of the massive stone fireplace. Double doors allow easy entry to the spacious deck.
  • The family chef gets to enjoy the views from the kitchen that is totally open to the 18'8" high living and dining rooms.
  • The master bedroom is on the main level and enjoys the views and privacy.
  • A finished lower level features two bedrooms plus a large family (outdoor access) and a home office.
  • An optional one car garage can be added if desired.
  • Related Plans: Get an alternate version with house plan 90332PD and eliminate the lower level with house plan 90074PD.
What's Included
Please note this plan is designed to the National Building Code of Canada.

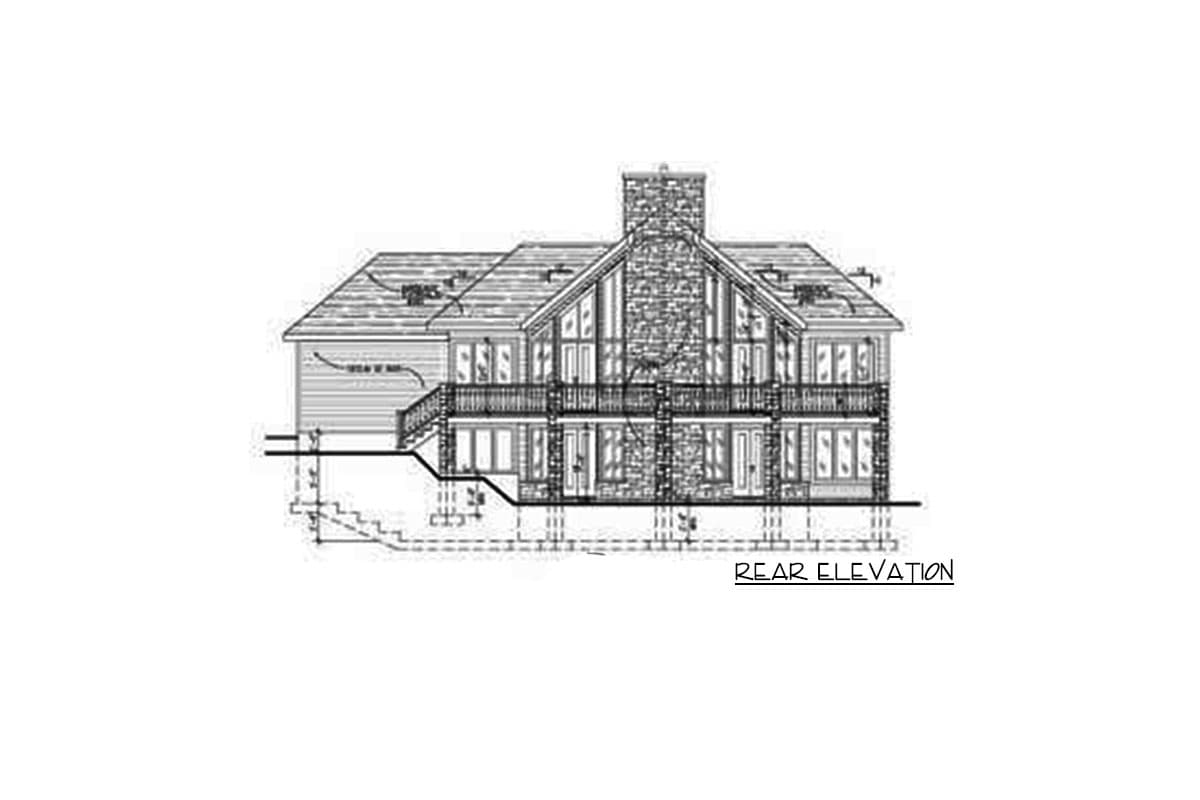

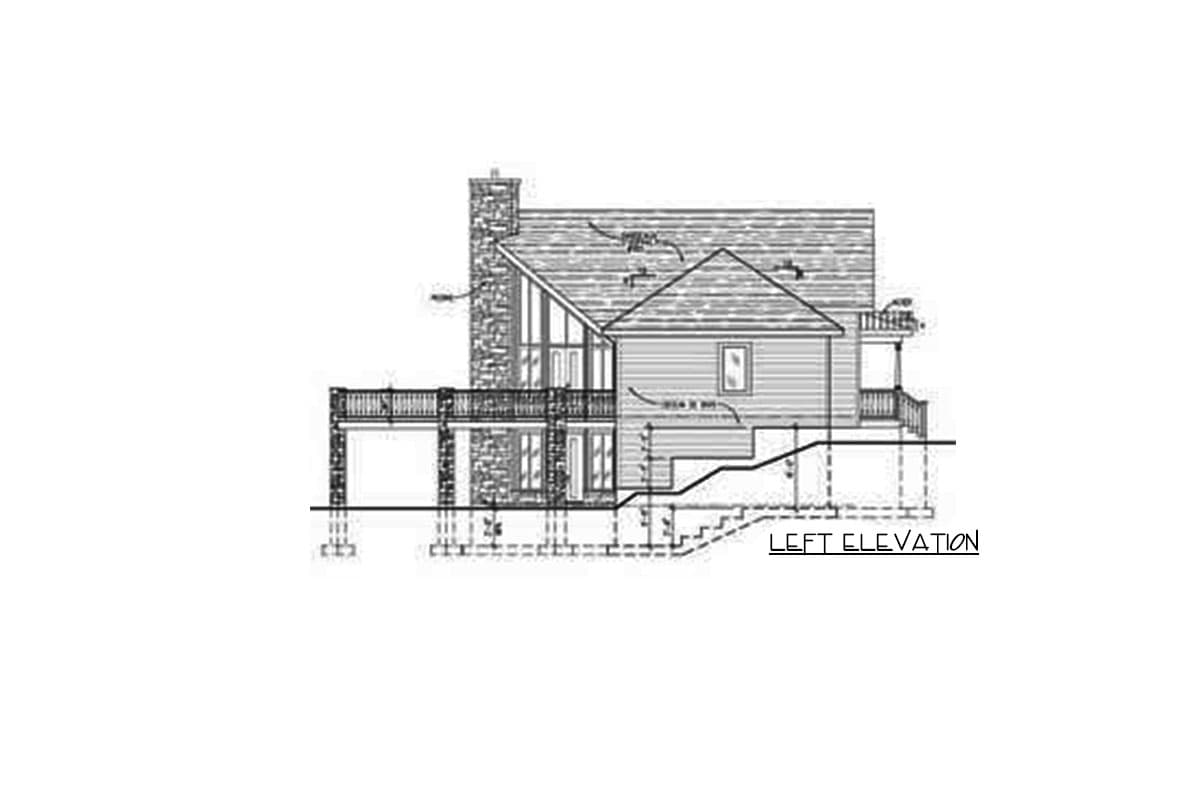

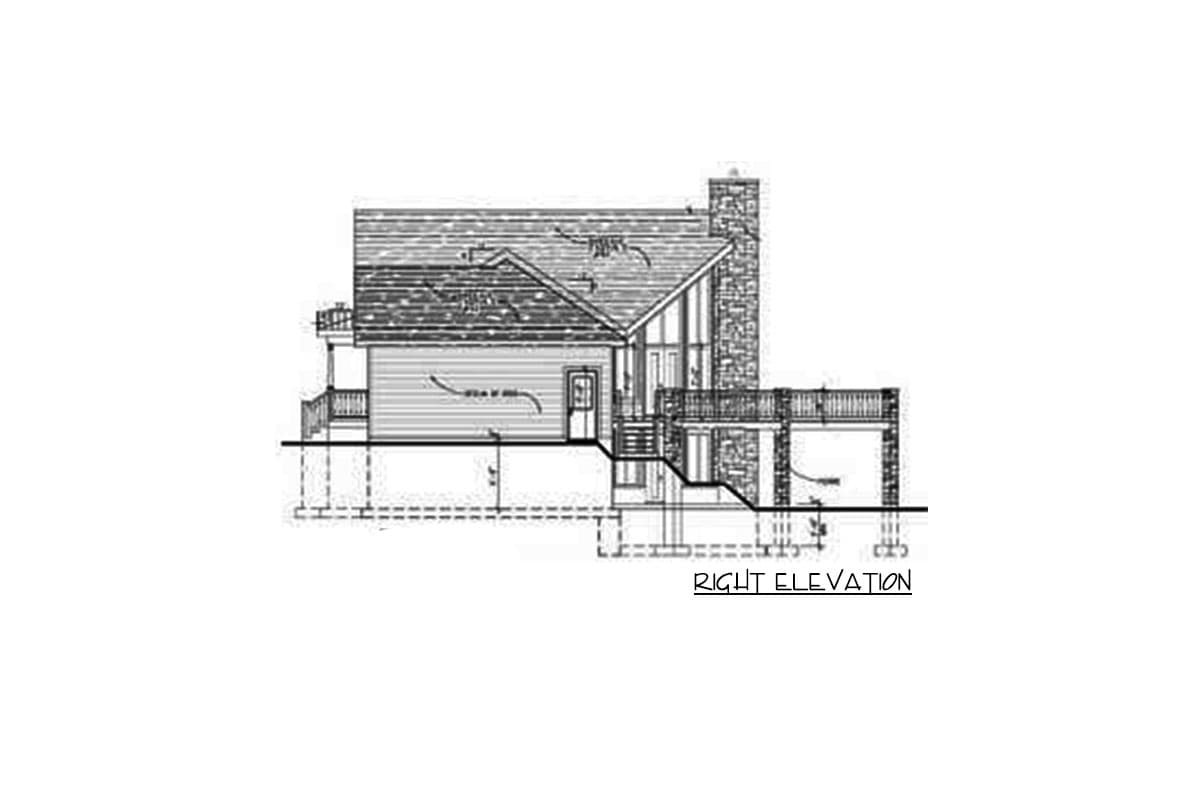

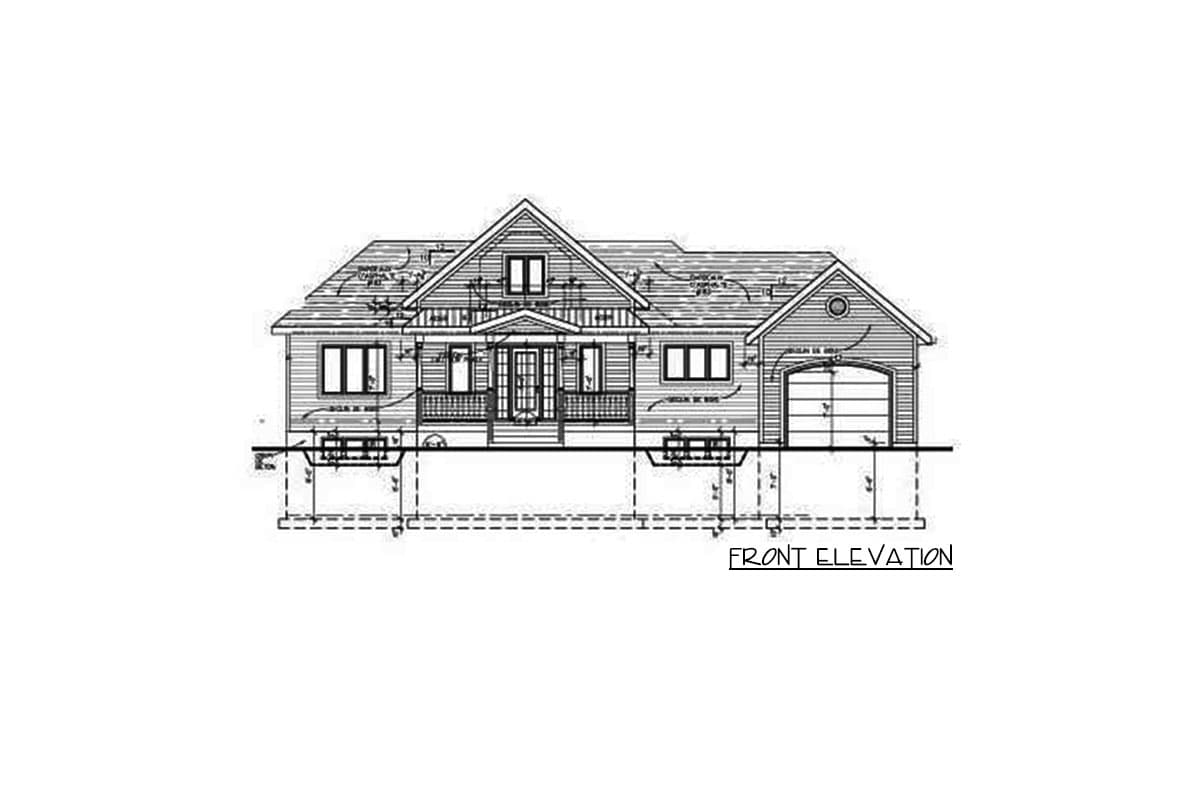

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Dramatic Windows for the Sloping Lot

  • 2,344

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 1

    Car garage

Floor Plan

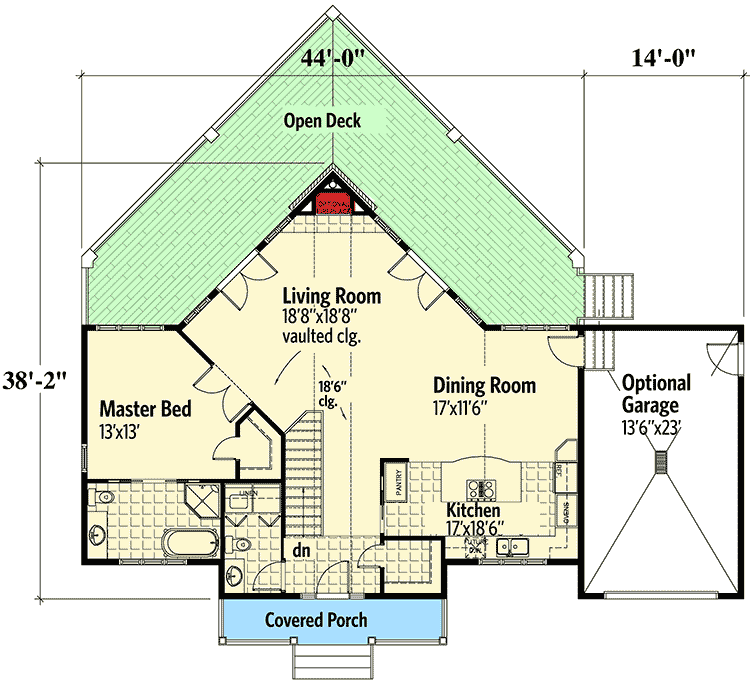

  • Main Level

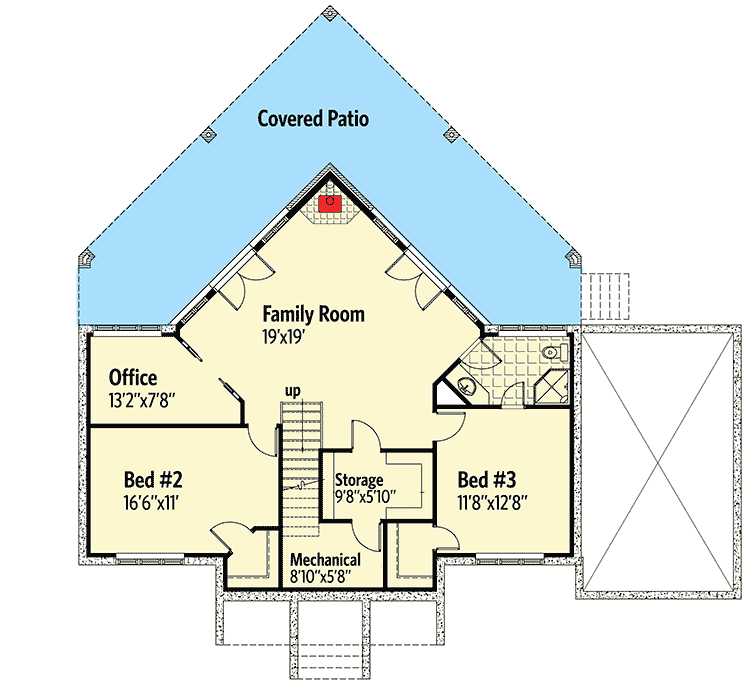

  • Lower Level
