Plan 801171PM

Duplex House Plan with 3 Bed Units with 1 Car Drive Under Garage - 2112 Sq Ft Each

Heated S.F.
4,224
Units
2
Width
Depth

Floor Plan

Plan 801171PM

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 801171PM

M-F 9am-5pm EST |

1-203-761-8500

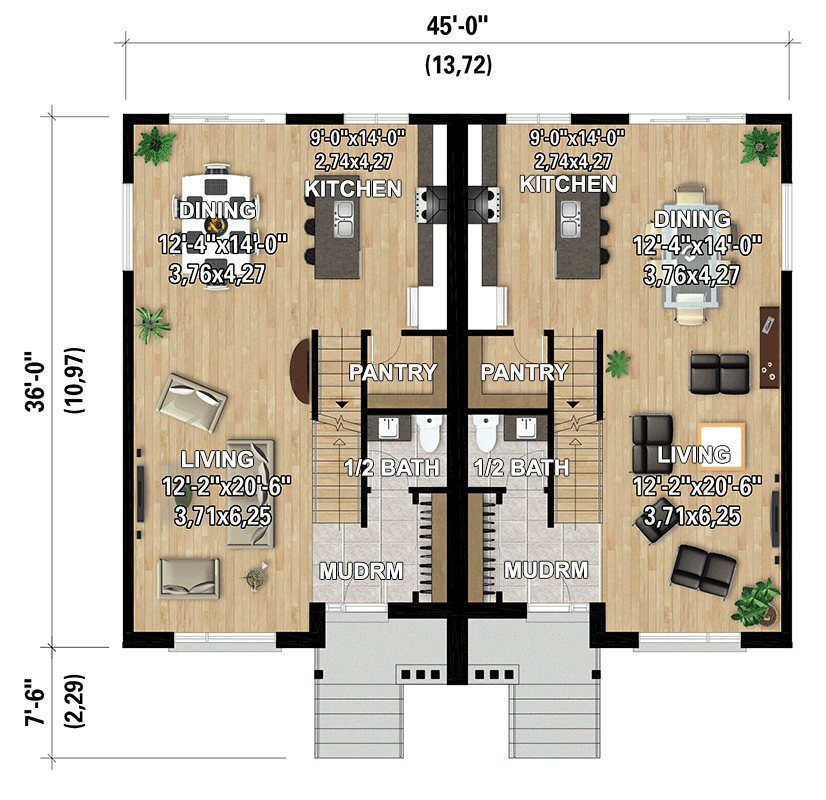

Main Level

Plan 801171PM: Duplex House Plan with 3 Bed Units with 1 Car Drive Under Garage - 2112 Sq Ft Each - Floor Plan - Main Level - Contemporary, Modern, Transitional

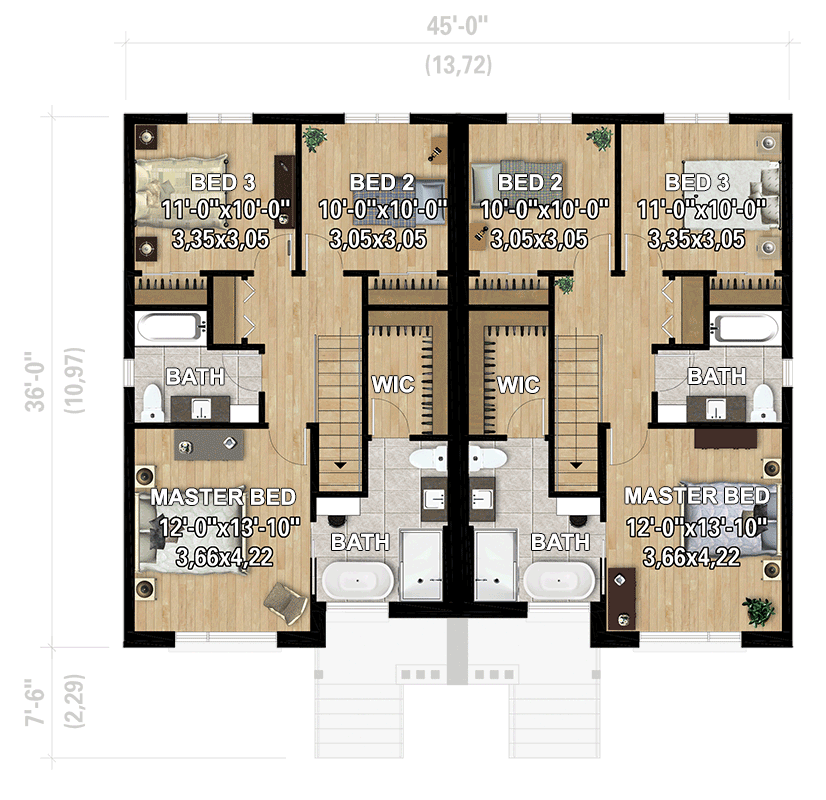

2nd Floor

Plan 801171PM: Duplex House Plan with 3 Bed Units with 1 Car Drive Under Garage - 2112 Sq Ft Each - Floor Plan - 2nd Floor - Contemporary, Modern, Transitional

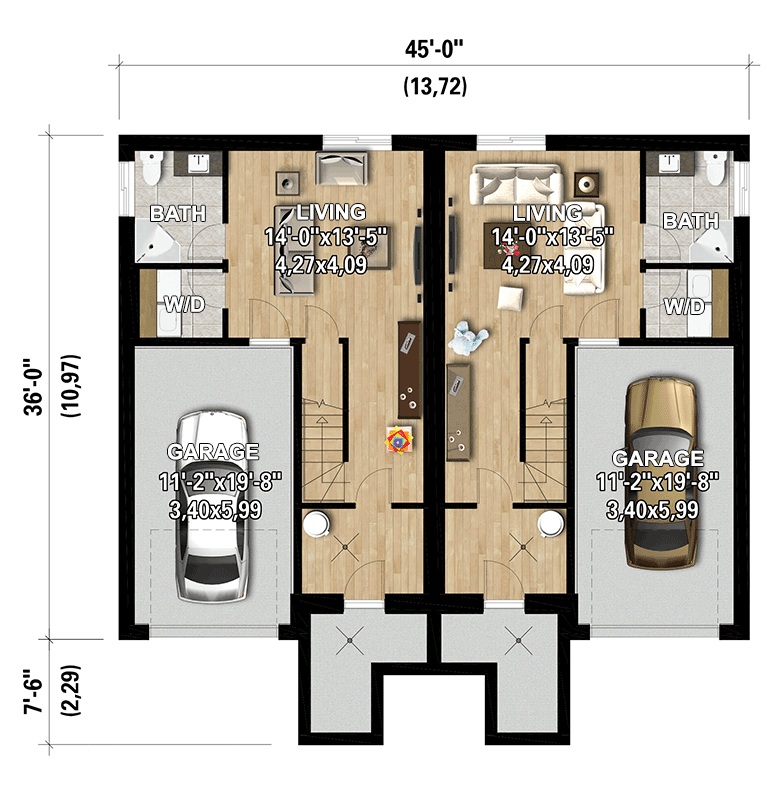

Lower Level

Plan 801171PM: Duplex House Plan with 3 Bed Units with 1 Car Drive Under Garage - 2112 Sq Ft Each - Floor Plan - Lower Level - Contemporary, Modern, Transitional

Plan Details

  • This duplex house plan gives you side-by-side 3 bed, 2.5 units with 2,112 square feet of heated living and a 1-car drive under 265 square foot garage.
  • Each unit has its own private entrance and the surface area as well as the layout of both are identical. The basement has a family room, a laundry corner and a washroom with a shower. The ground floor is all open-concept and has the entrance with a closet, a washroom, a living room, a dining room and a kitchen with an island and a walk-in pantry.
  • The three bedrooms are on the second floor. The master bedroom has a private bathroom and a walk-in closet. The other two bedrooms share the other bathroom.
  • NOTE: Please allow 15 to 20 business days for completion.
Unit A
Heated Area
2,112Sq. Ft.
528 Sq. Ft. LL
792 Sq. Ft. 1st
792 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
265 Sq. Ft.
Dimensions
22' 6"width
36'depth
33' 4"height
Unfinished Areas
265 Sq. Ft. Garage
Unit B
Heated Area
2,112Sq. Ft.
528 Sq. Ft. LL
1584 Sq. Ft. 1st
792 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
265 Sq. Ft.
Dimensions
22' 6"width
36'depth
33' 4"height
Unfinished Areas
265 Sq. Ft. Garage

What's Included

Please note this plan is designed to the National Building Code of Canada.

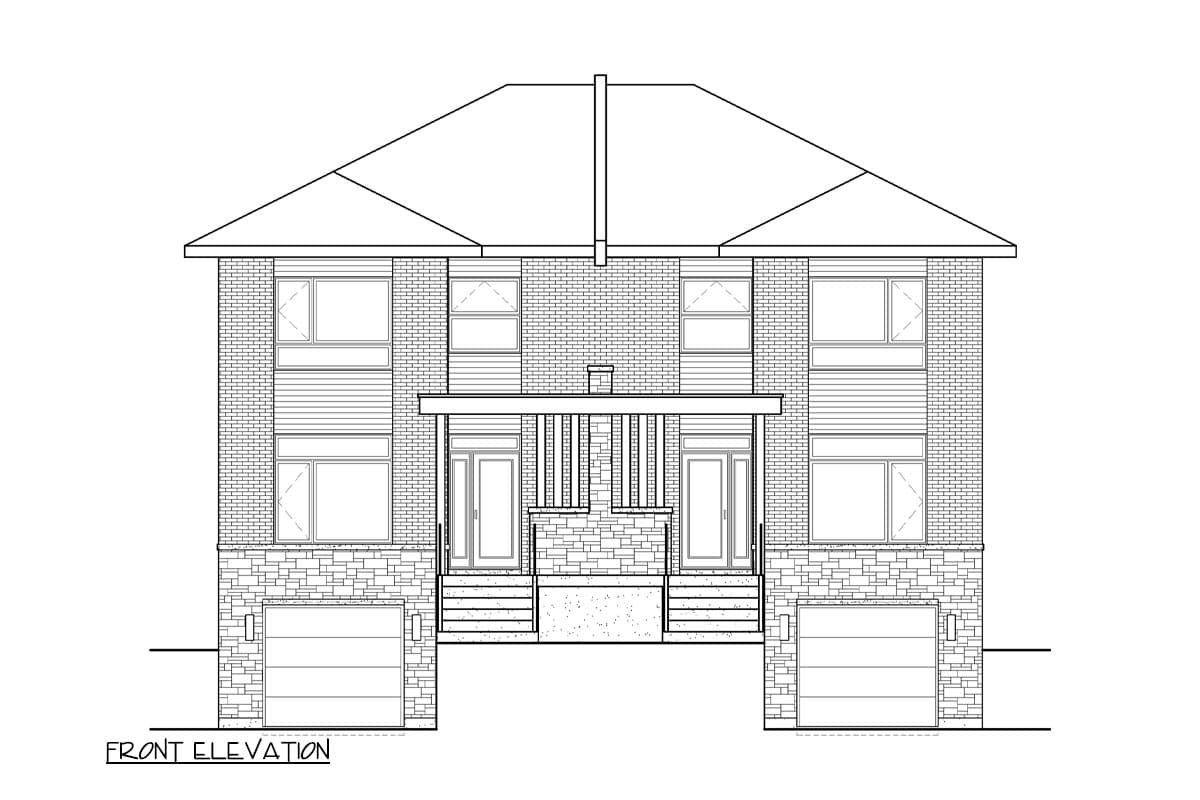

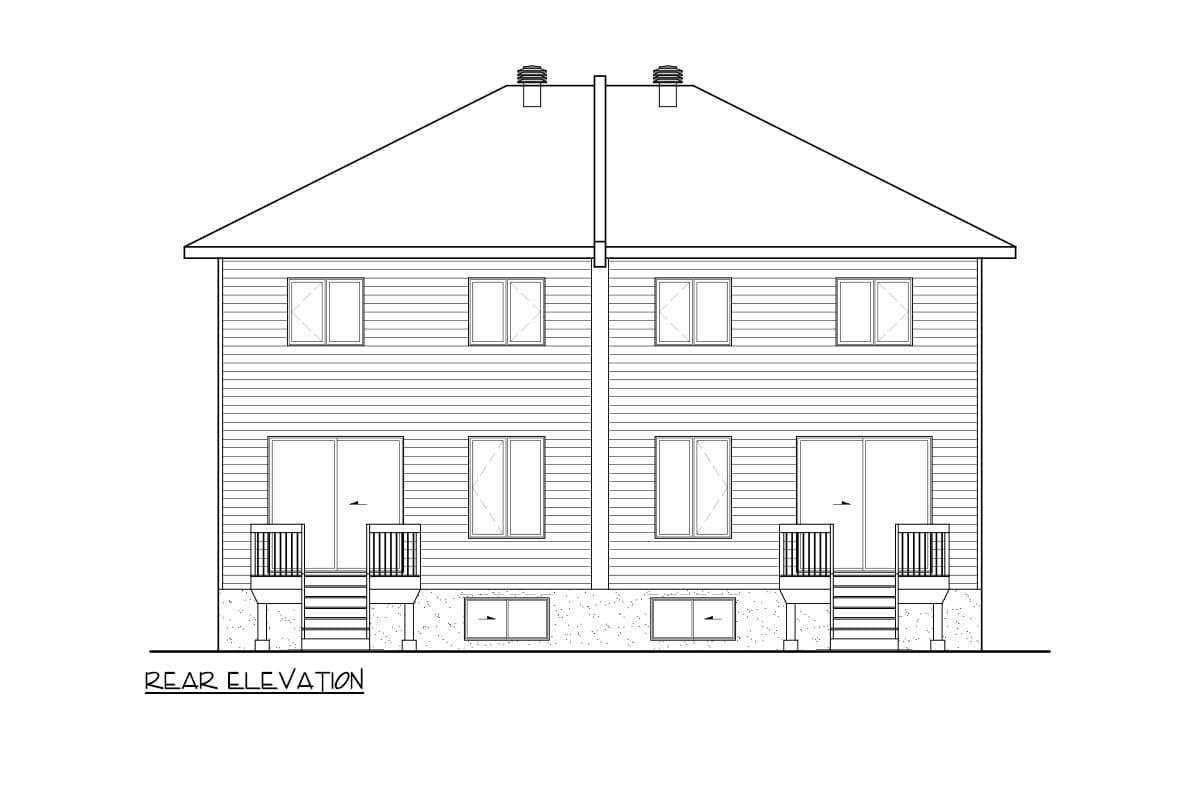

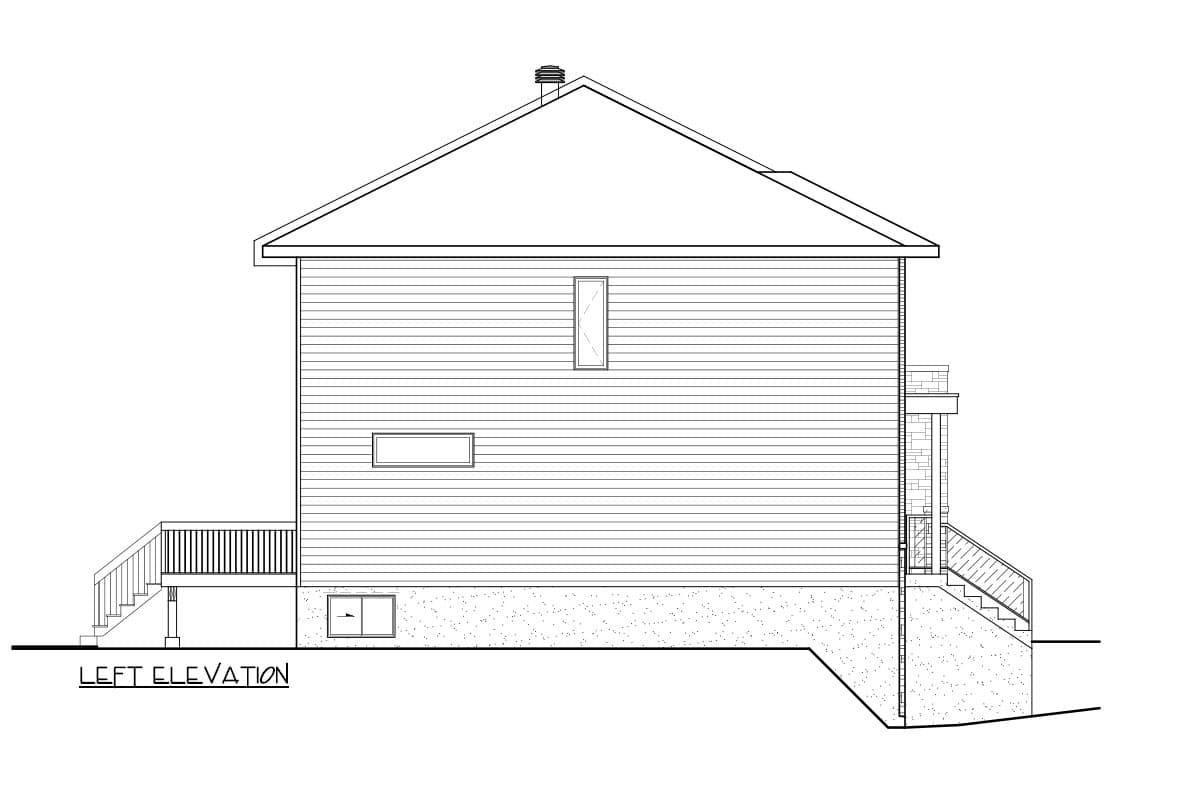

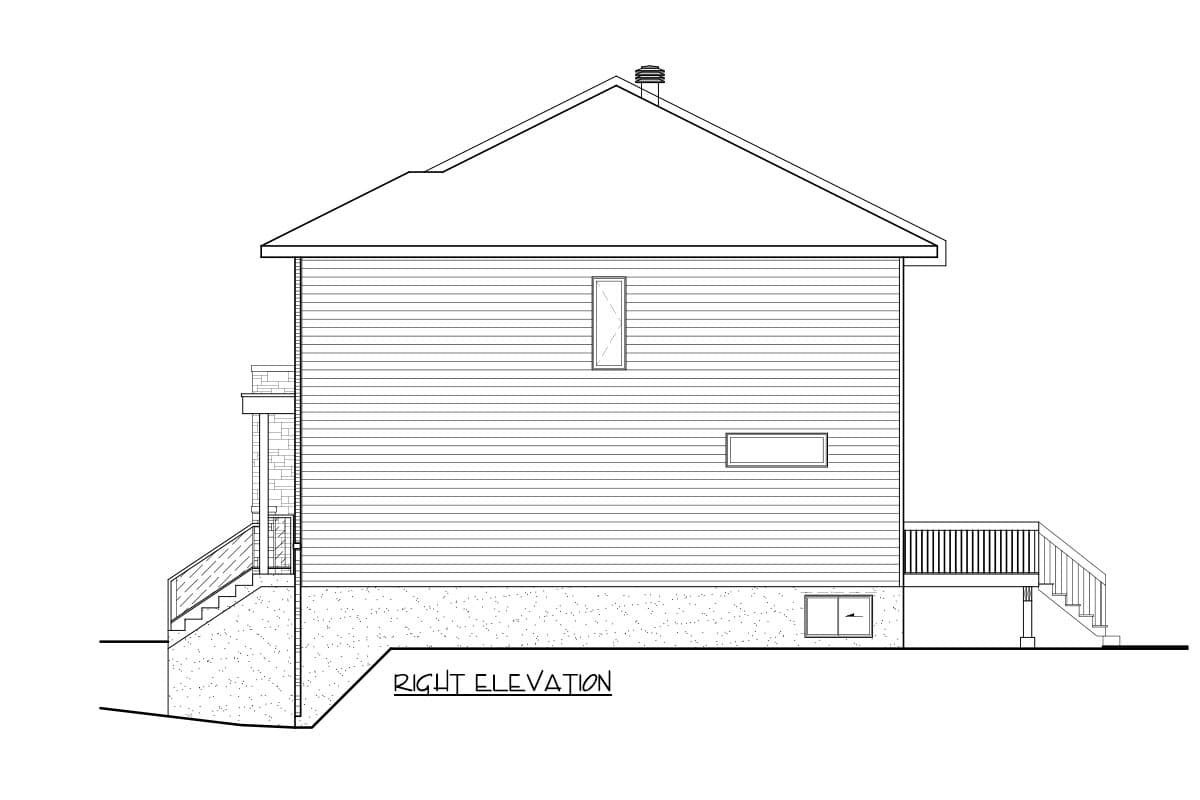

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,224 sq. ft.

Lower Level

1,056 sq. ft.

1st Floor

1,584 sq. ft.

2nd Floor

1,584 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

36' 0"

Max Ridge Height

33' 4"

Garage

Type

Attached

Area

530 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Contemporary

Modern

Transitional

Special Features

Butler Walk-in Pantry

Laundry - Lower Level

Master Suite - Upstairs

Mudroom

Plan Collections

Canadian House Plans

Sloping Lot

Square Footage Breakdown

Total Heated Area

4,224 sq. ft.

Lower Level

1,056 sq. ft.

1st Floor

1,584 sq. ft.

2nd Floor

1,584 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

36' 0"

Max Ridge Height

33' 4"

Garage

Type

Attached

Area

530 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Contemporary

Modern

Transitional

Special Features

Butler Walk-in Pantry

Laundry - Lower Level

Master Suite - Upstairs

Mudroom

Plan Collections

Canadian House Plans

Sloping Lot
