Dynamic Contemporary House Plan

Plan 80782PM

This plan plants 3 trees

1,755
Heated s.f.
2
Beds
1.5
Baths
2
Stories
1
Cars

A stylish exterior and horizontal windows give this Contemporary house plan its dynamic appeal.
The wide entry foyer opens up to wonderful views of the open layout.

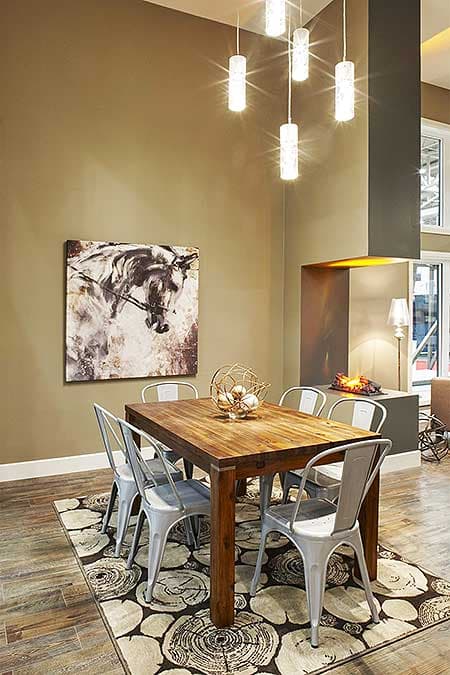

A three-sided fireplace warms both the living room and formal dining room.
Sliding glass doors off the kitchen and dining room take you out to a covered porch.

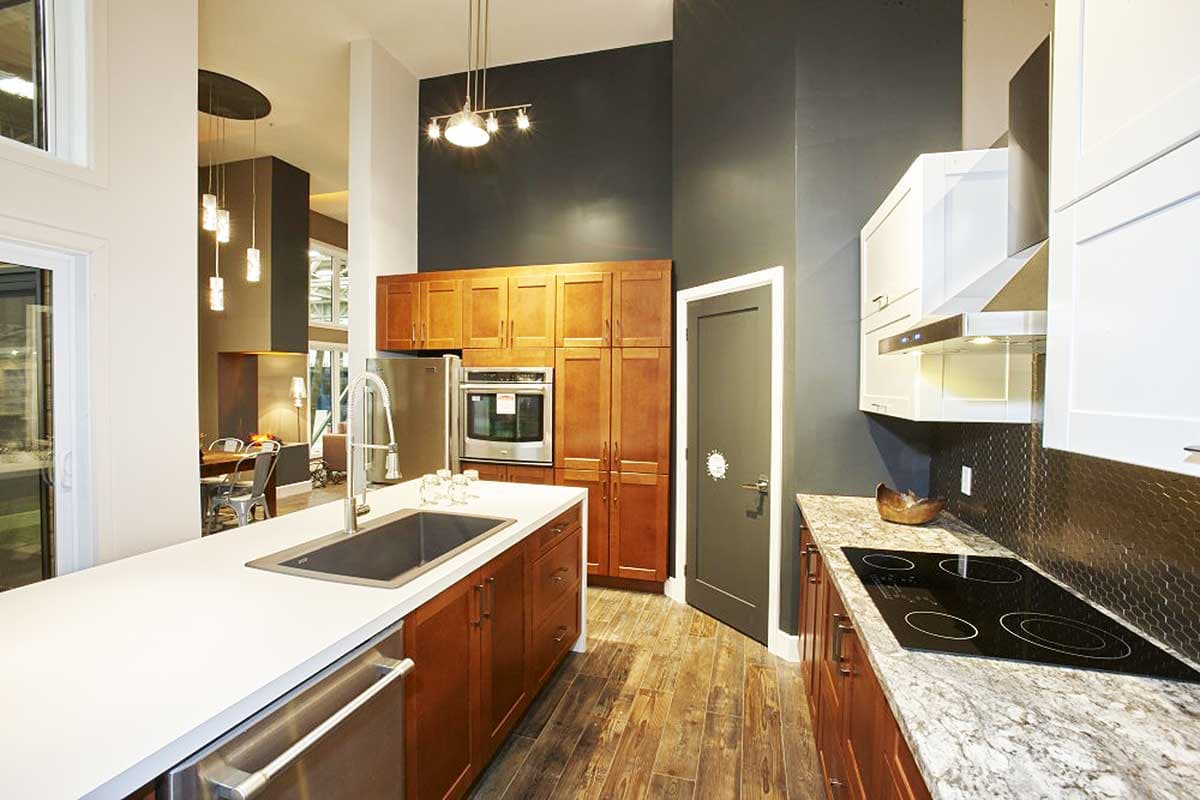

The kitchen is open to the family room, making both rooms feel larger.
Both bedrooms upstairs share a large bathroom with a trough-style sink.
The master suite gets a private deck too.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

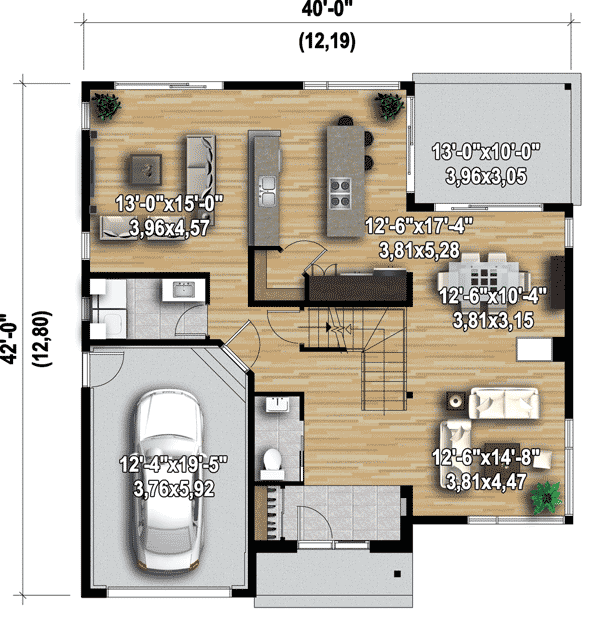

Dynamic Contemporary House Plan - 80782PM floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

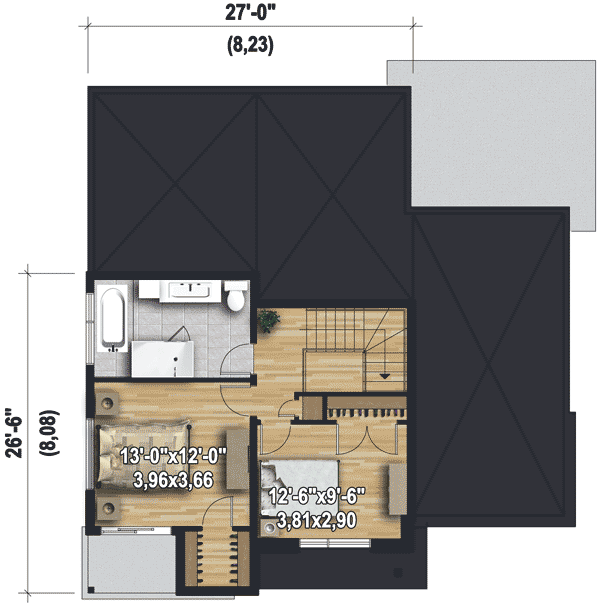

Dynamic Contemporary House Plan - 80782PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,755 sq. ft.
1st Floor: 1,152 sq. ft.
2nd Floor: 603 sq. ft.

Porch, Rear: 130 sq. ft.

Beds/Baths

Bedrooms: 2

Full bathrooms: 1
Half bathrooms: 1

Foundation Type

Standard Foundations: Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 40' 0"
Depth: 42' 0"
Max ridge height: 25' 6"

Garage

Type: Attached
Area: 276 sq. ft.
Count: 1 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 8' 0"

Roof Details

Framing Type: Truss

Architectural Style

Special features

Plan Collections
