Plan 90272PD Dynamic Contemporary House Plan

1,934 3 2.5 2 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Dynamic Contemporary House Plan

Plan 90272PD

  • 1,934

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • Tall, bold lines and lots of glass harmonize to create a dynamic Contemporary house plan.
  • The entire first floor is all open concept so you have views that flow from room to room.
  • An air lock entry foyer keeps the cold air out of the main living area in the winter.
  • Halfway up the stairs to the second floor, you have a family room over the one car garage.
  • Climb five more steps up to reach the bedroom level where you have two bathrooms to serve all three bedrooms.

Each plan set includes the following:

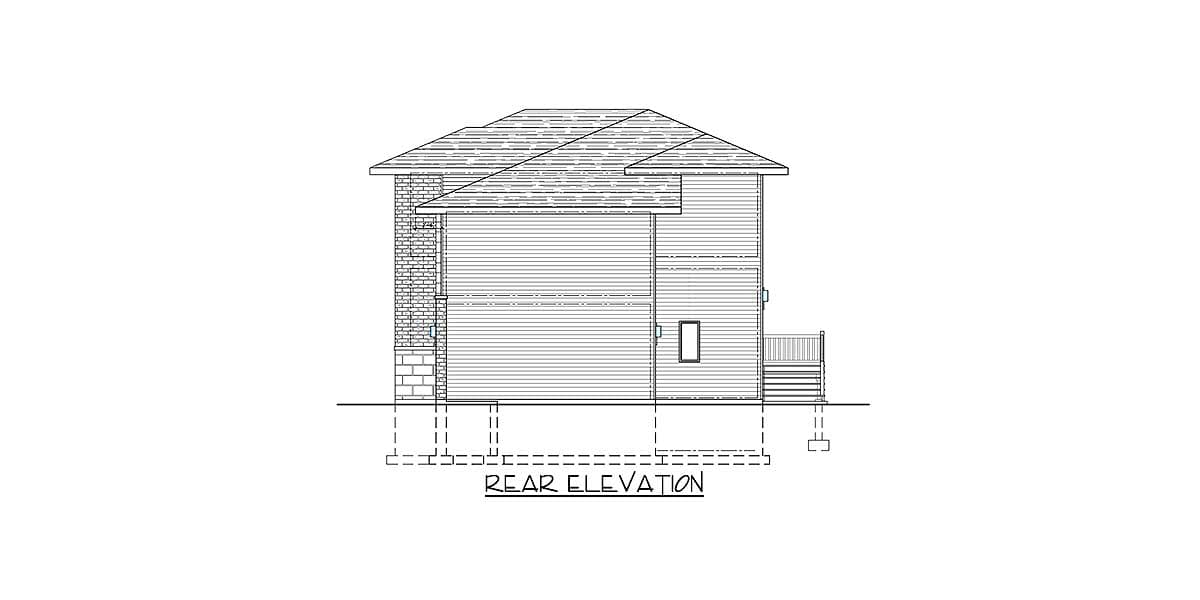

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

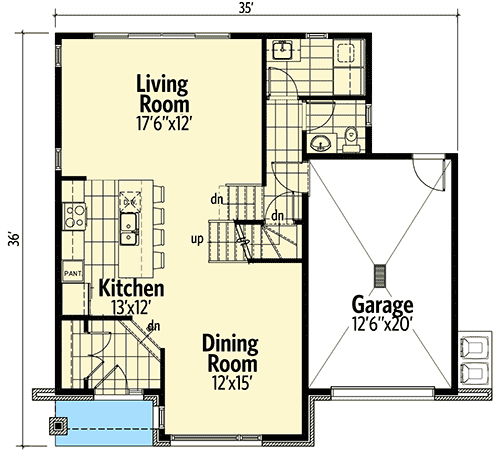

Dynamic Contemporary House Plan - 90272PD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

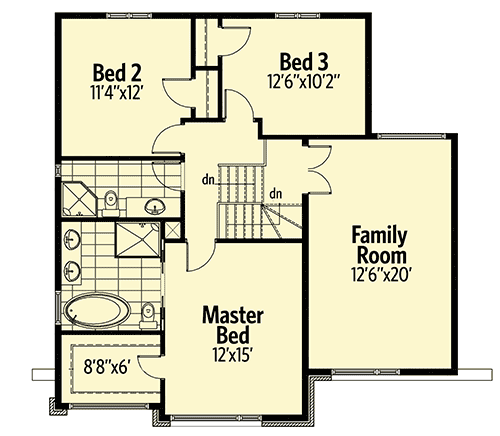

Dynamic Contemporary House Plan - 90272PD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,934 sq. ft.
  • 1st Floor: 821 sq. ft.
  • 2nd Floor: 1,113 sq. ft.
  • Basement Unfinished: 821 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 35' 0"
  • Depth: 36' 0"
  • Max ridge height: 28' 4"

Garage

  • Type: Attached
  • Area: 276 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Dynamic Contemporary House Plan

  • 1,934

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $1,132
  • 8 Sets $1,177
  • PDF - Single-Build $1,531
  • CAD - Single-Build $2,346
  • View all purchase option online

About This Plan

  • Tall, bold lines and lots of glass harmonize to create a dynamic Contemporary house plan.
  • The entire first floor is all open concept so you have views that flow from room to room.
  • An air lock entry foyer keeps the cold air out of the main living area in the winter.
  • Halfway up the stairs to the second floor, you have a family room over the one car garage.
  • Climb five more steps up to reach the bedroom level where you have two bathrooms to serve all three bedrooms.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,934 sq. ft.
  • 1st Floor: 821 sq. ft.
  • 2nd Floor: 1,113 sq. ft.
  • Basement Unfinished: 821 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 35' 0"
  • Depth: 36' 0"
  • Max ridge height: 28' 4"

Garage

  • Type: Attached
  • Area: 276 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
Plan 90272PD
View this and more for this plan by visiting www.architechtecturaldesigns.com/90272PD
|
