Plan 5107MM

Easy to Build House Plan in Many Versions - 1426 Sq Ft

Heated S.F.
1,426
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 5107MM

Main Level
Main Level
Basement Option
Basement Option

Plan 5107MM

M-F 9am-5pm EST |

1-203-761-8500

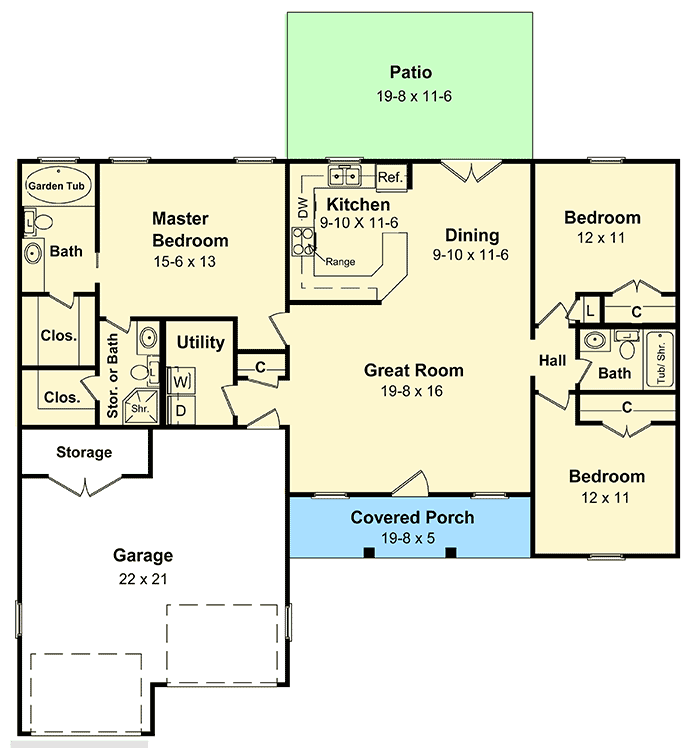

Main Level

Plan 5107MM: Easy to Build House Plan in Many Versions - 1426 Sq Ft - Floor Plan - Main Level - Country

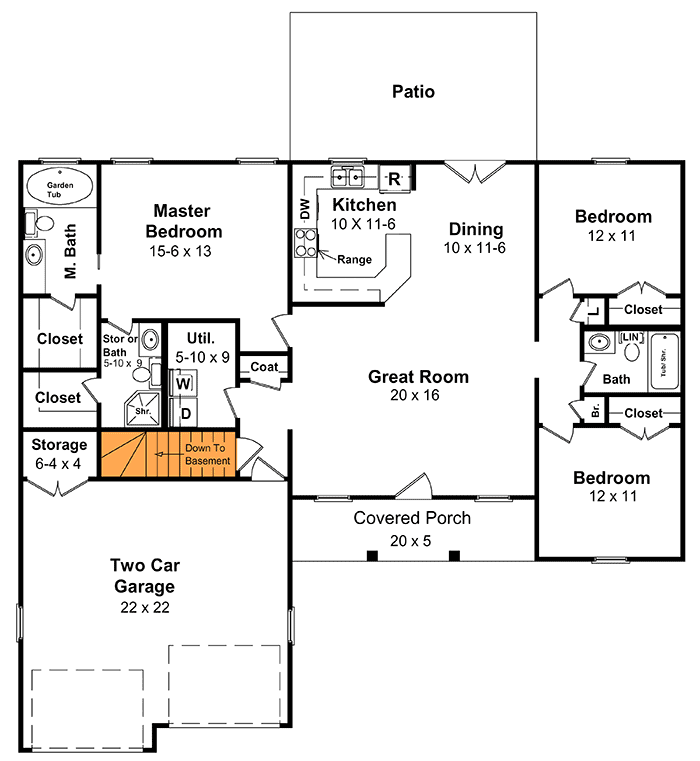

Basement Option

Plan 5107MM: Easy to Build House Plan in Many Versions - 1426 Sq Ft - Floor Plan - Basement Option - Country

Plan Details

  • This traditional ranch house plan is an economical choice and is easy-to-build.
  • Boasting an open floor plan with a split bedroom layout, the home makes good use of space.
  • Choose between a one or two bathroom option in the master suite. One bath includes large garden tub with large walk-in closet, and the other bath is equipped with a shower and a walk-in closet.
  • A covered porch and patio provide spaces for outdoor relaxation.
  • This house plan can be easily upgraded to a basement foundation.
  • Related Plans: Get an alternate siding exterior with house plans 51115MM (1,200 sq. ft.), 5104MM, 5108MM. Get brick exteriors with house plans 5105MM and 5106MM. Get a combination brick-and-siding exterior with house plan 5146MM.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

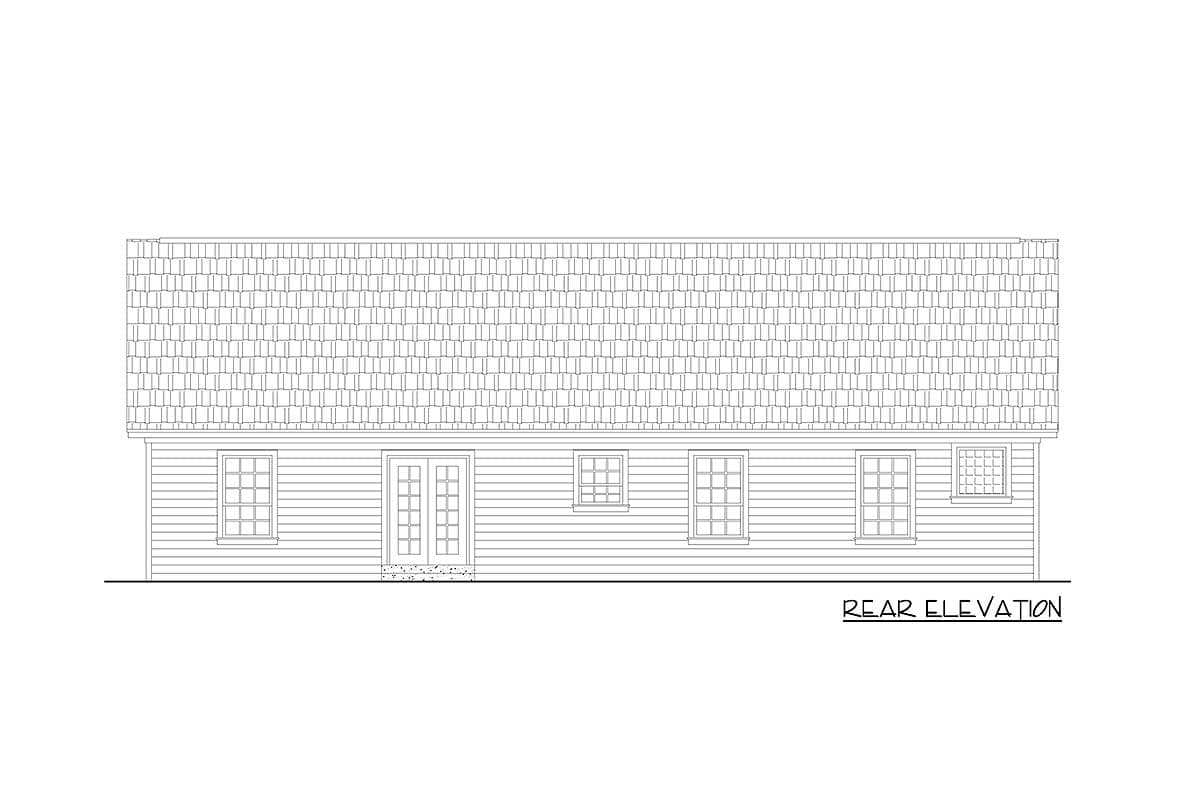

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,426 sq. ft.

1st Floor

1,426 sq. ft.

Porch, Front

98 sq. ft.

Storage

45 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

47' 0"

Max Ridge Height

18' 0"

Garage

Type

Attached

Area

463 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

USDA Approved

Square Footage Breakdown

Total Heated Area

1,426 sq. ft.

1st Floor

1,426 sq. ft.

Porch, Front

98 sq. ft.

Storage

45 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

47' 0"

Max Ridge Height

18' 0"

Garage

Type

Attached

Area

463 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

USDA Approved
