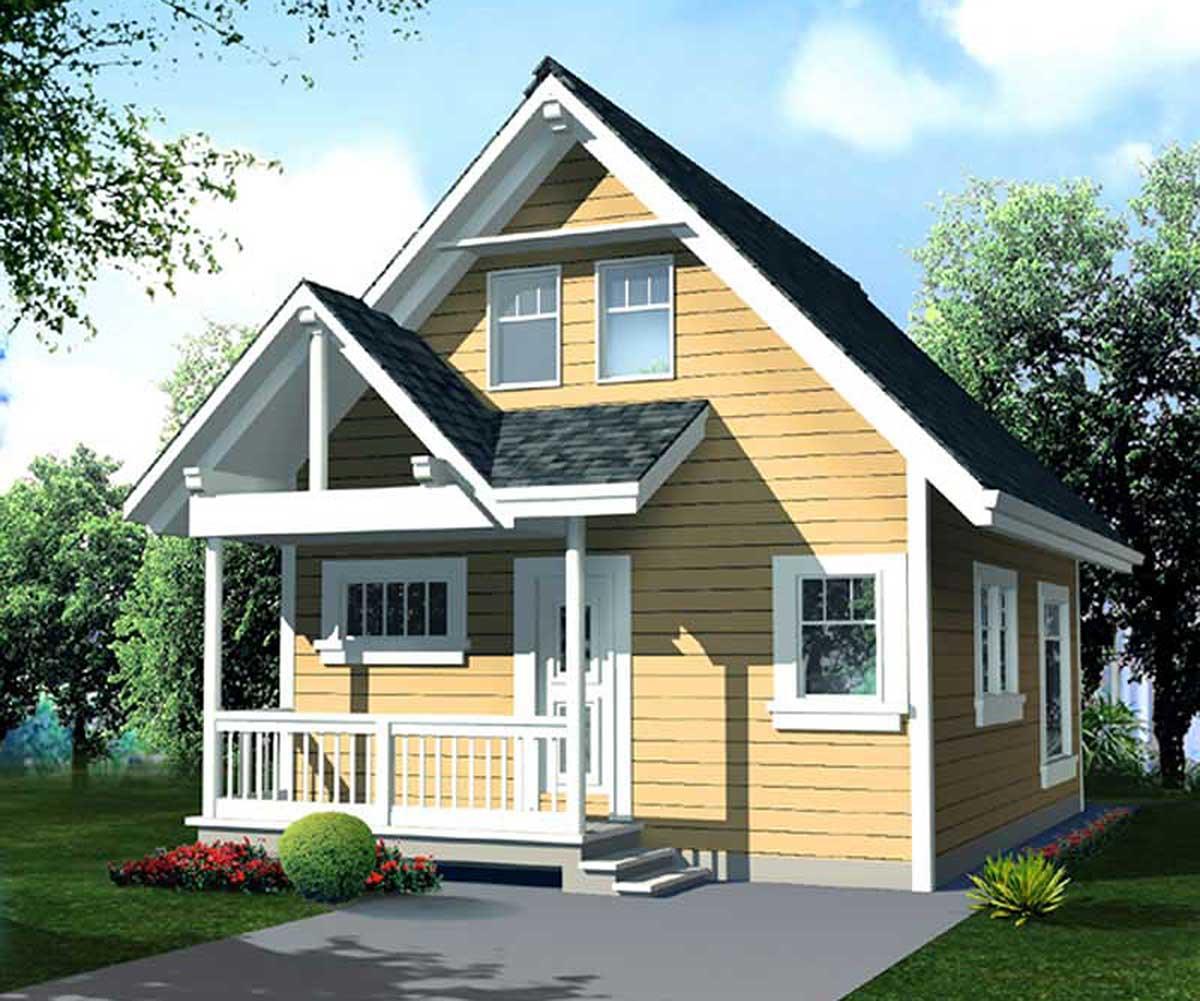

Plan 9806SW

Economical Cottage Design

Heated S.F.
796
Beds
1
Baths
1
Stories
2

Floor Plan

Plan 9806SW

Main Level
Main Level
2nd Floor
2nd Floor

Plan 9806SW

M-F 9am-5pm EST |

1-203-761-8500

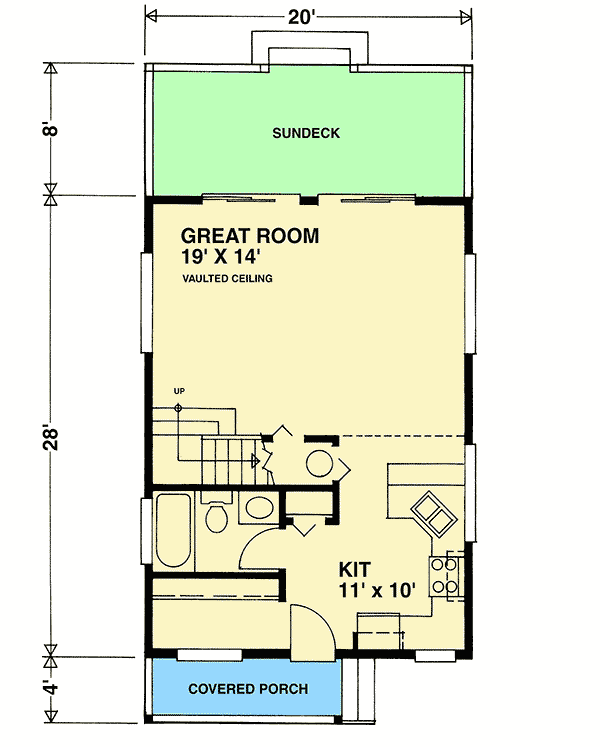

Main Level

Plan 9806SW: Economical Cottage Design - Floor Plan - Main Level - Cottage, Country, Vacation

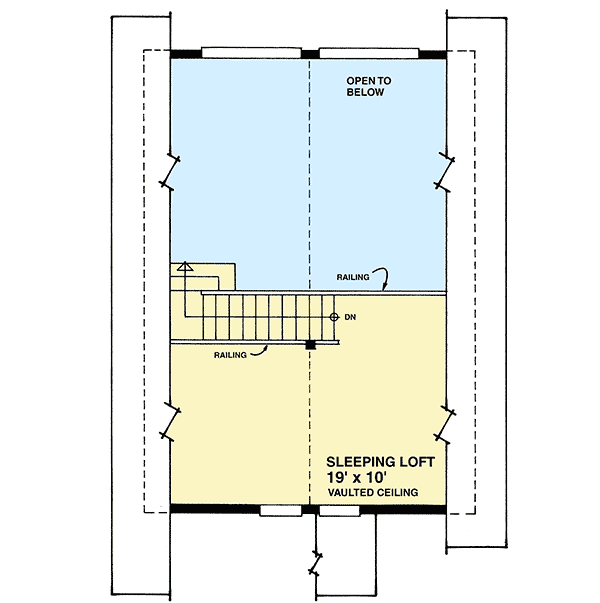

2nd Floor

Plan 9806SW: Economical Cottage Design - Floor Plan - 2nd Floor - Cottage, Country, Vacation

Plan Details

  • This economical cottage design is ideally suited for a compact or narrow building site.
  • The versatile two-story great room features a window wall enhancing the rear views.
  • The second level sleeping loft could easily be partitioned if additional privacy is needed.
  • The covered front entry is protected from the elements and adds to the curb appeal.

What's Included

  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required

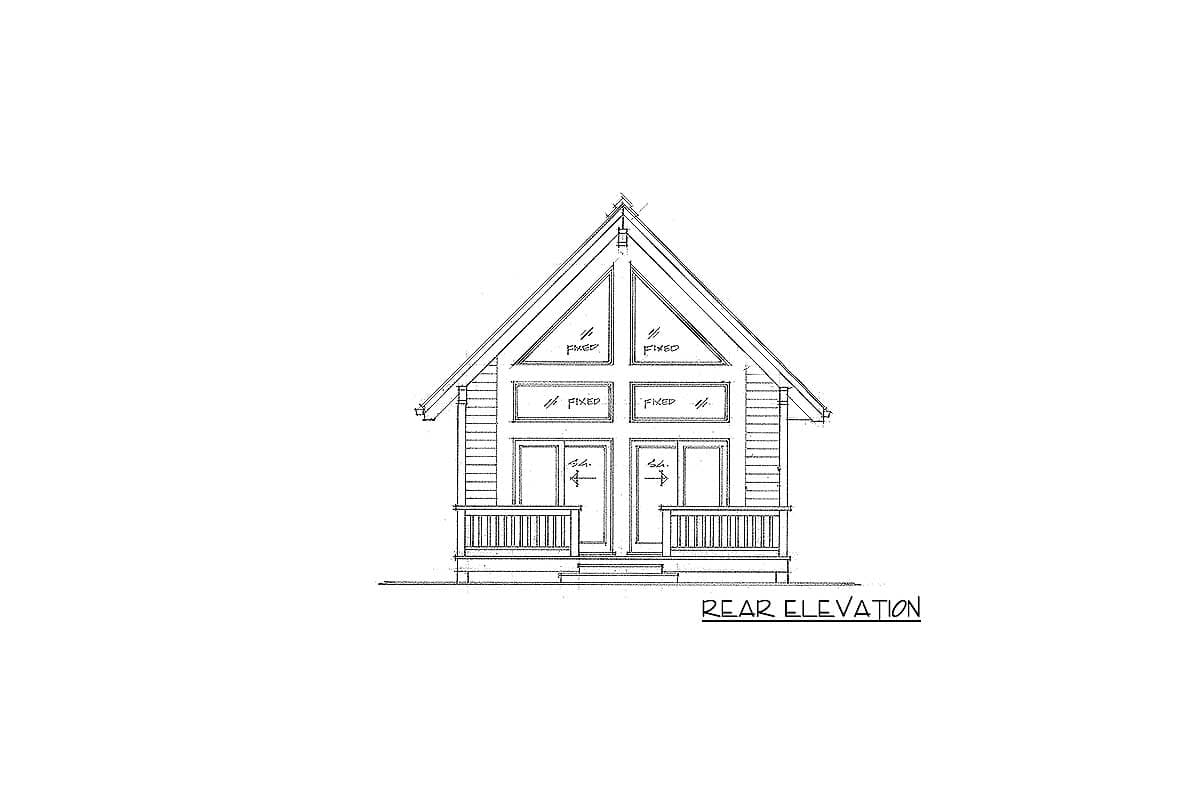

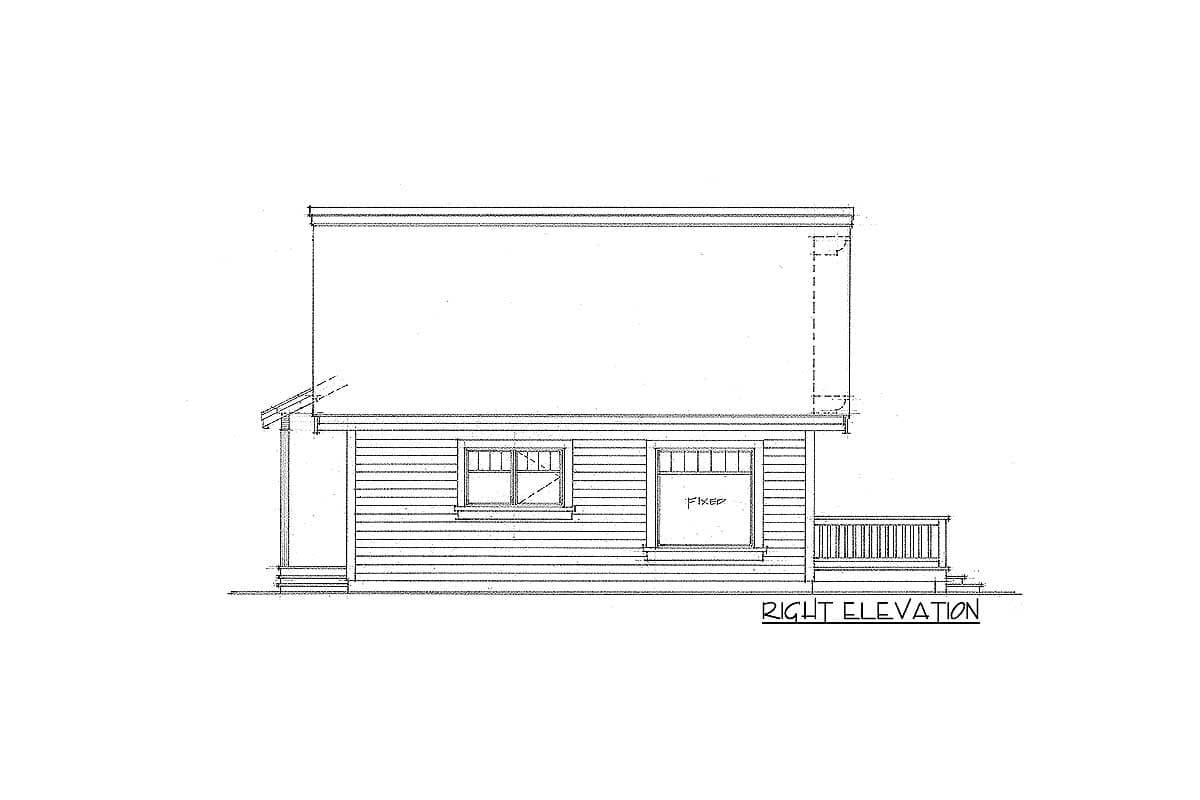

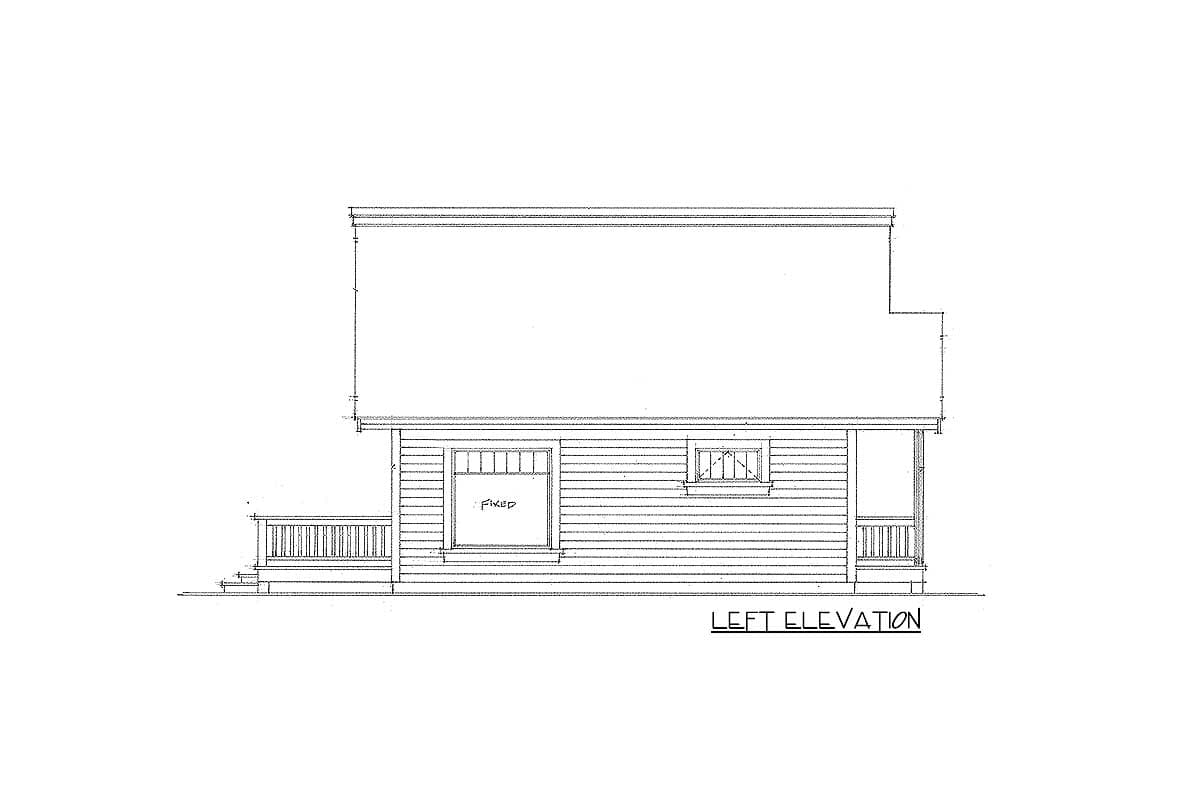

  • Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

796 sq. ft.

1st Floor

560 sq. ft.

2nd Floor

236 sq. ft.

Deck

208 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

40' 0"

Max Ridge Height

23' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - Upstairs

Two Story Great Room

Plan Collections

Canadian House Plans

Tiny Home House Plans

Square Footage Breakdown

Total Heated Area

796 sq. ft.

1st Floor

560 sq. ft.

2nd Floor

236 sq. ft.

Deck

208 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

40' 0"

Max Ridge Height

23' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - Upstairs

Two Story Great Room

Plan Collections

Canadian House Plans

Tiny Home House Plans
