Plan 81878AB

Elegant 2-Unit Duplex with 3 or 4 Bedrooms and Optionally Finished Basement

Heated S.F.
2,932
Units
2
Width
Depth

Floor Plan

Plan 81878AB

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 81878AB

M-F 9am-5pm EST |

1-203-761-8500

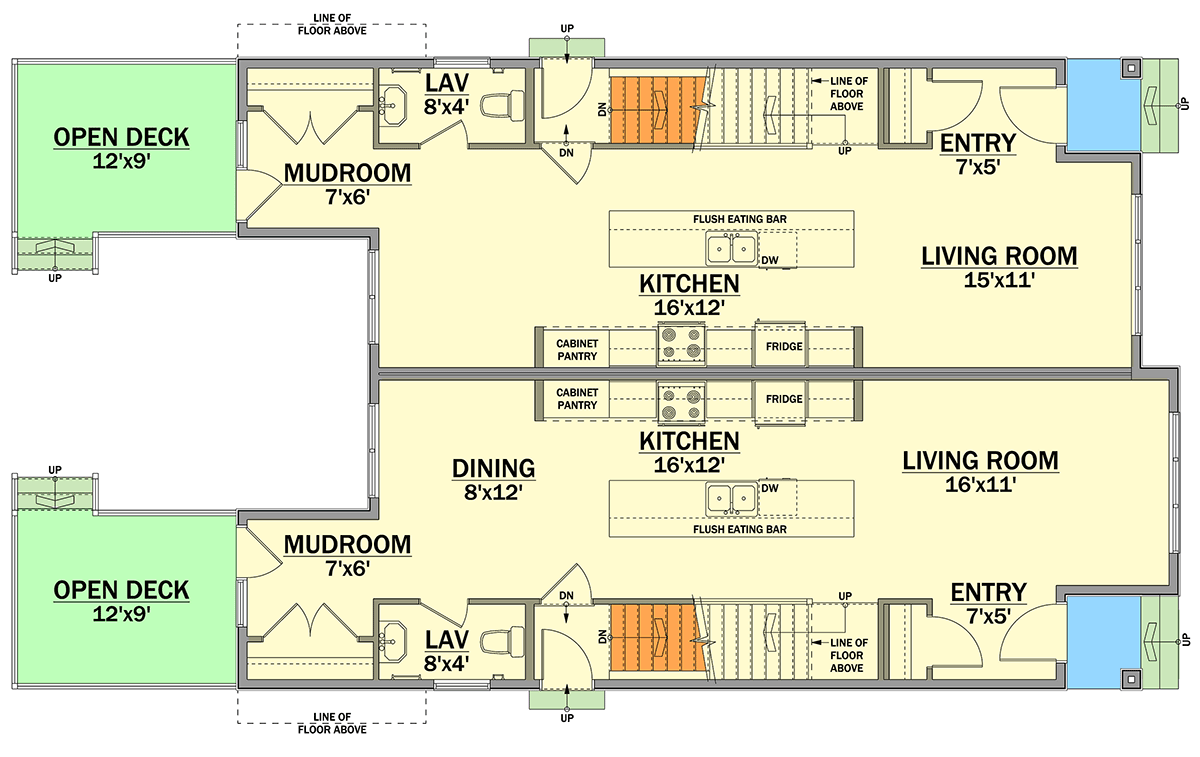

Main Level

Plan 81878AB: Elegant 2-Unit Duplex with 3 or 4 Bedrooms and Optionally Finished Basement - Floor Plan - Main Level - Contemporary, Transitional

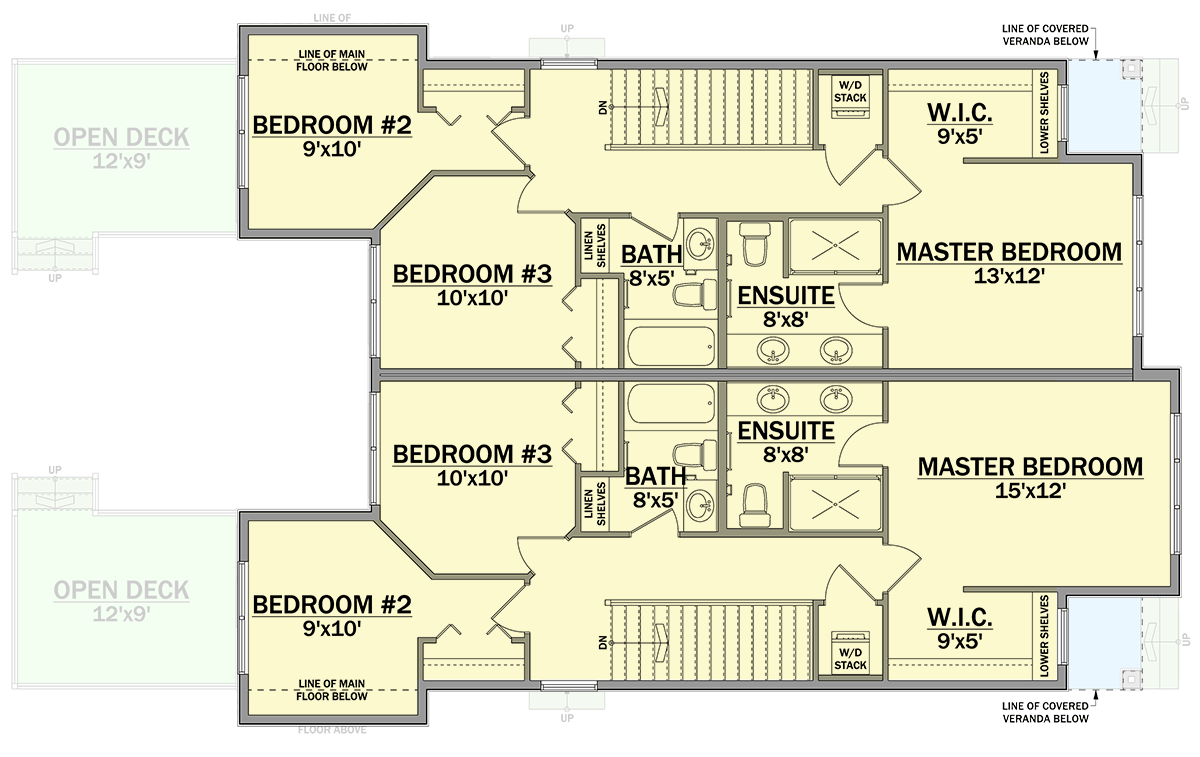

2nd Floor

Plan 81878AB: Elegant 2-Unit Duplex with 3 or 4 Bedrooms and Optionally Finished Basement - Floor Plan - 2nd Floor - Contemporary, Transitional

3rd Floor

Plan 81878AB: Elegant 2-Unit Duplex with 3 or 4 Bedrooms and Optionally Finished Basement - Floor Plan - 3rd Floor - Contemporary, Transitional

Plan Details

  • This 2,900 sq. ft. multi-family duplex design offers 3 or 4 bedrooms, 2 full bathrooms, and 1 half bath across two finished stories.
  • Designed for shared living or investment opportunities, this layout ensures comfort and separation for both units.
  • Each unit features a private entrance leading into a welcoming living area. The thoughtful layout includes spacious great rooms, eat-in kitchens, and ample natural light on both levels.
  • The main level promotes everyday ease with open-concept common areas and centralized stairs that lead to private sleeping quarters above.
  • Upstairs, you'll find the bedrooms including generous primary suites and additional secondary bedrooms — ideal for families, guests, or tenants.
  • The plan includes a optionally finished basement space, perfect for extended living, future recreation areas, or storage.
Unit A
Heated Area
1,490Sq. Ft.
757 Sq. Ft. 1st
733 Sq. Ft. 2nd
Beds
3 or 4Beds
Baths
2 or 3Full Baths
1Half Bath
Dimensions
16'width
50'depth
Unfinished Areas
586 Sq. Ft. Optional Lower Level
Unit B
Heated Area
1,442Sq. Ft.
733 Sq. Ft. 1st
709 Sq. Ft. 2nd
Beds
3 or 4Beds
Baths
2 or 3Full Baths
1Half Bath
Dimensions
16'width
50'depth
Unfinished Areas
506 Sq. Ft. Optional Lower Level

What's Included

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,932 sq. ft.

1st Floor

1,490 sq. ft.

2nd Floor

812 sq. ft.

Optional Lower Level

1,152 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

33' 6"

Depth

50' 0"

Max Ridge Height

23' 7"

Ceiling Heights

Lower Level

8' 9"

First Floor

9' 1"

Second Floor

8' 1"

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Transitional

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Plan Collections
