Plan 23800JD

Elegant 5-Bed Craftsman House Plan for Indoor / Outdoor Lifestyle

Elegant 5-Bed Craftsman House Plan for Indoor / Outdoor Lifestyle

Plan 23800JD

  • 8,190

    Heated s.f.

  • 5

    Beds

  • 6.5

    Baths

  • 3

    Stories

  • 3

    Cars

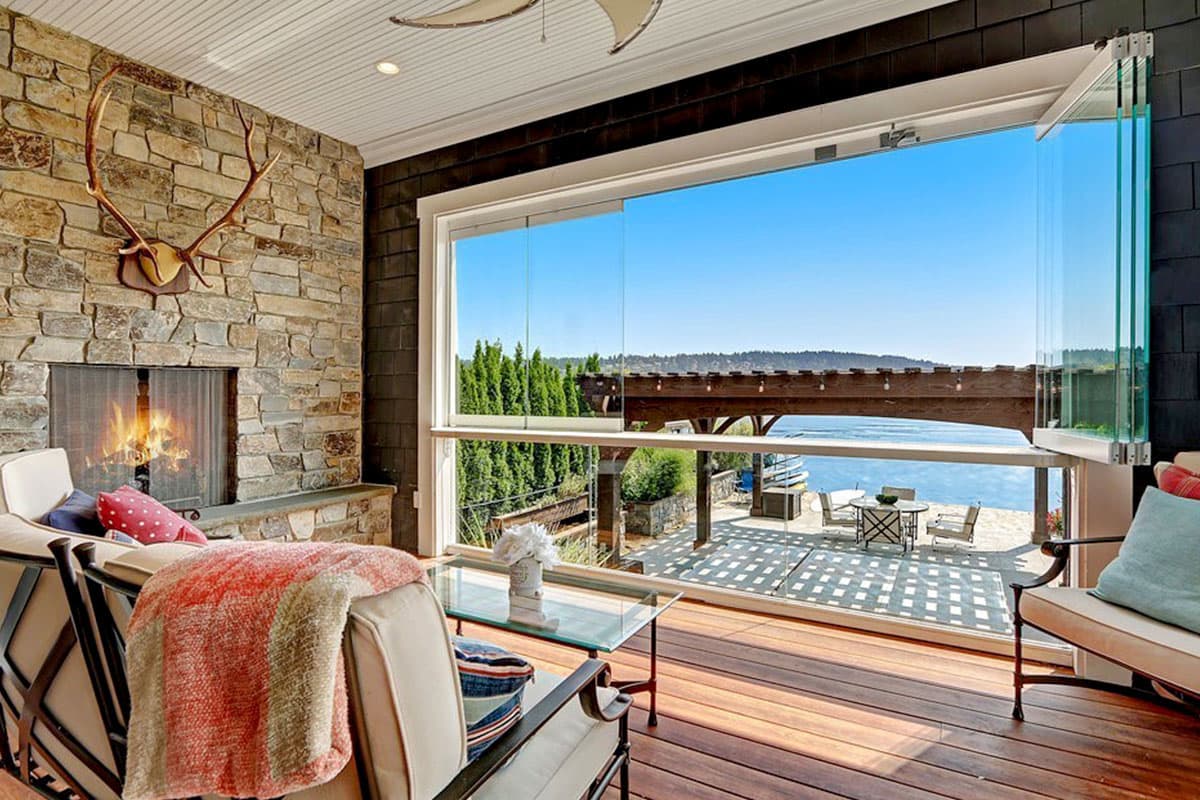

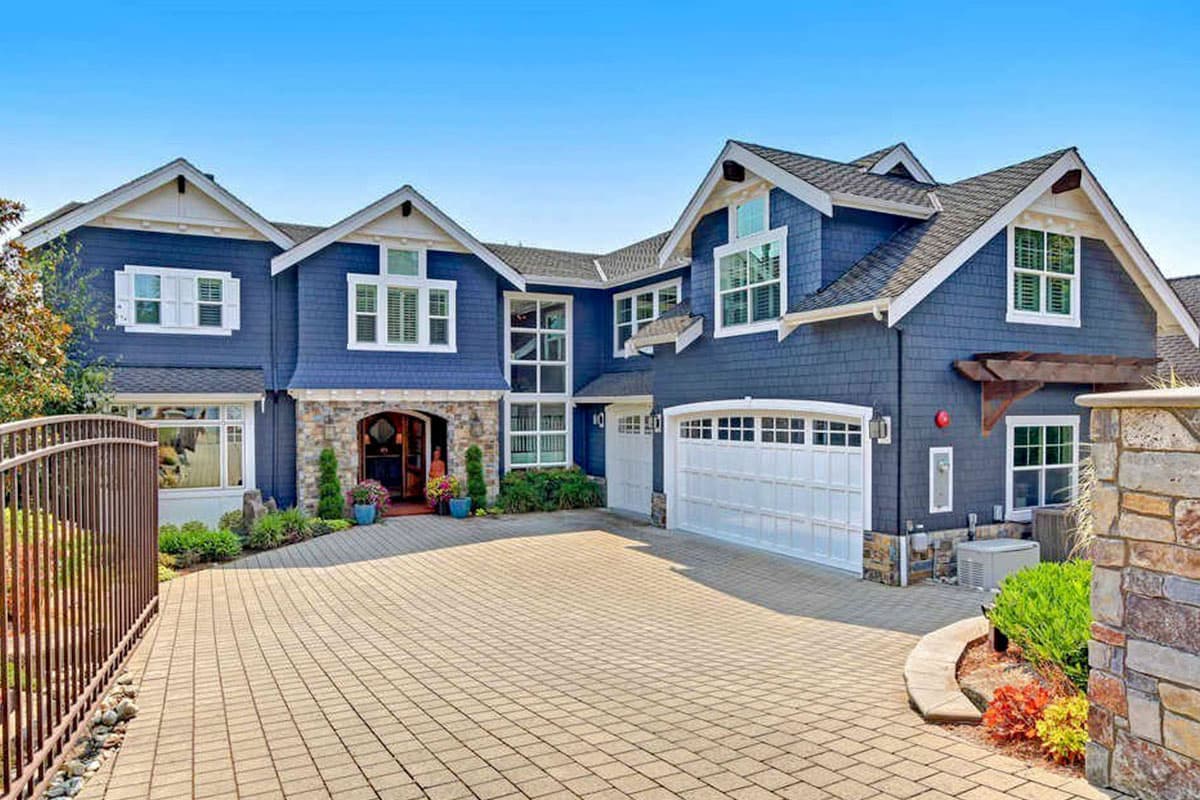

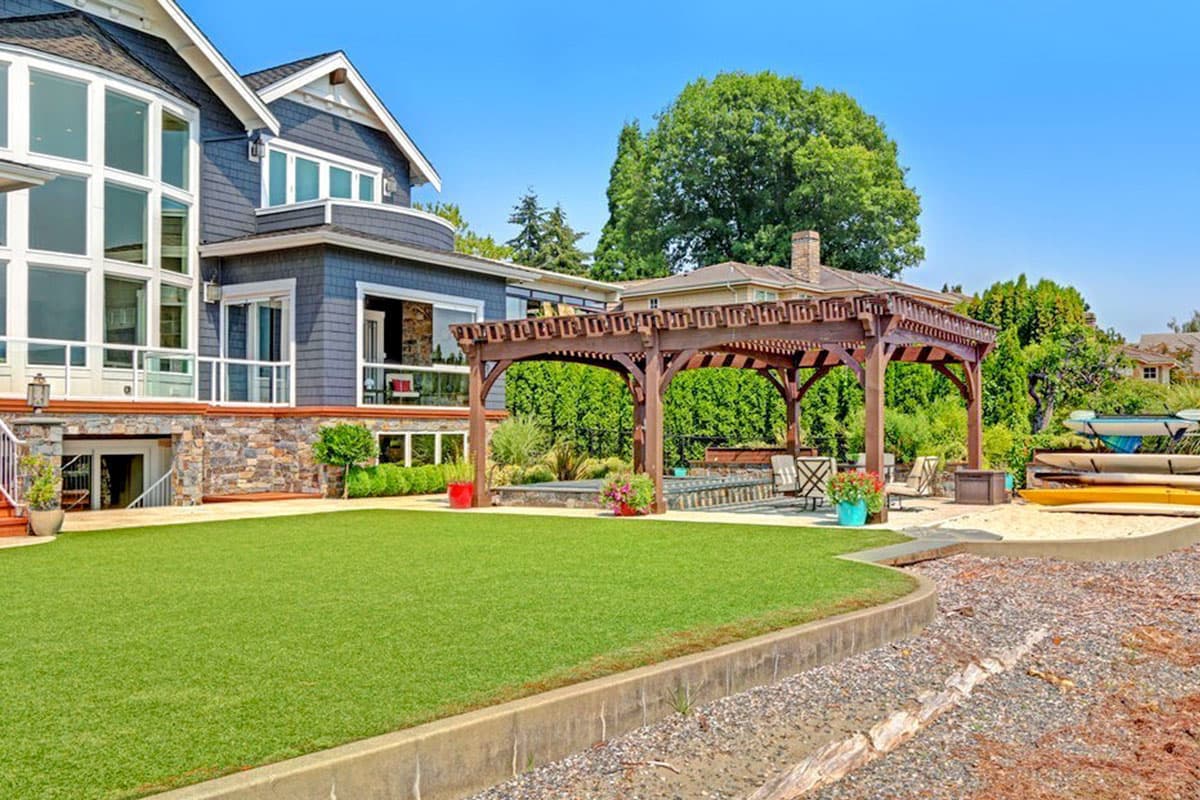

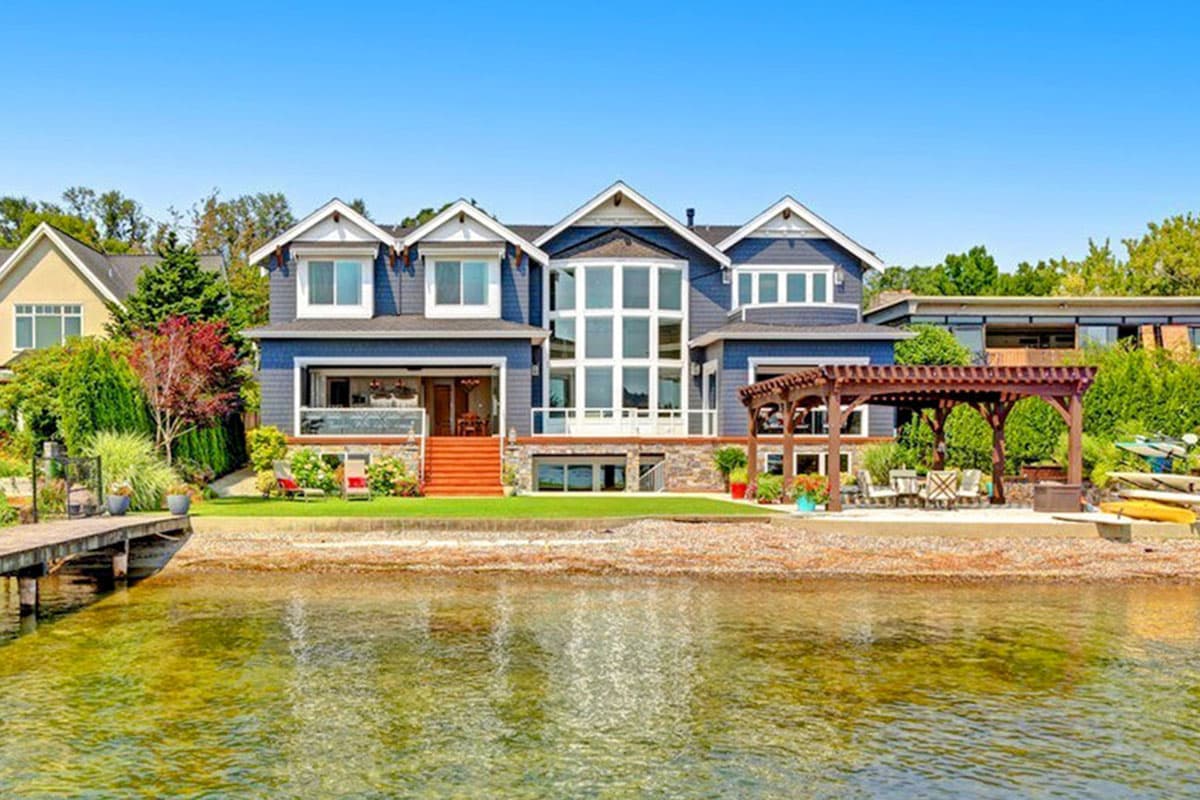

  • This luxurious, 5-bedroom craftsman house plan provides multiple retractable walls to extend the living space outdoors. The exterior features include shake siding, decorative pergolas, and an arched front porch with stone accents.

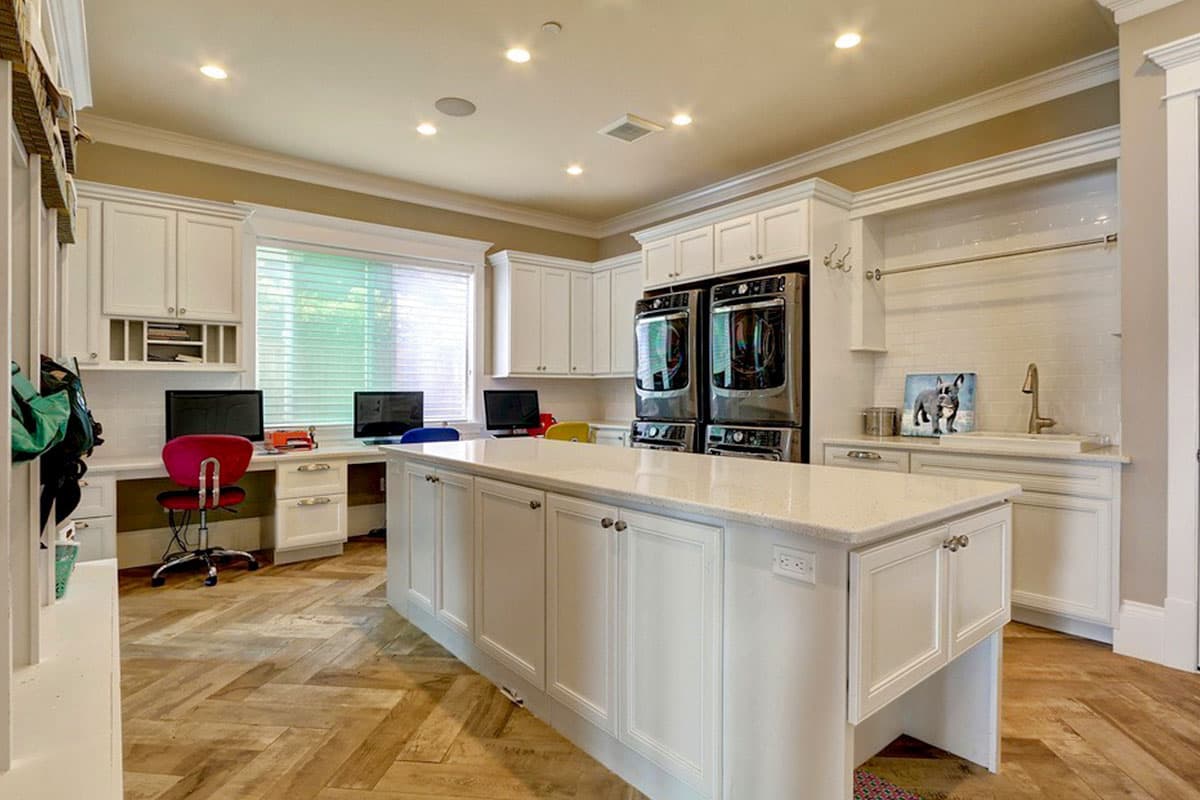

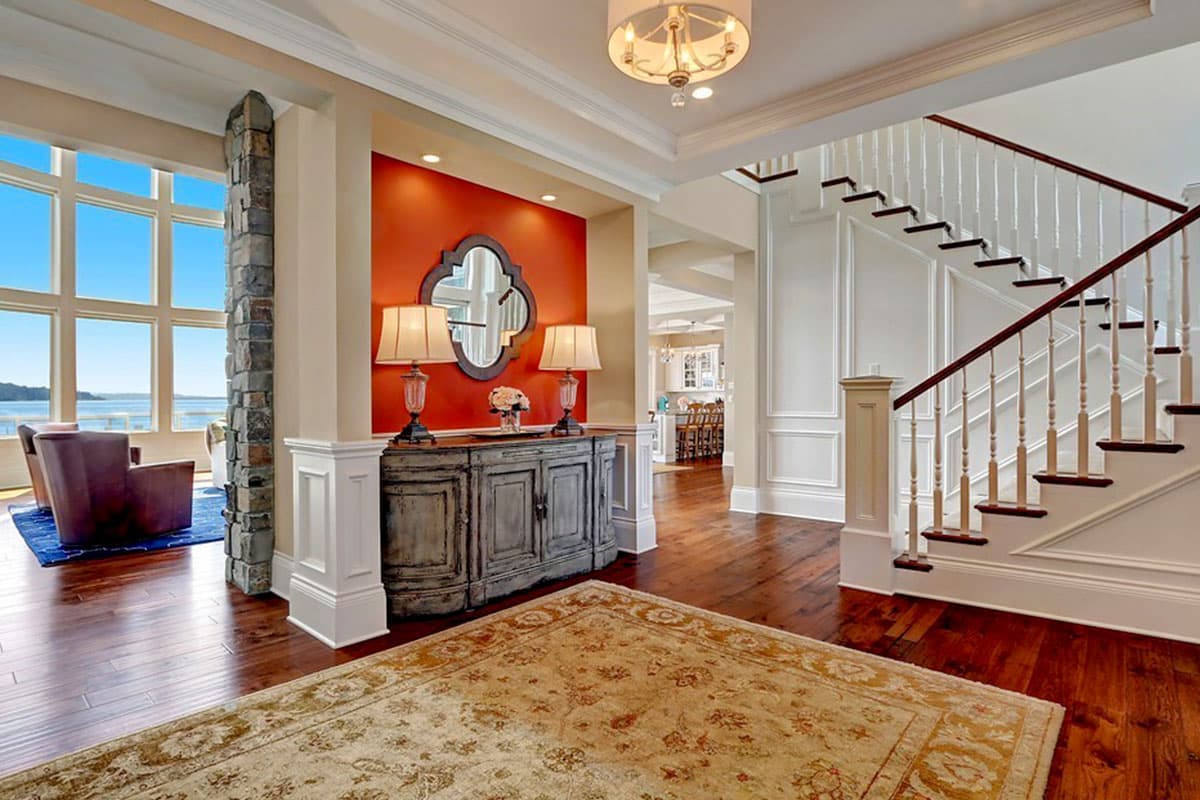

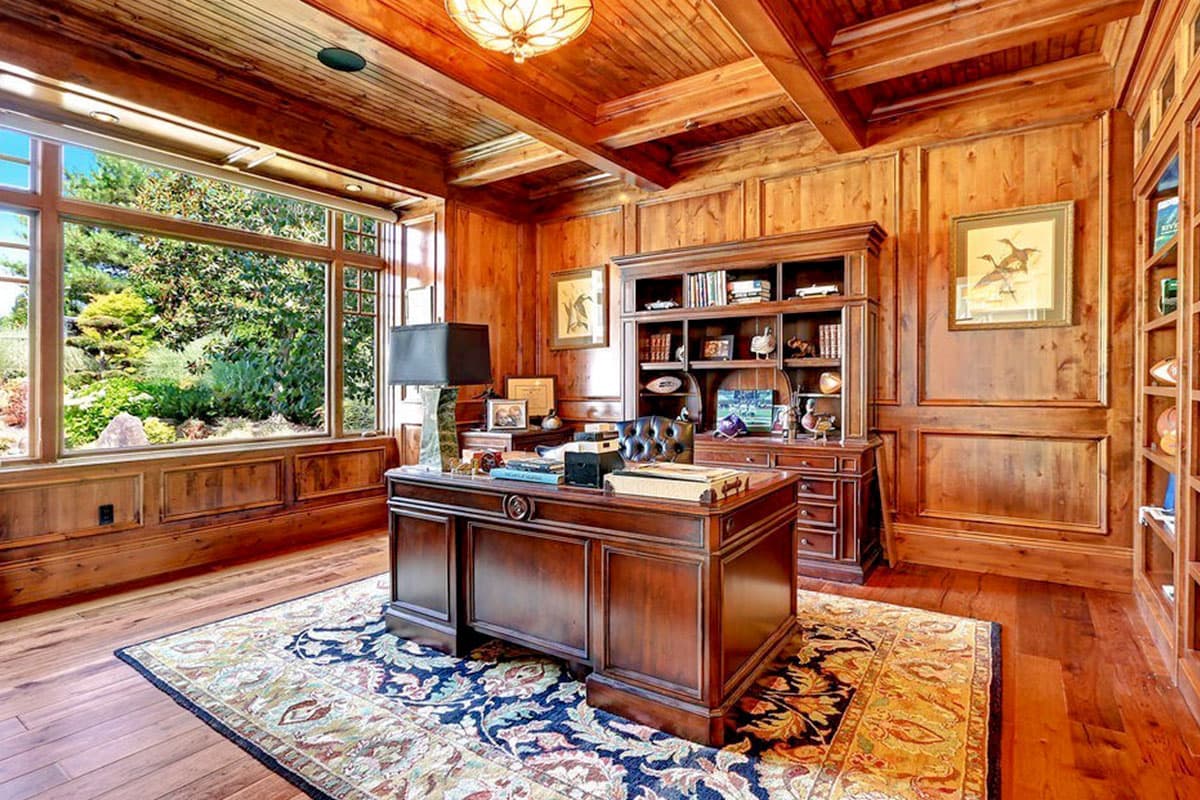

  • A spacious foyer provides access to a quiet den with a hidden spiral staircase to the lower-level game room, while the family foyer leads to a spacious mudroom which includes a laundry room, built-in desk, and island for additional workspace and storage.

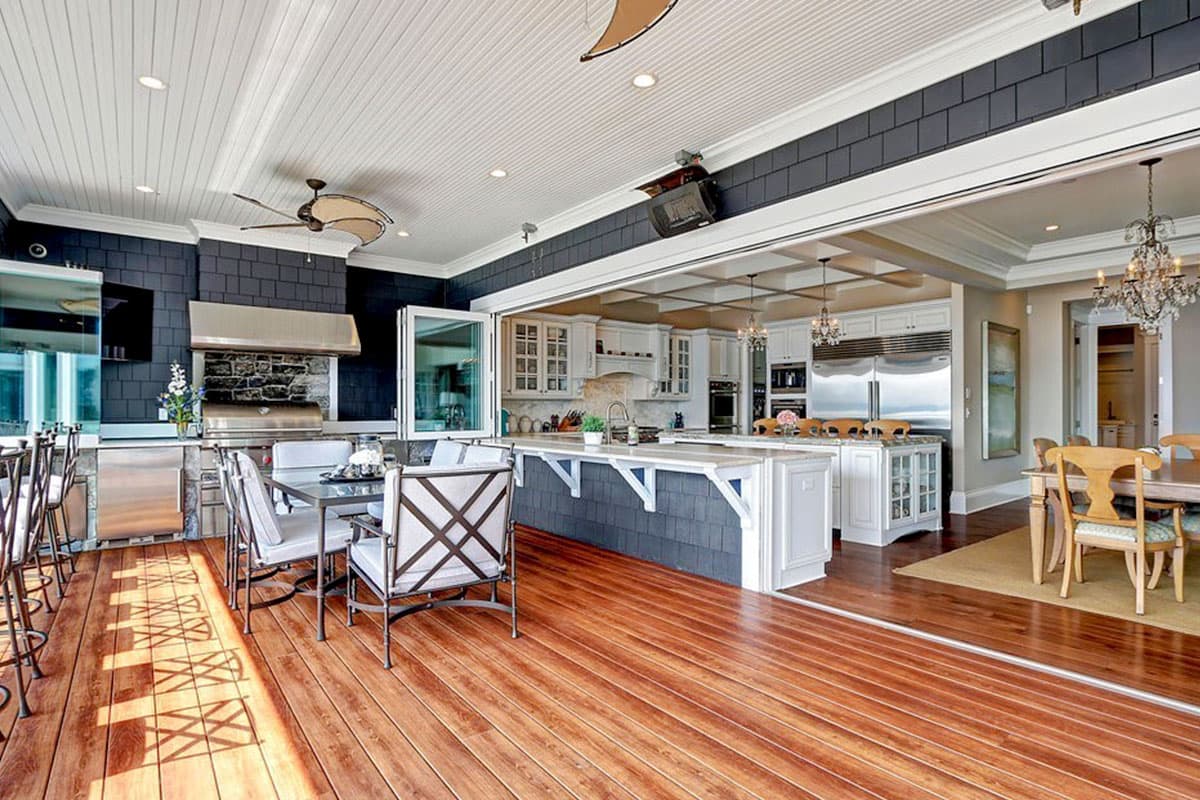

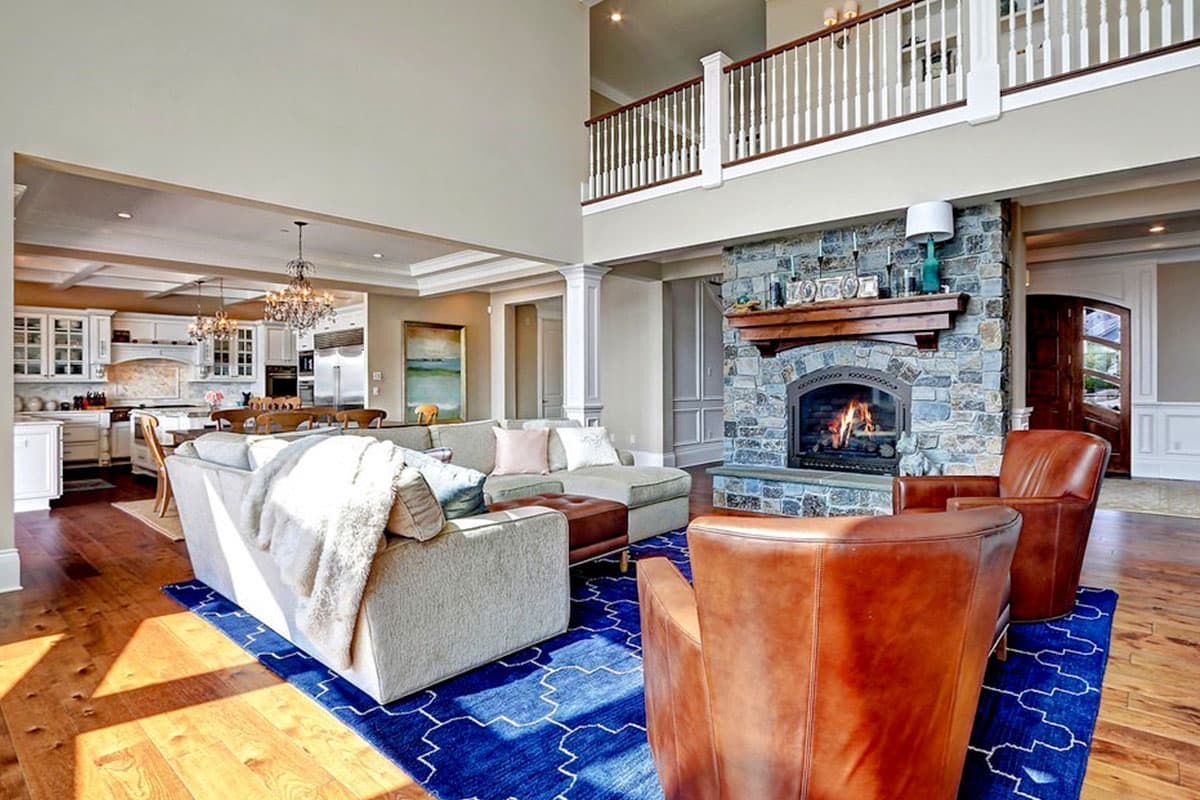

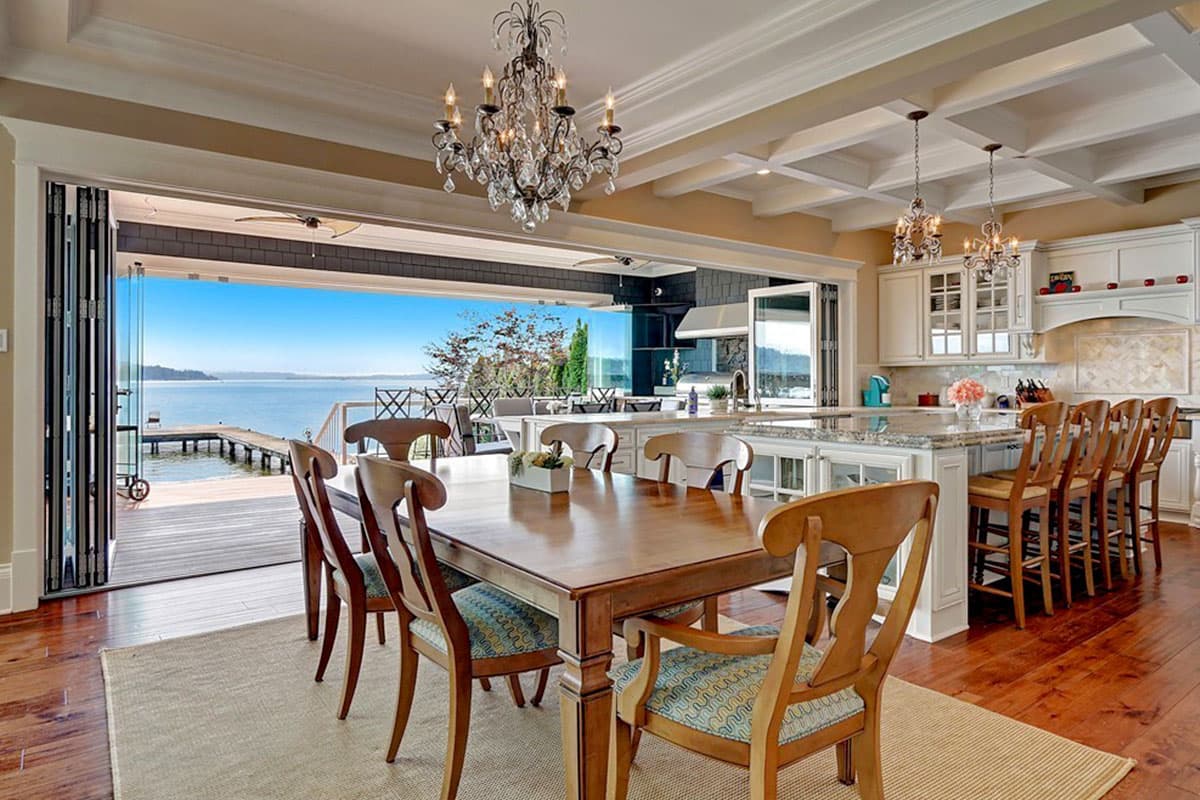

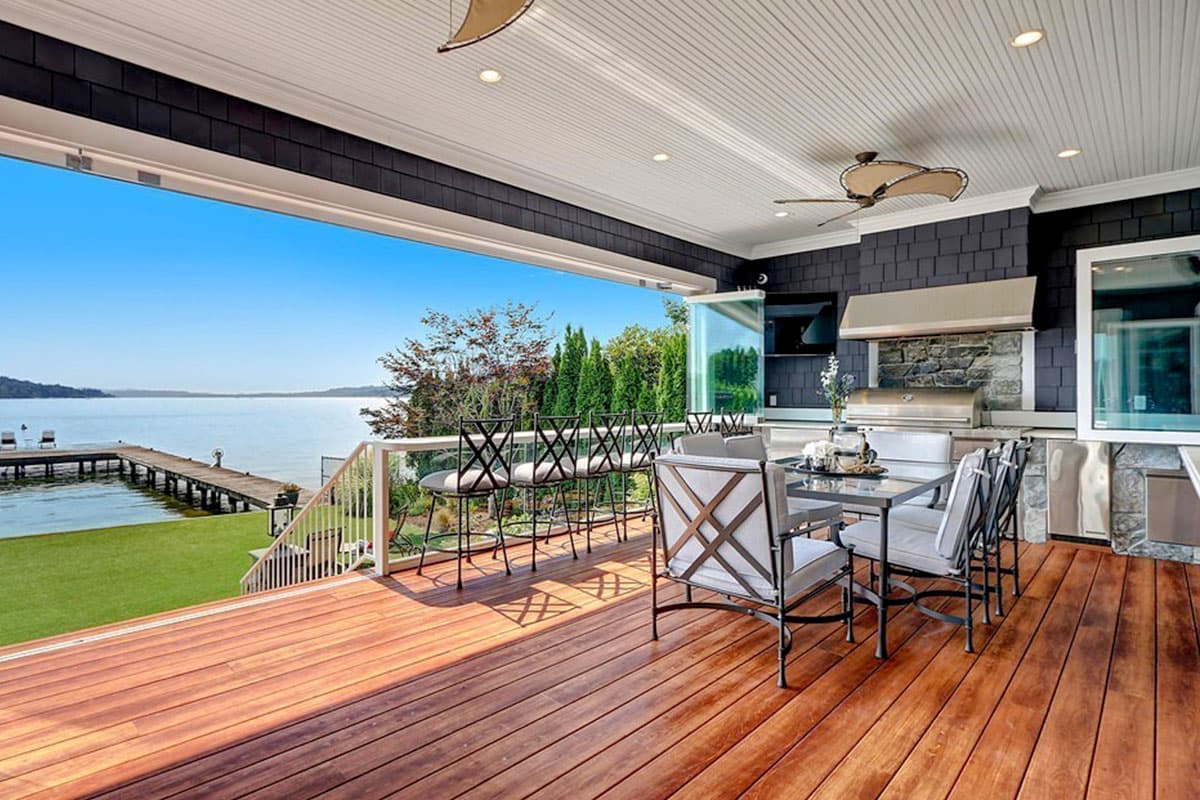

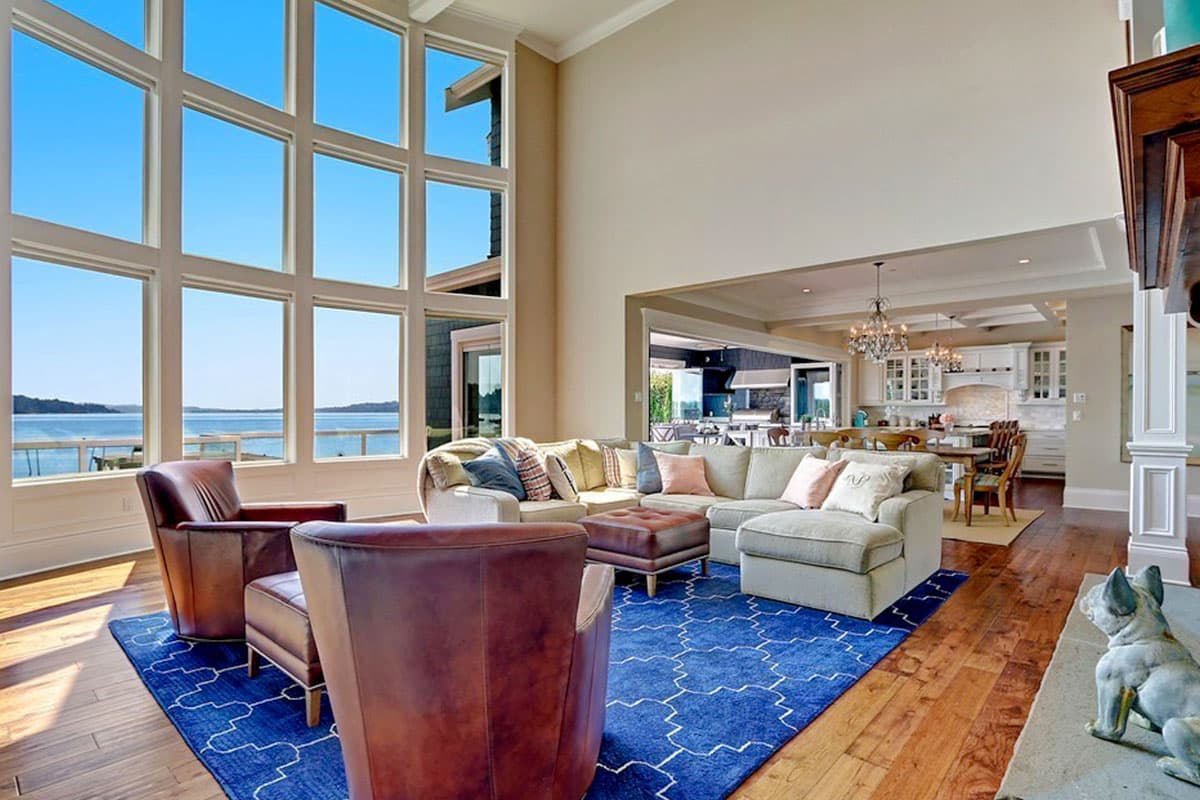

  • A grand, 2-story great room has floor to ceiling windows supplying ample natural light, and opens to the kitchen. A retractable wall connects the kitchen to the covered deck for additional dining space, and the butler's pantry includes a sink which helps with meal preparation.

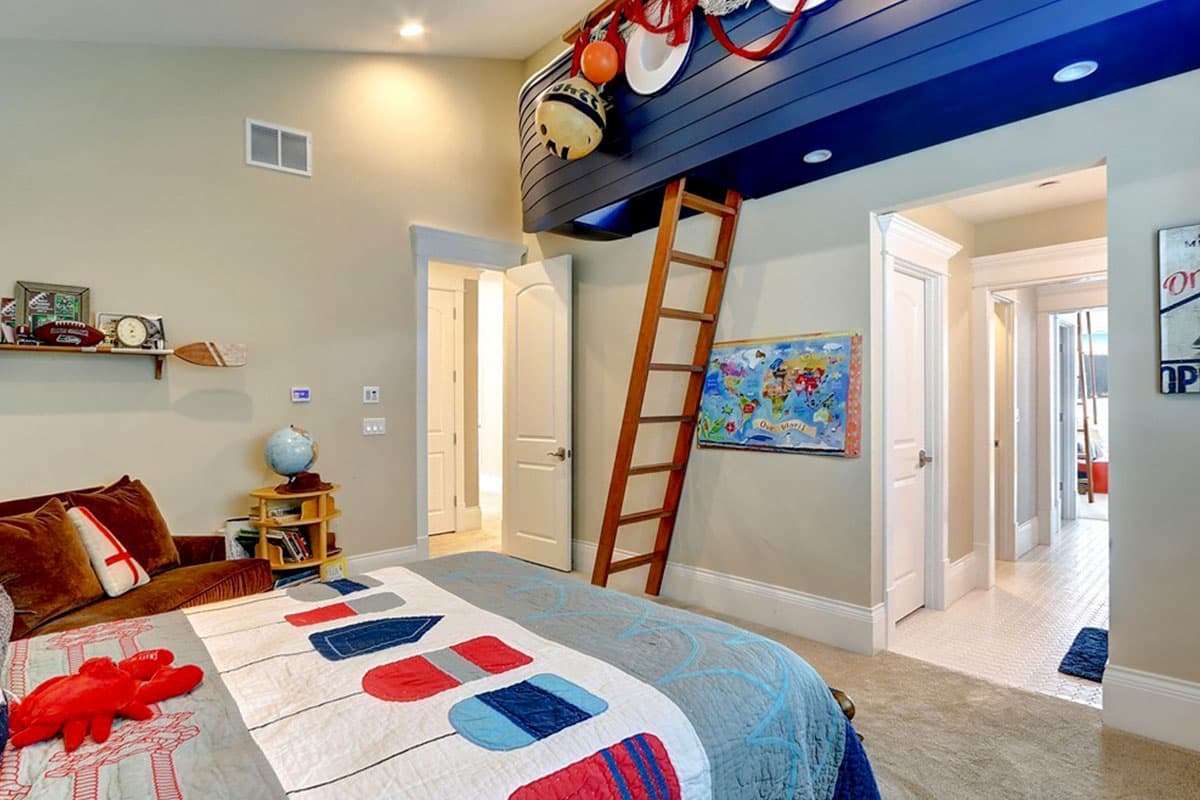

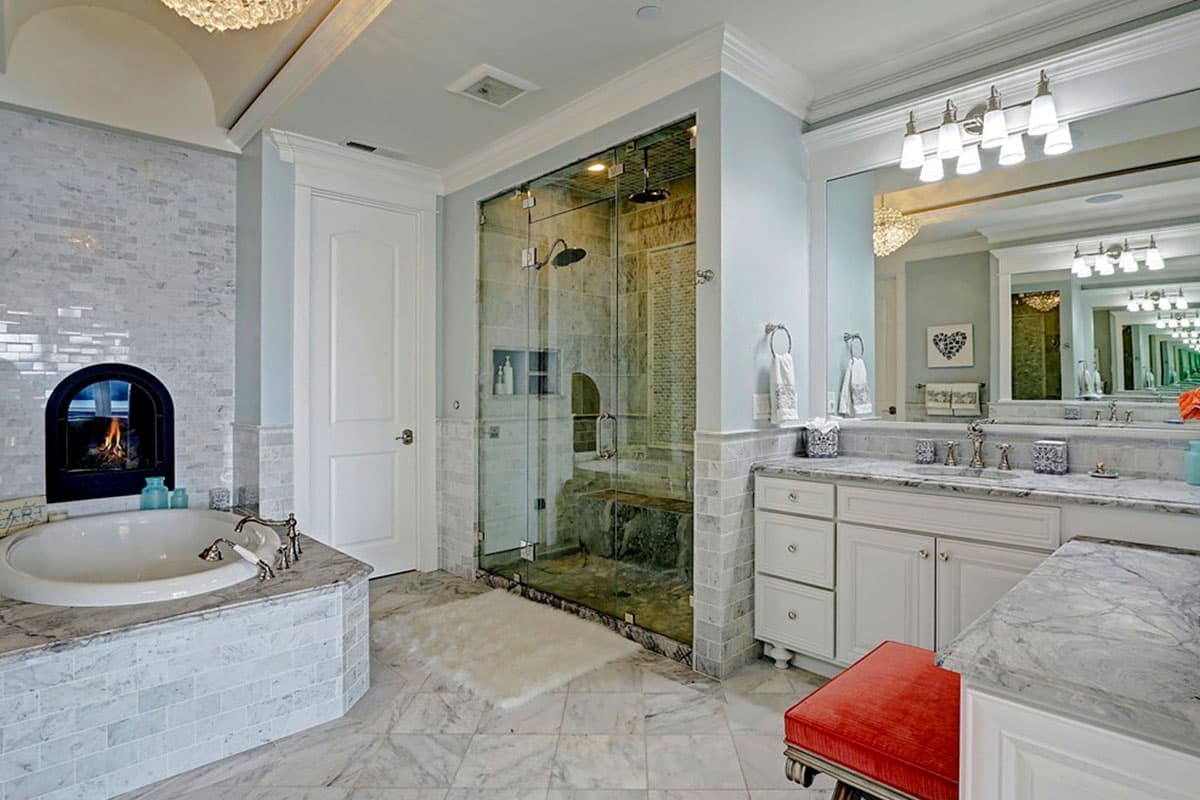

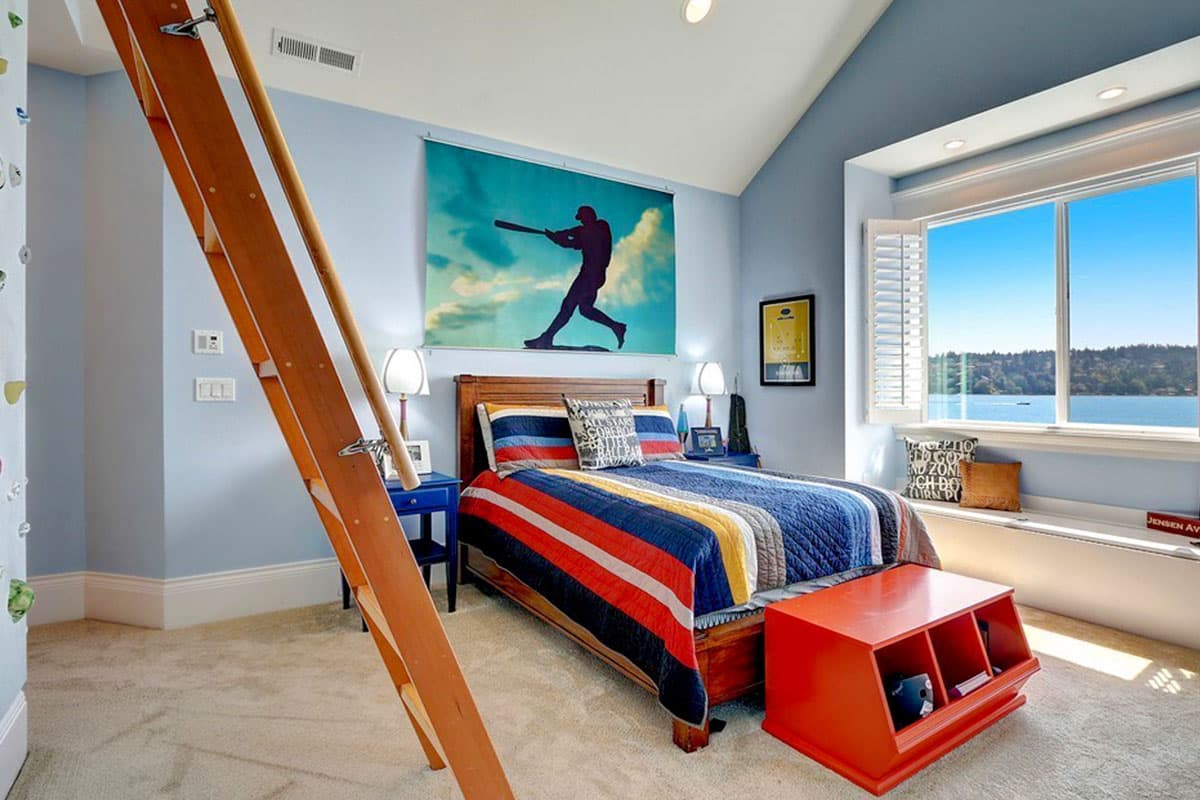

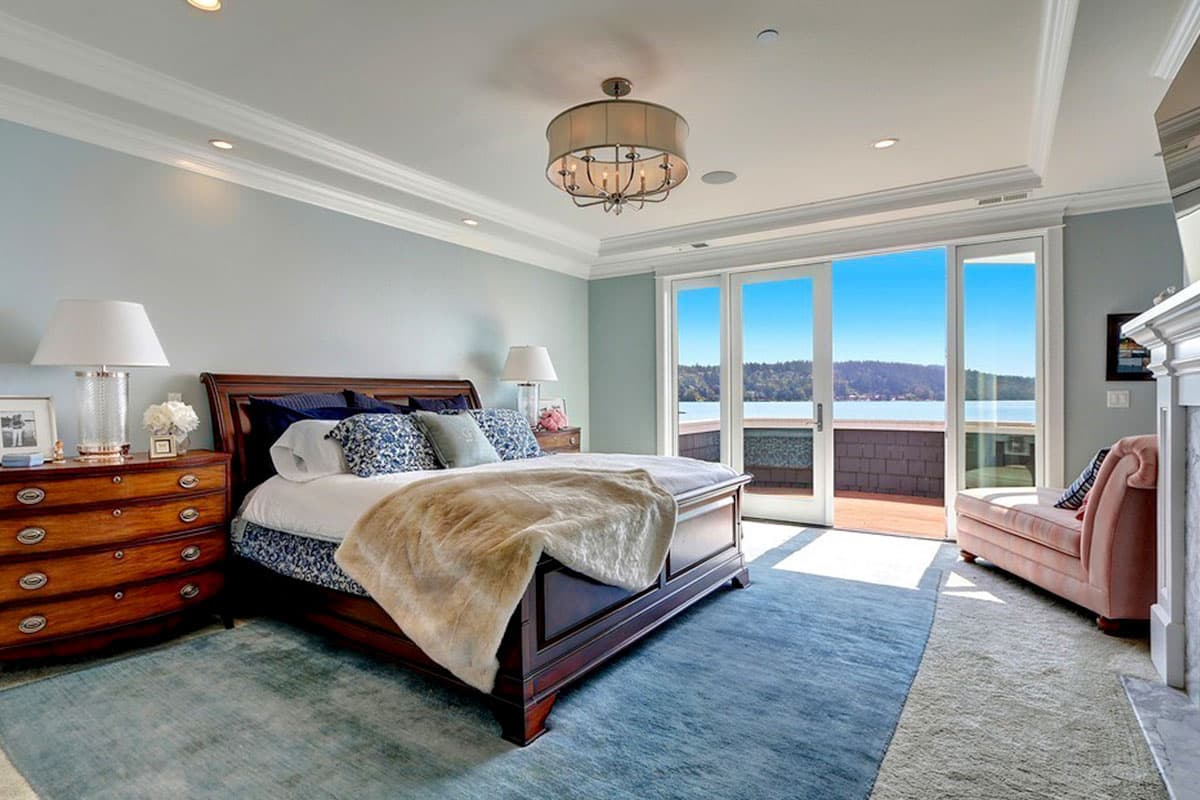

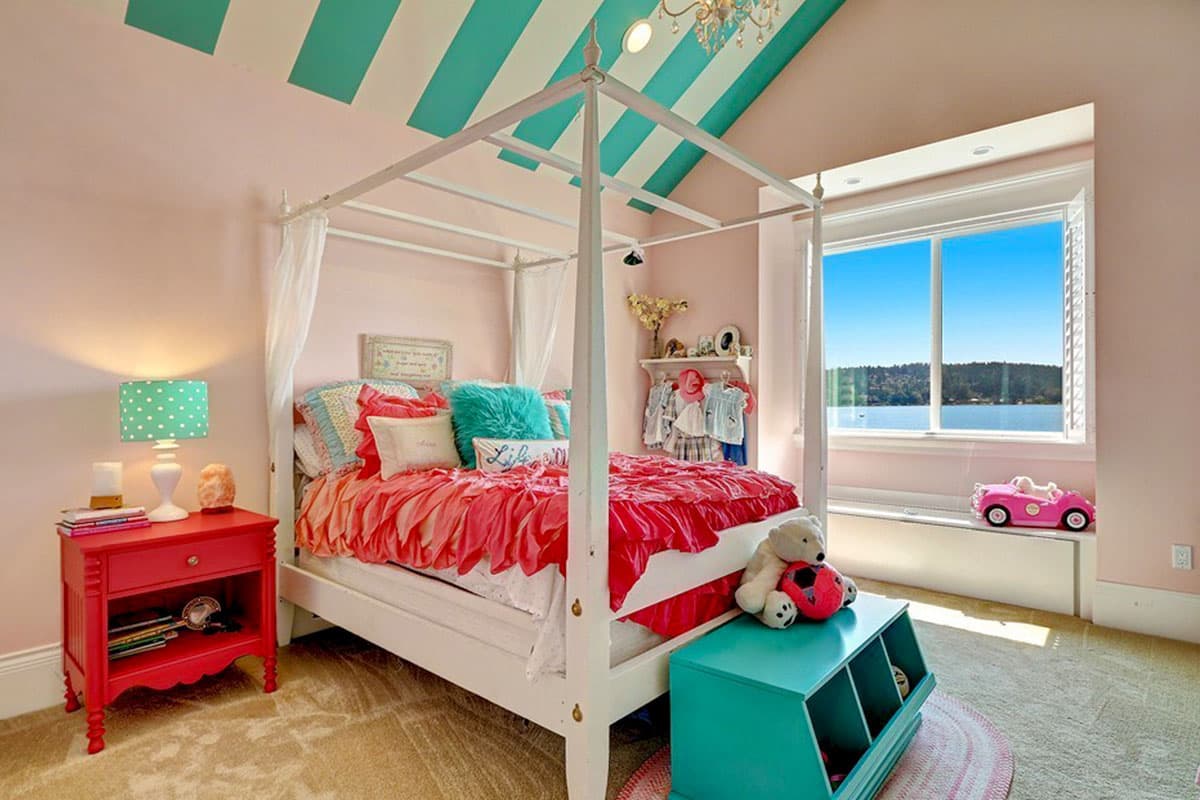

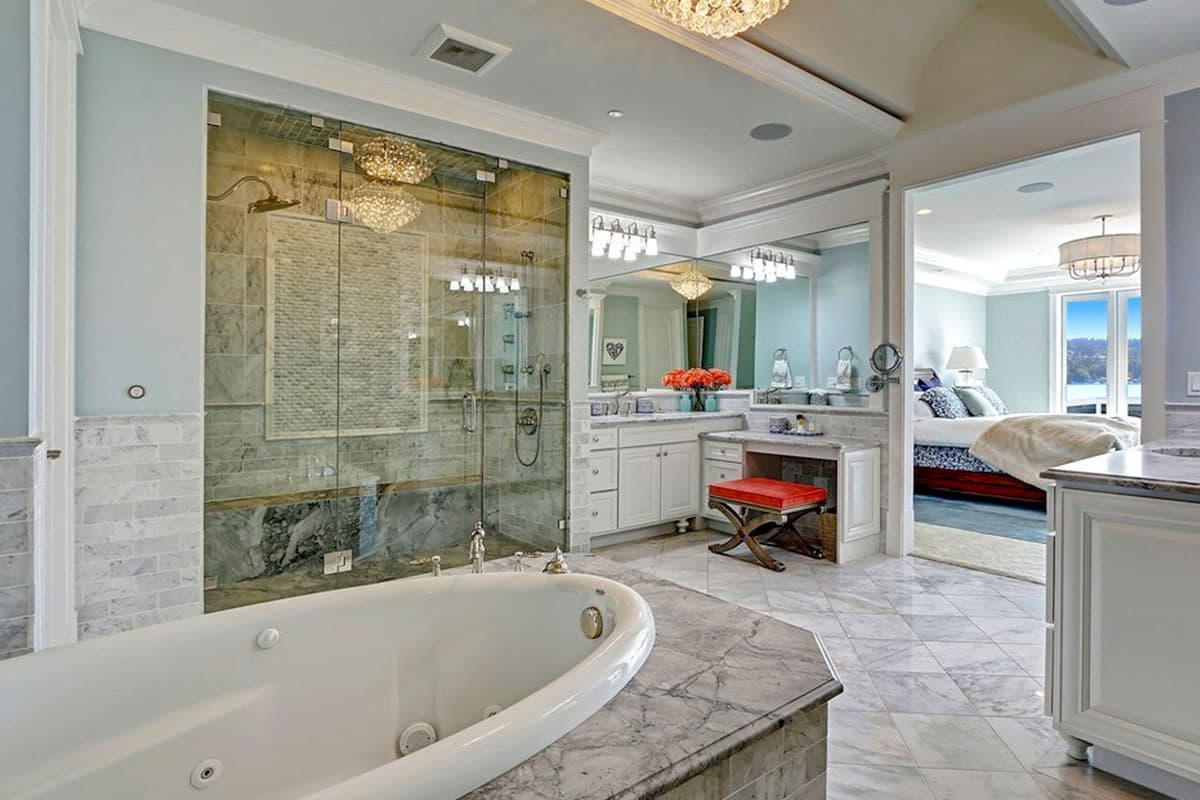

  • The second level is where the sleeping accommodations are located, including a well-appointed, master bedroom with a private deck, and large bath with dual closets and access to a roomy exercise room. Two additional bedrooms share a Jack-and-Jill bath with a unique loft atop the bathroom. Bedrooms 4 and 5 each have their own full bath.

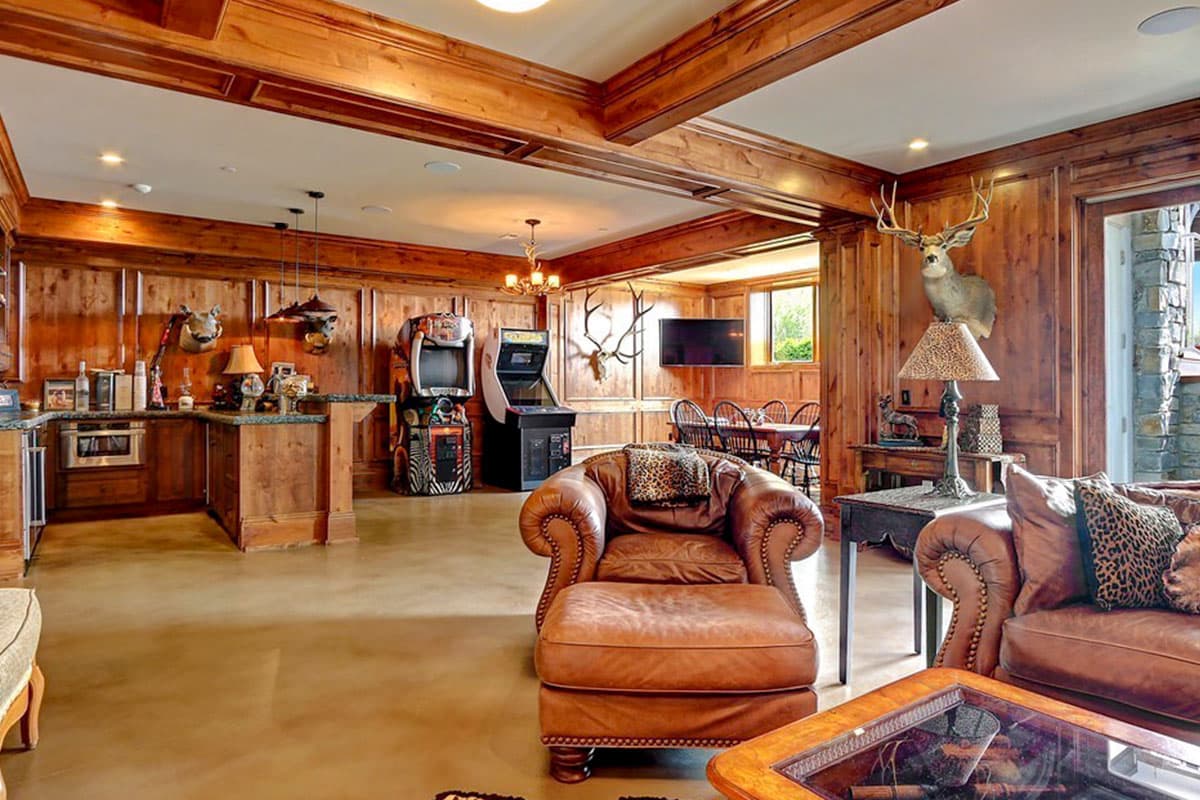

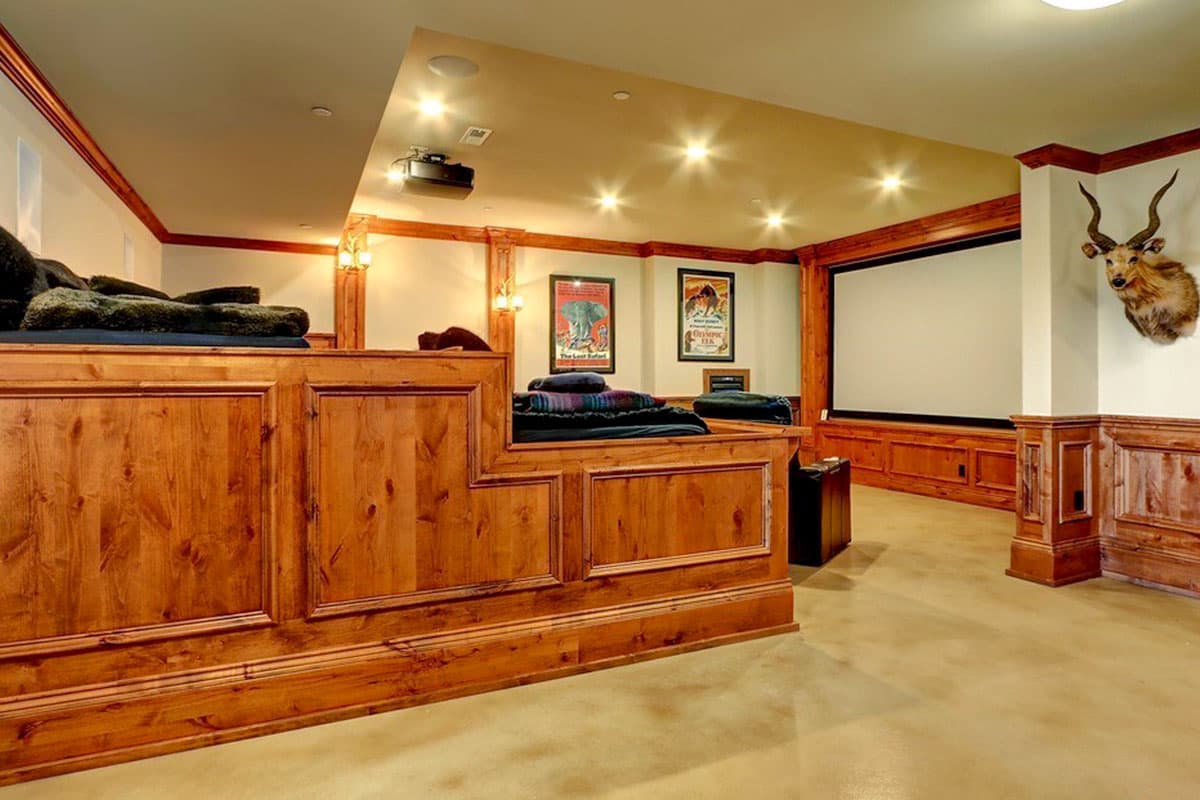

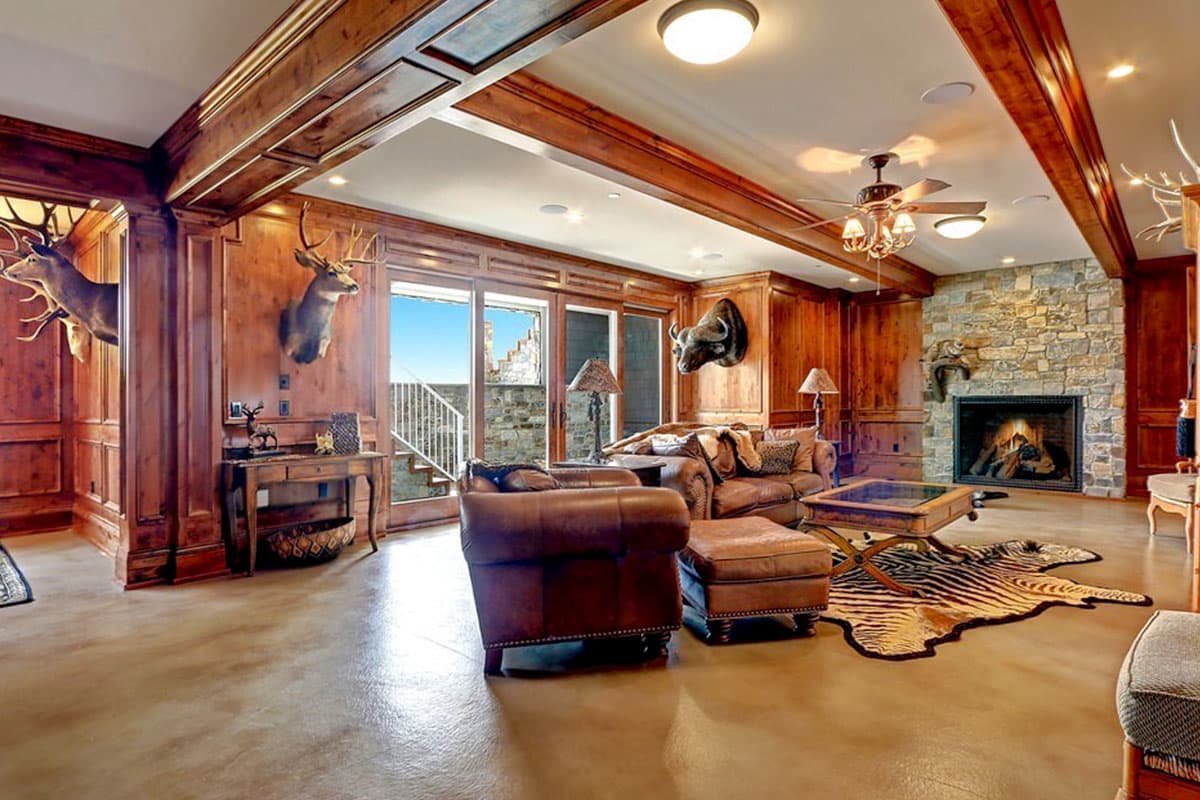

  • The lower level boasts a recreation room, media room with a kitchen, game room, and bathroom that leads to a covered patio.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

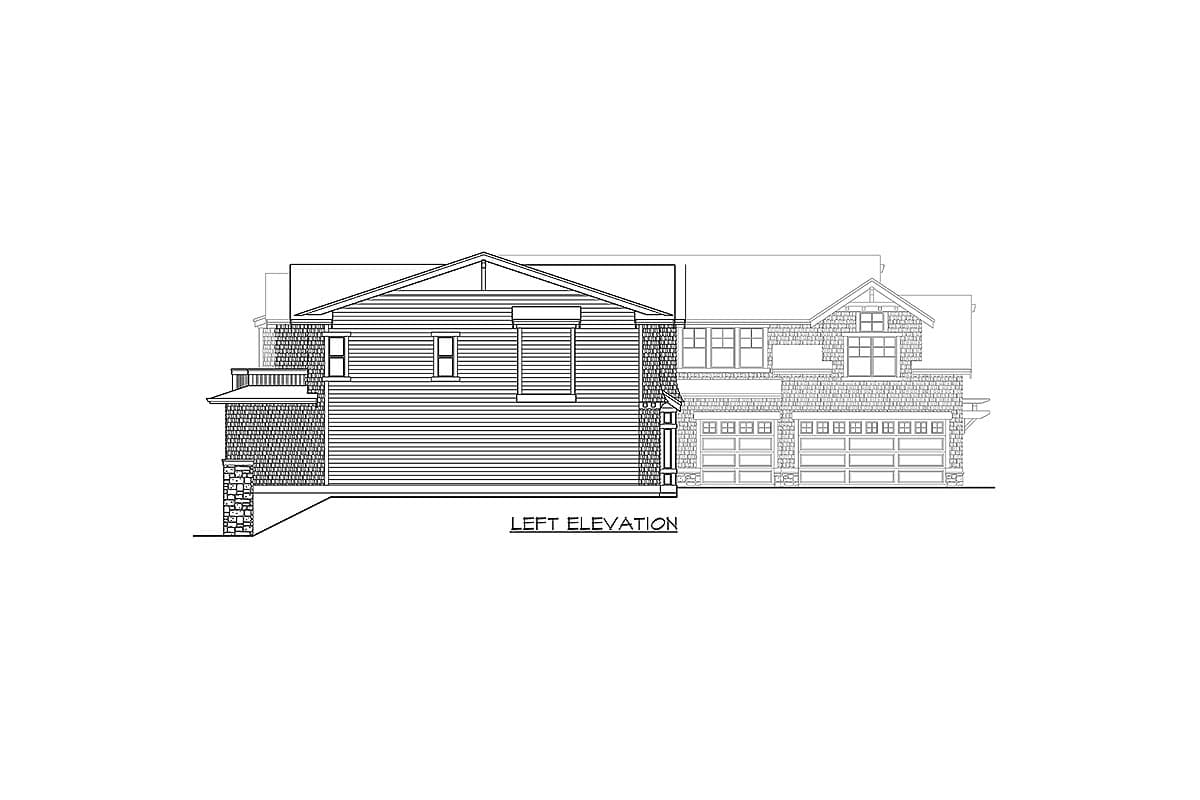

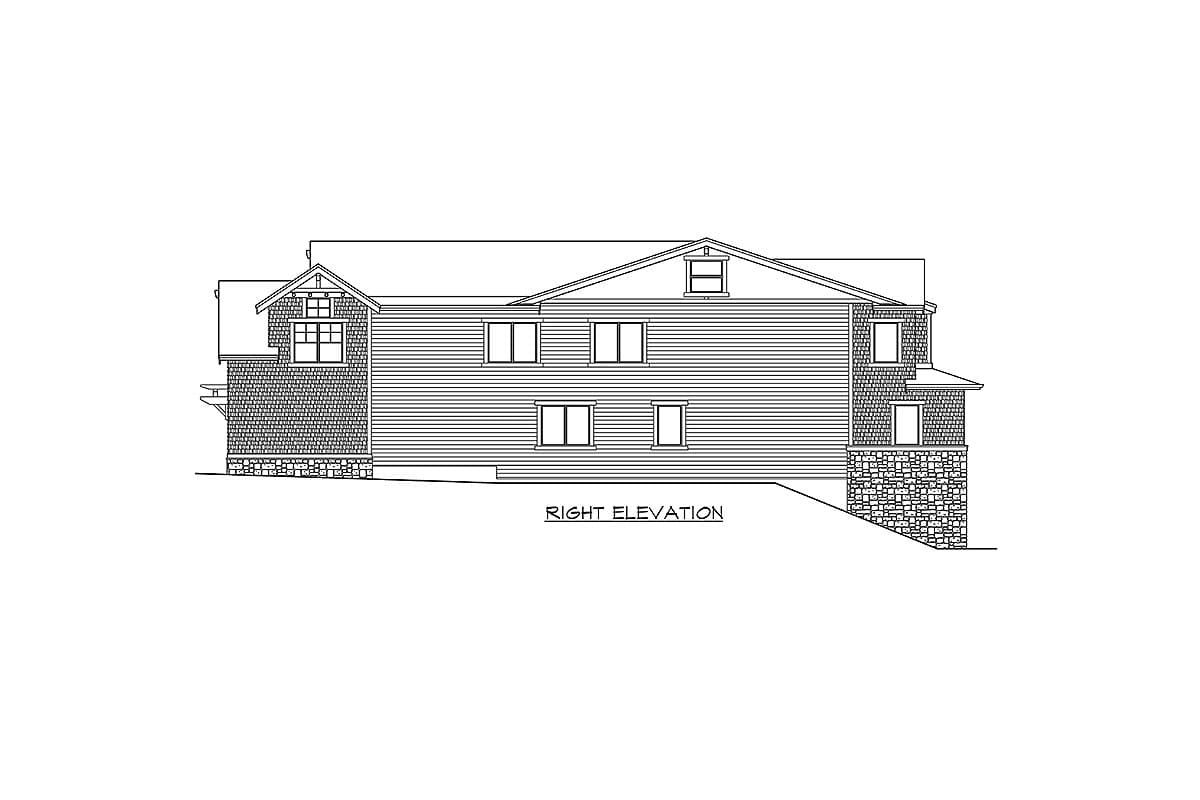

Elevation Sheet

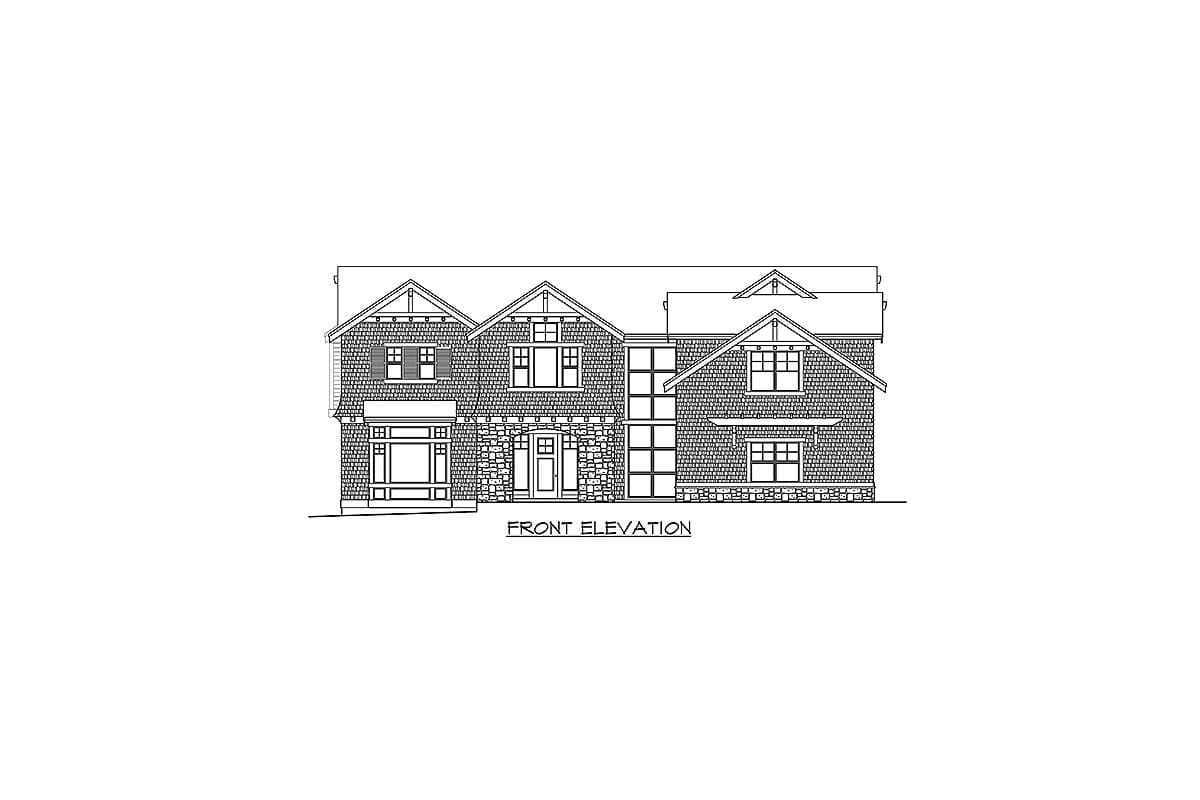

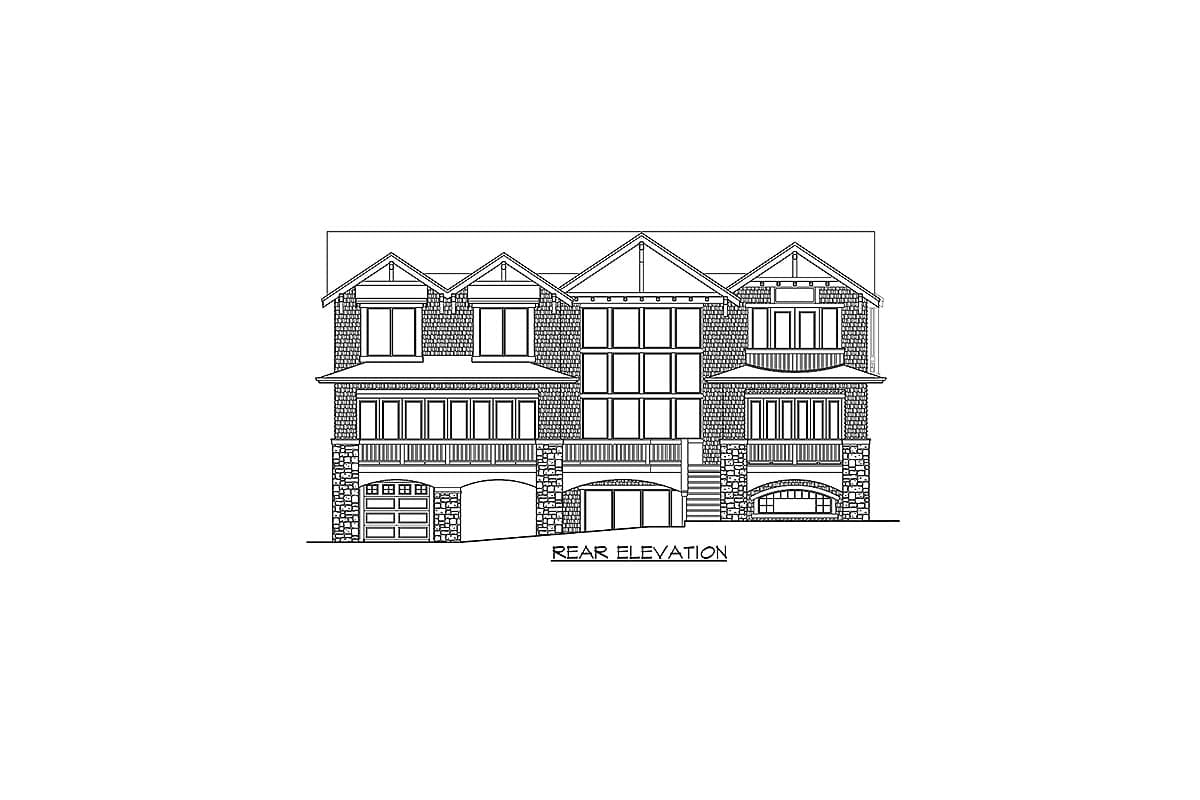

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Loft Accessible from BR3 and BR4

Elegant 5-Bed Craftsman House Plan for Indoor / Outdoor Lifestyle - 23800JD floor plan - Loft Accessible from BR3 and BR4

Plan details



Elegant 5-Bed Craftsman House Plan for Indoor / Outdoor Lifestyle

  • 8,190

    Heated s.f.

  • 5

    Beds

  • 7

    Baths

  • 3

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $4,000
  • 5 Sets PLUS $4,300
  • CAD - multi-use $6,000
  • View all purchase option online

About This Plan

  • This luxurious, 5-bedroom craftsman house plan provides multiple retractable walls to extend the living space outdoors. The exterior features include shake siding, decorative pergolas, and an arched front porch with stone accents.
  • A spacious foyer provides access to a quiet den with a hidden spiral staircase to the lower-level game room, while the family foyer leads to a spacious mudroom which includes a laundry room, built-in desk, and island for additional workspace and storage.
  • A grand, 2-story great room has floor to ceiling windows supplying ample natural light, and opens to the kitchen. A retractable wall connects the kitchen to the covered deck for additional dining space, and the butler's pantry includes a sink which helps with meal preparation.
  • The second level is where the sleeping accommodations are located, including a well-appointed, master bedroom with a private deck, and large bath with dual closets and access to a roomy exercise room. Two additional bedrooms share a Jack-and-Jill bath with a unique loft atop the bathroom. Bedrooms 4 and 5 each have their own full bath.
  • The lower level boasts a recreation room, media room with a kitchen, game room, and bathroom that leads to a covered patio.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

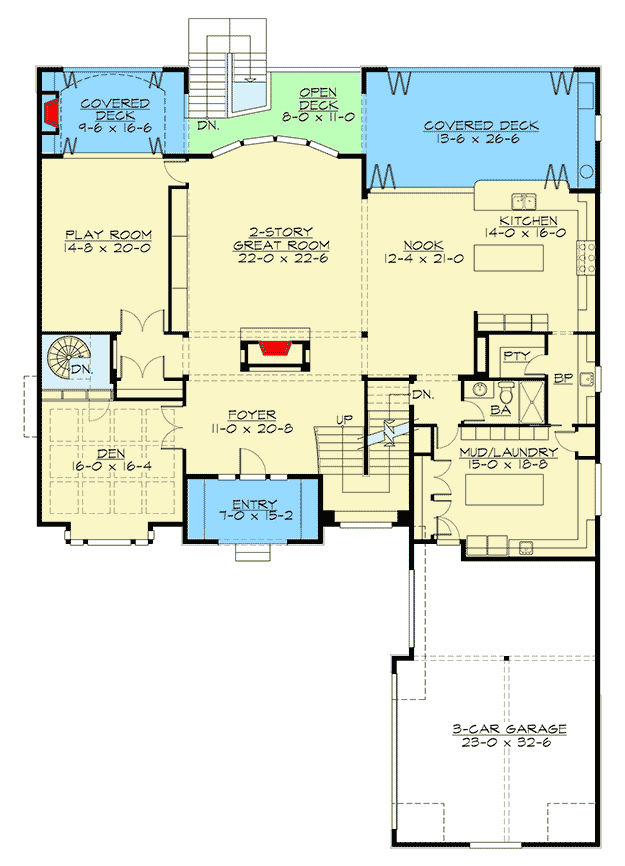

  • Main Level

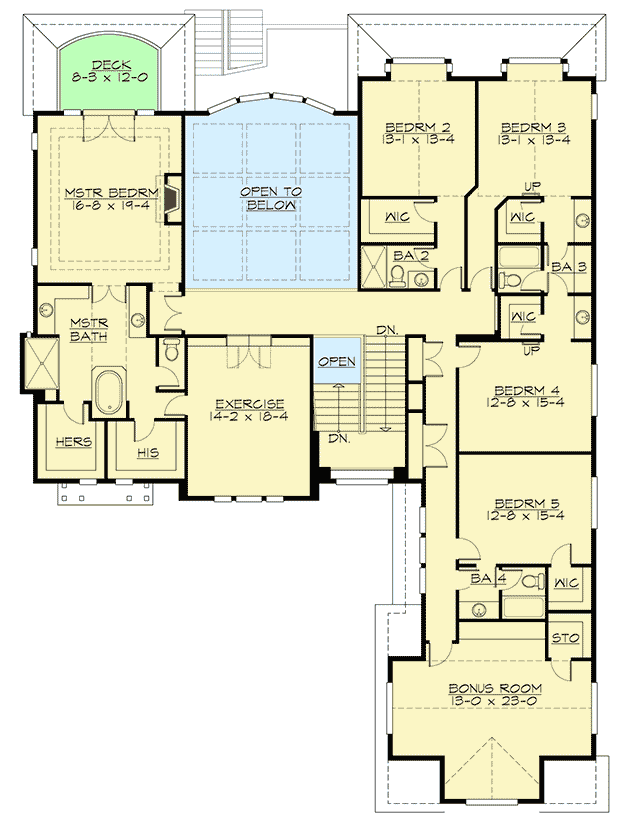

  • 2nd Floor

  • Loft Accessible from BR3 and BR4

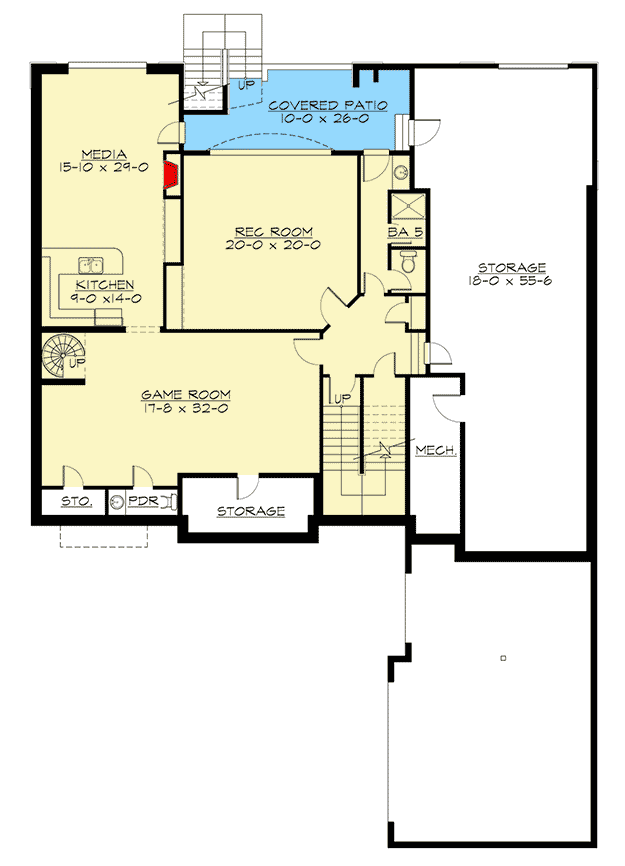

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 8,190 sq. ft.
  • Lower Level: 2,129 sq. ft.
  • 1st Floor: 2,722 sq. ft.
  • 2nd Floor: 3,146 sq. ft.
  • 3rd Floor: 193 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 6
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 65' 0"
  • Depth: 90' 0"
  • Max ridge height: 28' 6"

Garage

  • Type: Attached
  • Area: 782 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
