Plan 64408SC

European House Plan with Front Courtyard

Heated S.F.
3,420
Beds
3 - 5
Baths
3.5 - 4.5
Stories
1
Cars
3

Floor Plan

Plan 64408SC

Main Level
Main Level
Basement
Basement

Plan 64408SC

M-F 9am-5pm EST |

1-203-761-8500

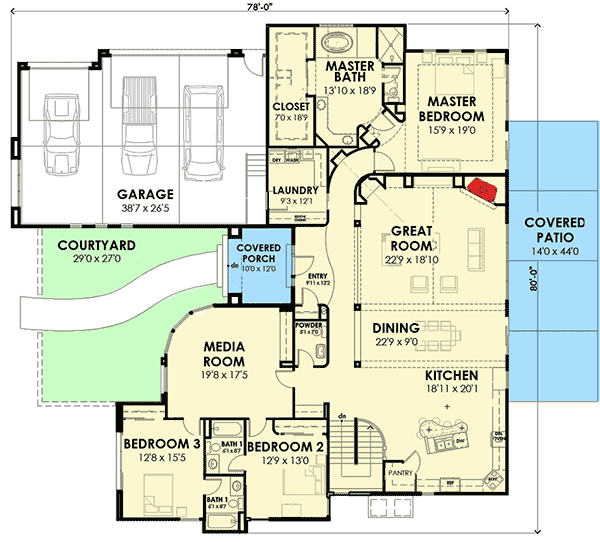

Main Level

Plan 64408SC: European House Plan with Front Courtyard - Floor Plan - Main Level - Contemporary, Mountain, Ranch, Southwest

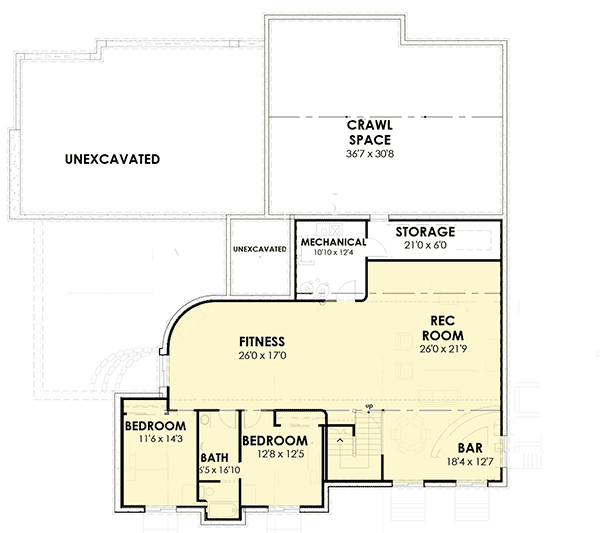

Basement

Plan 64408SC: European House Plan with Front Courtyard - Floor Plan - Basement - Contemporary, Mountain, Ranch, Southwest

Plan Details

  • A beautiful front courtyard ushers you into this one level European house plan with an optional finished lower level.
  • Sightlines from the foyer go right through the enormous great room, out onto the rear covered patio.
  • The upscale kitchen has an angled island with seating for five people plus a walk-in pantry.
  • A secluded master suite awaits homeowners with a huge master bathroom and giant walk-in closet.
  • Two family bedrooms on the opposite side of the home lie near the media room.
  • Finish the lower level and gain two more bedrooms and a fabulous fitness/rec room with wet bar.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

What's Included

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,420 sq. ft.

1st Floor

3,420 sq. ft.

Optional Lower Level

2,136 sq. ft.

Porch, Front

119 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

80' 0"

Depth

78' 0"

Max Ridge Height

22' 6"

Garage

Type

Attached

Area

1080 sq. ft.

Count

3 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mountain

Ranch

Southwest

Special Features

Bedrooms - Split

Courtyard

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Two Story Great Room

Walk-in Pantry

Wet Bar
