Plan 340096STR
European-inspired Ranch Plan with Split-bed Layout
Heated S.F.
1,515
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Stucco and clay roof tiles add character and a Mediterranean flair to this European-inspired Ranch home plan, complete with 3 bedrooms, 2 baths, and a 2-car garage.
  • A vaulted ceiling is carried over the great room and through the kitchen, while a breakfast nook features a bay window and extends onto the covered lanai.
  • A formal dining room near the foyer offers plenty of space for a large table to help when entertaining.
  • Discover the master suite privately situated behind the double garage with a 3-panel glass door providing access to the lanai.
  • Bedrooms 2 and 3 share a full bathroom and each includes a walk-in closet.
  • Related Plan: Increase the square footage and gain a study with floor plan 340095STR (1,746 sq. ft).
What's Included
  • Cover Sheet, Index
  • Wall Sections & Notes
  • Typical Detail & Notes
  • Foundation Plan
  • Floor Plans
  • Reflected Ceiling Plan showing ceiling heights and treatments
  • Floor Framing Plan (basement, crawlspace or 2-story homes only)
  • Birds Eye Roof Plan
  • All Elevations
  • Building Section & Details
  • Interior Elevations (Details may vary based on the design)
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

European-inspired Ranch Plan with Split-bed Layout

  • 1,515

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

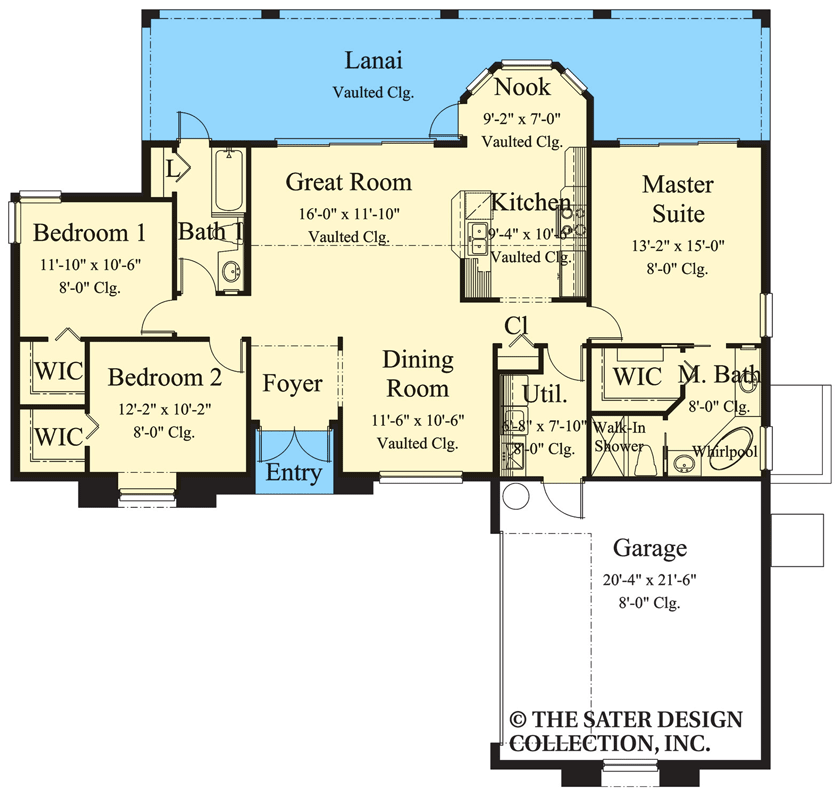

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,515 sq. ft.
  • 1st Floor: 1,515 sq. ft.

Dimensions

  • Width: 58' 0"
  • Depth: 59' 4"
  • Max ridge height: 16' 1"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 469 sq. ft.
  • Count: 2 Cars

Foundation Type

    • Standard Foundations: Stem Wall
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6
