Plan 23559JD Exciting Craftsman Home with Wrap-Around Porch

4,530 4 3.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exciting Craftsman Home with Wrap-Around Porch

Plan 23559JD

  • 4,530

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Large, comfortable rooms with vaulted, coffered and two-story ceilings will make your family feel right at home in this exciting Craftsman home plan.
  • A big covered porch wraps around the huge living room that has a bay window and a large fireplace as well as a vaulted ceiling that soars upward.
  • Both the foyer and family room have two-story ceilings that add to the feeling of spaciousness.
  • This home is filled with built-in display niches for all your collectibles.
  • Dine informally in the large breakfast nook set in a bay, where you can see all of the gourmet kitchen.
  • Coffered ceilings top both the study and the formal dining room, for an elegant touch.
  • In the main floor master suite, homeowners get their own private deck, a vaulted ceiling and a giant walk-in closet divided into compartments.
  • Watch movies in the second floor media room that is close by the three family bedrooms.
  • Two of the bedrooms open to a shared deck and have a jack and jill bathroom.
  • A dramatic balcony bridge has open railing that lets you see down to the foyer and family room at the same time.
  • Bonus space and bedroom 4 have vaulted ceilings.
  • Need a rear-entry garage? See house plan 2328JD (4,650 sq. ft.), 23312JD (4,025 sq. ft.) and get a 4-car garage with house plan 2378JD (3,645 sq. ft.). Get a larger version with house plan 23199JD (4,650 sq. ft.).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

    •

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

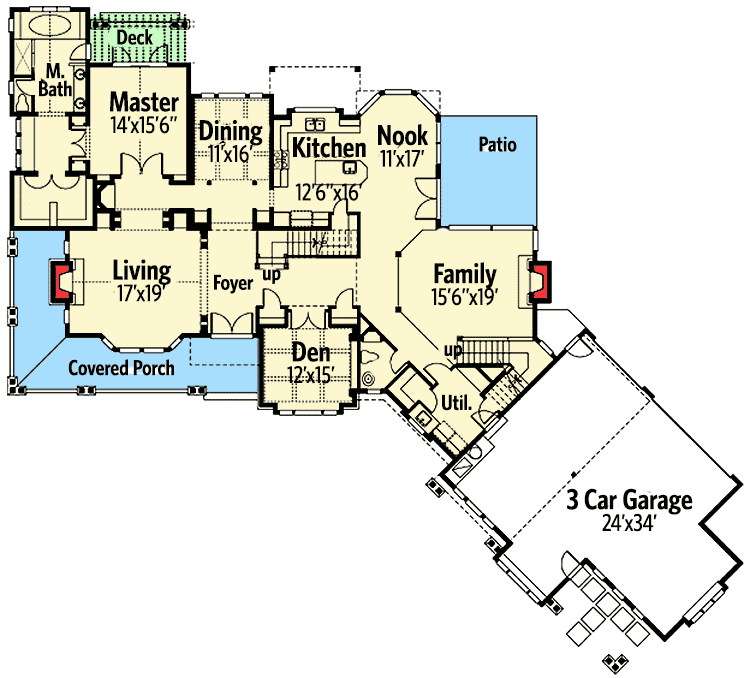

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exciting Craftsman Home with Wrap-Around Porch - 23559JD floor plan - Main Level

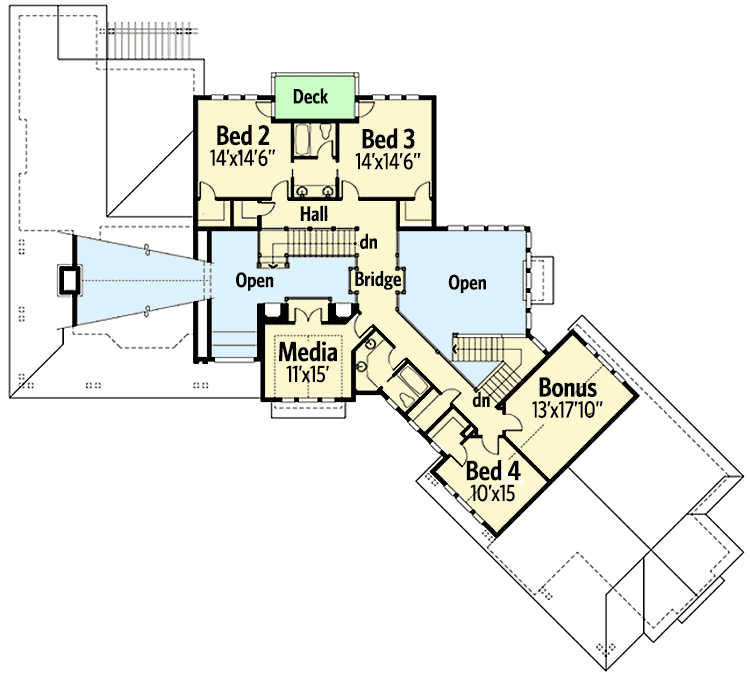

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exciting Craftsman Home with Wrap-Around Porch - 23559JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,530 sq. ft.
  • 1st Floor: 2,890 sq. ft.
  • 2nd Floor: 1,640 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 113' 0"
  • Depth: 70' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 1060 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Exciting Craftsman Home with Wrap-Around Porch

  • 4,530

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,500
  • CAD + PDF - Unlimited Build $4,200
  • View all purchase option online

About This Plan

  • Large, comfortable rooms with vaulted, coffered and two-story ceilings will make your family feel right at home in this exciting Craftsman home plan.
  • A big covered porch wraps around the huge living room that has a bay window and a large fireplace as well as a vaulted ceiling that soars upward.
  • Both the foyer and family room have two-story ceilings that add to the feeling of spaciousness.
  • This home is filled with built-in display niches for all your collectibles.
  • Dine informally in the large breakfast nook set in a bay, where you can see all of the gourmet kitchen.
  • Coffered ceilings top both the study and the formal dining room, for an elegant touch.
  • In the main floor master suite, homeowners get their own private deck, a vaulted ceiling and a giant walk-in closet divided into compartments.
  • Watch movies in the second floor media room that is close by the three family bedrooms.
  • Two of the bedrooms open to a shared deck and have a jack and jill bathroom.
  • A dramatic balcony bridge has open railing that lets you see down to the foyer and family room at the same time.
  • Bonus space and bedroom 4 have vaulted ceilings.
  • Need a rear-entry garage? See house plan 2328JD (4,650 sq. ft.), 23312JD (4,025 sq. ft.) and get a 4-car garage with house plan 2378JD (3,645 sq. ft.). Get a larger version with house plan 23199JD (4,650 sq. ft.).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

    •

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,530 sq. ft.
  • 1st Floor: 2,890 sq. ft.
  • 2nd Floor: 1,640 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 113' 0"
  • Depth: 70' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 1060 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
Plan 23559JD
View this and more for this plan by visiting www.architechtecturaldesigns.com/23559JD
|
