Plan 31170D
Exciting Mediterranean Home Plan
Heated S.F.
2,223
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details

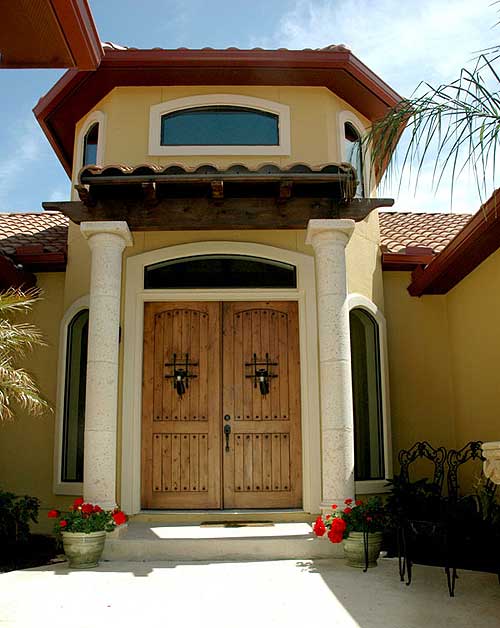

  • A beautiful front courtyard and huge interior rotunda add excitement to this Mediterranean home plan. A covered porch (39 square feet) off the front courtyard greets friends and guests alike. Inside, you'll enjoy having 10' ceilings.
  • The great room with fireplace is vaulted, making it seem even larger.
  • Use the den as a formal dining room or study if you wish.
  • The spacious kitchen boasts a huge island and a walk-in pantry with a bayed eating area close by.
  • All the bedrooms are on the right wing of this delightful home plan.
  • The master suite enjoys a tray ceiling and two big walk-in closets.

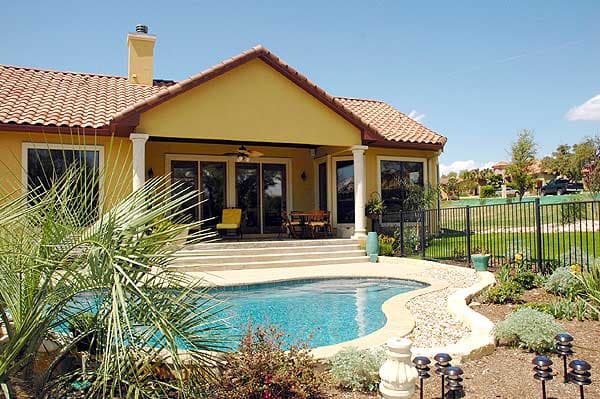

  • The covered patio in back is a great place for an outdoor living room.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
What's Included

  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exciting Mediterranean Home Plan

  • 2,223

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

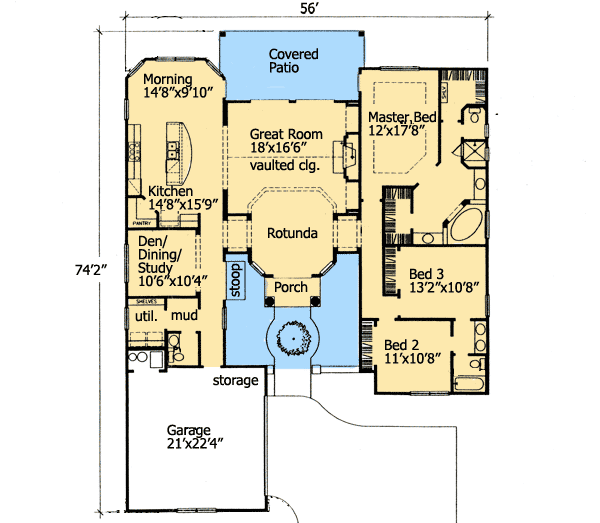

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,223 sq. ft.
  • 1st Floor: 2,223 sq. ft.

Dimensions

  • Width: 56' 0"
  • Depth: 74' 2"
  • Max ridge height: 22' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 510 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick
