Plan 430025LY

Exciting Mediterranean House Plan with Upper Terrace Deck

Heated S.F.
3,197
Beds
3
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 430025LY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 430025LY

M-F 9am-5pm EST |

1-203-761-8500

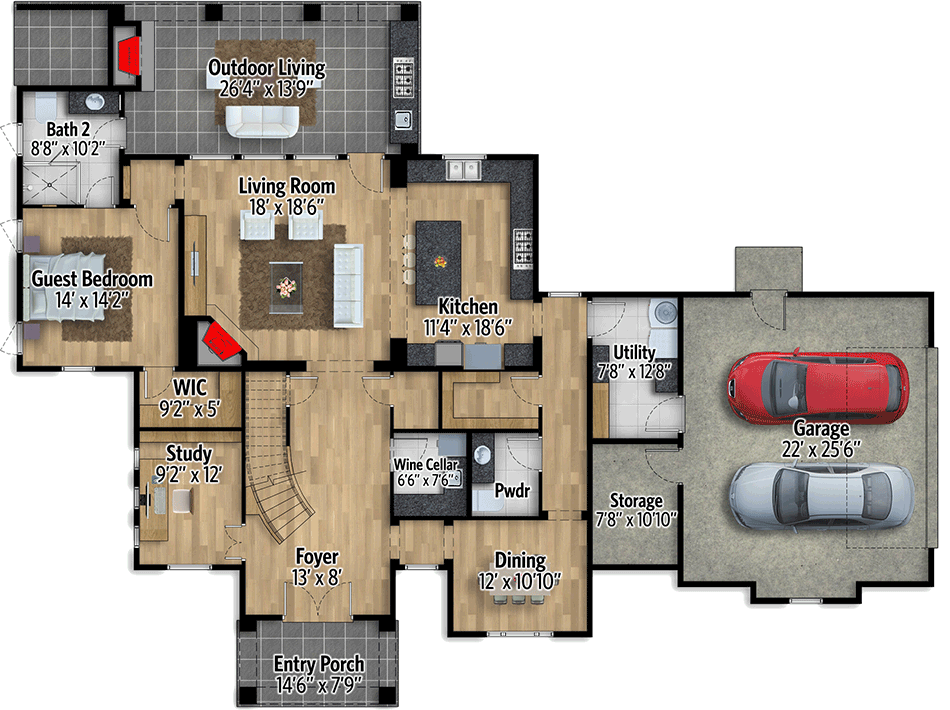

Main Level

Plan 430025LY: Exciting Mediterranean House Plan with Upper Terrace Deck - Floor Plan - Main Level - Florida-Style, Mediterranean

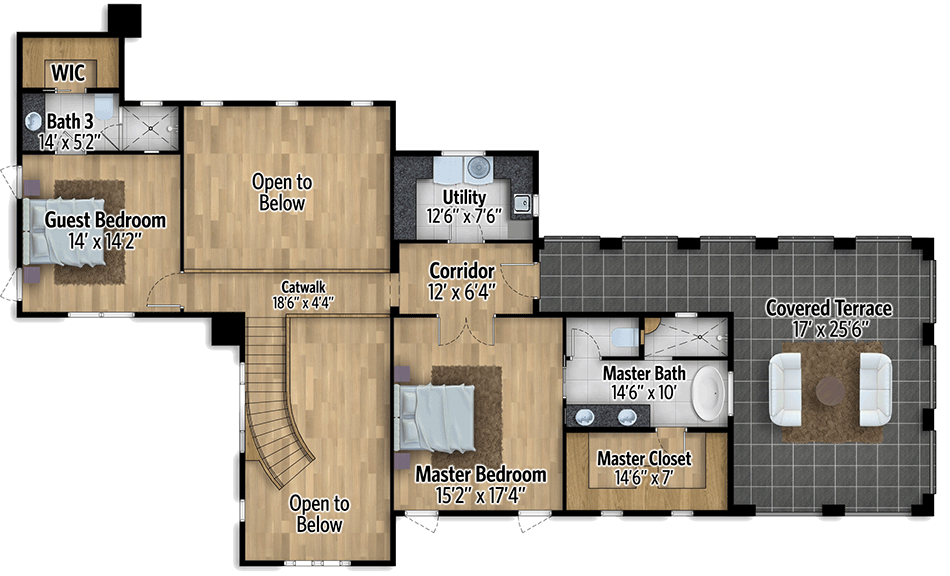

2nd Floor

Plan 430025LY: Exciting Mediterranean House Plan with Upper Terrace Deck - Floor Plan - 2nd Floor - Florida-Style, Mediterranean

Plan Details

  • This exciting Mediterranean house plan boasts lots of outdoor living space up and down.
  • An open floor plan, wine cellar and quiet study with built-ins are just some of the amentities that await your family.
  • There's even a laundry room on each floor for the ultimate in convenience.
  • The main floor guest suite features a big walk-in closet and attached bathroom.
  • The home comes with plenty of storage spaces including an outdoor storage room off the garage.
  • A catwalk separates the second floor bedroom from the deluxe master suite, where you are just steps away from a gorgeous covered terrace.

What's Included

  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan

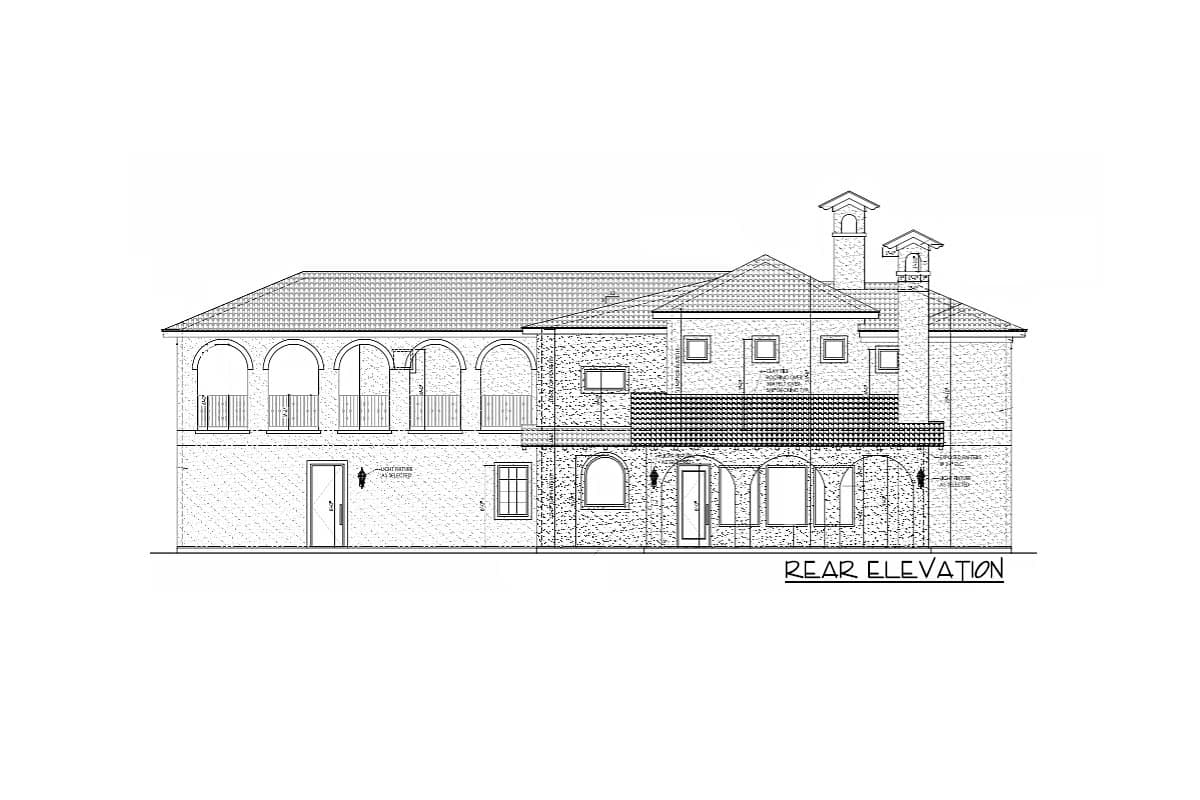

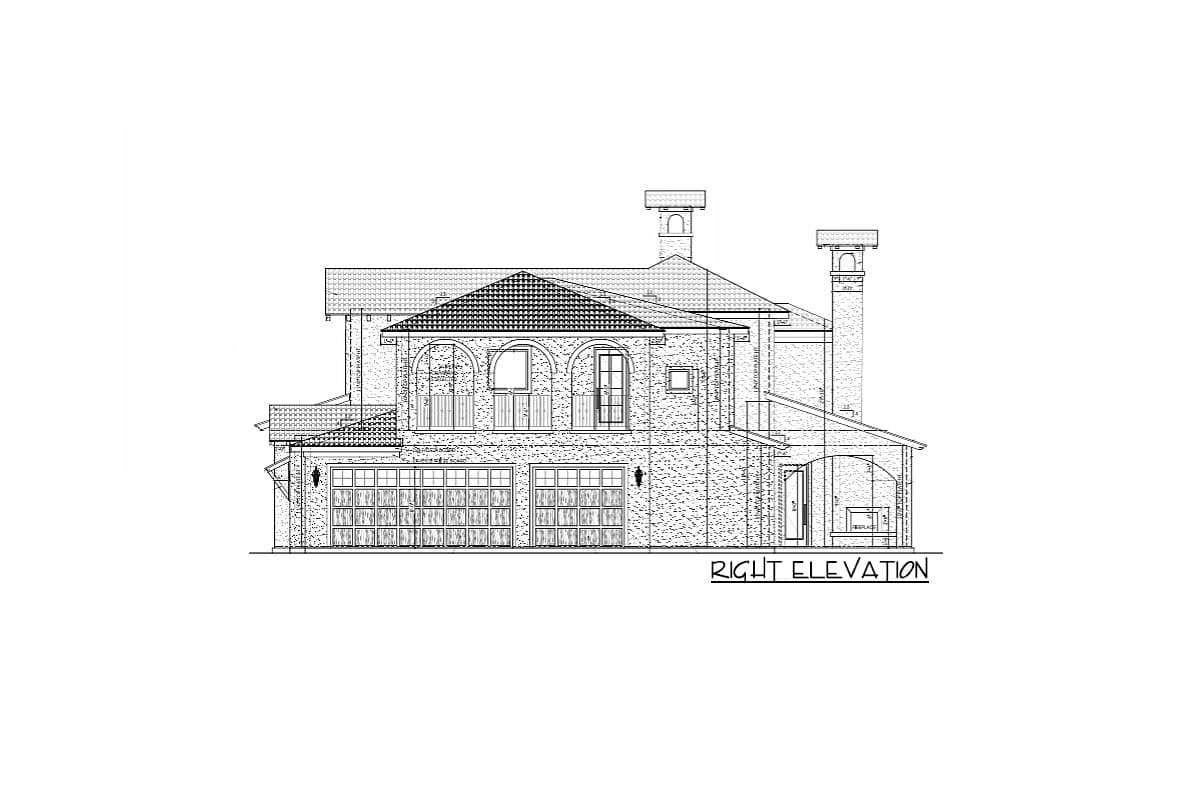

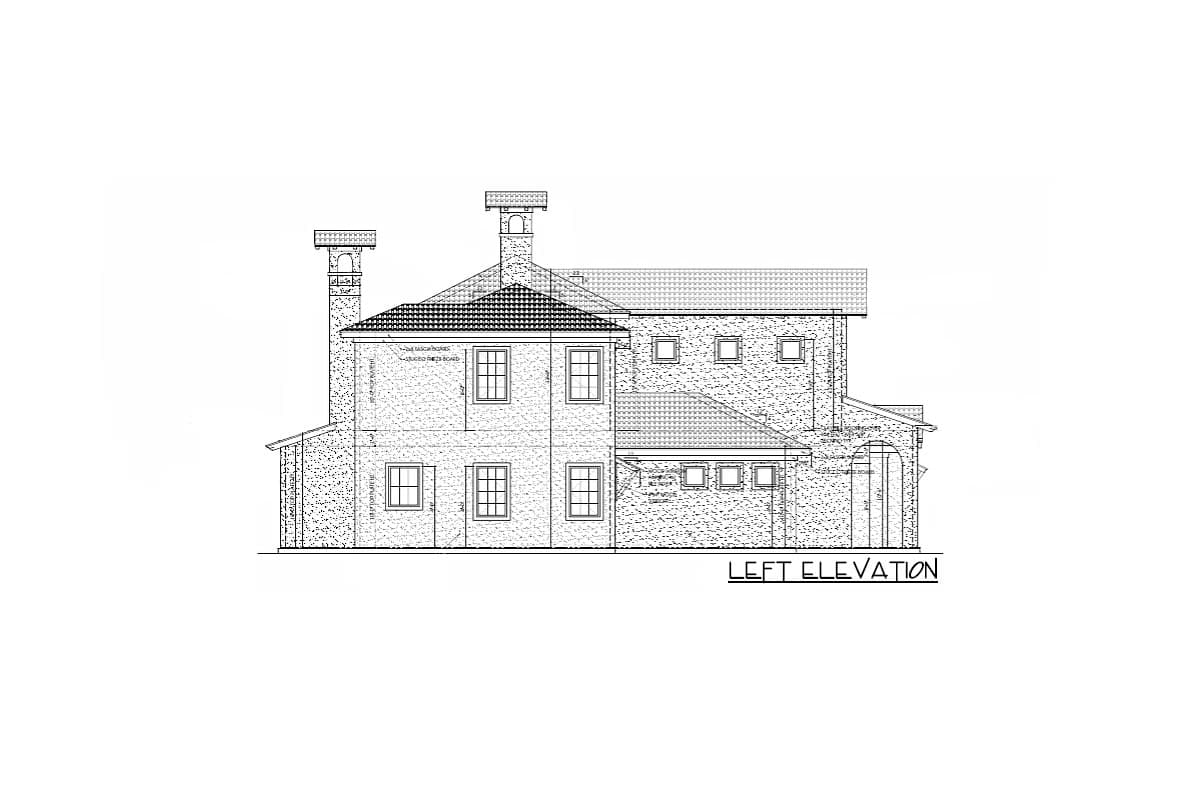

  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,197 sq. ft.

1st Floor

1,994 sq. ft.

2nd Floor

1,203 sq. ft.

Porch, Front

112 sq. ft.

Porch, Rear

362 sq. ft.

Deck

567 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 4"

Depth

62' 10"

Garage

Type

Attached

Area

877 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Living Room

23' 6''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

5 on 12

Framing Type

Stick And Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Library/Study

Master Suite - Sitting Area

Master Suite - Upstairs

Two Story Great Room

Square Footage Breakdown

Total Heated Area

3,197 sq. ft.

1st Floor

1,994 sq. ft.

2nd Floor

1,203 sq. ft.

Porch, Front

112 sq. ft.

Porch, Rear

362 sq. ft.

Deck

567 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 4"

Depth

62' 10"

Garage

Type

Attached

Area

877 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Living Room

23' 6''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

5 on 12

Framing Type

Stick And Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Library/Study

Master Suite - Sitting Area

Master Suite - Upstairs

Two Story Great Room
