Plan 80787PM

Exciting Modern House Plan

Heated S.F.
1,720
Beds
2 - 3
Baths
1 - 2
Stories
2
Cars
1

Floor Plan

Plan 80787PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 80787PM

M-F 9am-5pm EST |

1-203-761-8500

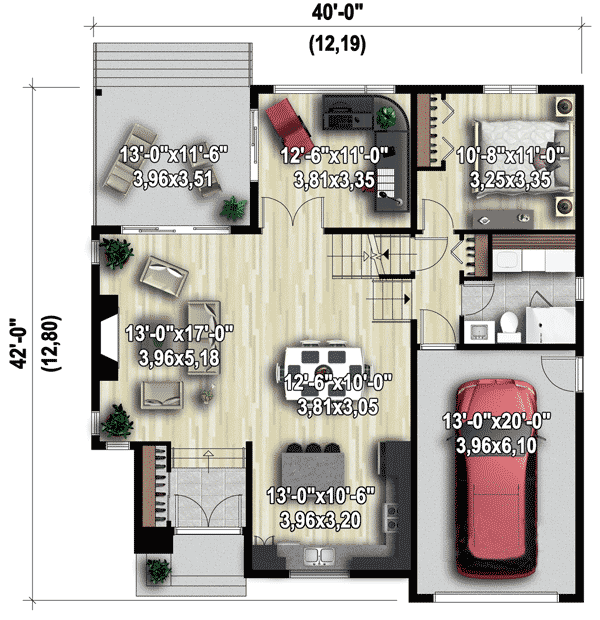

Main Level

Plan 80787PM: Exciting Modern House Plan - Floor Plan - Main Level - Contemporary, Modern

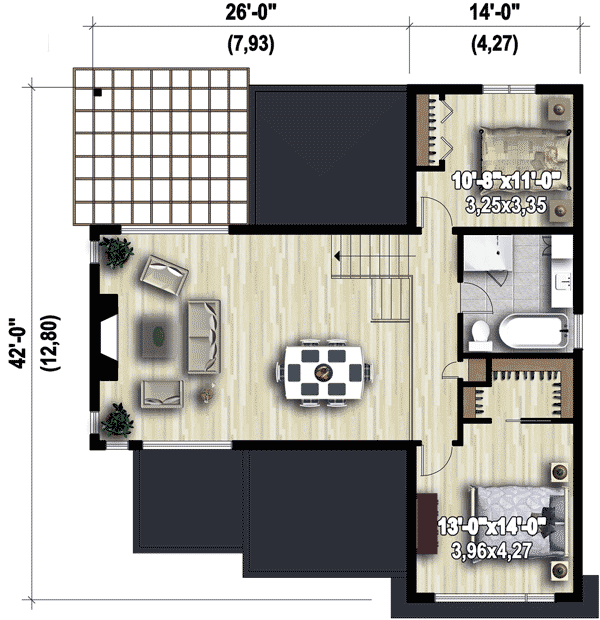

2nd Floor

Plan 80787PM: Exciting Modern House Plan - Floor Plan - 2nd Floor - Contemporary, Modern

Plan Details

  • This Modern house plan gives you multi-level excitement with terrific curb appeal.
  • The sunken foyer is just two steps down from the main living area where you have a wonderful open floor plan and great sightlines.
  • Sliding glass doors in the living room and study take you out to a covered patio.
  • Four steps down brings you to the garage level with a bedroom and combination bathroom/laundry room.
  • Two additional bedrooms are on the upper floor where an open rail hallway lets you see down into the living and dining room below.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,720 sq. ft.

1st Floor

1,132 sq. ft.

2nd Floor

588 sq. ft.

Porch, Rear

150 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

42' 0"

Max Ridge Height

23' 2"

Garage

Type

Attached

Area

278 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Library/Study

Master Suite - 1st Floor

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,720 sq. ft.

1st Floor

1,132 sq. ft.

2nd Floor

588 sq. ft.

Porch, Rear

150 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

42' 0"

Max Ridge Height

23' 2"

Garage

Type

Attached

Area

278 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Library/Study

Master Suite - 1st Floor

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric
