Exclusive Contemporary House Plan with Optional Walkout Basement and Sky Office

Plan 93169EL

  • 4,686

    Heated s.f.

  • 4-5

    Beds

  • 5.5 - 6.5

    Baths

  • 3

    Stories

  • 3

    Cars

  • Stucco and ornate wood details adorn the facade of this Contemporary house plan that is exclusive to Architectural Designs.
  • The courtyard entry welcomes you inside where you'll find a great room with a decorative ceiling treatment that flows into the island kitchen. An accordion-style door seamlessly connects the adjoining dining room with the lanai.
  • A scullery next to the kitchen increases workspace and provides a secondary sink, while a pocket door reveals the mudroom with access to the 3-car garage.
  • The owner's suite is conveniently located on the main level, and the remaining bedrooms can be found upstairs, along with rec and laundry rooms.
  • Other notable features include a sky office with half bath on the third level, and an optional basement with theater seating in the media room, a guest suite, and wet bar.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

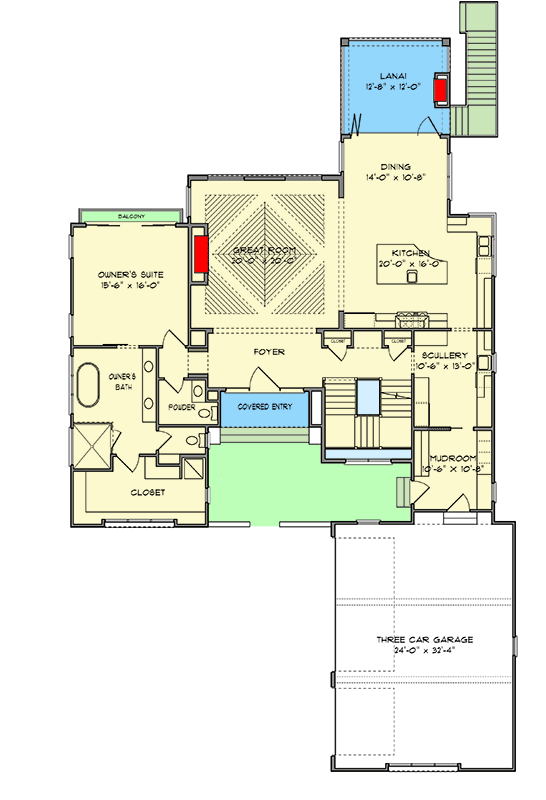

Exclusive Contemporary House Plan with Optional Walkout Basement and Sky Office - 93169EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

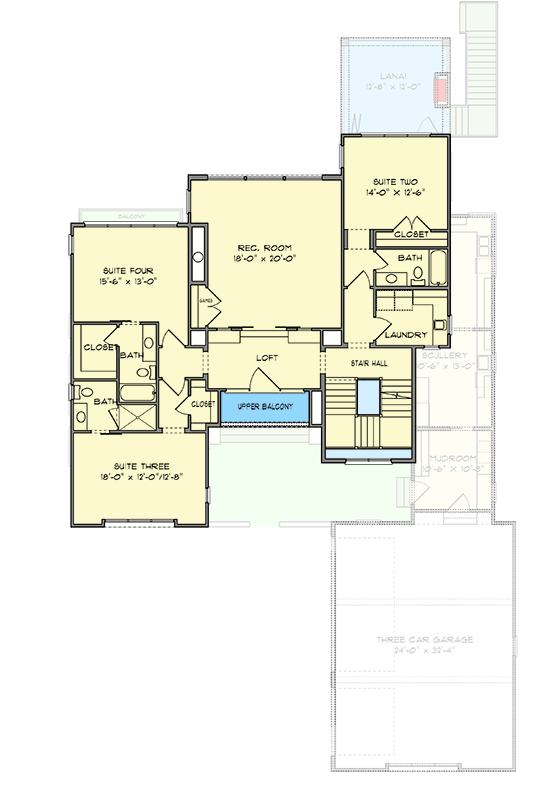

Exclusive Contemporary House Plan with Optional Walkout Basement and Sky Office - 93169EL floor plan - 2nd Floor

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Contemporary House Plan with Optional Walkout Basement and Sky Office - 93169EL floor plan - 3rd Floor

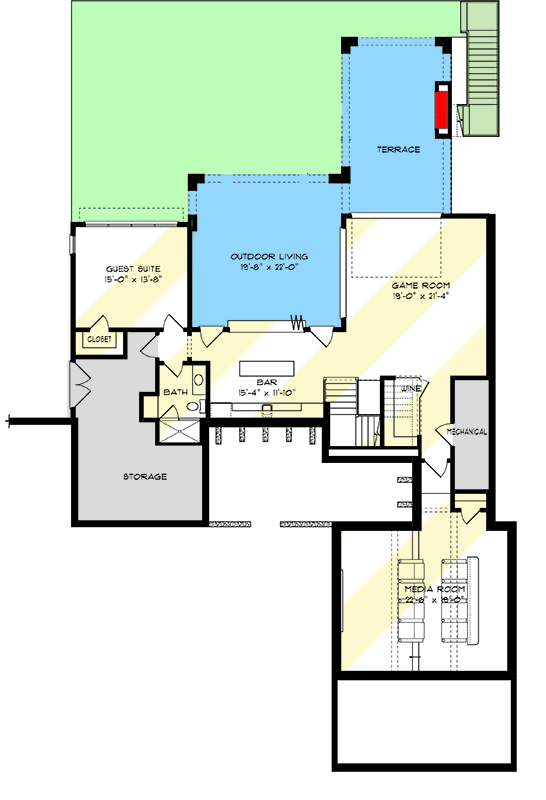

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Contemporary House Plan with Optional Walkout Basement and Sky Office - 93169EL floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,686 sq. ft.
  • 1st Floor: 2,250 sq. ft.
  • 2nd Floor: 1,950 sq. ft.
  • 3rd Floor: 486 sq. ft.
  • Deck: 50 sq. ft.
  • Porch, Rear: 190 sq. ft.
  • Porch, Front: 50 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 5 or 6
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 2"
  • Depth: 99' 3"
  • Max ridge height: 34' 6"

Garage

  • Type: Attached
  • Area: 848 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Exclusive Contemporary House Plan with Optional Walkout Basement and Sky Office

  • 4,686

    Heated s.f.

  • 4-5

    Beds

  • 5.5 - 6.5

    Baths

  • 3

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,495
  • CAD+PDF - Single-Build $3,280
  • PDF - Unlimited Build $3,345
  • CAD - Unlimited Build $4,130
  • View all purchase option online

About This Plan

  • Stucco and ornate wood details adorn the facade of this Contemporary house plan that is exclusive to Architectural Designs.
  • The courtyard entry welcomes you inside where you'll find a great room with a decorative ceiling treatment that flows into the island kitchen. An accordion-style door seamlessly connects the adjoining dining room with the lanai.
  • A scullery next to the kitchen increases workspace and provides a secondary sink, while a pocket door reveals the mudroom with access to the 3-car garage.
  • The owner's suite is conveniently located on the main level, and the remaining bedrooms can be found upstairs, along with rec and laundry rooms.
  • Other notable features include a sky office with half bath on the third level, and an optional basement with theater seating in the media room, a guest suite, and wet bar.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.
