Exclusive Mountain Ranch House Plan with Home Office and Covered Deck

Plan 64510SC

  • 2,887

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Rich in texture, this Mountain Ranch house plan showcases stone accents on the front elevation. A front porch welcomes you inside, where a generous entry sets the stage for the other sizable living spaces.
  • The living room is decorated by an elegant ceiling and fireplace, and flows into the open kitchen. The large kitchen island serves as a natural gathering spot when entertaining, and sliding doors off the dining area guide you to a covered deck ideal for BBQs.
  • The master bedroom's location keeps privacy in mind, and the ensuite features 5 fixtures and a roomy walk-in closet that connects to the laundry room.
  • A home office and second bedroom reside on the opposite side of the main floor.
  • Downstairs, utilize the recreation room for billiards, a home theater, or a game room. Two bedrooms suites sit on either side of the lower level, and plenty of storage is a must-have for the modern family.

This plan includes the following details:

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

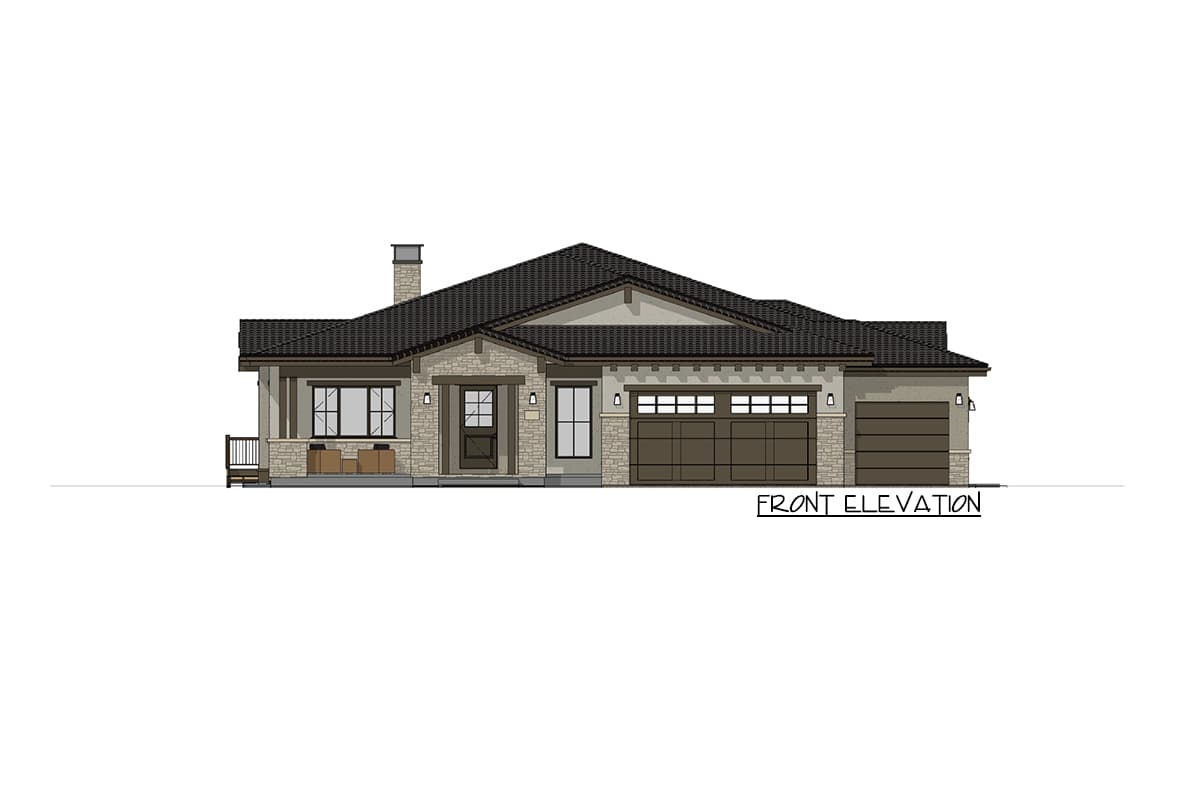

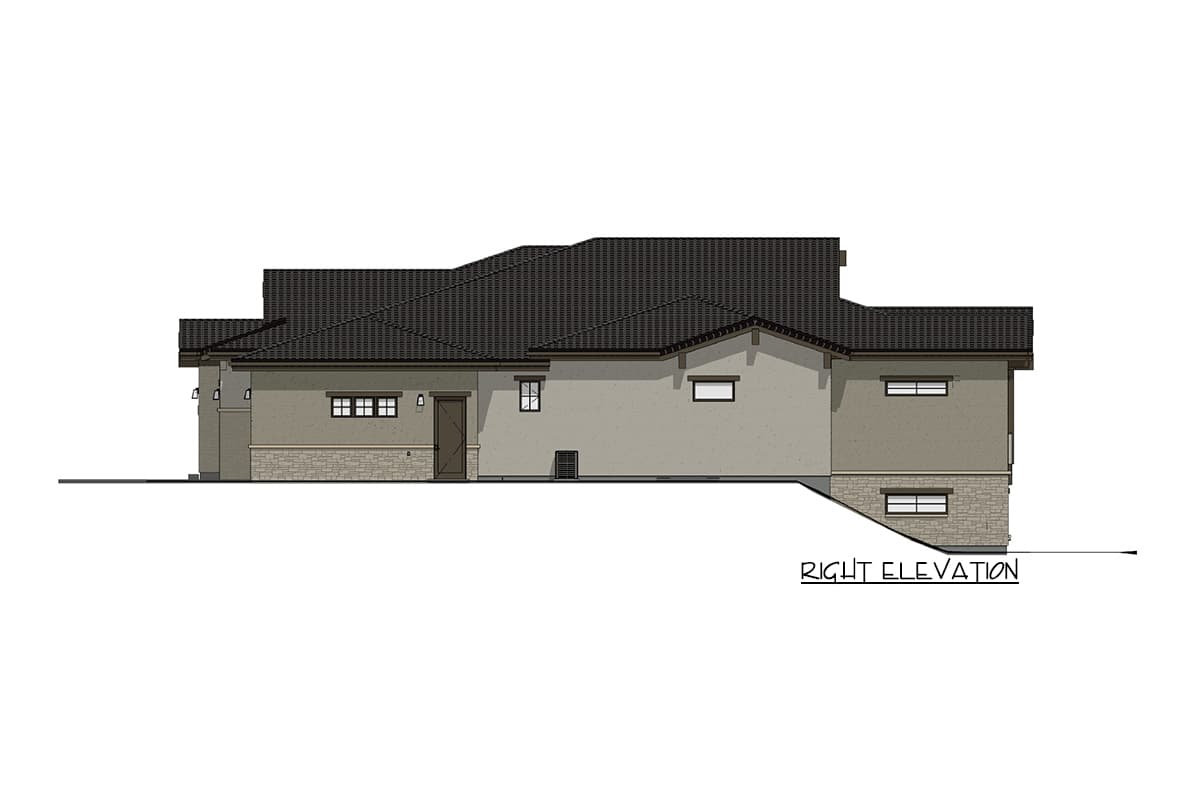

  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

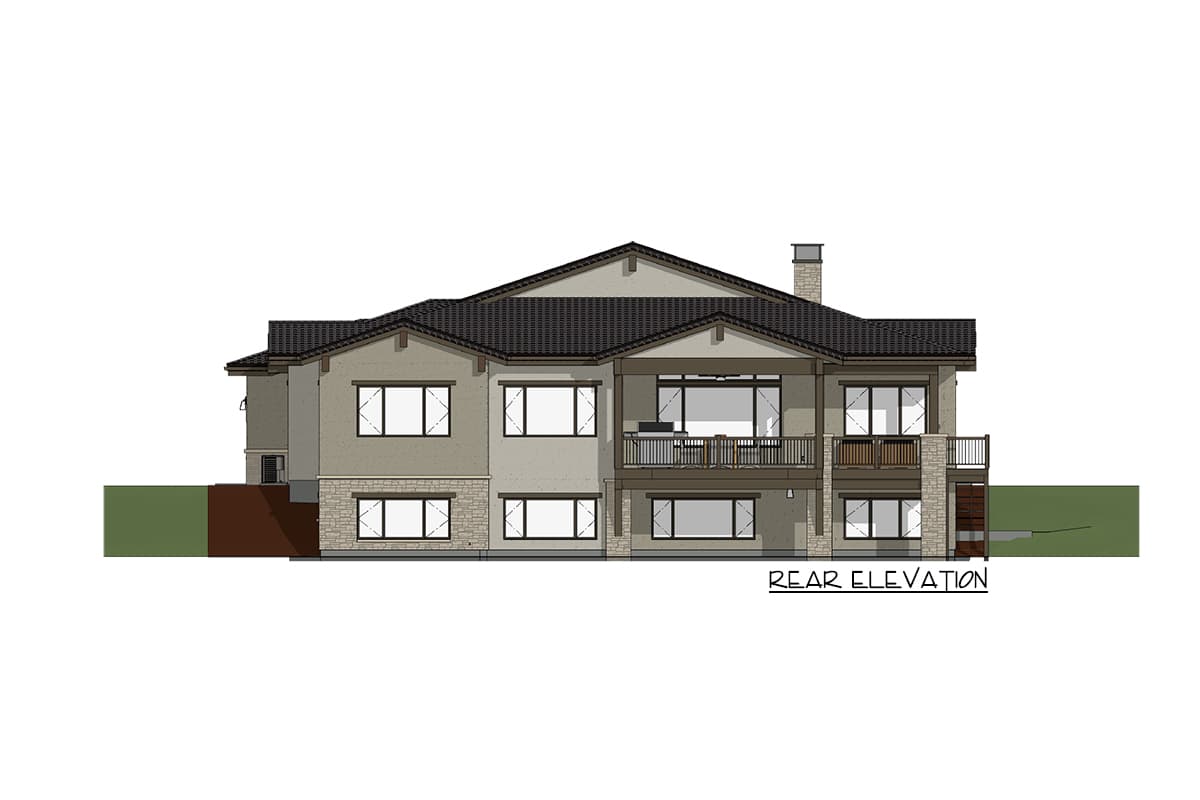

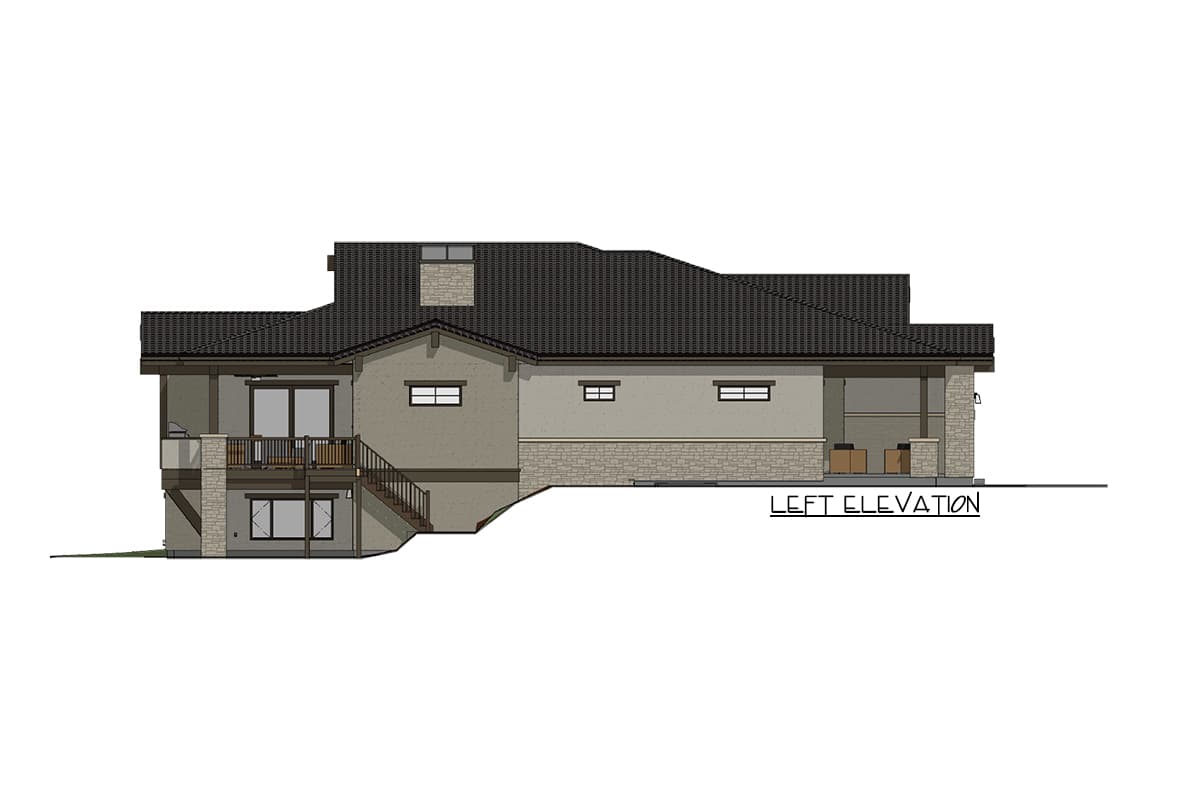

  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

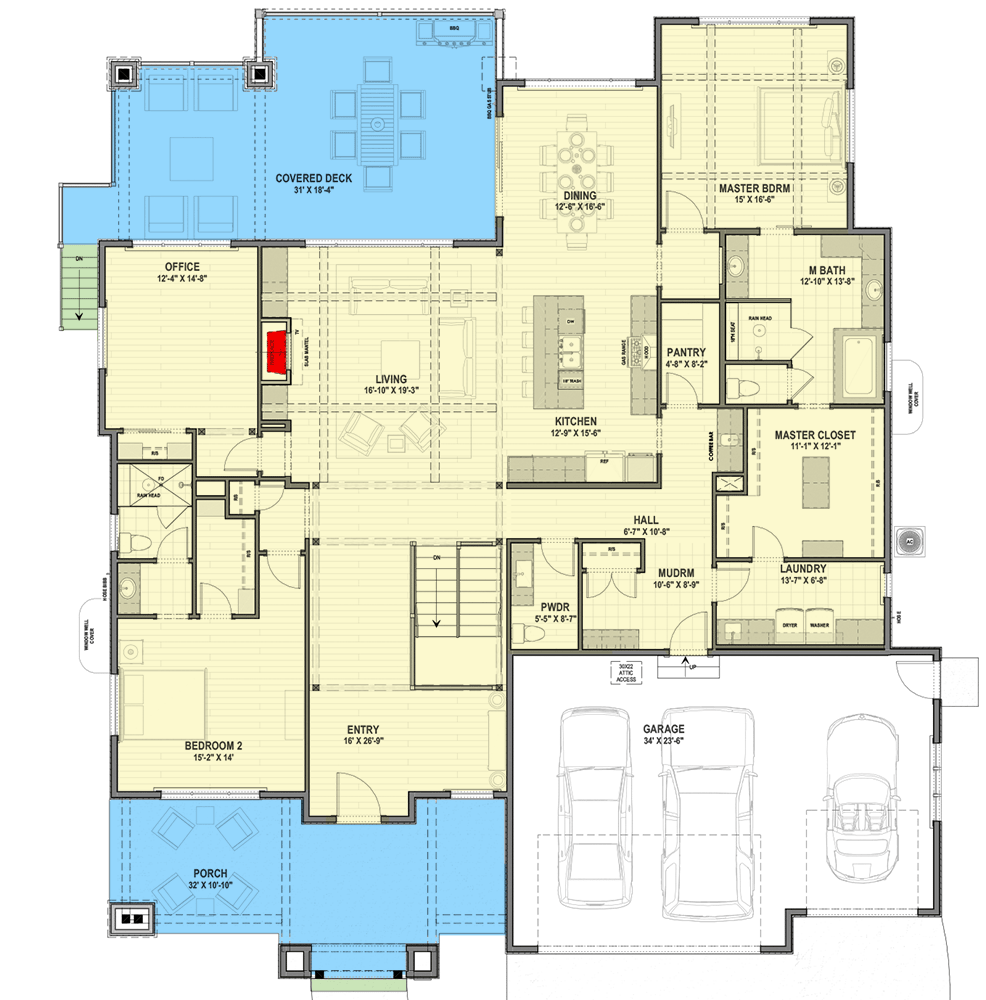

Exclusive Mountain Ranch House Plan with Home Office and Covered Deck - 64510SC floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

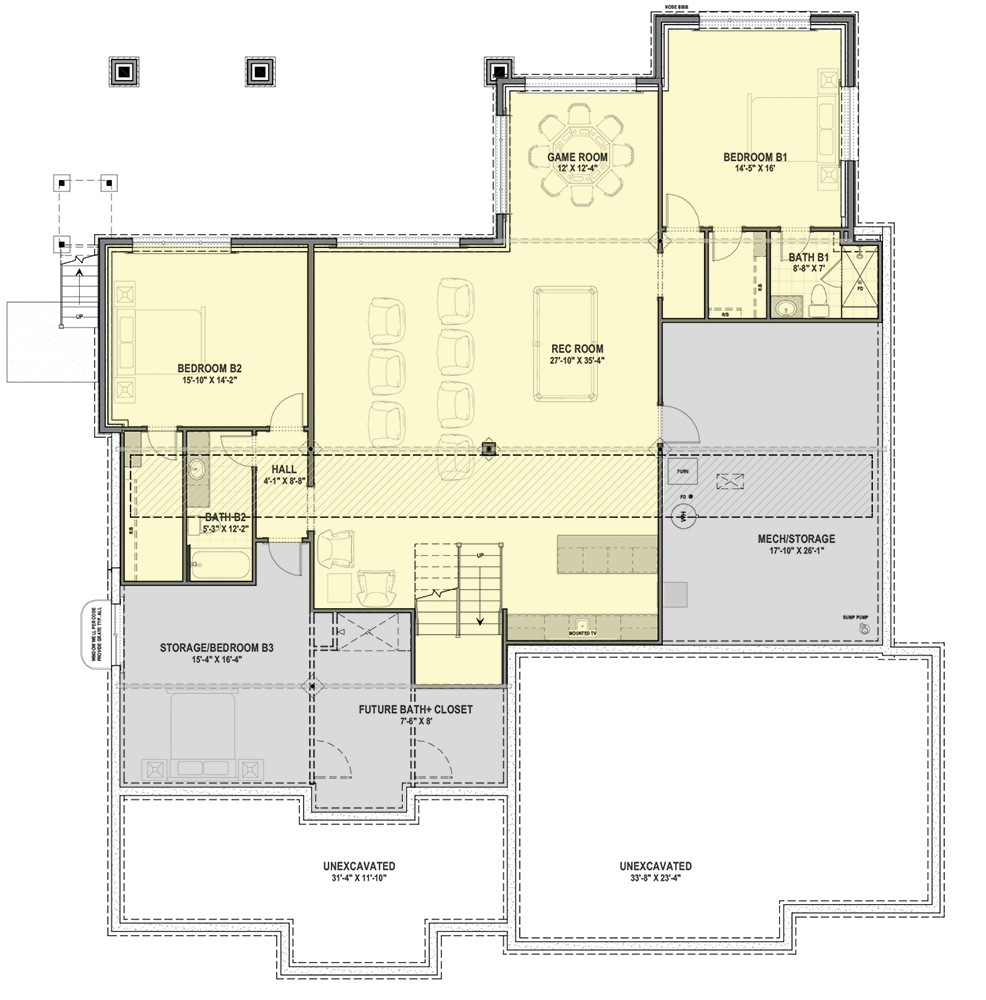

Exclusive Mountain Ranch House Plan with Home Office and Covered Deck - 64510SC floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,887 sq. ft.
  • 1st Floor: 2,887 sq. ft.
  • Optional Lower Level: 1,982 sq. ft.
  • Basement Unfinished: 996 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 68' 0"
  • Depth: 78' 0"
  • Max ridge height: 21' 10"

Garage

  • Type: Attached
  • Area: 802 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Architectural Style

Special features

Plan Collections

Exclusive Mountain Ranch House Plan with Home Office and Covered Deck

  • 2,887

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • PDF - Unlimited Build $1,595
  • CAD + PDF - Single-Build $1,795
  • CAD + PDF - Unlimited Build $2,295
  • View all purchase option online

About This Plan

  • Rich in texture, this Mountain Ranch house plan showcases stone accents on the front elevation. A front porch welcomes you inside, where a generous entry sets the stage for the other sizable living spaces.
  • The living room is decorated by an elegant ceiling and fireplace, and flows into the open kitchen. The large kitchen island serves as a natural gathering spot when entertaining, and sliding doors off the dining area guide you to a covered deck ideal for BBQs.
  • The master bedroom's location keeps privacy in mind, and the ensuite features 5 fixtures and a roomy walk-in closet that connects to the laundry room.
  • A home office and second bedroom reside on the opposite side of the main floor.
  • Downstairs, utilize the recreation room for billiards, a home theater, or a game room. Two bedrooms suites sit on either side of the lower level, and plenty of storage is a must-have for the modern family.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,887 sq. ft.
  • 1st Floor: 2,887 sq. ft.
  • Optional Lower Level: 1,982 sq. ft.
  • Basement Unfinished: 996 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 68' 0"
  • Depth: 78' 0"
  • Max ridge height: 21' 10"

Garage

  • Type: Attached
  • Area: 802 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front
