Plan 93140EL Exclusive Tudor Home Plan with Exposed Beams in Living / Dining Area and Large Veranda

3,919 4 4.5+ 2 2-3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exclusive Tudor Home Plan with Exposed Beams in Living / Dining Area and Large Veranda

Plan 93140EL

  • 3,919

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 2-3

    Cars

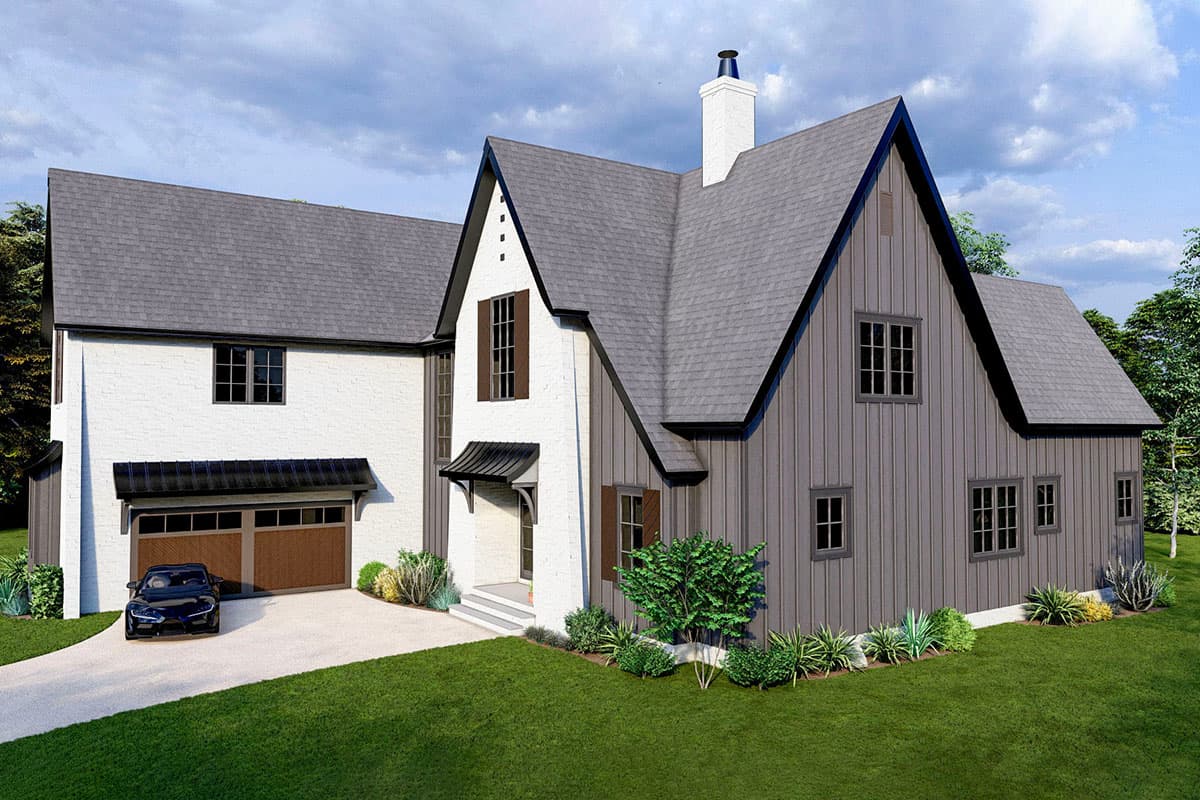

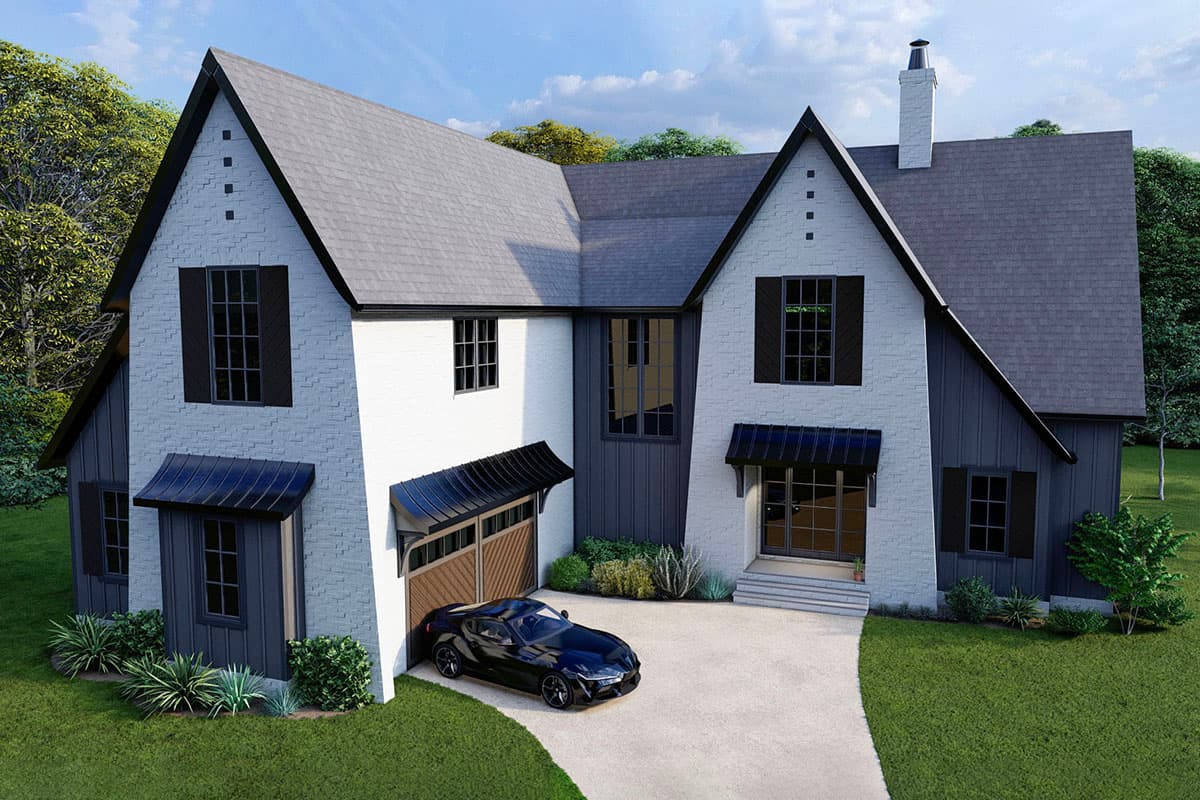

  • This exclusive Tudor home plan presents a fairytale appeal with its steeply-pitched gables, subtle angles, and stone accents.
  • Large windows line the rear wall of the living / dining room, topped by exposed beams and anchored by a fireplace. A wine room tucked beneath the stairwell is perfect for entertaining.
  • The island kitchen features a large range and scullery with a veggie sink, while glass doors retract to extend the living space onto the veranda.
  • The owner's suite is accompanied by a 5-fixture bathroom with a separate tub and shower and a large wardrobe with a dresser island.
  • Three bedroom suites reside upstairs, along with a flex room and bonus area (included in the total square footage) with a wet bar above the garage.
  • Related Plans: Get alternate exteriors with house plans 93145EL and 93142EL.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

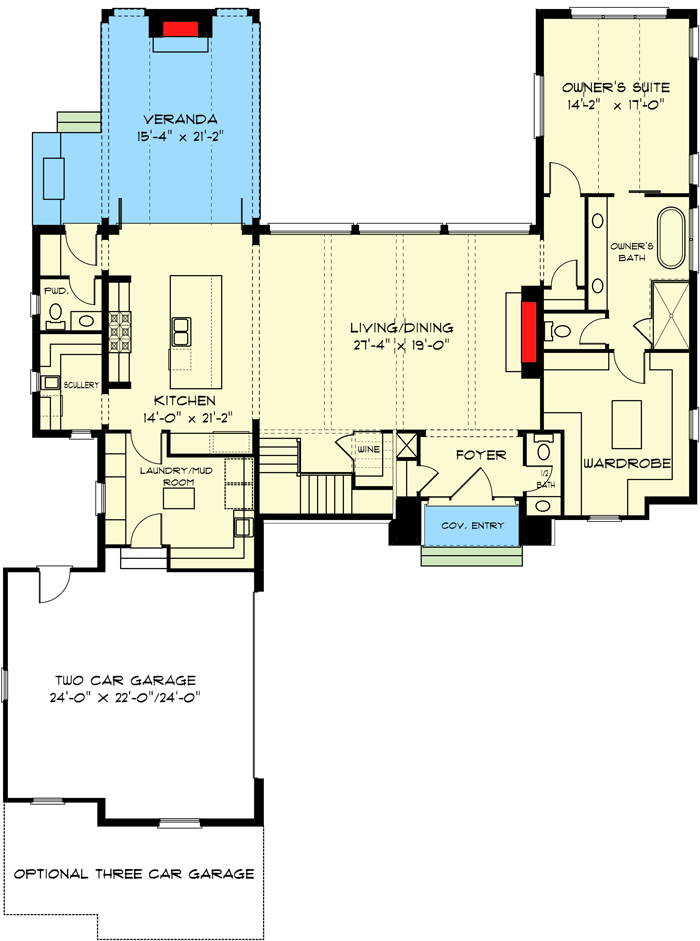

Exclusive Tudor Home Plan with Exposed Beams in Living / Dining Area and Large Veranda - 93140EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

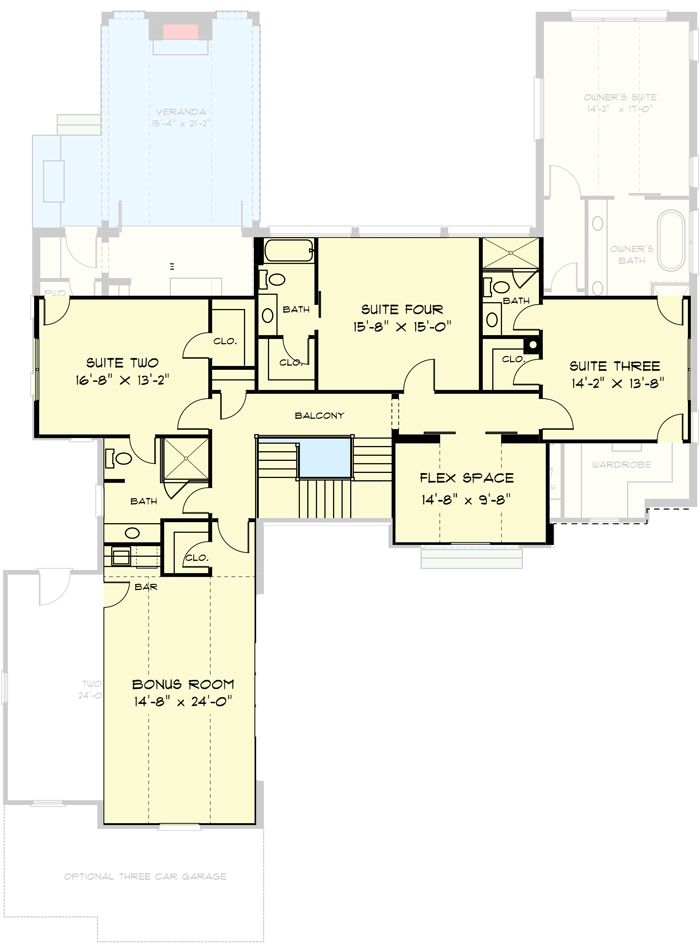

Exclusive Tudor Home Plan with Exposed Beams in Living / Dining Area and Large Veranda - 93140EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,919 sq. ft.
  • 1st Floor: 2,097 sq. ft.
  • 2nd Floor: 1,822 sq. ft.
  • Porch, Rear: 322 sq. ft.
  • Porch, Front: 66 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 2"
  • Depth: 80' 10"
  • Max ridge height: 32' 4"

Garage

  • Type: Attached
  • Area: 642 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Exclusive Tudor Home Plan with Exposed Beams in Living / Dining Area and Large Veranda

  • 3,919

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 2 - 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,100
  • CAD+PDF - Single-Build $2,300
  • PDF - Unlimited Build $2,950
  • CAD - Unlimited Build $3,150
  • View all purchase option online

About This Plan

  • This exclusive Tudor home plan presents a fairytale appeal with its steeply-pitched gables, subtle angles, and stone accents.
  • Large windows line the rear wall of the living / dining room, topped by exposed beams and anchored by a fireplace. A wine room tucked beneath the stairwell is perfect for entertaining.
  • The island kitchen features a large range and scullery with a veggie sink, while glass doors retract to extend the living space onto the veranda.
  • The owner's suite is accompanied by a 5-fixture bathroom with a separate tub and shower and a large wardrobe with a dresser island.
  • Three bedroom suites reside upstairs, along with a flex room and bonus area (included in the total square footage) with a wet bar above the garage.
  • Related Plans: Get alternate exteriors with house plans 93145EL and 93142EL.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,919 sq. ft.
  • 1st Floor: 2,097 sq. ft.
  • 2nd Floor: 1,822 sq. ft.
  • Porch, Rear: 322 sq. ft.
  • Porch, Front: 66 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 2"
  • Depth: 80' 10"
  • Max ridge height: 32' 4"

Garage

  • Type: Attached
  • Area: 642 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Plan 93140EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/93140EL
|
Need Help? 800-854-7852
|
Plan 93140EL
